FCC Statement This equipment has been tested and found to comply with limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment can generates, uses, and radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio Communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause unacceptable interference to radio and television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures. Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced Radio/TV technician for help. PRODUCT NAME : 17" TFT LCD MODEL NUMBER :NV721C LCD POWER12VDC/5.0AMAX ADAPTER POWER100V-240VAC 47-63Hz 1.0AMAX FCC RULES : TESTED TO COMPLY WITH FCC PART 15, CLASS B OPERATING ENVIRONMENT : FOR HOME OR OFFICE USE FCC COMPLIANCE STATEMENT : This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions : (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CAUTION: Changes or modifications not expressly approved by the manufacturer responsible for compliance could void the user’s authority to operate the equipment.

VGA CABLE INPUT PANEL POWER INVERTER NV721C BLOCK DIAGRAM VGA RED VGA GREEN VGA BULE VGA_HCLK U1 GM2120 VGA_HFSE U17 74HC14 U16 24A02 VGA_VS VGA_SDA/SCL VGA_HS VSYNC HSYNC U8 U12 U14 5V TO3.3V U13 5V TO 2.5V U10 12V TO 5V CN3 ENABLE BRI U4 W3QF010P U3 24C16 RMADDR(0,15) RMDATA(0,7) 5V TO3.3V 5V TO 2.5V 12V TO 5V SCL LVDS EN U5 SN75LV DS83 U6 SN75LV DS83 GB07 BB07 CLK DE HS/VS RA 07 GA07 BA07 RXO IN+0-3 RXOCK IN- RXO IN-0-3 RXO CKIN+ RXE IN- 0-3 RXE IN+0-3 RXE CKIN+ RXE CKIN-

From: emily_fan [[email protected]] Sent: Wednesday, April 09, 2003 3:57 AM To: Mike Kuo Cc: Helen; Helen Subject: Re: FW: CHINA GREAT-WALL COMPUTER SHENZHEN CO.,LTD., FCC ID:KXYNV721C, AN03T2763 Hello Mike, The reply to question#1: Instrument settings(conducted emission test and radiated emission test)agree with CISPR16-1(please refer to page19 of test report). More information, Conducted emission test: RBW:9KHz,VBW:30KHz.ATN:10dB. Radiated emission test: RBW:100KHz,VBW:300KHz,ATN:20dB. The reply to question#2: Yes,A ferrite core is used on the power adaptor by the manufacturer of the adaptor. The ferrite core used on the video cable is to settle the problem of Out-going Reliability Test. It is not available to EMC. Is the non-EMC information to be included in the test report? I am not sure. thank you. Best Regards! Emily 09/04/03 ======= 2003-04-08 18:22:00 ÄúÔÚÀ ́ÐÅÖÐÐ ́μÀ£º======= >-----Original Message----- >From: CERTADM >Sent: Tuesday, April 08, 2003 5:24 PM >To: '[email protected]' >Subject: CHINA GREAT-WALL COMPUTER SHENZHEN CO.,LTD., FCC ID:KXYNV721C, >AN03T2763 > > >Notice_content > ------------- >Second Notice: > >For your Information: when reply to TCB questions, please include the >original questions in your reply and address each question. Without >addressing each question in term will delay the review process. > >Question #1: What is the RBW and VBW used during AC line conducted emission >tests and Radiated emission tests ? Please include such information in the >test report for future submission. > >Question #2: Is Ferrite Core used on DC line of AC/DC power adapter ? Is >there a ferrite core used on the video cable at PC connector end ? Please >include all special accessories used on the EUT in the future test report. > >Best Regards > >Mike Kuo >The items indicated above must be submitted before processing can continue >on the above referenced application. Failure to provide the requested >information within 60 days of the original e-mail date may result in >application dismissal and forfeiture of the filing fee. Also, please note >that partial responses increase processing time and should not be submitted. >Any questions about the content of this correspondence should be directed to >the e-mail address listed below the name of the sender. = = = = = = = = = = = = = = = = = = = = From: Mike Kuo Sent: Thursday, April 03, 2003 1:03 PM To: Helen Zhao Subject: FW: CHINA GREAT-WALL COMPUTER SHENZHEN CO.,LTD., FCC ID:KXYNV721C, AN03T2763 Hi Helen: There is no e-mail address provided by CCS Shenzhen facilities, please forward TCB questions to CCS Shenzhen. Thanks Mike Kuo -----Original Message----- From: CERTADM Sent: Thursday, April 03, 2003 1:01 PM To: '[email protected]' Subject: CHINA GREAT-WALL COMPUTER SHENZHEN CO.,LTD., FCC ID:KXYNV721C, AN03T2763 Notice_content ------------- Question #1: User manual does not contain information required under section 15.21 of FCC rules. Please provide revised user manual. Question #2: Modifications were made on the product during final compliance tests. Please provide a modification report by listing the description of modification and signed by the applicant to acknowledge the modifications. Question #3: Please provide internal photos of AC adaptor. Question #4: Page 7 of test report indicated there are two types of screen ( LCD panel ? ) will be used. The test report does not indicate that both of LCD panels were investigated. Please explain or provide additional test data for the second LCD panel. Best Regards Mike Kuo The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 60 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

The Resolvent of EMC NV721C We,China greatwall computer co.,ltd , announce that we use these method to settle the EMC problems: 1. we use a iron board to fix the panel and fix the circuit –board , 2. we use a iron cover to mantle the circuit-board, 3. we use some aluminum foil to adhibit and fix the panel drive- wire on the iron board. China great-wall computer co.,ltd Liuqian 2003/4/4 S&E engineer

Front view of EUT Back view of EUT Left view of EUT

Internal view for LCD monitor Internal view for AC adaptor

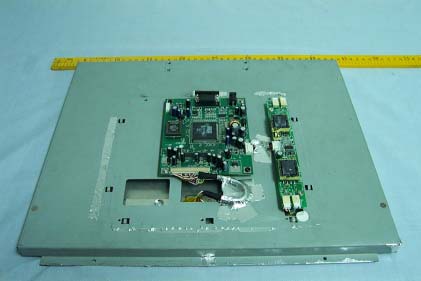

Internal view for LCD monitor

Report Number: SZ0303009 FCC ID: KXYNV721C March 26, 2003 LAB CODE:200577-0 FCC CLASS B COMPLIANCE REPORT for Electromagnetic Emissions of LCD MONITOR ID Number : KXYNV721C Trade Name : GREAT WALL Model Number : NV721C Serial Number : N/A Report Number : SZ0303009 Date : March 17~25, 2003 Prepared for : CHINA GREAT-WALL COMPUTER SHENZHEN CO., LTD. GREAT-WALL BLDG. SCIENCE & INDUSTRY PARK, SHENZHEN, CHINA Prepared by : COMPLIANCE ENGINEERING SERVICES (CHINA) d.b.a. COMPLIANCE ENGINEERING SERVICES (CHINA) NO. 6, JINAO INDUSTRIAL PARK, NO. 35 JUKENG ROAD, DASHUIKENG VILLAGE, GUANLAN TOWN, BAOAN DISTRICT, SHENZHEN, CHINA TEL: 86-755-28055000 FAX: 86-755-28055221 Page 1of 35 Rev. 00 Report Number: SZ0303009 FCC ID: KXYNV721C March 26, 2003 LAB CODE:200577-0 TABLE OF CONTENTS DESCRIPTION PAGE VERIFICATION OF COMPLIANCE 3 FCC ID 4 SPECIFICATION 5 SYSTEM DESCRIPTION 6 PRODUCT INFORMATION 7 SUPPORT EQUIPMENT 8 SECTION 1 EN 55022(LINE CONDUCTED & RADIATED EMISSION) 9 MEASUREMENT PROCEDURE & LIMIT (LINE CONDUCTED EMISSION TEST) 9 MEASUREMENT PROCEDURE & LIMIT (RADIATED EMISSION TEST) 11 SUMMARY DATA 15 TEST FACILITY 17 TEST EQUIPMENT LIST 19 BLOCK DIAGRAM OF TEST SETUP 20 APPENDIX 1 PHOTOGRAPHS (TEST SETUP OF LINE CONDUCTED EMISSION) 21 APPENDIX 2 PHOTOGRAPHS (TEST SETUP OF RADIATED EMISSION) 23 APPENDIX 3 PHOTOGRAPHS OF EUT 25 APPENDIX 4 SPECTRUM PLOT OF L1 AND L2(FINAL TEST) 34 Page 2 Rev. 00 Report Number: SZ0303009 FCC ID: KXYNV721C March 26, 2003 LAB CODE:200577-0 VERIFICATION OF COMPLIANCE Equipment Under Test: LCD MONITOR Trade Name: GREAT WALL Model Number: NV721C Serial Number: N/A Applicant: CHINA GREAT-WALL COMPUTER SHENZHEN CO., LTD. GREAT-WALL BLDG. SCIENCE & INDUSTRY PARK, SHENZHEN, CHINA Manufacturer: CHINA GREAT-WALL COMPUTER SHENZHEN CO., LTD. SHIYAN BRANCH, MONITOR DIVISION GREAT-WALL COMPUTER INDUSTRY PARK, BAOSHI EAST RD. SHIYAN COUNTRY, BAOAN, SHENZHEN, P.R. CHINA Type of Test: FCC Class B Measurement Procedure: ANSI C63.4: 2000 File Number: SZ0303009 Date of test: March 17~25,2003 Deviation: None Condition of Test Sample: Normal The above equipment was tested by Compliance Engineering Services (China) for compliance with the requirements set forth in the FCC Rules and Regulations Part 15, Subpart B and the measurement procedure according to ANSI C63.4. This said equipment in the configuration described in this report shows the maximum emission levels emanating from equipment are within the compliance requirements. The test results of this report relate only to the tested sample identified in this report. Tom Lai / Q.A. Manager Page 3 Rev. 00 Report Number: SZ0303009 FCC ID: KXYNV721C March 26, 2003 LAB CODE:200577-0 FCC ID LABEL Page 4 Rev. 00 Report Number: SZ0303009 FCC ID: KXYNV721C March 26, 2003 LAB CODE:200577-0 17" TFT LCD LCD POWER12VDC/5.0AMAX ADAPTOR POWER100V-240VAC 47-63Hz 1.0AMAX Supported Timing Page 5 Rev. 00 Report Number: SZ0303009 FCC ID: KXYNV721C March 26, 2003 LAB CODE:200577-0 SYSTEM DESCRIPTION EUT Test Program: 1. EMC test program was loaded and executed in Windows 2000 mode. 2. Data was sent to EUT filling the screen with upper case of “H” patterns. 3. Test program sequentially exercised printer and modem, then sent “H” patterns to them individually. 4. Repeat 2 to 3. Test program is self-repeating throughout the test. Page 6 Rev. 00 Report Number: SZ0303009 FCC ID: KXYNV721C March 26, 2003 LAB CODE:200577-0 PRODUCT INFORMATION Housing Type: Plastic EUT Power Rating: DC12V Power during Test: DC12V Power Cord Type: Unshielded, 1.8m Adaptor Model NO. CH-1205P OSC/Clock Frequencies: 14.318MHz I/O Port of EUT: I/O Port Type Q’TY Tested with 1) DC IN 1 1 2) VGA 1 1 Difference between model numbers as below: Model Number Trade Name 1. NV721C KDS 2. NV721C HANSOL 3. NV721C WESCOM 4. NV721C DAEWOO 5. NV721C MARVIN 6. NV721C VERSUS 7. NV721C DAYTEK 8. NV721C iiyama 9. NV721C e-life Note: The trade names(list on this report) are different, (Please refer list as above) just for marketing only. There are two types of LCD panel(SAMSUNG and AU); The pre-tests have passed, And the sample(LCD panel---SAMSUNG) was the worse one. It was the final-test sample, The report based on its final-test data. Page 7 Rev. 00 Report Number: SZ0303009 FCC ID: KXYNV721C March 26, 2003 LAB CODE:200577-0 SUPPORT EQUIPMENT No. Equipment Model # Serial # FCC ID Trade Name Data Cable Power Cord 1. PC PC4 N/A DoC N/A N/A Unshielded 1.8m 2. PRINTER P310B C41344000NK 02520275 DoC EPSON Shielded 1.5m Shielded 1.8m 3. KEYBOARD KB-9970 1D35101526BDoC HP Unshielded 1.8m N/A 4. MOUSE MUS9JN 298792-001 DoC COMPAQ Unshielded 1.8m N/A 5. MODEM SUPERFAX6.0 9013593 DoC ACCEX Shielded 1.8m Unshielded 1.8m Note: All the above equipment/cables were placed in worse case positions to maximize emission signals during emission test. Grounding: Grounding was in accordance with the manufacturer’s requirements and conditions for the intended use. Page 8 Rev. 00 Report Number: SZ0303009 FCC ID: KXYNV721C March 26, 2003 LAB CODE:200577-0 SECTION 1 EN 55022(LINE CONDUCTED AND RADIATED EMISSION) MEASUREMENT PROCEDURE (PRELIMINARY LINE CONDUCTED EMISSION TEST) 1) The equipment was set up as per the test configuration to simulate typical actual usage per the user’s manual. When the EUT is a tabletop system, a wooden table with a height of 0.8 meters is used and is placed on the ground plane as per EN 55022 (see Test Facility for the dimensions of the ground plane used). When the EUT is a floor-standing equipment, it is placed on the ground plane which has a 3-12 mm non-conductive covering to insulate the EUT from the ground plane. 2) Support equipment, if needed, was placed as per EN 55022. 3) All I/O cables were positioned to simulate typical actual usage as per EN 55022. 4) The EUT received DC power from an adaptor, and adaptor received AC power through a Line Impedance Stabilization Network (LISN) which supplied power source and was grounded to the ground plane. 5) All support equipment received power from a secon…

Text truncated - open the document above for the full version.

LINE CONDUCTED EMISSION TEST (EN 55022) RADIATED EMISSION TEST (EN 55022)
