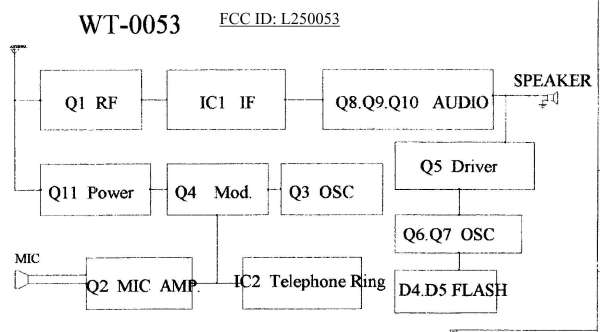

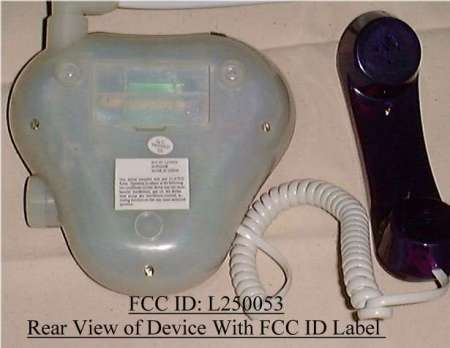

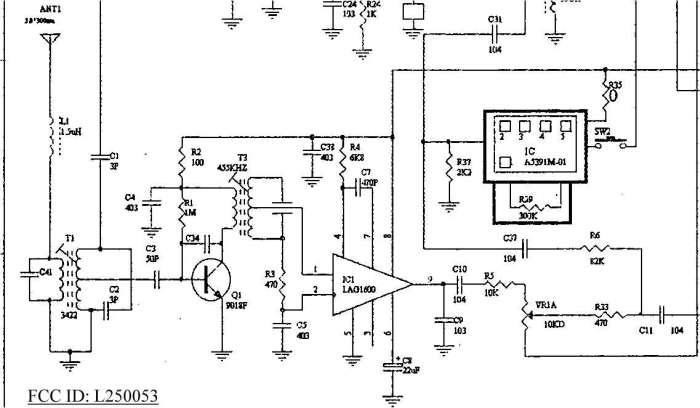

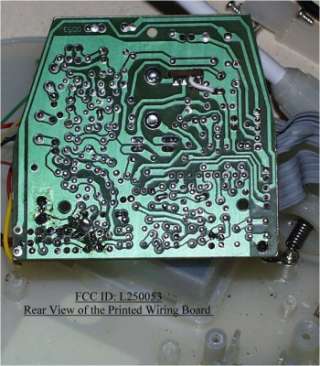

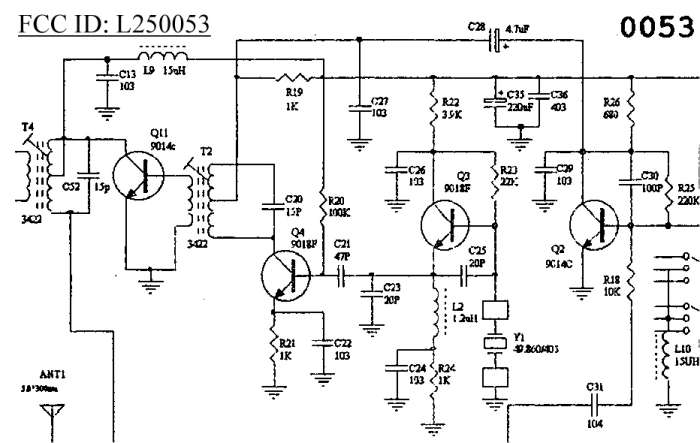

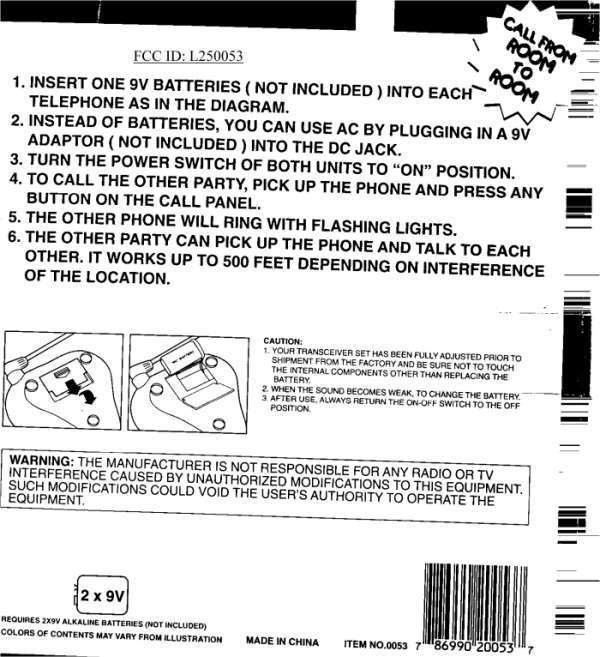

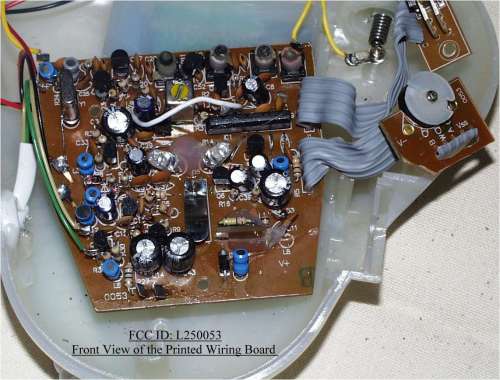

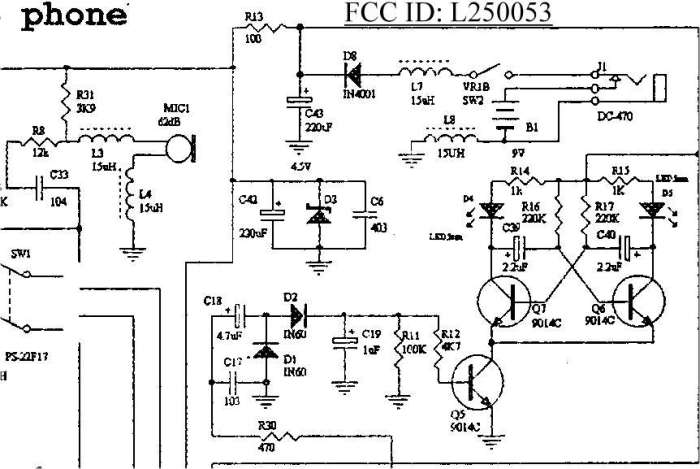

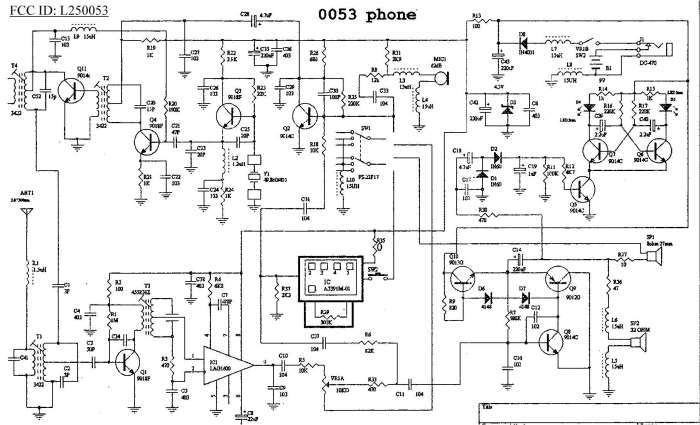

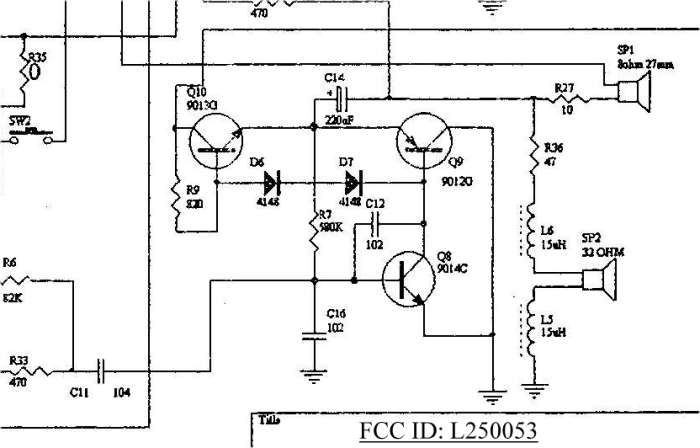

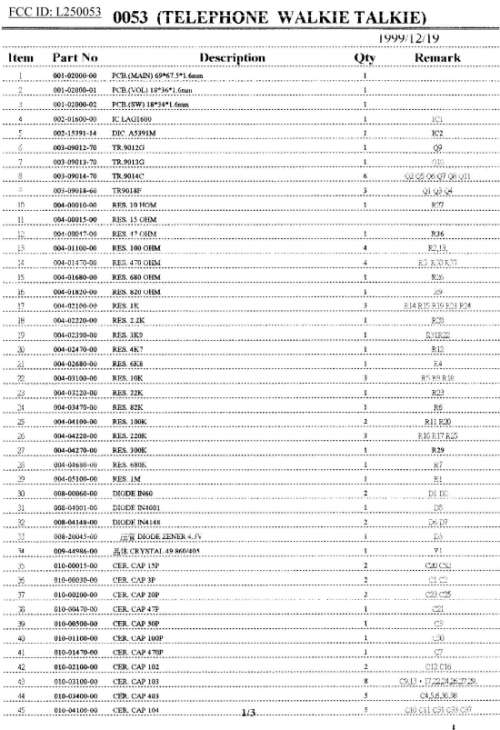

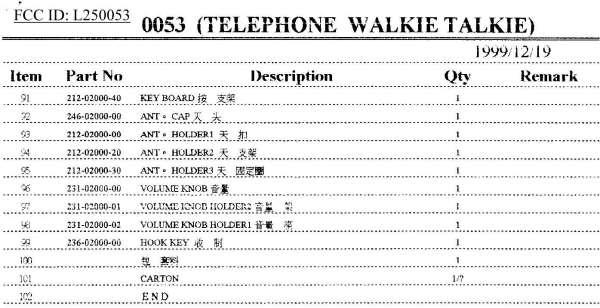

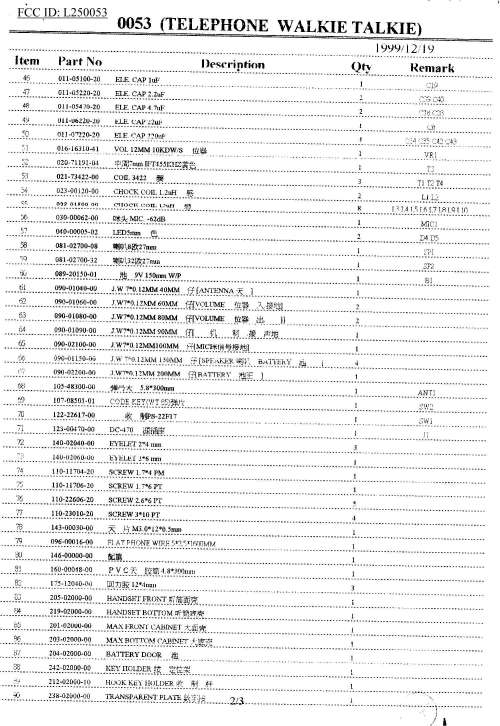

L250053Walkie Talkie

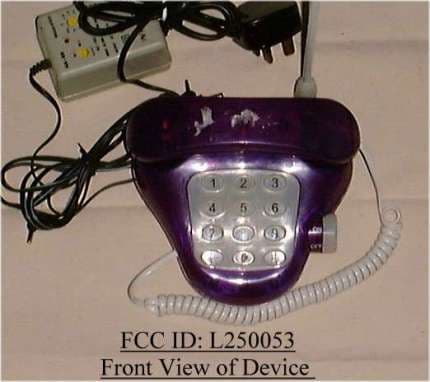

Date: 2000-01-31 TEST REPORT Page 1 of 12 No.: WM100299 Testing EngineerVerify byPatrick Wong for Managing Director APPLICANT: (CODE: SUT001) SUPREME TOYS (HONG KONG) LTD. Rm. 1016-1 Ocean Ctr., Harbour City, 5 Canton Road, Tsim Sha Tsui, Hong Kong. DATE OF SAMPLES RECEIVED: 2000-01-06 DATE OF TESTING: 2000-01-26 DESCRIPTION OF SAMPLE(S): A sample of product said to be: Product:WALKIE TALKIE Manufacturer:MILLION INDUSTRIAL LTD. Model Number:0053 Brand Name:SUPREME Rating: 9Vd.c. ("6F22" size battery × 1) Origin:CHINA The AC/DC adaptor used for the tests was a Winstar NA1535 Universal adaptor. INVESTIGATIONS REQUESTED: Measurement to the relevant clauses of F.C.C. Rules and Regulations Part 15 Subpart B - Unintentional Radiator and Subpart C - Intentional Radiator. RESULT/ REMARK:Please see attached sheet(s). CONCLUSION: From the measurement data obtained, the tested sample was considered to have COMPLIED after modification by customer with the clause 15.109(a) and ANSI C63.4-1992 Section 12.1.1.1-2 for the Receiver Section and for the Transmitter Section with the clause 15.209 and 15.235 of Federal Communications Commission Rules and Regulations Part 15. TEST EQUIPMENT AUDIT: Please see Appendix A Date: 2000-01-31 TEST REPORT Page 2 of 12 No.: WM100299 T E S T S U M M A R Y ***UNINTENTIONAL RADIATOR*** (A)Measurement of Radiated Emissions ............................................................Satisfactory (B)Line Conducted Voltage Test .....................................................................Satisfactory ***INTENTIONAL RADIATOR*** (1)Measurement of Emission of RF energy on the carrier frequency ................Satisfactory Measurement of the out-of band emissions including harmonics ..................Satisfactory (2)Measurement of Emission Within Band Edges .............................................Satisfactory (3)Measurement of Line-Conducted Voltage onto AC Power Line ...................Satisfactory T E S T D A T A Please refer to the attached result sheets. Date: 2000-01-31 TEST REPORT Page 3 of 12 No.: WM100299 ***UNINTENTIONAL RADIATOR*** (A) Measurement of Radiated Interference TEST REFERENCE:FCC Rules Part 15 Subpart B section 15.109(a) TEST CONDITION:Normal TEST DATE:2000-01-26 Freq. to which tuned Freq. of the emission PolarizationMeter reading (at 3m) Antenna factor Field Strength (at 3m) FCC Limit @ MHzMHzH-V dB(μV) dB dB(μV/m)μV/mμV/m 49.86049.8V15.1+15.030.132.0100 99.7<1.0+12.2<13.2<5150 149.6<1.0+9.8<10.8<3150 199.4<1.0+11.5<12.5<4150 249.3<1.0+15.9<16.9<7200 299.1<1.0+17.0<18.0<8200 349.0<1.0+17.2<18.2<8200 398.8<1.0+18.8<19.8<10200 448.7<1.0+19.7<20.7<11200 498.6<1.0+20.6<21.6<12200 548.4<1.0+22.2<23.2<14200 598.3<1.0+23.4<24.4<17200 648.1<1.0+23.5<24.5<17200 698.0<1.0+25.0<26.0<20200 747.8<1.0+26.2<27.2<25200 797.7<1.0+27.2<28.2<25200 847.5<1.0+27.2<28.2<25200 897.5<1.0+27.2<28.2<25200 947.2<1.0+27.8<28.8<27200 997.1<1.0+28.5<29.5<27500 ==========SUMMARY========== All data is within limits =========================================================== Broad-band Antennas were used and both polarizations of emissions were measured Polarizations at highest reading indicated as: H -- HorizontalV -- Vertical ============================================================ Date: 2000-01-31 TEST REPORT Page 4 of 12 No.: WM100299 NOTES FOR THE RADIATION MEASUREMENT (1) Test site facility: Open field test site located at Taipo (Hong Kong) with a metal ground plane on filed with the FCC pursuant to section 2.948 of the FCC Rules. (2) Distance between the EUT and measuring antenna: 3 meters. (3) Measuring instrumentation: CISPR Quasi-peak type field strength meter (25 MHz - 1000 MHz.). 6 dB bandwidth set at 120 KHz. Also, peak level of the fundamental emissions was measured in order to determine compliance with the 20dB peak to average limit specified in Section 15.35(b) of the FCC new Rules. (4) Measuring antenna: Broad band antenna for the frequency range 25-1000 MHz, connected with 10 meters coaxial cable. Cable loss of the coaxial cable. included in the Antenna Factor for measurement data. The antenna are capable of measuring both horizontal and vertical polarizations. (5) Frequency range scanned: The frequency range from 25 MHz to 1000 MHz had been searched. Readings of the highest emissions relating to the limit were reported as above. (6) Arrangement of EUT: During the test, the sample was operated at rated supply voltage and arranged for maximum emissions. (7) Measuring Procedure: In accordance with the relevant clauses of the FCC Rules Part 15 section 15.109(a) and ANSI C63.4:1992 section 12.1.1.1-2. (8) Measuring Uncertainty: The calculated uncertainty for measurement performed at 3M test distance are:- 30MHz to 300MHz = ± 3.7dB, 300MHz to 1000MHz = + 3.0dB/-2.7dB. Remark: Purpose of this test is to provide the Applicant with the necessary test data of their device for the submission to FCC with application for Equipment Authorization under FCC Equipment Authorization Program. This test itself is not an Approval Test. Date: 2000-01-31 TEST REPORT Page 5 of 12 No.: WM100299 ** INTENTIONAL RADIATOR *** (1) Measurement of Radiated Interference TEST REFERENCE:FCC Rules Part 15 Subpart Section 15.235(49.82-49.90 MHz) TEST CONDITION:Normal TEST DATE:2000-01-26 Emission of RF energy on the carrier frequency -- 49.862 MHz (PEAK VALUE) Emission Frequency Meter Reading PolarizationAntenna Factor Field Strength (at 3m) FCC Limit MHz dB(μV) H-VdB dB(μV/m)μV/mμV/m 49.8646.9V+15.061.91244.5100000 Emission of RF energy on the carrier frequency -- 49.862 MHz (AVERAGE VALUE) Emission Frequency Meter Reading PolarizationAntenna Factor Field Strength (at 3m)FCC Limit MHz dB(μV) H-VdB dB(μV/m)μV/mμV/m 49.8643.2V+15.058.2812.810000 ... to be continued Date: 2000-01-31 TEST REPORT Page 6 of 12 No.: WM100299 *** INTENTIONAL RADIATOR *** (1) Measurement of Radiated Interference . . Continued .. TEST REFERENCE:FCC Rules Part 15 Section 15.235(49.82-49.90 MHz) TEST CONDITION:Normal …

Text truncated - open the document above for the full version.

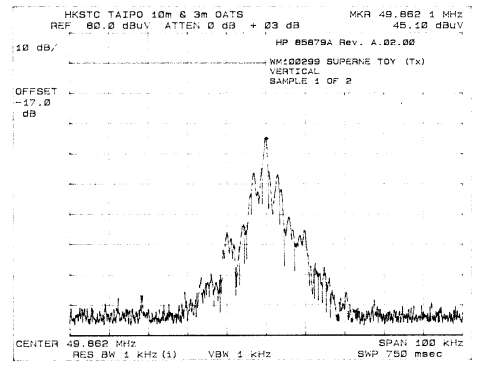

Date: 2000-01-31 TEST REPORT Page A1 of A1 No.: WM100299 APPENDIX A TEST EQUIPMENT AUDIT Radiated Emission EQP NO.DESCRIPTIONMANUFACTURERMODEL NO.SERIAL NO.LAST CAL. EM007SPECTRUM ANALYZERHEWLETT PACKARDHP85660B3144A2119211/06/99 EM008SPECTRUM ANALYZER DISPLAYHEWLETT PACKARDHP85662A3144A2051411/06/99 EM009QUASI PEAK ADAPTORHEWLETT PACKARDHP85650A3303A0170211/06/99 EM010RF PRESELECTORHEWLETT PACKARDHP85685A3221A0141011/06/99 EM011ATTENNUATOR/SWITCHHEWLETT PACKARDHP11713A2508A1059511/06/99 EM012PRE-AMPLIFIERHEWLETT PACKARDHP8449B3008A0026211/06/99 EM013CONTROLLER (COMPUTER), COLOR MONITOR, KEYBOARD & MOUSE FLOPPY DRIVE HEWLETT PACKARD HEWLETT PACKARD HEWLETT PACKARD HP9000 HP A1097C HP9133L 6226A60314 3151J39517 2623A02468 CM EM017ANTENNAARA INC.LPB-2513/A1069TBD EM072SIGNAL GENERATORHEWLETT PACKARD8640B1948A1189230/03/98 EM083HKSTC OPEN AREA TEST SITEHKSTCN/AN/A25/02/99 EM145EMI TEST RECEIVERR & SESCS 30830245/02110/05/99 Line Conducted EQP NO.DESCRIPTIONMANUFACTURERMODEL NO.SERIAL NO.LAST CAL EM078VARIACSHANGHAI VOLTAGETDGC-3/0.5N/ACM EM081SMALL SCREENED ROOMMIKO INST HKN/AN/A09/09/99 EM119LISNR & SESH3-Z50831.5518.5209/08/98 EM120EMI TEST RECEIVERR&SESHS101004.0401.1009/08/99 EM123NOTEBOOK PCACER350CXP007865N/A EM127ISOLATION TRANSFORMER 220 TO 300 WING SUNN/AN/A01/09/97 EM142PLUSE LIMITERR & SESH3Z2357.8810.5229/01/99 EM145EMI TEST RECEIVERR & SESCS 30830245/02110/05/99 Remarks:- CMCorrective Maintenance N/ANot Applicable or Not Available TBDTo Be Determined
