L2599131Walkie Talkie

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT REAR VIEW OF THE PRODUCT

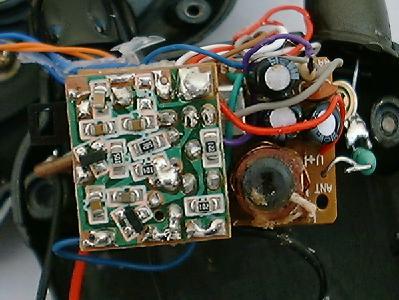

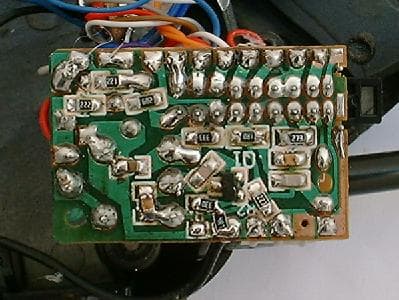

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW INNER CIRCUIT BOTTOM VIEW

FCC ID: L2599131 Circuit Description The 49.86MHz crystal oscillator drives the base of Q1 the final/buffer amplifier. The modulation provided by Mic. The output of Q1 has the matching network consisting of L1 and L2 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground and Power Source The antenna consists of a 13.5cm long telescoping chrome over brass tubing. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 9 Volt (“6F22” size battery x 1) primary battery

Date: 2003-12-23 TEST REPORT Page 1 of 18 No.: HM112160 FCC PART 15 SUBPART C CERTIFICATION REPORT FOR LOW POWER TRANSMITTER TEST REPORT No.: HM112160 Equipment Under Test [EUT]: Walkie Talkies Model Number: 99131 Applicant: Supreme Toys (Hong Kong) Ltd. FCC ID: L2599131 Date: 2003-12-23 TEST REPORT Page 2 of 18 No.: HM112160 CONTENT: Cover Page 1 of 18 Content Page 2-3 of 18 Conclusion Page 4 of 18 1.0 General Details 1.1 Test Laboratory Page 5 of 18 1.2 Applicant Details Page 5 of 18 Applicant HKSTC Code Number for Applicant Manufacturer 1.3 Equipment Under Test [EUT] Page 6 of 18 Description of EUT operation 1.4 Date of Order Page 6 of 18 1.5 Submitted Sample Page 6 of 18 1.6 Test Duration Page 6 of 18 1.7 Country of Origin Page 6 of 18 1.8 Additional Information of EUT Page 7 of 18 2.0 Technical Details 2.1 Investigations Requested Page 8 of 18 2.2 Test Standards and Results Summary Page 8 of 18 3.0 Test Results 3.1 Emission Page 9-13 of 18 3.2 Bandwidth Measurement Page 14-15 of 18 Date: 2003-12-23 TEST REPORT Page 3 of 18 No.: HM112160 Appendix A List of Measurement Equipment Page 16 of 18 Appendix B Photographs Page 17-18 of 18 Date: 2003-12-23 TEST REPORT Page 4 of 18 No.: HM112160 CONCLUSION The submitted product was deemed to have COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Verified by Ivan Toa K C Lee for Chief Executive Date: 2003-12-23 TEST REPORT Page 5 of 18 No.: HM112160 1.0 General Details 1.1 Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong Telephone: 852 2666 1888 Fax: 852 2664 4353 1.2 Applicant Details Applicant Supreme Toys (Hong Kong) Ltd. Rm. 907-9, 9F, Tower B, New Mandarin Plaza 14 Science Museum Road, TST East, Kowloon, HK HKSTC Code Number for Applicant SUT001 Manufacturer Jackpot Plastic & Metal Manufactory Feng Gang, Guan Jing Tou Shur Ku District, Dongguan Date: 2003-12-23 TEST REPORT Page 6 of 18 No.: HM112160 1.3 Equipment Under Test [EUT] Description of Sample Product: Walkie Talkies Manufacturer: Jackpot Plastic & Metal Manufactory Brand Name: Jackpot Industrial Ltd. Model Number: 99131 Input Voltage: 9Vd.c (“6F22” size battery x 1) 1.3.1 Description of EUT Operation The Equipment Under Test(EUT) is a Supreme Toys (Hong Kong) Ltd.., Walkie Talkies. The transmitter is a 2 button transmitter. The EUT continues to transmit while button is being pressed. It is voice transmission, Modulation by Mic and tape is frequency modulation. 1.4 Date of Order 2003-11-17 1.5 Submitted Sample(s): 4 Samples per model 1.6 Test Duration 2003-12-16 1.7 Country of Origin China Date: 2003-12-23 TEST REPORT Page 7 of 18 No.: HM112160 1.8 Additional Information of EUT Submitted Not Available User Manual Part List Circuit Diagram Printed Circuit Board [PCB] Layout Block diagram FCC ID Label Date: 2003-12-23 TEST REPORT Page 8 of 18 No.: HM112160 2.0 Technical Details 2.1 Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15 and ANSI C63.4:2000 for FCC Certification. 2.2 Test Standards and Results Summary Tables EMISSION Results Summary Test Condition Test Requirement Test Method Class / Test Result Severity Pass Failed N/A Field Strength of Fundamental Emissions & Spurious Emissions FCC 47CFR 15.235 ANSI C63.4:2000 N/A Radiated Emissions, 30MHz to 1GHz FCC 47CFR 15.209 ANSI C63.4:2000 Class B Conducted Emissions on AC, 0.15MHz to 30MHz FCC 47CFR 15.207 ANSI C63.4:2000 Class B Note: N/A - Not Applicable Date: 2003-12-23 TEST REPORT Page 9 of 18 No.: HM112160 3.0 Test Results 3.1 Emission 3.1.1 Radiated Emissions (30 – 1000MHz) Test Requirement: FCC 47CFR 15.109 Class A Test Method: ANSI C63.4: 2000 Test Date: 2003-12-16 Mode of Operation: On mode Test Method: The sample was placed 0.8m above the ground plane on the OATS *. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigated all operating modes, rotated about all 3 axis (X, Y & Z) and considered typical configuration to obtain worst position, manipulating interconnecting cables, rotating turntable, varying antenna height from 1m to 4m in both horizontal and vertical polarizations. The emissions worst-case are shown in Test Results of the following pages. *: OATS [Open Area Test Site] located at HKSTC with a metal ground plane filed with the FCC pursuant to section 2.948 of the FCC rules, with Registration Number: 90657. Test Setup: EUT Pre-Amplifier Distance = 3m Receiver Turn Table Computer Ground Plane Date: 2003-12-23 TEST REPORT Page 10 of 18 No.: HM112160 Limits for Field Strength of Fundamental Emissions [FCC 47CFR 15.235]: Frequency Range of Fundamental Field Strength of Fundamental Emission [Peak] Field Strength of Fundamental Emission [Average] [MHz] [μV/m] [μV/m] 49.82-49.90 100,000 10,000 Results: Transmitter FrequencyCorrectionLimit @3mE-Field FactorPolarity MHzdB μ V/m μ V/m 49.8650.110.260.31,035.1100,000Vertical Field Strength of Fundamental Emissions Peak Value Measured Level @3m Field Strength μ V/mdB μ V/m Field Strength dB μ V/m FrequencyCorrectionLimit @3mE-Field FactorPolarity MHzdB μ V/m μ V/m 49.8649.710.259.9988.610,000Vertical Field Strength of Fundamental Emissions Average Measured Level @3m Field Strength μ V/mdB μ V/m Field Strength dB μ V/m Remarks: According to FCC 47CFR15.35, the limit on the radio frequency emissions as measured using instrumentation with a peak detector function, corresponding to 20dB above the maximum permitted average limit for the frequency being investigated unless a different peak emission limit is otherwise specified in the rules. For effective averaging, the bandwidth of the video filter must be small…
