Re: Certification for Delphi-Delco Transmitter Model: L2C0009T FCC ID: L2C0009T CANADA: to be provided by IC FCC/ IC ID LABEL The below shown label will be printed in black on a white permanent label. Label Location GM 15008008 CANADA: XXXXXXXXXXX MODEL/FCC ID: L2C0009T The following statement will be printed in User's Instruction Manual (Manual Exhibit) This device complies with Part 15 of the FCC Rules and with RS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. WARNING: Changes or modifications not expressively approved by the party responsible for compliance could void the user's authority to operate the equipment.

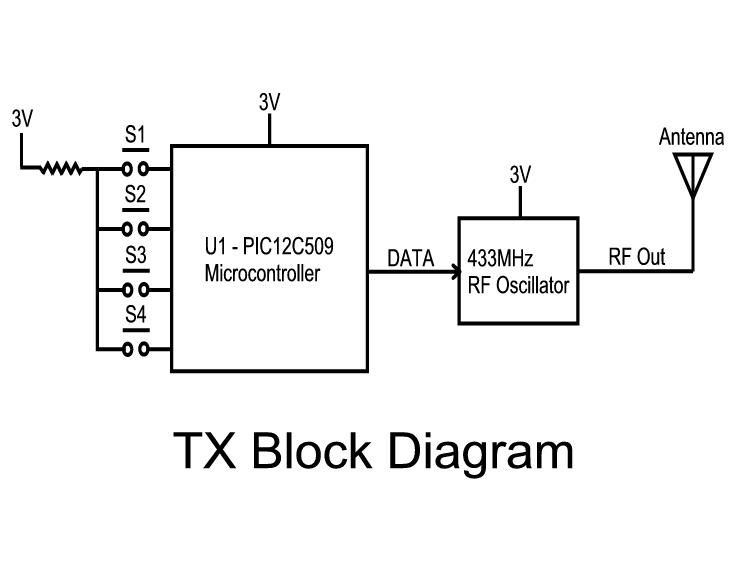

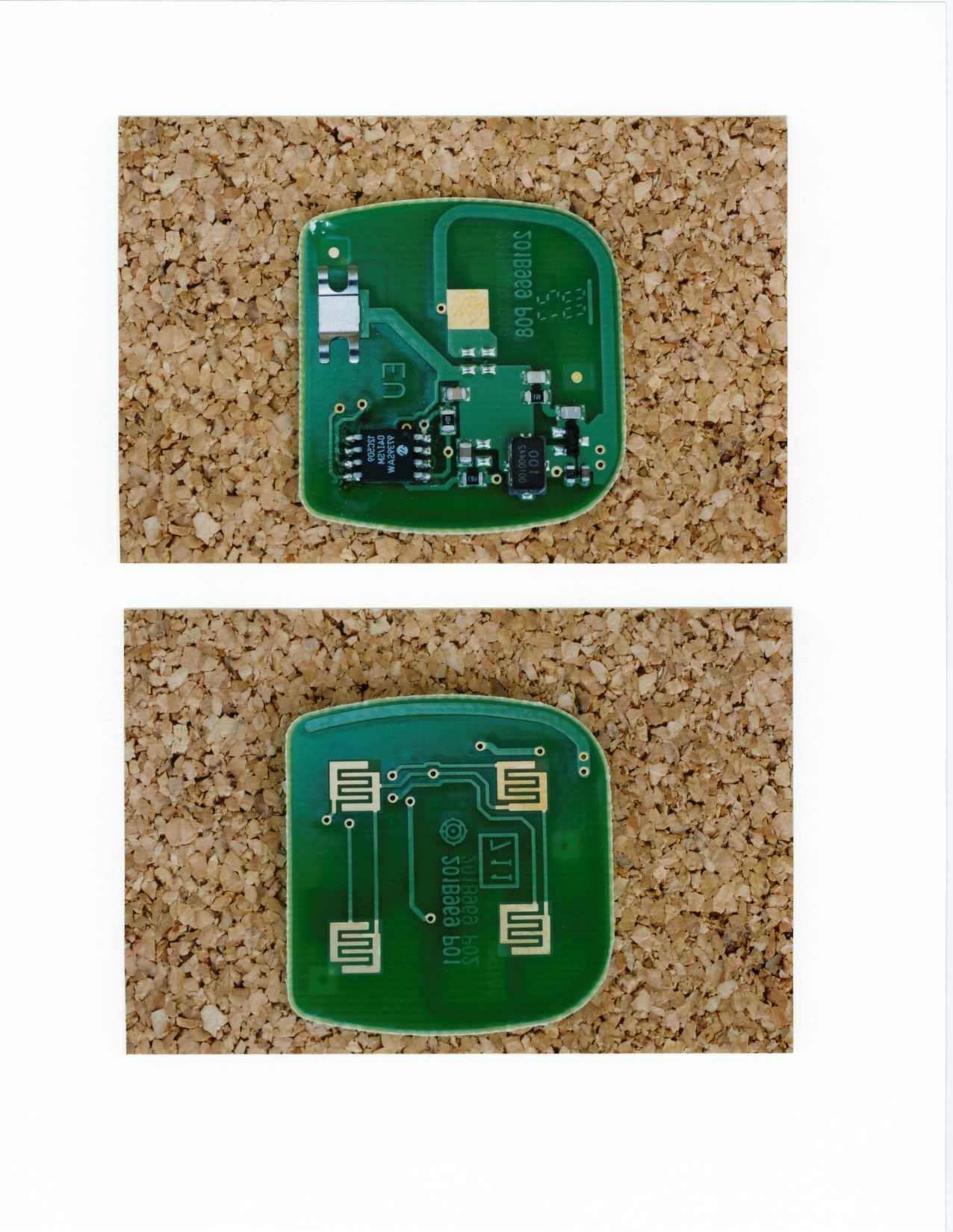

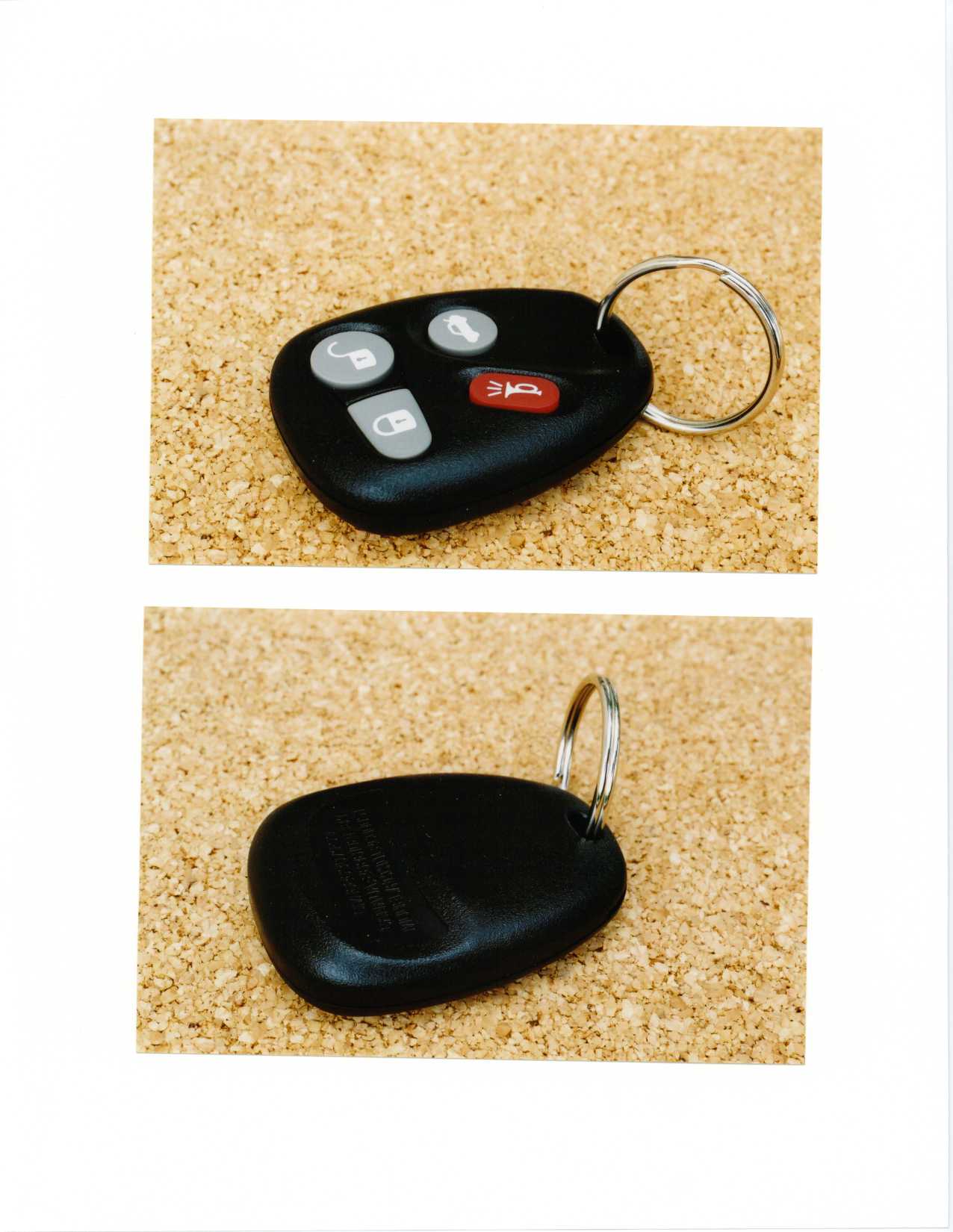

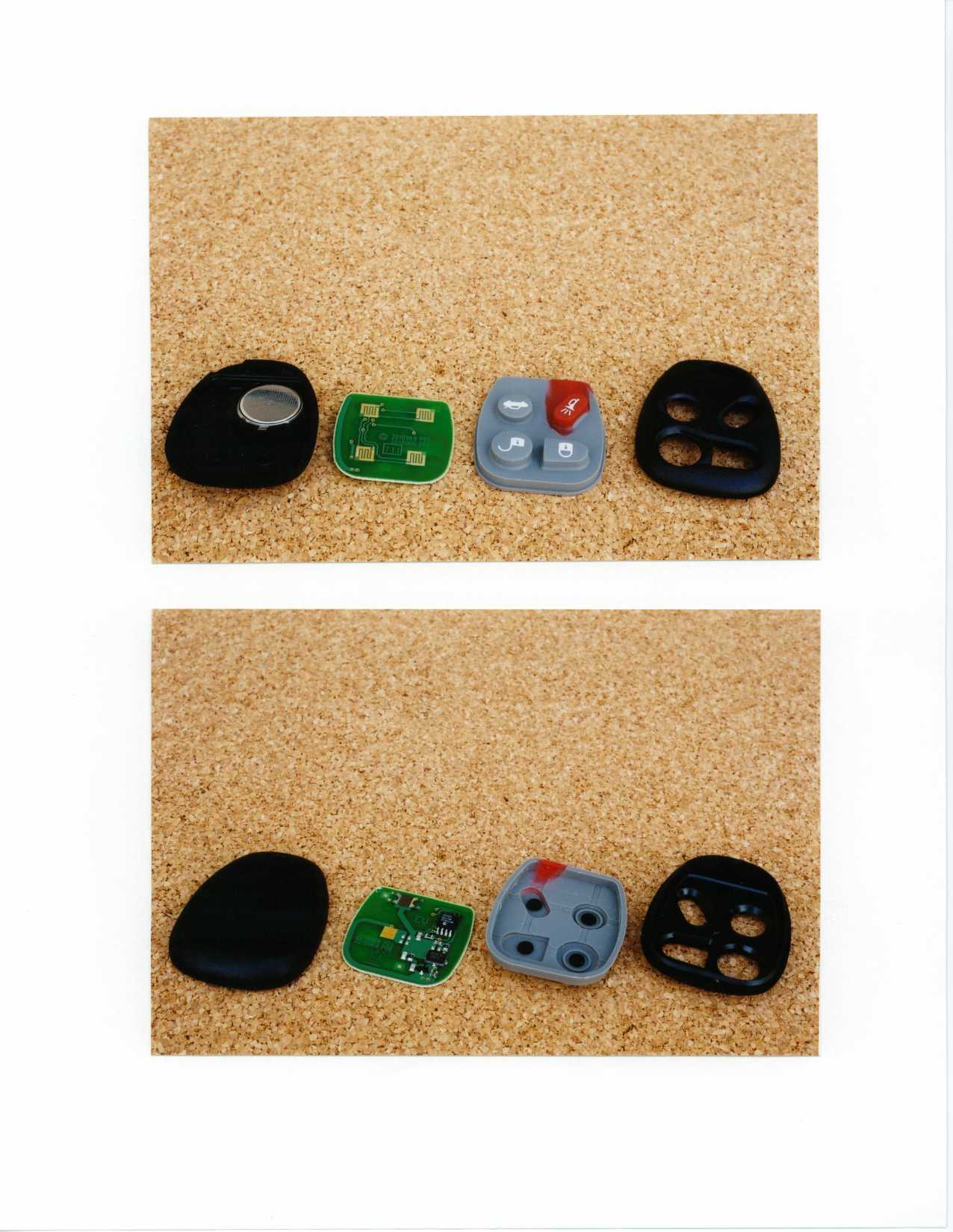

THEORY OF OPERATION P90/X130 FOB Transmitter Overview The FOB transmitter is used in conjunction with a vehicle mounted receiver/BCM to provide remote vehicle functions such as lock, unlock & trunk release. The P90/X130 BCM/RKE system is installed on various platforms of General Motors vehicles. Circuit Theory The transmitter provides a rolling code type of secure RF link based on a Delphi proprietary algorithm. The FOB transmitter uses the Microchip PIC12C509A microcontroller to decode keypad inputs, generate the appropriate function code and encryption data, and provide a complete digital message stream to the RF output stage. The RF output stage is a single stage transistor SAW based colpits oscillator operating at 433Mhz +/- 100Khz. The antenna is a circuit board trace. Transmitter Block Diagram 2-4 switch inputs are employed
