L2C0027TROnboard Immobilizer System

Re: Certification for Delphi Delco LP Transmitter / Receiver Model(s): ECU-Y, ECU-Z FCC ID: L2C0027TR IC: 3432A-0027TR USER'S MANUAL INFORMATION (PRELIMINARY) The User's Manual is in preparation. The following material will be contained in the manual: FCC ID: L2C0027TR IC: 3432A-0027TR This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. WARNING: Changes or modifications not expressively approved by the party responsible for compliance could void the user's authority to operate the equipment. The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications were met.

Re: Certification for Delphi Delco LP Transmitter / Receiver Model(s): ECU-Y, ECU-Z FCC ID: L2C0027TR IC: 3432A-0027TR POWER OF ATTORNEY A letter granting Valdis V. Liepa the Power of Attorney is on file and can be provided when so requested. Re: Certification for Delphi Delco LP Transmitter / Receiver Model(s): ECU-Y, ECU-Z FCC ID: L2C0027TR IC: 3432A-0027TR REQUEST FOR CONFIDENTIALITY Pursuant to 47 CRF 0.459, Delphi Delco requests that a part of the subject application be held confidential. This comprises Exhibits (5) Schematics (10) Parts List (Part of Exhibit only) Delphi Delco has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. If there are any questions regarding this request, please contact me at the above address or call 734-483-4211, fax 734-647-2106 or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist University of Michigan January 7, 2006 Re: Certification for Delphi Delco LP Transmitter / Receiver Model(s): ECU-Y, ECU-Z FCC ID: L2C0027TR IC: 3432A-0027TR STATEMENT OF MODIFICATIONS There were no modifications made to the DUT by this test laboratory. (Also see Section 3.1 of the attached Test Report). _____________________ Valdis V. Liepa Research Scientist Re: Certification for Delphi Delco LP Transmitter / Receiver Model(s): ECU-Y, ECU-Z FCC ID: L2C0027TR IC: 3432A-0027TR GENERAL PRODUCT INFORMATION The device, for which certification is pursued, has been designed by: Delphi Automotive Systems One Corporate Center Kokomo, IN 46904-9005 Bill Lusa Tel: (734) 484-1387 Fax: (734) 484-1389 It will be manufactured by: Delphi Delco Electronics de Mexico SA de CV, Carrertera Reynosa - Matamoros Codigo Postal 88780 Partado Postal 1201 Reynosa, Tamaulipas, Mexico Bill Lusa Tel: (734) 484-1387 Fax: (734) 484-1389 Canadian Contact: Richard Wilkins c/o Delphi Energy and Chassis Systems Oshawa, Ontario L1N 7S6 [email protected] Ph. (905)644-5216

January 7, 2006 Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315 Re: Certification for Delphi Delco LP Transmitter / Receiver Model(s): ECU-Y, ECU-Z FCC ID: L2C0027TR IC: 3432A-0027TR Please find enclosed application materials for certification of Delphi Delco LP Transmitter / Receiver. This is a composite device consisting of a 125 kHz Low Power LF transmitter and a 433.92 MHz receiver. We tested it and found it to comply with FCC Part 15. If there are any questions regarding the application or testing performed, please contact me at the above address or call 734-483-4211, fax 734-647-2106, or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist January 7, 2006 Certification and Engineering Bureau Industry Canada 3701 Carling Avenue, Bldg. 94 Ottawa, Ontario K2H 8S2 Re: Certification for Delphi Delco LP Transmitter / Receiver Model(s): ECU-Y, ECU-Z FCC ID: L2C0027TR IC: 3432A-0027TR Please find enclosed application materials for certification of Delphi Delco LP Transmitter / Receiver. This is a composite device consisting of a 125 kHz Low Power LF transmitter and a 433.92 MHz receiver. We tested the device and found it to comply with RSS-210/Gen. The product is identified by: IC: 3432A-0027TR If there are any questions, suggestions, etc., regarding the application or testing performed, please contact me at the above address or call 734-483-4211, fax 734-647- 2106; e-mail: [email protected]. Sincerely, Valdis V. Liepa Research Scientist

January 7, 2006 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID: L2C0027TR IC: 3432A-0027TR Please find enclosed application materials for certification of Delphi Delco ECU LP Transmitter / Receiver. This is a composite device consisting of a 125 kHz Low Power LF transmitter and a 433.92 MHz receiver. Note: 1) portions of this submittal are filed Confidential 2) a list of the modifications made is provided in Attestations. If there are any questions regarding the application or testing performed, please contact me at the above address or call 734-483-4211, fax 734-647-2106, or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist

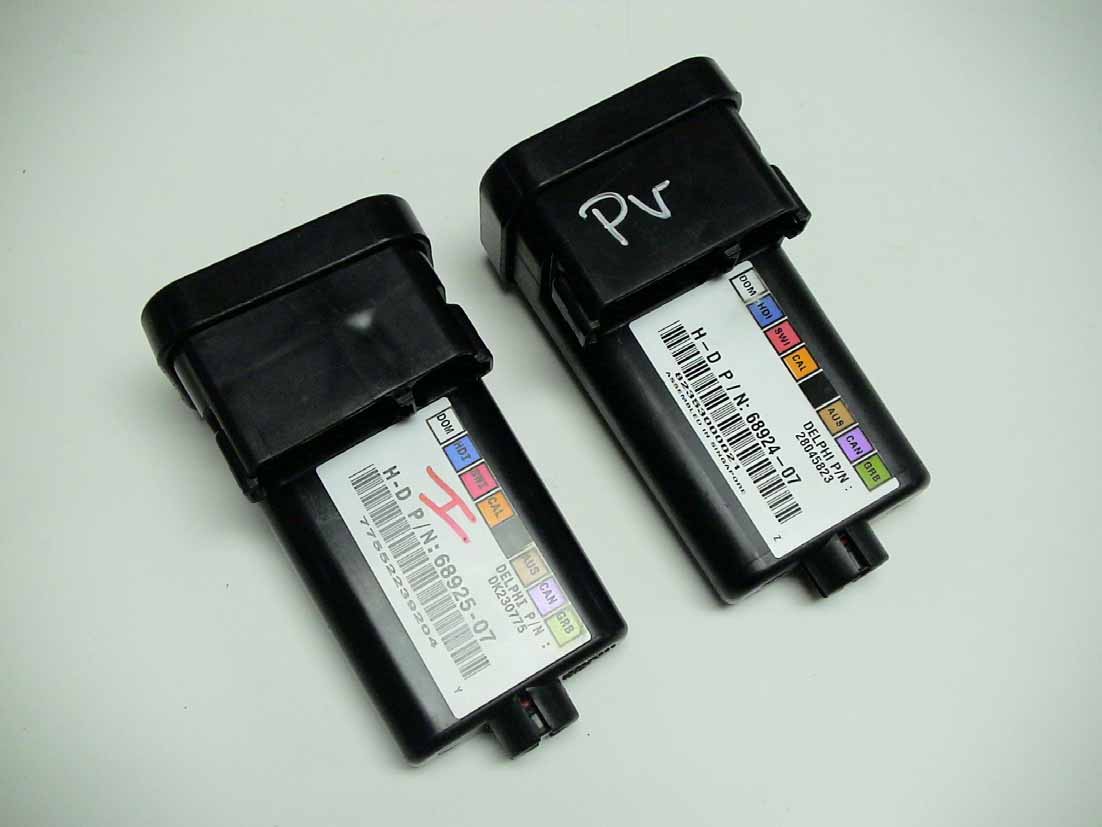

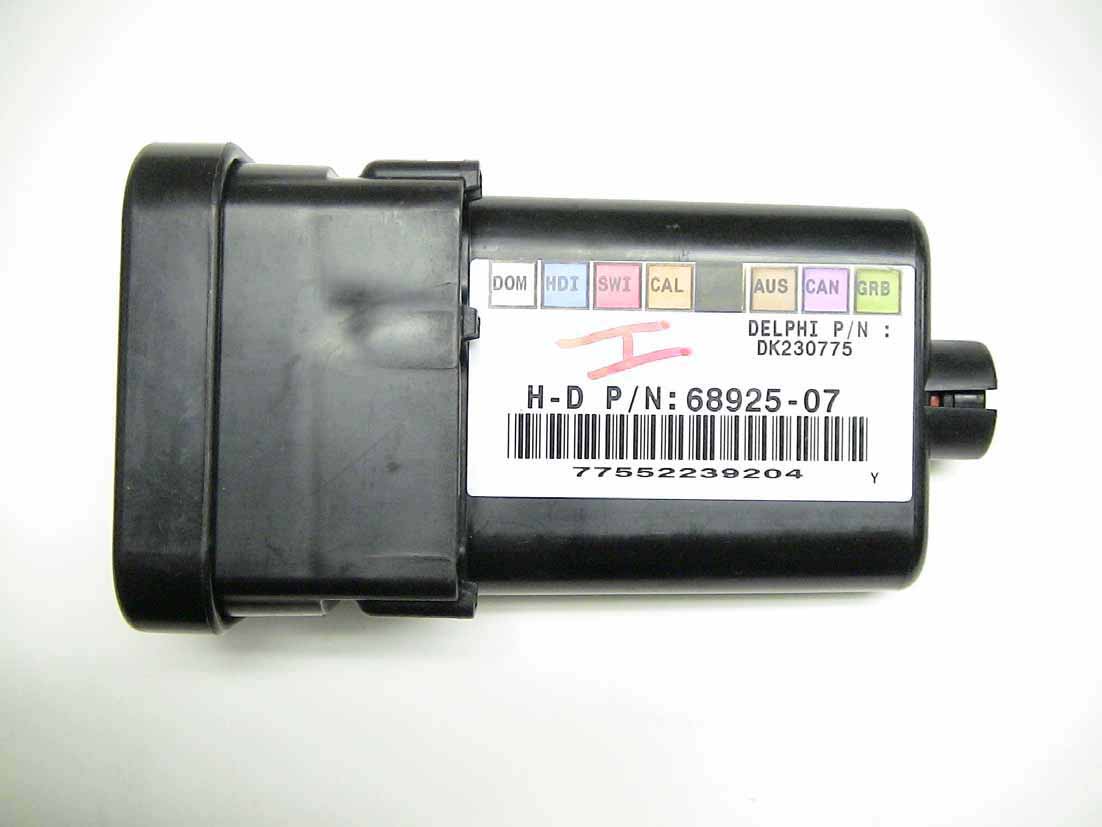

ECU-Y (left) and ECU-Z (right) DUT with Harness DUT (top) DUT (bottom) LF Tx Coil (top) LF Tx Coil (bottom)

DUT apart (top) DUT apart (bottom) DUT apart (bottom) PCB ( top ) - ECU-Z PCB (bottom) ECU-Y/Z Accel. IC ( ECU-Z ) Accel. IC (ECU-Y) Rx Antenna to Connector

The TSSM2 system provides a secure method of allowing communications of commands between the Customer Identification Device (CID) and the TSSM2. Once the IGN/RUN switch is activated the TSSM2 controller will initiate the uplink process that is a 125 KHZ transmition, if the operator carries a valid CID it will generate a 433.92MHZ downlink in response to the incoming signal, the whole process takes around 100ms and it is intended to disable the security and immobilization function and allow the engine to start. System-Level Functional Description a. The TSSM2 system is a multi-component system that implements the following features: 1) Vehicle Turn Signal Functions (a) Manual Turn Signal Control (b) Automatic Turn Signal Cancellation (c) Four-way (Hazard) Flashing (d) Turn Signal Diagnostics 2) Tip-Over Shutdown Functions 3) Security Alarm and Immobilization Functions (a) Security Arming and Disarming (b) Security Warning and Alarm (c) Starter and Fuel Immobilization 4) Power Moding Functions 5) Feature Customization Functions 6) Diagnostic Functions

University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 415031-266 Page 1 of 11 The University of Michigan Radiation Laboratory 3228 EECS Building Ann Arbor, MI 48109-2122 Tel: (734) 764-0500 Measured Radio Frequency Emissions From Delphi LF Transmitter Model(s): ECU-Y and ECU-Z Report No. 415031-266 January 7, 2006 Copyright © 2006 For: Delphi Automotive Systems One Corporate Center Kokomo, IN 46904-9005 Contact: Bill Lusa Tel: (734) 484-1387 Fax: (734) 484-1389 Tests supervised by: Measurements made by: Valdis V. Liepa Report approved by: _____________________ Joseph D. Brunett Valdis V. Liepa Research Scientist Summary Tests for compliance with FCC Regulations, Part 15, Subpart C, and for compliance with Industry Canada RSS-210/Gen, were performed on Delphi Automotive Systems transmitter, models ECU-Y and ECU-Z. This device is subject to Rules and Regulations as a transmitter. In testing completed December 22, 2005, the device tested in the worst case met the allowed specifications for transmitter radiated emissions by more than 22.0 dB (see p. 7); digital emissions, Class B, were met by at least 20 dB. The conducted emissions tests do not apply, since the device is powered from a 12 VDC system. University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 415031-266 Page 2 of 11 1. Introduction Delphi models ECU-Y and ECU-Z were tested for compliance with FCC Regulations, Part 15, adopted under Docket 87-389, April 18, 1989, and with Industry Canada RSS-210/Gen, Issue 6, September 2005. The tests were performed at the University of Michigan Radiation Laboratory Willow Run Test Range following the procedures described in ANSI C63.4-2003 "Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz". The Site description and attenuation characteristics of the Open Site facility are on file with FCC Laboratory, Columbia, Maryland (FCC Reg. No: 91050) and with Industry Canada, Ottawa, ON (File Ref. No: IC 2057). 2. Test Procedures and Equipment Used The pertinent test equipment commonly used in our facility for measurements is listed in Table 2.1 below. The middle column identifies the specific equipment used in these tests. Table 2.1 Test Equipment. Test Instrument Eqpt. Used Manufacturer/Model Spectrum Analyzer (0.1-1500 MHz) Hewlett-Packard, 182T/8558B Spectrum Analyzer (9kHz-22GHz) X Hewlett-Packard 8593A SN: 3107A01358 Spectrum Analyzer (9kHz-26GHz) X Hewlett-Packard 8593E, SN: 3412A01131 Spectrum Analyzer (9kHz-26GHz) Hewlett-Packard 8563E, SN: 3310A01174 Spectrum Analyzer (9kHz-40GHz) Hewlett-Packard 8564E, SN: 3745A01031 Power Meter Hewlett-Packard, 432A Power Meter Anritsu, ML4803A/MP Harmonic Mixer (26-40 GHz) Hewlett-Packard 11970A, SN: 3003A08327 Harmonic Mixer (40-60 GHz) Hewlett-Packard 11970U, SN: 2332A00500 Harmonic Mixer (75-110 GHz) Hewlett-Packard 11970W, SN: 2521A00179 Harmonic Mixer (140-220 GHz) Pacific Millimeter Prod., GMA, SN: 26 S-Band Std. Gain Horn S/A, Model SGH-2.6 C-Band Std. Gain Horn University of Michigan, NRL design XN-Band Std. Gain Horn University of Michigan, NRL design X-Band Std. Gain Horn S/A, Model 12-8.2 X-band horn (8.2- 12.4 GHz) Narda 640 X-band horn (8.2- 12.4 GHz) Scientific Atlanta , 12-8.2, SN: 730 K-band horn (18-26.5 GHz) FXR, Inc., K638KF Ka-band horn (26.5-40 GHz) FXR, Inc., U638A U-band horn (40-60 GHz) Custom Microwave, HO19 W-band horn(75-110 GHz) Custom Microwave, HO10 G-band horn (140-220 GHz) Custom Microwave, HO5R Bicone Antenna (30-250 MHz) X University of Michigan, RLBC-1 Bicone Antenna (200-1000 MHz) X University of Michigan, RLBC-2 Dipole Antenna Set (30-1000 MHz) X University of Michigan, RLDP-1,-2,-3 Dipole Antenna Set (30-1000 MHz) EMCO 2131C, SN: 992 Active Rod Antenna (30 Hz-50 MHz) EMCO 3301B, SN: 3223 Active Loop Antenna (30 Hz-50 MHz) X EMCO 6502, SN:2855 Ridge-horn Antenna (300-5000 MHz) X University of Michigan Amplifier (5-1000 MHz) X Avantek, A11-1, A25-1S Amplifier (5-4500 MHz) X Avantek Amplifier (4.5-13 GHz) Avantek, AFT-12665 Amplifier (6-16 GHz) Trek Amplifier (16-26 GHz) Avantek LISN Box University of Michigan Signal Generator Hewlett-Packard 8657B University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 415031-266 Page 3 of 11 3. Configurations and Identification of Device Under Test The DUT is a 125 kHz LF transmitter designed for an onboard motorcycle immobilizer system, and as such, it is powered from an automotive 12 VDC source. It is housed in a plastic case approximately 6 by 3 by 2 inches. Coil is external. For testing, a generic harness was provided by the manufacturer. The DUT was designed and manufactured by Delphi Automotive Systems, One Corporate Center, Kokomo, IN 46904-9005. It is identified as: Delphi Automotive Systems Transmitter Model: ECU-Y and ECU-Z FCC ID: L2C0027TR IC: 3432A-0027TR This is a composite device including a 433.92 MHz receiver. The two models differ only in the orientation of the accelerometer. 3.1 EMI Relevant Modifications No EMI Relevant Modifications were performed by this test laboratory. 4. Emission Limits 4.1 Radiated Emission Limits The DUT tested falls under the category of an Intentional Radiators and the Digital Devices, subject to Subpart C, Section 15.209; and Subpart B, Section 15.109 (transmitter generated signals excluded); and Subpart A, Section 15.33. The applicable testing frequencies with corresponding emission limits are given in Tables 4.1 and 4.2 below. As a digital device, it is exempt. Table 4.1. Radiated Emission Limits (FCC: 15.205, 15.35; IC: RSS-210, 2.6 Tab. 1 & 3) (Transmitter) Frequency (MHz) Fundamental and Spurious* (μV/m) 0.009-0.490 0.490-1.705 2400/F(kHz), 300m 24,000/F(kHz), 30m 0.090-0.110 0.49-0.51 2.1735-2.190 3.020-3.026 (IC) 4.125-4.128 4.17725-4.17775 4.20725-4.20775 5.677-5.683 (IC) 6.215-6.218 6.26775-6.26825 6.31175-6.31225 8.291-8.294 8.37625 - 8.38675 8.41425…

Text truncated - open the document above for the full version.

DUT on OATS DUT on OATS (close-up) DUT on OATS (close-up)
