Re: Certification for Delphi Delco LP Transmitter Model: CID FCC ID: L2C0028TR IC: 3432A-0028TR USER'S MANUAL INFORMATION (PRELIMINARY) The User's Manual is in preparation. The following material will be contained in the manual: FCC ID: L2C0028TR IC: 3432A-0028TR This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. WARNING: Changes or modifications not expressively approved by the party responsible for compliance could void the user's authority to operate the equipment. The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications were met.

Re: Certification for Delphi Delco LP Transmitter Model: CID FCC ID: L2C0028TR IC: 3432A-0028TR POWER OF ATTORNEY A letter granting Valdis V. Liepa the Power of Attorney is on file and can be provided when so requested. Re: Certification for Delphi Delco LP Transmitter Model: CID FCC ID: L2C0028TR IC: 3432A-0028TR REQUEST FOR CONFIDENTIALITY Pursuant to 47 CRF 0.459, Delphi Delco requests that a part of the subject application be held confidential. This comprises Exhibits (5) Schematics (10) Parts List (Part of Exhibit only) Delphi Delco has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. If there are any questions regarding this request, please contact me at the above address or call 734-483-4211, fax 734-647-2106 or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist University of Michigan November 22, 2005 Re: Certification for Delphi Delco LP Transmitter Model: CID FCC ID: L2C0028TR IC: 3432A-0028TR STATEMENT OF MODIFICATIONS There were no modifications made to the DUT by this test laboratory. (Also see Section 3.1 of the attached Test Report). _____________________ Valdis V. Liepa Research Scientist Re: Certification for Delphi Delco LP Transmitter Model: CID FCC ID: L2C0028TR IC: 3432A-0028TR GENERAL PRODUCT INFORMATION The device, for which certification is pursued, has been designed by: Delphi Automotive Systems One Corporate Center Kokomo, IN 46904-9005 Bill Lusa Tel: (734) 484-1387 Fax: (734) 484-1389 It will be manufactured by: Delphi Delco Electronics de Mexico SA de CV, Carrertera Reynosa - Matamoros Codigo Postal 88780 Partado Postal 1201 Reynosa, Tamaulipas, Mexico Bill Lusa Tel: (734) 484-1387 Fax: (734) 484-1389 Canadian Contact: Richard Wilkins c/o Delphi Energy and Chassis Systems Oshawa, Ontario L1N 7S6 [email protected] Ph. (905)644-5216

November 30, 2005 RE: Delphi Automotive Systems FCC ID: L2C0028TR The following is in response to comments made on the above referenced Application. 1) This device is not manually activated but is considered to be automatically activated (activated by external event). To meet the timing requirements, even if the LF TX is continuously pressed beyond 5 seconds, this device should still shut off within 5 seconds. Timing shown on page 7 shows this device continues to transmit even after 5 seconds. Please review and explain how this device is compliant to this requirement. The timing plot shown on page 7 was actuated with a modified LF initiator, set to repetitively stimulate the transmitter for testing purposes. In actual production the LF initiator only fires a single LF pulse when the user gets onto the motorcycle, and cannot be “continuously pressed” by the consumer. In addition, the LF pulse must be properly encoded, thus preventing the transmitter from being activated by any other external LF source. Since it is not possible to continuously stimulate the FOB, we feel it meets the requirements above. 2) From the new issue of RSS-102, an attestation should be provided for all devices. Please see updated form attached. The revised Filling Forms exhibit includes the desired attestation.

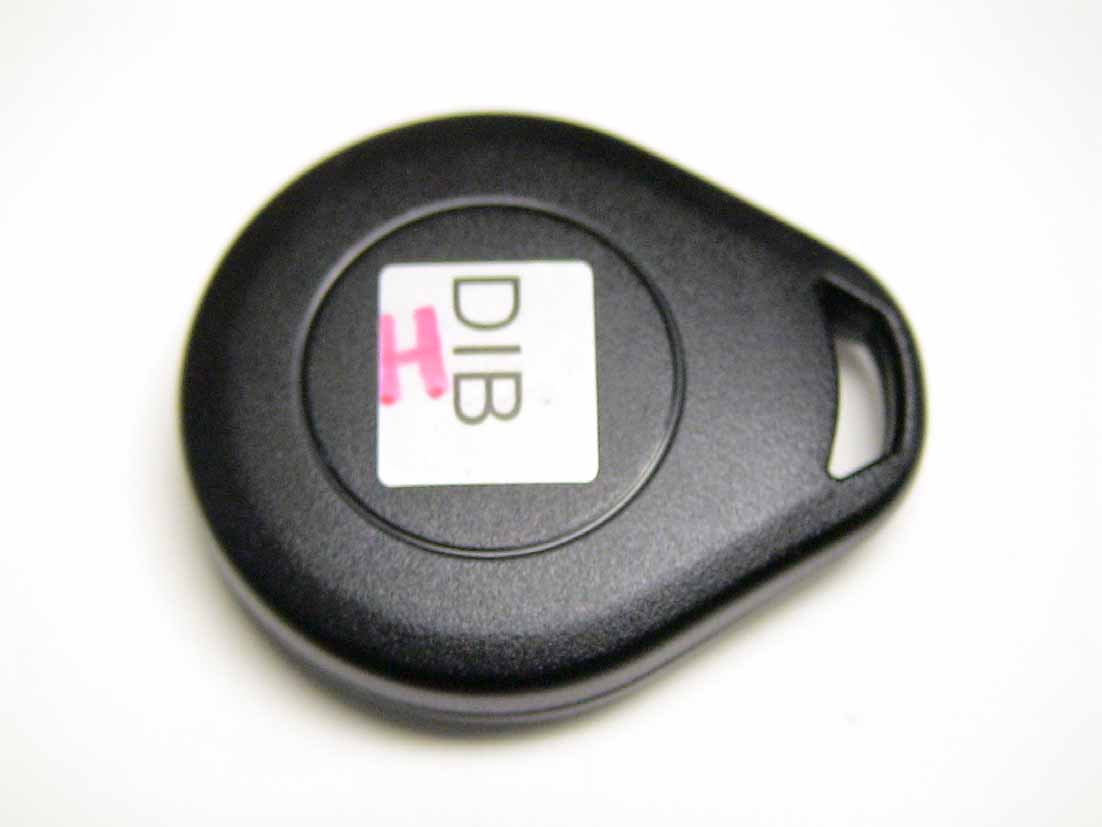

DUT (top) DUT (bottom)

DUT apart (top) DUT apart ( bottom ) DUT apart complete ( bottom ) DUT apart complete ( top ) PCB (top) PCB ( bottom )

The TSSM2 system provides a secure method of allowing communications of commands between the Customer Identification Device (CID) and the TSSM2. Once the IGN/RUN switch is activated the TSSM2 controller will initiate the uplink process that is a 125 KHZ transmition, if the operator carries a valid CID it will generate a 433.92MHZ downlink in response to the incoming signal, the whole process takes around 100ms and it is intended to disable the security and immobilization function and allow the engine to start. System-Level Functional Description a. The TSSM2 system is a multi-component system that implements the following features: 1) Vehicle Turn Signal Functions (a) Manual Turn Signal Control (b) Automatic Turn Signal Cancellation (c) Four-way (Hazard) Flashing (d) Turn Signal Diagnostics 2) Tip-Over Shutdown Functions 3) Security Alarm and Immobilization Functions (a) Security Arming and Disarming (b) Security Warning and Alarm (c) Starter and Fuel Immobilization 4) Power Moding Functions 5) Feature Customization Functions 6) Diagnostic Functions

University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 415031-267 Page 1 of 10 The University of Michigan Radiation Laboratory 3228 EECS Building Ann Arbor, MI 48109-2122 Tel: (734) 764-0500 Measured Radio Frequency Emissions From Delphi Transmitter Model(s): CID Report No. 415031-267 November 22, 2005 Copyright © 2005 For: Delphi Automotive Systems One Corporate Center Kokomo, IN 46904-9005 Contact: Bill Lusa Tel: (734) 484-1387 Fax: (734) 484-1389 PO: Verbal Tests supervised by: Measurements made by: Report approved by: _____________________ Valdis V. Liepa Valdis V. Liepa Joseph D. Brunett Research Scientist Summary Tests for compliance with FCC Regulations Part 15, Subpart C, and Industry Canada RSS-210/Gen, were performed on Delphi model(s) CID. This device is subject to the Rules and Regulations as a Transmitter. In testing completed on November 8, 2005, the device tested in the worst case met the allowed FCC specifications for radiated emissions by 15.3 dB (see p. 6). Besides harmonics, there were no other significant spurious emissions found; emissions from digital circuitry were negligible. The conducted emission tests do not apply, since the device is powered from a 12 VDC battery. University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 415031-267 Page 2 of 10 1. Introduction Delphi model CID was tested for compliance with FCC Regulations, Part 15, adopted under Docket 87- 389, April 18, 1989, and with Industry Canada RSS-210/Gen, Issue 6, September 2005. The tests were performed at the University of Michigan Radiation Laboratory Willow Run Test Range following the procedures described in ANSI C63.4-2003 "Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz". The Site description and attenuation characteristics of the Open Site facility are on file with FCC Laboratory, Columbia, Maryland (FCC Reg. No: 91050) and with Industry Canada, Ottawa, ON (File Ref. No: IC 2057). 2. Test Procedure and Equipment Used The pertinent test equipment commonly used in our facility for measurements is listed in Table 2.1 below. The middle column identifies the specific equipment used in these tests. Table 2.1 Test Equipment. Test Instrument Eqpt. Used Manufacturer/Model Spectrum Analyzer (0.1-1500 MHz) Hewlett-Packard, 182T/8558B Spectrum Analyzer (9kHz-22GHz) X Hewlett-Packard 8593A SN: 3107A01358 Spectrum Analyzer (9kHz-26GHz) X Hewlett-Packard 8593E, SN: 3412A01131 Spectrum Analyzer (9kHz-26GHz) Hewlett-Packard 8563E, SN: 3310A01174 Spectrum Analyzer (9kHz-40GHz) Hewlett-Packard 8564E, SN: 3745A01031 Power Meter Hewlett-Packard, 432A Power Meter Anritsu, ML4803A/MP Harmonic Mixer (26-40 GHz) Hewlett-Packard 11970A, SN: 3003A08327 Harmonic Mixer (40-60 GHz) Hewlett-Packard 11970U, SN: 2332A00500 Harmonic Mixer (75-110 GHz) Hewlett-Packard 11970W, SN: 2521A00179 Harmonic Mixer (140-220 GHz) Pacific Millimeter Prod., GMA, SN: 26 S-Band Std. Gain Horn S/A, Model SGH-2.6 C-Band Std. Gain Horn University of Michigan, NRL design XN-Band Std. Gain Horn University of Michigan, NRL design X-Band Std. Gain Horn S/A, Model 12-8.2 X-band horn (8.2- 12.4 GHz) Narda 640 X-band horn (8.2- 12.4 GHz) Scientific Atlanta , 12-8.2, SN: 730 K-band horn (18-26.5 GHz) FXR, Inc., K638KF Ka-band horn (26.5-40 GHz) FXR, Inc., U638A U-band horn (40-60 GHz) Custom Microwave, HO19 W-band horn(75-110 GHz) Custom Microwave, HO10 G-band horn (140-220 GHz) Custom Microwave, HO5R Bicone Antenna (30-250 MHz) X University of Michigan, RLBC-1 Bicone Antenna (200-1000 MHz) X University of Michigan, RLBC-2 Dipole Antenna Set (30-1000 MHz) X University of Michigan, RLDP-1,-2,-3 Dipole Antenna Set (30-1000 MHz) EMCO 2131C, SN: 992 Active Rod Antenna (30 Hz-50 MHz) EMCO 3301B, SN: 3223 Active Loop Antenna (30 Hz-50 MHz) EMCO 6502, SN:2855 Ridge-horn Antenna (300-5000 MHz) X University of Michigan Amplifier (5-1000 MHz) X Avantak, A11-1, A25-1S Amplifier (5-4500 MHz) X Avantak Amplifier (4.5-13 GHz) Avantek, AFT-12665 Amplifier (6-16 GHz) Trek Amplifier (16-26 GHz) Avantek LISN Box University of Michigan Signal Generator Hewlett-Packard 8657B University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 415031-267 Page 3 of 10 3. Configuration and Identification of Device Under Test The DUT is a 433.92 MHz transmitter, 1.5 x 1.5 x 0.25 inches in size. It operates at 433.92 MHz and the carrier is ASK modulated with Manchester encoding. The DUT was designed and manufactured by Delphi Automotive Systems, One Corporate Center, Kokomo, IN 46904-9005. It is identified as: Delphi Automotive Systems Transmitter Model: CID FCC ID: L2C0028TR IC: 3432A-0028TR The transmitter transmits only when polled by an associated LF source. Note: The LF poling of the DUT is manually activated, and the DUT ceases transmission within 5 seconds when LF poling is removed. See Figure 6.5. 3.1 Modifications Made There were no modifications made to the DUT by this laboratory. 4. Emission Limits The DUT tested falls under the category of an Intentional Radiators and the Digital Devices. For FCC, it is subject to Part 15, Subpart C, (Section 15.231), Subpart B, (Section 15.109), and Subpart A, (Section 15.33). For Industry Canada it is subject to RSS-210, (Section 2.6 and 2.7). The applicable testing frequencies with corresponding emission limits are given in Tables 4.1 and 4.2 below. As a digital device, the DUT is considered as a Class B device. 4.1 Radiated Emission Limits Table 4.1. Radiated Emission Limits (FCC: 15.33, 15.35, 15.109; IC: RSS-210, 2.7 Table 2). (Digital Class B) Freq. (MHz) E lim (3m) μV/m E lim dB(μV/m) 30-88 100 40.0 88-216 150 43.5 216-960 200 46.0 960-2000 500 54.0 Note: Average readings apply above 1000 MHz (1 MHz BW) Quasi-Peak readings apply to 1000 MHz (120 kHz BW) Table 4.2. Radiated Emission Limits (FCC: 15.231(b), 15.205(a); IC: RSS-210; 2.7 Table 1). (Transmitte…
