L2C0030TRUWB Vehicular Radar

Re: Certification for Delphi Delco UWB Radar Model: 12237659 FCC ID: L2C0030TR USER'S MANUAL INFORMATION (PRELIMINARY) The User's Manual is in preparation. The following material will be contained in the manual: FCC ID: L2C0030TR This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. WARNING: Changes or modifications not expressively approved by the party responsible for compliance could void the user's authority to operate the equipment.

Re: Certification for Delphi Delco UWB Radar Model: 12237659 FCC ID: L2C0030TR POWER OF ATTORNEY A letter granting Valdis V. Liepa the Power of Attorney is on file and can be provided when so requested. Re: Certification for Delphi Delco UWB Radar Model: 12237659 FCC ID: L2C0030TR REQUEST FOR CONFIDENTIALITY Pursuant to 47 CRF 0.459, Delphi Delco requests that a part of the subject application be held confidential. This comprises Exhibits (5) Schematics (10) Parts List (Part of Exhibit only) Delphi Delco has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. If there are any questions regarding this request, please contact me at the above address or call 734-483-4211, fax 734-647-2106 or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist University of Michigan Re: Certification for Delphi Delco UWB Radar Model: 12237659 FCC ID: L2C0030TR REQUEST FOR SHORT-TERM CONFIDENTIALITY Delphi Delco requests that a part of the subject application be held short-term confidential. This comprises Exhibit(s) (5) Internal Photos The device in question will not be available to the consumer until the 2007 automotive model year. Thus, Delphi Delco requests that the internal photos not be made public at this time. Delphi will continue to request the short-term confidentiality every 45 day period, up to 180 days from the date of grant, as necessary. If there are any questions regarding this request, please contact me at the above address or call 734-483-4211, fax 734-647-2106 or e-mail [email protected]. Sincerely, Valdis V. Liepa November 3, 2005 Re: Certification for Delphi Delco UWB Radar Model: 12237659 FCC ID: L2C0030TR STATEMENT OF MODIFICATIONS There were no modifications made to the DUT by this test laboratory. (Also see Section 3.1 of the attached Test Report). _____________________ Valdis V. Liepa Research Scientist Re: Certification for Delphi Delco UWB Radar Model: 12237659 FCC ID: L2C0030TR GENERAL PRODUCT INFORMATION The device, for which certification is pursued, has been designed by: Delphi Automotive Systems One Corporate Center Kokomo, IN 46904-9005 Bill Lusa Tel: 734-484-1387 Fax: 734-484-1389 It will be manufactured by: Delphi Delco Electronics de Mexico SA de CV Reynosa Carrertera Reynosa - Matamoros Km 13.5 Parque Industrial Codigo Postal 88780 Partado Postal 1201 Reynosa, Tamaulipas, Mexico Bill Lusa Tel: 734-484-1387 Fax: 734-484-1389 Canadian Contact: Richard Wilkins c/o Delphi Energy and Chassis Systems Oshawa, Ontario L1N 7S6 [email protected] Ph. (905)644-5216 Joseph D Brunett From: LabHelp [[email protected]] Sent: Friday, September 17, 2004 2:59 PM To: Valdis V. Liepa Subject: RE: 15.515 / 15.521 Measurements Page 1 of 1 10/12/2004 Question: If the peak detected emissions from a device meet the RMS EIRP limits, with all Spectrum Analyzer settings identical to the requested RMS detected method except with peak detection, is that sufficient to demonstrate compliance with said limits? (Since the peak detected values will always be greater than the RMS detected values for every bin of the spectrum analyzer output.) Our Spectrum Analyzer does not have the built in RMS detector function and, so long as the device meets the EIRP limits with a peak detector, we prefer not to use the alternative method for determining RMS values as it is an exceptionally long and complicated test. Answer: Yes, you can use a peak detector. Use of a peak detector is sufficient to demonstrate compliance with the RMS limits.

Delco Electronics Systems Proprietary Principles of Operation ‹ Architecture & Block Diagrams When the internal delay of the receive code matches the time of flight to target and back, receiver output is at a maximum as governed by return target signal power D Ø DØ delay unit pseudo noise code generator receive transmit Local Oscillato r recovered carrier target receive code (RF carrier) phase modulator (correlator)phase modulator Delco Electronics Systems Proprietary A3 8 GHz BPF Transmit Short Range RX Receive Code A7 8 GHz DRO A2 Doubler A1A6 Long Range RX Transmit Code 8 GHz TX HPF I Channel IF Q Channel IF 90 0 A5 Power Splitter A4 Diode X2 Diode X3 A9 8 GHz BPF 8 GHz LO required (2 places) 16 GHz LO required A3 8 GHz BPF Transmit Short Range RX Receive Code A7 8 GHz DRO A2 Doubler A1A6 Long Range RX Transmit Code 8 GHz TX HPF I Channel IF Q Channel IF 90 0 A5 Power Splitter A4 Diode X2 Diode X3 A9 8 GHz BPF 8.233 GHz LO required (2 places) 16.467 GHz LO required 8.233 GHz DRO 24.7 GHz Modulated Signal Output Path 3 Path 1 Path 2 Microwave Oscillator/Multiplier Frequencies Block Diagram ‹ Reference Frequency is 8.233 GHz DRO ‹ Signal power is divided into three paths. ‹ Path 1 is used as an 8.233 GHz LO ‹ Path 2 is multiplied x2 and used as a 16.467 GHz LO ‹ Path 3 is phase modulated to create the spread spectrum signal – phase modulation suppresses the carrier to zero amplitude with theoretically perfect diodes ‹ Path 3 spread spectrum signal is then amplified and multiplied x3 to create the transmitted 24.7 Ghz spread spectrum signal Delco Electronics Systems Proprietary Digital Circuitry Oscillator/Multiplier Frequencies Block Diagram ‹ The pseudo noise code generator ASIC has an onboard oscillator referenced to an external crystal. ‹ Internal clock frequencies used in the PN codes are x8, x16, x32, x64 multiples of the crystal reference (all multiplication circuits are on ASIC) ‹ External 19.53125MHz crystal is required RXOUT TXOUT DATAIN FORCE SEED PFD Charge Pump Divider 32:1 MUX DELAYSEL [4:0] 12-stage PN Generator 32-stage delay register VCO 5 32 RESET CODESEL [1:0] CKSEL TESTCLK FREQSEL [1:0] CRYSTAL FILTER V CODIV128 2:1 MUX 10 PARAMETER SYMBOL MIN TYP MAX UNITS Operating frequency range (internal CLOCK) F clock 1230 1250 1270 MHz CLOCK jitter (RMS) J ck 20 50 ps DATA input frequency F data .001 20 Mhz TRANSMIT/RECEIVE output skew (nominal) T skew -320 320 ps Output skew variation T var -200 200 ps Output rise time T rise 10 150 ps Output fall time T fall 10 150 ps TRANSMIT output leakage (RMS) L TC tbd dbV RECEIVE output leakage (RMS) L RC tbd dbV

November 3, 2005 Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315 Re: Certification for Delphi Delco UWB Radar Model: 12237659 FCC ID: L2C0030TR Please find enclosed application materials for certification of Delphi Delco 12237659 UWB Radar. We tested it and found it to comply with FCC Part 15. If there are any questions regarding the application or testing performed, please contact me at the above address or call 734-483-4211, fax 734-647-2106, or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist

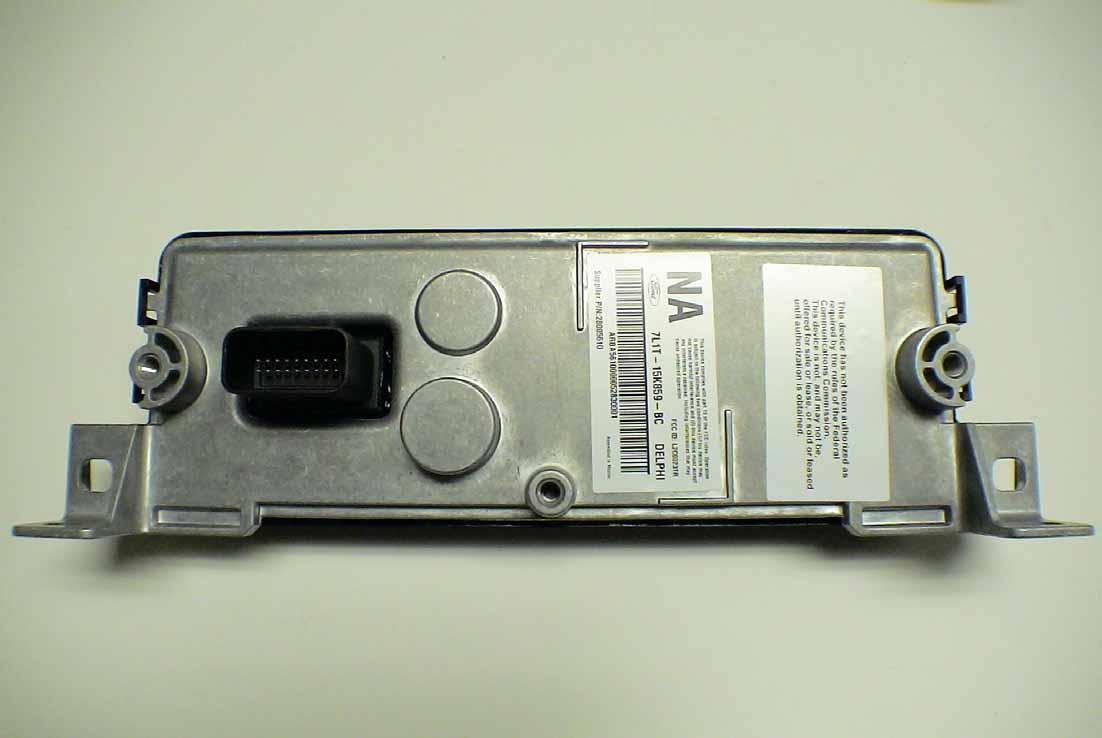

DUT with Harness DUT (front) DUT (back)

L2C0030TR

DUT apart DUT back DUT digital (back) DUT digital PCB (back) DUT digital PCB ( front ) DUT gasket Shield ( back ) Shield ( front ) RF PCB in case ( back ) RF PCB ( back ) RF PCB ( front ) Radom/RF Shield ( back ) Radom ( back )

Delco Electronics Systems Proprietary Radar System Design ‹ Design Drivers – Small targets at 5 meters distance : Good system detection sensitivity – Precision Ranging capability : MU ST have large radiated bandwidth – Wideband FCC frequency allocations demand very low transmitter power – Low transmit power + good system sensitivity means » Sensitive receiver required » Efficient waveform for detection is necessary ‹ Waveform – Continuous Wave radiation modulated in phase by a high speed pseudo noise code – Phase modulation is binary phase shift key (BPSK) – Code modulated continuous wave provides efficient waveform and good range precision Delco Electronics Systems Proprietary Principles of Operation ‹ Range Bin Definition – As a target range (time delay) varies slightly about the time (range) delay imparted to the receive code, the receiver output (voltage) varies to less than maximum. The range response of the system for a fixed return signal power is as follows R n range receiver output Delco Electronics Systems Proprietary Principles of Operation ‹ The POSITION of the range bin in space is determined by the time delay of the receive code – The entire range is covered by scanning the single range bin in range – Scanning is accomplished by adjusting the time delay value of the receive code ‹ The WIDTH of the range bin (depth of bin in space) is determined by the period of one bit of the pseudo noise code sequence – high speed code clocks = thin range bins Delco Electronics Systems Proprietary Principles of Operation ‹ Achieving Receiver Sensitivity – Direct detection of the LO signal which comes out of the receive phase modulator cannot provide adequate receiver sensitivity – The transmit LO signal is further modulated by a data stream to provide an AC signal after down conversion for detection. ²Ø ²Ø delay unit code generator receive transmit LO receive code transmit code data carrier with "data" sidebands data I Q target Delco Electronics Systems Proprietary Principles of Operation ‹ Diagnostics – There is an “End to End” diagnostic function implemented, which gives very high coverage of detecting failures – This feature is accomplished by positioning the system range bin such that it contains the transmit and receive antennas. – Direct coupling between antennas provides a reliable signal injection into the receiver ²Ø ²Ø delay unit code generator receive transmit LO receive code transmit code data LO with "data" sidebands data I Q direct coupling provides Diagnostic signal range bin positioned over antennas with the proper delay value

University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 415031-264 Page 7 of 17 6.4 Receive Chain Emissions (FCC 15.101(b)) Figures 6.8-6.10. Receive Chain Emissions: RBW=1 MHz, VBW>=RBW; measurement distance 0.3 m, peak detection, peak hold. Data compared with FCC Class B limit for reference, Table 6.2. The 8.236 GHz radiated emission is not an emission from the TX chain, but is a spurious emission emanating from the device receive chain LO (the doubler in the RX chain requires the largest portion of the LO power, the reference signal to the transmitter is 14 dB lower). The 8 GHz emission does not radiate at a level above the UWB emission from the transmitter’s antenna, as computed from the theoretical performance of the BPSK digital encoder and both the calculated and measured response of the TX chain Bandpass Filter (-30 dB at 8 GHz). The waveform associated with the particular PN code has the center spectral line reduced by 36 dB relative to the first upper and lower spectral lines of the waveform. Thus, this emission is solely an emission from the receiver portion of the radar. The 16.472 GHz emission is an LO generated for use only in the receive chain of the radar (see block diagram). The 32.944 GHz emission is the 2 nd harmonic of the LO generated for use only in the receive chain of the radar. 6.5 Emission Attenuation Above Horizon (FCC 15.515(c)) Figure 6.11, 6.5. Emissions in the 23.6 to 24.0 GHz band above the horizon. Figure 6.11 demonstrates the TX antenna pattern for the DUT. Figure 6.5 shows the peak detected emissions levels in the 23.6 to 24.0 GHz band, EIRP computed in Table 6.1. Description of measurement procedure in Section 5.4. Angle Sidelobe Level. Emission Level. Total Emission Level Compliance 30 o min -24.0 dB -58.3 dBm @ 24.00 GHz -82.3 dBm < -76.3 dBm beyond 1/1/2014 6.6 Health Hazard EM Radiation Level Health hazard radiation levels are computed from the measured EIRP value following FCC OET Bulletin 65 as follows, where S is power density, Power density is formulated as: S(mW/cm 2 ) = EIRP(mW)/(4π R(cm) 2 ) The highest peak power density in the 10 dB UWB Bandwidth of the DUT recorded with a 1 MHz RBW, as reported in Table 6.1 is -50.8 dBm. Using the UWB bandwidth of the device (1.003 GHz), the maximum EIRP over the emission bandwidth can be computed as: EIRP max = EIRP (dBm) + 10 Log 10 (BW/1MHz) = -41.9 dBm + 30.0 dB = -11.9 dBm = 64.6 uW Thus, the maximum power density at a distance of 20 cm is computed as: S(mW/cm 2 ) = 0.0646 mW / (4π 20(cm) 2 ) = 13 nW/cm 2 6.7 Conducted Emission Measurements Not applicable. 6.8 Effect of Supply Voltage Variation The DUT is designed to operate on 13.4 VDC, originating from a vehicular 12-volt system. The relative radiated emissions and frequency were recorded at the "fundamental" (24.69 GHz) as the supply voltage was varied from 8 to 16 VDC. Figure 6.12 shows the emission power variation. Current at 12.0 VDC was 445 mA.

University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 415031-264 Page 1 of 17 The University of Michigan Radiation Laboratory 3228 EECS Building Ann Arbor, MI 48109-2122 Tel: (734) 764-0500 Measured Radio Frequency Emissions From Delphi UWB 24 GHz Automotive Radar Model(s): 12237659 Report No. 415031-264 November 1, 2005 Copyright © 2005 For: Delphi Automotive Systems One Corporate Center Kokomo, IN 46904-9005 Contact: Bill Lusa Wireless Approval Consultants, LLC Tel: 734-484-1387 Fax: 734-484-1389 PO: Verbal Tests supervised by: Measurements made by: Report approved by: _____________________ Joseph D. Brunett Valdis V. Liepa Research Scientist Summary Tests for compliance with FCC Regulations, according to Part 15.515, were performed on Delphi Automotive Systems UWB Radar. In testing completed on October 24, 2005, the device tested met the UWB emission limits at the fundamental by 1.9 dB at f M , and by more than 0.3 dB for all other UWB emissions. With regard to RF exposure, the maximum RF field at a 20 cm distance was calculated to be 13.0 nW/cm 2 . The DUT is designed for vehicular applications, and as such, digital emissions from support circuitry are not subject to FCC Part 15, Subpart B; however, these emissions were recorded in the process of characterizing the device. Radiated digital emissions from circuitry used to enable the operation of the UWB transmitter meet the FCC/IC Class B (15.209) limit by 15.4 dB. University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 415031-264 Page 2 of 17 1. Introduction Delphi Automotive Systems UWB Radar was tested for compliance with FCC Regulations, Part 15, adopted under Docket 87-389, April 18, 1989. The tests were performed at the University of Michigan Radiation Laboratory Willow Run Test Range following the procedures described in ANSI C63.4-2003 "Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz" and the FCC Part 15, Subpart F, "Ultra-Wideband Operation." The Site description and attenuation characteristics of the Open Site facility are on file with FCC Laboratory, Columbia, Maryland (FCC Reg. No: 91050) and with Industry Canada, Ottawa, ON (File Ref. No: IC 2057). 2. Test Equipment Used The pertinent test equipment commonly used in our facility for measurements is listed in Table 2.1 below. The middle column identifies the specific equipment used in these tests. Table 2.1. Test Equipment. Test Instrument Eqpt. Used Manufacturer/Model Spectrum Analyzer (9kHz-22GHz) Hewlett-Packard 8592L, SN: 3710A00856 Spectrum Analyzer (9kHz-26GHz) X Hewlett-Packard 8593E, SN: 3412A01131 Spectrum Analyzer (9kHz-26GHz) Hewlett-Packard 8563E, SN: 3310A01174 Spectrum Analyzer (9kHz-40GHz) X Hewlett-Packard 8564E, SN: 3745A01031 Spectrum Analyzer (9kHz-50GHz) Agilent Model 8565EC, S/N:4220A00809 Harmonic Mixer (40-60 GHz) X Hewlett-Packard 11970U, SN: 2332A00500 Harmonic Mixer (60-90 GHz) X Pacific Millimeter Prod., VN, SN: 47 Harmonic Mixer (75-110 GHz) X Hewlett-Packard 11970W, SN: 2521A00179 Harmonic Mixer (140-220 GHz) Pacific Millimeter Prod., GMA, SN: 26 L-band horn (0.9-2.0 GHz) X FXR, L6008, SN:622 S-band horn (2.0-4.5 GHz) X Scientific Atlanta, SGH2.6, SN: 43 C-band horn (4.5-6.0 GHz) X Bondardi, DBK-520, SN: 940410 Xn-band horn (6.0-8.0 GHz) X Univ. of Michigan, RLXN, SN: 1 X-band horn (8.2- 12.4 GHz) X Scientific Atlanta , 12-8.2, SN: 730 K-band horn (18-26.5 GHz) X FXR, Inc., K638KF Ka-band horn (26.5-40 GHz) X FXR, Inc., U638A U-band horn (40-60 GHz) X Custom Microwave, HO19 V-band horn (60-90 GHz) X Custom Microwave, HO12 W-band horn (75-110 GHz) X Custom Microwave, HO10 G-band horn (140-220 GHz) Custom Microwave, HO5R Bicone Antenna (30-250 MHz) X University of Michigan, RLBC-1 Bicone Antenna (200-1000 MHz) X University of Michigan, RLBC-2 Dipole Antenna Set (30-1000 MHz) University of Michigan, RLDP-1,-2,-3 Dipole Antenna Set (30-1000 MHz) EMCO 2131C, SN: 992 Active Rod Antenna (30 Hz-50 MHz) EMCO 3301B, SN: 3223 Active Loop Antenna (30 Hz-50 MHz) EMCO 6502, SN:2855 Ridge-horn Antenna (300-5000 MHz) X University of Michigan Amplifier (5-1000 MHz) Avantek, A11-1, A25-1S Amplifier (5-4500 MHz) X Avantek Amplifier (4.5-13 GHz) X Avantek, AFT-12665 Amplifier (6-18 GHz) X Trek Amplifier (18-26.5 GHz) X Avantek, AMT-26158-13 Amplifier (18-40.0 GHz) X CTT Inc., ALO/400-8035 LISN (50 μH) University of Michigan Signal Generator (0.1-2060 MHz) Hewlett-Packard, 8657B Signal Generator (0.01-20 GHz ) Hewlett-Packard, 8550B / 83592A University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 415031-264 Page 3 of 17 3. Configuration and Identification of Device Under Test The Device Under Test (DUT) is a 24 GHz UWB Radar. It is a BPSK (Binary Phase Shift Keyed) system with a constant amplitude 24.7 GHz signal modulated at keying frequencies of 625 MHz and 1250 MHz. The size of the DUT is 25(W) x 10(H) x 3(D) cm with a single connector on the backside. The DUT is a complete radar unit; however, additional signal processing and controlling may be performed by other processors on the vehicle. When installed on a vehicle, the device will operate (transmit) only when the vehicle ignition is on. During testing, a laptop with serial communication was used to control and verify correct device operation. Nominal operating voltage is 13.4 VDC; for testing this was supplied by a laboratory style power supply. The DUT was manufactured by Delphi Delco Electronics de Mexico SA de CV, Parque Industrial Reynosa, Tamaulipas, Mexico. It is identified as: Delphi 24 GHz UWB Radar Model(s): 12237659 S/N: 5610000052830002 FCC ID(s): L2C0030TR 3.1 Changes made to the DUT No changes where made to the DUT by this test laboratory. 4. Emission Limits 4.1 UWB Radiated Emission Limits (FCC 15.515, 15.521) The DUT tested falls under the category of an UWB vehicular radar, subject to FCC 15.515, and all o…
