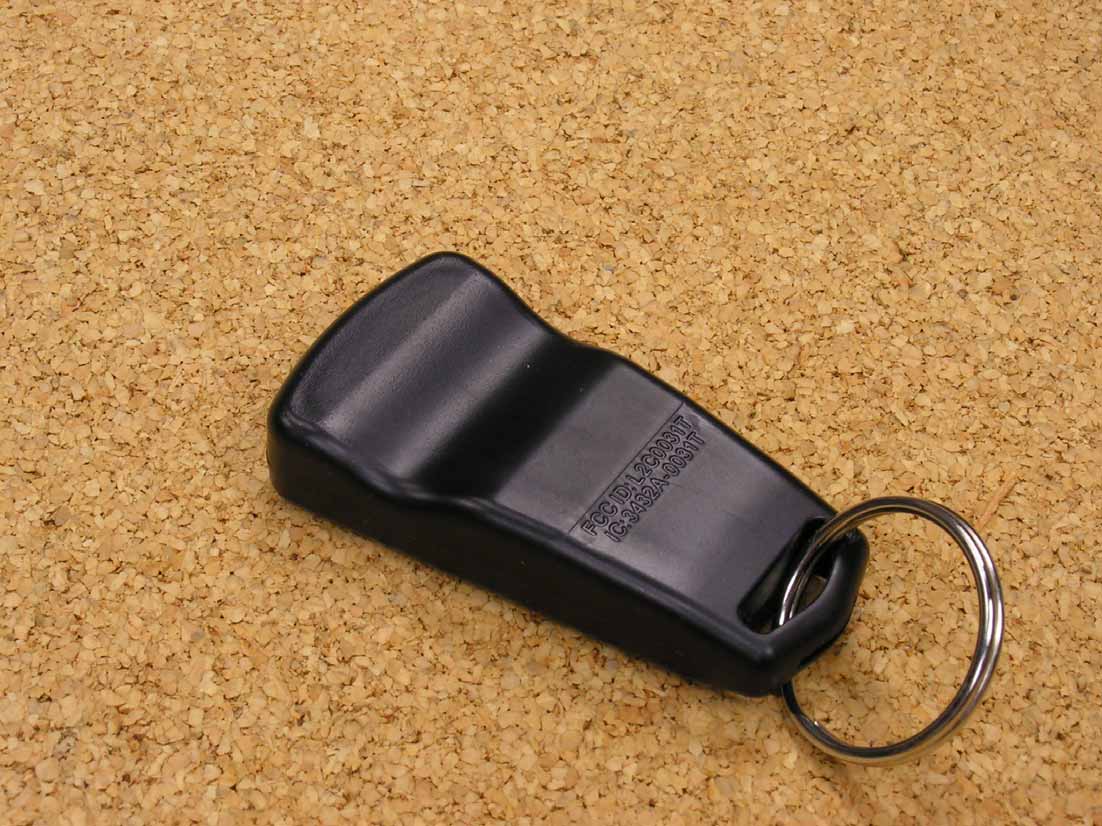

L2C0031THandheld TX

Re: Certification for Delphi Transmitter Model/PN(s): 0031T FCC ID: L2C0031T IC: 3432A-0031T The device under test is manufactured by the grantee (Delphi) and sold as an OEM product. Per 47 CFR 2.909, 2.927, 2.931, 2.1033, 15.15(b) etc..., the grantee must ensure the end-user has all applicable / appropriate operating instructions. When end-user instructions are required, as in the case of this product, the grantee must notify the OEM to notify the end-user. Delphi will supply the following information to the reseller/distributor dictating what must be included in the end user’s manual for the commercial product. INFORMATION TO BE INCLUDED IN THE END USER'S MANUAL The following information must be included in the end product user’s manual to ensure continued FCC and Industry Canada regulatory compliance. The ID numbers must be included in the manual if the device label is not readily accessible to the end user. The compliance paragraphs below must be included in the user's manual. ************************************************************************ FCC ID:L2C0031T IC: 3432A-0031T This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. WARNING: Changes or modifications not expressively approved by the party responsible for compliance could void the user's authority to operate the equipment. The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications were met. ************************************************************************

315 MHz

Federal Communications Commission Applications Processing Branch 7435 Oakland Mills Road Colombia, MD 21046 Re: Letter of Agency for FCC Compliance Testing Please be advised that Delphi Electronics & Safety authorizes Professor Valdis V. Liepa of the University of Michigan, Department of Electrical Engineering and Computer Science, Ann Arbor, Michigan, to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification. Anti-Drug Abuse Certification: I further certify that no party (as defined in 1.2002 of CFR47, 1992) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti Drug Abuse Act of 1988, 21 U.S.C. 853(a). Dated this ___12th__day of February_, 2007__. By: ___ _Brian.W.Johnson___ (Signature) (Print name) Title: _Engineering Group Manager - EMC_ email: [email protected]_ ___ On behalf of: __Delphi Electronics & Safety_____ (Company Name) Telephone: __ (765)451-5770 ___ World Headquarters and Customer Center 5725 Delphi Drive Troy, Michigan 48098-2815 USA American TCB 6731 Whittier Ave. McLean, VA 22101 Acknowledgement of IC Listing Requirements By signing this document, we acknowledge that any information specified on the ATCB Application and Agreement Form for Industry Canada Certification Services provided with this application may be provided to Industry Canada. We acknowledge that this information may be posted in the Radio Equipment List (REL) on the Department's Web Site. Additionally, we understand that we must inform ATCB of any changes to the information submitted. We further acknowledge that the Certified product shall not be distributed, leased, or offered for sale in Canada prior to its listing on the Industry Canada Radio Equipment List (REL). We are aware that we may verify the status of this listing at the following web address: http://strategis.ic.gc.ca/cgi-bin/sc_mrksv/spectrum/reltelSearch/search.pl?lang=e&db=rel Dated this ___12th__day of February_, 2007__. By: _Brian.W.Johnson___ (Signature) (Print name) Title: _Engineering Group Manager - EMC_ email: [email protected]_ ___ On behalf of: __Delphi Electronics & Safety_____ (Company Name) Telephone: __ (765)451-5770 ___ World Headquarters and Customer Center 5725 Delphi Drive Troy, Michigan 48098-2815 USA Attn: Director of Certification Authority to Act as Agent I appoint Valdis V. Liepa to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in Industry Canada’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by American TCB, still resides with Brian W.Johnson, P.O. Box 9005 M/S CT30B, Kokomo, IN, 46904-9005 Agency Agreement Expiration Date: (optional) Dated this ___12th__day of February_, 2007__. By: _Brian.W.Johnson___ (Signature) (Print name) Title: _Engineering Group Manager - EMC_ email: [email protected]_ ___ On behalf of: __Delphi Electronics & Safety_____ (Company Name) Telephone: __ (765)451-5770 ___ World Headquarters and Customer Center 5725 Delphi Drive Troy, Michigan 48098-2815 USA

Re: Certification for Delphi Transmitter Model/PN(s): 0031T FCC ID: L2C0031T IC: 3432A-0031T POWER OF ATTORNEY A letter granting Valdis V. Liepa the Power of Attorney is on file and can be provided when so requested. December 12, 2007 Re: Certification for Delphi Transmitter Model/PN(s): 0031T FCC ID: L2C0031T IC: 3432A-0031T STATEMENT OF MODIFICATIONS There were no modifications made to the DUT by this test laboratory. (Also see Section 3.1 of the attached Test Report). _____________________ Valdis V. Liepa Research Scientist Re: Certification for Delphi Transmitter Model/PN(s): 0031T FCC ID: L2C0031T IC: 3432A-0031T GENERAL PRODUCT INFORMATION The device, for which certification is pursued, has been designed by: Delphi Automotive Systems One Corporate Center, Kokomo, IN 46904-9005 Contact: David Valverde [email protected] Tel: (915) 612-8391 Fax: (915) 612-7934 It will be manufactured by: Delphi Delco Electronics de Mexico SA de CV, Carrertera Reynosa – Matamoros Codigo Postal 88780 Partado Postal 1201 Reynosa, Tamaulipas, Mexico Contact: David Valverde [email protected] Tel: (915) 612-8391 Fax: (915) 612-7934 Canadian Contact: Delphi Energy and Chassis Systems Oshawa, Ontario L1N 7S6 Contact: David Valverde [email protected] Tel: (915) 612-8391 Fax:(915) 612-7934

Re: Certification for Delphi Transmitter FCC ID: L2C0031T IC: 3432A-0031T REQUEST FOR CONFIDENTIALITY Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, Delphi requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent (1) ID Label & Location Short Term Permanent (3) External Photos Short Term Permanent (4) Block Diagram Short Term Permanent (5) Schematics Short Term Permanent (7) Test Setup Photos Short Term Permanent (8) User’s Manual Short Term Permanent (DUT is potted) (9) Internal Photos Short Term Permanent (10) Parts List & Placement Short Term Permanent (11) RF Exposure Short Term Permanent (12) Description of Operation Delphi has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: Delphi requests the exhibits listed above as permanently confidential be permanently withheld from public review. Short-Term Confidentiality (FCC Only): Delphi requests the exhibits selected above as short term confidential be withheld from public view for a period of 45 days from the date of the Grant of Equipment Authorization and prior to marketing. If there are any questions regarding this request, please contact me at the above address or call 734-483-4211, fax 734-647-2106 or e-mail [email protected]. Sincerely, Valdis V. Liepa, Research Scientist University of Michigan

December 19, 2007 RE: Delphi Automotive Systems FCC ID: L2C0031T The following is in response to the comments made on the above referenced application. 1) The device contains only 3 buttons and the internal view appear to show that this device will not have more than 3 buttons. Additionally the test report supports this by stating there is only 1 variant. However the schematics clearly show 5 buttons. It appears that the proper schematics have not been provided. Please review. As noted, the device in question contains only 3 buttons. Internal photographs are provided to show which components are populated, and the Bill of Materials lists only three switches are used. The manufacturer purchases PCB boards in bulk then populates the PCB based on the end product sold to their customer. This end product is tested for regulatory compliance. The manufacturer does not generate unique schematics for their end product, but references the generic schematic provided in relation to the parts list, as supplied. 2) Kindly provide RSS-102, Annex B as necessary for TX devices. RSS-102 Annex B was provided in the application forms exhibit. While the version provided (RSS-210, 2005) differs slightly from that in RSS-210e (2007) it does contain the same statement of compliance. Future applications will include the slightly modified version in the new RSS-210e. 3) Worse case duty cycle would appear to be a bit lower than cited....It would appear that the following would apply: ((49.8 ms + 1.5 ms) x (0.320 ms / 0.626 ms)) / 100 ms = -11.6 dB The two methods of computing the duty cycle are mathematically identical. However, due to the finite discritization used in measuring the transmission period vs. the pulse width, our approach results in a 0.1 dB lower duty cycle than your approach. The test report has been modified to show the more conservative number.

Description of Operation The CV RKE transmitter (fob) is a micro-controller based device that transmits radio frequency wireless signals to the CV RKE receiver to allow control of body functions as follows: Remote Keyless Entry – door lock and unlock using wireless RF fob message Lighting –Dome/Marker Lamp activation for fob functions Safety/Security –Panic alarm activation using wireless RF fob messages

University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 415031-404(rev) Page 1 of 10 The University of Michigan Radiation Laboratory 3228 EECS Building Ann Arbor, MI 48109-2122 Tel: (734) 764-0500 Measured Radio Frequency Emissions From Delphi Transmitter FCC ID: L2C0031T Model/PN(s): 0031T Report No. 415031-404 December 20, 2007 Copyright © 2007 For: Delphi Automotive Systems One Corporate Center, Kokomo, IN 46904-9005 Contact: David Valverde [email protected] Tel: (915) 612-8391 Fax: (915) 612-7934 PO: verbal Tests supervised by: Measurements made by: Valdis V. Liepa Report approved by: _____________________ Valdis V. Liepa Test Report Prepared by: Joseph D. Brunett Research Scientist Summary Tests for compliance with FCC Regulations Part 15, Subpart C, and Industry Canada RSS-210/GEN, were performed on Delphi model/PN(s) 0031T. This device is subject to the Rules and Regulations as a Transmitter. In testing completed on September 10, 2007, the device tested in the worst case met the allowed FCC specifications for radiated emissions by 0.8 dB (see p. 6). Besides harmonics, there were no other significant spurious emissions found; emissions from digital circuitry were negligible. The conducted emission tests do not apply, since the device is powered from a 3 VDC battery. University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 415031-404(rev) Page 2 of 10 1. Introduction Delphi model/PN(s) 0031T was tested for compliance with FCC Regulations, Part 15, adopted under Docket 87-389, April 18, 1989 as subsequently amended, and with Industry Canada RSS-210/Gen, Issue 6, September 2005. The tests were performed at the University of Michigan Radiation Laboratory Willow Run Test Range following the procedures described in ANSI C63.4-2003 "Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz". The Site description and attenuation characteristics of the Open Area Test Site are on file with FCC Laboratory, Columbia, Maryland (FCC Reg. No: 91050) and with Industry Canada, Ottawa, ON (File Ref. No: IC 2057A-1). 2. Test Procedure and Equipment Used The pertinent test equipment commonly used in our facility for measurements is listed in Table 2.1 below. The middle column identifies the specific equipment used in these tests. Table 2.1 Test Equipment. Test Instrument Eqpt. Used Manufacturer/Model Spectrum Analyzer (0.1-1500 MHz) Hewlett-Packard, 182T/8558B Spectrum Analyzer (9kHz-22GHz) X Hewlett-Packard 8593A SN: 3107A01358 Spectrum Analyzer (9kHz-26GHz) X Hewlett-Packard 8593E, SN: 3412A01131 Spectrum Analyzer (9kHz-26GHz) Hewlett-Packard 8563E, SN: 3310A01174 Spectrum Analyzer (9kHz-40GHz) Hewlett-Packard 8564E, SN: 3745A01031 Power Meter Hewlett-Packard, 432A Power Meter Anritsu, ML4803A/MP Harmonic Mixer (26-40 GHz) Hewlett-Packard 11970A, SN: 3003A08327 Harmonic Mixer (40-60 GHz) Hewlett-Packard 11970U, SN: 2332A00500 Harmonic Mixer (75-110 GHz) Hewlett-Packard 11970W, SN: 2521A00179 Harmonic Mixer (140-220 GHz) Pacific Millimeter Prod., GMA, SN: 26 S-Band Std. Gain Horn S/A, Model SGH-2.6 C-Band Std. Gain Horn University of Michigan, NRL design XN-Band Std. Gain Horn University of Michigan, NRL design X-Band Std. Gain Horn S/A, Model 12-8.2 X-band horn (8.2- 12.4 GHz) Narda 640 X-band horn (8.2- 12.4 GHz) Scientific Atlanta , 12-8.2, SN: 730 K-band horn (18-26.5 GHz) FXR, Inc., K638KF Ka-band horn (26.5-40 GHz) FXR, Inc., U638A U-band horn (40-60 GHz) Custom Microwave, HO19 W-band horn(75-110 GHz) Custom Microwave, HO10 G-band horn (140-220 GHz) Custom Microwave, HO5R Bicone Antenna (30-250 MHz) X University of Michigan, RLBC-1 Bicone Antenna (200-1000 MHz) X University of Michigan, RLBC-2 Dipole Antenna Set (30-1000 MHz) X University of Michigan, RLDP-1,-2,-3 Dipole Antenna Set (30-1000 MHz) EMCO 2131C, SN: 992 Active Rod Antenna (30 Hz-50 MHz) EMCO 3301B, SN: 3223 Active Loop Antenna (30 Hz-50 MHz) EMCO 6502, SN:2855 Ridge-horn Antenna (300-5000 MHz) X University of Michigan Amplifier (5-1000 MHz) X Avantak, A11-1, A25-1S Amplifier (5-4500 MHz) X Avantak Amplifier (4.5-13 GHz) Avantek, AFT-12665 Amplifier (6-16 GHz) Trek Amplifier (16-26 GHz) Avantek LISN Box University of Michigan Signal Generator Hewlett-Packard 8657B University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 415031-404(rev) Page 3 of 10 3. Device Under Test 3.1 Identification The DUT is a 315 MHz Remote Keyless Entry (RKE) transmitter, 1 x 0.75 x 3 inches in size. The device is stabilized via a 9.84375MHz crystal. The DUT was designed and manufactured by Delphi Automotive Systems, One Corporate Center, Kokomo, IN 46904-9005. It is identified as: DelphiTransmitter Model/PN(s): 0031T FCC ID: L2C0031T IC: 3432A-0031T 3.2 Variants There is only a single variant of the device. One standard operating transmitter and one CW programmed version were used for during measurement. 3.3 Modes of Operation The DUT is capable of only a single mode of operation. The DUT is manually activated and ceases to transmit within 5 seconds of deactivation. See Figure 6.1. 3.4 EMI/EMC Relevant Modifications There were no modifications made to the DUT by this laboratory. 4. Emission Limits The DUT tested falls under the category of an Intentional Radiators and the Digital Devices. For FCC, it is subject to Part 15, Subpart C, (Section 15.231(a-c), 15.209), and Subpart A, (Section 15.33). For Industry Canada it is subject to RSS-210 (Section 2.6 and 2.7). The applicable testing frequencies with corresponding emission limits are given in Tables 4.1 and 4.2 below. 4.1 Radiated Emission Limits Table 4.1. Radiated Emission Limits (FCC: 15.33, 15.35, 15.209; IC: RSS-210, 2.7 Table 2). (Digital Class B) Freq. (MHz) E lim (3m) μV/m E lim dB(μV/m) 30-88 100 40.0 88-216 150 43.5 216-960 200 46.0 960-2000 500 54.0 Note: Average readings apply above 1000 MHz (1 MHz BW) Quasi-Peak …
