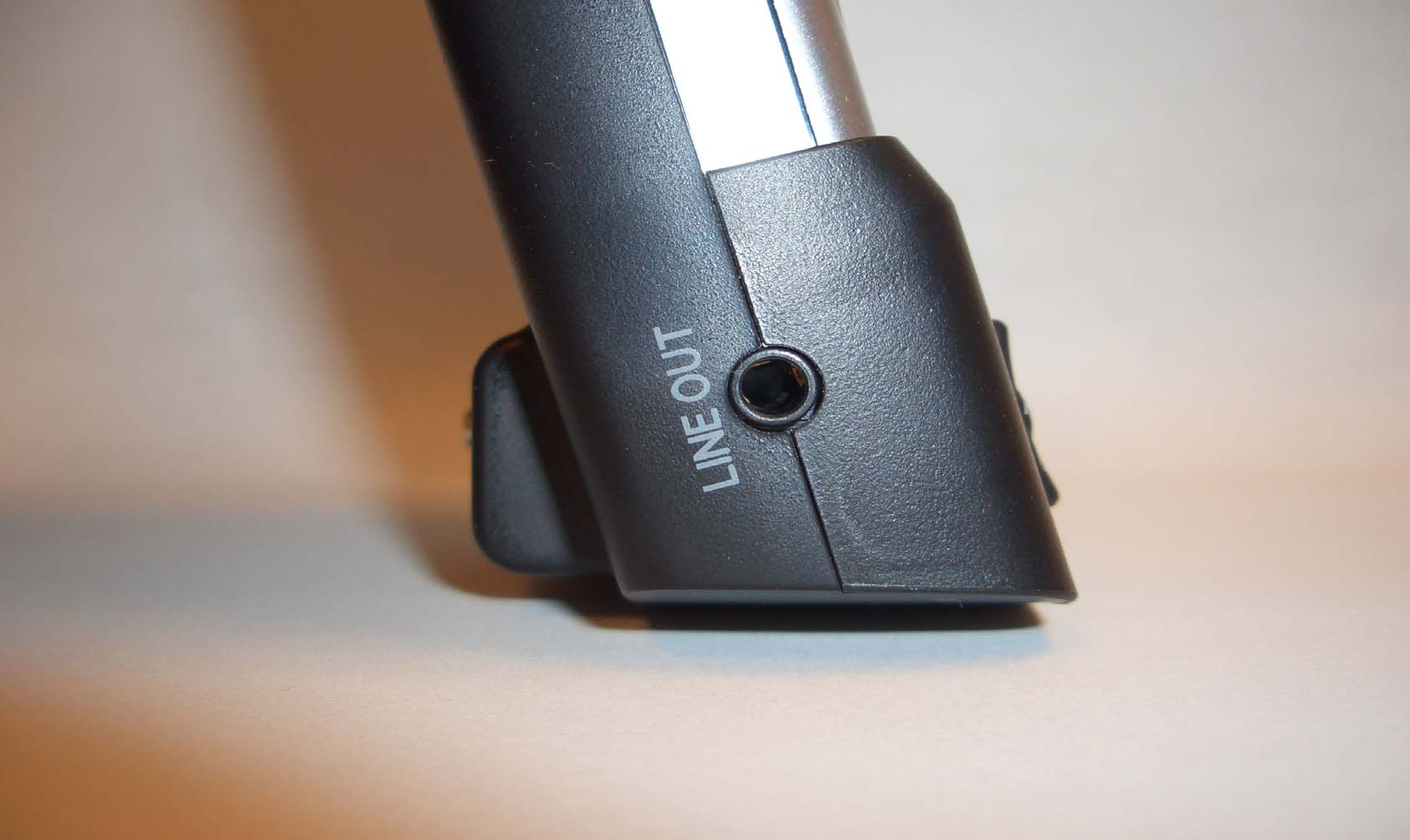

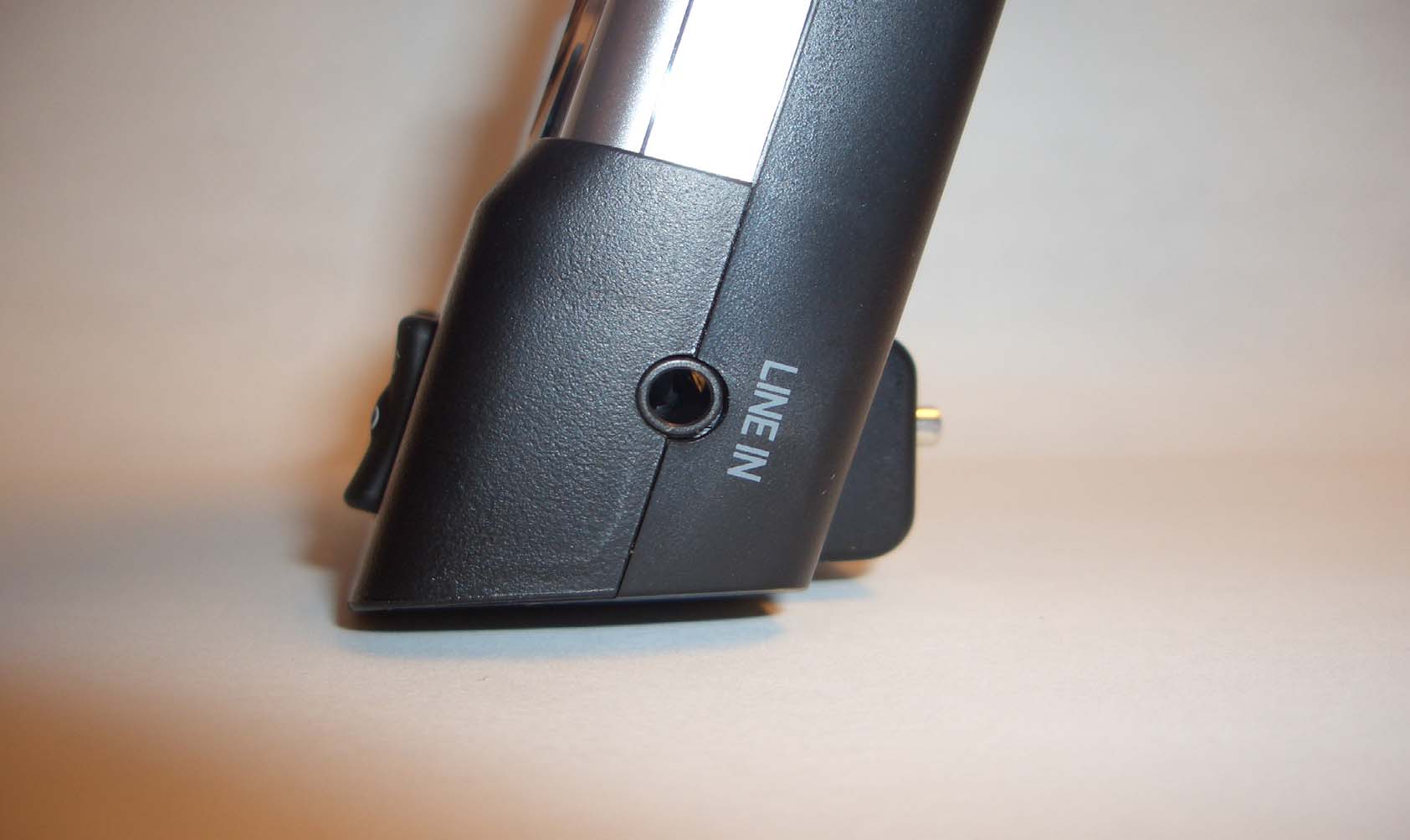

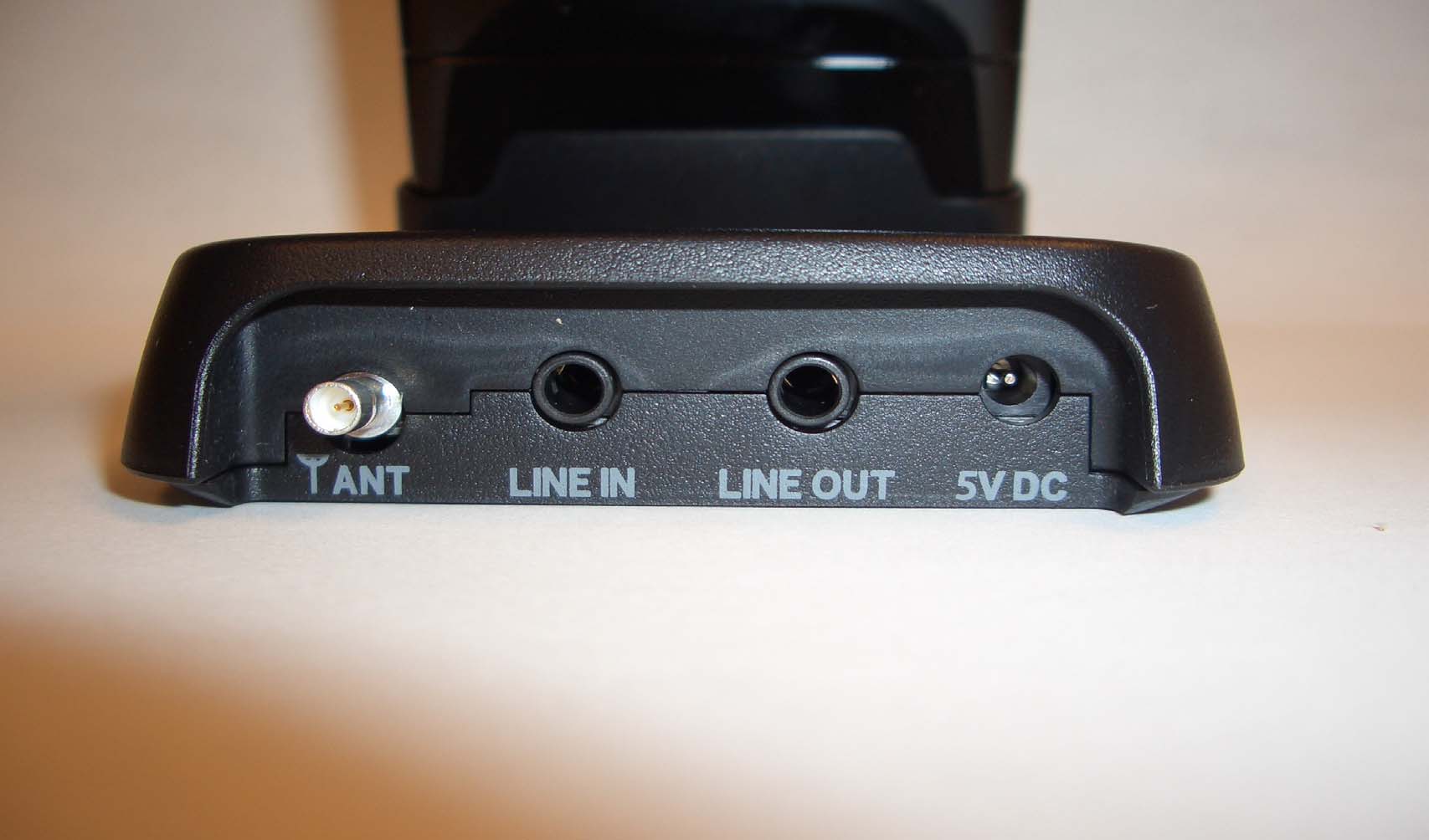

SkyFi3 In Car Dock (Landscape Display Mode) SkyFi3 In Car Dock (Portrait Display Mode) SkyFi3 In Home Dock w/Home Antenna (Portrait Display Mode) SkyFi3 Stand Alone (Portrait Display Mode) SkyFi3 View from Back of Receiver SkyFi3 In Home Dock View from Rear of Docking Station SkyFi3 In Car Dock Viewed from Rear of Dock SkyFi3 In Car Dock Viewed from Left Side of Dock Car Dock Key Pad SkyFi3 In Car Dock Viewed from Right Side of Dock Car Dock Key Pad SkyFi3 Stand Alone View Looking Down at the Receiver Headphone Jack Micro SD Card Slot Receiver Keypad SkyFi3 Stand Alone View Looking at Bottom of the Receiver USB Port Main Connector Receiver Keypad Receiver Display

SkyFi3 Internal Pictures Figure 1: Battery Frame on right, Circuit board showing RF section Figure 2: View of RF section without shield. SkyFi3 Internal Pictures Figure 3: Battery frame, display section and digital side of board .

IN-VEHICLE TEST SETUP Equipment Type Manufacturer Model Cal Date Due Date Spectrum Analyzer R&S FSIQ7 3/28/2006 3/28/2007 Low Noise Amplifier Sonoma Inst310 6/9/2006 6/9/2007 Biconilog Antenna ETS-Lindgren 3142C 6/5/2006 6/5/2007 FAU EMI LAB – Conducted/Radiated Emissions FAU EMI R&D LABORATORY TEST EQUIPMENT Equipment Type Manufacturer DescriptionModel Serial No. Calibration Date Calibration Interval (Years) Spectrum Analyzer Hewlett Packard RF Section 8566B 2403A06381 Aug-22-06 2 Spectrum Analyzer Hewlett Packard Display 85662A 2407A06381 Aug-22-06 2 Spectrum Analyzer Hewlett Packard Quasi Peak Adapter 85650A 2430A00559 Aug-22-06 2 RF Preselector Hewlett Packard Preselector 85685A 2510A00151Feb-8-06 2 LISN EMCO Line Impedance Stabilization Network 3825/2R 1095 Mar-10-06 2 30 – 200 MHz EMCO Biconical Antenna 3108 2147 24 Feb 06 2 200MHz- 1GHz EMCO Log Periodic Antenna 3146 1385 24 Feb 06 2

Technical Report No. 06-065 2 Table of Contents 1. Introduction 3 2. Objective 3 3. Conclusion 4 4. Test Procedure and Result 4.1 General Test Procedures 5 4.2 Conducted Emissions 15.107(a) 5 4.3 Radiated Emissions 15.109(a) 8 4.4 Operation from 88 MHz to 107 MHz 15.239 21 4.5 Tabular Data (all plots) 28 4.6 Radiated Emissions on vehicle 15.239 30 4.7 Occupied Bandwidth 15.239(a) 35 4.8 Test Equipment 38 Technical Report No. 06-065 3 1. INTRODUCTION The Delphi XM Satellite Radio, SkyFi3 Model SA10225 was evaluated for compliance to the FCC Part 15, Sections 15.107(a), 15.109(a) and 15.239(a), (b), (c) Class B requirements and the results apply only to the specific items of equipment, configurations and procedures supplied to the Florida Atlantic University EMI Research Lab by Delphi and XM Satellite Radio, Inc., as reported in this document. 2. OBJECTIVE Test Specifications This evaluation was performed to verify conformance of the Delphi XM Satellite Radio, Inc. SkyFi3 receiver to U.S. Federal Communications Commission (FCC) Code of Federal Regulations (CFR), Title 47 - Telecommunication, Part 15 - Radio Frequency Devices, • Subpart B - Unintentional Radiators, Section 15.107(a) Conducted limits, and Section 15.109(a) Radiated Class B Emission limits. • Subpart C – Paragraph 15.239 (a), (b), (c) – Operation in the band 88 MHz to 108 MHz Mode of Operation • During FCC Part 15 Subpart B, Paragraph 15.107(a) conducted emission test, the EUT was configured to receive an XM Satellite Radio signal, with the EUT in the SkyFi3 home cradle with the XM home AC adaptor. • During FCC Part 15 Subpart C, Paragraphs 15.239 (b), (c) radiated emissions tests, the EUT was configured to transmit a continuous FM signal with normal modulation at 88.1 MHz, 96.9 MHz and 107.1 MHz using the XM Satellite Radio’s FM Coupler attached to a standard FM aerial antenna attached to a large ground plane. • During FCC Part 15 Subpart B, Paragraph 15.109(a), the EUT was configured to receive an XM Satellite Radio signal, with the EUT in three different modes: o In a SkyFi3 car cradle, using only an XM Satellite Radio car antenna. o In a SkyFi3 car cradle, using an FM Direct Adaptor and car antenna. o In a SkyFi3 home cradle, using only an XM Satellite Radio home antenna. • During FCC Part 15 Subpart B, Paragraph 15.109(a), the EUT was operated as a playback device in the following configurations: o In a SkyFi3 Car Cradle, the product was operating as a ‘playback’ device utilizing musical data stored on external (micro SD) memory. o In a SkyFi3 Car Cradle, the product was operating as a ‘playback’ device utilizing musical data stored on internal flash memory. o In a SkyFi3 Home Cradle, the product was operating as a ‘playback’ device utilizing musical data stored on external (micro SD) memory. o In a SkyFi3 Home Cradle, the product was operating as a ‘playback’ device utilizing musical data stored on internal flash memory. Technical Report No. 06-065 4 o Receiver as a stand alone playback device operating from internal battery. • During FCC Part 15 Subpart B, Paragraph 15.109(a), the EUT was tested for performance while in these data transfer configurations: o As a stand alone product uploading/downloading data thru the USB port using the internal battery • During FCC Part 15 Subpart B, Paragraph 15.109(a), the EUT was tested for performance in these other configurations: o In a SkyFi3 Car Cradle, the product was operating in AUX mode o In a SkyFi3 Home Cradle, the product was operating in AUX mode • During FCC Part 15 Subpart B, Paragraph 15.109(a), the EUT was tested for performance in these other configurations: o In a ‘semi-portable mode’ Car Cradle, the product was operating in playback mode. • During FCC Part 15 Subpart C, Paragraphs 15.239(b), (c), the EUT was also configured to transmit a continuous FM signal with normal modulation at 88.7 MHz, 96.9 MHz and 107.1 MHz in three representative vehicles, using the XM Satellite Radio’s FM Coupler attached to the vehicle’s in-glass FM antennas, in accordance with the intentional radiator limits described in 15.239(b). 3. CONCLUSION The Delphi XM Satellite Radio SkyFi3 Model SA10255 met the FCC Class B conducted and radiated emission requirements, as well as the intentional radiation limits, as described in the following pages. Technical Report No. 06-065 5 4. TEST PROCEDURES AND RESULTS 4.1 GENERAL TEST PROCEDURES The measurement techniques identified in the measurement procedure of ANSI C63.4-2003 "American National Standard of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz" were followed as close as practical during this evaluation. Complete details and specific procedures used are discussed in the respective test result sections. 4.2 CONDUCTED EMISSIONS – Section 15.107(a) 4.2.1 Test Setup – Conducted Emissions The Delphi XM Satellite Radio SkyFi3, Model SA10255, was powered by an I.T.E Power Supply, Model No. SMPS5V2A-XMRT. The 120 VAC/ DC 5V switching power supply was then installed in the FAU EMI Research facilities conducted emissions shielded enclosure on a wooden test table 80 centimeters above the ground plane floor and 40 centimeters from the rear wall. The I.T.E Power Supply was then plugged into an EMCO Model No.3825/2R Serial No. 1095, 50 Ω, 50 μH Line Impedance Stabilization Network (LISN). Conducted power line emissions were measured on both the phase and neutral lines with reference to earth ground, over the specified 150 kHz to 30 MHz range on a Hewlett Packard HP 8566B Spectrum Analyzer operated in the peak detection mode with a bandwidth of 9 kHz obtained through the HP 85650A Quasi Peak Adapter. HP 85864B software was utilized with two sweeps in conjunction with HP 85685A preselector during the measurements. Technical Report No. 06-065 6 4.2.2 Test Data – Conducted Emissions The EUT was tested for the peak-detected emissions on phase and neutral lines while the SkyFi3 unit wa…

Text truncated - open the document above for the full version.

Technical Report No. 06-065 16 4.3.2.4 Portable Mode 4.3.2.4.1 Portable Mode (Playback) Figure 30 30MHz to 200MHz Vertical Figure 31 30MHz to 200MHz Horizontal Technical Report No. 06-065 17 Figure 32 200MHz to 1GHz Vertical Figure 33 200MHz to 1GHz Horizontal 4.3.2.4.2 Semi-Portable Mode (CLA power and headphone) Figure 34 30MHz to 200MHz Vertical Figure 35 30MHz to 200MHz Horizontal Technical Report No. 06-065 18 Figure 36 200MHz to 1GHz Vertical Figure 37 200MHz to 1GHz Horizontal Technical Report No. 06-065 19 4.3.2.5 USB Mode 4.3.2.5.1 USB Mode Receive Data Figure 38 30MHz to 200MHz Vertical Figure 39 30MHz to 200MHz Horizontal Figure 40 200MHz to 1GHz Vertical Figure 41 200MHz to 1GHz Horizontal Technical Report No. 06-065 20 4.3.2.5.2 USB Mode Transmit Data Figure 42 30MHz to 200MHz Vertical Figure 43 30MHz to 200MHz Horizontal Figure 44 200MHz to 1GHz Vertical Figure 45 200MHz to 1GHz Horizontal

Technical Report No. 06-065 21 4.3.2.6 Radiated Emissions - FM Direct Adapter 4.3.2.6.1 Test Setup – FM Direct Adapter In the FM Direct Adaptor setup, the EUT was placed in the SkyFi3 car cradle, with an XM FM Direct Adapter, XM car antenna and XM 5V cigarette adaptor (ITE) power supply. The FM Direct Adapter FM OUT cable was terminated with 75 ohms to simulate an FM radio’s FM input jack. The FM Direct Adaptor FM IN cable was attached to an FM aerial antenna on a ground plane to simulate a vehicle’s FM antenna. The ground plane is connected to the negative supply of the vehicle battery. Diagram 2: FM Direct Adapter Radiated Emissions Setup Car Aerial Antenn a Ground Plane 12V car battery Wooden table Vehicle cradle XM Radi o Power Adaprto FM Direct Adaptor Box XM Antenna Large Ground Plane (3ft x 4ft) XM Antenna Cable 23 ft. Randomly placed onto table, then ad justed for maximum emissions. + FM IN 3ft FM OUT 3 ft. 75 ohm term. - Ground wire Note : A 10cm. distance is maintained between edges of adjacent devices placed on the table top. FM Direct Cable 6 ft. Placed on table. Technical Report No. 06-065 22 .3.2.6.2 Test Data – FM Direct Adapter 4 Figure 46 30MHz to 200MHz Vertical (FM programmed to 88.1MHz) Figure 47 30MHz to 200MHz Horizontal (FM programmed to 88.1MHz Figure 48 200MHz to 1GHz Vertical (FM programmed to 88.1MHz) Figure 49 200MHz to 1GHz Horizontal (FM programmed to 88.1MHz) Technical Report No. 06-065 23 Figure 50 30MHz to 200MHz Vertical (FM programmed to 96.9MHz) Figure 51 30MHz to 200MHz Horizontal (FM programmed to 96.9MHz Figure 52 200MHz to 1GHz Vertical (FM programmed to 96.9MHz) Figure 53 200MHz to 1GHz Horizontal (FM programmed to 96.9MHz) Technical Report No. 06-065 24 Figure 54 30MHz to 200MHz Vertical (FM programmed to 107.9MHz) Figure 55 30MHz to 200MHz Horizontal (FM programmed to 107.9MHz) Figure 56 200MHz to 1GHz Vertical (FM programmed to 107.9MHz Figure 57 200MHz to 1GHz Horizontal (FM programmed to 107.9MHz) Technical Report No. 06-065 25 4.3.2.7 Radiated Emissions – Car Cradle and XM …
