L2C0035TRIgnition Immobilizer Transmitter

PASS-Key® III+ The PASS-Key III+ system operates on a radio frequency subject to Federal Communications Commission (FCC) Rules and with Industry Canada. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. This device complies with RSS-210 of Industry Canada. Operation is subject to the following two conditions: 1. This device may not cause interference. 2. This device must accept any interference received, including interference that may cause undesired operation of the device. Changes or modifications to this system by other than an authorized service facility could void authorization to use this equipment. PASS-Key III+ uses a radio frequency transponder in the key that matches a decoder in your vehicle. <- BackForward -> Document ID# 1331390 2008 Chevrolet Colorado Pickup - 4WD Print <- BackForward -> Document ID# 1331390 2008 Chevrolet Colorado Pickup - 4WD Print Page 1 of 1Service Information 5/2/2007http://esiwip.spo.gm.com/servlets/BlobShtml?ShtmlFile=1331390&evc=sm&pubid=1763&...

Micro Reader/Exciter (Base Station) Power Supply Serial DataTransceiver (J1850) Coil Antenna Battery / gnd Serial Data 125Khz 4 Mhz Resonator Block Diagram- Passey 3+ Transponder

May 31, 2007 RE: ATCB004933 for Delphi Automotive Systems FCC ID: L2C0035TR & IC: 3432A-0035TR The following is in response to the comments made on the above referenced application. 1. This Part 15 transmitter application contains conflicting information on the operating frequency. The test report in Section 3.1 says it operates at 125 kHz. In the application it’s listed as operating at 126.2 kHz because that’s where it was measured in the test report. Finally, the operational description says it operates at 131 kHz. Please clarify and correct the incorrect information as necessary. The Test Report and Operational Description have been corrected to reflect the measured operating frequency of the device. The Operational Description provided was from a much earlier version of the device and had not been updated for the change in frequency. 2. The schematic diagram shows connections for two coils or antennas. Please describe if one is for receiving signals and the other is used for transmitting signals or if both can be used for transmitting signals. If both can transmit signals, please confirm that they both were evaluated for radiated emissions testing. The ports shown in the schematic refer to H-bridge differential leads of a single LF coil. No secondary coil exists.

Re: Certification for Delphi Transmitter Model/PN(s): 28052381 FCC ID: L2C0035TR IC: 3432A-0035TR POWER OF ATTORNEY A letter granting Valdis V. Liepa the Power of Attorney is on file and can be provided when so requested.


Re: Certification for Delphi Transmitter FCC ID: L2C0035TR IC: 3432A-0035TR REQUEST FOR CONFIDENTIALITY Pursuant to 47 CRF 0.457(d) and 0.459, Delphi requests that a part of the subject application be held confidential. Type
of
Confidentiality
Requested
Exhibit
Short Term Permanent (1) ID Label & Location Short Term Permanent (3) External Photos Short Term Permanent (4) Block Diagram Short Term Permanent (5) Schematics Short Term Permanent (7) Test Setup Photos Short Term Permanent (8) User’s Manual Short Term Permanent (9) Internal Photos Short Term Permanent (10) Parts List & Placement Short Term Permanent (11) RF Exposure Short Term Permanent (12) Description of Operation Delphi has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent
Confidentiality:
Delphi requests the exhibits listed above as permanently confidential be permanently withheld from public review. ShortTerm
Confidentiality:
Delphi requests the exhibits selected above as short term confidential be withheld from public view for a period of 45 days from the date of the Grant of Equipment Authorization and prior to marketing. If there are any questions regarding this request, please contact me at the above address or call 734-483-4211, fax 734-647-2106 or e-mail [email protected]. Sincerely, Valdis V. Liepa, Research Scientist University of Michigan May 15, 2007 Re: Certification for Delphi Transmitter Model/PN(s): 28052381 FCC ID: L2C0035TR IC: 3432A-0035TR STATEMENT OF MODIFICATIONS There were no modifications made to the DUT by this test laboratory. (Also see Section 3.1 of the attached Test Report). _____________________ Valdis V. Liepa Research Scientist Re: Certification for Delphi Transmitter Model/PN(s): 28052381 FCC ID: L2C0035TR IC: 3432A-0035TR GENERAL PRODUCT INFORMATION The device, for which certification is pursued, has been designed by: Delphi Automotive Systems One Corporate Center, Kokomo, IN 46904-9005 Contact: Fiean Liem [email protected] Tel: (734) 484-1387 Fax: (734) 484-1389 It will be manufactured by: Delphi Delco Electronics de Mexico SA de CV, Carrertera Reynosa – Matamoros Codigo Postal 88780 Partado Postal 1201 Reynosa, Tamaulipas, Mexico Contact: Fiean Liem [email protected] Tel: (734) 484-1387 Fax: (734) 484-1389 Canadian Contact: Delphi Energy and Chassis Systems Oshawa, Ontario L1N 7S6 Contact: Richard Wilkins [email protected] Tel: (905) 644-5216 Fax:(734) 484-1389 American TCB 6731 Whittier Ave. McLean, VA 22101 Acknowledgement of IC Listing Requirements By signing this document, we acknowledge that any information specified on the ATCB Application and Agreement Form for Industry Canada Certification Services provided with this application may be provided to Industry Canada. We acknowledge that this information may be posted in the Radio Equipment List (REL) on the Department's Web Site. Additionally, we understand that we must inform ATCB of any changes to the information submitted. We further acknowledge that the Certified product shall not be distributed, leased, or offered for sale in Canada prior to its listing on the Industry Canada Radio Equipment List (REL). We are aware that we may verify the status of this listing at the following web address: http://strategis.ic.gc.ca/cgi-bin/sc_mrksv/spectrum/reltelSearch/search.pl?lang=e&db=rel Dated this ___12th__day of February_, 2007__. By: _Brian.W.Johnson___ (Signature) (Print name) Title: _Engineering Group Manager - EMC_ email: [email protected]_ ___ On behalf of: __Delphi Electronics & Safety_____ (Company Name) Telephone: __ (765)451-5770 ___ World Headquarters and Customer Center 5725 Delphi Drive Troy, Michigan 48098-2815 USA Attn: Director of Certification Authority to Act as Agent I appoint Valdis V. Liepa to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in Industry Canada’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by American TCB, still resides with Brian W.Johnson, P.O. Box 9005 M/S CT30B, Kokomo, IN, 46904-9005 Agency Agreement Expiration Date: (optional) Dated this ___12th__day of February_, 2007__. By: _Brian.W.Johnson___ (Signature) (Print name) Title: _Engineering Group Manager - EMC_ email: [email protected]_ ___ On behalf of: __Delphi Electronics & Safety_____ (Company Name) Telephone: __ (765)451-5770 ___ World Headquarters and Customer Center 5725 Delphi Drive Troy, Michigan 48098-2815 USA Federal Communications Commission Applications Processing Branch 7435 Oakland Mills Road Colombia, MD 21046 Industry Canada 1241 Clyde Ave. Ottawa, Ontario K2C 1Y3 Re: Power of Attorney for Valdis V. Liepa To Whom It May Concern: Delphi Electronics & Safety has appointed Valdis V. Liepa, located at the University of Michigan, Department of Engineering and Computer Science, Ann Arbor, Michigan 48109-2122 as the agent to act for Delphi Electronics & Safety in the FCC and IC certification process. Dated this ___12th__day of February_, 2007__. By: __ __ _Brian.W.Johnson___ (Signature) (Print name) Title: _…

Text truncated - open the document above for the full version.

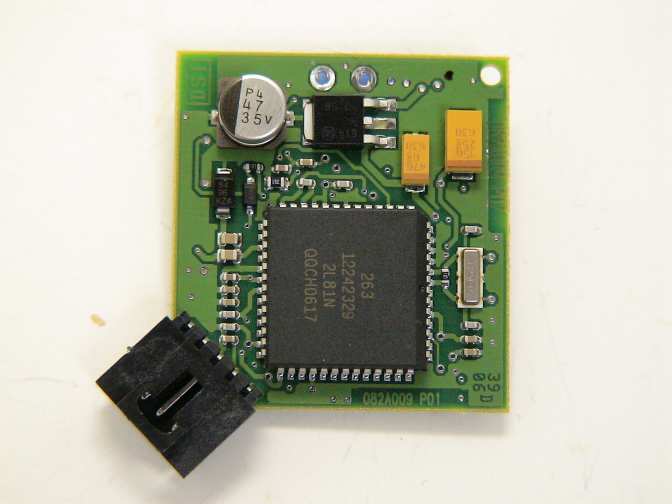

PRODUCT OVERVIEW The Passkey III Reader/Exciter module is part of a vehicle immobilization system intended to prevent amateur theft. The module, through its coil antenna, energizes a transponder embedded in the head of the ignition key and reads the unique security code from the transponder. The module sends the security code it receives from the transponder to a Controller Module for authentication. The Passkey III Reader/Exciter module consists of the following functional block: 1. Closed-Loop Drive/Oscillator 2. Resonant L-C 3. Coil Drive Wave Shaping 4. AM detector 5. Data Filtering/Amplification The Reader/Exciter (R/E) module receives power from the vehicle body controller module when vehicle ignition switch is activated. Once power is delivered to the R/E module, a current-controlled oscillator is activated with nominal frequency set to 125 kHz. The square wave signal generated by the oscillator is fed to a wave shaping stage and drives a series resonant RLC nominally tuned to 125 kHz (with lock cylinder effect). The inductor or the coil antenna is a 97-turn, 33 gauge wire wound with inside diameter of approximately 34.38mm. The coil antenna is fitted and positioned around the vehicle ignition lock cylinder. The signal of the oscillator driving the series RLC is fed into a phase detector along with the sinusoidal resonant voltage formed by series RLC. The difference of phase between the oscillators drive signal and the sinusoidal resonant signal is converted into current sink or source to the current controlled oscillator. It effectively forms a closed loop system whereby the oscillator frequency tracks the resonant frequency of the series RLC. The current generated in the coil antenna produces a magnetic field around the coil, which extends to couple to a transponder in the key. The coupled energy from the R/E module energizes the transponder and in turn transponder modulates the magnetic field in accordance to the security code at a rate of 2 kHz.

University of Michigan Radiation Laboratory FCC Part 15, IC RSS210/Gen  Test Report %o. 415031371
Page
1
of
10



The
University
of
Michigan
Radiation
Laboratory
3228
EECS
Building
Ann
Arbor,
MI
48109(2122
Tel:
(734)
764(0500


Measured
Radio
Frequency
Emissions
From

DelphiAutomotiveSystemsTransmitter FCCID:L2C0035TR Model/P#(s):28052381
Report
No.
415031(371
May
15,
2007


Copyright
©
2007


For:
Delphi
Automotive
Systems
One
Corporate
Center,

Kokomo,
IN
46904(9005

Contact:
Fiean
Liem
[email protected]
Tel:
(734)
484(1387
Fax:
(734)
484(1389




Tests
supervised
by:
Measurements
made
by:
Valdis
V.
Liepa
Report
approved
by:


_____________________



Valdis
V.
Liepa
Test
Report
written
by:

Joseph
D
Brunett

Research
Scientist

Summary

Tests
for
compliance
with
FCC
Regulations,
Part
15,
Subpart
C,
and
for
compliance
with
Industry
Canada
RSS(210/Gen,
were
performed
on
Delphi
Automotive
Systems
Transmitter,
model/PN(s)
28052381.

This
device
is
subject
to
Rules
and
Regulations
as
a
Transmitter.


In
testing
completed
May
2,
2007,
the
device
tested
in
the
worst
case
met
the
allowed
specifications
for
transmitter
radiated
emissions
by
27.4
dB
(see
p.
7);
digital
emissions
Class
B
are
met
by
more
than
20
dB.
The
conducted
emissions
tests
do
not
apply,
since
the
device
is
powered
from
a
12
VDC
system.
University of Michigan Radiation Laboratory FCC Part 15, IC RSS210/Gen  Test Report %o. 415031371
Page
2
of
10

1.Introduction Delphi
Automotive
Systems
model/PN(s)
28052381
was(were)
tested
for
compliance
with
FCC
Regulations,
Part
15,
adopted
under
Docket
87(389,
April
18,
1989,
and
with
Industry
Canada
RSS( 210/Gen,
Issue
6,
September
2005.

The
tests
were
performed
at
the
University
of
Michigan
Radiation
Laboratory
Willow
Run
Test
Range
following
the
procedures
described
in
ANSI
C63.4(2003
"Methods
of
Measurement
of
Radio(Noise
Emissions
from
Low(Voltage
Electrical
and
Electronic
Equipment
in
the
Range
of
9
kHz
to
40
GHz".

The
Site
description
and
attenuation
characteristics
of
the
Open
Site
facility
are
on
file
with
FCC
Laboratory,
Columbia,
Maryland
(FCC
Reg.
No:
91050)
and
with
Industry
Canada,
Ottawa,
ON
(File
Ref.
No:
IC
2057).
 2.TestProceduresandEquipmentUsed
The
pertinent
test
equipment
commonly
used
in
our
facility
for
measurements
is
listed
in
Table
2.1
below.

The
middle
column
identifies
the
specific
equipment
used
in
these
tests.

Table2.1TestEquipment. TestInstrumentEqpt.UsedManufacturer/Model Spectrum
Analyzer
(0.1(1500
MHz)


Hewlett(Packard,
182T/8558B
Spectrum
Analyzer
(9kHz(22GHz)

X
Hewlett(Packard
8593A
SN:
3107A01358
Spectrum
Analyzer
(9kHz(26GHz)

X
Hewlett(Packard
8593E,
SN:
3412A01131
Spectrum
Analyzer
(9kHz(26GHz)

Hewlett(Packard
8563E,
SN:
3310A01174
Spectrum
Analyzer
(9kHz(40GHz)

Hewlett(Packard
8564E,
SN:
3745A01031
Power
Meter

Hewlett(Packard,
432A
Power
Meter

Anritsu,
ML4803A/MP
Harmonic
Mixer
(26(40
GHz)

Hewlett(Packard
11970A,
SN:
3003A08327
Harmonic
Mixer
(40(60
GHz)

Hewlett(Packard
11970U,
SN:
2332A00500
Harmonic
Mixer
(75(110
GHz)

Hewlett(Packard
11970W,
SN:
2521A00179
Harmonic
Mixer
(140(220
GHz)

Pacific
Millimeter
Prod.,
GMA,
SN:
26
S(Band
Std.
Gain
Horn


S/A,
Model
SGH(2.6
C(Band
Std.
Gain
Horn


University
of
Michigan,
NRL
design
XN(Band
Std.
Gain
Horn


University
of
Michigan,
NRL
design
X(Band
Std.
Gain
Horn


S/A,
Model
12(8.2
X(band
horn
(8.2(
12.4
GHz)

Narda
640
X(band
horn
(8.2(
12.4
GHz)

Scientific

Atlanta
,
12(8.2,
SN:
730
K(band
horn
(18(26.5
GHz)

FXR,
Inc.,
K638KF
Ka(band
horn
(26.5(40
GHz)

FXR,
Inc.,
U638A
U(band
horn
(40(60
GHz)

Custom
Microwave,
HO19
W(band
horn(75(110
GHz)

Custom
Microwave,
HO10
G(band
horn
(140(220
GHz)

Custom
Microwave,
HO5R
Bicone
Antenna
(30(250
MHz)
X
University
of
Michigan,
RLBC(1

Bicone
Antenna
(200(1000
MHz)
X
University
of
Michigan,
RLBC(2
Dipole
Antenna
Set
(30(1000
MHz)

X
University
of
Michigan,
RLDP(1,(2,(3
Dipole
Antenna
Set
(30(1000
MHz)


EMCO
2131C,
SN:
992
Active
Rod
Antenna
(30
Hz(50
MHz)

EMCO
3301B,
SN:
3223
Active
Loop
Antenna
(30
Hz(50
MHz)
X
EMCO
6502,
SN:2855
Ridge(horn
Antenna
(300(5000
MHz)
X
University
of
Michigan

Amplifier
(5(1000
MHz)
X
Avantek,
A11(1,
A25(1S
Amplifier
(5(4500
MHz)
X
Avantek
Amplifier
(4.5(13
GHz)

Avantek,
AFT(12665
Amplifier
(6(16
GHz)

Trek
Amplifier
(16(26
GHz)

Avantek
LISN
Box

University
of
Michigan
Signal
Generator

Hewlett(Packard
8657B

University of Michigan Radiation Laboratory FCC Part 15, IC RSS210/Gen  Test Report %o. 415031371
Page
3
of
10
3.DeviceUnderTest

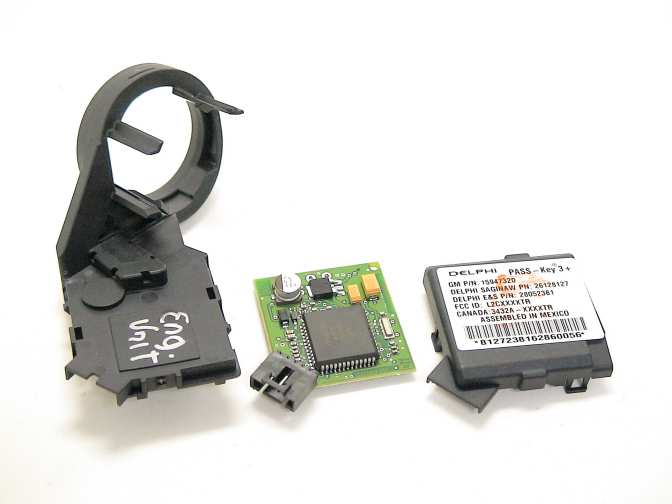

3.1Identification The
DUT
is
a
125
kHz
Transmitter
designed
for
an
onboard
automobile
Ignition
Immobilizer
System
and
as
such,
it
is
powered
from
an
automotive
12
VDC
source.

It
is
housed
in
a
plastic
case
approximately
4.5
by
2.5
by
2
inches.
Coil
is
molded
into
the
housing.

For
testing,
a
generic
harness
was
provided
by
the
manufacturer.

The
DUT
is
manufactured
by
Delphi
Delco
Electronics
de
Mexico
SA
de
CV,
Carrertera
Reynosa
–
Matamoros,
Codigo
Postal
88780,
Partado
Postal
1201,
Reynosa,
Tamaulipas,
Mexico.

It
is
identified
as:

Delphi
Automotive
Systems
Transmitter

Model/PN(s):
28052381

FCC
ID:
L2C0035TR

IC:
3432A(0035TR
3.2Variants There
is
only
a
single
version
of
the
DUT.

The
device
supplied
was
actuated
by
applying
supply
voltage
to
the
power
leads
on
the
harness.

 3.3ModesofOperation The
device
is
capable
of
only
a
single
mode
of
operation.

It
transmits
a
single
205
ms
CW
interrogation
pulse
to
read
the
passive
transponder
embedded
in
the
manufacturer’s
key.

3.4EMIRelevantModifications No
EMI
Relevant
Modifications
were
performed
by
this
test
laboratory.


4.EmissionLimits
4.1RadiatedEmissionLimits The
DUT
tested
falls
under
the
category
of
an
Intentional
Radiator,
subject
to
Subpa…
