L2C0043TRDelphi BCM System

World Headquarters and Customer Center 5725 Delphi Drive Troy, Michigan 48098-2815 USA Re: Certification for Delphi BCM FCC ID: L2C0043TR IC: 3432A-0043TR The device under test is manufactured by the grantee (Delphi Delco Electronics Systems) and sold as an OEM product. Per 47 CFR 2.909, 2.927, 2.931, 2.1033, 15.15(b) etc..., the grantee must ensure the end- user has all applicable / appropriate operating instructions. When end-user instructions are required, as in the case with this product, the grantee must notify the OEM to notify the end-user. Delphi Delco Electronics Systems will supply the following information to the reseller/distributor dictating what must be included in the end user’s manual for the commercial product: INFORMATION TO BE INCLUDED IN THE END USER'S MANUAL The following information must be included in the end product user’s manual to ensure continued FCC and Industry Canada regulatory compliance. The ID numbers must be included in the manual if the device label is not readily accessible to the end user. The compliance paragraphs below must be included in the user's manual. ************************************************************************ FCC ID: L2C0043TR IC: 3432A-0043TR This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. WARNING: Changes or modifications not expressively approved by the party responsible for compliance could void the user's authority to operate the equipment. The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications were met.

Re: Certification for Delphi Transceiver Model/PN(s): L2C0043TR FCC ID: L2C0043TR IC: 3432A-0043TR POWER OF ATTORNEY A letter granting Valdis V. Liepa the Power of Attorney is on file and can be provided when so requested. March 17, 2010 Re: Certification for Delphi Transceiver Model/PN(s): L2C0043TR FCC ID: L2C0043TR IC: 3432A-0043TR STATEMENT OF MODIFICATIONS There were no modifications made to the DUT by this test laboratory. (Also see Section 3.1 of the attached Test Report). _____________________ Valdis V. Liepa Research Scientist Re: Certification for Delphi Transceiver Model/PN(s): L2C0043TR FCC ID: L2C0043TR IC: 3432A-0043TR GENERAL PRODUCT INFORMATION The device, for which certification is pursued, has been designed by: Delphi Automotive Systems One Corporate Center, Kokomo, IN 46904-9005 Contact: Thomas Hoover [email protected] Tel: 765-451-0900 Fax: 765-451-0900 It will be manufactured by: Delphi Delco Electronics de Mexico SA de CV, Carrertera Reynosa – Matamoros Codigo Postal 88780 Partado Postal 1201 Reynosa, Tamaulipas, Mexico Contact: Thomas Hoover [email protected] Tel: 765-451-0900 Fax: 765-451-0900 Canadian Contact: WIRELESS APPROVAL CONSULTANTS P. O. Box 24082 Windsor, Ontario N8Y 4Y9 Contact: Brad Koski [email protected] Tel: 734-484-1387 Fax:734-484-1389

March 17, 2010 Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315 Re: Certification for Delphi Transceiver Model/PN(s): L2C0043TR FCC ID: L2C0043TR IC: 3432A-0043TR Please find enclosed application materials for certification of Delphi Transceiver. We tested it and found it to comply with FCC Part 15. If there are any questions regarding the application or testing performed, please contact me at the above address or call 734-483-4211, fax 734-647-2106, or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist March 17, 2010 Certification and Engineering Bureau Industry Canada 3701 Carling Avenue, Bldg. 94 Ottawa, Ontario K2H 8S2 Re: Certification for Delphi Transceiver Model/PN(s): L2C0043TR FCC ID: L2C0043TR IC: 3432A-0043TR Please find enclosed application materials for certification of Delphi Transceiver. We tested the device and found it to comply with RSS-GEN/102/210. The product is identified by: IC: 3432A-0043TR If there are any questions, suggestions, etc., regarding the application or testing performed, please contact me at the above address or call 734-483-4211, fax 734-647- 2106; e-mail: [email protected]. Sincerely, Valdis V. Liepa Research Scientist

DELPHI Attn: Di rector 01 Certification Authority to Act as Agent I appoint Dr. Valdis V. Uepa to act as our agent in the preparation 01 this applicaHon for equipment certification. I c:;ertify thai submit1ed documents property describe the device or system for I>koich equipment certijication is sought I also certify that each unit manulactured, imported or marketed, as OOIined in Industry CanacJa's regulations will have af1ixed to it a label idefllical \0 that submitted for approval with thIS application. For Instances where OUf authorized agent signs the application lor C611Jfication on our behaH, I acknowledge that all responsibility lor complying with the terms and coodiIiOns lor certification, as specified by American TeB, still resides with Delphi Automotive Sysloms, One Corporate Center, P .O. Bo~ 9005, Kokomo, Indiana, 46904-9005, United Slates . Dated this 29'" day 01 September, 2009. By: Tl10mas C. Hoover (Signature) nlo: Manager -Advanced Projects Email: Thomas.C.Hoo\lel'"Odolphl.co m On behaH 01: Delphi Automotive Systems Telephone: 765 451 0900 -.. --~--------------------- DELPHI Federal Communications Commission Applications Processing Branch 7435 Oakland Mills Road Colombia, Mo 21046 Re: letter 01 Agency lor FCC Compliance Testing Please be advised that Delphi Automotive Systems authorizes Dr. Valdis V_ Uepa of the Universrtyof Michigan, Department of Electrical Engineering and Computer Science, Ann Arbor, Michigan, to act on our behalf in front 01 the Federal Communications Commission with respect to all matters relating to certrtication. Anti-Drug Abuse Certilicatioo: I further certrty that no party (as defined in 1_2002 01 CFR47. 1992) to this application, including myself, is subject t o a denial of f ederal benefits. that includes FCC benefits, pursuant to Section 5301 of the Anti Drug Abuse Act of 1988,21 U .S.C. 853(a). Dated this 29'" day of September, 2009_ By: Thomas C, Hoover (Signature) T itle: Manager -Advanced Projects Email: Thomas,[email protected] On behalf of: Delphi Automotive Systems Te~: 7654510900

Re: Certification for Delphi Transceiver FCC ID: L2C0043TR IC: 3432A-0043TR REQUEST FOR CONFIDENTIALITY Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, Delphi requests that a part of the subject application be held confidential. Delphi has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Type of Confidentiality Requested Exhibit Short Term Permanent (1) ID Label & Location Short Term Permanent (3) External Photos Short Term Permanent 1 (4) Block Diagram Short Term Permanent (5) Schematics Short Term Permanent (7) Test Setup Photos Short Term Permanent (8) User’s Manual Short Term Permanent (9) Internal Photos Short Term Permanent (10) Parts List & Placement Short Term Permanent (11) RF Exposure Short Term Permanent (12) Description of Operation 1. Block Diagram includes internal oscillator frequency information that the manufacturer considers to be proprietary. Permanent Confidentiality: Delphi requests the exhibits listed above as permanently confidential be permanently withheld from public review. Short-Term Confidentiality (FCC Only): Delphi requests the exhibits selected above as short term confidential be withheld from public view for a period of 45 days from the date of the Grant of Equipment Authorization and prior to marketing. If there are any questions regarding this request, please contact me at the above address or call 734-483-4211, fax 734-647-2106 or e-mail [email protected]. Sincerely, Valdis V. Liepa, Research Scientist University of Michigan

315MHz BCM Labeling Compliance for FCC/Industry Can ada Approval Product LabelFCC Compliance Label

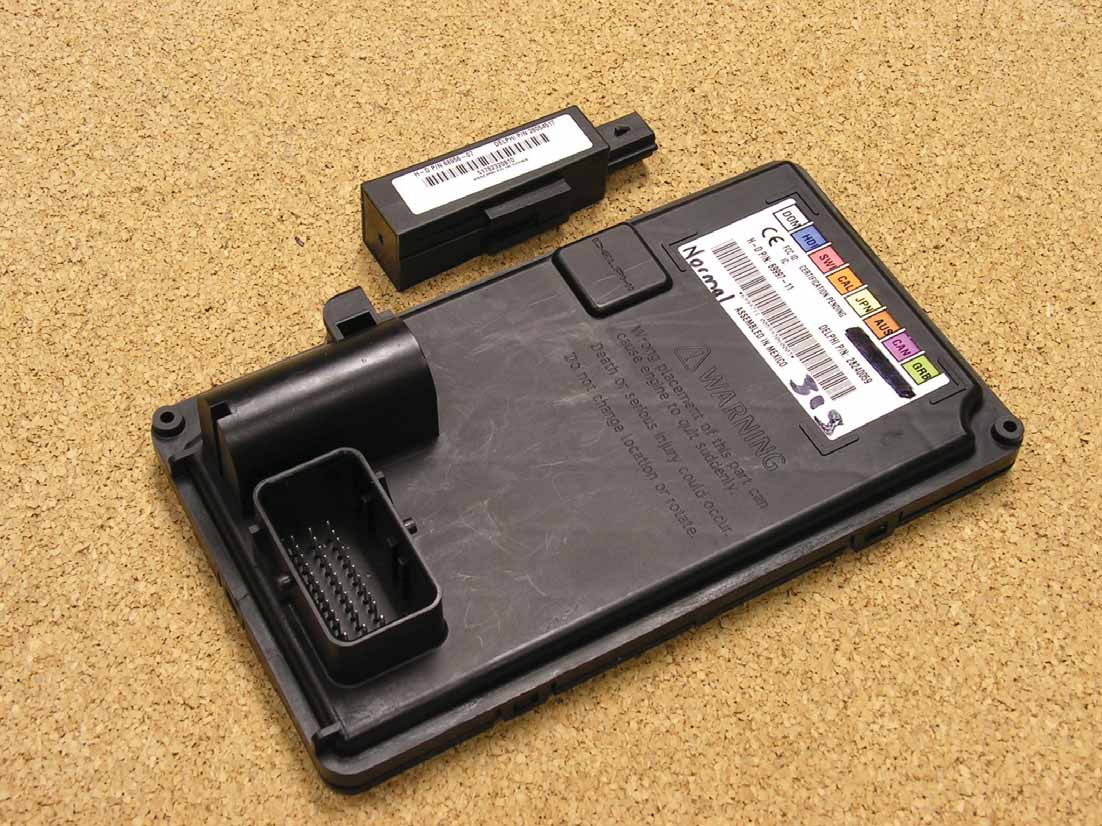

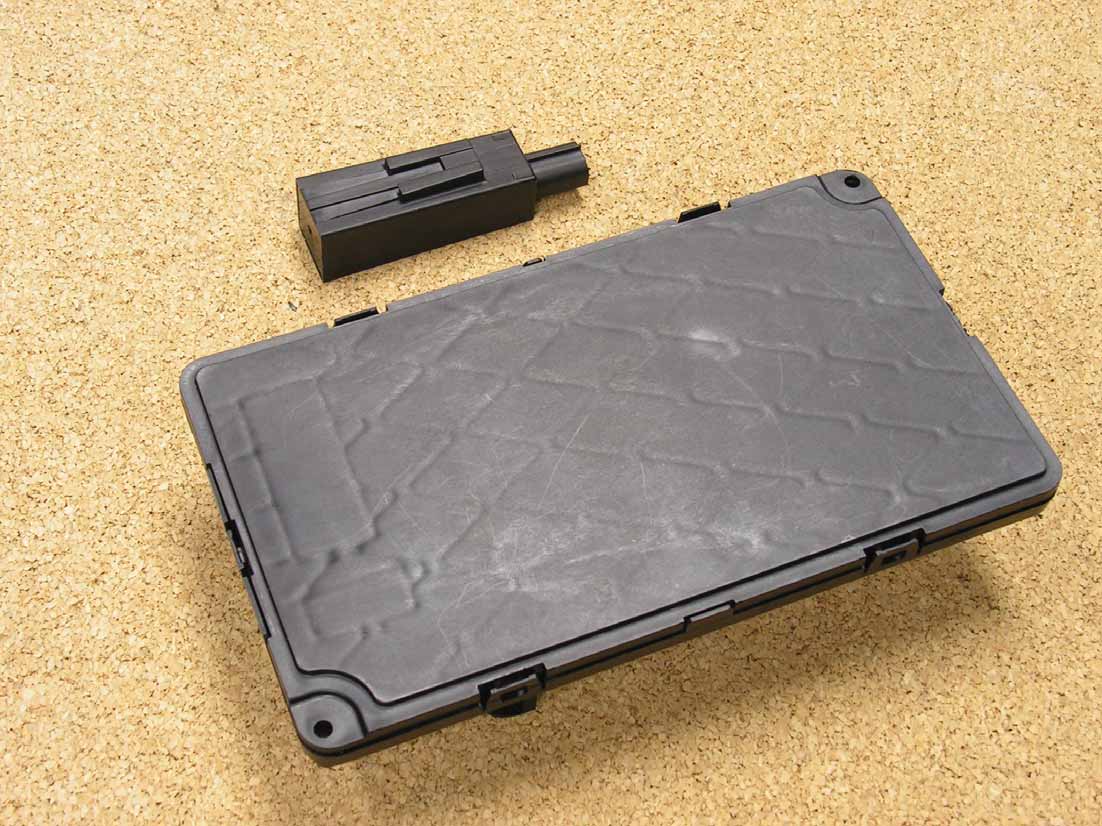

System Configurations / Components The Harley Davison BCM system provides a secure method of allowing communications of commands between the Customer Identification Device (CID) and the BCM. Once the IGN/RUN switch is activated the BCM controller will initiate the uplink process that is a 125 KHZ transmission, if the operator carries a valid CID it will generate a 433.92MHZ or 315MHZ downlink in response to the incoming signal, the whole process takes around 100ms and it is intended to disable the security and immobilization function and allow the engine to start. Security Module: Includes an LF transmitter and either a 315 MHz or 434 MHz UHF/RF Receiver Available in either an X-axis or Y-axis vehicle mounting configuration The security module is the main component of a vehicle security system, which includes the following components: Security Module BCM LF Antenna Module Customer Identification Devices (CIDs) , Quantity = two. The CID is delivered with a 434 MHz or a 315 MHz RF transmitter. The 315 MHz configuration is designed to comply with the anti-tamper and RF requirements of the Japanese market. The BCM shall provide the Functions defined in the following table: Function  Vehicle Turn Signal Operation  Tip-Over Shut Down Safety Feature  Vehicle Power Control  Security Alarm & Immobilization  UHF/LF Link  Tire Pressure Monitoring  HDLAN Serial Bus  Feature Customization

University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 417124-561 Page 1 of 11 The University of Michigan Radiation Laboratory 3228 EECS Building Ann Arbor, MI 48109-2122 Tel: (734) 764-0500 Fax: (734) 647-2106 Measured Radio Frequency Emissions From Delphi Transceiver FCC ID: L2C0043TR IC: 3432A-0043TR Test Report No. 417124-561 March 17, 2010 Copyright © 2010 For: Delphi Automotive Systems One Corporate Center, Kokomo, IN 46904-9005 Contact: Thomas Hoover [email protected] Phone: 765-451-0900 Fax: 765-451-0900 Testing supervised by: Measurements made by: Valdis V. Liepa Report Approved by:__________________________ Valdis V. Liepa Test report written by: Joseph D. Brunett Research Scientist Summary Tests for compliance with FCC Regulations, CFR 47, Part 15 and with Industry Canada RSS-210/Gen, were performed on a Delphi, FCC ID: L2C0043TR, IC: 3432A-0043TR. This device under test (DUT) is subject to the rules and regulations as a Transceiver. Also included in this device is an RF receiver subject to emissions verification. In testing completed on March 15, 2010 , the DUT tested met the allowed specifications for intentional radiated emissions by 47.9 dB. Radiated receiver spurious emissions meet the regulatory limit by more than 2.9 dB. AC power line conducted emissions are not subject to regulation as the DUT is powered by a 12 VDC battery. University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 417124-561 Page 2 of 11 Table of Contents 1. Introduction ...................................................................................................................................... 3 2. Equipment Used ............................................................................................................................... 3 3. Device Under Test ........................................................................................................................... 4 3.1 Description & Block Diagram .............................................................................................. 4 3.2 Samples & Variants .............................................................................................................. 4 3.3 Modes of Operation .............................................................................................................. 4 3.4 Exemptions ........................................................................................................................... 4 3.5 EMC Relevant Modifications ............................................................................................... 4 4. Emissions Limits .............................................................................................................................. 5 4.1 Radiated Emissions Limits .................................................................................................... 5 5. Measurement Procedures ................................................................................................................. 6 5.1 Semi-Anechoic Chamber Radiated Emissions ...................................................................... 6 5.2 Outdoor Radiated Emissions ................................................................................................. 6 5.3 Radiated Field Computations ................................................................................................ 6 5.4 Indoor Power Line Conducted Emissions ............................................................................. 6 5.5 Supply Voltage Variation ...................................................................................................... 7 6. Test Results ...................................................................................................................................... 7 6.1 Radiated Emissions ............................................................................................................... 7 6.1.1 Correction for Pulse Operation ......................................................................................... 7 6.1.2 Emission Spectrum ........................................................................................................... 7 6.1.3 Emission Bandwidth ......................................................................................................... 7 6.1.4 Supply Voltage and Supply Voltage Variation ................................................................. 7 6.2 Conducted Emissions ............................................................................................................ 7 University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 417124-561 Page 3 of 11 1. Introduction This Delphi Transceiver was tested for compliance with FCC Regulations, Part 15, adopted under Docket 87-389, April 18, 1989 as subsequently amended, and with Industry Canada RSS-210/Gen, Issue 7, June 2007. Tests were performed at the University of Michigan Radiation Laboratory Willow Run Test Range following the procedures described in ANSI C63.4-2003 "Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz". The Site description and attenuation characteristics of the Open Site facility are on file with FCC Laboratory, Columbia, Maryland (FCC Reg. No: 91050) and with Industry Canada, Ottawa, ON (File Ref. No: IC 2057A-1). 2. Equipment Used The test equipment commonly used in our facility is listed in Table 2.1. Except where indicated as a pre- test, monitoring, or support device; all equipment listed below is a part of the University of Michigan Radiation Laboratory (UMRL) quality system. This quality system has been established to ensure all equipment has a clearly identifiable classification, calibration expiry date, and that all calibrations are traceable to national standards. Table 2.1 Test Equipment. Test In…
