W408 Immo – User manual Delphi Confidential W408 Immobilizer User Manual FCC ID: L2C0046TR The immobilizer system consists of: - Immobilizer ECU (integrated with instrument cluster) with Coil/Antenna and illumination ring - Key with embedded transponder Two keys are paired with the immobilizer by storing specific parameters in the key and immobilizer through diagnostic services. This ensures that only these two keys can be used to start the vehicle. RF communication between the instrument cluster and the transponder is conducted through a proprietary algorithm. The authentication status is indicated through immobilizer telltale in the instrument cluster – - the immobilizer telltale is OFF when authentication between immobilizer and key is successful - the immobilizer telltale is ON when authentication between immobilizer and key has failed Subsequent to successful key authentication, another level of authentication is performed between the EMS and the immobilizer over CAN. This is to determine if the EMS and immobilizer form a matched pair before the engine can be started. Failure at one of the two levels of authentication will result in preventing engine start, thus rendering the vehicle immobilized. Note: This device complies with Part 15 of the FCC rules. Operation is subject to following two conditions: 1. This device may not cause harmful interference and 2. This device must accept any interference received including interference that may cause undesired operation of this device. The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. To comply with the FCC RF exposure compliance requirements, this device and its antenna must not be co-located or operating to conjunction with any other antenna or transmitter.

ELECTRONICS & SAFETY SYSTEMS 1 st November, 2010 To, Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Subject: Attestation Letter for DELPHI W408 Immobilizer (FCC ID - L2C0046TR) To Whom it May Concern: Delphi Electronics & Safety, certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). Sincerely, Mr. Brian W. Johnson EGM, EMC Design Group DELPHI ELECTRONICS & SAFETY (Formerly, DELPHI DELCO ELECTRONIC SYSTEMS) P. O. Box 9005, M/S ERC2, Kokomo, IN 46904-9005.

ELECTRONICS & SAFETY SYSTEMS DELPHI ELECTRONICS & SAFETY (FORMERLY, DELPHI DELCO ELECTRONICS SYSTEMS) P.O.Box 9005 M/S ERC2 Kokomo, IN 46904-9005 October 18, 2010 To, Federal Communications Commission Authorization and Evaluation division Subject: Request for Confidentiality for DELPHI W408 Immobilizer (FCC ID - L2C0046TR) Pursuant to 47 CRF 0.457(d) and 0.459, Delphi requests that a part of the subject application be held confidential. Type of Confidentiality requested Exhibit Type File name Permanent Schematics W408_Schematic.pdf Permanent Parts List / BOM W 408_BOM.pdf Permanent Product Description W 408 Immobilizer_Product Description.pdf Permanent Block diagram W 408_Block Diagram.pdf Permanent Antenna Datasheet W 408_AntennaCoil.pdf Short-Term User Manual W 408 Immobilizer_User Manual.pdf Short-Term Internal Photos Short-Term External Photos Delphi has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: Delphi requests the exhibits listed above as permanently confidential be permanently withheld from public review. Short-Term Confidentiality: Delphi requests the exhibits selected above as short term confidential be withheld from public view for a period of 45 days from the date of the Grant of Equipment Authorization and prior to marketing. Sincerely, Brian W. Johnson EGM EMC Design Group

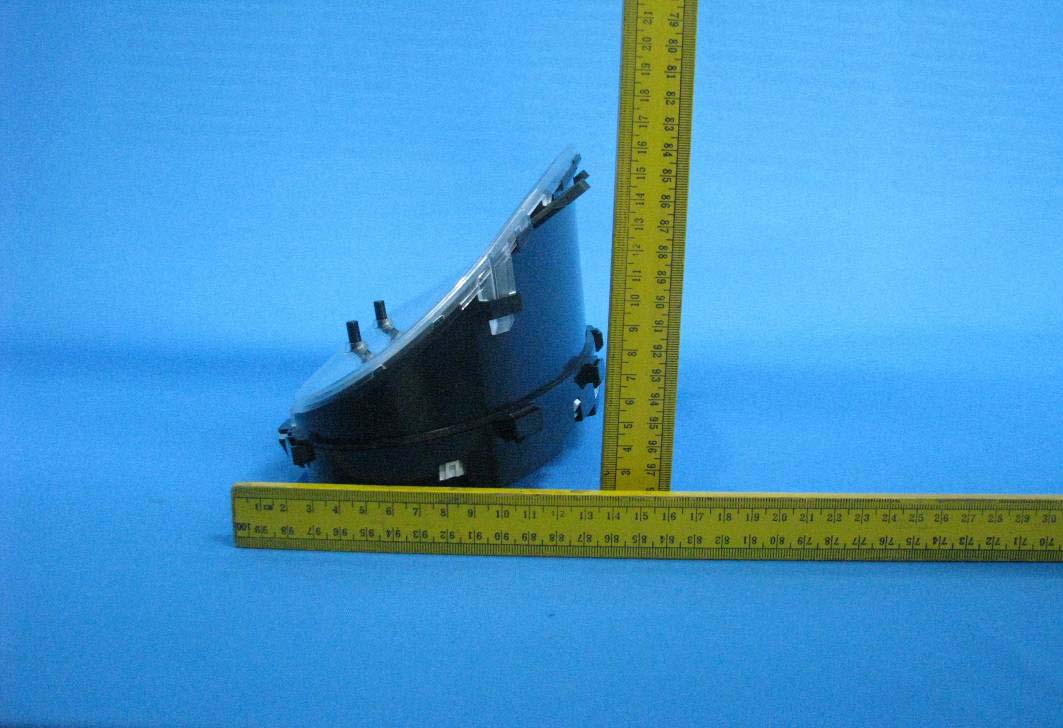

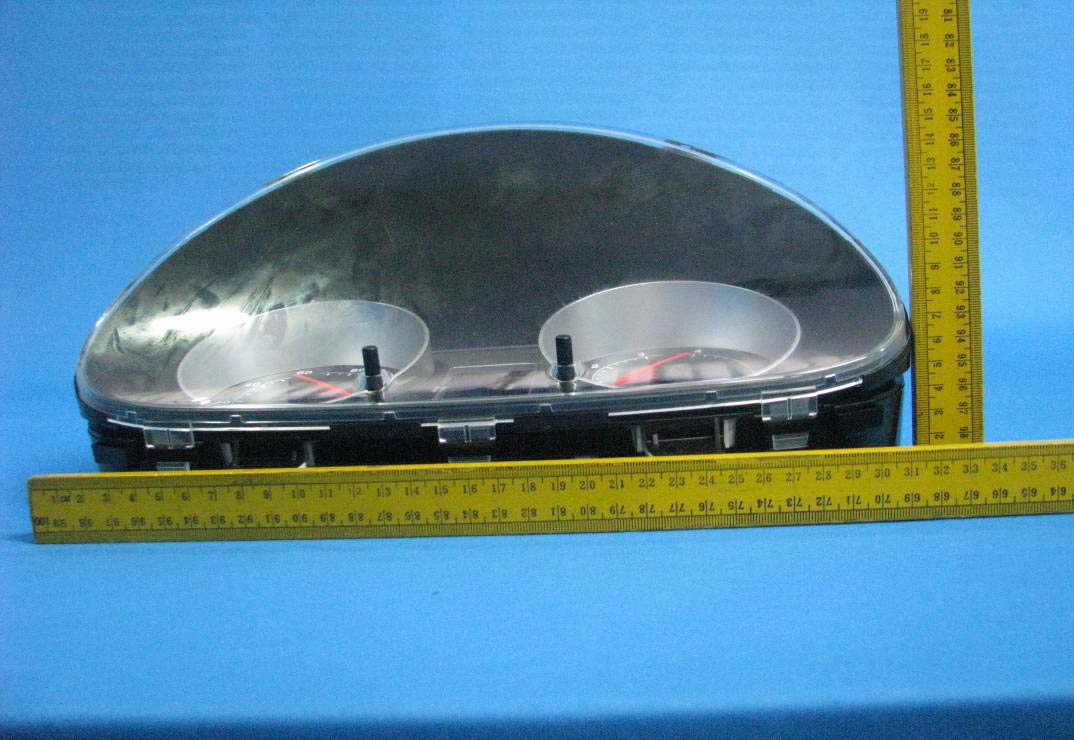

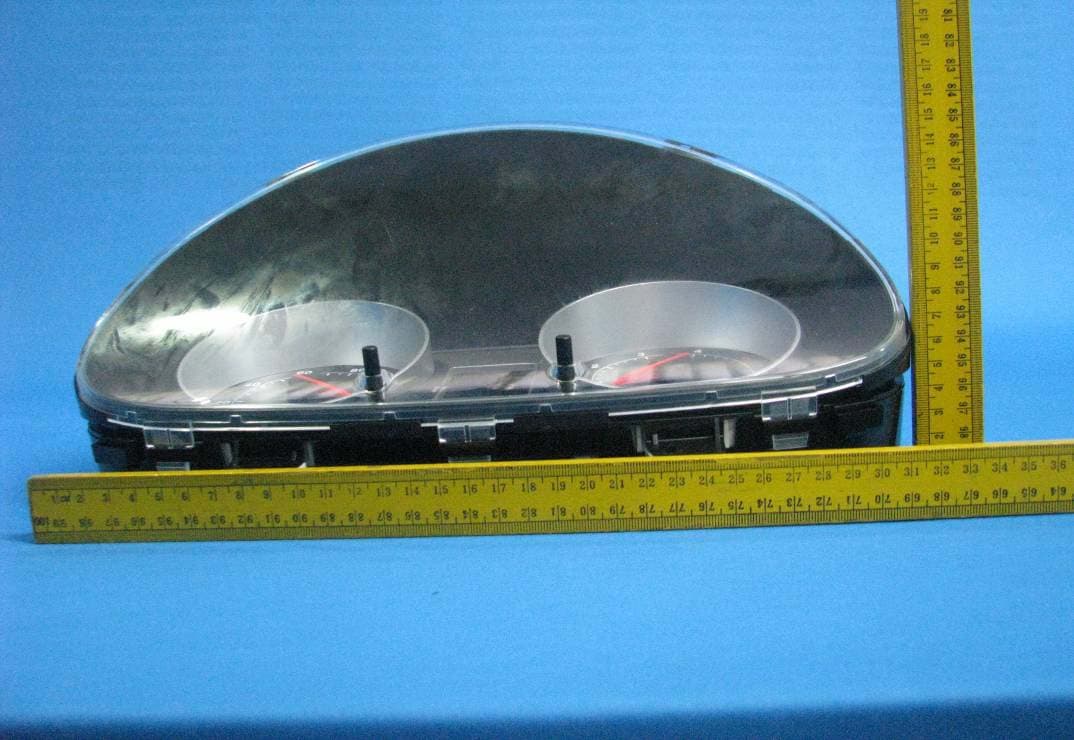

www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 02422680 001 Seite 1 von 10 Page 1 of 10 EUT Lock – Overall View Lock – Front View www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 02422680 001 Seite 2 von 10 Page 2 of 10 Lock - Side view Lock - Side view www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 02422680 001 Seite 3 von 10 Page 3 of 10 Lock - Back view Lock - Bottom view www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 02422680 001 Seite 4 von 10 Page 4 of 10 Dimensional View Dimensional View www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 02422680 001 Seite 5 von 10 Page 5 of 10 Cluster - Overall View Cluster - Top View www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 02422680 001 Seite 6 von 10 Page 6 of 10 Cluster - Front View Cluster - Side View www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 02422680 001 Seite 7 von 10 Page 7 of 10 Cluster - Side View Cluster - Side View www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 02422680 001 Seite 8 von 10 Page 8 of 10 Cluster - Bottom View Cluster Dimensional View www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 02422680 001 Seite 9 von 10 Page 9 of 10 Cluster Dimensional View Key – Overall View www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 02422680 001 Seite 10 von 10 Page 10 of 10 Key - Dimensional View Key - Dimensional View

www.tuv.com Appendix 4 Prüfbericht - Nr.: Test Report No. 02422680 001 Seite 1 von 3 Page 1 of 3 Label Art Work www.tuv.com Appendix 4 Prüfbericht - Nr.: Test Report No. 02422680 001 Seite 2 von 3 Page 2 of 3 Location Art work www.tuv.com Appendix 4 Prüfbericht - Nr.: Test Report No. 02422680 001 Seite 3 von 3 Page 3 of 3 Label Diagram Location Diagram

www.tuv.com Appendix 3 Prüfbericht - Nr.: Test Report No. 02422680 001 Seite 1 von 6 Page 1 of 6 EUT Lock – With RFID Coil removed RFID Coil www.tuv.com Appendix 3 Prüfbericht - Nr.: Test Report No. 02422680 001 Seite 2 von 6 Page 2 of 6 EUT Overall View with RFID Coil removed Cluster – Top Cover removed www.tuv.com Appendix 3 Prüfbericht - Nr.: Test Report No. 02422680 001 Seite 3 von 6 Page 3 of 6 Cluster – Enclosure Removed Cluster - Enclosure www.tuv.com Appendix 3 Prüfbericht - Nr.: Test Report No. 02422680 001 Seite 4 von 6 Page 4 of 6 Cluster - Top Cover Cluster – Bottom View of PCB www.tuv.com Appendix 3 Prüfbericht - Nr.: Test Report No. 02422680 001 Seite 5 von 6 Page 5 of 6 Cluster – Top View of PCB Cluster – LCD Display Unplugged www.tuv.com Appendix 3 Prüfbericht - Nr.: Test Report No. 02422680 001 Seite 6 von 6 Page 6 of 6 Cluster - Internal View of Bottom Enclosure Vehicle Immobilizer IC

www.tuv.com Appendix 9 Prüfbericht - Nr.: Test Report No. 02422680 001 Seite 1 von 1 Page 1 of 1 Radio Frequency Human Exposure Evaluation: The highest RF output power of the EUT at 125 kHz was measured -14.74 dBm which is less than 20mW. Since maximum peak output power of the transmitter is <60/f (GHz) mW, i.e. 0.027mW<480000(=60/0.000125) mW, hence the EUT is excluded from SAR evaluation according to FCC KDB publication 447498 D01: Mobile Portable RF Exposure. Maximum Output power of the RFID Transmitter: P = (E x d) squared / (30 x G) Where: E = the measured maximum field strength in V/m = 0.010567 G = the numeric gain of the transmitting antenna over an isotropic radiator = 1 d = the distance in meters from which the field strength was measured = 3 P = the power in watts P= (0.01 x 3) ^2/ (30 x 1) = 0.027mW

Produkte Products TÜV Rheinland LGA Products GmbH x Tillystraße 2 x D - 90431 Nürnberg x Tel.: +49 911 655 5225 x Fax: +49 911 655 5226 Mail: [email protected] x Web: www.tuv.com Rev.:1.2 2009-12-29 / approved: M.Jungnitsch Prüfbericht - Nr.: 02422680 001 Seite 1 von 13 Test Report No.: Page 1 of 13 Auftraggeber: Client: Delphi Electronics Systems (Formerly, Delphi Delco Electronics Systems) M/S CTCIE Kokomo , Indiana, U.S.A Gegenstand der Prüfung: Test item: W408 Immobilizer Bezeichnung: Identification: 28285151 Serien-Nr.: Serial No. Engineering Wareneingangs-Nr.: Receipt No.: 1403011690 Eingangsdatum: Date of receipt: 2010-09-30 Prüfort: Testing location: Refer page 4 of 13 for test facilities Prüfgrundlage: Test specification: FCC Part 15, Subpart C Prüfergebnis: Test Result: Der Prüfgegenstand entspricht oben genannter Prüfgrundlage(n). The test item passed the test specification(s). Prüflaboratorium: Testing Laboratory: TÜV Rheinland (India) Pvt. Ltd. Alpha Tower, Sigma Soft Tech Park, #7, Whitefield Main Road, Varthur Kodi, Bangalore – 560066, India geprüft / tested by: kontrolliert / reviewed by: 2010-10-19 Mr. Vinay N 2010-10-19 Mr.Kalyan Varma Datum Date Name/Stellung Name/Position Unterschrift Signature Datum Date Name/Stellung Name/Position Unterschrift Signature Sonstiges /Other Aspects: FCC ID: L2C0046TR Abkürzungen: P(ass) = entspricht Prüfgrundlage F(ail) = entspricht nicht Prüfgrundlage N/A = nicht anwendbar N/T = nicht getestet Abbreviations: P(ass) = passed F(ail) = failed N/A = not applicable N/T = not tested Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any safety mark on this or similar products. www.tuv.com Test Report No.:02422680 001 Date: 2010-10-19 Page 2 of 13 Test Result Summary Clause Test Item Result FCC 15.215 (c) Occupied Bandwidth NA FCC 15.209 Spurious Radiated Emissions Pass www.tuv.com Test Report No.:02422680 001 Date: 2010-10-19 Page 3 of 13 Content List of Test and Measurement Instruments ..............................................................4 General Product Information .....................................................................................5 Product Function and Intended Use.............................................................................................5 Ratings and System Details ..........................................................................................................5 Operation Descriptions ..............................................................................................6 Test Set-up and Operation Mode ...............................................................................7 Principle of Configuration Selection ............................................................................................7 Test Operation and Test Software ................................................................................................7 Special Accessories and Auxiliary Equipment ...........................................................................7 Test Methodology .......................................................................................................8 Radiated Emission Test .................................................................................................................8 Test Results.................................................................................................................9 Occupied Bandwidth Measurement Section 15.215 (c).................9 Spurious Radiated Emissions Section 15.209 ...................10 Appendix 1: Test Setup Photo Appendix 2: External Photographs Appendix 3: Internal Photographs Appendix 4: FCC Label Location Appendix 5: Block Diagram Appendix 6: Specification of EUT Appendix 7: Schematic Diagrams Appendix 8: Bill of Material Appendix 9: User Manual Appendix 10: Maximum Permissible Exposure Information www.tuv.com Test Report No.:02422680 001 Date: 2010-10-19 Page 4 of 13 List of Test and Measurement Instruments SAMEER-Center for Electromagnetics, Chennai List of Test and Measurements Equipment Manufacturer Type S/N Calibration Due Date EMI Receiver Rohde & Schwarz ESIB26 100070 24.04.2011 Loop Antenna ETS Lingdren 6507 1484 17.10.2010 Ultra Log Antenna Rohde & Schwarz HL562 100100 16.04.2012 Testing Facilities 1) SAMEER-Center for Electromagnetics C.I.T.Campus, Taramani, 2nd Main Road, Chennai – 600113 India www.tuv.com Test Report No.:02422680 001 Date: 2010-10-19 Page 5 of 13 General Product Information Product Function and Intended Use RFID lock system used in Cars. Ratings and System Details Test Conditions: Voltage: 12 V DC Battery Supply Environmental conditions Temperature: +23 º C RH: 62% Operating Frequency 125 kHz Number of Channels One Channel Size 12.50 kHz Data rate 0.004 Mbps Modulation Technique Ask Number of Antennas One Supply Voltage 12 V DC www.tuv.com Test Report No.:02422680 001 Date: 2010-10-19 Page 6 of 13 Operation Descriptions The immobilizer system consists of: - Immobilizer ECU (integrated with instrument cluster) with Coil/Antenna and illumination ring - Transponder of Sokymat make. As the transponder needs specified field strength, the antenna coil will be fixed axially with the key lock. The Immobilizer Control Unit is integrated with instrument cluster. The Engine Control Module (ECM) communicates with immobilizer over HS-CAN. Procedure for Code Authentication: • Immo wakes-up on Ignition transitioning to ON. • Immo authenticates SC and TxP in the Key • Immo and ECM start authentication The communication between the instrument cluster and the transponder is conducted through a proprietary algorithm. The authenticat…
