L2C0052TRInfotainment System w/ Bluetooth Transmitter

The device under test is manufactured by the grantee (Delphi Electronics & Safety), and sold as an OEM product. Per 47 CFR 2.909, 2.927, 2.931, 2.1033, 15.15(b) etc..., the grantee must ensure the end-user has all applicable / appropriate operating instructions. When end-user instructions are required, as in the case of this product, the grantee must notify the OEM to notify the end-user. Delphi Electronics & Safety will supply this document to the reseller/distributor dictating what must be included in the end user’s manual for the commercial product. INFORMATION TO BE INCLUDED IN THE END USER'S MANUAL The following information (in blue) must be included in the end product user’s manual to ensure continued FCC and Industry Canada regulatory compliance. The ID numbers must be included in the manual if the device label is not readily accessible to the end user. The compliance paragraphs below must be included in the user's manual. ****************************************************************************** FCC ID: L2C0052TR IC: 3432A-0052TR Model: SMART MEDIA This device complies with Part 15 of the FCC Rules and with Industry Canada licence- exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. NOTE: Changes or modifications not expressively approved by the party responsible for compliance could void the user's authority to operate the equipment. ******************************************************************************

February 25, 2013 Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315 Re: Certification for Delphi Transceiver Model/PN(s): SMART MEDIA FCC ID: L2C0052TR IC: 3432A-0052TR Please find enclosed application materials for certification of Delphi Transceiver. We tested it and found it to comply with FCC Part 15. If there are any questions regarding the application or testing performed, please contact me at the above address or call 734-483-4211, fax 734-647-2106, or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist

World Headquarters and Customer Center 5725 Delphi Drive Troy, Michigan 48098-2815 USA Federal Communications Commission Applications Processing Branch 7435 Oakland Mills Road Colombia, MD 21046 Re: Letter of Agency for FCC Compliance Testing Please be advised that Delphi Electronics & Safety authorizes Dr. Valdis V. Liepa of the University of Michigan, Department of Electrical Engineering and Computer Science, Ann Arbor, Michigan, to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification. Anti-Drug Abuse Certification: I further certify that no party (as defined in 1.2002 of CFR47, 1992) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti Drug Abuse Act of 1988, 21 U.S.C. 853(a). Dated this 15 th day of November, 2011. By: ___________ _____________ __ Brian Johnson (Signature) Title: Engineering Group Manager email: [email protected] On behalf of: Delphi Electronics & Safety Telephone: (765) 451-5770

Re: Certification for Delphi Transceiver FCC ID: L2C0052TR IC: 3432A-0052TR REQUEST FOR CONFIDENTIALITY Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, Delphi requests that a part of the subject application be held confidential. Delphi has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Type of Confidentiality Requested Exhibit Short Term Permanent (1) ID Label & Location Short Term Permanent (3) External Photos Short Term Permanent 1 (4) Block Diagram Short Term Permanent (5) Schematics Short Term Permanent (7) Test Setup Photos Short Term Permanent (8) User’s Manual Short Term Permanent (9) Internal Photos Short Term Permanent (10) Parts List & Placement Short Term Permanent (11) RF Exposure Short Term Permanent (12) Description of Operation 1. Block Diagram includes internal oscillator frequency information that the manufacturer considers to be proprietary. Permanent Confidentiality: Delphi requests the exhibits listed above as permanently confidential be permanently withheld from public review. Short-Term Confidentiality (FCC Only): Delphi requests the exhibits selected above as short term confidential be withheld from public view for a period of 45 days from the date of the Grant of Equipment Authorization and prior to marketing. If there are any questions regarding this request, please contact me at the above address or call 734-483-4211, fax 734-647-2106 or e-mail [email protected]. Sincerely, Valdis V. Liepa, Research Scientist University of Michigan

GM SMART MEDIA Front SIDE A SIDE B Bottom Back Top Label Zoom

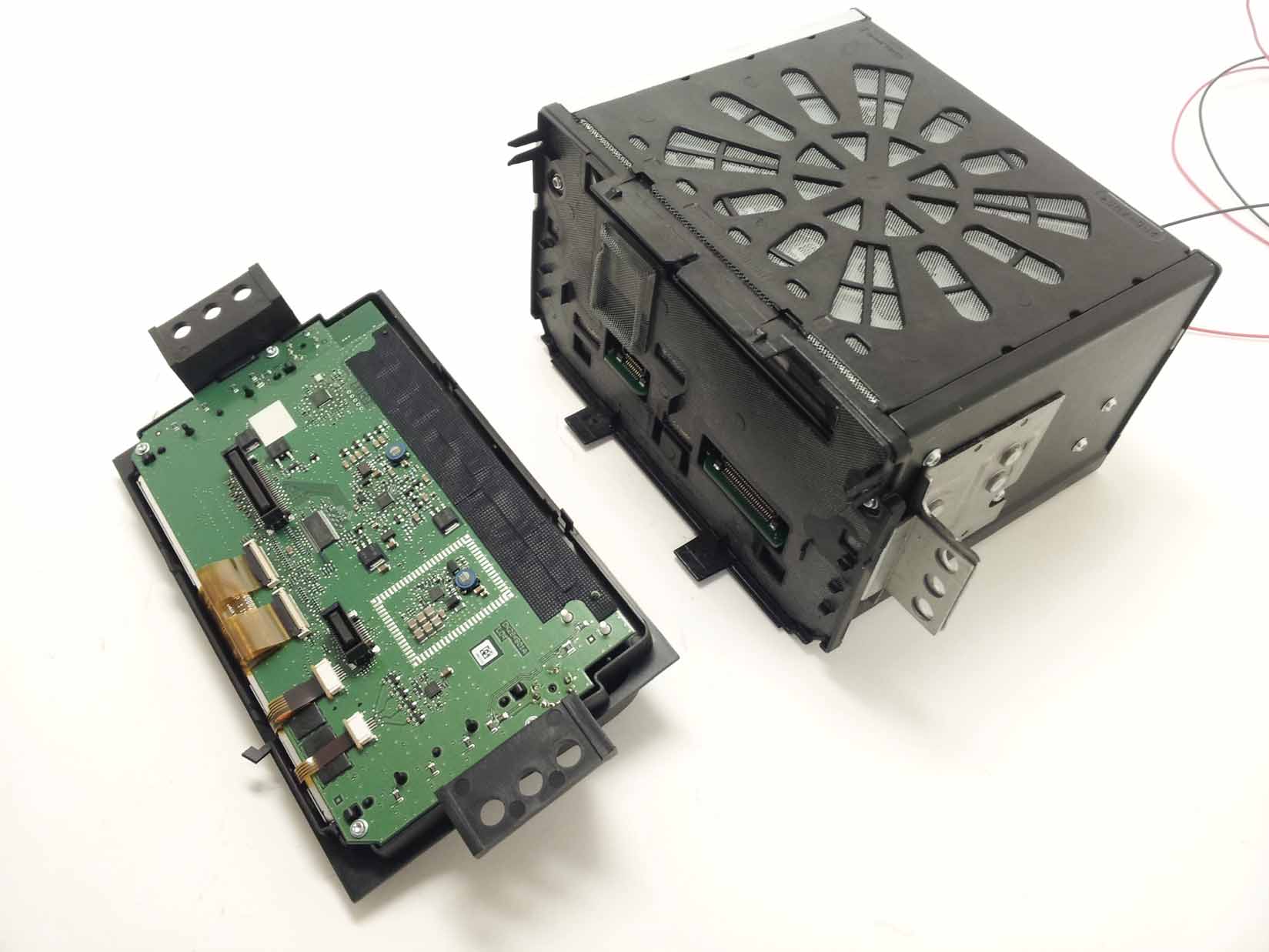

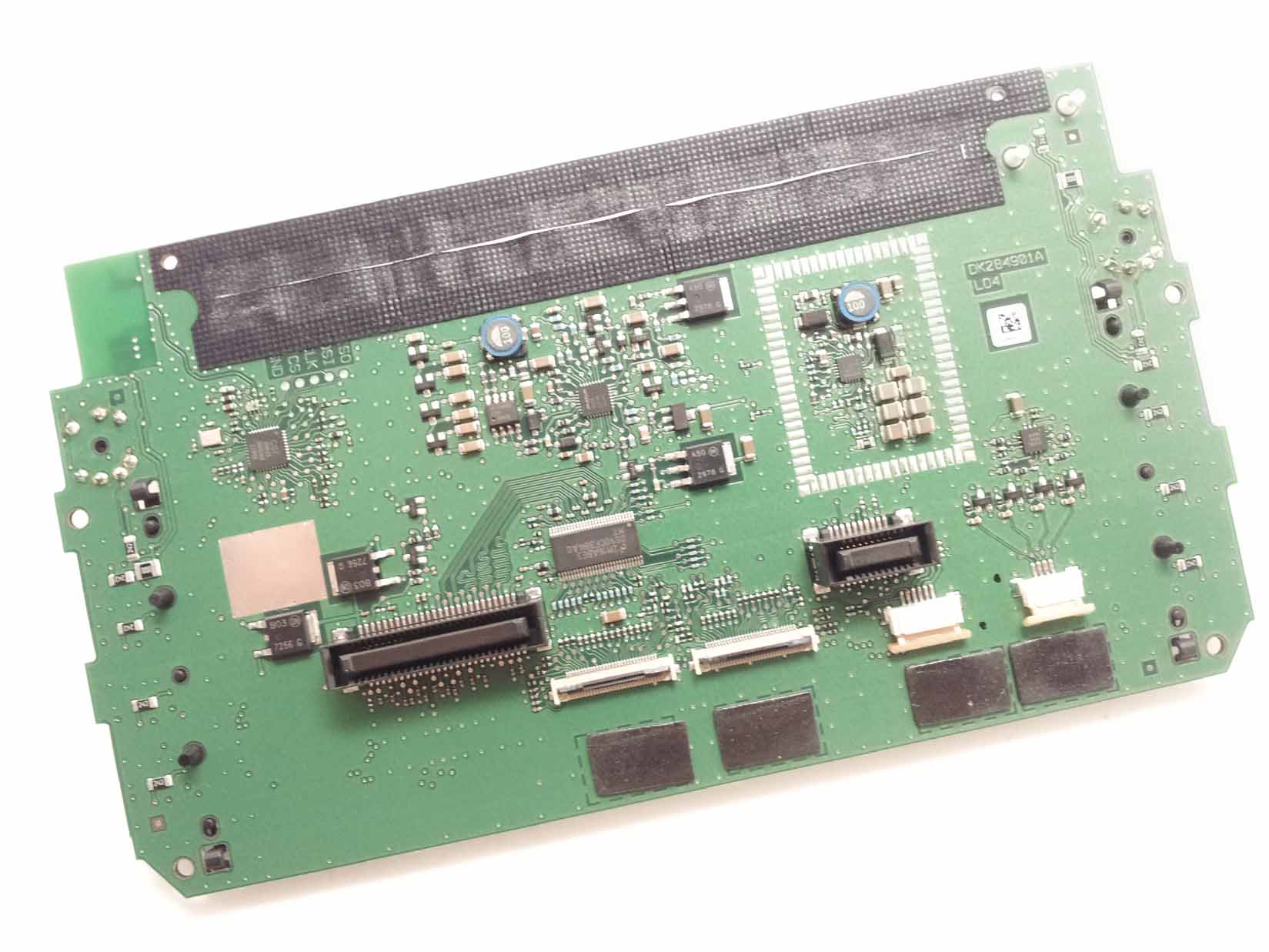

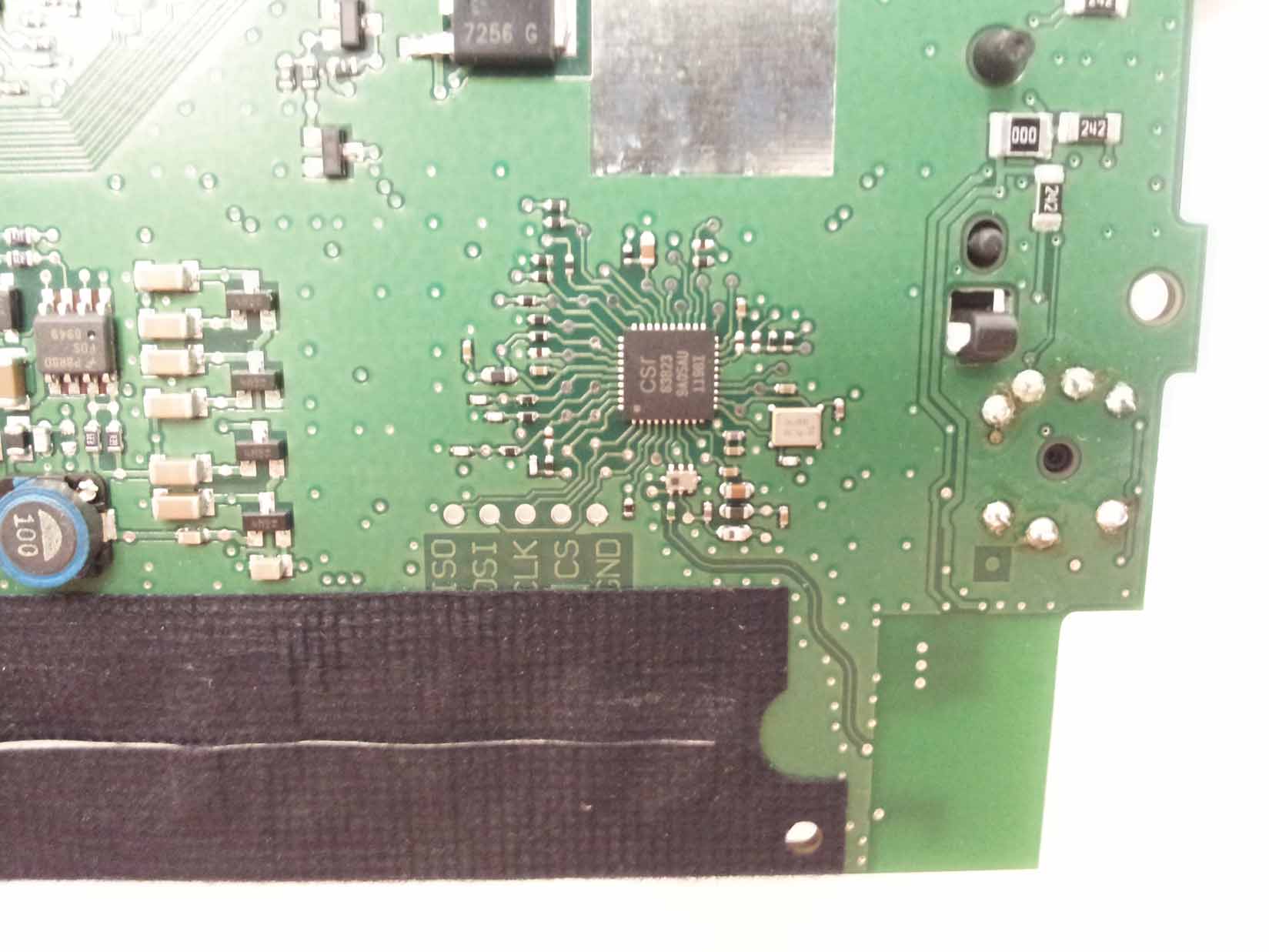

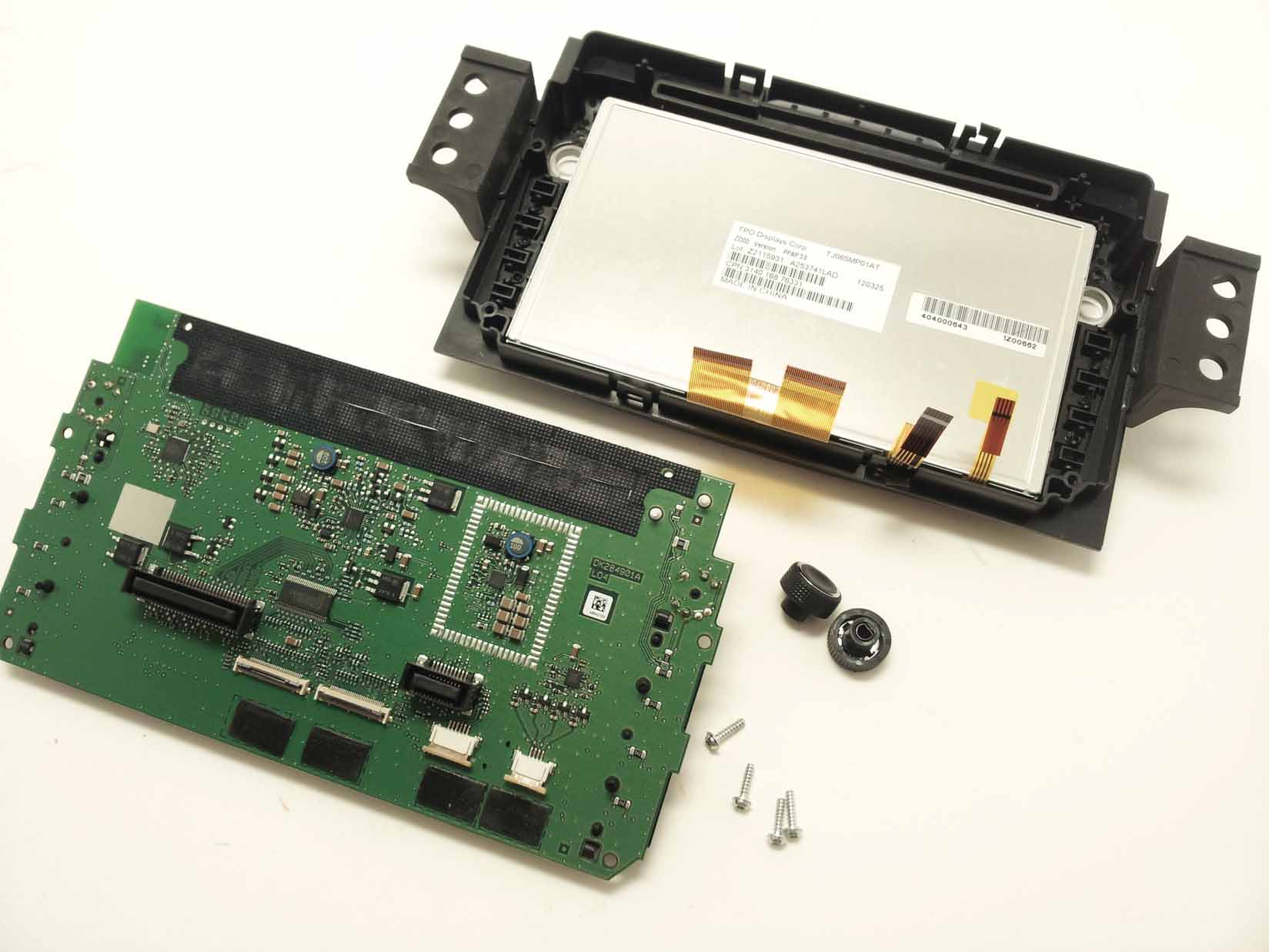

The Delphi SMART MEDIA head unit is a Chevy Infotainment system deployed in Chevy vehicles. The device employs a color touch screen display providing access to available navigation, entertainment and other features with ease. In addition to broadcast receivers and controls for other vehicle features, Bluetooth is included for pairing with compatible smart phones.

RF Exposure / SAR / Health Hazard Statement Requirement: According to CFR 15 §1.1307 (b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. SAR Testing Exclusion: Per FCC 447498 General RF Exposure Guidance v05, Section 4.3.1, the 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by the following formula GHzthreshold f mmd mWPc SAR )( )(  , where d = minimum test distance and Pc is the source-based time-averaged maximum conducted output power, or EIRP for a device without a removable antenna. The SAR threshold at a minimum test distance of 5 mm is thus computed to be: SAR Threshold Frequency (GHz) EIRP (Pk) (mW) dmin (mm) Computed SAR Threshold (Pk) 1-g SAR Threshold (Avg) 10-g SAR Threshold (Avg) 2.402 1.48 5 0.5 3 7.5 2.441 1.48 5 0.5 3 7.5 2.480 1.48 5 0.5 3 7.5 Thus the EUT meets the test exclusion thresholds for both 1-g and 10-g SAR evaluation and complies with the regulation. Health Hazard: The following table summarizes the power density at a distance of 20 cm as calculated from FCC OET Bulletin 65, for reference. Potential Health Hazard Radiation Level Ant. Ant.Gain Meas. (dBi) Po Pk (mW) EIRP Pk*(mW) S (mW/cm 2 ) PCB -2.5 1.48 1.48 0.0003 * For negative antenna gain, EIRP = conducted power output is assumed. The following equations were used in calculating power density (S). 10 )( 10)()( dBGain mWPomWEIRP 2 2 )(4 )( )/( cmR mWEIRP cmmWS   , R = 20 cm

University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 417124-654 Page 1 of 18 The University of Michigan Radiation Laboratory 3228 EECS Building Ann Arbor, MI 48109-2122 Tel: (734) 764-0500 Measured Radio Frequency Emissions From DELPHI Bluetooth Transceiver FCC ID: L2C0052TR IC: 3234A-0052TR Report No. 417124-654 February 26, 2013 Copyright © 2013 For: Delphi Automotive Systems One Corporate Center, Kokomo, IN 46904-9005 Contact: Daniel Ateru [email protected] Tel: (616) 394-1208 Fax: (616) 394-6100 PO: Verbal Tests supervised by: Measurements made by: Valdis V. Liepa Report approved by: _____________________ Valdis V. Liepa Test Report written by: Valdis V. Liepa Research Scientist Summary Tests for compliance with FCC Regulations, CFR 47, Part 15 and with Industry Canada RSS- 210/Gen, were performed on a Delphi, FCC ID: L2C0052TR, IC: 3432A-0052TR. This device under test (DUT) is subject to the rules and regulations as a Transceiver. In testing completed on February 22, 2013, the DUT tested met the allowed specifications for radiated emissions by 11.9 dB. AC Power line conducted emissions are not subject to regulation as the DUT is powered by a 12 VDC vehicular power system. University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 417124-654 Page 2 of 18 Table of Contents 1 INTRODUCTION .............................................................................................................................................. 1 2 TEST PROCEDURE AND EQUIPMENT USED ........................................................................................... 1 3 DEVICE UNDER TEST .................................................................................................................................... 2 3.1 DESCRIPTION AND BLOCK DIAGRAM ............................................................................................................... 2 3.2 VARIANTS & SAMPLES ..................................................................................................................................... 2 3.3 MODES OF OPERATION ..................................................................................................................................... 2 3.4 EMI RELEVANT MODIFICATIONS ..................................................................................................................... 2 3.5 EXEMPTIONS .................................................................................................................................................... 2 4 EMISSION LIMITS .......................................................................................................................................... 3 4.1 RADIATED EMISSION LIMITS ............................................................................................................................ 3 5 MEASUREMENT PROCEDURES ................................................................................................................. 3 5.1 SEMI-ANECHOIC CHAMBER RADIATED EMISSIONS .......................................................................................... 3 5.2 OUTDOOR RADIATED EMISSIONS ..................................................................................................................... 4 5.3 RADIATED FIELD COMPUTATIONS ................................................................................................................... 4 5.4 INDOOR POWER LINE CONDUCTED EMISSIONS ................................................................................................ 4 5.5 SUPPLY VOLTAGE VARIATION ......................................................................................................................... 4 6 TEST RESULTS ................................................................................................................................................ 5 6.1 RADIATED EMISSIONS ...................................................................................................................................... 5 6.1.1 20 dB Bandwidth (15.247(a)(1)(ii)) ....................................................................................................... 5 6.1.2 Carrier Frequency Separation (15.247(a)(1)) ......................................................................................... 5 6.1.3 Number of Hopping Frequencies (15.247(a)(1)(ii)) .............................................................................. 5 6.1.4 Single-Channel Dwell Time (15.247(a)(1)(ii)) ...................................................................................... 5 6.1.5 Peak and Average Output Power (15.247(b)) ........................................................................................ 6 6.1.6 Potential Health Hazard EM Radiation Level ........................................................................................ 6 6.1.7 RF Antenna Spurious Emissions (15.247(c))......................................................................................... 6 6.1.8 Band Edge Emissions (15.247(c)) ......................................................................................................... 6 6.2 CONDUCTED EMISSIONS................................................................................................................................... 6 6.2.1 AC Power Line Conducted Emissions (FCC 15.270) ............................................................................ 6 University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 417124-654 Page 1 of 18 1 Introduction This Delphi Transceiver was tested for compliance with FCC Regulations, Part 15, adopted under Docket 87-389, April 18, 1989 as subsequently amended, and with Industry Canada RSS-210/Gen, Issue 8. Tests were performed at the University of Michigan Radiation Laboratory Willow Run Test Range following the procedures described in ANSI C63.4-200…
