L2C0054TRVehicle Radar

5725 Delphi Drive, Troy, Michigan USA 48098 Federal Communications Commission Applications Processing Branch 7435 Oakland Mills Road Colombia, MD 21046 Re: Power of Attorney for Valdis V. Liepa To Whom It May Concern: Delphi Electronics & Safety has appointed Dr. Valdis V. Liepa, located at the University of Michigan, Department of Engineering and Computer Science, Ann Arbor, Michigan 48109-2122, USA, as the agent to act for Delphi Electronics & Safety in the FCC certification process. Dated: May 29, 2014. By: ___________ _____________ __ Brian Johnson (Signature) Title: Engineering Group Manager E-mail: [email protected] On behalf of: Delphi Electronics & Safety Telephone: +1 765 451 5770 Federal Communications Commission Applications Processing Branch 7435 Oakland Mills Road Colombia, MD 21046 Re: Letter of Agency for FCC Compliance Testing Please be advised that Delphi Electronics & Safety authorizes Dr. Valdis V. Liepa of the University of Michigan, Department of Electrical Engineering and Computer Science, Ann Arbor, Michigan, to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification. Anti-Drug Abuse Certification: I further certify that no party (as defined in 1.2002 of CFR47, 1992) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti Drug Abuse Act of 1988, 21 U.S.C. 853(a). Dated: May 29, 2014. By: ___________ _____________ __ Brian Johnson (Signature) Title: Engineering Group Manager E-mail: [email protected] On behalf of: Delphi Electronics & Safety Telephone: +1 765 451 5770 Attn: Director of Certification Authority to Act as Agent I appoint Dr. Valdis V. Liepa to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in Industry Canada’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by American Certification Body, still resides with Delphi Electronics & Safety. Dated: May 29, 2014. By: ___________ _____________ __ Brian Johnson (Signature) Title: Engineering Group Manager E-mail: [email protected] On behalf of: Delphi Electronics & Safety Telephone: +1 765 451 5770 Industry Canada 1241 Clyde Ave. Ottawa, Ontario K2C 1Y3 Re: Power of Attorney for Valdis V. Liepa To Whom It May Concern: Delphi Electronics & Safety has appointed Dr. Valdis V. Liepa, located at the University of Michigan, Department of Engineering and Computer Science, Ann Arbor, Michigan 48109-2122, USA, as the agent to act for Delphi Electronics & Safety in the IC certification process. Dated: May 29, 2014. By: ___________ _____________ __ Brian Johnson (Signature) Title: Engineering Group Manager E-mail: [email protected] On behalf of: Delphi Electronics & Safety Telephone: +1 765 451 5770

The University of Michigan Radiation Laboratory 3228 EECS Building Ann Arbor, Michigan 48109-2122 USA Tel: (734) 483-4211 Fax: (734) 647-2106 e-mail: [email protected] Re: Certification for Delphi Electronics & Safety FCC ID: L2C0054TR IC: 3432A-0054TR REQUEST FOR CONFIDENTIALITY Pursuant to USA FCC 47 CFR 0.457(d) and 0.459 and Canada IC RSP-100, Section 10, Delphi Electronics & Safetyrequests that a part of the subject application be held confidential. Delphi Electronics & Safety has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to ”competition” would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Exhibit Conf. TypeRational Exh 03 - External PhotosSTC-180daysIncludes product information. Exh 04 - Block DiagramPermanentIncludes proprietary internal oscillator frequency information. Exh 05 - SchematicsPermanentIncludes proprietary design information Exh 07 - Test Setup PhotosSTC-180daysIncludes product information. Exh 08 - Users ManualSTC-180daysIncludes product information. Exh 09 - Internal PhotosSTC-180daysIncludes product information. Exh 10 - BOM + PlacementPermanentIncludes proprietary design information. Exh 12 - Description of Op.STC-180daysIncludes product information. Exh 12 - Modes of Op.PermanentIncludes proprietary design information. Permanent Confidentiality:Delphi Electronics & Safety requests that any exhibits listed above as permanently confidential be permanently withheld from public review. Short-Term Confidentiality (FCC Only):Delphi Electronics & Safety requests that any exhibits selected above as short term confidential be withheld from public view for a period of days (noted above) from the date of the Grant of Equipment Authorization and prior to marketing. If there are any questions regarding the application or testing performed, please contact us at the above address or call (734) 483-4211, or e-mail [email protected]. Sincerely, Valdis V. Liepa The University of Michigan Radiation Laboratory 10

The University of Michigan Radiation Laboratory 3228 EECS Building Ann Arbor, Michigan 48109-2122 USA Tel: (734) 483-4211 Fax: (734) 647-2106 e-mail: [email protected] Attn.:Certification and Engineering Bureau Industry Canada 3701 Carling Avenue, Bldg. 94 Ottawa, Ontario K2H 8S2 Re: Certification for Delphi Electronics & Safety L2C0054TR IC: 3432A-0054TR Please find enclosed application materials for certification of Delphi Electronics & Safety L2C0054TR. We tested it and found it to comply with IC RSS-210/GENe. Current Variants: There is only a single variant of the EUT, as tested. If there are any questions regarding the application or testing performed, please contact us at the above address or call (734) 483-4211, or e-mail [email protected]. Sincerely, Valdis V. Liepa The University of Michigan Radiation Laboratory 13 The University of Michigan Radiation Laboratory 3228 EECS Building Ann Arbor, Michigan 48109-2122 USA Tel: (734) 483-4211 Fax: (734) 647-2106 e-mail: [email protected] Attn.:Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315 Re: Certification for Delphi Electronics & Safety L2C0054TR FCC ID: L2C0054TR Please find enclosed application materials for certification of Delphi Electronics & Safety L2C0054TR. We tested it and found it to comply with CFR Title 47, Part 15.253. If there are any questions regarding the application or testing performed, please contact us at the above address or call (734) 483-4211, or e-mail [email protected]. Sincerely, Valdis V. Liepa The University of Michigan Radiation Laboratory 12

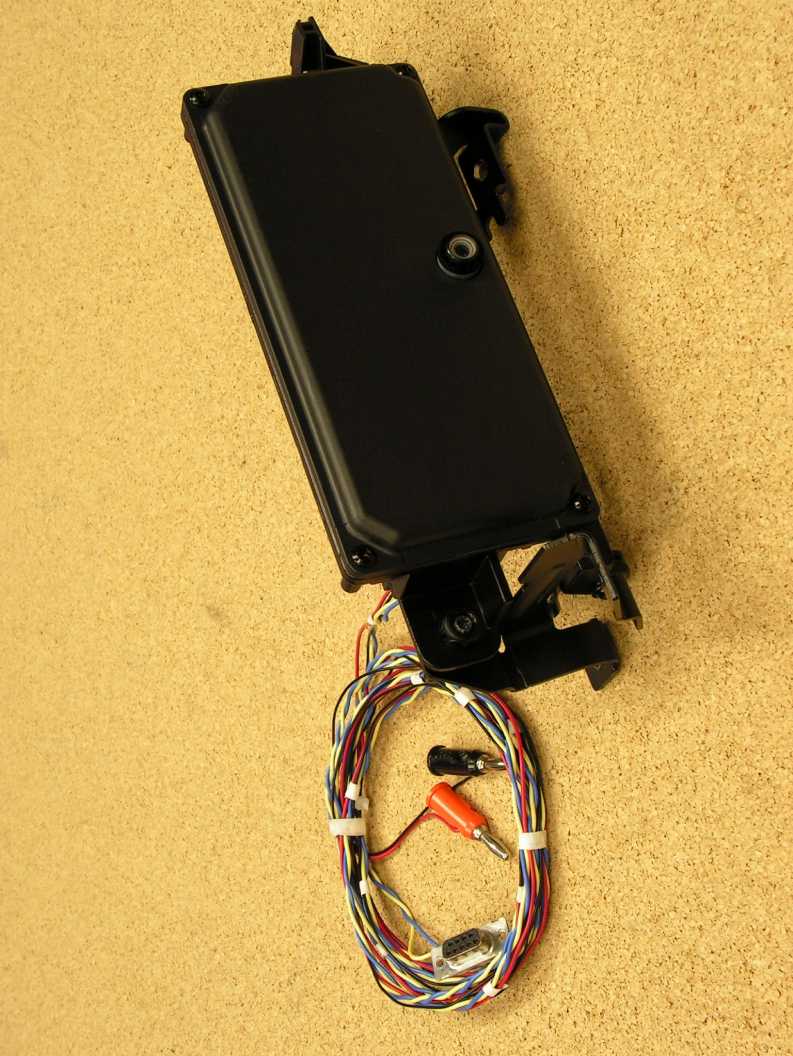

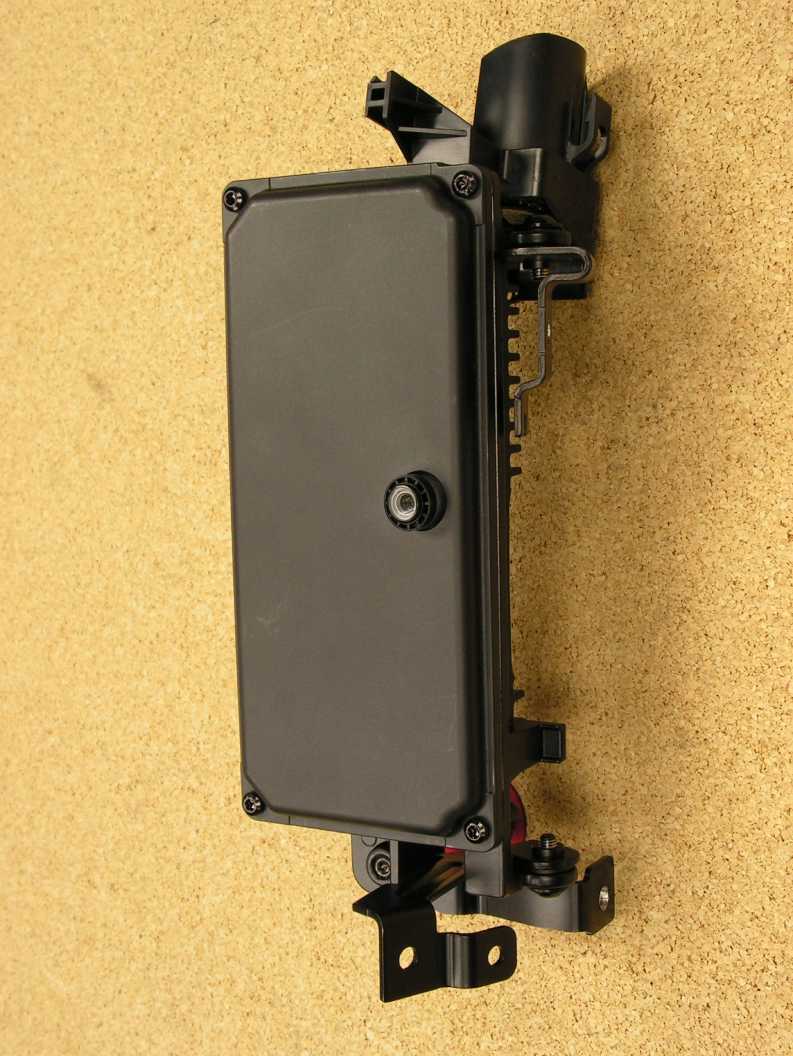

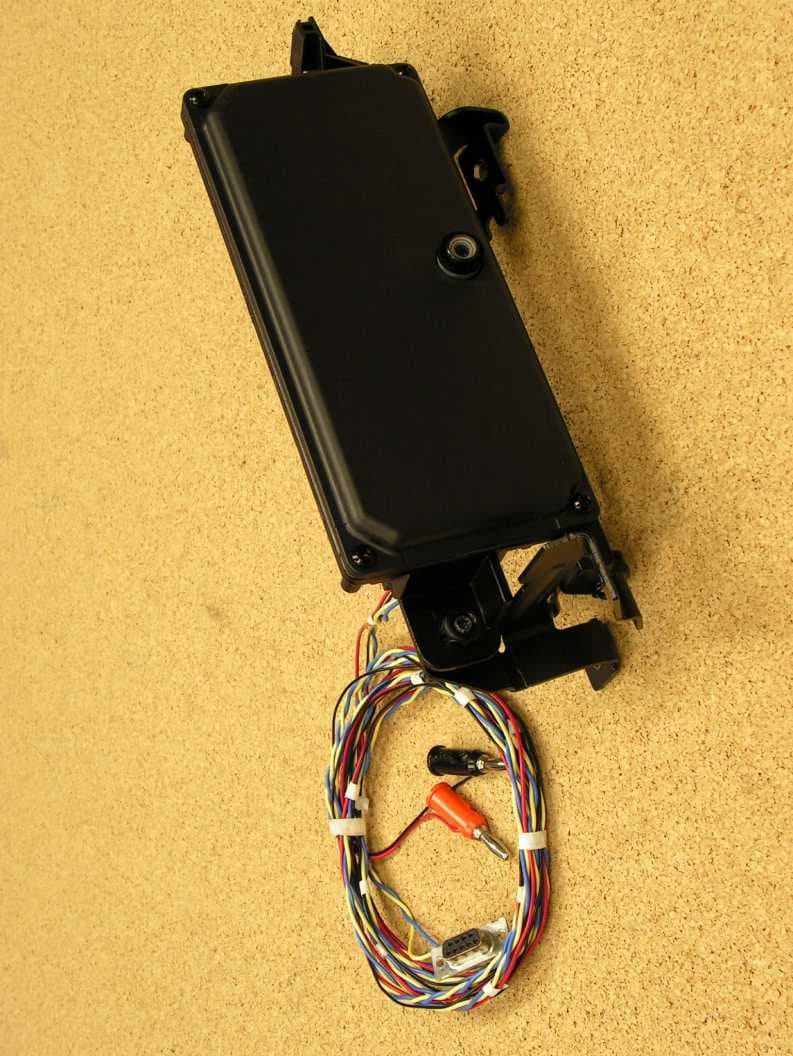

DELPHI CONFIDENTIAL DELPHI CONFIDENTIAL 6/2/14 Product Name: The DUT is named RACAM, which stands for Radar + Camera. Users Manual / Operational Description: The Device Under Test (DUT) is a 76.5 GHz vehicular radar and camera. The device employs a dynamic chirp modulated transmit array. Multiple receive antennas are used to determine target angular resolution through digital beam forming. When installed on a vehicle, the device will operate when the vehicle is running. The nominal operating voltage is 12.0 VDC. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance of 20 cm between the radiator and your body. Antenna Operation Item Specification Frequency Band (GHz) 76.5 +/- 0.5 VSWR =< 2.3 Polarization (deg) Vertical (90 deg) polarization Maximum RF Output Power 10 mW (10 dBm) (TX power delivered to antenna) Average Gain (dBi) Long range transmit = 22 Long range receive = 20 Mid range transmit = 16 Mid range receive = 16 Beamwidth Azimuth (deg) Long range transmit = 19 Long range receive = 35 Mid range transmit = 80 Mid range receive = 80 Elevation (deg) Long range transmit = 4.5 Long range receive = 4.5 Mid range transmit = 6 Mid range receive = 4 Operating Temperature (degC) from -40C to +85C

MPE / Health Hazard Requirement: According to CFR 15 §1.1307 (b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. MPE / Health Hazard Separation Distance: The minimum separation distance calculated following FCC OET Bulletin 65 is calculated as follows, where S is power density, The power density at 20 cm is computed to be: EIRP = 32.8 dBm = 1905.5 mW S(mW/cm 2 ) = EIRP(mW)/(4π R(cm) 2 ) = 1905.5/(4π 20 2 ) = 0.379 mW/cm 2 ERP is computed to be: ERP = EIRP – 2.15 = 32.8 – 2.15 = 30.65 dBm = 1.161 W NOTE:Under no circumstances is the ERP of this device greater than 3W, as required by 2.1091 and the FCC mm-wave accepted test procedures.

Date of Issue: October 19, 2014Prepared For: Delphi Electronics & SafetyTest Report No.: 417124-679r2 The University of Michigan Radiation Laboratory 3228 EECS Building Ann Arbor, Michigan 48109-2122 USA Tel: (734) 483-4211 Fax: (734) 647-2106 e-mail: [email protected] Testing of Electromagnetic Emissions per USA: CFR Title 47, Part 15.253 Canada: IC RSS-210/GENe are herein reported for Delphi Electronics & Safety L2C0054TR Test Report No.: 417124-679r2 Copyright c ©2014 Applicant/Provider: Delphi Electronics & Safety One Corporate Center, Kokomo Indiana 46904-9005 USA Phone: 765 451-5770, Fax: 765-451-0900 Contact Person: Brian W. Johnson; [email protected] Measured by: Report Approved by: Valdis V. Liepa, Ph.D.Valdis V. Liepa, Ph.D. Report by:Report Date of Issue:October 19, 2014 Valdis V. Liepa, Ph.D. Results of testing completed on (or before) October 15, 2014 are as follows. Emissions:The transmitter intentional emissionsCOMPLYwith the regulatory limit(s) by no less than 19.3 dB. Transmit chain spurious harmonic emissionsCOMPLYby no less than 32.8 dB. The University of Michigan Radiation Laboratory, 3228 EECS Building, Ann Arbor, Michigan 48109-2122 USAPage 1 of 19 Date of Issue: October 19, 2014Prepared For: Delphi Electronics & SafetyTest Report No.: 417124-679r2 Contents 1 Test Specifications, General Procedures, and Location4 1.1 Test Specification and General Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 1.2 Test Location and Equipment Used . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 2 Configuration and Identification of the Equipment Under Test6 2.1 Description and Declarations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 2.1.1EUT Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 2.1.2Modes of Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 2.1.3Variants . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 2.1.4Test Samples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 2.1.5Functional Exerciser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 2.1.6Modifications Made . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 2.1.7Production Intent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 2.1.8Declared Exemptions and Additional Product Notes . . . . . . . . . . . . . . . . . . . . . . . .7 3 Emissions8 3.1 General Test Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 3.1.1Radiated Test Setup and Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 3.1.2Conducted Emissions Test Setup and Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . 11 3.1.3Power Supply Variation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 3.2 Intentional Emissions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 3.2.1Fundamental Emission Pulsed Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 3.2.2Fundamental Emission Bandwidth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 3.2.3Fundamental Emission . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 3.2.4Exposure and Potential Health Hazard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 3.3 Unintentional Emissions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 3.3.1Transmit Chain Spurious Emissions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 The University of Michigan Radiation Laboratory, 3228 EECS Building, Ann Arbor, Michigan 48109-2122 USAPage 2 of 19 Date of Issue: October 19, 2014Prepared For: Delphi Electronics & SafetyTest Report No.: 417124-679r2 List of Tables 1The University of Michigan Radiation Laboratory Equipment List.. . . . . . . . . . . . . . . . . . .5 2EUT Declarations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 3Pulsed Emission Characteristics (Duty Cycle). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 4Intentional Emission Bandwidth.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 5Fundamental Radiated Emissions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 6Electromagnetic Field Exposure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 7Transmit Chain Spurious Emissions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 List of Figures 1Photos of EUT.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 2EUT Test Configuration Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 3Radiated Emissions Diagram of the EUT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 4Radiated Emissions Test Setup Photograph(s). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 5Pulsed Emission Characteristics (Duty Cycle). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 5Pulsed Emission Characteristics (Duty Cycle). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 5Pulsed Emission Characteristics (Duty Cycle). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 6Intentional Emission Bandwidth.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 The University of Michigan Radiation Laboratory, 3228 EECS Building, Ann Arbor, Michigan 48109-2122 USAPage 3 of 19 Date of Issue: October 19, 2014Prepared For: Delphi Electronics & SafetyTest Report…
