L2C0058TRAutomotive Head Unit

The device under test is manufactured by the grantee (Delphi Electronics and Safety), and sold as an OEM product. Per 47 CFR 2.909, 2.927, 2.931, 2.1033, 15.15(b) etc..., the grantee must ensure the end-user has all applicable / appropriate operating instructions. When end-user instructions are required, as in the case of this product, the grantee must notify the OEM to notify the end-user. Delphi Electronics and Safety will supply this document to the reseller/distributor dictating what must be included in the end user’s manual for the commercial product. INFORMATION TO BE INCLUDED IN THE END USER'S MANUAL The following information (in blue) must be included in the end product user’s manual to ensure continued FCC and Industry Canada regulatory compliance. The ID numbers must be included in the manual if the device label is not readily accessible to the end user. The compliance paragraphs below must be included in the user's manual. ****************************************************************************** FCC ID: L2C0058TR IC: 3432A-0058TR Model: VP1 This device complies with Part 15 of the FCC Rules and with Industry Canada license- exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. WARNING: Changes or modifications not expressively approved by the party responsible for compliance could void the user's authority to operate the equipment. The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications were met. ******************************************************************************

5725 Delphi Drive, Troy, Michigan USA 48098 Federal Communications Commission Applications Processing Branch 7435 Oakland Mills Road Colombia, MD 21046 Re: Power of Attorney for Joseph D. Brunett, Willow Run Test Labs To Whom It May Concern: Delphi Electronics and Safety has appointed Joseph D. Brunett of Willow Run Test Labs, LLC, 8501 Beck Road, Building 2227, Belleville, Michigan, 48111, USA, as the agent to act for Delphi Electronics and Safety in the FCC certification process. Dated: February 26, 2015. By: ___________ _____________ __ Brian Johnson (Signature) Title: Engineering Group Manager E-mail: [email protected] On behalf of: Delphi Electronics and Safety Telephone: +1 765 451 5770 Federal Communications Commission Applications Processing Branch 7435 Oakland Mills Road Colombia, MD 21046 Re: Letter of Agency for FCC Compliance Testing Please be advised that Delphi Electronics and Safety authorizes Joseph D. Brunett of Willow Run Test Labs, LLC, 8501 Beck Road, Building 2227, Belleville, Michigan, 48111, USA, to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification. Anti-Drug Abuse Certification: I further certify that no party (as defined in 1.2002 of CFR47, 1992) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti Drug Abuse Act of 1988, 21 U.S.C. 853(a). Dated: February 26, 2015. By: ___________ _____________ __ Brian Johnson (Signature) Title: Engineering Group Manager E-mail: [email protected] On behalf of: Delphi Electronics and Safety Telephone: +1 765 451 5770 Attn: Director of Certification Authority to Act as Agent I appoint Joseph D. Brunett of Willow Run Test Labs, LLC, 8501 Beck Road, Building 2227, Belleville, Michigan, 48111, USA, to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in Industry Canada’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by American Certification Body, still resides with Delphi Electronics and Safety. Dated: February 26, 2015. By: ___________ _____________ __ Brian Johnson (Signature) Title: Engineering Group Manager E-mail: [email protected] On behalf of: Delphi Electronics and Safety Telephone: +1 765 451 5770 Industry Canada 1241 Clyde Ave. Ottawa, Ontario K2C 1Y3 Re: Power of Attorney for Joseph D. Brunett To Whom It May Concern: Delphi Electronics and Safety has appointed Joseph D. Brunett, of Willow Run Test Labs, LLC, 8501 Beck Road, Building 2227, Belleville, Michigan, 48111, USA, as the agent to act for Delphi Electronics and Safety in the IC certification process. Dated: February 26, 2015. By: ___________ _____________ __ Brian Johnson (Signature) Title: Engineering Group Manager E-mail: [email protected] On behalf of: Delphi Electronics and Safety Telephone: +1 765 451 5770

Willow Run Test Labs, LLC 8501 Beck Road, Building 2227 Belleville, Michigan 48111 USA Tel: (734) 252-9785 Fax: (734) 926-9785 e-mail: [email protected] Re: Certification for Delphi Electronics & Safety FCC ID: L2C0058TR IC: 3432A-0058TR REQUEST FOR CONFIDENTIALITY ExhibitConf. TypeRational Exh 04 - Block DiagramPermanentIncludes proprietary internal oscillator frequency information. Exh 05 - SchematicsPermanentIncludes proprietary design information Exh 10 - BOM + PlacementPermanentIncludes proprietary design information Permanent Confidentiality:Delphi Electronics & Safety requests that any exhibits listed above as permanently confidential be permanently withheld from public review. Short-Term Confidentiality (FCC Only):Delphi Electronics & Safety requests that any exhibits selected above as short term confidential be withheld from public view for a period of days (noted above) from the date of the Grant of Equipment Authorization and prior to marketing. If there are any questions regarding the application or testing performed, please contact us at the above address or call (734) 252-9785, or e-mail [email protected]. Sincerely, Joseph D. Brunett Willow Run Test Labs, LLC 10 Pursuant to USA FCC 47 CFR 0.457(d) and 0.459 and Canada IC RSP-100, Delphi Electronics & Safetyrequests that a part of the subject application be held confidential. Delphi Electronics & Safety has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to ”competition” would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship.

Willow Run Test Labs, LLC 8501 Beck Road, Building 2227 Belleville, Michigan 48111 USA Tel: (734) 252-9785 Fax: (734) 926-9785 e-mail: [email protected] Attn.:Certification and Engineering Bureau Industry Canada 3701 Carling Avenue, Bldg. 94 Ottawa, Ontario K2H 8S2 Re: Certification for Delphi Electronics & Safety VP1 IC: 3432A-0058TR Please find enclosed application materials for certification of Delphi Electronics & Safety VP1. We tested it and found it to comply with IC RSS-210/GENe. Current Variants: There is only a single variant of the EUT. Test samples were programmed into worst case on time, worst case emission bandwidth, and CW mode using a supplied PC interface. If there are any questions regarding the application or testing performed, please contact us at the above address or call (734) 252-9785, or e-mail [email protected]. Sincerely, Joseph D. Brunett Willow Run Test Labs, LLC 12 Willow Run Test Labs, LLC 8501 Beck Road, Building 2227 Belleville, Michigan 48111 USA Tel: (734) 252-9785 Fax: (734) 926-9785 e-mail: [email protected] Attn.:Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315 Re: Certification for Delphi Electronics & Safety VP1 FCC ID: L2C0058TR Please find enclosed application materials for certification of Delphi Electronics & Safety VP1. We tested it and found it to comply with CFR Title 47, Part 15.247. If there are any questions regarding the application or testing performed, please contact us at the above address or call (734) 252-9785, or e-mail [email protected]. Sincerely, Joseph D. Brunett Willow Run Test Labs, LLC 11

VP1 FCC ID: L2C0058TR IC: 3432A-0058TR Mexico Model Name This device complies with Part 15 of the FCC Rules and with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation

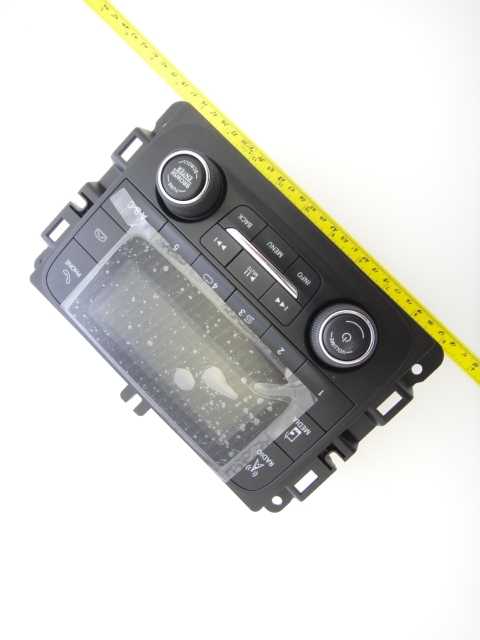

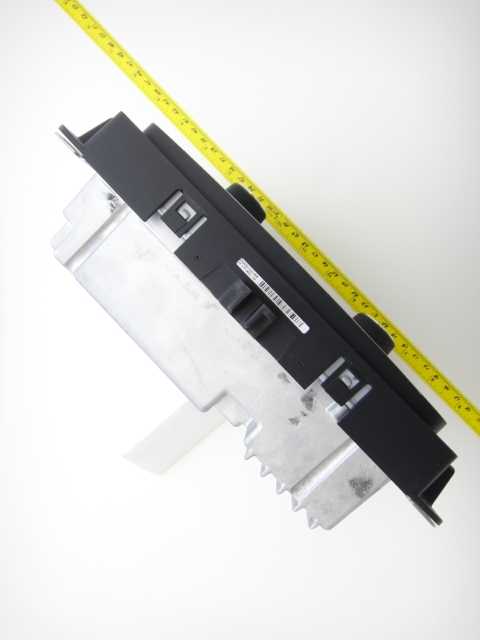

The Delphi VP1 head unit is a Chrysler Infotainment system deployed in Chrysler vehicles. The device employs a color touch screen display providing access to available navigation, entertainment and other features with ease. In addition to broadcast receivers and controls for other vehicle features, Bluetooth is included for pairing with compatible smart phones.

RF Exposure / SAR / Health Hazard Statement Requirement: According to USA CFR 15 §1.1307 (b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. For Canada, RSS-102 Tests out the requirements and measurement techniques used to evaluate radio frequency (RF) exposure compliance of radiocommunication apparatus designed to be used within the vicinity of the human body. SAR Testing Exclusion: Per FCC 447498 General RF Exposure Guidance v05, Section 4.3.1, the 1-g (body) and 10-g (extremity) SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by the following formula SAR= P C d √ f GHz where d = minimum test distance and Pc is the source-based time-averaged maximum conducted output power, or EIRP for a device without a removable antenna. For IC RSS-102, the SAR threshold is based on conducted output power of the radio device. The SAR threshold at a minimum test distance of 5 mm is thus computed to be: SAR Threshold Freq. (GHz ) EIRP/Po Avg (dBm) EIRP/Po Avg (mW) IC Po Threshold (mW) dmin (mm) Computed FCC SAR Threshold (Avg) 1-g SAR Body Threshold (Avg) 10-g SAR Extremity Threshold (Avg) 2.412-4.10.42050.137.5 2.432-5.30.32050.137.5 2.472-6.90.22050.137.5 Thus the EUT meets the test exclusion thresholds for Industry Canada and the FCC 1-g and 10-g Extremity SAR evaluation threshold.

Issue Date: February 27, 2015Prepared For: Delphi Electronics & SafetyReport No.: 20150225-TRPWAC010001r1 Willow Run Test Labs, LLC 8501 Beck Road, Building 2227 Belleville, Michigan 48111 USA Tel: (734) 252-9785 Fax: (734) 926-9785 e-mail: [email protected] Testing of Electromagnetic Emissions per USA: CFR Title 47, Part 15.247 Canada: IC RSS-210/GENe are herein reported for Delphi Electronics & Safety VP1 Test Report No.: 20150225-TRPWAC010001r1 Copyright c ©2015 Applicant/Provider: Delphi Electronics & Safety One Corporate Center, Kokomo Indiana 46904-9005 USA Phone: 765 451 5770, Fax: 765-451-0900 Contact Person: Brian Johnson; [email protected] Measured by: Report Approved by: Dr. Joseph Brunett, EMC-002790-NEDr. Joseph Brunett, EMC-002790-NE Report by:Report Date of Issue:February 27, 2015 Dr. Joseph Brunett, EMC-002790-NE Results of testing completed on (or before) February 27, 2015 are as follows. Emissions:The transmitter intentional emissionsCOMPLYwith the regulatory limit(s) by no less than 39.9 dB. Transmit chain spurious harmonic emissionsCOMPLYby no less than 4.8 dB. Radiated spurious emissions asso- ciated with the receive chain of this deviceCOMPLYthe regulatory limit(s) by no less than 12.1 dB. Willow Run Test Labs, LLC, 8501 Beck Road, Building 2227, Belleville, Michigan 48111 USAPage 1 of 23 Issue Date: February 27, 2015Prepared For: Delphi Electronics & SafetyReport No.: 20150225-TRPWAC010001r1 Contents 1 Test Specifications, General Procedures, and Location4 1.1 Test Specification and General Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 1.2 Test Location and Equipment Used . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 2 Configuration and Identification of the Equipment Under Test6 2.1 Description and Declarations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 2.1.1EUT Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 2.1.2Modes of Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 2.1.3Variants . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 2.1.4Test Samples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 2.1.5Functional Exerciser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 2.1.6Modifications Made . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 2.1.7Production Intent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 2.1.8Declared Exemptions and Additional Product Notes . . . . . . . . . . . . . . . . . . . . . . . .8 3 Emissions9 3.1 General Test Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 3.1.1Radiated Test Setup and Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 3.1.2Conducted Emissions Test Setup and Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . 11 3.1.3Power Supply Variation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 3.1.4Thermal Variation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 3.2 Intentional Emissions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 3.2.1Duty and Transmission Cycle, Pulsed Operation . . . . . . . . . . . . . . . . . . . . . . . . . . 12 3.2.2Hopping Channel Dwell Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 3.2.3Channel Bandwidth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 3.2.4Number of Hopping Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 3.2.5Channel Separation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 3.2.6Effective Isotropic Radiated Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 3.3 Unintentional Emissions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 3.3.1Transmit Chain Spurious Emissions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 3.3.2Relative Transmit Chain Spurious Emissions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 3.3.3Radiated Receiver Spurious . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Willow Run Test Labs, LLC, 8501 Beck Road, Building 2227, Belleville, Michigan 48111 USAPage 2 of 23 Issue Date: February 27, 2015Prepared For: Delphi Electronics & SafetyReport No.: 20150225-TRPWAC010001r1 List of Tables 1Willow Run Test Labs, LLC Equipment List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 2EUT Declarations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 3Pulsed Emission Characteristics (Duty Cycle). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 4Hopping Channel Dwell Time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 5Intentional Emission Bandwidth.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 6Measured Number of Hopping Channels.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 7Measured Channel Separation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 8Radiated Power Results.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 9Transmit Chain Spurious Emissions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 10Receiver Chain Spurious Emissions≥30 MHz.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 List of Figures 1Photos of EUT.. . . . . . . . . . . . . . . . . . . . . . . . . . . …
