L2C0059TRVehicular Radar

5725 Delphi Drive, Troy, Michigan USA 48098 The device under test is manufactured by the grantee (Delphi Electronics & Safety), and sold as an OEM product. Per 47 CFR 2.909, 2.927, 2.931, 2.1033, 15.15(b) etc..., the grantee must ensure the end-user has all applicable / appropriate operating instructions. When end-user instructions are required, as in the case of this product, the grantee must notify the OEM to notify the end-user. Delphi Electronics & Safety will supply this document to the reseller/distributor dictating what must be included in the end user’s manual for the commercial product. INFORMATION TO BE INCLUDED IN THE END USER'S MANUAL The following information (in blue) must be included in the end product user’s manual to ensure continued FCC and Industry Canada regulatory compliance. The ID numbers must be included in the manual if the device label is not readily accessible to the end user. The compliance paragraphs below must be included in the user's manual. ****************************************************************************** Model / FCC ID: L2C0059TR IC: 3432A-0059TR This device complies with Part 15 of the FCC Rules and with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. WARNING: Changes or modifications not expressively approved by the party responsible for compliance could void the user's authority to operate the equipment. The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications were met. ******************************************************************************

5725 Delphi Drive, Troy, Michigan USA 48098 Federal Communications Commission Applications Processing Branch 7435 Oakland Mills Road Colombia, MD 21046 Re: Power of Attorney for Joseph D. Brunett, Willow Run Test Labs To Whom It May Concern: Delphi Electronics and Safety has appointed Joseph D. Brunett of Willow Run Test Labs, LLC, 8501 Beck Road, Building 2227, Belleville, Michigan, 48111, USA, as the agent to act for Delphi Electronics and Safety in the FCC certification process. Dated: February 26, 2015. By: ___________ _____________ __ Brian Johnson (Signature) Title: Engineering Group Manager E-mail: [email protected] On behalf of: Delphi Electronics and Safety Telephone: +1 765 451 5770 Federal Communications Commission Applications Processing Branch 7435 Oakland Mills Road Colombia, MD 21046 Re: Letter of Agency for FCC Compliance Testing Please be advised that Delphi Electronics and Safety authorizes Joseph D. Brunett of Willow Run Test Labs, LLC, 8501 Beck Road, Building 2227, Belleville, Michigan, 48111, USA, to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification. Anti-Drug Abuse Certification: I further certify that no party (as defined in 1.2002 of CFR47, 1992) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti Drug Abuse Act of 1988, 21 U.S.C. 853(a). Dated: February 26, 2015. By: ___________ _____________ __ Brian Johnson (Signature) Title: Engineering Group Manager E-mail: [email protected] On behalf of: Delphi Electronics and Safety Telephone: +1 765 451 5770 Attn: Director of Certification Authority to Act as Agent I appoint Joseph D. Brunett of Willow Run Test Labs, LLC, 8501 Beck Road, Building 2227, Belleville, Michigan, 48111, USA, to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in Industry Canada’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by American Certification Body, still resides with Delphi Electronics and Safety. Dated: February 26, 2015. By: ___________ _____________ __ Brian Johnson (Signature) Title: Engineering Group Manager E-mail: [email protected] On behalf of: Delphi Electronics and Safety Telephone: +1 765 451 5770 Industry Canada 1241 Clyde Ave. Ottawa, Ontario K2C 1Y3 Re: Power of Attorney for Joseph D. Brunett To Whom It May Concern: Delphi Electronics and Safety has appointed Joseph D. Brunett, of Willow Run Test Labs, LLC, 8501 Beck Road, Building 2227, Belleville, Michigan, 48111, USA, as the agent to act for Delphi Electronics and Safety in the IC certification process. Dated: February 26, 2015. By: ___________ _____________ __ Brian Johnson (Signature) Title: Engineering Group Manager E-mail: [email protected] On behalf of: Delphi Electronics and Safety Telephone: +1 765 451 5770

Willow Run Test Labs, LLC 8501 Beck Road, Building 2227 Belleville, Michigan 48111 USA Tel: (734) 252-9785 Fax: (734) 926-9785 e-mail: [email protected] Re: Certification for Delphi Electronics & Safety FCC ID: L2C0059TR IC: 3432A-0059TR REQUEST FOR CONFIDENTIALITY Pursuant to USA FCC 47 CFR 0.457(d) and 0.459 and Canada IC RSP-100, Section 10, Delphi Electronics & Safetyrequests that a part of the subject application be held confidential. Delphi Electronics & Safety has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to ”competition” would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Exhibit Conf. TypeRational Exh 03 - External PhotosSTC-180daysIncludes product information. Exh 04 - Block DiagramPermanentIncludes proprietary internal oscillator frequency information. Exh 05 - SchematicsPermanentIncludes proprietary design information Exh 07 - Test Setup PhotosSTC-180daysIncludes product information. Exh 08 - Users ManualSTC-180daysIncludes product information. Exh 09 - Internal PhotosSTC-180daysIncludes product information. Exh 10 - BOM + PlacementPermanentIncludes proprietary design information. Exh 12 - Description of Op.STC-180daysIncludes product information. Exh 12 - Modes of Op.PermanentIncludes proprietary design information. Permanent Confidentiality:Delphi Electronics & Safety requests that any exhibits listed above as permanently confidential be permanently withheld from public review. Short-Term Confidentiality (FCC Only):Delphi Electronics & Safety requests that any exhibits selected above as short term confidential be withheld from public view for a period of days (noted above) from the date of the Grant of Equipment Authorization and prior to marketing. If there are any questions regarding the application or testing performed, please contact us at the above address or call (734) 252-9785, or e-mail [email protected]. Sincerely, Joseph D. Brunett Willow Run Test Labs, LLC 9

Willow Run Test Labs, LLC 8501 Beck Road, Building 2227 Belleville, Michigan 48111 USA Tel: (734) 252-9785 Fax: (734) 926-9785 e-mail: [email protected] Attn.:Certification and Engineering Bureau, Industry Canada 3701 Carling Avenue, Bldg. 94 Ottawa, Ontario K2H 8S2 Re: Certification for Delphi Electronics & Safety L2C0059TR IC: 3432A-0059TR Please find enclosed application materials for certification of Delphi Electronics & Safety L2C0059TR. We tested it and found it to comply with IC RSS-210/GENe. Current Variants: There is only a single variant of the EUT, as tested. If there are any questions regarding the application or testing performed, please contact us at the above address or call (734) 252-9785, or e-mail [email protected]. Sincerely, Joseph D. Brunett Willow Run Test Labs, LLC 11 Willow Run Test Labs, LLC 8501 Beck Road, Building 2227 Belleville, Michigan 48111 USA Tel: (734) 252-9785 Fax: (734) 926-9785 e-mail: [email protected] Attn.:Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315 Re: Certification for Delphi Electronics & Safety L2C0059TR FCC ID: L2C0059TR Please find enclosed application materials for certification of Delphi Electronics & Safety L2C0059TR. We tested it and found it to comply with CFR Title 47, Part 15.253. Current Variants: There is only a single variant of the EUT, as tested. If there are any questions regarding the application or testing performed, please contact us at the above address or call (734) 252-9785, or e-mail [email protected]. Sincerely, Joseph D. Brunett Willow Run Test Labs, LLC 10

'HOSKL$XWRPRWLYH6\VWHPV//& &$$%&<<---6666 ( ;; ;;;;;;;;; &0,,7,';;;;;;;;;;;;;; 0RGHO)&&,'/&75 ,&$75 ;;; ;;;;;; Ø6.0mm 1.8mm W x 2.5mm H 5.0mm W x 2.5mm H 5.0mm W x 5.0mm H $1$7(/;;;;;;;;;; 43.0mm 9.0mm ĞůƉŚŝ^ZZϯ>ĂďĞů/ŶĨŽƌŵĂƚŝŽŶ >ĂďĞů>ŽĐĂƚŝŽŶ

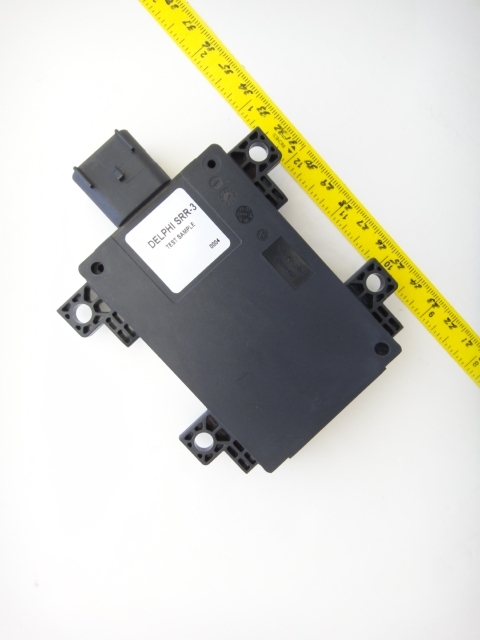

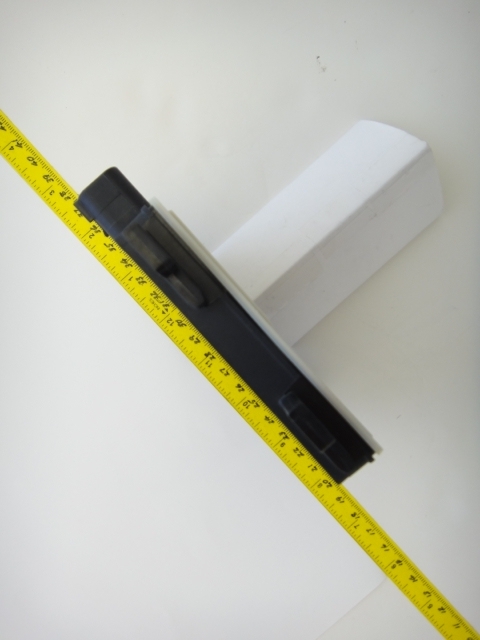

Users Manual / Operational Description: The Device Under Test (DUT) is a 76 to 77 GHz vehicular radar. The device employs a dynamic chirp modulated transmit array. Multiple receive antennas are used to determine target angular resolution through digital beam forming. When installed on a vehicle, the device will operate when the vehicle is r unning. The nominal operating voltage is 12.0 VDC.

FCC MPE / Health Hazard Requirement: According to 47 CFR 15 §1.1307 (b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. MPE / Health Hazard Separation Distance: The minimum separation distance calculated following FCC OET Bulletin 65 is calculated as follows, where S is power density, The power density at 20 cm is computed to be: EIRP = 17.8 dBm = 60.3 mW (Pk) S(mW/cm 2 ) = EIRP(mW)/(4π R(cm) 2 ) = 60.3/(4π 20 2 ) = 0.0119 mW/cm 2 (Pk) Minimum permissible separation distance is computed as EIRP avg = 17.8 dBm – 5.1 dB (exposure duty) = 12.7 dBm = 18.6 mW R(cm) = sqrt( EIRP avg (mW) / (4π S) ) = 1.2 cm, with S(mW/cm 2 ) = 1 mW/cm 2 per 47 CFR 1.1310 Table 1. ERP is computed to be: ERP = EIRP – 2.15 = 17.8 – 2.15 = 15.65 dBm = 0.0367 W (Pk) NOTE: Under no circumstances is the ERP of this device greater than 3W, as required by 2.1091 and the FCC mm-wave accepted test procedures. Industry Canada MPE / Health Hazard Requirement: According to Industry Canada RSS-102 Issue 5, Section 2.5.2, RF exposure evaluation is not required if for devices operating above 6 GHz if the separation distance between the user and/or bystander and the device’s radiating element is greater than 20 cm and the EIRP rating of the device is less than 5W. Per the test report included herein, EIRP(Pk) = 17.8 dBm = 0.0603 W < 5 W

Issue Date: September 5, 2015Prepared For: Delphi Electronics & Safety Report No.: 20150905-RPTWAC010010Ar0 Willow Run Test Labs, LLC 8501 Beck Road, Building 2227 Belleville, Michigan 48111 USA Tel: (734) 252-9785 Fax: (734) 926-9785 e-mail: [email protected] Testing of Electromagnetic Emissions per USA: CFR Title 47, Part 15.253 Canada: IC RSS-210/GENe are herein reported for Delphi Electronics & Safety L2C0059TR Test Report No.: 20150905-RPTWAC010010Ar0 Copyright c ©2015 Applicant/Provider: Delphi Electronics & Safety One Corporate Center, Kokomo Indiana 46904-9005 USA Phone: 765 451 5770, Fax: 765-451-0900 Contact Person: Brian Johnson; [email protected] Measured by: Report Approved by: Dr. Joseph Brunett, EMC-002790-NEDr. Joseph Brunett, EMC-002790-NE Report by:Report Date of Issue:September 5, 2015 Dr. Joseph Brunett, EMC-002790-NE Results of testing completed on (or before) August 30, 2015 are as follows. Emissions:The transmitter intentional emissionsCOMPLYwith the regulatory limit(s) by no less than 37.2 dB. Transmit chain spurious harmonic emissionsCOMPLYby no less than 22.3 dB. Willow Run Test Labs, LLC, 8501 Beck Road, Building 2227, Belleville, Michigan 48111 USAPage 1 of 20 Issue Date: September 5, 2015Prepared For: Delphi Electronics & Safety Report No.: 20150905-RPTWAC010010Ar0 Contents 1 Test Specifications, General Procedures, and Location4 1.1 Test Specification and General Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 1.2 Test Location and Equipment Used . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 2 Configuration and Identification of the Equipment Under Test6 2.1 Description and Declarations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 2.1.1EUT Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 2.1.2Modes of Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 2.1.3Variants . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 2.1.4Test Samples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 2.1.5Functional Exerciser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 2.1.6Modifications Made . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 2.1.7Production Intent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 2.1.8Declared Exemptions and Additional Product Notes . . . . . . . . . . . . . . . . . . . . . . . .7 3 Emissions8 3.1 General Test Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 3.1.1Radiated Test Setup and Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 3.1.2Conducted Emissions Test Setup and Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . 11 3.1.3Power Supply Variation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 3.1.4Thermal Variation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 3.2 Intentional Emissions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 3.2.1Fundamental Emission Pulsed Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 3.2.2Fundamental Emission Bandwidth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 3.2.3Fundamental Emission . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 3.2.4Exposure and Potential Health Hazard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 3.3 Unintentional Emissions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 3.3.1Transmit Chain Spurious Emissions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 3.3.2Radiated Digital Spurious . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Willow Run Test Labs, LLC, 8501 Beck Road, Building 2227, Belleville, Michigan 48111 USAPage 2 of 20 Issue Date: September 5, 2015Prepared For: Delphi Electronics & Safety Report No.: 20150905-RPTWAC010010Ar0 List of Tables 1Willow Run Test Labs, LLC Equipment List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 2EUT Declarations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 3Pulsed Emission Characteristics (Duty Cycle). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 4Intentional Emission Bandwidth.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 5Fundamental Radiated Emissions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 6Electromagnetic Field Exposure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 7Transmit Chain Spurious Emissions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 8Radiated Digital Spurious Emissions.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 List of Figures 1Photos of EUT.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 2EUT Test Configuration Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 3Radiated Emissions Diagram of the EUT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 4Radiated Emissions Test Setup Photograph(s). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 5Pulsed Emission Characteristics (Duty Cycle). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 5Pulsed Emission Characteristics (Duty Cycle). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 5Pulsed Emission Characteristics (Duty Cycle). . . . . . . . . . . …
