L2CF5TRFMCW Radar

Aptiv Mailing Address 2151 East Lincoln Road Kokomo, Indiana United States Of America Phone: Fax: Internet: +01 (765) 451-5011 +01 (765) 451-5426 www.Aptiv.com The device under test is manufactured by the grantee (Aptiv Services, LLC), and sold as an OEM product. Per 47 CFR 2.909, 2.927, 2.931, 2.1033, etc..., the grantee must ensure the end-user has all applicable / appropriate operating instructions. When end-user instructions are required, as in the case of this product, the grantee must notify the OEM to notify the end-user. Aptiv Services, LLC will supply this document to the reseller/distributor dictating what must be included in the end user’s manual for the commercial product. INFORMATION TO BE INCLUDED IN THE END USER’S MANUAL The following information (in blue) must be included in the end-product user’s manual to ensure continued FCC and Industry Canada regulatory compliance. The ID numbers must be included in the manual if the device label is not readily accessible to the end user. The compliance paragraphs below must be included in the user's manual. ****************************************************************************** FCC ID: L2CF5TR IC: 3432A-F5TR This device complies with Part 15 of the FCC Rules and with ISED Canada license-exempt RSSs. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : 1. L’appareil ne doit pas produire de brouillage; 2. L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. Note: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

5 Hanover Quay | Grand Canal | Dublin 2 | Ireland To Whom It May Concern: Authority to Act as Agent and REL Listing We appoint Joseph D. Brunett on behalf of Willow Run Test Labs, Inc. and Amber Helm Development, LC to act as our agent in the preparation of this application for equipment certification. We certify that submitted documents properly describe the device or system for which equipment certification is sought. We also certify that each unit manufactured, imported or marketed, as defined in Industry Canada’s regulations will have affixed to it a label identical to that submitted for approval with this application. Further, in accordance with section 6.5 of IC CB-02, we hereby acknowledge that our company’s product cannot be distributed, leased or offered for sale in Canada until it’s listed on the Industry Canada Radio Equipment List (REL). For instances where our authorized agent signs the application for certification on our behalf, we acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by American Certification Body, Inc. and/or TUV Rheinland Group still resides with Aptiv Services US, LLC. For TCB applications, we certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. We also declare that the information provided to the FCC is true and correct to the best of our knowledge (47 CFR 2.911(d)) and we have been informed of the grantee responsibilities (47 CFR 2.909) regarding certified equipment. Dated: 10 September 2019 Signature: _______________________________ Name: Brian Johnson Title: Engineering Group Manager email: [email protected] On behalf of: Aptiv Services US, LLC. 2151 E. Lincoln Rd, M/S C4W Kokomo, Indiana, 46902 United States of America Telephone: +1 765 867 4179

Willow Run (WR) Test Labs, Inc. 7117 Fieldcrest Dr., Brighton, Michigan 48116 USA Tel: (734) 252-9785, Fax: (734) 926-9785, e-mail: [email protected] Attn.:Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315 Re: Certification for Aptiv Services US, LLC F5TR FCC ID: L2CF5TR If necessary, we have enclosed application materials for certification of Aptiv Services US, LLC F5TR. It has been verified to comply with CFR Title 47, Part 95 Subpart M. Current Variants: There is only a single variant of the EUT, as tested. If there are any questions regarding the application or testing performed, please contact us at the above address or call (734) 252-9785, or e-mail [email protected]. Sincerely, Joseph D. Brunett Willow Run (WR) Test Labs, Inc. 10

Willow Run (WR) Test Labs, Inc. 7117 Fieldcrest Dr., Brighton, Michigan 48116 USA Tel: (734) 252-9785, Fax: (734) 926-9785, e-mail: [email protected] REQUEST FOR CONFIDENTIALITY Pursuant to USA FCC 47 CFR 0.457(d) and 0.459 and Canada IC RSP-100, Section 10, Aptiv Services US, LLC requests that a part of the subject application be held confidential. Aptiv Services US, LLC has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to ”competition” would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Long Term Confidentiality (Permanent):Aptiv Services US, LLC requests that any exhibits listed above as permanently confidential be permanently withheld from public review. Wherein Long Term Confidentiality is not an option for specific exhibits with ISED, this request applies only to the FCC application for those exhibits. Short-Term Confidentiality (FCC Only):Aptiv Services US, LLC requests that any exhibits selected above as short term confidential be withheld from public view for a period of days (noted above) from the date of the Grant of Equipment Authorization and prior to marketing. If there are any questions regarding the application or testing performed, please contact us at the above address or call (734) 252-9785, or e-mail [email protected]. Sincerely, Joseph D. Brunett Willow Run (WR) Test Labs, Inc. Re: Certification for Aptiv Services US, LLC FCC ID: L2CF5TR IC: 3432A-F5TR ExhibitConf. TypeRational Exh 02 - NDA APTIV USPermanentProprietary. Exh 03 - External PhotosSTC-180daysIncludes product information. Exh 04 - Block DiagramPermanentIncludes proprietary internal oscillator frequency information. Exh 05 - SchematicsPermanentIncludes proprietary design information Exh 07 - Test Setup PhotosSTC-180daysIncludes product information. Exh 08 - Users ManualSTC-180daysIncludes product information. Exh 09 - Internal PhotosPermanentKDB 726920 D01 3(a)2+(c) - Proprietary. Exh 10 - Parts List, Tune, PlacePermanentIncludes proprietary design information. Exh 12 - Description of Op.STC-180daysIncludes product information. Exh 12 - Modes of Op.PermanentIncludes proprietary design information.

Aptiv Services US, LLC Mailing Address 2151 East Lincoln Road Kokomo, Indiana United States Of America Phone: Fax: Internet: +01 (765) 451-5011 +01 (765) 451-5426 www.Aptiv.com Aptiv Services US, LLC WHOM it may concern! Ljiljana Trivic [email protected] Phone +49 2261 971 415 Date: 15 th Feb 2021 Request for long term confidentiality of the Internal photos for our short range radar sensor Certificate Number: TC688407 FCC ID: L2CF5TR APTIV acknowledges that the photos were available to the public from 12/27/2020. Dear Sirs, This letter references §§ 0.457 (d) and §§ 0.459 of FCC Rules as the authority for requesting confidentiality. APTIV would like to obtain long term confidentiality for the NON-Disclosure Agreement (NDA) document itself and the internal photos for the product with FCC ID: L2CF5TR This request of confidentiality is submitted because internal photos contain RF integrated circuit board layout patterns, antenna designs and antenna distribution networks, which are trade secrets and shall not be accessible to users of the public. The devices cannot be opened without special tools. In addition the device is not being sold separately from the vehicle. The installation of the device can only be done through licensed distributors under NDA. In those cases APTIV has signed NDA documents with customers and/or suppliers. For that reasons internal photos submitted to FCC shall never be available for public or disclosed to unauthorized persons. Only APTIV employees have access to these internal photos and devices or customers/suppliers under NDA. All sales in regards to these devices have to be under NDA, restricting the disclosure of the propriety information including the internal photos. The NDA between APTIV and our business partners includes secret business agreements which we would like to stress again. Internal photos have to be treated in the category of permanent confidentiality under a NDA. The NDA document itself shall also be kept permanent confidential. Yours Sincerely Brian W. Johnson EGM EMC Design (765)867-4179

SRR5 Label Location ContentLocation

October, 18 th 2019 Operational Description: The Device Under Test (DUT) is a 76 to 77 GHz vehicular radar. The device employs a dynamic chirp modulated transmit array. Multiple receive antennas are used to determine target angular resolution through digital beam forming. When installed on a vehicle, the device will operate when the vehicle is running. The nominal operating voltage is 12.0 VDC.

Willow Run (WR) Test Labs, Inc. 7117 Fieldcrest Drive Brighton, MI 48116 Phone: (734) 252-9785, Fax (734) 926-9785 e-mail:[email protected] RF EXPOSURE CALCULATIONS Requirement: According to USA CFR 15 §1.1307 (b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. For Canada, RSS-102 sets out the requirements and measurement techniques used to evaluate radio frequency (RF) exposure compliance of radiocommunication apparatus designed to be used within the vicinity of the human body. Maximum Permissible Exposure Calculations: Summary: The EUT with all transmitters is compliant with both the FCC power density limit and the ISED Exposure Evaluation limits. Test Date: 1-Nov-19 LevelUnitsTest Engineer: Joseph Brunett MPE Field Strength Limit 61V/m EUT Mode: CW, MAX ANT GAIN (A1) MPE Power Density Limit 1.0 Meas. Distance: 3m Freq.TempEIRP (Pk) Exposure DutyEIRP (Avg) EUT Ant. Dim. Far-field DistanceS = 1mW/cm2 Dist.*S @ 20 cm Distance MHzdBcmmcmComments 760052028.0-7.420.66.001.82 3.0 0.023max all orientations, CW mode 765002027.6-7.420.26.001.842.90.021max all orientations, CW mode 769702026.5-7.419.16.001.852.50.016max all orientations, CW mode S @ 20cm = EIRP – 10*log10( 4 * PI * 20^2) mW/cm2 o C dBmdBmmW/cm2 S = 1mW/cm2 Distance = sqrt(EIRPmW/(4*PI*1mW/cm2)) S = 1mW/cm2 Distance is an overestimated value when smaller than the EUT far field distance, and demonstrates compliance with FCC Part 1.1307, 1.1310, 2.1091, and 2.0193 requirements when the EUT is mounted into the motor vehicle. EUT is a Side Looking radar.

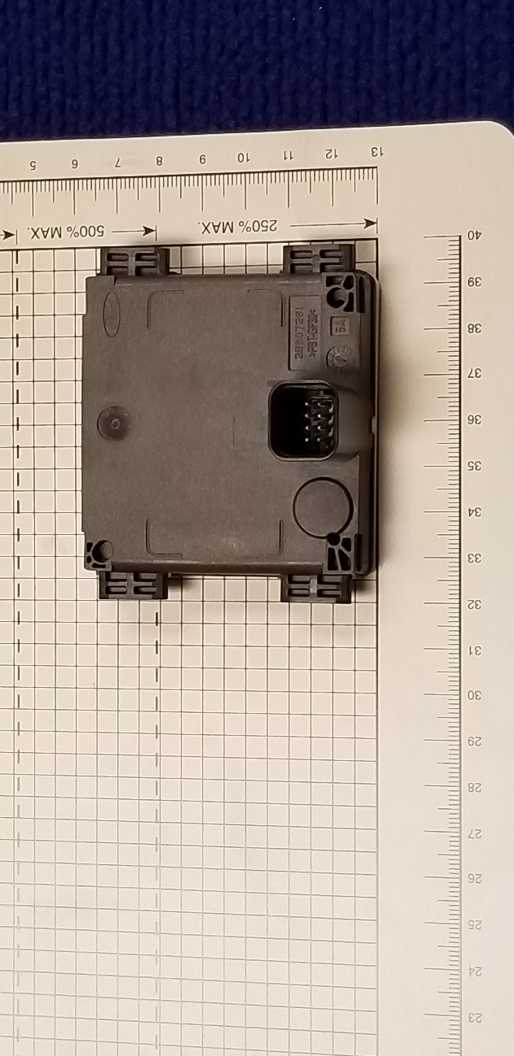

Amber Helm Development L.C. 92723 Michigan Hwy-152 Sister Lakes, Michigan 49047 USA Tel: 888-847-8027 EMC Test Report F5TR-WR1919TX Issued:November 5, 2019 regarding USA: CFR Title 47, Part 95 Subpart M(Emissions) Canada:ISED RSS-251 version 2(Emissions) for PHOTOS HELD SHORT TERM CONFIDENTIAL F5TR Category: FMCW Radar Judgments: FCC Part 95M and ISED RSS-251v2 Compliant Testing Completed: November 3, 2019 TESTING NVLAP LAB CODE 200129-0 Prepared for: Aptiv Services US, LLC One Corporate Center, Kokomo Indiana 46904-9005 USA Phone: 765 451 5770, Fax: 765-451-0900 Contact: Brian Johnson, [email protected] Data Recorded by: Reviewed by: Dr. Joseph Brunett, EMC-002790-NEGordon Helm, EMC-002401-NE Prepared by:Date of Issue:November 5, 2019 Dr. Joseph Brunett, EMC-002790-NE A copy of this report will remain on file until December 2029.Page 1 of 24 Date: November 5, 2019Prepared For: Aptiv Services US, LLCReport No.: F5TR-WR1919TX Revision History Rev. No.DateDetailsRevised By r0November 5, 2019Initial Release.J. Brunett r1November 19, 2019Remove duty cycle, minor typo corrections.J. Brunett r2November 22, 2019Include higher resolutions plots.J. Brunett Contents Revision History2 Table of Contents2 1 Test Report Scope and Limitations4 1.1 Laboratory Authorization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 1.2 Report Retention . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 1.3 Subcontracted Testing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 1.4 Test Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 1.5 Limitation of Results . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 1.6 Copyright . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 1.7 Endorsements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 1.8 Test Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 1.9 Traceability and Equipment Used . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 2 Test Specifications and Procedures6 2.1 Test Specification and General Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 3 Configuration and Identification of the Equipment Under Test7 3.1 Description and Declarations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 3.1.1EUT Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 3.1.2Modes of Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 3.1.3Variants . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 3.1.4Test Samples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 3.1.5Functional Exerciser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 3.1.6Modifications Made . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 3.1.7Production Intent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 3.1.8Declared Exemptions and Additional Product Notes . . . . . . . . . . . . . . . . . . . . . . . .8 4 Emissions9 4.1 General Test Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 4.1.1Radiated Test Setup and Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 4.1.2Conducted Emissions Test Setup and Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . 11 4.1.3Power Supply Variation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 4.2 Intentional Emissions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 4.2.1Fundamental Emission Pulsed Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 4.2.2Fundamental Emission Bandwidth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 4.2.3Fundamental Emission . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 4.3 Unintentional Emissions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 4.3.1Transmit Chain Spurious Emissions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 5 Measurement Uncertainty and Accreditation Documents24 Amber Helm Development L.C., 92723 Michigan Hwy-152, Sister Lakes, Michigan 49047 USAPage 2 of 24 Date: November 5, 2019Prepared For: Aptiv Services US, LLCReport No.: F5TR-WR1919TX List of Tables 1Test Site List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 2Equipment List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 3EUT Declarations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 4Pulsed Emission Characteristics (Duty Cycle). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 5Intentional Emission Bandwidth.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 6Fundamental Radiated Emissions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 7Transmit Chain Spurious Emissions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 7Transmit Chain Spurious Emissions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 7Transmit Chain Spurious Emissions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 8Measurement Uncertainty. . . . . . . . . . . . . . . . . . . . . . . . . …
