L2V-ST100Simplex Satellite Transmitter Module with Bluetooth

GLOBALSTAR PROPRIETARY AND CONFIDENTIAL INFORMATION Use or disclosure of data contained on this sheet is subject to the restrictions in the Distribution Statements on the title page of this document. 06/18/20 Subject to Change without Notice P a g e | 1 GLOBALSTAR PROPRIETARY AND CONFIDENTIAL INFORMATION Use or disclosure of data contained on this sheet is subject to the restrictions in the Distribution Statements on the title page of this document. 06/18/20 Subject to Change without Notice P a g e | 2 Version: 0.8 Date: June 18, 2020 Document number: TBD Globalstar, Inc. 1351 Holiday Square Blvd. Covington, LA70433 USA Copyright © Globalstar Inc., 2020. All rights reserved. Printed in the United States of America. Distribution Statements: GLOBALSTAR CONFIDENTIAL AND PROPRIETARY INFORMATION – All data and information contained in this document are confidential and proprietary to Globalstar, Inc. and shall be handled in accordance with the Non-Disclosure Agreement executed between the parties and Globalstar. WARNING – This document may contain technical data whose export is restricted by the Export Administration Act of 1979, as amended, Title 50, U.S.C., App 2401 et seq. Violations of these export laws are subject to severe criminal penalties. Disseminate only in accordance with such export laws. Destruction Notice – Destroy by any method that will prevent disclosure of contents or reconstruction of the document. GLOBALSTAR PROPRIETARY AND CONFIDENTIAL INFORMATION Use or disclosure of data contained on this sheet is subject to the restrictions in the Distribution Statements on the title page of this document. 06/18/20 Subject to Change without Notice P a g e | 3 Table of Contents Foreward (TBD) ....................................................................................................................... Error! Bookmark not defined. List of Tables (TBD) ................................................................................................................. Error! Bookmark not defined. List of Figures (TBD) ................................................................................................................ Error! Bookmark not defined. 1 Introduction .................................................................................................................................................................. 8 1.1 Purpose ................................................................................................................................................................. 8 1.2 Applicable Documents .......................................................................................................................................... 8 1.3 Description ............................................................................................................................................................ 8 1.4 Certifications (TBD) ............................................................................................................................................... 9 2 Application .................................................................................................................................................................... 9 2.1 Theory of Operation for Globalstar Simplex ......................................................................................................... 9 2.2 ST100 Functional States (TBD) ............................................................................................................................ 13 2.3 Safety Considerations (TBD) .................................................................................... Error! Bookmark not defined. 2.4 Block Diagram ..................................................................................................................................................... 13 2.5 Handling of Electrostatic Sensitive Devices ......................................................................................................... 13 2.6 Wiring ................................................................................................................................................................. 14 2.7 Noise Sources ...................................................................................................................................................... 14 2.8 Obstructions ....................................................................................................................................................... 14 2.9 PCB Antenna (TBD) ............................................................................................................................................. 14 2.10 External Connections .......................................................................................................................................... 15 2.10.1 External Antenna Option ............................................................................................................................. 15 2.10.2 Battery ........................................................................................................................................................ 16 2.10.3 Solar Panel .................................................................................................................................................. 17 2.10.4 14 Pin Connector ......................................................................................................................................... 18 2.11 Power Performance Characteristics (TBD) .............................................................. Error! Bookmark not defined. 2.12 Accelerometer (TBD) ............................................................................................... Error! Bookmark not defined. 3 General Specifications ...............................................................................................................................…

Text truncated - open the document above for the full version.

July 2020 To whom it may concern: Subject: ST100 External Pictures for Regulatory Below are the pictures of the Globalstar ST100 module and ST100 Basic (ST100 module in a Host) for Regulatory. Picture 1: Battery Side of ST100 Picture 2 – Component side with shield Picture 3 - ST100 module installed in ST100 Basic (Host) – Front Picture 4 - ST100 Module in ST100 Basic (Host)

Figure 1: PCB Top View Figure 2: PCB Bottom View

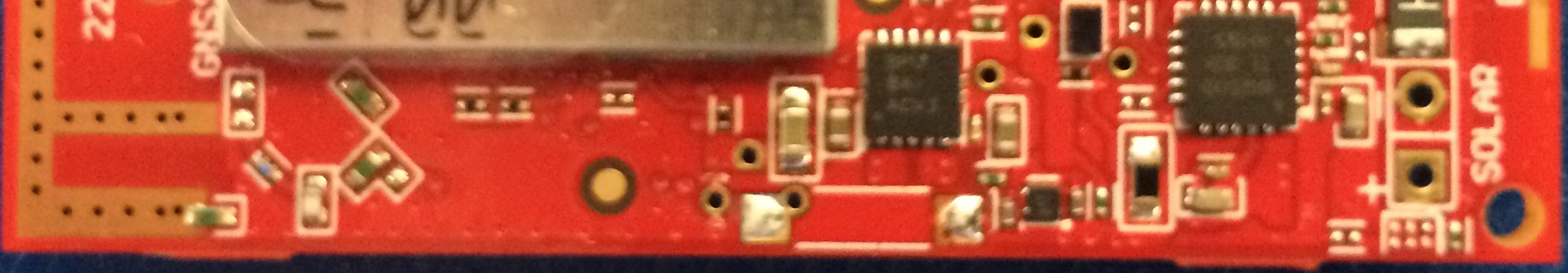

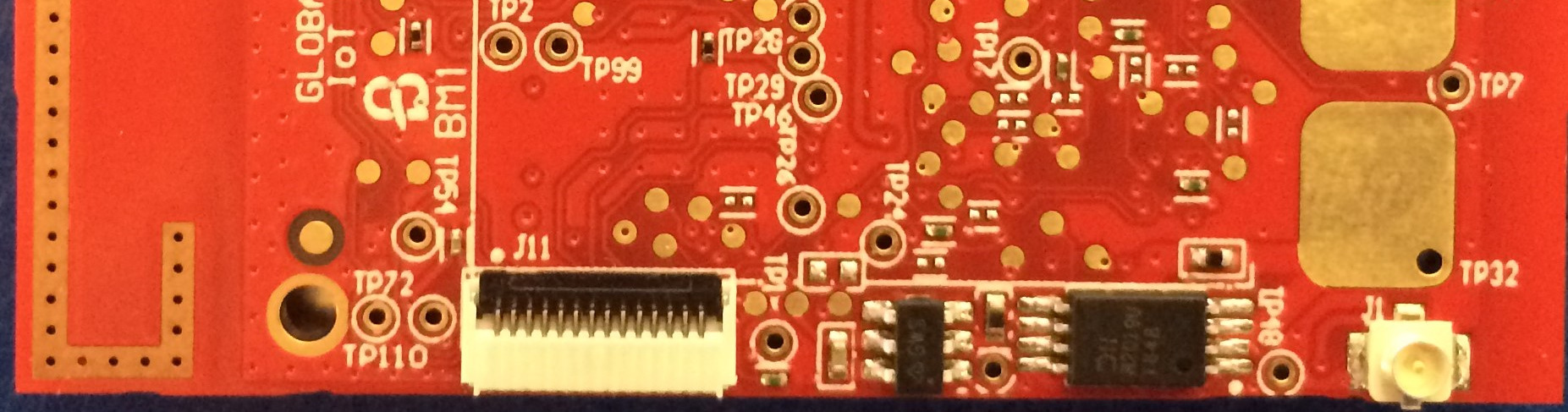

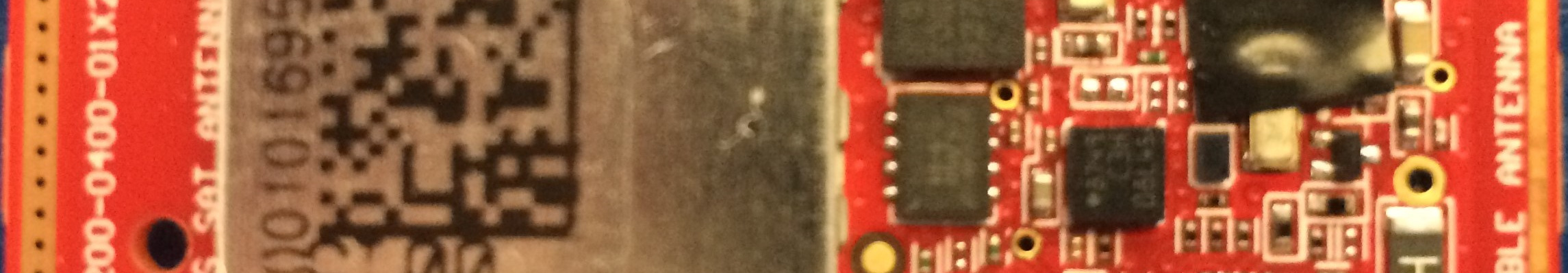

June 2020 To whom it may concern: Subject: ST100 Pictures for Regulatory Below are the pictures of the Globalstar ST100 for Regulatory. Also included are PCB drawings with regulatory information. NOTE: The ST100 is a PCB module. It does not have an external housing. Picture 1: Battery Side of ST100 Picture 2 – Component side with shield Picture 3 – Component side without shield. Picture 4 – Component side ST100 PCB with FCC ID and CE Mark Picture 5 – Battery side ST100 PCB with ISED ID plus manufacturers name / model.

Certificates and reports shall not be reproduced except in full, without the written permission of H.B Compliance Solutions, LLC. Maximum Permissible Exposure Statement For the Globalstar, Inc. ST100 April 20, 2020 Prepared for: Globalstar, Inc. 1351 Holiday Square Blvd. Covington, LA 70433 Prepared By: H.B. Compliance Solutions 5005 S. Ash Avenue, Suite # A-10 Tempe, Arizona 85282 Reviewed By: Hoosamuddin Bandukwala Cert # ATL-0062-E HBCS MPE Report # EMC_20010_2 Page 2 of 3 Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S = PG/4πR2 Where, S = power density (mW/cm2) P = output power at the antenna terminal (mW) G = gain of transmit antenna (numeric) R = distance from transmitting antenna (cm) For Bluetooth Transmitter Maximum peak output power at antenna input terminal = -0.38 (dBm) Maximum peak output power at antenna input terminal = 0.916 (mW) Antenna gain (typical) = -0.14(dBi) Maximum antenna gain = 1.0(numeric) Prediction distance = 20 (cm) Prediction frequency = 2480 (MHz) MPE limit for uncontrolled exposure at prediction frequency = 1 (mW/cm^2) Power density at prediction frequency = 0.00018 (mW/cm^2) To solve for the minimum mounting distance required; R = √ (PG/4πS) R = √ (0.916 x 1.0 / 4π x 0.00018) = 20 cm (Based on continuous transmission) HBCS MPE Report # EMC_20010_2 Page 3 of 3 For Satellite Transmitter Maximum peak output power at antenna input terminal = 24.76 (dBm) * Maximum peak output power at antenna input terminal = 299.22 (mW) Antenna gain (typical) = 1.06 (dBi) Maximum antenna gain = 1.26 (numeric) Prediction distance = 20 (cm) Prediction frequency = 1618.75 (MHz) MPE limit for uncontrolled exposure at prediction frequency = 1.0 (mW/cm^2) Power density at prediction frequency = 0.07500 (mW/cm^2) *Includes 1dB of manufacturer output power tolerance. To solve for the minimum mounting distance required; R = √ (PG/4πS) R = √ (299.22 x 1.26 / 4π x 0.075007) = 20 cm (Based on continuous transmission) Note: Both transmitters (Bluetooth and Satellite) do not operate at the same time. END OF TEST REPORT

Certificates and reports shall not be reproduced except in full, without the written permission of H.B Compliance Solutions, LLC. Intentional Radiator Test Report For the Globalstar, Inc. ST100 Tested under The FCC Rules contained in Title 47 of the CFR, Part 25 and ISED RSS-170 Issue 3 for Satellite Communications April 20, 2020 Prepared for: Globalstar, Inc. 1351 Holiday Square Blvd. Covington, LA 70433 Prepared By: H.B. Compliance Solutions 5005 S. Ash Avenue, Suite # A-10 Tempe, Arizona 85282 Reviewed By: Hoosamuddin Bandukwala Cert # ATL-0062-E Engineering Statement: The measurements shown in this report were made in accordance with the procedure indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurement made, the equipment tested is capable of operation in accordance with the requirements of Part 25 of the FCC Rules under normal use and maintenance. All results contained herein relate only to the sample tested. HBCS Report # EMC_20010 Rev1 Page 2 of 34 Report Status Sheet Revision # Report Date Reason for Revision Ø April 20, 2020 Initial Issue 1 June 29, 2020 TCB Comments HBCS Report # EMC_20010 Rev1 Page 3 of 34 Table of Contents EXECUTIVE SUMMARY ............................................................................................ 4 1. Testing Summary ........................................................................................ 4 EQUIPMENT CONFIGURATION ................................................................................ 5 1. Overview .................................................................................................... 5 2. Test Facility ................................................................................................. 6 3. Description of Test Sample ......................................................................... 7 4. Equipment Configuration ........................................................................... 7 5. Support Equipment .................................................................................... 7 6. Ports and Cabling Information .................................................................... 8 7. Method of Monitoring EUT Operation ........................................................ 8 8. Mode of Operation ..................................................................................... 8 9. Modifications ............................................................................................. 8 10. Disposition of EUT ...................................................................................... 8 Criteria for Intentional Radiators ............................................................................ 9 1. RF Power Output ........................................................................................ 9 2. Occupied Bandwidth ................................................................................ 11 3. Unwanted Emissions at Antenna Terminals .............................................. 13 4. Radiated Spurious Emissions .................................................................... 20 5. Protection of Aeronautical Radio Navigation Satellite Service .................. 23 6. Frequency Stability vs Temperature ......................................................... 29 7. Frequency Stability vs Voltage .................................................................. 31 Test Equipment ..................................................................................................... 33 8. Measurement Uncertainty ....................................................................... 34 HBCS Report # EMC_20010 Rev1 Page 4 of 34 EXECUTIVE SUMMARY 1. Testing Summary These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 25. All tests were conducted using measurement procedure from ANSI C63.26-2015 RSS-GEN Issue 5 and RSS-170 Issue 3 as appropriate. Test Name Test Method / FCC Standard ISED Standard Result Comments RF Output Power §2.1046; §25.204 RSS-170 (5.3) Pass Occupied Bandwidth §2.1049 RSS-Gen (6.7) Pass Unwanted Emissions at Antenna Terminals §2.1051; §25.202(f) RSS-170 (5.4.3.1) Pass Radiated Spurious Emissions §2.1053; §25.202(f) RSS-170 (5.4.3.1) Pass Protection of Aeronautical Radio Navigation Satellite Service §25.216(c)(f)(g)(i)(j) RSS-170 (5.4.3) Pass Frequency Stability over Temperature Variations §2.1055(a)(1); §25.202(d) RSS-170 (5.2) Pass Frequency Stability over Voltage Variations §2.1055(d); §25.202(d) RSS-170 (5.2) Pass HBCS Report # EMC_20010 Rev1 Page 5 of 34 EQUIPMENT CONFIGURATION 1. Overview H.B Compliance Solutions was contracted by Globalstar to perform testing on the ST100 under the purchase number 17288. This document describes the test setups, test methods, required test equipment, and the test limit criteria used to perform compliance testing of the Globalstar, ST100. The tests were based on FCC Part 25 Rules. The tests described in this document were formal tests as described with the objective of the testing was to evaluate compliance of the Equipment Under Test (EUT) to the requirements of the aforementioned specifications. Globalstar should retain a copy of this document and it should be kept on file for at least five years after the manufacturing of the EUT has been permanently discontinued. The results obtained relate only to the item(s) tested. Product Name: ST100 Model(s) Tested: ST100 FCC ID: L2V-ST100 IC ID: 3989A-ST100 Supply Voltage Input: Primary Power: 4.2 VDC Frequency Range: 1611.25MHz to 1618.75MHz No. of Channels: Four Channel Necessary Bandwidth N/A Type(s) of Modulation: BPSK Range of Operation Power: 0.29W Voltage into final Transistor 3.3V Current into final Transistor 475mA Emission Designat…

Text truncated - open the document above for the full version.

1 | P a g e Test Setup Photos Globalstar – Project 20010 Test Setup Photo # 1 Test Setup Photo # 2 2 | P a g e Test Setup Photo # 3 Test Setup Photo # 4 3 | P a g e Test Setup Photo # 5 Test Setup Photo # 6
