L2V-STGRGlobalstar STINGR

Revision 0.2 STINGR Users Manual 06/24/15 Revision 0.2 Subject To Change without Notice P a g e | 1 STINGR Users Manual Revision 0.2 STINGR Users Manual 06/24/15 Revision 0.2 Subject To Change without Notice P a g e | 2 Table of Contents 1 Introduction .................................................................................................................................................................... 4 1.1 Purpose ................................................................................................................................................................... 4 1.2 Applicable Documents ............................................................................................................................................ 4 1.3 Description .............................................................................................................................................................. 4 2 Application ...................................................................................................................................................................... 5 2.1 Theory of Operation ................................................................................................................................................ 5 2.2 Block Diagram ......................................................................................................................................................... 8 3 Physical Charactersistics ................................................................................................................................................. 9 4 Reference Design .......................................................................................................................................................... 13 4.1 Schematic .............................................................................................................................................................. 14 4.2 PCB ........................................................................................................................................................................ 15 4.3 BOM ...................................................................................................................................................................... 15 5 Application Programming Interface .............................................................................................................................. 16 5.1 Serial Port .............................................................................................................................................................. 16 5.2 Serial Packet Mode ............................................................................................................................................... 16 5.2.1 Serial Packet Format ..................................................................................................................................... 17 5.2.2 STX3 Legacy Serial Packet Commands .......................................................................................................... 17 5.2.2.1 Send Data (0x00) ....................................................................................................................................... 17 5.2.2.2 Query Electronic Serial Number (ESN) (0x01) ........................................................................................... 18 5.2.2.3 Abort Transmission (0x03) ........................................................................................................................ 18 5.2.2.4 Query Bursts Remaining (0x04) ................................................................................................................ 18 5.2.2.5 Query Firmware Version (0x05) ................................................................................................................ 19 5.2.2.6 Setup (0x06) .............................................................................................................................................. 19 5.2.2.7 Query Setup (0x07) ................................................................................................................................... 20 5.2.2.8 Query Hardware Version (0x09) ............................................................................................................... 21 5.2.3 STINGR Serial Packet Commands .................................................................................................................. 22 5.2.3.1 “Initiate proprietary track” command ...................................................................................................... 22 5.2.3.2 “Update Proprietary Track Data” command ............................................................................................. 23 5.2.3.3 “Cancel Proprietary Track” command ...................................................................................................... 24 5.2.3.4 “Send Redundant Burst with GPS” command .......................................................................................... 25 5.2.4 STINGR Serial Test Commands ...................................................................................................................... 27 Revision 0.2 STINGR Users Manual 06/24/15 Revision 0.2 Subject To Change without Notice P a g e | 3 5.3 “Transmitter Test” command ............................................................................................................................... 27 5.4 Example CRC calculation routines for serial packets ............................................................................................ 29 6 Test Modes .................................................................................................................................................................... 31 7 REGULATORY APPROVAL ........................................…

Text truncated - open the document above for the full version.

1. The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must be on the module assembly; All components are located beneath a common shield. 2. The module must have buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal; There are no external modulation/data inputs 3. The module must contain power supply regulation on the module; The module contains an internal regulated power supply. 4. The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), per Sections 15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b); The module contains a permanently attached antenna. 5. The module must demonstrate compliance in a stand-alone configuration; All compliance testing is accomplished with no external components; only power, antenna, and grounded or floating test pins. 6. The module must be labeled with its permanently affixed FCC ID label, or use an electronic display The module will contain a FCC ID label. 7. The module must comply with all specific rules applicable to the transmitter. The grantee must provide comprehensive instructions to explain compliance requirements; All applicable rules will be provided in the user manual for the transmitter 8. The module must comply with RF Exposure (RFx) requirements. For any transmitters intended for use in portable devices, RFx compliance must be demonstrated to be independent of the host device. See KDB Publication 447498 as a guide to determine if a transmitter can be tested without being limited to a host device. If RFx compliance can only be demonstrated in specific host types or platforms, then the module type must be “limited.” Device will be demonstrated to comply with RFx requirements (mobile devices) independent of host device. This device is not intended for use in portable devices. By: _________________________ Eric Blanchard Signature Printed Name Date: 07 July, 2015 Title: Director of Product Engineering On behalf of: Globalstar / SPOT LLC Company Name Telephone: 985-335-1513

Letter of Attestation for Product Approval by Satellite Operator To whom it may concern: STINGR is a satellite tracking product designed by Spot LLC, a wholly owned subsidiary of Globalstar Inc, for use on the Globalstar simplex satellite network. Globalstar is the owner/operator of this network. The STINGR is designed to function within the system requirements of the Globalstar network and is subjected to an internal company process to verify these rules are met. By: _________________________ Eric Blanchard Signature Printed Name Date: 30 July, 2015 Title: Director of Product Engineering On behalf of: Globalstar / SPOT LLC Company Name Telephone: 985-335-1513

Authority to Act as Agent Date: July 09, 2015 American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: HB Compliance / Hoosamuddin S. Bandukwala is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b) , to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: July 09, 2016 By: __________________________ Eric Blanchard Signature Printed Name Title: Director of Product Engineering On behalf of: Globalstar / SPOT LLC Company Name Telephone: 985-335-1513

Request for Confidentiality Date: July 07, 2015 Subject: Confidentiality Request for: L2V-STGR/ IC: 3989A-STGR Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* i Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual Globalstar has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of N/A days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By: _____________________ ______ /Director of Product Development Eric Blanchard Signature/Title Print Name

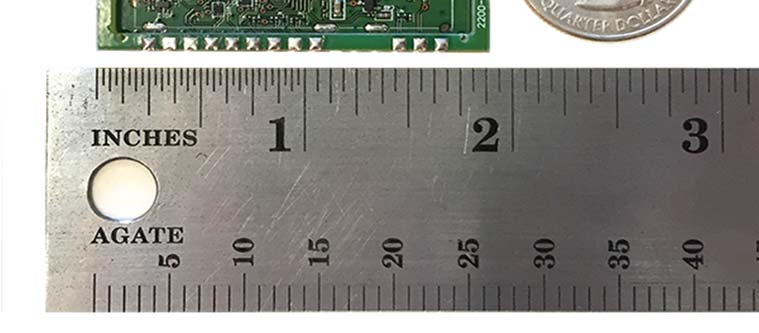

1 | Page HBCS 15002 External Photos Spot / Globalstar 2 | Page HBCS 15002

Document # 9100-0410-01 STINGR Labeling Specification Page 1 STINGR Labeling Specification This specification applies to the STINGR (2100-0333-01) and all products derived from this assembly either through firmware changes or hardware modifications. Label Material All labels shall be polyimide thermal transfer labels. Temperature Rating: -40 – 1000°F Compliance: RoHS, REACH, Restriction use of Halogen IEC 61249-2-21 Bar Code Label (7450-0171-01) All units will have applied an ESN bar code label which has been generated using the Globalstar STINGR label printer software. No barcode labels from any other source are to be used. This label must be applied to the device in the specified location prior to testing on the automated test fixture. See Figure 1 for the required location of the label. Document # 9100-0410-01 STINGR Labeling Specification Page 2 Label Physical Requirements All labels will meet the following requirements: Label dimensions: 13mm x 24.5mm Max (or equivalent standard label size) Label Material: polyimide material Label Color: White Font Color: Black Location: See Figure 1 Orientation: PIN 1 Affix ESN Label here Figure 1 STINGR Label Locations BOTTOM VIEW 0-2700000 PN: 2200-0339-03 FCC ID: L2V-STGR IC: 3989A-STGR 0-2700000

1 | Page HBCS 15002 External Photos Spot / Globalstar 2 | Page HBCS 15002

Certificates and reports shall not be reproduced except in full, without the written permission of H.B Compliance Solutions, LLC. Maximum Permissible Exposure Statement For the Globalstar, Inc. STINGR August 3, 2015 Prepared for: Globalstar, Inc. 300 Holiday Square Blvd. Covington, LA 70433 Prepared By: H.B. Compliance Solutions 5005 S. Ash Avenue, Suite # A-10 Tempe, Arizona 85282 Reviewed By: Hoosamuddin Bandukwala Cert # ATL-0062-E HBCS MPE Report # EMC_15002 Page 2 of 2 Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S = PG/4πR² Where, S = power density (mW/cm2) P = output power at the antenna terminal (mW) G = gain of transmit antenna (numeric) R = distance from transmitting antenna (cm) Maximum peak output power at antenna input terminal = 25.79 (dBm) * Maximum peak output power at antenna input terminal = 379 (mW) Antenna gain (typical) = 1.4 (dBi) Maximum antenna gain = 1.4 (numeric) Prediction distance = 20 (cm) Prediction frequency = 1618.78 (MHz) MPE limit for uncontrolled exposure at prediction frequency = 1.0 (mW/cm^2) Power density at prediction frequency = 0.1055626293 (mW/cm^2) *Includes 1dB of manufacturer output power tolerance. To solve for the minimum mounting distance required; R = √ (PG/4πS) R = √ (346 x 1.4 / 4π x 0.1055626293) = 20 cm (Based on continuous transmission) END OF TEST REPORT

Certificates and reports shall not be reproduced except in full, without the written permission of H.B Compliance Solutions, LLC. Intentional Radiator Test Report For the Globalstar, Inc. STINGR Tested under The FCC Rules contained in Title 47 of the CFR, Part 25 for Satellite Communications June 29, 2015 Prepared for: Globalstar, Inc. 300 Holiday Square Blvd. Covington, LA 70433 Prepared By: H.B. Compliance Solutions 5005 S. Ash Avenue, Suite # A-10 Tempe, Arizona 85282 Reviewed By: Hoosamuddin Bandukwala Cert # ATL-0062-E Engineering Statement: The measurements shown in this report were made in accordance with the procedure indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurement made, the equipment tested is capable of operation in accordance with the requirements of Part 25 of the FCC Rules under normal use and maintenance. HBCS Report # EMC_15002 Page 2 of 33 Report Status Sheet Revision # Report Date Reason for Revision Ø June 29, 2015 Initial Issue 1 August 4, 2015 TCB Comments HBCS Report # EMC_15002 Page 3 of 33 Table of Contents EXECUTIVE SUMMARY ............................................................................................ 4 1. Testing Summary ........................................................................................ 4 EQUIPMENT CONFIGURATION ................................................................................ 5 1. Overview .................................................................................................... 5 2. Test Facility ................................................................................................. 6 3. Description of Test Sample ......................................................................... 6 4. Equipment Configuration ........................................................................... 7 5. Support Equipment .................................................................................... 7 6. Ports and Cabling Information .................................................................... 7 7. Method of Monitoring EUT Operation ........................................................ 7 8. Mode of Operation ..................................................................................... 7 9. Modifications ............................................................................................. 8 10. Disposition of EUT ...................................................................................... 8 Criteria for Intentional Radiators ............................................................................ 9 1. RF Power Output ........................................................................................ 9 2. Occupied Bandwidth ................................................................................ 11 3. Unwanted Emissions at Antenna Terminals .............................................. 13 4. Radiated Spurious Emissions .................................................................... 21 5. Protection of Aeronautical Radio Navigation Satellite Service .................. 23 6. Frequency Stability vs Temperature ......................................................... 29 7. Frequency Stability vs Voltage .................................................................. 31 I. Test Equipment .............................................................................................. 33 HBCS Report # EMC_15002 Page 4 of 33 EXECUTIVE SUMMARY 1. Testing Summary These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 25. All tests were conducted using measurement procedure from ANSI TIA/EIA-603-D-2010 as appropriate. Test Name Test Method/Standard Result Comments RF Output Power 2.1046; 25.204 Pass Occupied Bandwidth 2.1049 Pass Unwanted Emissions at Antenna Terminals 2.1051; 25.202(f) Pass Radiated Spurious Emissions 2.1053; 25.202(f) Pass Protection of Aeronautical Radio Navigation Satellite Service 25.216(c)(f)(g)(i) Pass Frequency Stability over Temperature Variations 2.1055(a)(1); 25.202(d) Pass Frequency Stability over Voltage Variations 2.1055(d); 25.202(d) Pass HBCS Report # EMC_15002 Page 5 of 33 EQUIPMENT CONFIGURATION 1. Overview H.B Compliance Solutions was contracted by Globalstar to perform testing on the STINGR under the purchase order number 15251. This document describes the test setups, test methods, required test equipment, and the test limit criteria used to perform compliance testing of the Globalstar, STINGR. The tests were based on FCC Part 25 Rules. The tests described in this document were formal tests as described with the objective of the testing was to evaluate compliance of the Equipment Under Test (EUT) to the requirements of the aforementioned specifications. Globalstar should retain a copy of this document and it should be kept on file for at least five years after the manufacturing of the EUT has been permanently discontinued. The results obtained relate only to the item(s) tested. Product Name: Globalstar STINGR Model(s) Tested: STINGR FCC ID: L2V-STGR Supply Voltage Input: Primary Power : 3.7 Vdc Frequency Range: 1611.25MHz to 1618.75MHz No. of Channels: Four Channels Necessary Bandwidth N/A Type(s) of Modulation: BPSK Range of Operation Power: 0.415W Voltage into final Transistor 3.3V Current into final Transistor 475mA Emission Designator: 2M00G1D Channel Spacing(s) 2.5MHz Test Item: Pre-Production Type of Equipment : Mobile Antenna: Integrated Patch Antenna Environmental Test Conditions: Temperature: 15-35⁰C Humidity: 30-60% Barometric Pressure: 860-1060 mbar Modification to the EUT: None Evaluated By: Staff at Artesyn Embedded & H.B. Compliance Solutions Test Date(s): 03/05/15 till 03/23/15 HBCS Report # EMC_1…

Text truncated - open the document above for the full version.

Test Setup Photos Spot LLC 1 | Page Test Setup Photo # 1 Test Setup Photo # 2 Test Setup Photos Spot LLC 2 | Page Test Setup Photo # 3 Test Setup Photo # 4 Test Setup Photo # 5 Test Setup Photos Spot LLC 3 | Page Test Setup Photo # 6 Test Setup Photo # 7 Test Setup Photo # 8
