CT-DECT Multi Transmitter/Receiver Unit for Wireless Duplex Communication Operating Instructions 2 1 a 6-pole jack for a CT communication set. b On/off switch and volume control (rotary knob). The unit is switched off if the rotary knob is set fully counter-clockwise (position » z «). The volume control is used to adjust the volume for the CT communication set. c Bank of 5 push-buttons The both push-buttons at the begin and end of the push-button bank are for subscription only (press both push-buttons simultaneously). One of the three push-buttons in the middle has to be pressed for connection setup and release. d Removable cover for the battery compartment. e Fastening clip on the rear. f 26-pole multi-purpose jack for connection of CeoTronics accessories, e.g. for a second CT communication set, for battery charging, for programming the unit by the factory. If a communication set is connected to the 6- pole jack (a), the second CT communication set connected to the multi-purpose jack (f) is automatically switched off. 23 3 45 6 7 4 Important Note Please note that any changes or modifications not expressly approved by the party responsible for compliance will void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that cause undesired operation. SAFETY INFORMATION Your wireless headset transceiver contains a low power transmitter. When transmitting it sends out radio frequency (RF) signals. In August 1996, the Federal Communications Commission (FCC) adopted RF exposure guidelines with safety levels for wireless devices. WARNING This headset is considered to be a portable device. Because of the construction of this device the internal transmitter and it's antenna is located in such a way, that a separation distance from the user's body is maintained in compliance with the FCC's RF Exposure Guidelines. This device and it's antenna must not be co-located or operating in conjunction with any other antenna or transmitter. Use only the internal antenna. Unauthorized antennas, modifications, or attachments could damage the transmitter and may violate FCC regulations. 1.Important safety instructions When using CeoTronics products do not fail to comply with the following safety information: zBefore using CeoTronics products read completely the appropriate operating instructions. If in doubt, ask our technical staff. zIf repair work of any kind needs to be done to CeoTronics products, arrange for it to be performed only by the company CeoTronics or by a specialized workshop that is authorized by CeoTronics. In all other cases our warranty and liability for the product shall lapse. zIf products are operated on a mains voltage, always pull the mains plug out of the mains plug socket before opening such products (e.g. for servicing purposes) ! zDo not store CeoTronics products outside or in damp ambient conditions. At all times keep them clean, dry and at normal air humidity. CeoTronics products must not be stored in areas with a temperature of over +80° C (+176° F), e.g. in the summertime on the parcel shelf of a car. If not stated otherwise, the following temperature ranges are allowed for CeoTronics products: -10 to +55° C (+14 to +131° F) for operation, -40 to +80° C (-40 to +176° F) for storage. zDo not immerse a CeoTronics product into water, if it is not expressly specified for this purpose. zWhen using CeoTronics products that are equipped with connection leads ensure that the latter do not get caught up in operational machinery or wheels ! zCeoTronics products that are not intrinsically safe (explosion-proof) and therefore have no special explosion-proof designation must never be operated in potentially explosive environments (e.g. when refuelling cars, aircraft etc.). Devices that are not explosion-proof can unintentionally trigger off explosions in such areas ! zConnect CeoTronics accessories to a device or disconnect them from a device only when the device is switched off. 5 zIf you are a cardiac pacemaker carrier, before operating a transmitter/receiver ask the manufacturer of your cardiac pacemaker for information about any impairment that might be caused due to high frequencies. zFor safety reasons reception volumes in excess of 85 dB(A) are possible with a whole series of CeoTronics products. However, these can be regulated by the user. Do not set the volume any higher than is necessary. A very high volume setting can lead to damaged hearing, particularly if it is continuous. For high volumes or noise levels wear additional ear plugs. If in doubt, ask your safety officer or company doctor. zWhen on board an airplane always keep a transmitter/receiver switched off. Operation of the transmitter/receiver could affect the safety of the airplane and it is therefore prohibited. Never operate electronic devices on board an airplane without the express approval of an authorized member of the cabin crew. zDo not leave CeoTronics products lying around loose in cars, e.g. on the parcel shelf. Stow these products in a suitable, safe place in the car so that they do not present a danger to you or to other occupants of the car, if emergency braking is effected. zWhen driving a car, do not use the radio because it may distract you from the other traffic. Never use a CeoTronics product (headset, insert earphone, induction receiver etc.) that will impair your hearing. zCharge rechargeable batteries only with the appropriate suitable CeoTronics charger. Observe the voltage and currency specifications, including those on the mains face (e.g. 230 V AC or 115 V AC). Never use the charger to recharge non-rechargeable batteries. zWhen handling rechargeable batteries comply with environmental protection regulations ! Rechargeable batteries contain toxic chemicals (e.g. cadmium…
Text truncated - open the document above for the full version.
Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 December 19, 2001 In re: CeoTronics AG FCC ID: L52CT-DECT-M24 FCC Part 15 Certification Request for Confidentiality Gentlemen: In accordance with 0.459 of CFR 47, CeoTronics AG hereby requests confidentiality of the Block Diagrams, Circuit Diagrams, Circuit Description, Parts Lists, Operational Description and Photo attachments for the subject application. These documents contain detailed system and equipment description and related information about the product which CeoTronics AG considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, CeoTronics AG considers that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Berthold Hemer Member of Board R & D CeoTronics AG
__________________________________________________________________________________ ETSHandelsregister:Bankverbindung: Electronic Technology Systems Dr. Genz GmbHAmtsgericht Frankfurt/Oder HRB 5151Sparkasse Oder-Spree Storkower Strasse 38cGeschäftsführung: Dr. Dietmar GenzBLZ 170 550 50 D-15526 Reichenwalde b. Berlin Norbert KasparKto. Nr. 3105165974 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH - ETS - STORKOWER STRASSE 38c, D-15526 REICHENWALDE B. BERLIN Tel: 033631 888 000 FAX: 033631 888660 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 IHR ZEICHEN / YOUR REF.IHR SCHREIBEN / YOUR INFORM.UNSER ZEICHEN / OUR REF. DATUM / DATE 8-Mar-02 FCC ID: L52CT-DECT-M24 Applicant: CeoTronics AG Correspondence Reference Number: 22201 731 Confirmation Number: EA877127 Dear Sir, Submitted herewith, on behalf of our customer is an amendment to the subject application, provided in response to your request for technical information: Q1. Please provide an RF Exposure Statement as required in Part 15.247(b)(4) of the FCC Rules. Answer: Please find attached applicant's declaration concerning RF Exposure. The statement is also integrated in the user's manual (please see page 4 in user's manual) to provide end-users with appropriate instructions. The new edition of user's manual is also attached. Q2. Provide a description of the antenna and the location of it in the device. Answer: The transmitter module inside the device uses two internal antennas. The diversity functionality is implemented via the selection switch (please see also Operational Description). Please find attached a description of the antenna and also a drawing for description of the location in the device. ... __________________________________________________________________________________ ETSHandelsregister:Bankverbindung: Electronic Technology Systems Dr. Genz GmbHAmtsgericht Frankfurt/Oder HRB 5151Sparkasse Oder-Spree Storkower Strasse 38cGeschäftsführung: Dr. Dietmar GenzBLZ 170 550 50 D-15526 Reichenwalde b. Berlin Norbert KasparKto. Nr. 3105165974 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Q3. Provide internal photo of the RF module with all shielding removed in order to show component placement. Answer: Please find attached internal photos of the RF module with all shielding removed. We hope this information is sufficient to issue the grant. If you have further questions please do not hesitate to contact us. Sincerely, Jürgen Baschin Electronic Technology Systems Dr. Genz GmbH Storkower Strasse 38c D-15526 Reichenwalde bei Berlin e-mail: [email protected]
Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 December 19, 2001 In re: CeoTronics AG FCC ID: L52CT-DECT-M24 FCC Part 15 Certification Acknowledgement Gentlemen: We acknowledge, that the DECT Module inside the CT-DECT-Multi, is 100% identical to the module which was tested and shown in the testreport. CeoTronics AG Adam-Opel-Str. 6 D-63322 Rödermark Germany Berthold Hemer Member of Board R & D CeoTronics AG
__________________________________________________________________________________ ETSHandelsregister:Bankverbindung: Electronic Technology Systems Dr. Genz GmbHAmtsgericht Frankfurt/Oder HRB 5151Sparkasse Oder-Spree Storkower Strasse 38cGeschäftsführung: Dr. Dietmar GenzBLZ 170 550 50 D-15526 Reichenwalde b. Berlin Norbert KasparKto. Nr. 3105165974 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH - ETS - STORKOWER STRASSE 38c, D-15526 REICHENWALDE B. BERLIN Tel: 033631 888 000 FAX: 033631 888660 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 IHR ZEICHEN / YOUR REF.IHR SCHREIBEN / YOUR INFORM.UNSER ZEICHEN / OUR REF. DATUM / DATE 27-Mar-02 FCC ID: L52CT-DECT-M24 Applicant: CeoTronics AG Correspondence Reference Number: 22408 731 Confirmation Number: EA877127 Dear Sir, Submitted herewith, on behalf of our customer is an amendment to the subject application, provided in response to your request for technical information: Q1. An SAR test report is required for portable devices operating with more than 50 mW RF power at 2.4 GHz, and installed closer than 2.5 cm from a person's body according to OET Bulletin 65, Suppl C (01-01) Footnote 14. Please provide the separation distance from the antenna to the person's head or body when using this device. Answer: The separation distance from antenna to person's body when using this device is approx. 2.1 cm according to the antenna specification exhibit cross-section drawing (without consideration of the thickness of the user's clothing). Please find attached SAR test report (with integrated supplement relating to FCC requirements) for the internal RF module. ... __________________________________________________________________________________ ETSHandelsregister:Bankverbindung: Electronic Technology Systems Dr. Genz GmbHAmtsgericht Frankfurt/Oder HRB 5151Sparkasse Oder-Spree Storkower Strasse 38cGeschäftsführung: Dr. Dietmar GenzBLZ 170 550 50 D-15526 Reichenwalde b. Berlin Norbert KasparKto. Nr. 3105165974 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH We hope this information is sufficient to issue the grant. If you have further questions please do not hesitate to contact us. Sincerely, Jürgen Baschin Electronic Technology Systems Dr. Genz GmbH Storkower Strasse 38c D-15526 Reichenwalde bei Berlin e-mail: [email protected]

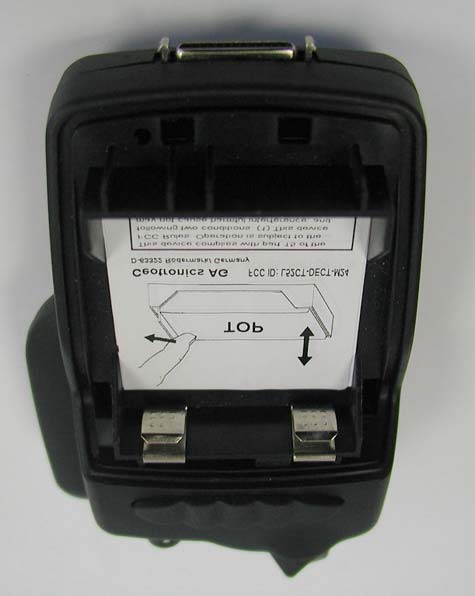

Titel / Title:CT-DECT-M24 Ausgabe / Version:1.00 Datum / Date:19.12.2001 C:\WINDOWS\Desktop\CT-DECT-M24\CT-DECT_ExtPho_M24.docPage 1 of 2 2001 CeoTronics AG – All rights reserved External Photos: Photo 1: CT-DECT-M24 Multi / Left Side View Photo 2: CT-DECT-M24 Multi / Top View Titel / Title:CT-DECT-M24 Ausgabe / Version:1.00 Datum / Date:19.12.2001 C:\WINDOWS\Desktop\CT-DECT-M24\CT-DECT_ExtPho_M24.docPage 2 of 2 2001 CeoTronics AG – All rights reserved Photo 3: CT-DECT-M24 Multi / Battery Compartment Photo 4: CT-Dect-M24 Multi / Labeling
Titel / Title:CT-DECT-M24 Ausgabe / Version:3.00 Datum / Date:19.12.2001 C:\WINDOWS\Desktop\CT-DECT-M24\CT-DECT_LabelSmpl_M24.docPage 1 of 1 2001 CeoTronics AG – All rights reserved CT-DECT-Multi Label Sample: Ceotronics AG FCC ID: L52CT-DECT-M24 D-63322 Rödermark/ Germany This device complies with part 15 of the FCC rules. Operation is subject to the Following two conditions: (1) This device may not cause harmful interference and (2) this device must accept any interference received including interference that may cause undesired operation.
Titel / Title:CT-DECT-M24 Ausgabe / Version:1.00 Datum / Date:19.12.2001 C:\WINDOWS\Desktop\CT-DECT-M24\CT-DECT_ExtPho_M24.docPage 2 of 2 2001 CeoTronics AG – All rights reserved Photo 3: CT-DECT-M24 Multi / Battery Compartment Photo 4: CT-Dect-M24 Multi / Labeling
ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20104-4518-T-47Page 1 of 10 Appendix A. Pictures ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20104-4518-T-47Page 2 of 10 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20104-4518-T-47Page 3 of 10 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20104-4518-T-47Page 4 of 10 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20104-4518-T-47Page 5 of 10 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20104-4518-T-47Page 6 of 10
Titel / Title:CT-DECT-M24 Ausgabe / Version:1.00 Datum / Date:07.03.2002 C:\WINDOWS\Desktop\Dect-usa2\CT-DECT-M24\CT-DECT-M24_IntPho.docPage 1 of 2 2001 CeoTronics AG – All rights reserved Internal Photos : Photo 1: CT-DECT-M24 Multi / Top View Without Screening Plate Photo 2: CT-DECT-M24 / Top View Without RF Screening Plate Titel / Title:CT-DECT-M24 Ausgabe / Version:1.00 Datum / Date:07.03.2002 C:\WINDOWS\Desktop\Dect-usa2\CT-DECT-M24\CT-DECT-M24_IntPho.docPage 2 of 2 2001 CeoTronics AG – All rights reserved Photo 3: CT-DECT-M24 / Rear View Photo 4: CT-DECT-M24 / Rear View Without Screening Plate
Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 March 7, 2002 Applicant’s declaration concerning RF Radiation Exposure We hereby indicate that the product CT-DECT-M24 is considered to be a portable device . Because of the construction of this device the internal transmitter and its antenna is located in a such a way, that a seperation distance from the user’s body is maintained in compliance with the FCC’s RF Exposure Guidelines. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. A safety statement will be integrated in the user’s manual to provide end-users with transmitter operating instructions for satisfying RF exposure compliance. CeoTronics AG Adam Opel Strasse 6 D- 63322 Rödermark Germany Rödermark, March 7, 2002 Berthold Hemer Member of board R & D
