L52CT-M6CEO1CT-DECT M6 Module

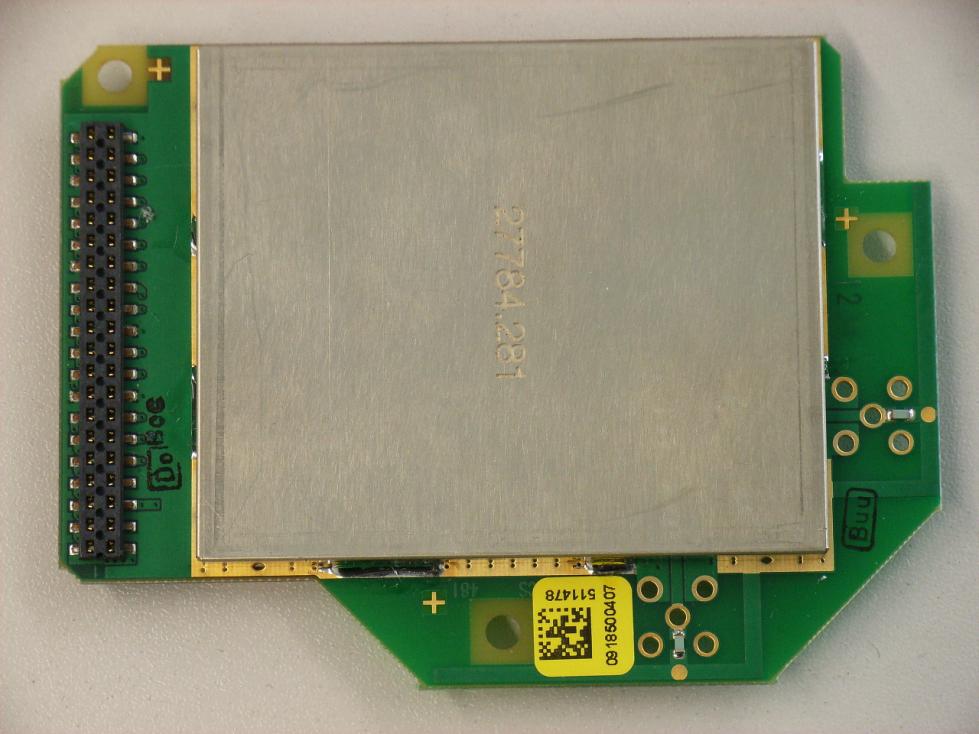

06.07.2010 External Photos Top View Bottom View

Internal Photo – Shielding Cover removed.

06.07.2010 Internal Photos Top View Bottom View

Test Report No.: G0M20808-1931-C-1 Eurofins ETS Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 20 of 44 3.1.11 Radio frequency radiation exposure, FCC 15.319 (i); RSS-102 UPCS devices are subject to the radio frequency radiation exposure requirements specified in FCC parts 1.1307 (b), 2.1091, 2.1093 and RSS-102, as appropriate. All equipment shall be considered to operate in a “general population / uncontrolled environment. For portable devices tests according to IEEE 1528 are requested, if applicable. Consideration of radio frequency radiation exposure for EUT is done as SAR test acc. IEEE 1528 MPE calculation as below SAR test results: not applicable MPE calculation: Please find radiated power test results in Appendix C. The EUT is considered as a mobile device according to OET Bulletin 65, Edition – 97 – 01. Therefore distance to human body of min. 20 cm is determined. The internal / external antennas used for this mobile transmitter must provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. A safety statement concerning minimum separation distances from enclosure of the device will be integrated in the user’s manual to provide end-users with transmitter operating conditions for satisfying RFE exposure compliance. Formula: S = EIRP / 4πR 2 Calculation: EIRP Radiated Power [dBm] 22.26 EIRP Radiated Power [mW] 168,267 R Distance [cm] 20 S Power Density [mW/cm 2 ] 0.033 Limit: The limit of Power density for General Population / Uncontrolled Exposure is 1.0 mW/cm 2 . Compliance with the requirements will be considered by calculation of power density derived from radiated power value. Verdict: Pass Fail

Test Report No.: G0M20808-1931-C-2 Eurofins ETS Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 20 of 45 3.1.11 Radio frequency radiation exposure, FCC 15.319 (i); RSS-102 UPCS devices are subject to the radio frequency radiation exposure requirements specified in FCC parts 1.1307 (b), 2.1091, 2.1093 and RSS-102, as appropriate. All equipment shall be considered to operate in a “general population / uncontrolled environment. For portable devices tests according to IEEE 1528 are requested, if applicable. Consideration of radio frequency radiation exposure for EUT is done as SAR test acc. IEEE 1528 MPE calculation as below SAR test results: not required. MPE calculation: The EUT is considered as a mobile device according to OET Bulletin 65, Edition – 97 – 01. Therefore distance to human body of min. 20 cm is determined. The internal / external antennas used for this mobile transmitter must provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. A safety statement concerning minimum separation distances from enclosure of the device will be integrated in the user’s manual to provide end-users with transmitter operating conditions for satisfying RFE exposure compliance. Formula: S = EIRP / 4πR 2 (EIRP = P*G) Calculation: EIRP Radiated Power [dBm] 22.73 EIRP Radiated Power [mW] 187.449 R Distance [cm] 20 S Power Density [mW/cm 2 ] 0.037 Limit: The limit of Power density for General Population / Uncontrolled Exposure is 1.0 mW/cm 2 . Compliance with the requirements will be considered by calculation of power density derived from radiated power value. Verdict: Pass Fail

EUROFINS ETS PRODUCT SERVICE GMBH TEST - REPORT FCC PART 15 D for Isochronous UPCS devices RSS-213 for LE-PCS devices Test report no.: G0M20808-1931-C-1 Testing Cert #1983.01 Eurofins ETS Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Phone +49-33631-888 00 Germany Fax +49-33631-888 660 Test Report No.: G0M20808-1931-C-1 Eurofins ETS Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 1 of 44 TABLE OF CONTENTS 1 General information 3 1.1 Notes 3 1.2 Testing laboratory 4 1.3 Details of approval holder 4 1.4 Application details 5 1.5 Test item 5 1.6 Test standards 7 2 TECHNICAL TEST 8 2.1 Summary of test results 8 2.2 Test environment 8 2.3 Test equipment utilized 9 3 RESULTS OF EXAMINATIONS AND TESTS 10 3.1. Examinations and Test Procedures 11 3.1.1 Coordination with fixed microwave service, FCC 15.307 (b) 11 3.1.2 Reference to Subpart B, FCC 15.309 (b) 11 3.1.3 Conducted limits AC Power line, FCC 15.315, 15.207; RSS-213 4.2; 6.3 12 3.1.4 Antenna requirement, FCC 15.317, 15.203 13 3.1.5 Modulation techniques, FCC 15.319 (b); RSS-213 6.1 13 3.1.6 Emission bandwidth, FCC 15.323 (a); FCC 15.31 (e); RSS-213 6.4 14 3.1.7 Peak Transmit Power, FCC 15.319 (c); RSS-213 4.3.1, 6:5 16 3.1.8 Power spectral density, FCC 15.319 (d); RSS-213 4.3.1, 6:6 17 3.1.9 Directional gain of the antenna, FCC 15.319 (e); RSS-213 4.1 (e) 18 3.1.10 Automatic discontinuation of transmission, FCC 15.319 (f); RSS-213 4.3.4 (a) 19 3.1.11 Radio frequency radiation exposure, FCC 15.319 (i); RSS-Gen 5.5 20 Test Report No.: G0M20808-1931-C-1 Eurofins ETS Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 2 of 44 3.1.12 Monitoring threshold; Least interfered channel; FCC 15.323 (c)(2); (c)(5) (c)(9); 21 RSS-213 4.3.4 (b)(2) 3.1.13 Monitoring of intended transmit window and maximum reaction time, 24 FCC 15.323 (c)(1); RSS-213 4.3.4 (b)(1) 3.1.14 Monitoring bandwidth, FCC 15.323 (c)(7); RSS-213 4.3.4 (b)(7) 26 3.1.15 Random waiting interval, FCC 15.323 (c)(6); RSS-213 4.3.4 (b)(6) 27 3.1.16 Duration of transmission, FCC 15.323 (c)(3); RSS-213 4.3.4 (b)(3) 28 3.1.17 Connection acknowledgement, Unacknowledged transmissions, FCC 15.323 (c)(4); 29 RSS-213 4.3.4 (b)(5) 3.1.18 Selected channel confirmation, Segment occupancy; FCC 15.323 (c)(5) 30 3.1.19 Monitoring antenna, FCC 15.323 (c)(8); RSS-213 4.3.4 (b)(8) 31 3.1.20 Duplex connections, FCC 15.323 (c)(10); RSS-213 4.3.4 (b)(10) 32 3.1.21 Alternative monitoring interval for co-located devices, FCC 15.323 (c)(11); 34 RSS-213 4.3.4 (b)(11) 3.1.22 Fair access to spectrum related to (c)(10) and (c)(11), FCC 15.323 (c)(12); 34 RSS-213 4.3.4 (b)(12) 3.1.23 Spurious emission, radiated Emissions inside and outside the sub-band, FCC 15.323 (d); RSS-213 6.7 35 3.1.24 Frame period, FCC 323 (e); RSS-213 4.3.(c). 40 3.1.25 Frequency stability, FCC 323 (f); RSS-213 6.8 42 3.1.26 Receiver spurious emissions; RSS-213 6.8 43 Annex 44 Test Report No.: G0M20808-1931-C-1 Eurofins ETS Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 4 of 44 1.2 Testing laboratory 1.2.1 Location EUROFINS ETS PRODUCT SERVICE GMBH Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telefon : +49 33631 888 00 Telefax : +49 33631 888 66 1.2.2 Details of accreditation status DAR ACCREDITED TESTING LABORATORY DAR-R EGISTRATION NUMBER: DAT-P-268/08 R ECOGNIZED NOTIFIED BODY EMC R EGISTRATION NUMBER: BNetzA-bS EMV-07/61 R ECOGNIZED NOTIFIED BODY R&TTE R EGISTRATION NUMBER: BNetzA-bS-02/51-53 FCC FILED TEST LABORATORY R EG.-NO. 96970 A2LA ACCREDITED TESTING LABORATORY C ERTIFICATE NO. 1983.01 B LUETOOTH QUALIFICATION TEST FACILITY (BQTF) A CCREDITED BY BLUETOOTH QUALIFICATION REVIEW BOARD I NDUSTRY CANADA FILED TEST LABORATORY R EG. NO. IC 3470 1.3 Details of approval holder Name : Fraunhofer IIS Street : Nordostpark 93 Town : 90411 Nürnberg Country : Germany Telephone : 0911-58061-9420 Fax : Contact : Herr Martin Tittel Telephone : 0911-58061-9420 E-mail : [email protected] Test Report No.: G0M20808-1931-C-1 Eurofins ETS Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 5 of 44 1.4 Application details Date of receipt of application : 01.09.2008 Date of receipt of test item : 01.09.2008 Date of test : 01.09.2008 - 12.09.2008 1.5 Test item Description of test item : Isochronous UPCS device, cordless phone based on DECT modified technology. Function Portable part Base station Repeater Description of test item : DECT M6 Radio Module Ceotronics Type identification : M6CEO_1 Fixed part Software : 1.x.x Hardware : 1 Serial number : Test model without serial number. Photos : See annex Technical data Frequency bands : 1920 – 1930 MHz Operating Channel numbers Test Frequencies Channel center frequency (MHz) 4 F L 1921.536 3 1923.264 2 F M *) 1924.992 1 1926.720 0 F U 1928.448 *) for frequency stability test and spurious emission test in RX mode only Number of channels : 60 (in time and spectrum window, declared by manufacturer) Operating modes : duplex Type of modulation : GFSK Test Report No.: G0M20808-1931-C-1 Eurofins ETS Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 6 of 44 Max. slot type: single slot double slot Fixed point-to-point operation: Yes/No Antenna Type Gain [dBi] internal external 0 Inverted F 0 1 Inverted F 0 Antenna connector : n.a. Antenna diversity : diversity supported Diversity supported Antenna Tx Rx 0 1 Host device : M5 Evaluation board / M5Eval_2 Classification : related to radio frequency radiation exposure Fixed Device Mobile Device (Human Body distance > 20cm) Portable Device (Human Body distance < 20cm) Power supply : 3.6 V DC Data connection : Connection used None PSTN Data Networks others Remark: Devices intended to be connected to PSTN have to be applied for FCC PART 68 registration, in USA and for Industry Canada standard CS-03. Test Report No.: G0M20808-1931-C-1 Eurofins ETS Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde…

Text truncated - open the document above for the full version.

EUROFINS ETS PRODUCT SERVICE GMBH TEST - REPORT FCC PART 15 D for Isochronous UPCS devices RSS-213 for LE-PCS devices Test report no.: G0M20808-1931-C-2 Testing Cert #1983.01 Eurofins ETS Product Service GmbH Phone +49-33631-888 00 Storkower Str. 38c, D-15526 Reichenwalde, Germany Fax +49-33631-888 660 Test Report No.: G0M20808-1931-C-2 Eurofins ETS Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 1 of 45 TABLE OF CONTENTS 1 General information 3 1.1 Notes 3 1.2 Testing laboratory 4 1.3 Details of approval holder 4 1.4 Application details 5 1.5 Test item 5 1.6 Test standards 7 2 TECHNICAL TEST 8 2.1 Summary of test results 8 2.2 Test environment 8 2.3 Test equipment utilized 9 3 RESULTS OF EXAMINATIONS AND TESTS 11 3.1. Examinations and Test Procedures 11 3.1.1 Coordination with fixed microwave service, FCC 15.307 (b) 11 3.1.2 Reference to Subpart B, FCC 15.309 (b) 11 3.1.3 Conducted limits AC Power line, FCC 15.315, 15.207; RSS-213 4.2; 6.3 12 3.1.4 Antenna requirement, FCC 15.317, 15.203 13 3.1.5 Modulation techniques, FCC 15.319 (b); RSS-213 6.1 13 3.1.6 Emission bandwidth, FCC 15.323 (a); FCC 15.31 (e); RSS-213 6.4 14 3.1.7 Peak Transmit Power, FCC 15.319 (c); RSS-213 4.3.1, 6:5 16 3.1.8 Power spectral density, FCC 15.319 (d); RSS-213 4.3.1, 6:6 17 3.1.9 Directional gain of the antenna, FCC 15.319 (e); RSS-213 4.1 (e) 18 3.1.10 Automatic discontinuation of transmission, FCC 15.319 (f); RSS-213 4.3.4 (a) 19 3.1.11 Radio frequency radiation exposure, FCC 15.319 (i); RSS-Gen 5.5 20 3.1.12 Monitoring threshold; Least interfered channel; FCC 15.323 (c)(2); (c)(5) (c)(9); 21 RSS-213 4.3.4 (b)(2) 3.1.13 Monitoring of intended transmit window and maximum reaction time, 24 FCC 15.323 (c)(1); RSS-213 4.3.4 (b)(1) Test Report No.: G0M20808-1931-C-2 Eurofins ETS Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 2 of 45 3.1.14 Monitoring bandwidth, FCC 15.323 (c)(7); RSS-213 4.3.4 (b)(7) 26 3.1.15 Random waiting interval, FCC 15.323 (c)(6); RSS-213 4.3.4 (b)(6) 27 3.1.16 Duration of transmission, FCC 15.323 (c)(3); RSS-213 4.3.4 (b)(3) 28 3.1.17 Connection acknowledgement, Unacknowledged transmissions, FCC 15.323 (c)(4); 29 RSS-213 4.3.4 (b)(5) 3.1.18 Selected channel confirmation, Segment occupancy; FCC 15.323 (c)(5) 31 3.1.19 Monitoring antenna, FCC 15.323 (c)(8); RSS-213 4.3.4 (b)(8) 32 3.1.20 Duplex connections, FCC 15.323 (c)(10); RSS-213 4.3.4 (b)(10) 33 3.1.21 Alternative monitoring interval for co-located devices, FCC 15.323 (c)(11); 35 RSS-213 4.3.4 (b)(11) 3.1.22 Fair access to spectrum related to (c)(10) and (c)(11), FCC 15.323 (c)(12); 35 RSS-213 4.3.4 (b)(12) 3.1.23 Spurious emission, radiated Emissions inside and outside the sub-band, FCC 15.323 (d); RSS-213 6.7 36 3.1.24 Frame period, FCC 323 (e); RSS-213 4.3.(c). 41 3.1.25 Frequency stability, FCC 323 (f); RSS-213 6.8 43 3.1.26 Receiver spurious emissions; RSS-213 6.8 44 Annex 45 Test Report No.: G0M20808-1931-C-2 Eurofins ETS Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 4 of 45 1.2 Testing laboratory 1.2.1 Location EUROFINS ETS PRODUCT SERVICE GMBH Storkower Str. 38c 15526 Reichenwalde b. Berlin Germany Telefon : +49 33631 888 00 Telefax : +49 33631 888 660 1.2.2 Details of accreditation status DAR ACCREDITED TESTING LABORATORY DAR-R EGISTRATION NUMBER: DAT-P-268/08 R ECOGNIZED NOTIFIED BODY EMC R EGISTRATION NUMBER: BNetzA-bS EMV-07/61 R ECOGNIZED NOTIFIED BODY R&TTE R EGISTRATION NUMBER: BNetzA-bS-02/51-53 FCC FILED TEST LABORATORY R EG.-NO. 96970 A2LA ACCREDITED TESTING LABORATORY C ERTIFICATE NO. 1983.01 B LUETOOTH QUALIFICATION TEST FACILITY (BQTF) A CCREDITED BY BLUETOOTH QUALIFICATION REVIEW BOARD I NDUSTRY CANADA FILED TEST LABORATORY R EG. NO. IC 3470 1.3 Details of approval holder Name : Fraunhofer IIS Street : Nordostpark 93 Town : 90411 Nürnberg Country : Germany Telephone : 0911-58061-9420 Fax : Contact : Herr Martin Tittel Telephone : 0911-58061-9420 E-mail : [email protected] Test Report No.: G0M20808-1931-C-2 Eurofins ETS Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 5 of 45 1.4 Application details Date of receipt of application : 01.09.2008 Date of receipt of test item : 01.09.2008 Date of test : 01.09.2008 – 12.09.2008 1.5 Test item Description of test item : Isochronous UPCS device, cordless phone based on DECT modified technology. Function Portable part Base station Repeater Description of test item : DECT M6 Radio Module Ceotronics Type identification : M6CEO_1 Portable Part Serial number : Test model without serial number. Photos : See annex Technical data Frequency bands : 1920 – 1930 MHz Operating Channel numbers Test Frequencies Channel center frequency (MHz) 4 F L 1921.536 3 1923.264 2 F M *) 1924.992 1 1926.720 0 F U 1928.448 *) for frequency stability test and spurious emission test in RX mode only Number of channels : 60 (in time and spectrum window, declared by manufacturer) Operating modes : MC/TDMA/TDD Type of modulation : GFSK Test Report No.: G0M20808-1931-C-2 Eurofins ETS Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 6 of 45 Max. slot type: single slot double slot Fixed point-to-point operation: Yes/No Antenna Type Gain [dBi] internal external 0 Inverted F 0 1 Inverted F 0 Antenna connector : ./. Antenna diversity : Diversity supported Antenna Tx Rx 0 1 Host device : M 5 Evaluation Board / M5Eval_2 Classification : related to radio frequency radiation exposure Fixed Device Mobile Device (Human Body distance > 20cm) Portable Device (Human Body distance < 20cm) Power supply : 3.6 V DC 120 V AC/DC Adaptor Data connection : Connection used None PSTN Data Networks others Remark: Devices intended to be connected to PSTN have to be applied for FCC PART 68 registration, in USA and for Industry Canada standard CS-03. Test Report No.: G0M20808-1931-C-2 Eurofins ETS Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 7 of 45 Ma…

Text truncated - open the document above for the full version.

Test Report No.: G0M20808-1931-C-1 Eurofins ETS Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 4 of 5 Test Report No.: G0M20808-1931-C-1 Eurofins ETS Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 5 of 5
