WAP-5836 Wireless Extender QUICK INSTALLATION GUIDE Introduction Easy Installa tion Step 1 - Power connection This Quick Installation Guide will help you to quick ly and easily install your Wireless Extender devices by performing the few simple steps described below. Before you begin, check that you have: • One WAP-5836 Wireless Extender • One CAT5 Ethernet Cable • One Power Adapter • One Quick Installation Guide Plug in the power adapter included in your package, and connect it to the WAP-5836 device. 1 Step 2 - Placement and connections A. Setting an AP device Using a power s upply with different voltage r ating than the o ne included with the WAP-5836 device may cause damage and void the warranty f or this p roduct. 1. Place one WAP-5836 device on an easily accessible surface near the Home Gateway or Router. Make sure the GW or Router is powered on and active. 2. Plug one end of the Ethernet cable into the LAN port of the Home Gateway device and the other end into the Ethernet port of the WAP-5836. 3. Ensure that the DHCP Server functionality on your Home Gateway or Router is enabled. The WAP-5836 device that gets a DHCP IP Address will be automatically set in Access Point (AP) mode for a simplified setup process. 2 B.Setting a Client device Make sure that the LED on the WAP-5836 is flashing blue. 1. Place another WAP-5836 device on an easily accessible surface near the set top box. Plug one end of the Ethernet cable into the LAN port of the Set Top Box and the other end into the Ethernet port of the WAP-5836. 2. Since the STB will not issue an IP address to the WAP-5836, it will automatically be set to Client mode. Make sure that the LED on the WAP-5836 Client is flashing blue. For best wireless performance, place the devices on a shelf or other elevated location and away from large metallic objects. 3 Pairing Step 1. Pair the devices: For initial pairing, it is recommended that you place the WAP-5836 AP and Client devices within the same room. Once paired, they can then be put in their desired locations. Press the WPS button on the “AP” front panel for 3-5 seconds and release it. The LED will begin flashing blue. Press the WPS button on the “Client” for 3-5 seconds and release it. The LED will begin flashing blue. WPS WPS NOTE – The WPS buttons can be pressed in any order as long as they are pressed within 2 minutes of each other. Step 2. Wait for the pairing process to complete by watching the LEDs on the devices: • The LEDs will flash blue for a few seconds after pressing the WPS button for both AP & Client. • The LEDs will change to solid blue after successful pairing and turn off two minutes later. • The Wireless LEDs will then be solid blue. • The Client wireless LED could be solid amber when the association is not able to receive a high quality HD stream. If pairing is unsuccessful: • The LEDs will flash blue for two minutes and then turn off. WPS WPS Wireless WPS Button 4 Congratulations! You have finished installing your new Wireless Extender devices. To test your connectivity, turn on the TV and set top box, and then watch any available TV channel. Note: To add additional WAP-5836 Clients to your network, you will need to perform the pairing procedures as explained above. Troubleshooting • The LED is not on • The LED is not on Make sure that: • The power cord is connected to the device, and that the power adapter is properly connected to a functioning power outlet. • You are using the power adapter that was supplied with the product. Make sure that: • The LAN cable connectors are securely plugged in at the WAP-5836 and at the network device (gateway, modem or set top box). • The connected network device is turned on. • You are using the correct cable type for your Ethernet equipment, which is at least UTP CAT5 with RJ45 connectors. Power Advanced Settings via the Web-based User Interface The instructions below are for users who have adequate networking knowledge. Users are not encouraged to configure the following settings because this may cause connectivity issues. 5 Step 1. Step 2. Note: • If you are connecting to the WAP-5836 directly from a PC, be sure to set a static IP in the same range as the AP or Client unit (e.g. 10.0.0.25) to access the Web Configuration page. • If the WAP-5836 is connected to a Gateway or Router that has a DHCP server, it will automatically get an IP address from that device. Be sure to check your Gateway or Router to see what IP address was given to the WAP-5836 units and use that to log in to the Web Configuration page. Log into the WAP-5836 web GUI through a browser such as IE with either the IP address the device was given by your DHCP server, or the default IP address of 10.0.0.10 for devices that have yet to be paired. Type default Username: root and Password: 12345 Advanced Troubleshooting • The WPS function is not working Make sure that: • The devices are in either AP or Client mode. • The WPS function is activated on the AP device. a. Enter into the WAP-5836 Web GUI b. Type default Username: root and Password: 12345 6 Wireless • Complete the pairing procedures as described in the Pairing section. • The LED is not on • Make sure that you have completed a successful pairing procedure as described in the Pairing section. FOR MORE HELP: If you have further questions or require personal assistance, please contact your equipment provider. c. Change the security mode to WPA2-PSK in Security Settings by selecting it in the drop-down menu. d. Enable WPS in WPS settings and press the “Apply” button. 7 WAP-5836_QIG_V1.1 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful int erference, and (2) this device must accept any int erference received, including int erference that may cause undesired operation. The operation frequency of the device is in the 5150-5250 MHz band is for indoor use only. This equipment has been tested and found to comply with the limit…

Text truncated - open the document above for the full version.

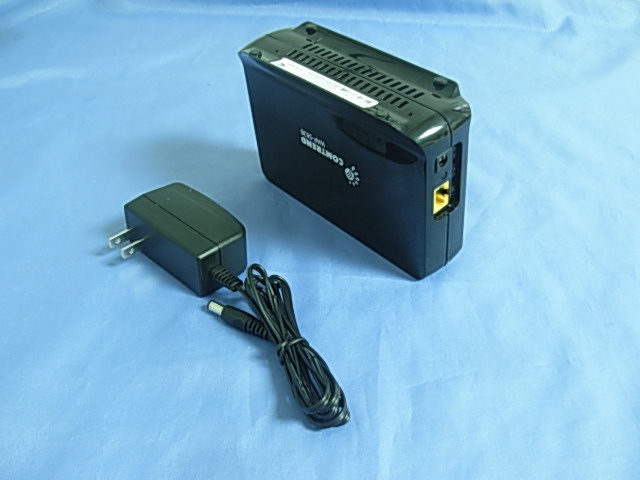

Report No： 13B0199R-RFUSP69V00 Page: 245 of 250 Attachement EUT Photograph (1) EUT Photo (2) EUT Photo

Report No： 13B0199R-RFUSP69V00 Page: 246 of 250 (3) EUT Photo (4) EUT Photo Report No： 13B0199R-RFUSP69V00 Page: 247 of 250 (5) EUT Photo (6) EUT Photo Report No： 13B0199R-RFUSP69V00 Page: 248 of 250 (7) EUT Photo (8) EUT Photo Report No： 13B0199R-RFUSP69V00 Page: 249 of 250 (9) EUT Photo (MB) (10) EUT Photo (Ant) Report No： 13B0199R-RFUSP69V00 Page: 250 of 250 (11) EUT Photo (Adapter)

Report No. 13B0199R-RF-US-Exp Page: 1 of 5 RF Exposure Evaluation declaration Product Name ：Wireless Extender Model No. ：WAP-5836 v2 FCC ID. ：L9VCOMTREND5836V2 Applicant : Comtrend Corporation Address : 3F-1, 10 Lane 609, Chung Hsin Rd, Sec 5 San Chung City, Taipei Hsien , Taiwan Date of Receipt : 2013/11/11 Date of Declaration : 2013/12/05 Report No. : 13B0199R-RF-US-Exp Report Version : V1.0 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No. 13B0199R-RF-US-Exp Page: 2 of 5 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 13B0199R-RF-US-Exp Page: 3 of 5 1.3. Test Result of RF Exposure Evaluation Product Wireless Extender Test Mode Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 2dBi or 1.58 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11a WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 36 5180 30.6196 0.00962 44 5220 32.6588 0.01027 48 5240 32.9610 0.01036 IEEE 802.11a WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 149 5745 408.3194 0.12835 157 5785 299.2265 0.09406 161 5805 325.0873 0.10218 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . Report No. 13B0199R-RF-US-Exp Page: 4 of 5 Product Wireless Extender Test Mode Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 2dBi or 1.58 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11 n(20MHz) ANT 0+1+2 WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 36 5180 34.5144 0.01085 44 5220 33.0370 0.01038 48 5240 29.9916 0.00943 IEEE 802.11 n(20MHz) ANT 0+1+2 WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 149 5745 250.0345 0.07859 157 5785 217.2701 0.06829 161 5805 263.6331 0.08287 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . Report No. 13B0199R-RF-US-Exp Page: 5 of 5 Product Wireless Extender Test Mode Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 2dBi or 1.58 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11 n(40MHz) ANT 0+1+2 WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 38 5190 34.8337 0.01095 46 5230 33.7287 0.01060 IEEE 802.11 n(40MHz) ANT 0+1+2 WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 151 5755 169.4338 0.05326 159 5795 148.9361 0.04682 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 .

Report No： 13B0199R-RFUSP69V00 Page: 1 of 250 FCC Test Report Product Name：Wireless Extender Model No. ：WAP-5836 v2 FCC ID. ：L9VCOMTREND5836V2 Applicant ： Comtrend Corporation Address ： 3F-1, 10 Lane 609, Chung Hsin Rd, Sec 5 San Chung City, Taipei Hsien , Taiwan Date of Receipt：2013/11/11 Issued Date ：2013/12/05 Report No. ：13B0199R-RFUSP69V00 Report Version ：V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No： 13B0199R-RFUSP69V00 Page: 2 of 250 Test Report Certification Issued Date : 2013/12/05 Report No. : 13B0199R-RFUSP69V00 Product Name ： Wireless Extender Applicant ： Comtrend Corporation Address ： 3F-1, 10 Lane 609, Chung Hsin Rd, Sec 5 San Chung City, Taipei Hsien , Taiwan Manufacturer ： Delta Networks, Inc. Model No. ： WAP-5836 v2 FCC ID. ： L9VCOMTREND5836V2 EUT Voltage : AC 100-240V, 50-60Hz Trade Name ： Comtrend Applicable Standard ： FCC CFR Title 47 Part 15 Subpart C Section 15.247: 2012 ANSI C63.4: 2009 Test Result ： Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Documented By : ( Fonbo Fang / Engineering Adm. Assistant ) Reviewed By : ( JuBo Shen / Engineer ) Approved By : ( Roy Wang / Director ) Report No： 13B0199R-RFUSP69V00 Page: 3 of 250 Laboratory Information We, QuieTek Corporation, are an independent RF consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted (audited or listed) by the following related bodies in compliance with ISO 17025 specified testing scopes: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site:http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory: No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory: No.5-22, Ruishukeng, Linkou Dist., New Taipei City 24451, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Taiwan R.O.C. : TAF, Accreditation Number: 1313 USA : FCC, Registration Number: 365520 Canada : IC, Submission No: 150981 Report No： 13B0199R-RFUSP69V00 Page: 4 of 250 TABLE OF CONTENTS Description Page 1. General Information ........................................................................................................................ 6 1.1. EUT Description ............................................................................................................. 6 1.2. Operational Description ................................................................................................ 11 1.3. Test Mode ..................................................................................................................... 12 1.4. Tested System Details .................................................................................................. 13 1.5. Configuration of tested System .................................................................................... 13 1.6. EUT Exercise Software ................................................................................................ 14 1.7. Test Facility...................................................................................................................15 2. Conducted Emission..................................................................................................................... 16 2.1. Test Equipment............................................................................................................. 16 2.2. Test Setup .................................................................................................................... 16 2.3. Limits ............................................................................................................................ 17 2.4. Test Procedure ............................................................................................................. 17 2.5. Test Specification.......................................................................................................... 17 2.6. Uncertainty ................................................................................................................... 17 2.7. Test Result....................................................................................................................18 2.8. Test Photo .................................................................................................................... 20 3. Peak Power Output....................................................................................................................... 21 3.1. Test Equipment............................................................................................................. 21 3.2. Test Setup .................................................................................................................... 21 3.3. Test procedures ............................................................................................................ 21 3.4. Limits ............................................................................................................................ 21 3.5. Test Specification.......................................................................................................... 21 3.6. Uncertainty ................................................................................................................... 21 3.7. Test Result......................................…

Text truncated - open the document above for the full version.

Report No： 13B0199R-RFUSP69V00 Page: 87 of 250 5. RF antenna conducted test 5.1. Test Equipment The following test equipments are used during the test: RF antenna conducted test / SR7 Instrument ManufacturerModel No. Serial No Next Cal. Date Spectrum Analyzer Agilent N9010A-EXA US47140172 2014/08/05 Note: 1. All equipments that need to calibrate are with calibration period of 1 year. 5.2. Test Setup RF Antenna Conducted Measurement: Report No： 13B0199R-RFUSP69V00 Page: 88 of 250 5.3. Limits In any 100 kHz bandwidth outside the frequency band in which the spread spectrum intentional radiator is operating, the radio frequency power that is produced by the intentional radiator shall be at least 20 dB below that in the 100 kHz bandwidth within the band that contains the highest level of the desired power, based on an RF conducted or radiated measurement. Attenuation below the general limits specified in Section 15.209(a) is not required. In addition, radiated emissions which fall in the restricted bands, as defined in Section 15.205(a), must also comply with the radiated emission limits specified in Section 15.209(a) (see Section 15.205(c)). 5.4. Test Procedure The EUT was setup according to ANSI C63.4: 2009 and tested according to DTS test procedure of Oct. 2012 KDB5580744 for compliance to FCC 47CFR 15.247 requirements Set RBW = 100 kHz, Set VBW> RBW, scan up through 10th harmonic. 5.5. Test Specification According to FCC Part 15 Subpart C Paragraph 15.247: 2012 5.6. Uncertainty Conducted is defined as ± 1.27dB Report No： 13B0199R-RFUSP69V00 Page: 89 of 250 5.7. Test Result Product Wireless Extender Test Item RF antenna conducted test Test Mode Mode 1: Transmit Date of Test 2013/11/27 Test Site SR7 IEEE 802.11a (ANT0), Duty Cycle: 1 Channel No. Frequency (MHz) Measure Level (dBc) Limit (dBc) Result 149 5745 37.40 ≧20 Pass 157 5785 57.73 ≧20 Pass 161 5805 58.83 ≧20 Pass Channel 149 (5745MHz) Report No： 13B0199R-RFUSP69V00 Page: 90 of 250 Channel 157 (5785MHz) Report No： 13B0199R-RFUSP69V00 Page: 91 of 250 Channel 161 (5805MHz) Report No： 13B0199R-RFUSP69V00 Page: 92 of 250 Product Wireless Extender Test Item RF antenna conducted test Test Mode Mode 1: Transmit Date of Test 2013/11/27 Test Site SR7 IEEE 802.11n 20MHz (ANT0), Duty Cycle: 1 Channel No. Frequency (MHz) Measure Level (dBc) Limit (dBc) Result 149 5745 47.82 ≧20 Pass 157 5785 52.61 ≧20 Pass 161 5805 55.26 ≧20 Pass Channel 149 (5745MHz) Report No： 13B0199R-RFUSP69V00 Page: 93 of 250 Channel 157 (5785MHz) Report No： 13B0199R-RFUSP69V00 Page: 94 of 250 Channel 161 (5805MHz) Report No： 13B0199R-RFUSP69V00 Page: 95 of 250 Product Wireless Extender Test Item RF antenna conducted test Test Mode Mode 1: Transmit Date of Test 2013/11/27 Test Site SR7 IEEE 802.11n 20MHz (ANT1), Duty Cycle: 1 Channel No. Frequency (MHz) Measure Level (dBc) Limit (dBc) Result 149 5745 49.55 ≧20 Pass 157 5785 51.22 ≧20 Pass 161 5805 54.86 ≧20 Pass Channel 149 (5745MHz) Report No： 13B0199R-RFUSP69V00 Page: 96 of 250 Channel 157 (5785MHz) Report No： 13B0199R-RFUSP69V00 Page: 97 of 250 Channel 161 (5805MHz) Report No： 13B0199R-RFUSP69V00 Page: 98 of 250 Product Wireless Extender Test Item RF antenna conducted test Test Mode Mode 1: Transmit Date of Test 2013/11/27 Test Site SR7 IEEE 802.11n 20MHz (ANT2), Duty Cycle: 1 Channel No. Frequency (MHz) Measure Level (dBc) Limit (dBc) Result 149 5745 47.60 ≧20 Pass 157 5785 53.11 ≧20 Pass 161 5805 55.41 ≧20 Pass Channel 149 (5745MHz) Report No： 13B0199R-RFUSP69V00 Page: 99 of 250 Channel 157 (5785MHz) Report No： 13B0199R-RFUSP69V00 Page: 100 of 250 Channel 161 (5805MHz) Report No： 13B0199R-RFUSP69V00 Page: 101 of 250 Product Wireless Extender Test Item RF antenna conducted test Test Mode Mode 1: Transmit Date of Test 2013/11/27 Test Site SR7 IEEE 802.11n 40MHz (ANT0), Duty Cycle: 1 Channel No. Frequency (MHz) Measure Level (dBc) Limit (dBc) Result 151 5755 43.86 ≧20 Pass 159 5795 53.78 ≧20 Pass Channel 151 (5755MHz) Report No： 13B0199R-RFUSP69V00 Page: 102 of 250 Channel 159 (5795MHz) Report No： 13B0199R-RFUSP69V00 Page: 103 of 250 Product Wireless Extender Test Item RF antenna conducted test Test Mode Mode 1: Transmit Date of Test 2013/11/27 Test Site SR7 IEEE 802.11n 40MHz (ANT1), Duty Cycle: 1 Channel No. Frequency (MHz) Measure Level (dBc) Limit (dBc) Result 151 5755 45.57 ≧20 Pass 159 5795 53.78 ≧20 Pass Channel 151 (5755MHz) Report No： 13B0199R-RFUSP69V00 Page: 104 of 250 Channel 159 (5795MHz) Report No： 13B0199R-RFUSP69V00 Page: 105 of 250 Product Wireless Extender Test Item RF antenna conducted test Test Mode Mode 1: Transmit Date of Test 2013/11/27 Test Site SR7 IEEE 802.11n 40MHz, (ANT 2) Duty Cycle: 1 Channel No. Frequency (MHz) Measure Level (dBc) Limit (dBc) Result 151 5755 41.39 ≧20 Pass 159 5795 55.17 ≧20 Pass Channel 151 (5755MHz) Report No： 13B0199R-RFUSP69V00 Page: 106 of 250 Channel 159 (5795MHz) Report No： 13B0199R-RFUSP69V00 Page: 107 of 250 Product Wireless Extender Test Item RF antenna conducted test Test Mode Mode 1: Transmit Date of Test 2013/11/27 Test Site SR7 5745MHz (30MHz-1GHz)- 80211a -ANT0 Report No： 13B0199R-RFUSP69V00 Page: 108 of 250 5745MHz (1GHz-5GHz)- 80211a -ANT0 5745MHz (5GHz-9GHz) - 80211a -ANT0 Report No： 13B0199R-RFUSP69V00 Page: 109 of 250 5745MHz (9GHz-13GHz)- 80211a -ANT0 5745MHz (13GHz-17GHz) - 80211a -ANT0 Report No： 13B0199R-RFUSP69V00 Page: 110 of 250 5745MHz (17GHz-21GHz)- 80211a -ANT0 5745MHz (21GHz-25GHz) - 80211a -ANT0 Report No： 13B0199R-RFUSP69V00 Page: 111 of 250 5785MHz (30MHz-1GHz)- 80211a -ANT0 5785MHz (1GHz-5GHz) - 80211a -ANT0 Report No： 13B0199R-RFUSP69V00 Page: 112 of 250 5785MHz (5GHz-9GHz) - 80211a -ANT0 5785MHz (9GHz-13GHz)- 80211a -ANT0 Report No： 13B0199R-RFUSP69V00 Page: 113 of 250 5785MHz (13GHz-17GHz) - 80211a -ANT0 5785MHz (17GHz-25GHz)- 80211a -ANT01 Report No： 13B0199R-RFUSP69V00 Page: 114 of 250 5785MHz (21GHz-25GHz) - 80211a -ANT0 Report No： 13B0199R-RFUSP69V00 Page: 115 of 250 5805MHz (30MHz-1GHz)- 80211a -ANT0 5805MHz (1GHz-5GHz)- 80211a -ANT0…

Text truncated - open the document above for the full version.

Report No： 13B0199R-RFUSP69V00 Page: 131 of 250 5745MHz (30MHz-1GHz)- 802.11n 20MHz –ANT1 5745MHz (1GHz-5GHz)- 802.11n 20MHz - ANT1 Report No： 13B0199R-RFUSP69V00 Page: 132 of 250 5745MHz (5GHz-9GHz)- 802.11n 20MHz - ANT1 5745MHz (9GHz-13GHz)- 802.11n 20MHz -ANT1 Report No： 13B0199R-RFUSP69V00 Page: 133 of 250 5745MHz (13GHz-17GHz)- 802.11n 20MHz -ANT1 5745MHz (17GHz-21GHz)- 802.11n 20MHz -ANT1 Report No： 13B0199R-RFUSP69V00 Page: 134 of 250 5745MHz (21GHz-25GHz)- 802.11n 20MHz -ANT1 Report No： 13B0199R-RFUSP69V00 Page: 135 of 250 5785MHz (30MHz-1GHz)- 802.11n 20MHz -ANT1 5785MHz (1GHz-5GHz)- 802.11n 20MHz -ANT1 Report No： 13B0199R-RFUSP69V00 Page: 136 of 250 5785MHz (5GHz-9GHz)- 802.11n 20MHz -ANT1 5785MHz (9GHz-13GHz)- 802.11n 20MHz -ANT1 Report No： 13B0199R-RFUSP69V00 Page: 137 of 250 5785MHz (13GHz-17GHz)- 802.11n 20MHz -ANT1 5785MHz (17GHz-21GHz)- 802.11n 20MHz -ANT1 Report No： 13B0199R-RFUSP69V00 Page: 138 of 250 5785MHz (21GHz-25GHz)- 802.11n 20MHz -ANT1 Report No： 13B0199R-RFUSP69V00 Page: 139 of 250 5805MHz (30MHz-1GHz)- 802.11n 20MHz -ANT1 5805MHz (1GHz-5GHz)- 802.11n 20MHz -ANT1 Report No： 13B0199R-RFUSP69V00 Page: 140 of 250 5805MHz (5GHz-9GHz)- 802.11n 20MHz -ANT1 5805MHz (9GHz-13GHz)- 802.11n 20MHz -ANT1 Report No： 13B0199R-RFUSP69V00 Page: 141 of 250 5805MHz (13GHz-17GHz)- 802.11n 20MHz -ANT1 5805MHz (17GHz-21GHz)- 802.11n 20MHz –ANT1 Report No： 13B0199R-RFUSP69V00 Page: 142 of 250 5805MHz (21GHz-25GHz)- 802.11n 20MHz -ANT1 Report No： 13B0199R-RFUSP69V00 Page: 143 of 250 5745MHz (30MHz-1GHz)- 802.11n 20MHz –ANT2 5745MHz (1GHz-5GHz)- 802.11n 20MHz – ANT2 Report No： 13B0199R-RFUSP69V00 Page: 144 of 250 5745MHz (5GHz-9GHz)- 802.11n 20MHz – ANT2 5745MHz (9GHz-13GHz)- 802.11n 20MHz –ANT2 Report No： 13B0199R-RFUSP69V00 Page: 145 of 250 5745MHz (13GHz-17GHz)- 802.11n 20MHz –ANT2 5745MHz (17GHz-21GHz)- 802.11n 20MHz –ANT2 Report No： 13B0199R-RFUSP69V00 Page: 146 of 250 5745MHz (21GHz-25GHz)- 802.11n 20MHz –ANT2 Report No： 13B0199R-RFUSP69V00 Page: 147 of 250 5785MHz (30MHz-1GHz)- 802.11n 20MHz –ANT2 5785MHz 1GHz-5GHz)- 802.11n 20MHz –ANT2 Report No： 13B0199R-RFUSP69V00 Page: 148 of 250 5785MHz (5GHz-9GHz)- 802.11n 20MHz –ANT2 5785MHz (9GHz-13GHz)- 802.11n 20MHz –ANT2 Report No： 13B0199R-RFUSP69V00 Page: 149 of 250 5785MHz (13GHz-17GHz)- 802.11n 20MHz –ANT2 5785MHz (17GHz-21GHz)- 802.11n 20MHz –ANT2 Report No： 13B0199R-RFUSP69V00 Page: 150 of 250 5785MHz (21GHz-25GHz)- 802.11n 20MHz –ANT2 Report No： 13B0199R-RFUSP69V00 Page: 151 of 250 5805MHz (30MHz-1GHz)- 802.11n 20MHz –ANT2 5805MHz (1GHz-5GHz)- 802.11n 20MHz –ANT2 Report No： 13B0199R-RFUSP69V00 Page: 152 of 250 5805MHz (5GHz-9GHz)- 802.11n 20MHz –ANT2 5805MHz (9GHz-13GHz)- 802.11n 20MHz –ANT2 Report No： 13B0199R-RFUSP69V00 Page: 153 of 250 5805MHz (13GHz-17GHz)- 802.11n 20MHz –ANT2 5805MHz (17GHz-21GHz)- 802.11n 20MHz –ANT2 Report No： 13B0199R-RFUSP69V00 Page: 154 of 250 5805MHz (21GHz-25GHz)- 802.11n 20MHz –ANT2 Report No： 13B0199R-RFUSP69V00 Page: 155 of 250 5755MHz (30MHz-1GHz)- 802.11n 40MHz –ANT0 5755MHz (1GHz-5GHz)- 802.11n 40MHz –ANT0 Report No： 13B0199R-RFUSP69V00 Page: 156 of 250 5755MHz (5GHz-9GHz)- 802.11n 40MHz –ANT0 5755MHz (9GHz-13GHz)- 802.11n 40MHz –ANT0 Report No： 13B0199R-RFUSP69V00 Page: 157 of 250 5755MHz (13GHz-17GHz)- 802.11n 40MHz –ANT0 5755MHz (17GHz-21GHz)- 802.11n 40MHz –ANT0 Report No： 13B0199R-RFUSP69V00 Page: 158 of 250 5755MHz (21GHz-25GHz)- 802.11n 40MHz –ANT0 Report No： 13B0199R-RFUSP69V00 Page: 159 of 250 5795MHz (30MHz-1GHz)- 802.11n 40MHz –ANT0 5795MHz (1GHz-5GHz)- 802.11n 40MHz –ANT0 Report No： 13B0199R-RFUSP69V00 Page: 160 of 250 5795MHz (5GHz-9GHz)- 802.11n 40MHz –ANT0 5795MHz (9GHz-13GHz)- 802.11n 40MHz –ANT0 Report No： 13B0199R-RFUSP69V00 Page: 161 of 250 5795MHz (13GHz-17GHz)- 802.11n 40MHz –ANT0 5795MHz (17GHz-21GHz)- 802.11n 40MHz –ANT0 Report No： 13B0199R-RFUSP69V00 Page: 162 of 250 5795MHz (21GHz-25GHz)- 802.11n 40MHz –ANT0 Report No： 13B0199R-RFUSP69V00 Page: 163 of 250 5755MHz (30MHz-1GHz)- 802.11n 40MHz –ANT1 5755MHz (1GHz-5GHz)- 802.11n 40MHz –ANT1 Report No： 13B0199R-RFUSP69V00 Page: 164 of 250 5755MHz (5GHz-9GHz)- 802.11n 40MHz –ANT1 5755MHz (9GHz-13GHz)- 802.11n 40MHz –ANT1 Report No： 13B0199R-RFUSP69V00 Page: 165 of 250 5755MHz (13GHz-17GHz)- 802.11n 40MHz –ANT1 5755MHz (17GHz-21GHz)- 802.11n 40MHz –ANT1 Report No： 13B0199R-RFUSP69V00 Page: 166 of 250 5755MHz (21GHz-25GHz)- 802.11n 40MHz –ANT1 Report No： 13B0199R-RFUSP69V00 Page: 167 of 250 5795MHz (30MHz-1GHz)- 802.11n 40MHz –ANT1 5795MHz (1GHz-5GHz)- 802.11n 40MHz –ANT1 Report No： 13B0199R-RFUSP69V00 Page: 168 of 250 5795MHz (5GHz-9GHz)- 802.11n 40MHz –ANT1 5795MHz (9GHz-13GHz)- 802.11n 40MHz –ANT1 Report No： 13B0199R-RFUSP69V00 Page: 169 of 250 5795MHz (13GHz-17GHz)- 802.11n 40MHz –ANT1 5795MHz (17GHz-21GHz)- 802.11n 40MHz –ANT1 Report No： 13B0199R-RFUSP69V00 Page: 170 of 250 5795MHz (21GHz-25GHz)- 802.11n 40MHz –ANT1 Report No： 13B0199R-RFUSP69V00 Page: 171 of 250 5755MHz (30MHz-1GHz)- 802.11n 40MHz –ANT2 5755MHz (1GHz-5GHz)- 802.11n 40MHz –ANT2 Report No： 13B0199R-RFUSP69V00 Page: 172 of 250 5755MHz (5GHz-9GHz)- 802.11n 40MHz –ANT2 5755MHz (9GHz-13GHz)- 802.11n 40MHz –ANT2 Report No： 13B0199R-RFUSP69V00 Page: 173 of 250 5755MHz (13GHz-17GHz)- 802.11n 40MHz –ANT2 5755MHz (17GHz-21GHz)- 802.11n 40MHz –ANT2 Report No： 13B0199R-RFUSP69V00 Page: 174 of 250 5755MHz (21GHz-25GHz)- 802.11n 40MHz –ANT2 Report No： 13B0199R-RFUSP69V00 Page: 175 of 250 5795MHz (30MHz-1GHz)- 802.11n 40MHz –ANT2 5795MHz (1GHz-5GHz)- 802.11n 40MHz –ANT2 Report No： 13B0199R-RFUSP69V00 Page: 176 of 250 5795MHz (5GHz-9GHz)- 802.11n 40MHz –ANT2 5795MHz (9GHz-13GHz)- 802.11n 40MHz –ANT2 Report No： 13B0199R-RFUSP69V00 Page: 177 of 250 5795MHz (13GHz-17GHz)- 802.11n 40MHz –ANT2 5795MHz (17GHz-21GHz)- 802.11n 40MHz –ANT2 Report No： 13B0199R-RFUSP69V00 Page: 178 of 250 5795MHz (21GHz-25GHz)- 802.11n 40MHz –ANT2

Report NoǺ 13B0199R-RFUSP69V00 Page: 179 of 250 6. Radiated Emission Band Edge 6.1. Test Equipment The following test equipments are used during the test: Radiated Emission Band Edge / CB1 InstrumentManufacturerModel No. Serial No Next Cal. Date Double Ridged Guide Horn Antenna Schwarzback BBHA 9120 D743 2014/02/17 Spectrum Analyzer Agilent E4440A MY46187335 2014/01/27 k Type Cable Huber Suhner Sucoflex 102 25623/2 2014/02/21 Note: 1. All equipments that need to calibrate are with calibration period of 1 year. 6.2. Test Setup Report NoǺ 13B0199R-RFUSP69V00 Page: 180 of 250 6.3. Limits Emissions radiated outside of the specified frequency bands, except for harmonics, shall be attenuated by at least 20dB below the level of the fundamental or to the general radiated emission limits in paragraph 15.209, whichever is the lesser attenuation. 6.4. Test Procedure The EUT was setup according to ANSI C63.4: 2009 and tested according to DTS test procedure of Oct. 2012 KDB5580744 for compliance to FCC 47CFR 15.247 requirements. The EUT and its simulators are placed on a turn table which is 0.8 meter above ground. The turn table can rotate 360 degrees to dete…
