L9VNL-3112UA/VDSL Bonded Router

64 5.5 Parental Control This selection provides WAN access control functionality. 5.5.1 Time Restriction This feature restricts access from a LAN device to an outside network through the device on selected days at certain times. Make sure to activate the Internet Time server synchronization as described in section 8.5 Internet Time, so that the scheduled times match your local time. Click Add to display the following screen. See below for field descriptions. Click Apply/Save to add a time restriction. User Name: A user-defined label for this restriction. Browser's MAC Address: MAC address of the PC running the browser. Other MAC Address: MAC address of another LAN device. Days of the Week: The days the restrictions apply. Start Blocking Time: The time the restrictions start. End Blocking Time: The time the restrictions end. 65 5.5.2 URL Filter This screen allows for the creation of a filter rule for access rights to websites based on their URL address and port number. Select URL List Type: Exclude or Include. Tick the Exclude radio button to deny access to the websites listed. Tick the Include radio button to restrict access to only those listed websites. Then click Add to display the following screen. Enter the URL address and port number then click Save/Apply to add the entry to the URL filter. URL Addresses begin with “www”, as shown in this example. 66 A maximum of 100 entries can be added to the URL Filter list. 67 5.6 Home networking 5.6.1 Print Server This page allows you to enable or disable printer support. Please reference Appendix G to see the procedure for enabling the Printer Server. 5.6.2 DLNA Enabling DLNA allows users to share digital media, like pictures, music and video, to other LAN devices from the digital media server. Insert USB drive to the USB host port on the back of router. Modify media library path to the corresponding path of the USB drive and click Apply/Save to enable the DLNA media server. 68 5.6.3 Storage Service Enabling Samba service allows the user to share files on the storage device. Different levels of user access can be configured after samba security mode is enabled. This page also displays storage devices attached to USB host. Display after storage device attached (for your reference). 69 Chapter 6 Advanced Setup You can reach this page by clicking on the following icon located at the top of the screen. 6.1 Auto-detection setup The auto-detection function is used for CPE to detect WAN service for either ETHWAN or xDSL interface. The feature is designed for the scenario that requires only one WAN service in different applications. The Auto Detection page simply provides a checkbox allowing users to enable or disable the feature. Check the checkbox to display the following configuration options. 70 Enter the PPP username/password given by your service provider for PPP service detection. Select a LAN-as-WAN Ethernet port for auto-detect: Select the Ethernet Port that will be used as ETHWAN during auto-detection. 71 WAN services list for ATM mode: A maximum of 7 WAN services with corresponding PVC are required to be configured for ADSL ATM mode. The services will be detected in order. Users can modify the 7 pre-configured services and select disable to ignore any of those services to meet their own requirement and also reduce the detection cycle. WAN services list for PTM mode: A maximum of 7 WAN services with corresponding VLAN ID (-1 indicates no VLAN ID is required for the service) are required to be configured for ADSL/VDSL PTM mode and ETHWAN. The services will be detected in order. Users can modify the 7 pre-configured services and select disable to ignore any of the services to meet their own requirement and also reduce the detection cycle. 72 Click "Apply/Save" to activate the auto-detect function. Options for each WAN service: These options are selectable for each WAN service. Users can pre-configure both WAN services and other provided settings to meet their deployed requirements. Auto Detection status and Restart The Auto-detection status is used to display the real time status of the Auto-detection feature. The Restart button is used to detect all the WAN services that are either detected by the auto-detection feature or configured manually by users. The following window will pop up upon clicking the Restart button. Click the OK button to proceed. 73 Auto Detection notice Note: The following description concerning ETHWAN is for multiple LAN port devices only. 1) This feature will automatically detect one WAN service only. If customers require multiple WAN services, manual configuration is required. 2) If a physical ETHWAN port is detected, the Auto Detection for ETHWAN will be fixed on the physical ETHWAN port and cannot be configured for any LAN port; if the physical ETHWAN port is not detected, the Auto Detection for ETHWAN will be configured to the 4 th LAN port by default and allows it to be configured for any LAN port as well. 3) For cases in which both the DSL port and ETHWAN port are plugged in at the same time, the DSL WAN will ha ve priority over ETHWAN. For example, the ETHWAN port is plugged in with a WAN service detected automatically and then the DSL port is plugged in and linked up. The Auto Detection feature will clear the WAN service for ETHWAN and re-detect the WAN service for DSL port. 4) If none of the pre-configured services are detected, a Bridge service will be created. 74 6.2 Security To display this function, you must enable the firewall feature in WAN Setup. For detailed descriptions, with examples, please consult Appendix A - Firewall. 6.2.1 IP Filtering This screen sets filter rules that limit IP traffic (Outgoing/Incoming). Multiple filter rules can be set and each applies at least one limiting condition. For individual IP packets to pass the filter all conditions must be fulfilled. NOTE: This function is not available when in bridge mode. Instead, MAC Filtering performs a similar function. OUTGOING IP FILTER By…

Text truncated - open the document above for the full version.

129 8.3 SNMP Agent Simple Network Management Protocol (SNMP) allows a management application to retrieve statistics and status from the SNMP agent in this device. Select the Enable radio button, configure options, and click Save/Apply to activate SNMP. 130 8.4 TR-069 Client WAN Management Protocol (TR-069) allows an Auto-Configuration Server (ACS) to perform auto-configuration, provision, collection, and diagnostics to this device. Select desired values and click Apply/Save to configure TR-069 client options. The table below is provided for ease of reference. Option Description Enable TR-069 Tick the checkbox  to enable. OUI-serial The serial number used to identify the CPE when making a connection to the ACS using the CPE WAN Management Protocol. Select MAC to use the router’s MAC address as serial number to authenticate with ACS or select serial number to use router’s serial number. Inform Disable/Enable TR-069 client on the CPE. Inform Interval The duration in seconds of the interval for which the CPE MUST attempt to connect with the ACS and call the Inform method. 131 Option Description ACS URL URL for the CPE to connect to the ACS using the CPE WAN Management Protocol. This parameter MUST be in the form of a valid HTTP or HTTPS URL. An HTTPS URL indicates that the ACS supports SSL. The “host” portion of this URL is used by the CPE for validating the certificate from the ACS when using certificate-based authentication. ACS User Name Username used to authenticate the CPE when making a connection to the ACS using the CPE WAN Management Protocol. This username is used only for HTTP-based authentication of the CPE. ACS Password Password used to authenticate the CPE when making a connection to the ACS using the CPE WAN Management Protocol. This password is used only for HTTP-based authentication of the CPE. WAN Interface used by TR-069 client Choose Any_WAN, LAN, Loopback or a configured connection. Connection Request Authentication Tick the checkbox  to enable. User Name Username used to authenticate an ACS making a Connection Request to the CPE. Password Password used to authenticate an ACS making a Connection Request to the CPE. URL IP address and port the ACS uses to connect to router. The Send Inform button forces the CPE to establish an immediate connection to the ACS. 132 8.5 Internet Time This option automatically synchronizes the router time with Internet timeservers. To enable time synchronization, tick the corresponding checkbox , choose your preferred time server(s), select the correct time zone offset, and click Save/Apply. NOTE: Internet Time must be activated to use 5.5 Parental Control . In addition, this menu item is not displayed when in Bridge mode since the router would not be able to connect to the NTP timeserver. 133 8.6 Access Control 8.6.1 Passwords This screen is used to configure the user account access passwords for the device. Access to the NexusLink 3112u is controlled through the following user accounts: • The root account has unrestricted access to view and change the configuration of your Broadband router. • The support account is typically utilized by Carrier/ISP technicians for maintenance and diagnostics. • The user account is typically utilized by End-Users to view configuration settings and statistics, with limited ability to configure certain settings. • The apuser account is typically utilized by End-Users to view configuration settings and statistics, with limited ability to configure wireless settings. Use the fields to update passwords for the accounts, add/remove accounts (max of 5 accounts) as well as adjust their specific privileges. 134 Note: Passwords may be as long as 16 characters but must not contain a space. Click Save/Apply to continue. 135 8.6.2 Service Access The Services option limits or opens the access services over the LAN or WAN. These access services available are: FTP, HTTP, ICMP, SNMP, TELNET and TFTP. Enable a service by selecting its dropdown listbox. Click APPLY/SAVE to activate. 136 8.6.3 IP Address The IP Address Access Control mode, if enabled, permits access to local management services from IP addresses contained in the Access Control List. If the Access Control mode is disabled, the system will not validate IP addresses for incoming packets. The services are the system applications listed in the Service Control List beside ICMP. Click the Add button to display the following. Configure the address and subnet of the management station permitted to access the local management services, and click Save/Apply. IP Address – IP address of the management station. Subnet Mask – Subnet address for the management station. Interface – Access permission for the specified address, allowing the address to access the local management service from none/lan/wan/lan&wan interfaces. 137 8.7 Update Software This option allows for firmware upgrades from a locally stored file. STEP 1: Obtain an updated software image file from your ISP. STEP 2: Select the configuration from the drop-down menu. Configuration options: No change – upgrade software directly. Erase current config – If the router has save_default configuration, this option will erase the current configuration and restore to save_default configuration after software upgrade. Erase All – Router will be restored to factory default configuration after software upgrade. STEP 3: Enter the path and filename of the firmware image file in the Software File Name field or click the Browse button to locate the image file. STEP 4: Click the Update Software button once to upload and install the file. NOTE: The update process will take about 2 minutes to complete. The device will reboot and the browser window will refresh to the default screen upon successful installation. It is recommended that you compare the Software Version on the Device Information screen with the firmware version installed, to confirm the installation was successful. 138 8.8 Reboot To save the current configuration and r…

Text truncated - open the document above for the full version.

AGENCY AUTHORIZATION LETTER To whom it may concern: We, the undersigned COMTREND CORPORTATION hereby authorize Max Light Technology Co. Ltd. (MLT) of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15 approval and any communication needed with the national authority. Any and all acts carried out by MLT on our behalf shall have the same effects as acts of our own. For questions regarding the authorization, please contact us. Thank you! Sincerely yours, _____________________________________ (Signature) Original written signature of authorized signer: Bill Wang / PM Printed name of authorized signer / Title Date: July 02, 2014

Date: July 02, 2014 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: L9VNL-3112U To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: Block Diagrams Schematics Operational Descriptions The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, Bill Wang / PM _____________________________ (Signature)

Attestation Letter FCC ID: L9VNL-3112U For this devise, the channel used is able to lack on 1~11 channel with 20MHz BW and 3~9 channel with 40MHz BW in FCC. _____________________________________ (Signature) Original written signature of authorized signer: Bill Wang / PM Printed name of authorized signer / Title Date: July 02, 2014

Attestation for FCC Declaration of Conformity FCC ID: L9VNL-3112U Please be notified that we, the undersigned, COMTREND CORPORATION. , declares that the product which bears the above FCC ID is also compliant with the FCC requirements for DoC. The test report number supporting the DoC is MLT1404P15002. Testing in regards to this report was done by Max Light Technology Co. Ltd., located at Room 5, 8F, No.125, Section 3 Roosevelt Road, Taipei, Taiwan. which has been accredited in accordance to all of the requirements of 47CFR 2.948 (d) and (e) of the FCC rules . Sincerely yours, _____________________________________ (Signature) Original written signature of authorized signer: Bill Wang / PM Printed name of authorized signer / Title Date: July 02, 2014

Attestation Letter FCC ID : L9VNL-3112U Product : A/VDSL Bonded Router Model : NexusLink-3112u For this devise, we don’t provide any controls or software to allow operation outside the 2412 - 2462MHz frequency band when we sell this product in USA.” Sincerely, _____________________________________ (Signature) Original written signature of authorized signer: Bill Wang / PM Printed name of authorized signer / Title Date: July 10, 2014

Report Number: MLT1404P15003 Photograph of EUT Report Number: MLT1404P15003

Report Number: MLT1404P15003 Label Format: Label Position: Equipment Label 7.9cmX2.9cm This device complies with Part15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received , including Interference that may cause undesired operation. Trade Name: COMTREND Model No. : NexusLink-3112u FCC ID: L9VNL-3112U Rear View

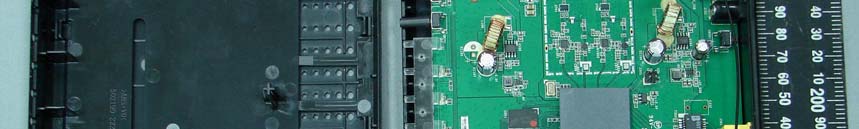

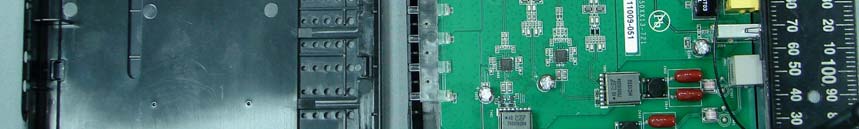

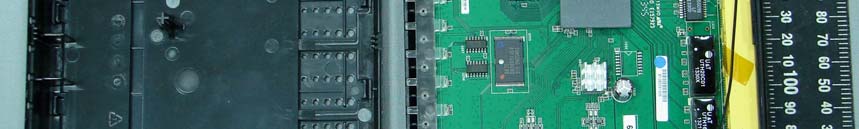

Report Number: MLT1404P15003 Report Number: MLT1404P15003

Page: 1 / 3 Report Number: MLT1404P15003 M M a a x x i i m m u u m m P P e e r r m m i i s s s s i i b b l l e e E E x x p p o o s s u u r r e e 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC), and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. Description of EUT Equipment A/VDSL Bonded Router Applicant Name COMTREND CORPORATION Applicant Address 3F-1, 10 Lane 609, Chung Hsin Road, Section 5 San Chung District, New Taipei City 24159, Taiwan Manufacturer Name COMTREND CORPORATION Manufacturer Address 3F-1, 10 Lane 609, Chung Hsin Road, Section 5 San Chung District, New Taipei City 24159, Taiwan Model No NexusLink-3112u FCC ID L9VNL-3112U 3. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. Page: 2 / 3 Report Number: MLT1404P15003 4. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r^2) Where Pd = power density in mW/cm^2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm (20cm) 5. RF Exposure Limit : According to FCC 1. 1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm^2) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500 F/300 6 1500-100,000 5 6 (B)Limits For General Population / Uncontrolled Exposure 300-1500 F/1500 30 1500-100,000 1 30 6. Test Result: 802.11b Testing Result MPE Limit Frequency (MHz) Max RF Power (mW) TX Antenna Gain (dBi) (mW/cm^2) (mW/cm^2) 2412 150.314 2 0.0474 1 2437 145.546 2 0.0459 1 2462 156.675 2 0.0494 1 Page: 3 / 3 Report Number: MLT1404P15003 802.11g Testing Result MPE Limit Frequency (MHz) Max RF Power (mW) TX Antenna Gain (dBi) (mW/cm^2) (mW/cm^2) 2412 139.959 2 0.0441 1 2437 143.549 2 0.0453 1 2462 147.231 2 0.0464 1 802.11n HT20 Testing Result MPE Limit Frequency (MHz) Max RF Power (mW) TX Antenna Gain (dBi) (mW/cm^2) (mW/cm^2) 2412 97.064 2 0.0306 1 2437 99.698 2 0.0314 1 2462 103.687 2 0.0327 1 802.11n HT40 Testing Result MPE Limit Frequency (MHz) Max RF Power (mW) TX Antenna Gain (dBi) (mW/cm^2) (mW/cm^2) 2422 50.950 2 0.0161 1 2437 51.556 2 0.0163 1 2452 53.605 2 0.0169 1

Page: 1 / 95 Report Number: MLT1404P15003 (FCC : Part 15 Subpart C (15.247) / ANSI C63.4-2003) Product :A/VDSL Bonded Router Trade Name :COMTREND Model No. :NexusLink-3112u Applicant :COMTREND CORPORATION Applicant Address : 3F-1, 10 Lane 609, Chung Hsin Road, Section 5 San Chung District, New Taipei City 24159, Taiwan Page: 2 / 95 Report Number: MLT1404P15003 Report Number MLT1404P15003 Applicant COMTREND CORPORATION Product A/VDSL Bonded Router Sample Received Date 2014/4/23 Sample Tested Date 2014/4/23 ～ 2014/6/20 Report Prepared By Jesse Tien Signature Date Prepared 2014/6/30 Report Authorized By Roger Chen Signature Date Authorized 2014/6/30 Test By Max Light Technology Co., Ltd. Room 5, 8F, No.125, Section 3 Roosevelt Road, Taipei, Taiwan., R.O.C. Office : Tel: 886-2-2363-2447 Fax: 886-2-2363-2597 Lab. : Tel: 886-2-2663-3486 Fax: 886-2-2663-3582 It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of our laboratory. Page: 3 / 95 Report Number: MLT1404P15003 Table of Contents : History of Test Report ------------------------------------------------------------------------------------------- 4 1. General ---------------------------------------------------------------------------------------------------------- 6 2. Conducted Emissions Requirements --------------------------------------------------------------------10 3. Radiated Emissions Requirement ------------------------------------------------------------------------24 4. Maximum Conducted Output Power Requirements -------------------------------------------------39 5. Minimum 6dB RF Bandwidth Requirements -----------------------------------------------------------51 6. Maximum Power Density Requirements----------------------------------------------------------------62 7. Out of Band Conducted Spurious Emissions Requirements --------------------------------------68 8. Band Edges Requirement ----------------------------------------------------------------------------------88 9. Antenna Requirements--------------------------------------------------------------------------------------93 Appendix I - EUT Test Setup ---------------------------------------------------------------------------------94 Appendix II - Brand / Trade Name & Model No. Multiple Listee--------------------------------------95 Page: 4 / 95 Report Number: MLT1404P15003 History of Test Report Original Report Issue Date: 2014/6/30 ■ No additional attachment □ Additional attachments were issued as in the following record: Attachment No. Issue Date Description MLT1404P15003 2014/6/30 Original report Page: 5 / 95 Report Number: MLT1404P15003 CERTIFICATION We here by verify that : The test data, data evaluation, test procedures and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4-2003. All test were conducted by MLT(Max Light Technology Co.,Ltd) Room 5, 8F, No.125, Section 3 Roosevelt Road, Taipei, Taiwan, R.O.C Also, we attest to the accuracy of each. We further submit that the energy emitted by the sample EUT tested as described in the report is in compliance with Class B radiated and conducted emission limit of FCC Rules Part 15 Subpart C (15.247). Applicant Name COMTREND CORPORATION Applicant Address 3F-1, 10 Lane 609, Chung Hsin Road, Section 5 San Chung District, New Taipei City 24159, Taiwan Manufacturer Name COMTREND CORPORATION Manufacturer Address 3F-1, 10 Lane 609, Chung Hsin Road, Section 5 San Chung District, New Taipei City 24159, Taiwan Equipment A/VDSL Bonded Router Model No NexusLink-3112u FCC ID L9VNL-3112U Report Prepared By Jesse Tien Signature Report Authorized By Roger Chen Signature Page: 6 / 95 Report Number: MLT1404P15003 1. General 1.1 Introduction The following measurement report is submitted on behalf of COMTREND CORPORATION In support of a Class B Digital Device certification in accordance with Part2 Subpart J and Part 15 Subpart C of the Commission’s and Regulations. 1.2 Customer Details Applicant Name COMTREND CORPORATION Applicant Address 3F-1, 10 Lane 609, Chung Hsin Road, Section 5 San Chung District, New Taipei City 24159, Taiwan Manufacturer Name COMTREND CORPORATION Manufacturer Address 3F-1, 10 Lane 609, Chung Hsin Road, Section 5 San Chung District, New Taipei City 24159, Taiwan 1.3 Technical data of EUT Equipment A/VDSL Bonded Router Model No NexusLink-3112u FCC ID L9VNL-3112U Power Type Model : AMS3-1201500FU Input : AC100 - 240V , 50 / 60Hz , 0.5A Output : DC12V , 1.5A Type of Modulation CCK, DQPSK, DBPSK for DSSS 64QAM, 16QAM, QPSK, BPSK for OFDM Transfer rate 802.11b: 11/ 5.5/ 2/ 1Mbps 802.11g: 54/ 48/ 36/ 24/ 18/ 12/ 9/ 6Mbps 802.11n HT20: 130, 117, 104, 78, 52, 39, 26, 13Mbps 802.11n HT40: 270, 243, 216, 162, 108, 81, 54, 27Mbps Type of Antenna Dipole Antenna Frequency of Channel See Next page During testing the EUT was operated at Tx or Rx mode for each emission measured. This was done in order to ensure that maximum emission levels were attained. Page: 7 / 95 Report Number: MLT1404P15003 802.11b & 802.11g & 802.11n HT20 Frequency of Each Channel (Working Frequency) Channel No. Frequency (MHz) 01 2412 02 2417 03 2422 04 2427 05 2432 06 2437 07 2442 08 2447 09 2452 10 2457 11 2462 802.11n HT40 Frequency of Each Channel (Working Frequency) Channel No. Frequency (MHz) 03 2422 04 2427 05 2432 06 2437 07 2442 08 2447 09 2452 1.4 Summary Of Tests 47 CFR Part 15 Subpart C Reference Test Results Note 15.207 AC Power Conducted Emission PASS 15.209 Radiated Emission PASS 15.247(c) Transmitter Radiated Emissions PASS 15.247(b) Max. Output Power PASS 15.247(a)(2) 6dB RF Bandwidth PASS 15.247(d) Max. Power Density PASS 15.247(c) Out of Band Conducted Spurious EmissionPASS 15.247(c) Band Edge Measurement PASS 15.203 Antenna Requirement PASS Page: 8 / 95 Report Number: MLT1404P15003 1.5 Description of Support Equipment In order to construct the minimum system which required by th…

Text truncated - open the document above for the full version.

Report Number: MLT1404P15003 Photograph of Conducted Measurement Front View of The Test Configuration Rear View of The Test Configuration Report Number: MLT1404P15003 Photograph of Radiated Measurement Front View of The Test Configuration Rear View of The Test Configuration Report Number: MLT1404P15003 Photograph of Radiated Measurement Front View of The Test Configuration Rear View of The Test Configuration Report Number: MLT1404P15003
