L9VPG-9142SPowerline Ethernet Adapter with WiFi

1 PowerGrid 9142s Powerline Ethernet Adapter with WiFi User Manual Version A1.0, October 2, 2014 261072-025 Preface This manual provides information related to the installation and operation of this device. The individual reading this manual is presumed to have a basic understanding of telecommunications terminology and concepts. If you find the product to be inoperable or malfunctioning, please contact technical support for immediate service by email at [email protected] For product update, new product release, manual revision, or software upgrades, please visit our website at http://www.comtrend.com Copyright Copyright©2014 Comtrend Corporation. All rights reserved. The information contained herein is proprietary to Comtrend Corporation. No part of this document may be translated, transcribed, reproduced, in any form, or by any means without prior written consent of Comtrend Corporation. This program is free software: you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation, either version 3 of the License, or (at your option) any later version. This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details. You should have received a copy of the GNU General Public License along with this program. If not, see http://www.gnu.org/licenses/ NOTE: This document is subject to change without notice. Protect Our Environment This symbol indicates that when the equipment has reached the end of its useful life, it must be taken to a recycling centre and processed separate from domestic waste. The cardboard box, the plastic contained in the packaging, and the parts that make up this router can be recycled in accordance with regionally established regulations. Never dispose of this electronic equipment along with your household waste; you may be subject to penalties or sanctions under the law. Instead, please be responsible and ask for disposal instructions from your local government. Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. FCC Caution: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Non-modification Statement: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. CHAPTER 1: PRODUCT INFORMATION ................................................................................................ 5 1.1 WIFI FEATURES .................................................................................................................................. 5 1.2 POWERLINE FEATURES ......................................................................................................................... 5 1.3 SAFETY INFORMATION .......................................................................................................................... 6 1.4 SYSTEM REQUIREMENTS ....................................................................................................................... 6 1.5 PACKAGE CONTENTS ............................................................................................................................ 7 CHAPTER 2: NETWORK SETUP ............................................................................................................ 8 2.1 HARDWARE SETUP .............................................................................................................................. 8 2.2 POWERLINE LOGICAL NETWORK ........................................................................................................... 11 2.2.1 Initial Setup .......................................................................................................................... 12 2.2.2 Device Connection ................................................................................................................ 13 2.2.3 Adding a New Device............................................................................................................ 14 2.2.4 PowerGrid 9142s WiFi setup ................................................................................................ 15 2.2.5 WPS Setup ............................................................................................................................ 16 2.2.6…

Text truncated - open the document above for the full version.

規 格 承 認 書 Approval Sheet 客 戶 名 稱 Customer Name: Comtrend 產 品 名 稱 Product description: Ant-2 泓 淋 料 號 Hong Lin P/N: 290-50014 客戶料號 Customer P/N: 實際之生產地 Production: 中國 江蘇 常熟 版 別 日 期 Version: X5 Date: 2013/11/14 客戶承認簽印 CUSTOMER APPROVED BY 供應商承認簽印 VENDER APPROVED BY Checked By: Checked By: Approval By: Approval By: 工廠/Factory: 1) 深圳市寶安區松崗鎮沙浦圍村第二工業區六棟; 電話+86-755-27090678; 電 子信箱: [email protected] Building 6.No.2 Industrial Park, Shapuwei, Songgang Town, Baoan District,Shenzhen, Guangdong, China; Tel:+86-755-27090678 ; E-mail:[email protected] 2) 江蘇省常熟市高新技術產業園柳州路8 號; 電話: +86-512-51538298; 電子 信箱: [email protected] No.8 Liuzhou Road, Yushan Industrial Park, Hi-tech Development Zone, Changshu, Jiangsu, China Te l：+86-512-51538298; E-mail：[email protected] Content Item Page 1. Specification (規格表)......................................... 1 2. Test data(测试资料).............................................2 2.1 Antenna location.............................................2 2.2 Return loss....................................................2 2.3 Radiation Pattern.............................................3 2.4 Gain table......................................................4 3. Antenna assembly(成品图).....................................5 4. Antenna SGS.....................................................6-9 1 1 Specification 1.1 Electrical Properties 1.1.1 Frequency Range--------------------- 2.4GHz~2.5GHz 1.1.2 Impedance----------------------------- 50Ω 1.1.3 VSWR---------------------------------- ≦1.92:1 (With Housing) 1.1.4 Return Loss---------------------------- -10dB (With Housing) 1.1.5 Peak Gain------------------------------- 3.29 dBi 1.1.6 Admitted Power----------------------- 1W 1.1.7 Antenna type-------------------------- PIFA type 1.1.8 Polarization---------------------------- Vertical, Horizontal 1.2 Physical Properties 1.2.1 Antenna Body----------------------- SUS430 Plated Ni(不鏽鋼預鍍鎳) 1.2.2 Color------------------------------------ Silver 1.2.3 Operating Temp-------------------- -10°C~+60°C 1.2.4 Storage Temp----------------------- -10°C~+70°C 2 2 Test data 2.1 Antenna location 2.2 Return Loss and VSWR 3 2.3 Radiation Pattern 2.3.1 X- Z plane 2.3.2 Y-Z plane 4 2.3.3 X- Y plane 2.4 Gain Table Frequency X-Z plane Y- Z plane X-Y plane E-total Efficiency Phi=0 Phi=90 theta=90 (MHz) Peak Gain Average Gain Peak Gain Average Gain Peak Gain Average Gain (dBi) (%) 2400 2.14 -4.03 0.79 -3.19 -0.98 -4.23 2.50 47% 2450 2.37 -4 1.14 -2.88 -1.79 -4.05 2.40 47% 2500 3.2 -3.79 2.06 -2.68 -1.19 -3.94 3.29 48% 5 3 Antenna Assembly (成品圖) 测试报告. No. SHAMLP1303306401 日期: 2013年03月13日.第1页,共4页. 昆山志竟成金属制品有限公司. 江苏省昆山市玉山镇玉城南路18号 . . 以下测试之样品是由申请者所提供及确认 : SUS430不锈钢. SGS工作编号 :.SC130301163 - SH. 材质牌号 :.SUS430. 样品接收日期 :.2013年03月08日. 测试周期 :.2013年03月08日 - 2013年03月13日. 测试要求 :.根据客户要求测试. 请参见下一页. 请参见下一页. 测试方法 :. 测试结果 :. 通标标准技术服务有限公司 授权签名. JJ Fan 范晶捷. 批准签署人. 测试报告. No. SHAMLP1303306401 日期: 2013年03月13日.第2页,共4页. 测试结果 :. 测试样品描述 :. 样品编号.SGS样品ID.描述. 1.SHA13-033064.001银色金属片. 备注 :. (1) 1 mg/kg = 1 ppm = 0.0001%. (2) MDL = 方法检测限. (3) ND = 未检出 ( < MDL ). (4) "-" = 未规定. RoHS指令2011/65/EU. 测试方法 :.参考IEC 62321:2008: (1) 用ICP-OES测定镉的含量. (2) 用ICP-OES测定铅的含量. (3) 用ICP-OES测定汞的含量. (4) 用点测试法/紫外-可见分光光度计比色法测定六价铬的含量.. 001. 镉 (Cd).100mg/kg.2ND 铅(Pb).1000mg/kg.2ND 汞 (Hg).1000mg/kg.2ND 六价铬(CrVI).--♢阴性 测试项目.限值.单位.MDL. 备注 :. (1) 最大允许极限值引用自指令2011/65/EU 附录II. (2) ◇点测试法: 阴性= 未检测到六价铬,阳性 = 检测到六价铬; (当点测试结果为阴性或无法确定时,将采用沸水萃取法作进一步的结果验证.) ◇沸水萃取法: 阴性= 未检测到六价铬 阳性= 检测到六价铬; 表明50 cm²表面积的被测试样品的沸水萃取液中六价铬的浓度等于或大于0.02 mg/kg 由于未获知样品的存储条件和生产日期，样品的六价铬测试结果仅能代表测试时样品含六价铬的状态.. 测试报告. No. SHAMLP1303306401 日期: 2013年03月13日.第3页,共4页. 附件 RoHS 测试流程图 1) 分析人员： 施青/王彦青/肖飞 2) 项目负责人：张春华/徐亮 3) 样品按照下述流程被完全消解（六价铬测试除外） 六价铬 电感耦合等离子体发射光 谱仪 溶液 过滤 残留物 1) 碱熔法/ 灰 化 2) 酸溶解 用微波消解仪/电热板 进行酸消解 数据 预处理 量取 铅/镉/汞 金属 沸水萃取 加入1,5-二苯碳 酰二肼显色 点测试 未检测到 检测到 数据 . 若显示红色，表 明检测到六价 铬，必要时采用 紫外-可见光分光 光度计验证 加入1,5-二苯碳 酰二肼显色 紫外-可见光 分光光度计 非金属 加入消解液 在90~95°C条件 下萃取 过滤，调整pH 数据 测试报告. No. SHAMLP1303306401 日期: 2013年03月13日.第4页,共4页. 样品照片:. SHAMLP1303306401 SHA13-033064.001. 此照片仅限于随SGS正本报告使用. *** 报告完 ***.

規 格 承 認 書 Approval Sheet 客 戶 名 稱 Customer Name: Comtrend 產 品 名 稱 Product description: Ant-1 泓 淋 料 號 Hong Lin P/N: 290-50009 客戶料號 Customer P/N: 實際之生產地 Production: 中國 江蘇 常熟 版 別 日 期 Version: X4 Date: 2013/11/14 客戶承認簽印 CUSTOMER APPROVED BY 供應商承認簽印 VENDER APPROVED BY Checked By: Checked By: Approval By: Approval By: 工廠/Factory: 1) 深圳市寶安區松崗鎮沙浦圍村第二工業區六棟; 電話+86-755-27090678; 電 子信箱: [email protected] Building 6.No.2 Industrial Park, Shapuwei, Songgang Town, Baoan District,Shenzhen, Guangdong, China; Tel:+86-755-27090678 ; E-mail:[email protected] 2) 江蘇省常熟市高新技術產業園柳州路8 號; 電話: +86-512-51538298; 電子 信箱: [email protected] No.8 Liuzhou Road, Yushan Industrial Park, Hi-tech Development Zone, Changshu, Jiangsu, China Te l：+86-512-51538298; E-mail：[email protected] Content Item Page 1. Specification (規格表)......................................... 1 2. Test data(测试资料).............................................2 2.1 Antenna location.............................................2 2.2 Return loss....................................................2 2.3 Radiation Pattern.............................................3 2.4 Gain table......................................................4 3. Antenna assembly(成品图).....................................5 4. Antenna SGS.....................................................6-9 1 1 Specification 1.1 Electrical Properties 1.1.1 Frequency Range--------------------- 2.4GHz~2.5GHz 1.1.2 Impedance----------------------------- 50Ω 1.1.3 VSWR---------------------------------- ≦1.92:1 (With Housing) 1.1.4 Return Loss---------------------------- -10dB (With Housing) 1.1.5 Peak Gain------------------------------- 1.76 dBi 1.1.6 Admitted Power----------------------- 1W 1.1.7 Antenna type-------------------------- PIFA type 1.1.8 Polarization---------------------------- Vertical, Horizontal 1.2 Physical Properties 1.2.1 Antenna Body----------------------- SUS430 Plated Ni(不鏽鋼預鍍鎳) 1.2.2 Color------------------------------------ Silver 1.2.3 Operating Temp-------------------- -10°C~+60°C 1.2.4 Storage Temp----------------------- -10°C~+70°C 2 2 Test data 2.1 Antenna location 2.2 Return Loss and VSWR 3 2.3 Radiation Pattern 2.3.1 X- Z plane 2.3.2 Y-Z plane 4 2.3.3 X- Y plane 2.4 Gain Table Frequency X-Z plane Y- Z plane X-Y plane E-total Efficiency Phi=0 Phi=90 theta=90 (MHz) Peak Gain Average Gain Peak Gain Average Gain Peak Gain Average Gain (dBi) (%) 2400 1.55 -2.59 1.4 -3.56 -0.37 -3.86 1.74 55% 2450 1.37 -2.56 1.23 -3.42 -0.33 -3.59 1.76 57% 2500 1.25 -2.87 1.14 -3.68 -0.94 -3.62 1.27 56% 5 3 Antenna Assembly (成品圖) 测试报告. No. SHAMLP1303306401 日期: 2013年03月13日.第1页,共4页. 昆山志竟成金属制品有限公司. 江苏省昆山市玉山镇玉城南路18号 . . 以下测试之样品是由申请者所提供及确认 : SUS430不锈钢. SGS工作编号 :.SC130301163 - SH. 材质牌号 :.SUS430. 样品接收日期 :.2013年03月08日. 测试周期 :.2013年03月08日 - 2013年03月13日. 测试要求 :.根据客户要求测试. 请参见下一页. 请参见下一页. 测试方法 :. 测试结果 :. 通标标准技术服务有限公司 授权签名. JJ Fan 范晶捷. 批准签署人. 测试报告. No. SHAMLP1303306401 日期: 2013年03月13日.第2页,共4页. 测试结果 :. 测试样品描述 :. 样品编号.SGS样品ID.描述. 1.SHA13-033064.001银色金属片. 备注 :. (1) 1 mg/kg = 1 ppm = 0.0001%. (2) MDL = 方法检测限. (3) ND = 未检出 ( < MDL ). (4) "-" = 未规定. RoHS指令2011/65/EU. 测试方法 :.参考IEC 62321:2008: (1) 用ICP-OES测定镉的含量. (2) 用ICP-OES测定铅的含量. (3) 用ICP-OES测定汞的含量. (4) 用点测试法/紫外-可见分光光度计比色法测定六价铬的含量.. 001. 镉 (Cd).100mg/kg.2ND 铅(Pb).1000mg/kg.2ND 汞 (Hg).1000mg/kg.2ND 六价铬(CrVI).--♢阴性 测试项目.限值.单位.MDL. 备注 :. (1) 最大允许极限值引用自指令2011/65/EU 附录II. (2) ◇点测试法: 阴性= 未检测到六价铬,阳性 = 检测到六价铬; (当点测试结果为阴性或无法确定时,将采用沸水萃取法作进一步的结果验证.) ◇沸水萃取法: 阴性= 未检测到六价铬 阳性= 检测到六价铬; 表明50 cm²表面积的被测试样品的沸水萃取液中六价铬的浓度等于或大于0.02 mg/kg 由于未获知样品的存储条件和生产日期，样品的六价铬测试结果仅能代表测试时样品含六价铬的状态.. 测试报告. No. SHAMLP1303306401 日期: 2013年03月13日.第3页,共4页. 附件 RoHS 测试流程图 1) 分析人员： 施青/王彦青/肖飞 2) 项目负责人：张春华/徐亮 3) 样品按照下述流程被完全消解（六价铬测试除外） 六价铬 电感耦合等离子体发射光 谱仪 溶液 过滤 残留物 1) 碱熔法/ 灰 化 2) 酸溶解 用微波消解仪/电热板 进行酸消解 数据 预处理 量取 铅/镉/汞 金属 沸水萃取 加入1,5-二苯碳 酰二肼显色 点测试 未检测到 检测到 数据 . 若显示红色，表 明检测到六价 铬，必要时采用 紫外-可见光分光 光度计验证 加入1,5-二苯碳 酰二肼显色 紫外-可见光 分光光度计 非金属 加入消解液 在90~95°C条件 下萃取 过滤，调整pH 数据 测试报告. No. SHAMLP1303306401 日期: 2013年03月13日.第4页,共4页. 样品照片:. SHAMLP1303306401 SHA13-033064.001. 此照片仅限于随SGS正本报告使用. *** 报告完 ***.

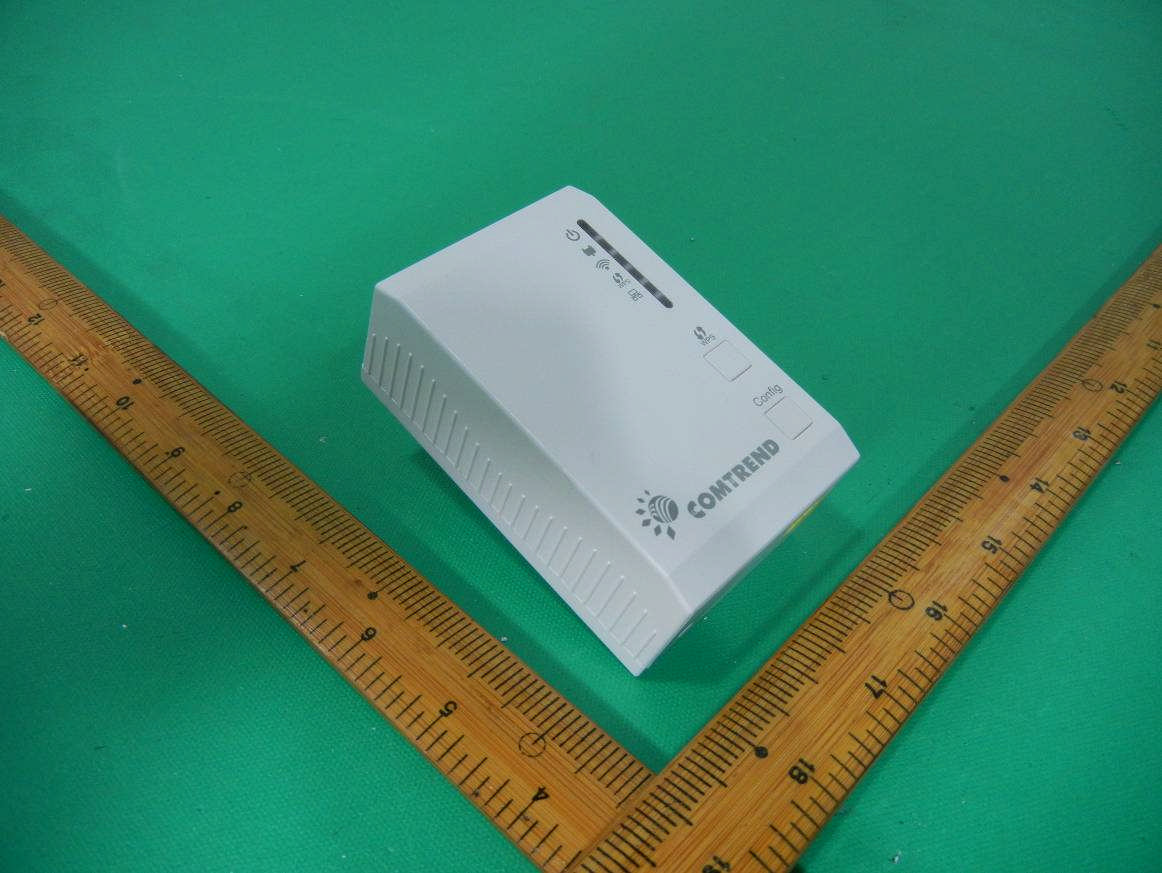

CERPASS TECHNOLOGY CORP. Report No.: TEFI1409168 Cerpass Technology Corp.Issued Date:Dec. 08, 2014 Tel:886-3-3226-888 Fax:886-3-3226-881Page No.:A1 of A4 FCC ID:L9VPG-9142S Appendix A. Photographs of EUT CERPASS TECHNOLOGY CORP. Report No.: TEFI1409168 Cerpass Technology Corp.Issued Date:Dec. 08, 2014 Tel:886-3-3226-888 Fax:886-3-3226-881Page No.:A2 of A4 FCC ID:L9VPG-9142S

Label & Location

CERPASS TECHNOLOGY CORP. Report No.: TEFI1409168 Cerpass Technology Corp.Issued Date:Dec. 08, 2014 Tel:886-3-3226-888 Fax:886-3-3226-881Page No.:A1 of A4 FCC ID:L9VPG-9142S Appendix A. Photographs of EUT CERPASS TECHNOLOGY CORP. Report No.: TEFI1409168 Cerpass Technology Corp.Issued Date:Dec. 08, 2014 Tel:886-3-3226-888 Fax:886-3-3226-881Page No.:A2 of A4 FCC ID:L9VPG-9142S CERPASS TECHNOLOGY CORP. Report No.: TEFI1409168 Cerpass Technology Corp.Issued Date:Dec. 08, 2014 Tel:886-3-3226-888 Fax:886-3-3226-881Page No.:A3 of A4 FCC ID:L9VPG-9142S

CERPASS TECHNOLOGY CORP. Report No.: TEFI1409168 Cerpass Technology Corp.Issued date:Dec. 08, 2014 Tel:886-3-3226-888 Fax:886-3-3226-881Page No.:1 of 3 FCC ID:L9VPG-9142S Radio Frequency Exposure LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUTPowerline Ethernet Adapter with WiFi Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.150GHz ~ 5.250GHz WLAN: 5.725GHz ~ 5.850GHz Bluetooth: 2.402GHz ~ 2.480 GHz Device category Portable (<20cm separation) Mobile (>20cm separation) Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power 802.11b:25.49dBm (354.02mW) 802.11g:26.05dBm (402.61mW) 802.11n (20MHz):25.46dBm (351.48mW) 802.11n (40MHz):25.03dBm (318.68mW) Antenna gain (Max) ANT A: 3.29 dBi ANT B: 1.76 dBi Directional antenna gain for N mode:4.43dBi Evaluation applied MPE Evaluation* SAR Evaluation N/A Remark: 1. The maximum output power is 26.05 dBm (402.61 mW)at 2437 MHz(with numeric 10.77 antenna gain.) 2. DTS device is not subject to routine RF evaluation; MPE estimate is used to justify the compliance. 3. For mobile or fixed location transmitters, no SAR consideration applied. The maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger. *Note: Simultaneous transmission is not applicable for this EUT. CERPASS TECHNOLOGY CORP. Report No.: TEFI1409168 Cerpass Technology Corp.Issued date:Dec. 08, 2014 Tel:886-3-3226-888 Fax:886-3-3226-881Page No.:2 of 3 FCC ID:L9VPG-9142S TEST RESULTS No non-compliance noted. Calculation Given d GP E   30 & 3770 2 E S WhereE = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S   Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields   2 2 0796.0 100/3770 1000/30 d GP d GP S     Equation 1 Whered = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 CERPASS TECHNOLOGY CORP. Report No.: TEFI1409168 Cerpass Technology Corp.Issued date:Dec. 08, 2014 Tel:886-3-3226-888 Fax:886-3-3226-881Page No.:3 of 3 FCC ID:L9VPG-9142S Maximum Permissible Exposure Modulation Mode Frequency band (MHz) Max. Conducted output power(dBm) Antenna gain (dBi) Distance (cm) Power density (mW/cm2) Limit (mW/cm2) 802.11b2412-246225.494.43200.1951 802.11g2412-246226.054.43200.2221 802.11n (20MHz)2412-246225.464.43200.1941 802.11n (40MHz)2422-245225.034.43200.1761 NOTE: Total (Chain0+Chain1) , the formula of calculated the MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density

CERPASS TECHNOLOGY CORP. Report No.: TEFI1409168 Cerpass Technology Corp.Issued date:Dec. 08, 2014 Tel:886-3-3226-888 Fax:886-3-3226-881Page No.:1 of 105 FCC ID:L9VPG-9142S FCC TEST REPORT According to FCC Rules and Regulations Part 15 Subpart C Applicant:COMTREND CORPORATION Address: 3F-1, No. 10, Lane 609, Chung Hsin Road, Section 5, SanChung District, New Taipei City, Taiwan 241 Equipment:Powerline Ethernet Adapter with WiFi Model No.:PowerGrid 9142s Trade Name:COMTREND FCC ID:L9VPG-9142S The test result refers exclusively to the test presented test model / sample., Without written approval ofCerpass Technology Corp.,the test report shall not be reproduced except in full. The EUT is also considered as a kind of computer peripheral, because the connection to computer is necessary for typical use. It has been verified to comply with the requirements of FCC Part 15, Subpart B, Class B (DoC). The test report has been issued separately. Laboratory Accreditation CERPASS TECHNOLOGY CORP. Report No.: TEFI1409168 Cerpass Technology Corp.Issued date:Dec. 08, 2014 Tel:886-3-3226-888 Fax:886-3-3226-881Page No.:2 of 105 FCC ID:L9VPG-9142S Contents 1.Report of Measurements and Examinations ....................................................................................6 1.1List of Measurements and Examinations ...................................................................................6 2.Test Configuration of Equipment under Test ...................................................................................7 2.1Feature of Equipment under Test...............................................................................................7 2.2Carrier Frequency of Channels ..................................................................................................8 2.3Test Mode and Test Software.....................................................................................................8 2.4Description of Test System.......................................................................................................10 2.5General Information of Test...................................................................................................... 11 3.Antenna Requirements.....................................................................................................................12 3.1Standard Applicable .................................................................................................................12 3.2Antenna Construction and Directional Gain.............................................................................12 4.Test of Conducted Emission............................................................................................................13 4.1Test Limit ..................................................................................................................................13 4.2Test Procedures .......................................................................................................................13 4.3Typical Test Setup ....................................................................................................................14 4.4Measurement Equipment .........................................................................................................14 4.5Test Result and Data ................................................................................................................15 4.6Test Photographs .....................................................................................................................21 5.Test of Radiated Emission ...............................................................................................................22 5.1Test Limit ..................................................................................................................................22 5.2Test Procedures .......................................................................................................................22 5.3Typical Test Setup ....................................................................................................................23 5.4Measurement Equipment .........................................................................................................23 5.5Test Result and Data (9kHz ~ 30MHz).....................................................................................24 5.6Test Result and Data (30MHz ~ 1GHz)....................................................................................24 5.7Test Result and Data (1GHz ~ 25GHz)....................................................................................30 5.8Test Photographs (30MHz ~ 1GHz) .........................................................................................54 5.9Test Photographs (1GHz ~ 25GHz) .........................................................................................55 6.6dB Bandwidth Measurement Data .................................................................................................56 6.1Test Limit ..................................................................................................................................56 6.2Test Procedures .......................................................................................................................56 6.3Test Setup Layout ....................................................................................................................56 6.4Measurement Equipment .........................................................................................................56 6.5Test Result and Data ................................................................................................................57 7.Maximum Peak and Average Output Power ...................................................................................70 7.1Test Limit .................................................................................................…

Text truncated - open the document above for the full version.

CERPASS TECHNOLOGY CORP. Report No.: TEFI1409168 Cerpass Technology Corp.Issued date:Dec. 08, 2014 Tel:886-3-3226-888 Fax:886-3-3226-881Page No.:21 of 105 FCC ID:L9VPG-9142S 4.6 Test Photographs Front View Rear View CERPASS TECHNOLOGY CORP. Report No.: TEFI1409168 Cerpass Technology Corp.Issued date:Dec. 08, 2014 Tel:886-3-3226-888 Fax:886-3-3226-881Page No.:54 of 105 FCC ID:L9VPG-9142S 5.8 Test Photographs (30MHz ~ 1GHz) Front View Rear View CERPASS TECHNOLOGY CORP. Report No.: TEFI1409168 Cerpass Technology Corp.Issued date:Dec. 08, 2014 Tel:886-3-3226-888 Fax:886-3-3226-881Page No.:55 of 105 FCC ID:L9VPG-9142S 5.9 Test Photographs (1GHz ~ 25GHz) Front View Rear View
