LBBFF2115AT900 MHz 40 Channel Cordless Phone with CID

STOP ...DON’T TAKE ME BACK TO THE STORE. LOOK ...FOR THE TOLL-FREE “HELP” TELEPHONE NUMBER. LISTEN ...AS THE EXPERTS TALK YOU THROUGH THE PROBLEM. For immediate answers to your questions regarding operation, missing parts or installation, call the SOUTHWESTERN BELL FREEDOM PHONE® RETAIL SALES HELP LINE AT: 1-800-366-0937 Monday - Friday 8:30a.m. - 9:00p.m. EST Saturday 8:30a.m. - 12:30p.m. EST http://www.swbfreedomphone.com SOUTHWESTERN BELL FREEDOM PHONE® 7475 N. Glen Harbor Blvd., Glendale, AZ 85307 FF2115AT IB- 3886 Printed in China Southwestern BellFreedom Phone ® 900MHz Cordless Telephone FF2115AT Owner’s ManualToll Free Helpline 1-800-366-0937http://www.swbfreedomphone.com CONTENTS IMPORTANT SAFETY INSTRUCTIONSSAFETY INSTRUCTIONS FOR BATTERIESNAME OF CONTROLS AND INDICATIONSFCC WANTS YOU TO KNOWINTRODUCTIONFEATURESBOX CONTENTSPREPARATIONOPERA TING INSTRUCTIONS INSTALLATIONHANDSET BATTERY CHARGINGCALLER ID SETUPTELEPHONE OPERATIONCALLER ID OPERATIONTROUBLESHOOTINGPRODUCT CARESERVICELIMITED WARRANTY 2 34589 1010111314151922242526 IMPORTANT SAFETY INSTRUCTIONS BEFORE USING YOUR TELEPHONE EQUIPMENT, BASIC SAFETY PRECAUTIONSSHOULD ALWAYS BE FOLLOWED TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCKAND INJURY TO PERSONS, INCLUDING THE FOLLOWING:1. Read and understand all instructions.2. Follow all warnings and instructions marked on the product.3. Unplug this product from the wall telephone jack and power outlet before cleaning. Donot use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.4. Do not use this product near water, for example, near a bath tub, wash bowl, kitchensink, laundry tub, swimming pool, or in a wet basement.5. Do not place this product on an unstable cart, stand or table. The product may fall,causing serious damage.6. Slots or openings in the cabinet and the back and bottom are provided for ventilation, toprotect it from overheating. These openings must not be blocked or covered. The openingsshould never be blocked by placing the product on a bed, or other similar surface. This prod-uct should never be placed near or over a radiator or heat register.7. This product should be operated only from the type of power source indicated on themarking label. If you are not sure of the type of power supply to your home, consult yourdealer or local power company.8. Do not allow anything to rest on the power cord. Do not place this product where thecord will be damaged by persons stepping on it. 9. Do not overload wall outlets and extension cords, as this can result in fire or electric shock. 10. Never push objects of any kind into this product through cabinet slots, as they maytouch dangerous voltage points or short out parts. This could result in fire or electric shock.Never spill liquid of any kind on the product.11. To reduce the risk of electric shock, do not disassemble this product. Instead, when serviceor repair work is required, take it to a qualified service technician. Opening or removing coversmay expose you to dangerous voltages or other risks. Incorrect reassembly can cause electricshock when the appliance is subsequently used.12. Unplug this product from the wall outlet and refer servicing to qualified service person-nel under the following conditions: a. When the power supply cord or plug is damaged or frayed.b. If liquid has been spilled into the product.c. If the product has been exposed to rain or water.d. If the product does not operate normally, and proper operating instructions have been fol- lowed, adjust only those controls that are covered by the operating instructions. Improperadjustment of other controls may result in damage and will often require extensive work by aqualified technician to restore the product to normal operation. e. If the product has been dropped or the cabinet has been damaged.f. If the product exhibits a distinct change in performance. 13. Avoid using a telephone (other than a cordless type) during an electrical storm. Theremay be a remote risk of electric shock from lightning.14. Do not use the telephone to report a gas leak in the vicinity of the leak.15. Use only the power cord and batteries indicated in this manual. Do not dispose of batter-ies in a fire. They may explode. Check with local codes for possible special disposal instruc-tions. CAUTIONDanger of explosion if battery is incorrectly replaced.Replaced only with the same or equivalent type recommended by the manufacturer. 3 4 SAFETY INSTRUCTIONS FOR BATTERIES Safety Instructions for BatteriesHandset Battery PackCAUTION:Use only a Southwestern Bell Freedom Phone® approved battery pack in the handsetof your FF2115 Cordless Telephone. To reduce the risk of fire or injury, always do thefollowing when replacing, discarding or charging batteries. When handling the batter-ies, be careful not to short the battery with conducting materials such as rings,bracelets, and keys. The battery or conducting material may overheat and cause burns.Use only the following type and size of battery pack:FOR HANDSET UNIT :a. GP40AAK3BMX 3.6V 400mAHr, GPI International Ltd orb. BYD D-2/3AA400BC 3.6V 400mAHr, BYD Battery Co.,Ltd orc. JB40AA2/3N3BMX 3.6V 400mAHr, JB Energy (HK) Ltd.a. Do not dispose of the battery pack in a fire. The cell may explode. Check with local codes for possible special disposal instructions. b. Do not attempt to open or mutilate the battery pack. The chemicals are dangerous and may cause damage to the eyes or skin, and may be toxic if swallowed. c. Follow the charge instructions outlined in this manual. (See page 13) The EPA certified RBRC®* Battery Recycling Seal on the nickel-cadmium (Ni-Cd) bat-tery indicates that Southwestern Bell Freedom Phone® Retail Sales is voluntarily par-ticipating in an industry program to collect and recycle these batteries at the end oftheir useful life, when taken out of service in the United States or Canada. The RBRC®program provides a convenient alternative to placing used Ni-Cd batteries into thetrash or the municipal waste stream,…

Text truncated - open the document above for the full version.

FF2115AT FCC ID: LBBFF2115AT Model No. FF2115AT V01A AT 0100 S/N:CXXXXXX US ® L I S T E D L I S T E D 70255 PRIVACY OF COMMUNICATIONS MAY NOT BE ENSURED WHEN USING THIS PHONE. LICENSED UNDER UNITED STATES PATENT NO. 5,263,084 FCC ID : LBBFF2115AT THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. CONFORMS TO ANSI/UL STD. 1950 Southwestern Bell ® Complies with Part 68 FCC Rules FCC REGISTRATION NUMBER: 2B3CHN-34737-W9-E USOC JACK: RJ11CREN: 1.0B HAC MADE IN CHINA MANUFACTURED TO BELL SPECIFICATIONS MODEL No. FF2115AT

Rfb02.sch-1 - Wed Apr 25 10:59:46 2001 Rfh02.sch-1 - Wed Apr 25 11:32:20 2001

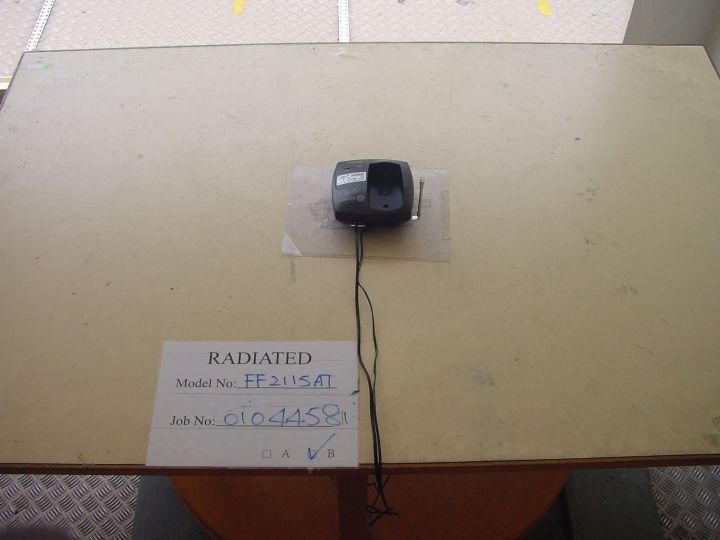

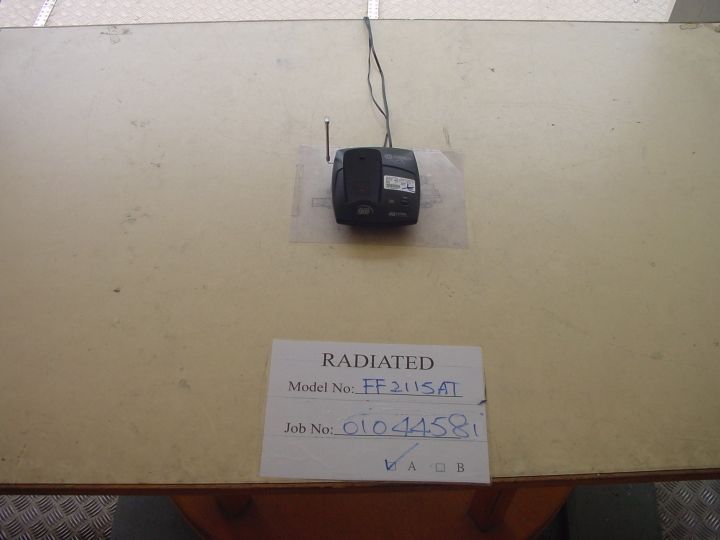

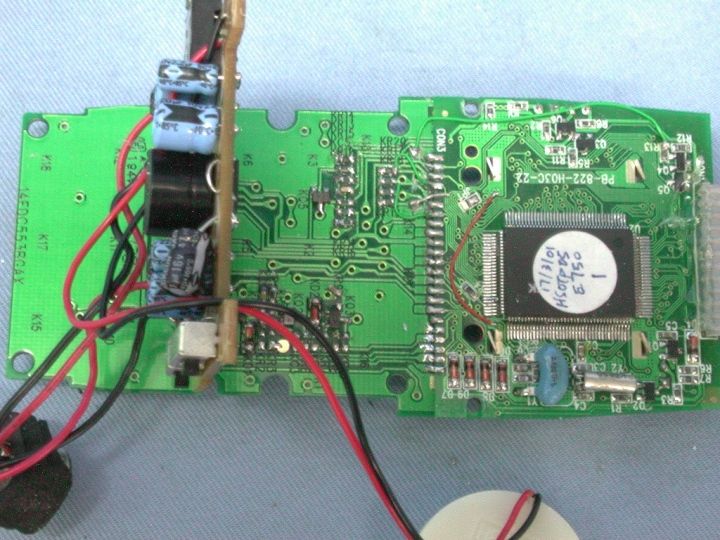

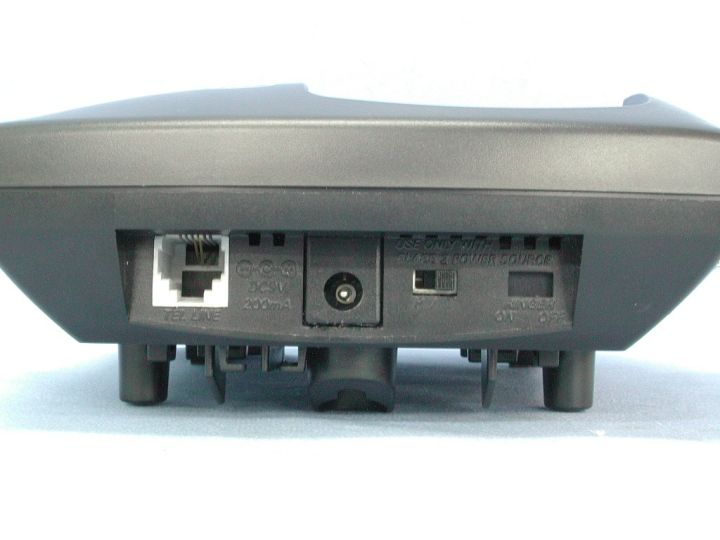

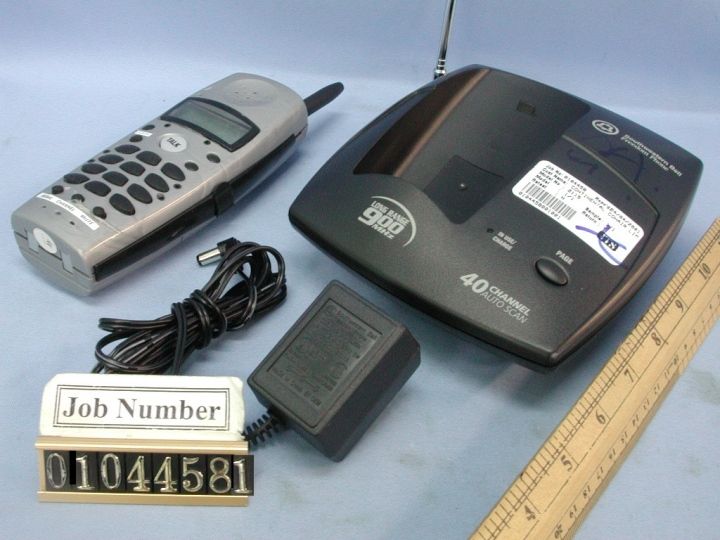

• The test results rep orted in this rep ort shall refer only to the samp le actually tested and shall not refer or be deemed to refer to bulk from which such a samp le may be said to have been obtained. • This rep ort shall not be rep roduced excep t in full without p rior authorization form Intertek Testing Services Limit ed FCC ID: LBBFF2115AT Inte rte k Te sting Se rvice s Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2741 1693 Continental Conair Limited Application For Certification 900MHz 40 Channel Analog Modulation Cordless Phone with CID (FCC ID: LBBFF2115AT) WO# 01044581 SKL/Ann Choy June 14, 2001 INTERTEK TESTING SERVICES FCC ID: LBBFF2115AT i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1 :General Description EXHIBIT 2 :System Test Configuration EXHIBIT 3 :Emission Results EXHIBIT 4 :Equipment Photographs EXHIBIT 5 :Product Labelling EXHIBIT 6 :Technical Specifications EXHIBIT 7 :Instruction Manual EXHIBIT 8 :Security Code Information INTERTEK TESTING SERVICES FCC ID: LBBFF2115AT ii MEASUREMENT/TECHNICAL REPORT Continental Conair Limited - MODEL: FF2115AT FCC ID: LBBFF2115AT This report concerns (check one:) Original Grant X Class II Change Equipment Type : Cordless Telephone (example : computer, modem, transmitter, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)?Yes No X If yes, defer until : date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37 ?Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [ 10-1-99 Edition ] Provision. Report prepared by:Wilson Loke Intertek Testing Services. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Phone :852-2173-8575 Fax:852-2741-1693 INTERTEK TESTING SERVICES FCC ID: LBBFF2115AT iii Table of Contents 1.0 General Description ....................................................................................................... 2 1.1 Product Description.................................................................................................... 2 1.2 Related Submittal(s) Grants........................................................................................ 3 1.3 Test Methodology....................................................................................................... 3 1.4 Test Facility................................................................................................................ 3 2.0 System Test Configuration ............................................................................................. 5 2.1 Justification................................................................................................................. 5 2.2 EUT Exercising Software ........................................................................................... 5 2.3 Support Equipment List and Description ................................................................... 6 2.4 Equipment Modification............................................................................................. 7 3.0 Emission Results ............................................................................................................. 9 3.1 Field Strength Calculation ........................................................................................ 10 3.2 Radiated Emission Configuration Photograph - Base Unit ...................................... 11 3.3 Radiated Emission Data - Base Unit ........................................................................ 12 3.4 Radiated Emission Configuration Photograph - Handset ......................................... 15 3.5 Radiated Emission Data - Handset ........................................................................... 16 3.6 Radiated Emission on the bandedge......................................................................... 19 3.7 Line Conducted Configuration Photograph - Base Unit .......................................... 21 3.8 Line Conducted Emission Data - Base Unit ............................................................. 22 4.0 Equipment Photographs .............................................................................................. 25 5.0 Product Labelling ......................................................................................................... 27 6.0 Technical Specifications ............................................................................................... 29 7.0 Instruction Manual ....................................................................................................... 31 8.0 Security Code Information .......................................................................................... 33 INTERTEK TESTING SERVICES FCC ID: LBBFF2115AT iv List of attached file Exhibit typeFile Descriptionfilename Test ReportTest Reportreport.doc Operation DescriptionTechnical Descriptiondescri.pdf Test Setup PhotoRadiated Emission for Basebase1.jpg, base2.jpg Test Setup PhotoRadiated Emission for Handsethandset1.jpg, handset2.jpg Test ReportEmission Plotemission.pdf Test Setup PhotoConducted Emissionconduct1.jpg to conduct3.jpg Test ReportConducted Emission Test Resultconduct.pdf External PhotoExternal Photoophoto1.jpg to ophoto3.jpg Internal PhotoInternal Photoiphoto1.jpg to iphoto12.jpg Block DiagramBlock Diagramblock.pdf SchematicsCircuit Diagramcircuit.pdf ID Label/LocationLabel Artwork and Locationlabel.pdf User ManualUser Manualmanual.pdf User ManualFCC Informationfcc information.pdf INTERTEK TESTING SERVICES FCC ID: LBBFF2115AT 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: LBBFF2115AT 2 1.0 General Description 1.1 Product Description The FF2115AT is a 900MHz 40 Channel Analog Modulation Cordless Phone with CID. The unit is capable of either tone or pulse dialing. The internal power supply's isolation is accomplished thro…
