LBBGH3128AT2.4GHz 40 Channel Cordless Phone w/ CID

Continental Conair Limited

Click to zoom

Application Details

Equipment Class: DXT - Part 15 Low Power Transceiver, Rx Verified
Date of Grant: Jul 25, 2004
Application Purpose: Original Equipment
Date of Application: Jul 25, 2004
Equipment Note: 2.4GHz 40 Channel Cordless Phone w/ CID
Frequency Range: 2472.50000000 - 2476.40000000
Company: Continental Conair Limited
Country: Hong Kong

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

STOP ...DON’T TAKE ME BACK TO THE STORE. LOOK ...FOR THE TOLL-FREE “HELP” TELEPHONE NUMBER. LISTEN ...AS THE EXPERTS TALK YOU THROUGH THE PROBLEM. For immediate answers to your questions regarding operation, missing parts or installation, call the SOUTHWESTERN BELL FREEDOM PHONE® RETAIL SALES HELP LINE AT: 1-800-366-0937 Monday - Friday 8:30a.m. - 9:00p.m. EST Saturday 8:30a.m. - 12:30p.m. EST http://www.swbfreedomphone.com SOUTHWESTERN BELL FREEDOM PHONE® 7475 N. Glen Harbor Blvd., Glendale, AZ 85307 GH3128 Printed in China Southwestern BellFreedom Phone ® 2.4GHz Cordless Telephonewith Dual Call Waiting Caller IDand Dual Keypad SpeakerphoneGH3128 Owner’s ManualToll Free Helpline 1-800-366-0937http://www.swbfreedomphone.com IB- XXXX CONTENTS IMPORTANT SAFETY INSTRUCTIONSSAFETY INSTRUCTIONS FOR BATTERIESNAME OF CONTROLS AND INDICATIONSFCC WANTS YOU TO KNOWINTRODUCTIONFEATURESBOX CONTENTSPREPARATIONOPERA TING INSTRUCTIONS INSTALLATIONHANDSET BATTERY CHARGINGSETUPTELEPHONE OPERATIONCALLER ID OPERATIONTROUBLESHOOTINGPRODUCT CARESERVICELIMITED WARRANTY 2 34589 1010111213172225272829 IMPORTANT SAFETY INSTRUCTIONS BEFORE USING YOUR TELEPHONE EQUIPMENT, BASIC SAFETY PRECAUTIONSSHOULD ALWAYS BE FOLLOWED TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCKAND INJURY TO PERSONS, INCLUDING THE FOLLOWING:1. Read and understand all instructions.2. Follow all warnings and instructions marked on the product.3. Unplug this product from the wall telephone jack and power outlet before cleaning. Donot use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.4. Do not use this product near water, for example, near a bath tub, wash bowl, kitchensink, laundry tub, swimming pool, or in a wet basement.5. Do not place this product on an unstable cart, stand or table. The product may fall,causing serious damage.6. Slots or openings in the cabinet and the back and bottom are provided for ventilation, toprotect it from overheating. These openings must not be blocked or covered. The openingsshould never be blocked by placing the product on a bed, or other similar surface. This productshould never be placed near or over a radiator or heat register.7. This product should be operated only from the type of power source indicated on themarking label. If you are not sure of the type of power supply to your home, consult yourdealer or local power company.8. Do not allow anything to rest on the power cord. Do not place this product where thecord will be damaged by persons stepping on it. 9. Do not overload wall outlets and extension cords, as this can result in fire or electric shock. 10. Never push objects of any kind into this product through cabinet slots, as they maytouch dangerous voltage points or short out parts. This could result in fire or electric shock.Never spill liquid of any kind on the product.11. To reduce the risk of electric shock, do not disassemble this product. Instead, when serviceor repair work is required, take it to a qualified service technician. Opening or removing coversmay expose you to dangerous voltages or other risks. Incorrect reassembly can cause electricshock when the appliance is subsequently used.12. Unplug this product from the wall outlet and refer servicing to qualified service personnelunder the following conditions: a. When the power supply cord or plug is damaged or frayed.b. If liquid has been spilled into the product.c. If the product has been exposed to rain or water.d. If the product does not operate normally, and proper operating instructions have been followed, adjust only those controls that are covered by the operating instructions. Improperadjustment of other controls may result in damage and will often require extensive work by aqualified technician to restore the product to normal operation. e. If the product has been dropped or the cabinet has been damaged.f. If the product exhibits a distinct change in performance. 13. Avoid using a telephone (other than a cordless type) during an electrical storm. Theremay be a remote risk of electric shock from lightning.14. Do not use the telephone to report a gas leak in the vicinity of the leak.15. Use only the power cord and batteries indicated in this manual. Do not dispose of batteriesin a fire. They may explode. Check with local codes for possible special disposal instructions. CAUTIONRisk of explosion if battery is replaced by an incorrect type.Replace only with the same or equivalent type recommended by the manufacturer.Dispose of used batteries according to the manufacturer’s instructions. 3 4 SAFETY INSTRUCTIONS FOR BATTERIES Safety Instructions for BatteriesHandset Battery PackCAUTION:Use only a Southwestern Bell Freedom Phone® approved battery pack in the handsetof your GH3128 Cordless Telephone. To reduce the risk of fire or injury, always do thefollowing when replacing, discarding or charging batteries. When handling the batteries,be careful not to short the battery with conducting materials such as rings, bracelets,and keys. The battery or conducting material may overheat and cause burns.Use only the following type and size of battery pack:FOR HANDSET UNIT :a. GP40AAK3BMX 3.6V 400mAHr, GPI International Ltd orb. BYD D-2/3AA400x3 3.6V 400mAHr, BYD Co.,Ltda. Do not dispose of the battery pack in a fire. The cell may explode. Check with local codes for possible special disposal instructions. b. Do not attempt to open or mutilate the battery pack. The chemicals are dangerous and may cause damage to the eyes or skin, and may be toxic if swallowed. c. Follow the charge instructions outlined in this manual. (See page 12) The EPA certified RBRC®* Battery Recycling Seal on the nickel-cadmium (Ni-Cd)battery indicates that Southwestern Bell Freedom Phone® Retail Sales is voluntarilyparticipating in an industry program to collect and recycle these batteries at the end oftheir useful life, when taken out of service in the United States or Canada. The RBRC®program provides a convenient alternative to placing used Ni-Cd batteries…

Text truncated - open the document above for the full version.

Users Manual

FCC WANTS YOU TO KNOW This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA.On the bottom of this equipment is a label that contains, among other information, a productidentifier in the format US:AAAEQ##TXXXX. If requested, this number must be provided to thetelephone company.An FCC compliant telephone cord and modular plug is provided with this equipment. This equipmentis designed to be connected to the telephone network or premises wiring using a compatible modularjack which is TIA/EIA-IS-968 compliant. See Installation Instructions for details.The REN is useful to determine the quantity of devices you may connect to your telephone line andstill have all of those devices ring when your telephone number is called. In most, but not all areas,the sum of the REN’s of all devices connected to one line should not exceed five (5.0). To be certainof the number of devices you may connect to your line, as determined by the REN, you shouldcontact your local telephone company to determine the maximum REN for your calling area.If your telephone equipment causes harm to the telephone network, the telephone company maydiscontinue your service temporarily. If possible, they will notify you in advance. But if advancenotice isn’t practical, you will be notified as soon as possible. You will be informed of your right tofile a complaint with the FCC.Your telephone company may make changes in its facilities, equipment, operations, or proceduresthat could affect the proper functioning of your equipment. If they do, you will be notified in advanceto give you an opportunity to maintain uninterrupted telephone service. If you experience troublewith this telephone equipment, disconnect from the network until the problem has been correctedor until you are sure that the equipment is not malfunctioning.This equipment may not be used on coin service provided by the telephone company. Connectionto party lines is subject to state tariffs.The USOC number of the registration jack for the equipment is RJ11C.This equipment is hearing aid compatible.This equipment generates, uses and can radiate radio frequency energy and, if not installed andused in accordance with the instructions, may cause harmful interference to radio communications.Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonableprotection against harmful interference in a residential installation. However, there is no guaranteethat interference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipment offand on, the user is encouraged to try to correct the interference by one or more of the followingmeasures: • Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio TV technician for help. If your home has specially wired alarm equipment connected to the telephone line, ensure theinstallation of this GH3128 does not disable your alarm equipment. If you have questions aboutwhat will disable alarm equipment, consult your telephone company or a qualified installer. 9 INTRODUCTION ABOUT THE GH3128The GH3128 is a 2.4GHz Cordless Telephone with Dual Caller Identifierand Dual Keypad Speakerphone. It is designed and engineered toexacting standards for reliability, long life, and outstandingperformance.FEATURES• Caller ID (50 call data memory locations) with call waiting• 40 Channels (auto or manual selection)• LCD on the handset and base with three-language selection• 10-Number Two-touch Dial Memory• Speakerphone on base• Direct dialing from caller list• Extended battery life• Digital security codingThe GH3128 features include AutoTalk™ and AutoStandby™.AutoTalk™ allows you to answer a call by just removing the Handsetfrom the Base so you don’t have to waste time pushing buttons orflipping switches. AutoStandby™ allows you to hang up by simplyreturning the handset to the Base.The UltraClear Plus™ true compander circuitry virtually eliminatesbackground noise. This innovative technology, together with 40different channels, provides you with the best possible receptionduring all your conversations.TO PROTECT YOU AGAINST MISBILLED CALLS, THE GH3128 HASRANDOM CODE™ DIGITAL SECURITY WHICH AUTOMATICALLYSELECTS ONE OF OVER 65,000 DIGITAL SECURITY CODES FORTHE HANDSET AND BASE UNIT. ALSO, THE AUTOSECURER™FEATURE ELECTRONICALLY LOCKS YOUR PHONE WHEN THEHANDSET IS IN THE BASE. TO GET THE MOST FROM YOURGH3128, PLEASE READ THIS OPERATING GUIDE THOROUGHLY. 8

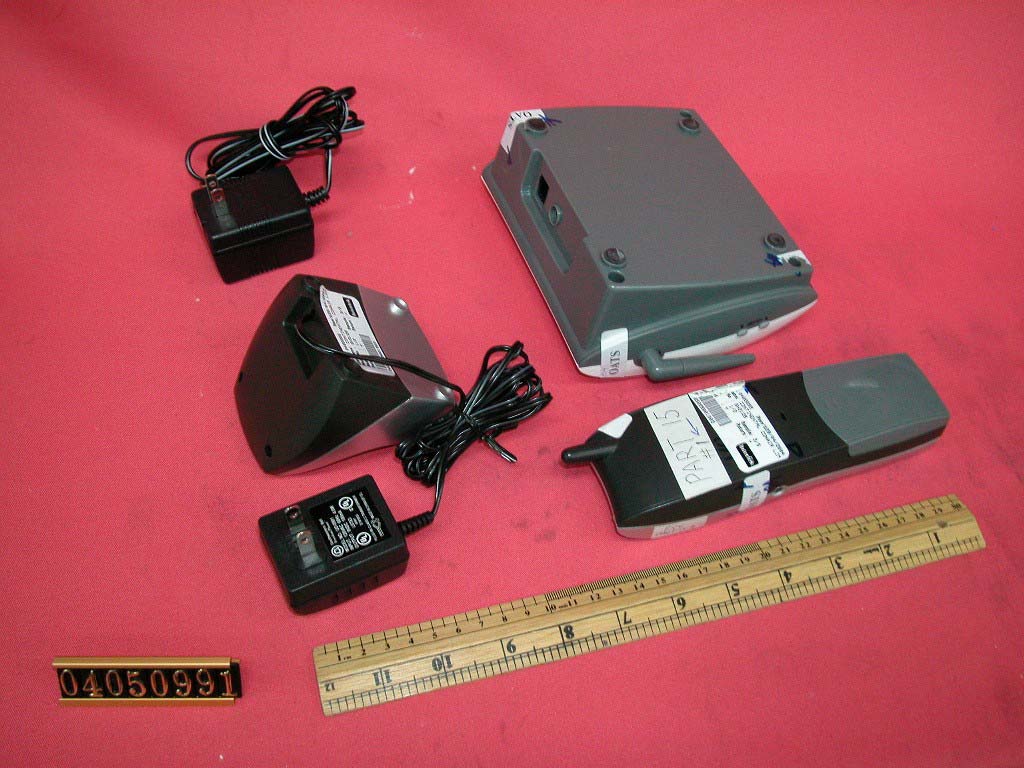

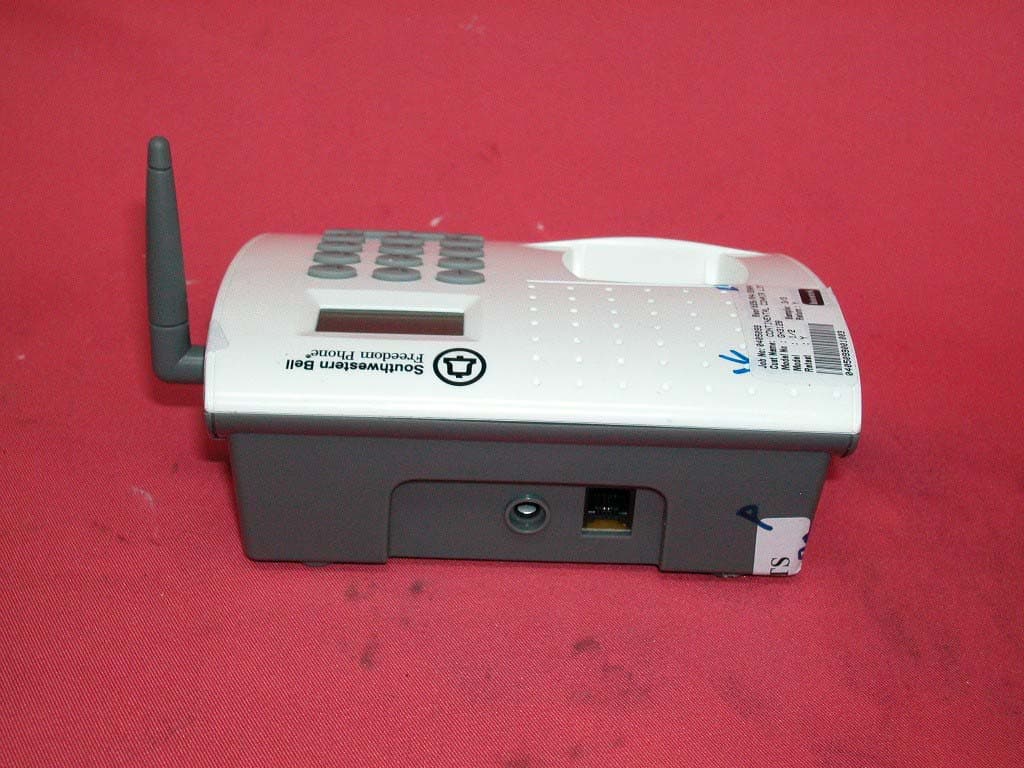

External Photos

External photos FCC ID: LBBGH3128AT External photos FCC ID: LBBGH3128AT

Internal Photos

Internal photos FCC ID: LBBGH3128AT Base assembly (View 1) Base assembly (View 2) Internal photos FCC ID: LBBGH3128AT Base Main PCB comp side (View 1) Base Main PCB comp side (View 2) Internal photos FCC ID: LBBGH3128AT Base Main PCB solder side LCD display comp side Internal photos FCC ID: LBBGH3128AT LCD display solder side Base keypad front side Internal photos FCC ID: LBBGH3128AT Base keypad rear side (View 1) Base keypad rear side (View 2) Internal photos FCC ID: LBBGH3128AT Base Oscillator PCB comp side Base Oscillator PCB solder side Internal photos FCC ID: LBBGH3128AT Handset assembly Handset Main PCB comp side (View 1) Internal photos FCC ID: LBBGH3128AT Handset Main PCB comp side (View 2) Handset Main PCB display side Internal photos FCC ID: LBBGH3128AT Handset Oscillator PCB comp side Handset Oscillator PCB solder side

Operational Description

3128 Circuit Description 1. Introduction The model 3128 is a 40 channel (2.40055-2.47740GHz ) Caller ID cordless speaker telephone. The whole unit is divided into two main parts as follow : a. A remote Handset. b. A Base unit. 2. Functional Blocks of the Remote Handset 2.1 Keyboard matrix and function LED 2.2 LCD 2.3 MCU and MCU interface 2.4 Antenna and RF module 2.5 Compander 2.6 Data shaper 2.7 Charge detector 2.8 Low battery detector 2.9 Buzzer amplifier 3. Circuit Block Description 3.1 Keyboard matrix and function LED Pin 66 to pin71 of the U2 form a keyboard. The new call LED is controled by the pin 98 of U2. 3.2 LCD LCD is controlled by the U1 pin 12 to 28 and pin 30 to 51 and pin 53 to 65 and pin75 to 82. 3.3 MCU and MCU interface The handset and the base is link up by the pins(84 and 89 in HS and 77 and 81 in Base). Besides, the PLL of the RF Module is controlled by the pins 86 to pin 88 of the U2. 3.4 Antenna and RF module ANT is the common point for transmitting and receiving. Antenna is 1/4 wave length wire, it is permanently attached on RF module. MD1 is a RF module which consists of Duplexer, Power amplifier, Mixer & IF, RXVCO, TXVCO, VCC & TXVCC control, Synthesizer and DEMO Audio Output circuits. The block diagram of RF Module is as shown below. It is made up of the following parts: 3.4.1 Power Supply 3.4.2 PLL and MCU Interface 3.4.3 RF Transmitter 3.4.4 RF Receiver 3.5.5 Audio Detector 3.4.1 Power Supply The RF transmitter receives power from TXVCC. TXVCC is enabled only during TALK mode.The RF receiver receives power from RXVCC. RXVCC is enabled only during TALK or stand-by mode when wake up. 3.4.2 PLL and MCU Interface The frequencies of the RF transmitter and RF local oscillator are controlled by PLL IC U3. The MCU transmit PLL data through DATA, CLK and CE signal lines. The basic clock frequency of the PLL is derived from an 11.15MHz crystal inside the RF module. The local frequencies to TX and RX are generated and locked at 1237MHz and 1206MHz respectively. 3.4.3 RF Transmitter The RF transmitter oscillator frequency 1237MHz is controlled by the PLL through Vt. The PLL samples the RF frequency through fin. The audio input signal AFIN is fed to this RF oscillator through the FM modulator. Fundamental frequency 1237MHz is multiplied to 2474MHz and bypass through band pass filter formed by Q304. The filtered 2474MHz is then injected into TX power amplifier Q303 and related passive components. The enlarged 2474MHz rf signal is then input into the 2475MHz TX_FILTER DF1. The transmitted rf signal is then injected into the ANTENNA and radiated out into air. 3.4.4 RF Receiver Received rf signal is collected from ANTENNA and passed through 2403MHz filter DF2. The filtered 2403MHz rf signal will then be injected into the LNA Q3 and be enlarged. The amplified 2403MHz signal is then input into the MIXER which is formed by Q307and related passive components. Q2 and VD2 with related resistors and capacitors network form the RXVCO which is fed and locked by the PLL U3. The fundamental 1206MHz frequency is multiplied to 2412MHz and bypass the BPF formed by C25,R329 to the receiver mixer. The receiver local oscillator frequency is controlled by the PLL through Vt. The PLL samples the local oscillator RF frequency through fin. The mixer collects the input from LNA and 2412MHz signal from BPF and then output the IF 10.7MHz into Q5. 3.4.5 Audio Detector Amplified IF from Q5 is passed into 10.7MHz filter CF1and then injected into the IF demodulated IC U2. Detected audio will then be recovered and output at the AFOUT pin of the RF module. 3.5 Compander A compander U1 is used for improving the S/N of the transmit and receive audio signal. 3.6 Data shaper The information which sending from base unit, is recovered by the amplifier Q9,Q8 and Q4. 3.7 Charge detector R31,ZD1,D2, R51and R52 form a charge detector to direct the charging signal to the MCU pin 73. 3.8 Low battery detector A battery low detector is built-in by the Q12 which detects the battery dropping and sends a signal to pin 72 of MU1. 3.9 Buzzer amplifier Q7 is a buzzer amplifier driven directly by the U2 pin 93. 4. Functional Blocks of the Base unit 4.1 Power supply 4.2 MCU and MCU interface 4.3 Calling line identifier 4.4 Antenna and RF module 4.5 Compander 4.6 Data shaper 4.7 Charge detector 4.8 Line audio interface 4.9 Ring detector 4.10 LCD function board 4.11 Carrier detector 4.12 Speakerphone 5. Circuit Block Description 5.1 Power supply BU4 7805 regulate the input DC 9V to 5V which provides power to every part of the circuit. 5.2 MCU and MCU interface The heart of the base is MCU BMU1 that communicates with the PLL of BMD1 through pins 78,79 and 80. Transmitter is controlled by the signal TX_DC which output from MCU via pin 76. MCU pin 2 is for generating DTMF signal. The communication between Handset and Base is via the pin 77 and pin 81 through the RF link. 5.3 Calling line identifier MCU pin 6 to pin 9, when receiving caller ID data, MCU controls the LCD to display the correct information. 5.4 Antenna and RF modulator ANT is the common point for transmitting and receiving. Antenna is 1/4 wave length wire, it is permanently attached on RF module. BMD1 is a RF modulator which consist of Duplexer, Power amplifier, Mixer & IF, RXVCO, TXVCO, VCC & TXVCC control, Synthesizer and DEMO Audio Output circuits. The block diagram of RF Module is as shown below. It is made up of the following parts: 5.4.1 Power Supply 5.4.2 PLL and MCU Interface 5.4.3 RF Transmitter 5.5.4 RF Receiver 5.5.5 Audio Detector 5.4.1 Power Supply The RF transmitter receives power from TXVCC. TXVCC is enabled only during TALK mode or Ring mode.The RF receiver receives power from RXVCC. RXVCC is enabled when BASE plug in DC adapter. 5.4.2 PLL and MCU Interface The frequencies of the RF transmitter and RF local oscillator are controlled by PLL IC U3. The MCU transmit PLL data through DATA, CLK and CE signal lines. The basic clock frequency of the PLL is d…

Text truncated - open the document above for the full version.

Schematics

! "# $ "%$&'( $ *) !#" %$&" ' ( $

Test Report

FCC ID: LBBGH3128AT Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2741 1693 Website: www.hk.intertek-etlsemko.com May 19, 2004 Continental Conair Limited 35/F., Standard Chartered Tower, Millennium City, 388 Kwun Tong Road, Kwun Tong, Kowloon, Hong Kong. Tel. : (852) 2751 4688 Fax. : (852) 2751 8920 Dear Mr. Patrick Tang: Enclosed you will find your file copy of a Part 15 Certification (FCC ID: LBBGH3128AT). For your reference, TCB will normally take another 15 to 20 days for reviewing the report. Approval will then be granted when no query is sorted. Please contact me if you have any questions regarding the enclosed material. Sincerely, Tommy Leung Supervisor Enclosure • The test results reported in this report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization form Intertek Testing Services Limited FCC ID: LBBGH3128AT Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2741 1693 Website: www.hk.intertek-etlsemko.com Continental Conair Limited Application For Certification 2.4GHz 40 Channel Analog Modulation Cordless Phone with Caller ID and Speakerphone (FCC ID: LBBGH3128AT) 04050991 TL/Ann Choy May 19, 2004 INTERTEK TESTING SERVICES FCC ID: LBBGH3128AT i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Security Code Information INTERTEK TESTING SERVICES FCC ID: LBBGH3128AT ii MEASUREMENT/TECHNICAL REPORT Continental Conair Limited - MODEL: GH3128(XXXXX), GH3228(XXXXX) FCC ID: LBBGH3128AT This report concerns (check one:) Original Grant X Class II Change Equipment Type : Cordless Telephone (example : computer, modem, transmitter, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until : date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37 ? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [12-08-03 Edition] Provision. Report prepared by: Tommy Leung Intertek Testing Services. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Phone : 852-2173-8538 Fax: 852-2741-1693 INTERTEK TESTING SERVICES FCC ID: LBBGH3128AT iii Table of Contents 1.0 General Description ............................................................................................2 1.1 Product Description..........................................................................................2 1.2 Related Submittal(s) Grants ............................................................................3 1.3 Test Methodology ............................................................................................3 1.4 Test Facility ......................................................................................................3 2.0 System Test Configuration ...................................................................................5 2.1 Justification.......................................................................................................5 2.2 EUT Exercising Software.................................................................................5 2.3 Support Equipment List and Description.........................................................6 2.4 Measurement Uncertainty ...............................................................................7 2.5 Equipment Modification ...................................................................................7 3.0 Emission Results ...................................................................................................9 3.1 Field Strength Calculation .............................................................................10 3.2 Radiated Emission Configuration Photograph - Base Unit ..........................11 3.3 Radiated Emission Data - Base Unit.............................................................12 3.4 Radiated Emission Configuration Photograph - Handset.............................15 3.5 Radiated Emission Data - Handset ...............................................................16 3.6 Radiated Emission on the bandedge ............................................................19 3.7 Line Conducted Configuration Photograph - Base Unit ...............................21 3.8 Line Conducted Emission Data - Base Unit..................................................22 4.0 Equipment Photographs .....................................................................................25 5.0 Product Labelling .................................................................................................27 6.0 Technical Specifications .....................................................................................29 7.0 Instruction Manual ...............................................................................................31 8.0 Security Code Information ..................................................................................33 INTERTEK TESTING SERVICES FCC ID: LBBGH3128AT iv List of attached file Exhibit type File Description filename Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission for Base config photos.doc Test Setup Photo Radiated Emission for Handset config photos.doc Test Report Emission Plot emission.pdf Test Setup Photo Conducted Emission config photos.doc Test Report Conducted Emission Test Result conduct.pdf External Photo Ex…

Text truncated - open the document above for the full version.

Test Report

Report No.:04050991 Talk Mode Ctrl No.:N/A PAGE 1 Tested By:Hong, Report No.:04050991 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement: x QP / + AV Meas Time: 1 s Subranges: 16 Acc Margin: 20dB Transducer No. Start Stop Name 21 9k 30M EW0698 0 10 20 30 40 50 60 70 80 90 dBuV 100 0.15 MHz 30 110 F15Q F15A Report No.:04050991 Talk Mode Ctrl No.:N/A Tested By:Hong, Report No.:04050991 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement Results: no Results

Test Setup Photos

The Worst Case Configuration Photographs FCC ID: LBBGH3128AT Radiated Emission – Base Front View Rear View The Worst Case Configuration Photographs FCC ID: LBBGH3128AT Radiated Emission – Handset Front View Rear View The Worst Case Configuration Photographs FCC ID: LBBGH3128AT Conducted Emission Front View Rear View The Worst Case Configuration Photographs FCC ID: LBBGH3128AT Conducted Emission Side View
