LBBFF2150A900MHz 40 Channel Analog Modulation Cordless Phone

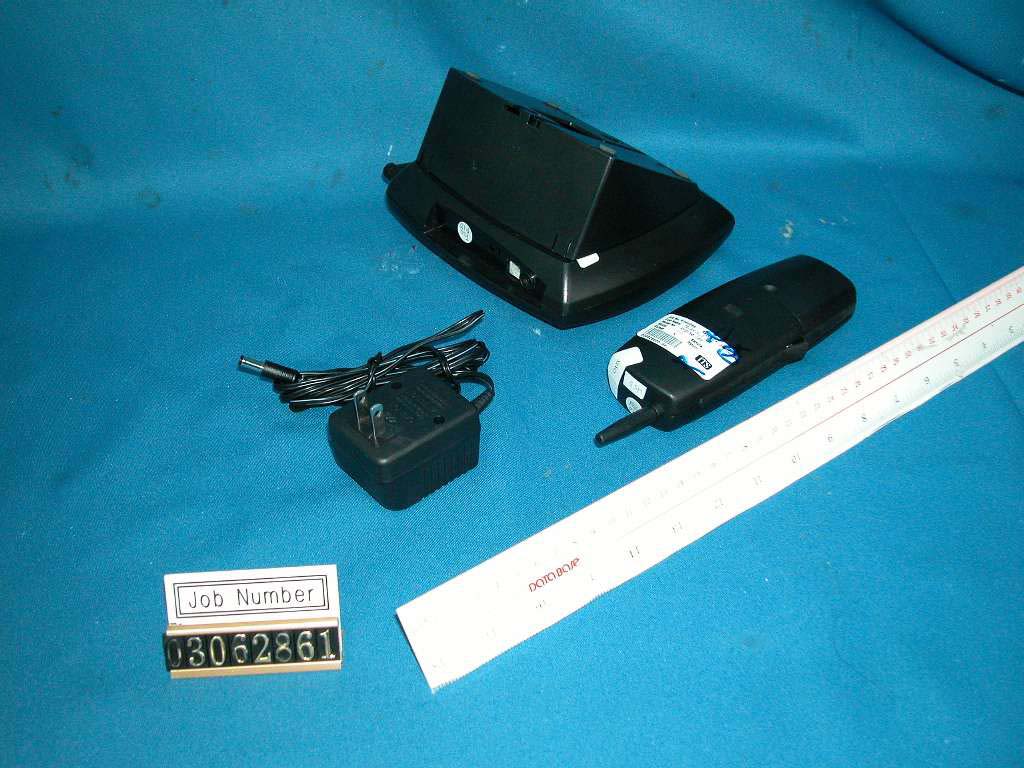

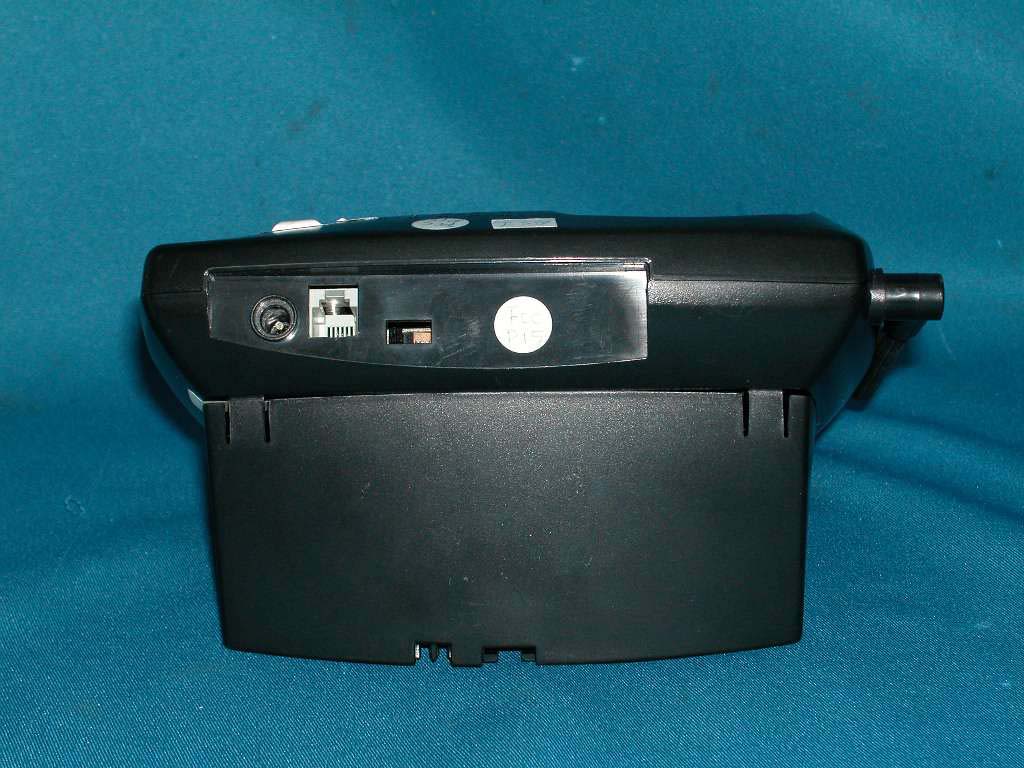

External photos FCC ID: LBBFF2150A External photos FCC ID: LBBFF2150A

FF2150MS/2150MSH/FF2150MSCS BASE PRINTING 1. PRINT BLACK TEXT & LOGO ON METALLIC SILIVER CABINET. 2. PRINT PMS 287C (DARK BLUE) FOR CALLER ID CALL WAITING LOGO. 3.PRINT PMS 428C (GRAY) ON BLACK BUTTONS. FF2150BL/2150BLH PRINTING 1 & 3. PRINT PMS 428C (GRAY) TEXT & LOGO ON BLACK CABINET AND BUTTON. 2. PRINT PMS 645C (LIGHT BLUE) FOR CALLER ID CALL WAITING LOGO. FF2150WCS BASE PRINTING 1. PRINT PMS COOL GREY 10C TEXT & LOGO ON WHITE CABINET. 2. PRINT PMS 287C (DARK BLUE) FOR CALLER ID CALL WAITING LOGO. 3.PRINT WHITE ON PMS COOL GREY 10C BUTTONS. POWER: 9V AC, 60 Hz, 0.4 AMPS FCC ID: LBBFF2150A This equipment complies with 47 CFR Part 68 requirements Registration No. : US:SBFW900BFF2150 REN: 0.0B HAC USOC Jack: RJ11C This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Privacy of communications may not be ensured when using this phone. MODEL NO. FF2150 CONTAINS NICKEL-CADMIUM BATTERY. BATTERY MUST BE RECYCLED OR DISPOSED OF PROPERLY. DISCONNECT ALL TELEPHONE AND POWER LINES FROM THE WALL OUTLETS BEFORE SERVICING OR DISASSEMBLING THIS EQUIPMENT OR REPLACING THE BATTERIES. MANUFACTURED TO BELL SPECIFICATIONS MADE IN CHINA INFORMATION TECHNOLOGY EQUIPMENT 1 2 3 3 3 1 1 1 1 1 3 ANTENNA BLACK LABEL, DATE CODE LABEL, CODE 39 (V13976) +V0* LABEL, UPC BARCODE FF2150MS/MSH 0 14337 90274 6 FF2150BL/BLH 0 14337 90293 7 FF2150WCS 0 14337 90313 2 FF2150MSCS 0 14337 90315 6 BOTTOM CABINET ENGRAVE TEXT ENGRAVE TEXT AC9V400MA TEL LINE USE ONLY WITH CLASS 2 POWER SOURCE 6 Difficulty with placing or receiving calls? Security code may be lost. Reset by placing handset on base for 10 seconds. If phone still doesn't work. consult Owner's Manual or Quick Installation Guide. LABEL, RESET US 72870 FF2150BL/BLH HANDSET PRINTING 1. PRINT PMS428C (GRAY) TEXT & LOGO ON BLACK CABINET. 2. LENS PRINT BLACK WITH BLACK ANTENNA & RUBBER GRIP. FF2150MS/MSH/MSCS PRINTING 1. PRINT BLACK TEXT & LOGO ON METALLIC SILIVER CABINET. 2. LENS PRINT BLACK WITH BLACK ANTENNA & RUBBER GRIP. FF2150WCS PRINTING 1. PRINT PMS COOL GREY 10C TEXT & LOGO ON WHITE CABINET. 2. LENS PRINT PMS COOL GREY 10C WITH PMS COOL GREY 10C ANTENNA & RUBBER GRIP. FF2150MS/MSH/MSCS/BL/BLH SILICONE KEYPAD SILKSCREEN BLACK ON TRANSLUCENT WHITE BUTTON OTHER BUTTON BLACK FF2150WCS SILICONE KEYPAD SILKSCREEN BLACK ON TRANSLUCENT WHITE BUTTON OTHER BUTTON PMS COOL GREY 10C ANTENNA SLEEVE RUBBER GRIP CLEAR LENS RUBBER GRIP HANDSET ACETATE LABEL CAUTION: TO REDUCE RISK OF FIRE OR INJURY. USE ONLY WITH ONE OF THE BELOW BATTERIES: GPI GP40AAK 3BMX 3.6V 400mAh BYD D-2/3AA400x3 3.6V 400mAh JB JB40AA2/3N3BMX 3.6V 400mAh FCC ID: LBBFF2150A R+ B- ENGRAVE TEXT ENGRAVE IMAGES FCC ID : LBBFF2150A MODEL : FF2150 ENGRAVE TEXT

Internal photos FCC ID: LBBFF2150A Base assembly (View 1) Base assembly (View 2) Internal photos FCC ID: LBBFF2150A Base Main PCB comp side (View 1) Base Main PCB comp side (View 2) Internal photos FCC ID: LBBFF2150A Base Main PCB comp side (View 3) Base Main PCB solder side Internal photos FCC ID: LBBFF2150A Base LEDs PCB front side Base LEDs PCB rear side Internal photos FCC ID: LBBFF2150A Base DAM keypad front side Base DAM keypad rear side Internal photos FCC ID: LBBFF2150A Base Oscillator PCB comp side Base Oscillator PCB solder side Internal photos FCC ID: LBBFF2150A Handset assembly Handset Main PCB comp side (View 1) Internal photos FCC ID: LBBFF2150A Handset Main PCB comp side (View 2) Handset Main PCB display side Internal photos FCC ID: LBBFF2150A Handset Oscillator PCB comp side (View 1) Handset Oscillator PCB comp side (View 2) Internal photos FCC ID: LBBFF2150A Handset Oscillator PCB solder side

854BS10.sch-1 - Thu May 15 14:26:19 2003 854BS10.sch-2 - Thu May 15 14:26:28 2003 854BS10.sch-3 - Thu May 15 14:26:35 2003 854BS10.sch-4 - Thu May 15 14:26:43 2003 854BR08B.sch-2 - Thu May 15 14:25:13 2003

• The test results reported in this report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization form Intertek Testing Services Limited FCC ID: LBBFF2150A Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2741 1693 Continental Conair Limited Application For Certification 900MHz 40 Channel Analog Modulation Cordless Phone with Digital Answering Machine and Caller ID (FCC ID: LBBFF2150A) WO# 03062861 TL/Ann Choy May 17, 2003 INTERTEK TESTING SERVICES FCC ID: LBBFF2150A i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1:General Description EXHIBIT 2:System Test Configuration EXHIBIT 3:Emission Results EXHIBIT 4:Equipment Photographs EXHIBIT 5:Product Labelling EXHIBIT 6:Technical Specifications EXHIBIT 7:Instruction Manual EXHIBIT 8:Security Code Information INTERTEK TESTING SERVICES FCC ID: LBBFF2150A ii MEASUREMENT/TECHNICAL REPORT Continental Conair Limited - MODEL: FF2150(XXXXX) FCC ID: LBBFF2150A This report concerns (check one:) Original Grant X Class II Change Equipment Type : Cordless Telephone (example : computer, modem, transmitter, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)?Yes No X If yes, defer until : date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37 ?Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [08-20-02 Edition] Provision. Report prepared by:Tommy Leung Intertek Testing Services. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Phone :852-2173-8538 Fax:852-2741-1693 INTERTEK TESTING SERVICES FCC ID: LBBFF2150A iii Table of Contents 1.0General Description.........................................................................................................2 1.1 Product Description .........................................................................................................2 1.2 Related Submittal(s) Grants ............................................................................................3 1.3 Test Methodology ............................................................................................................3 1.4 Test Facility .....................................................................................................................3 2.0System Test Configuration.................................................................................................5 2.1 Justification ......................................................................................................................5 2.2 EUT Exercising Software................................................................................................5 2.3 Support Equipment List and Description........................................................................6 2.4 Measurement Uncertainty ...............................................................................................7 2.5 Equipment Modification..................................................................................................7 3.0Emission Results...................................................................................................................9 3.1 Field Strength Calculation .............................................................................................10 3.2 Radiated Emission Configuration Photograph - Base Unit ..........................................11 3.3 Radiated Emission Data - Base Unit .............................................................................12 3.4 Radiated Emission Configuration Photograph - Handset .............................................15 3.5 Radiated Emission Data - Handset................................................................................16 3.6 Radiated Emission on the bandedge..............................................................................19 3.7 Line Conducted Configuration Photograph - Base Unit...............................................21 3.8 Line Conducted Emission Data - Base Unit .................................................................22 4.0Equipment Photographs...................................................................................................25 5.0Product Labelling...............................................................................................................27 6.0Technical Specifications....................................................................................................29 7.0Instruction Manual............................................................................................................31 8.0Security Code Information...............................................................................................33 INTERTEK TESTING SERVICES FCC ID: LBBFF2150A iv List of attached file Exhibit typeFile Descriptionfilename Test ReportTest Reportreport.pdf Operation DescriptionTechnical Descriptiondescri.pdf Test Setup PhotoRadiated Emission for Baseconfig photos.doc Test Setup PhotoRadiated Emission for Handsetconfig photos.doc Test ReportEmission Plotemission.pdf Test Setup PhotoConducted Emissionconfig photos.doc Test ReportConducted Emission Test Resultconduct.pdf External PhotoExternal Photoexternal photos.doc Internal PhotoInternal Photointernal photos.doc Block DiagramBlock Diagramblock.pdf SchematicsCircuit Diagramcircuit.pdf ID Label/LocationLabel Artwork and Locationlabel.pdf User ManualUser Manualmanual.pdf User ManualFCC Informationfcc information.pdf INTERTEK TESTING SERVICES FCC ID: LBBFF2150A 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: LBBFF2150A 2 1.0General Description 1.1Product Description The FF2150 is a 900MHz …

Text truncated - open the document above for the full version.

Intertek Testing Services ETL SEMKO Report No.:03062861 Talk Mode Ctrl No.:N/A PAGE 1 Tested By:Hong, Report No.:03062861 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement: x QP / + AV Meas Time: 1 s Subranges: 16 Acc Margin: 20dB Transducer No. Start Stop Name 21 9k 30M EW0698 0 10 20 30 40 50 60 70 80 90 dBuV 100 0.15 MHz 30110 F15Q F15A Intertek Testing Services ETL SEMKO Report No.:03062861 Talk Mode Ctrl No.:N/A Tested By:Hong, Report No.:03062861 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement Results: Frequency QP Level QP Limit MHz dBuV dBuV 3.58500 44.5 56.0 Frequency AV Level AV Limit MHz dBuV dBuV 3.58500 43.1 46.0 * limit exceeded

The Worst Case Configuration Photographs FCC ID: LBBFF2150A Radiated Emission – Base Front View Rear View The Worst Case Configuration Photographs FCC ID: LBBFF2150A Radiated Emission – Handset Front View Rear View The Worst Case Configuration Photographs FCC ID: LBBFF2150A Conducted Emission Front View Rear View The Worst Case Configuration Photographs FCC ID: LBBFF2150A Conducted Emission Side View

The Worst Case Configuration Photographs FCC ID: LBBFF2150A Radiated Emission – Base Front View Rear View The Worst Case Configuration Photographs FCC ID: LBBFF2150A Radiated Emission – Handset Front View Rear View The Worst Case Configuration Photographs FCC ID: LBBFF2150A Conducted Emission Front View Rear View The Worst Case Configuration Photographs FCC ID: LBBFF2150A Conducted Emission Side View
