LBBGH3000AT2.4GHz 40 Channel Analog Modulation Cordless Phone

IMPORTANT SAFETY INSTRUCTIONS BEFORE USING YOUR TELEPHONE EQUIPMENT, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK AND INJURY TO PERSONS, INCLUDING THE FOLLOWING: 1.Read and understand all instructions. 2.Follow all warnings and instructions marked on the product. 3.Unplug this product from the wall telephone jack and power outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use damp cloth for cleaning. 4.Do not use this product near water; for example, near a bathtub, wash bowl, kitchen sink, laundry tub, swimming pool, or in a wet basement. 5.Do not place this product on an unstable cart, stand or table. The product may fall, causing serious damage to the product. 6.Slots or openings in the cabinet and the back and bottom are provided for ventilation, to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the product on the bed, or other similar surface. This product should never be placed near or over a radiator or heat register. This product should not be placed in a built-in installation unless proper ventilation is provided. 7.This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your dealer or local power company. 8.Do not allow anything to rest on the power cord. Do not locate this product where the cord will be damaged by persons walking on it. 9.Do not overload wall outlets extension cords, as this can result in fire or electric shock. 10.Never push objects of any kind into this product through cabinet slots, as they may touch dangerous voltage points or short out parts. This could result in fire or electric shock. Never spill liquid of any kind on this product. 11.To reduce the risk of electric shock, do not disassemble this product. Instead, when some repair work is required, take the unit to a qualified technician. Opening or removing covers may expose you to dangerous voltages or other risks. Incorrect reassembly can cause electric shock when the appliance is subsequently used. 12.Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: a. When the power supply cord or plug is damaged or frayed. b. If liquid has been spilled into the product. c. If the product has been exposed to rain or water. d. If the product does not operate normally and proper operating instructions have been followed, adjust only those controls that are covered by the operating instructions. Improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to normal operation. e. If the product has been dropped or cabinet has been damaged. f. If the product exhibits a distinct change in performance. 13.Avoid using telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electrical shock from lightning. 14.Do not use the telephone to report a gas leak in the vicinity of the leak. 15.Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may explode. Check with local codes for possible special disposal instructions. CAUTION Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions. SAVE THESE INSTRUCTIONS SAFETY INSTRUCTIONS FOR BATTERIES CAUTION: To reduce the risk of fire or personal injury, read and follow these instructions.: CONTAINS NICKEL-CADMIUM BATTERY. BATTERY MUST BE RECYCLED OR DISPOSED OF PROPERLY. 1. Use only a Southwestern Bell Freedom Phone®approved battery pack in the handset of your cordless telephone. FOR HANDSET UNIT: a. GP40AAK3BMX 3.6V 400mAHr GPI International Ltd. or b. D-2/3AA400x3 3.6V 400mAHr., BYD Battery Co. Ltd. c. JB40AA2/3N3BMX 3.6V 400mAHr JB Energy (HK) Ltd. 2. Do not open or mutilate the battery. Released electrolyte is corrosive and may cause damage to the eyes and skin. It may be toxic if swallowed. 3. Exercise care in handling batteries in order not to short the battery with conducting materials such as rings, bracelets and keys. The battery or conduction material may overheat and cause burns. 4. Charge the battery (ies) provided with or identified for use with this product only in accordance with the instructions and limitations specified in this manual. 5. Observe proper polarity orientation between the Battery Pack and battery charger. The EPA certified RBRC ® * Battery Recycling Seal on the nickel-cadmium (Ni- Cd) battery indicates that Southwestern Bell Freedom Phone® Retail Salesis voluntarily participating in an industry program to collect and recycle these batteries at the end of their useful life, when taken out of service in the United States or Canada. The RBRC ® program provides a convenient alternative to placing used Ni-Cd batteries into the trash or the municipal waste stream, which may be illegal in your areas. Please call 1- 800-8-BATTERY for information on Ni-Cd battery recycling and disposal bans / restrictions in your area. Southwestern Bell Freedom Phone® Retail Salesinvolvement in this program is part of our commitment to preserving our environment and conserving our natural resources. *RBRC ® is a registered trademark of the Rechargeable Battery Recycling Corporation. FCC WANTS YOU TO KNOW This equipment compiles with Part 68 of the FCC rules. On the bottom of the base of this equipment is a label that contains, among other information, the FCC Registration Number, Ringer Equivalence Number (REN) and the Universal Service Order Code (USOC), which is RJ- 11C, for this equipment. You must, upon request, provide this information to your telephone company. An FCC compliant telephone cord and modular plug is provided …

Text truncated - open the document above for the full version.

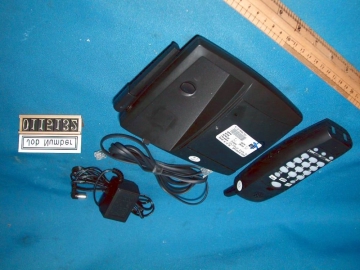

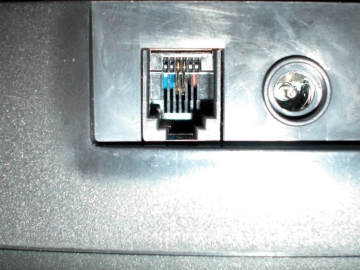

External photos FCC ID: LBBGH3000AT External photos FCC ID: LBBGH3000AT

GH3000 02/01/2002 P/T TEL LINE DC9V 200mA DC9V200mA USE ONLY WITH CLASS 2 POWER SOURCE USEONLYWITH CLASS 2POWERSOURCE V01A AT 0302 S/N:CXXXXXX US ® L I S T E D L I S T E D 70255 PRIVACY OF COMMUNICATIONS MAY NOT BE ENSURED WHEN USING THIS PHONE. FCC ID : LBBGH3000AT THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. CONFORMS TO ANSI/UL STD. 1950 Southwestern Bell ® Complies with Part 68 FCC Rules FCC REGISTRATION NUMBER: XXXXXX-XXXXX-XX-X USOC JACK: RJ11CREN: 1.0B HAC MADE IN CHINA MANUFACTURED TO BELL SPECIFICATIONS MODEL No. GH3000AT FCC ID: LBBGH3000AT Model No. GH3000AT

Internal photosFCC ID: LBBGH3000AT Base assembly Base Main PCB comp side Internal photosFCC ID: LBBGH3000AT Base Main PCB solder side Base Oscillator PCB comp side Internal photosFCC ID: LBBGH3000AT Base Oscillator PCB solder side Internal photosFCC ID: LBBGH3000AT Handset assembly Handset Main PCB comp side Internal photosFCC ID: LBBGH3000AT Handset Main PCB display side Handset PCB keypad front side Internal photosFCC ID: LBBGH3000AT Handset PCB keypad rear side Handset Oscillator PCB comp side Internal photosFCC ID: LBBGH3000AT Handset Oscillator PCB solder side

GH3000 Circuit Description 1.Introduction The model GH3000 is a 40 channel (2.40255-2.47595GHz) cordless telephone. The whole unit is divided into two main parts as follow : a. A remote Handset. b. A Base unit. 2.Functional Blocks of the Remote Handset 2.1 Keyboard matrix and function LED 2.2 MCU and MCU interface 2.3 Antenna and RF module 2.4 Compander 2.5 Data shaper 2.6 Charge detector 2.7 Low battery detector 2.8 Buzzer amplifier 3. Circuit Block Description 3.1 Keyboard matrix and function LED Pin 4 to pin7, pin 10 to pin 11 and pin 25 of the U2 MCU form a keyboard, and the talk LED is controlled by the pin 12 of the MCU. 3.2 MCU and MCU interface The handset and the base is link up by the pins(9,24 in HS and 21,24 in Base). Besides, the PLL of the RF Module is controlled by the pins 15,17 and 18 of the MCU. 3.3 Antenna and RF module ANT is the common point for transmitting and receiving through antenna. MD1 is a RF module which consists of Duplexer, Power amplifier, Mixer & IF, RXVCO, TXVCO, VCC & TXVCC control, Synthesizer and DEMO Audio Output circuits. 3.4 Compander A compander U3 is used for improving the S/N of the transmit and receive audio signal. 3.5 Data shaper The information which sending from base unit, is recovered by the amplifier Q1 and Q2. 3.6 Charge detector ZD1, D4, D5, D6, D7, D8, R53, C29 form a charge detector to direct the charging signal to the MCU pin 26. 3.7 Low battery detector A battery low detector is built-in by Q3 which detects the battery dropping and sends a signal to pin 19 of MCU. 3.8 Buzzer amplifier Q11 is a buzzer amplifier driven directly by the MCU pin 21,22 and 23. 4.Functional Blocks of the Base unit 4.1 Power supply 4.2 MCU and MCU interface 4.3 Antenna and RF module 4.4 Compander 4.5 Data shaper 4.6 Charge detector 4.7 Line audio interface 4.8 Ring detector 4.9 Led function board 4.10 Noise detector and carrier detector 5.Circuit Block Description 5.1 Power supply BQ4 8050 regulateS the input DC 9V to 5V which provides power to every part of the circuit. 5.2 MCU and MCU interface The heart of the base is BU5 MCU that communicates with the PLL of BMD1 through pins 5,6 and 7. Transmitter is controlled by the signal TX_DC which output from MCU via pin 20. MCU pins 6 to 11 consist of a resistor ladder for generating DTMF signal. The communication between Handset and Base is via the pin 24 and pin 26 through the RF link. 5.3 Antenna and RF modulator ANT is antenna transmit and receive signal. BMD1 is a RF modulator which consist of Duplexer, Power amplifier, Mixer & IF, RXVCO, TXVCO, VCC & TXVCC control, Synthesizer and DEMO Audio Output circuits. 5.4 Compander A compander BU1 is used for improving the S/N of the transmit and receive audio signal. 5.5 Data shaper The information which sending from handset unit, is recovered by the amplifier BQ1 and BQ2. 5.6 Charge detector BQ7 is a charge detector to direct the charging signal to the MCU pin 25. 5.7 Line audio interface BR20, BD9, BD10, BD11, BD12, BC40, BU5, BD13 and BTR1 line transformer are the audio interface to the telephone line. The transformer is also used for telephone isolation. 5.8 Ring detector BC41, BR11, BZD3, BZD2, BD8, BU4(K817P or LTV817) and BR44 form a ring detector which feed the signal through pin 26 of MCU. 5.9 LED function board BLED1 is used for indicating “IN USE” OR “CHARGING” when handset is on cradle. 5.10 Carrier detector The RF Module BMD1 pin 10 is an output pin of the carrier detector signal , it is sent to BU3 pin 23.When there is carrier, it is Low; when there is noise, it is High. BU5 finds the clear channel by this pin 23.

Rfb02.sch-1 - Wed Apr 25 10:59:46 2001 Rfh02.sch-1 - Wed Apr 25 11:32:20 2001

• The test results reported in this report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization form Intertek Testing Services Limited FCC ID: LBBGH3000AT Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2741 1693 Continental Conair Limited Application For Certification 2.4GHz 40 Channel Analog Modulation Cordless Phone (FCC ID: LBBGH3000AT) WO# 0115132 TL/Ann Choy February 7, 2002 INTERTEK TESTING SERVICES FCC ID: LBBGH3000AT i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1:General Description EXHIBIT 2:System Test Configuration EXHIBIT 3:Emission Results EXHIBIT 4:Equipment Photographs EXHIBIT 5:Product Labelling EXHIBIT 6:Technical Specifications EXHIBIT 7:Instruction Manual EXHIBIT 8:Security Code Information INTERTEK TESTING SERVICES FCC ID: LBBGH3000AT ii MEASUREMENT/TECHNICAL REPORT Continental Conair Limited - MODEL: GH3000AT(xxxxx) GH3000(xxxxx) FCC ID: LBBGH3000AT This report concerns (check one:) Original Grant X Class II Change Equipment Type : Cordless Telephone (example : computer, modem, transmitter, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)?Yes No X If yes, defer until : date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37 ?Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [ 12-18-01 Edition ] Provision. Report prepared by:Tommy Leung Intertek Testing Services. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Phone :852-2173-8575 Fax:852-2741-1693 INTERTEK TESTING SERVICES FCC ID: LBBGH3000AT iii Table of Contents 1.0 General Description ...............................................................................2 1.1 Product Description ..............................................................................2 1.2 Related Submittal(s) Grants .....................................................................3 1.3 Test Methodology ................................................................................3 1.4 Test Facility .......................................................................................3 2.0 System Test Configuration .........................................................................5 2.1 Justification ........................................................................................5 2.2 EUT Exercising Software .......................................................................5 2.3 Support Equipment List and Description.....................................................6 2.4 Measurement Uncertainty .......................................................................7 2.5 Equipment Modification.........................................................................7 3.0 Emission Results ......................................................................................9 3.1 Field Strength Calculation .................................................................... 10 3.2 Radiated Emission Configuration Photograph - Base Unit.............................. 11 3.3 Radiated Emission Data - Base Unit ........................................................ 12 3.4 Radiated Emission Configuration Photograph - Handset ................................ 15 3.5 Radiated Emission Data - Handset .......................................................... 16 3.6 Radiated Emission on the bandedge ......................................................... 19 3.7 Line Conducted Configuration Photograph - Base Unit ................................. 21 3.8 Line Conducted Emission Data - Base Unit ............................................... 22 4.0 Equipment Photographs .......................................................................... 25 5.0 Product Labelling .................................................................................. 27 6.0 Technical Specifications ........................................................................... 29 7.0 Instruction Manual ................................................................................ 31 8.0 Security Code Information ....................................................................... 33 INTERTEK TESTING SERVICES FCC ID: LBBGH3000AT iv List of attached file Exhibit typeFile Descriptionfilename Test ReportTest Reportreport.doc Operation DescriptionTechnical Descriptiondescri.pdf Test Setup PhotoRadiated Emission for Baseconfig photos.doc Test Setup PhotoRadiated Emission for Handsetconfig photos.doc Test ReportEmission Plotemission.pdf Test Setup PhotoConducted Emissionconfig photos.doc Test ReportConducted Emission Test Resultconduct.pdf External PhotoExternal Photoexternal photos.doc Internal PhotoInternal Photointernal photos.doc Block DiagramBlock Diagramblock.pdf SchematicsCircuit Diagramcircuit.pdf ID Label/LocationLabel Artwork and Locationlabel.pdf User ManualUser Manualmanual.pdf User ManualFCC Informationfcc information.pdf INTERTEK TESTING SERVICES FCC ID: LBBGH3000AT 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: LBBGH3000AT 2 1.0 General Description 1.1 Product Description The GH3000AT(xxxxx) is a 2.4GHz 40 Channel Analog Modulation Cordless Phone. The unit is capable of either tone or pulse dialing. The internal power supply's isolation is accomplished through a power transformer having an adequate dielectric rating. The circuit wiring is consistent under the requirement of part 68. The handset unit consists of a keypad with twelve standard keys (0,...9,*,#), four function keys (Mem, Flash, Redial, Mute), and one channel switch key. A Talk key is provided to control pick/release telephone line in a toggle base. The base unit has a page key, which is us…

Text truncated - open the document above for the full version.

The Worst Case Configuration Photographs FCC ID: LBBGH3000AT Radiated Emission – Base Front View Rear View The Worst Case Configuration Photographs FCC ID: LBBGH3000AT Radiated Emission – Handset Front View Rear View The Worst Case Configuration Photographs FCC ID: LBBGH3000AT Conducted Emission Front View Rear View The Worst Case Configuration Photographs FCC ID: LBBGH3000AT Conducted Emission Side View
