LBBGH3010AT2.4GHz 40 Channel Cordless Phone with Caller ID

STOP ...DON’T TAKE ME BACK TO THE STORE. LOOK ...FOR THE TOLL-FREE “HELP” TELEPHONE NUMBER. LISTEN ...AS THE EXPERTS TALK YOU THROUGH THE PROBLEM. For immediate answers to your questions regarding operation, missing parts or installation, call the SOUTHWESTERN BELL FREEDOM PHONE® RETAIL SALES HELP LINE AT: 1-800-366-0937 Monday - Friday 8:30a.m. - 9:00p.m. EST Saturday 8:30a.m. - 12:30p.m. EST http://www.swbfreedomphone.com SOUTHWESTERN BELL FREEDOM PHONE® 7475 N. Glen Harbor Blvd., Glendale, AZ 85307 GH3010AT Printed in China Southwestern BellFreedom Phone ® 2.4GHz Cordless Telephone with Call Waiting Caller IDGH3010AT Owner’s ManualToll Free Helpline 1-800-366-0937http://www.swbfreedomphone.com IB- 4105 CONTENTS IMPORTANT SAFETY INSTRUCTIONSSAFETY INSTRUCTIONS FOR BATTERIESNAME OF CONTROLS AND INDICATIONSFCC WANTS YOU TO KNOWINTRODUCTIONFEATURESBOX CONTENTSPREPARATIONOPERA TING INSTRUCTIONS INSTALLATIONHANDSET BATTERY CHARGINGCALLER ID SETUPTELEPHONE OPERATIONCALLER ID OPERATIONTROUBLESHOOTINGPRODUCT CARESERVICELIMITED WARRANTY 2 34589 1010111314151922242526 IMPORTANT SAFETY INSTRUCTIONS BEFORE USING YOUR TELEPHONE EQUIPMENT, BASIC SAFETY PRECAUTIONSSHOULD ALWAYS BE FOLLOWED TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCKAND INJURY TO PERSONS, INCLUDING THE FOLLOWING:1. Read and understand all instructions.2. Follow all warnings and instructions marked on the product.3. Unplug this product from the wall telephone jack and power outlet before cleaning. Donot use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.4. Do not use this product near water, for example, near a bath tub, wash bowl, kitchensink, laundry tub, swimming pool, or in a wet basement.5. Do not place this product on an unstable cart, stand or table. The product may fall,causing serious damage.6. Slots or openings in the cabinet and the back and bottom are provided for ventilation, toprotect it from overheating. These openings must not be blocked or covered. The openingsshould never be blocked by placing the product on a bed, or other similar surface. This productshould never be placed near or over a radiator or heat register.7. This product should be operated only from the type of power source indicated on themarking label. If you are not sure of the type of power supply to your home, consult yourdealer or local power company.8. Do not allow anything to rest on the power cord. Do not place this product where thecord will be damaged by persons stepping on it. 9. Do not overload wall outlets and extension cords, as this can result in fire or electric shock. 10. Never push objects of any kind into this product through cabinet slots, as they maytouch dangerous voltage points or short out parts. This could result in fire or electric shock.Never spill liquid of any kind on the product.11. To reduce the risk of electric shock, do not disassemble this product. Instead, when serviceor repair work is required, take it to a qualified service technician. Opening or removing coversmay expose you to dangerous voltages or other risks. Incorrect reassembly can cause electricshock when the appliance is subsequently used.12. Unplug this product from the wall outlet and refer servicing to qualified service personnelunder the following conditions: a. When the power supply cord or plug is damaged or frayed.b. If liquid has been spilled into the product.c. If the product has been exposed to rain or water.d. If the product does not operate normally, and proper operating instructions have been followed, adjust only those controls that are covered by the operating instructions. Improperadjustment of other controls may result in damage and will often require extensive work by aqualified technician to restore the product to normal operation. e. If the product has been dropped or the cabinet has been damaged.f. If the product exhibits a distinct change in performance. 13. Avoid using a telephone (other than a cordless type) during an electrical storm. Theremay be a remote risk of electric shock from lightning.14. Do not use the telephone to report a gas leak in the vicinity of the leak.15. Use only the power cord and batteries indicated in this manual. Do not dispose of batteriesin a fire. They may explode. Check with local codes for possible special disposal instructions. CAUTIONDanger of explosion if battery is incorrectly replaced.Replace only with the same or equivalent type recommended by the manufacturer.Dispose of used batteries according to the manufacturer’s instructions. 3 4 SAFETY INSTRUCTIONS FOR BATTERIES Safety Instructions for BatteriesHandset Battery PackCAUTION:Use only a Southwestern Bell Freedom Phone® approved battery pack in the handsetof your GH3010 Cordless Telephone. To reduce the risk of fire or injury, always do thefollowing when replacing, discarding or charging batteries. When handling the batteries,be careful not to short the battery with conducting materials such as rings, bracelets,and keys. The battery or conducting material may overheat and cause burns.Use only the following type and size of battery pack:FOR HANDSET UNIT :a. GP40AAK3BMX 3.6V 400mAHr, GPI International Ltd orb. BYD D-2/3AA400x3 3.6V 400mAHr, BYD Battery Co.,Ltd orc. JB40AA2/3N3BMX 3.6V 400mAHr, JB Energy (HK) Ltd.a. Do not dispose of the battery pack in a fire. The cell may explode. Check with local codes for possible special disposal instructions. b. Do not attempt to open or mutilate the battery pack. The chemicals are dangerous and may cause damage to the eyes or skin, and may be toxic if swallowed. c. Follow the charge instructions outlined in this manual. (See page 13) The EPA certified RBRC®* Battery Recycling Seal on the nickel-cadmium (Ni-Cd)battery indicates that Southwestern Bell Freedom Phone® Retail Sales is voluntarilyparticipating in an industry program to collect and recycle these batteries at the end oftheir useful life, when taken out of service in the United States or Canada. The RBRC®program provides a convenient altern…

Text truncated - open the document above for the full version.

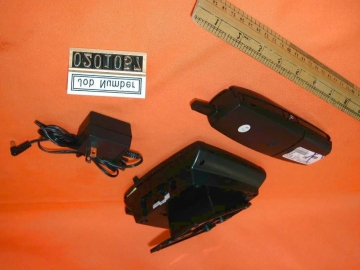

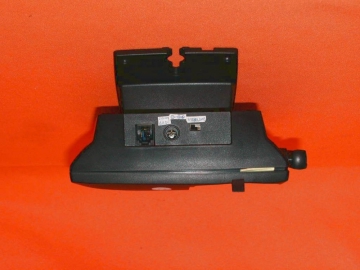

External photos FCC ID: LBBGH3010AT External photos FCC ID: LBBGH3010AT

GH3010 02/01/2002 P/T TEL LINE DC9V 200mA DC9V200mA USE ONLY WITH CLASS 2 POWER SOURCE USEONLYWITH CLASS 2POWERSOURCE FCC ID: LBBGH3010AT Model No. GH3010AT V01A AT 0302 S/N:CXXXXXX US ® L I S T E D L I S T E D 70255 PRIVACY OF COMMUNICATIONS MAY NOT BE ENSURED WHEN USING THIS PHONE. FCC ID : LBBGH3010AT THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. CONFORMS TO ANSI/UL STD. 1950 Southwestern Bell ® Complies with Part 68 FCC Rules FCC REGISTRATION NUMBER: XXXXXX-XXXXX-XX-X USOC JACK: RJ11CREN: 1.0B HAC MADE IN CHINA MANUFACTURED TO BELL SPECIFICATIONS MODEL No. GH3010AT LICENSED UNDER UNITED STATES PATENT NO. 5,263,084

Internal photosFCC ID: LBBGH3010AT Base assembly Base Main PCB comp side Internal photosFCC ID: LBBGH3010AT Base Main PCB solder side Base Oscillator PCB comp side Internal photosFCC ID: LBBGH3010AT Base Oscillator PCB solder side Internal photosFCC ID: LBBGH3010AT Handset assembly Handset Main PCB comp side Internal photosFCC ID: LBBGH3010AT Handset Main PCB solder side Handset PCB display front side Internal photosFCC ID: LBBGH3010AT Handset PCB display rear side Handset Oscillator PCB comp side Internal photosFCC ID: LBBGH3010AT Handset Oscillator PCB solder side

3010S Circuit Description 1.Introduction The model 3010S is a 40 channel (2.40255-2.47595GHz ) Caller ID cordless telephone. The whole unit is divided into two main parts as follow : a. A remote Handset. b. A Base unit. 2.Functional Blocks of the Remote Handset 2.1 Keyboard matrix and function LED 2.2 LCD 2.3 MCU and MCU interface 2.4 Antenna and RF module 2.5 Compander 2.6 Data shaper 2.7 Charge detector 2.8 Low battery detector 2.9 Buzzer amplifier 3. Circuit Block Description 3.1 Keyboard matrix and function LED Pin 46 to pin51, pin 54 to pin 58 of the MCU:U1 NT93423 form a keyboard, and the new call LED is controlled by the pin 73 of the MCU. 3.2 LCD LCD1 is controlled by the MCU: U1 NT93423 pin 1 to pin 32, pin 103 to pin 128. 3.3 MCU and MCU interface The handset and the base is link up by the pins(45,78 in HS and 43,78 in Base). Besides, the PLL of the RF Module is controlled by the pins 39 to pin 41 of the MCU. 3.4 Antenna and RF module ANT is the common point for transmitting and receiving through antenna. MD1 is a RF module which consists of Filter, Power amplifier, Mixer & IF, RXVCO, TXVCO, VCC & TXVCC control, Synthesizer and DEMO Audio Output circuits. 3.5 Compander A compander U1 is used for improving the S/N of the transmit and receive audio signal. 3.6 Data shaper The information which sending from base unit, is recovered by the amplifier Q1 and MQ4,MQ5. 3.7 Charge detector MD3 to MD6, MZD1, MR23,MC9 and MR22 form a charge detector to direct the charging signal to the MCU pin 34. 3.8 Low battery detector A battery low detector is built-in by the Q2, R5 to R7 and D2 which detects the battery dropping and sends a signal to pin 36 of MCU. 3.9 Buzzer amplifier Q4 is a buzzer amplifier driven directly by the MCU pin 61. 4.Functional Blocks of the Base unit 4.1 Power supply 4.2 MCU and MCU interface 4.3Calling line identifier 4.4 Antenna and RF module 4.5 Compander 4.6 Data shaper 4.7 Charge detector 4.8 Line audio interface 4.9 Ring detector 4.10 Led function board 4.11 Carrier detector 5.Circuit Block Description 5.1 Power supply BU1 7805 regulate the input DC 9V to 5V which provides power to every part of the circuit. 5.2 MCU and MCU interface The heart of the base is MCU BMU1: NT93423A that communicates with the PLL of BMD1 through pins 39,40 and 41. Transmitter is controlled by the signal TX_DC which output from MCU via pin 53. MCU pin 95 isfor generating DTMF signal. The communication between Handset and Base is via the pin 43 and pin 76 through the RF link. 5.3 Calling line identifier MCU pin 87 to pin 88, when receiving caller ID data, MCU controls the LCD to display the correct information. 5.4 Antenna and RF modulator ANT is antenna transmit and receive signal. BMD1 is a RF modulator which consist of Filter, Power amplifier, Mixer & IF, RXVCO, TXVCO, VCC & TXVCC control, Synthesizer and DEMO Audio Output circuits. 5.5 Compander A compander BU2 is used for improving the S/N of the transmit and receive audio signal. 5.6 Data shaper The information which sending from handset unit, is recovered by the amplifier BQ2, BQ3. 5.7 Charge detector BQ6 is a charge detector to direct the charging signal to the MCU pin 80. 5.8 Line audio interface BR84, BC58,BD15 to BD18, BD20 and BT1 line transformer are the audio interface to the telephone line. The transformer is also used for telephone isolation. 5.9 Ring detector BR83, BC57,BZD3, BZD4, BD13, BU3(LTV817) form a ring detector which feedthe signal through pin 93 of MCU. 5.10 LED function board BMLED1 is used for indicating “IN USE/CHARGE”. 5.11 Carrier detector The RF Module BMD1 pin 10 is an output pin of the carrier detector signal to MCU pin79.

• The test results reported in this report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization form Intertek Testing Services Limited FCC ID: LBBGH3010AT Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2741 1693 Continental Conair Limited Application For Certification 2.4GHz 40 Channel Analog Modulation Cordless Phone with Caller ID (FCC ID: LBBGH3010AT) WO# 02010571 TL/Ann Choy February 20, 2002 INTERTEK TESTING SERVICES FCC ID: LBBGH3010AT i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1:General Description EXHIBIT 2:System Test Configuration EXHIBIT 3:Emission Results EXHIBIT 4:Equipment Photographs EXHIBIT 5:Product Labelling EXHIBIT 6:Technical Specifications EXHIBIT 7:Instruction Manual EXHIBIT 8:Security Code Information INTERTEK TESTING SERVICES FCC ID: LBBGH3010AT ii MEASUREMENT/TECHNICAL REPORT Continental Conair Limited - MODEL: GH3010AT(xxxxx) GH3010(xxxxx) FCC ID: LBBGH3010AT This report concerns (check one:) Original Grant X Class II Change Equipment Type : Cordless Telephone (example : computer, modem, transmitter, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)?Yes No X If yes, defer until : date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37 ?Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [ 12-18-01 Edition ] Provision. Report prepared by:Tommy Leung Intertek Testing Services. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Phone :852-2173-8575 Fax:852-2741-1693 INTERTEK TESTING SERVICES FCC ID: LBBGH3010AT iii Table of Contents 1.0 General Description ...............................................................................2 1.1 Product Description ..............................................................................2 1.2 Related Submittal(s) Grants .....................................................................3 1.3 Test Methodology ................................................................................3 1.4 Test Facility .......................................................................................3 2.0 System Test Configuration .........................................................................5 2.1 Justification ........................................................................................5 2.2 EUT Exercising Software .......................................................................5 2.3 Support Equipment List and Description.....................................................6 2.4 Measurement Uncertainty .......................................................................7 2.5 Equipment Modification.........................................................................7 3.0 Emission Results ......................................................................................9 3.1 Field Strength Calculation .................................................................... 10 3.2 Radiated Emission Configuration Photograph - Base Unit.............................. 11 3.3 Radiated Emission Data - Base Unit ........................................................ 12 3.4 Radiated Emission Configuration Photograph - Handset ................................ 15 3.5 Radiated Emission Data - Handset .......................................................... 16 3.6 Radiated Emission on the bandedge ......................................................... 19 3.7 Line Conducted Configuration Photograph - Base Unit ................................. 21 3.8 Line Conducted Emission Data - Base Unit ............................................... 22 4.0 Equipment Photographs .......................................................................... 25 5.0 Product Labelling .................................................................................. 27 6.0 Technical Specifications ........................................................................... 29 7.0 Instruction Manual ................................................................................ 31 8.0 Security Code Information ....................................................................... 33 INTERTEK TESTING SERVICES FCC ID: LBBGH3010AT iv List of attached file Exhibit typeFile Descriptionfilename Test ReportTest Reportreport.doc Operation DescriptionTechnical Descriptiondescri.pdf Test Setup PhotoRadiated Emission for Baseconfig photos.doc Test Setup PhotoRadiated Emission for Handsetconfig photos.doc Test ReportEmission Plotemission.pdf Test Setup PhotoConducted Emissionconfig photos.doc Test ReportConducted Emission Test Resultconduct.pdf External PhotoExternal Photoexternal photos.doc Internal PhotoInternal Photointernal photos.doc Block DiagramBlock Diagramblock.pdf SchematicsCircuit Diagramcircuit.pdf ID Label/LocationLabel Artwork and Locationlabel.pdf User ManualUser Manualmanual.pdf User ManualFCC Informationfcc information.pdf INTERTEK TESTING SERVICES FCC ID: LBBGH3010AT 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: LBBGH3010AT 2 1.0 General Description 1.1 Product Description The GH3010AT(xxxxx) is a 2.4GHz 40 Channel Analog Modulation Cordless Phone with Caller ID. The unit is capable of either tone or pulse dialing. The internal power supply's isolation is accomplished through a power transformer having an adequate dielectric rating. The circuit wiring is consistent under the requirement of part 68. The handset unit consists of a keypad with twelve standard keys (0,...9,*,#), six function keys (Calls, Memo, Del, Flash, Redial, Mute), and one channel switch key. A talk key is provided to control pick/release telephone line in a toggle bas…
