LBBGH3010ATA2.4GHz 40 Channel Analog Modulation Cordless Phone

Continental Conair Limited

Click to zoom

Application Details

Equipment Class: DXT - Part 15 Low Power Transceiver, Rx Verified
Date of Grant: Mar 03, 2003
Application Purpose: Original Equipment
Date of Application: Mar 03, 2003
Equipment Note: 2.4GHz 40 Channel Analog Modulation Cordless Phone
Frequency Range: 2474.00000000 - 2475.95000000
Company: Continental Conair Limited
Country: Hong Kong

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

STOP ...DON’T TAKE ME BACK TO THE STORE. LOOK ...FOR THE TOLL-FREE “HELP” TELEPHONE NUMBER. LISTEN ...AS THE EXPERTS TALK YOU THROUGH THE PROBLEM. For immediate answers to your questions regarding operation, missing parts or installation, call the SOUTHWESTERN BELL FREEDOM PHONE® RETAIL SALES HELP LINE AT: 1-800-366-0937 Monday - Friday 8:30a.m. - 9:00p.m. EST Saturday 8:30a.m. - 12:30p.m. EST http://www.swbfreedomphone.com SOUTHWESTERN BELL FREEDOM PHONE® 7475 N. Glen Harbor Blvd., Glendale, AZ 85307 GH3010AT Printed in China Southwestern BellFreedom Phone ® 2.4GHz Cordless Telephone with Call Waiting Caller IDGH3010AT Owner’s ManualToll Free Helpline 1-800-366-0937http://www.swbfreedomphone.com IB- 4105 CONTENTS IMPORTANT SAFETY INSTRUCTIONSSAFETY INSTRUCTIONS FOR BATTERIESNAME OF CONTROLS AND INDICATIONSFCC WANTS YOU TO KNOWINTRODUCTIONFEATURESBOX CONTENTSPREPARATIONOPERA TING INSTRUCTIONS INSTALLATIONHANDSET BATTERY CHARGINGCALLER ID SETUPTELEPHONE OPERATIONCALLER ID OPERATIONTROUBLESHOOTINGPRODUCT CARESERVICELIMITED WARRANTY 2 34589 1010111314151922242526 IMPORTANT SAFETY INSTRUCTIONS BEFORE USING YOUR TELEPHONE EQUIPMENT, BASIC SAFETY PRECAUTIONSSHOULD ALWAYS BE FOLLOWED TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCKAND INJURY TO PERSONS, INCLUDING THE FOLLOWING:1. Read and understand all instructions.2. Follow all warnings and instructions marked on the product.3. Unplug this product from the wall telephone jack and power outlet before cleaning. Donot use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.4. Do not use this product near water, for example, near a bath tub, wash bowl, kitchensink, laundry tub, swimming pool, or in a wet basement.5. Do not place this product on an unstable cart, stand or table. The product may fall,causing serious damage.6. Slots or openings in the cabinet and the back and bottom are provided for ventilation, toprotect it from overheating. These openings must not be blocked or covered. The openingsshould never be blocked by placing the product on a bed, or other similar surface. This productshould never be placed near or over a radiator or heat register.7. This product should be operated only from the type of power source indicated on themarking label. If you are not sure of the type of power supply to your home, consult yourdealer or local power company.8. Do not allow anything to rest on the power cord. Do not place this product where thecord will be damaged by persons stepping on it. 9. Do not overload wall outlets and extension cords, as this can result in fire or electric shock. 10. Never push objects of any kind into this product through cabinet slots, as they maytouch dangerous voltage points or short out parts. This could result in fire or electric shock.Never spill liquid of any kind on the product.11. To reduce the risk of electric shock, do not disassemble this product. Instead, when serviceor repair work is required, take it to a qualified service technician. Opening or removing coversmay expose you to dangerous voltages or other risks. Incorrect reassembly can cause electricshock when the appliance is subsequently used.12. Unplug this product from the wall outlet and refer servicing to qualified service personnelunder the following conditions: a. When the power supply cord or plug is damaged or frayed.b. If liquid has been spilled into the product.c. If the product has been exposed to rain or water.d. If the product does not operate normally, and proper operating instructions have been followed, adjust only those controls that are covered by the operating instructions. Improperadjustment of other controls may result in damage and will often require extensive work by aqualified technician to restore the product to normal operation. e. If the product has been dropped or the cabinet has been damaged.f. If the product exhibits a distinct change in performance. 13. Avoid using a telephone (other than a cordless type) during an electrical storm. Theremay be a remote risk of electric shock from lightning.14. Do not use the telephone to report a gas leak in the vicinity of the leak.15. Use only the power cord and batteries indicated in this manual. Do not dispose of batteriesin a fire. They may explode. Check with local codes for possible special disposal instructions. CAUTIONDanger of explosion if battery is incorrectly replaced.Replace only with the same or equivalent type recommended by the manufacturer.Dispose of used batteries according to the manufacturer’s instructions. 3 4 SAFETY INSTRUCTIONS FOR BATTERIES Safety Instructions for BatteriesHandset Battery PackCAUTION:Use only a Southwestern Bell Freedom Phone® approved battery pack in the handsetof your GH3010 Cordless Telephone. To reduce the risk of fire or injury, always do thefollowing when replacing, discarding or charging batteries. When handling the batteries,be careful not to short the battery with conducting materials such as rings, bracelets,and keys. The battery or conducting material may overheat and cause burns.Use only the following type and size of battery pack:FOR HANDSET UNIT :a. GP40AAK3BMX 3.6V 400mAHr, GPI International Ltd orb. BYD D-2/3AA400x3 3.6V 400mAHr, BYD Battery Co.,Ltd ora. Do not dispose of the battery pack in a fire. The cell may explode. Check with local codes for possible special disposal instructions. b. Do not attempt to open or mutilate the battery pack. The chemicals are dangerous and may cause damage to the eyes or skin, and may be toxic if swallowed. c. Follow the charge instructions outlined in this manual. (See page 13) The EPA certified RBRC®* Battery Recycling Seal on the nickel-cadmium (Ni-Cd)battery indicates that Southwestern Bell Freedom Phone® Retail Sales is voluntarilyparticipating in an industry program to collect and recycle these batteries at the end oftheir useful life, when taken out of service in the United States or Canada. The RBRC®program provides a convenient alternative to placing used Ni-Cd batteries into thetrash…

Text truncated - open the document above for the full version.

Users Manual

FCC WANTS YOU TO KNOW This equipment complies with Part 68 of the FCC rules and ACTA technicalrequirements. On the bottom of the base of this equipment is a label that contains,among other information, the FCC Registration Number and Ringer EquivalenceNumber (REN) for this equipment. You must, upon request, provide this information toyour telephone company.An FCC compliant telephone cord and modular plug is provided with this equipment.This equipment is designed to be connected to the telephone network or premises wiringusing a compatible modular jack which is TIA/EIA-IS-968 compliant. See InstallationInstructions for details.The REN is useful to determine the quantity of devices you may connect to yourtelephone line and still have all of those devices ring when your telephone number iscalled. In most, but not all areas, the sum of the REN’s of all devices connected to oneline should not exceed five (5.0). To be certain of the number of devices you mayconnect to your line, as determined by the REN, you should contact your localtelephone company to determine the maximum REN for your calling area.If your telephone equipment causes harm to the telephone network, the telephonecompany may discontinue your service temporarily. If possible, they will notify you inadvance. But if advance notice isn’t practical, you will be notified as soon as possible.You will be informed of your right to file a complaint with the FCC.Your telephone company may make changes in its facilities, equipment, operations, orprocedures that could affect the proper functioning of your equipment. If they do, youwill be notified in advance to give you an opportunity to maintain uninterruptedtelephone service. If you experience trouble with this telephone equipment, disconnectfrom the network until the problem has been corrected or until you are sure that theequipment is not malfunctioning.This equipment may not be used on coin service provided by the telephone company.Connection to party lines is subject to state tariffs.The USOC number of the registration jack for the equipment is RJ11C.This equipment is hearing aid compatible.Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed toprovide reasonable protection against harmful interference in a residential installation.Some cordless telephones operate at frequencies that may cause interference tonearby TV’s and VCR’s. To minimize or prevent such interference, the base of thecordless telephone should not be placed near or on top of a TV or VCR. If interferenceis experienced, moving the cordless telephone farther away from the TV or VCR willoften reduce or eliminate the interference. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does causeharmful interference to radio or television reception, which can be determined byturning the equipment off and on, the user is encouraged to try to correct theinterference by one or more of the following measures: • Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 9 INTRODUCTION ABOUT THE GH3010The GH3010 is a 2.4GHz Cordless Phone with Caller Identifier. It isdesigned and engineered to exacting standards for reliability, long life,and outstanding performance.FEATURES• Caller ID (64 call data memory locations) with call waiting• 40 Channels (auto or manual selection)• LCD on the handset with three-language selection• 10-Number Two-touch Dial Memory• Direct dialing from caller list• Extended battery life• Digital security codingThe GH3010 features include AutoTalk™ and AutoStandby™.AutoTalk™ allows you to answer a call by just removing the Handsetfrom the Base so you don’t have to waste time pushing buttons orflipping switches. AutoStandby™ allows you to hang up by simplyreturning the handset to the Base.The UltraClear Plus™ true compander circuitry virtually eliminatesbackground noise. This innovative technology, together with 40different channels, provides you with the best possible receptionduring all your conversations.TO PROTECT YOU AGAINST MISBILLED CALLS, THE GH3010 HASRANDOM CODE™ DIGITAL SECURITY WHICH AUTOMATICALLYSELECTS ONE OF OVER 65,000 DIGITAL SECURITY CODES FORTHE HANDSET AND BASE UNIT. ALSO, THE AUTOSECURER™FEATURE ELECTRONICALLY LOCKS YOUR PHONE WHEN THEHANDSET IS IN THE BASE. TO GET THE MOST FROM YOURGH3010, PLEASE READ THIS OPERATING GUIDE THOROUGHLY. 8

External Photos

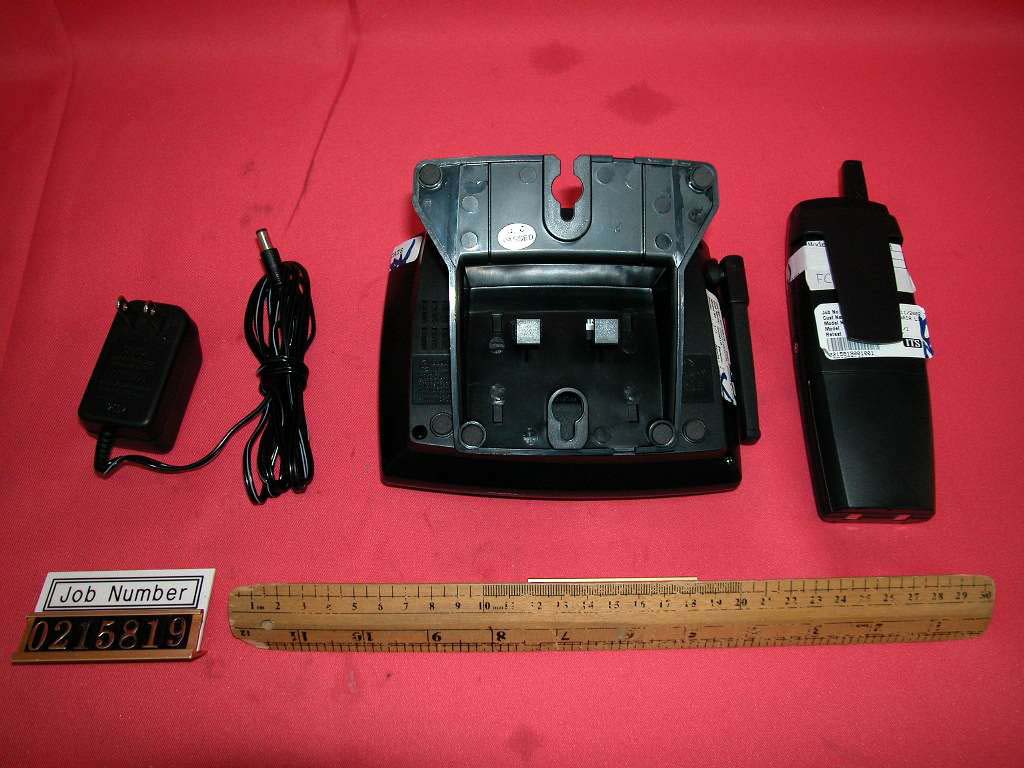

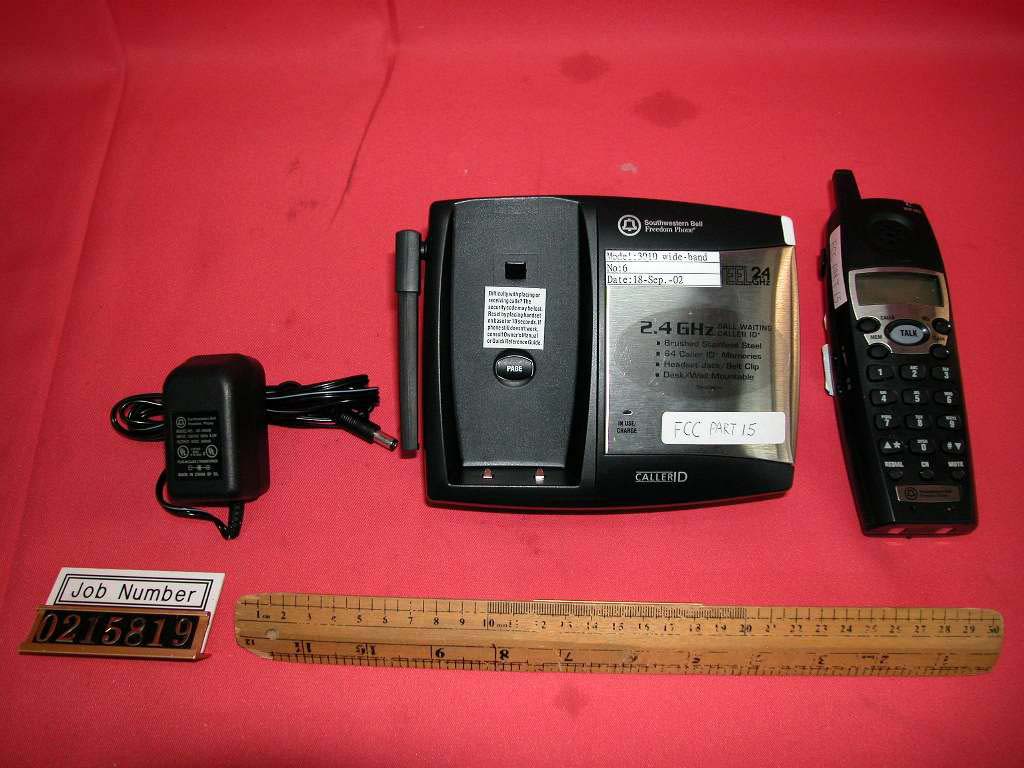

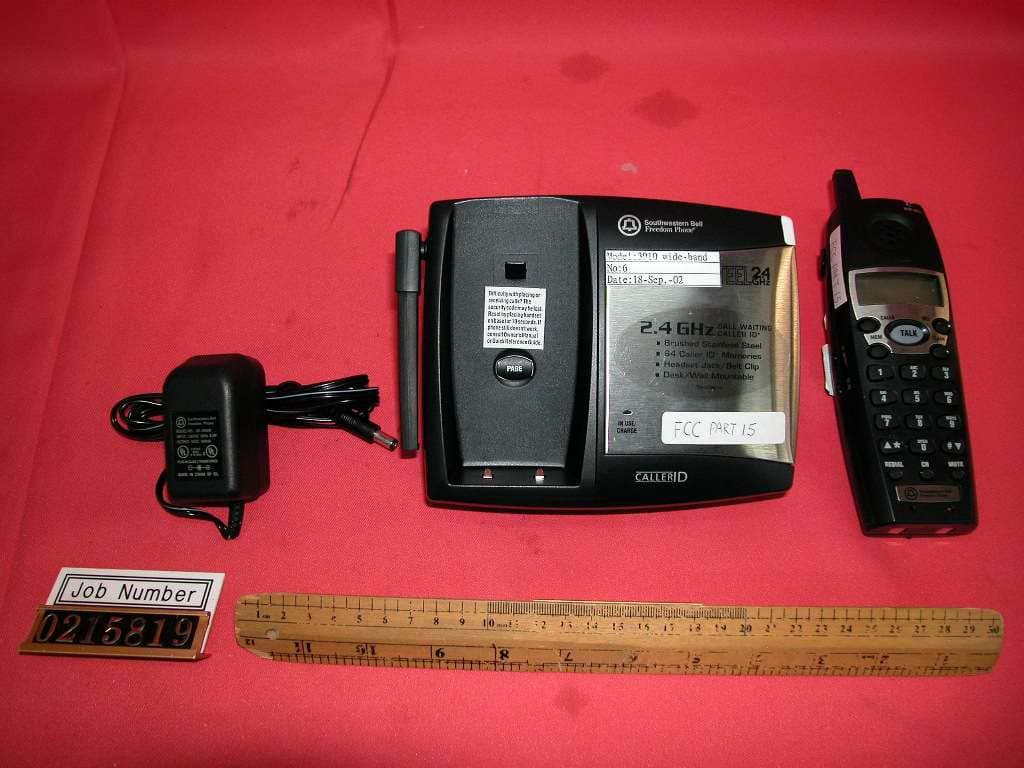

External photos FCC ID: LBBGH3010ATA External photos FCC ID: LBBGH3010ATA

ID Label/Location Info

GH3010 12/09/2002 P/T TEL LINE DC9V 200mA DC9V200mA USE ONLY WITH CLASS 2 POWER SOURCE USEONLYWITH CLASS 2POWERSOURCE FCC ID: LBBGH3010ATA Model No. GH3010AT V01A AT 0302 S/N:CXXXXXX US ® L I S T E D L I S T E D 70255 PRIVACY OF COMMUNICATIONS MAY NOT BE ENSURED WHEN USING THIS PHONE. FCC ID : LBBGH3010ATA THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. CONFORMS TO ANSI/UL STD. 1950 Southwestern Bell ® Complies with 47 CFR Part 68 requirements REGISTRATION NUMBER: US: SBFW909BGH3010AT USOC JACK: RJ11CREN: 0.9B HAC MADE IN CHINA MANUFACTURED TO BELL SPECIFICATIONS MODEL No. GH3010AT LICENSED UNDER UNITED STATES PATENT NO. 5,263,084

Internal Photos

Internal photos FCC ID: LBBGH3010ATA Base assembly (View 1) Base assembly (View 2) Internal photos FCC ID: LBBGH3010ATA Base Main PCB comp side (view 1) Base Main PCB comp side (view 2) Internal photos FCC ID: LBBGH3010ATA Base Main PCB solder side Base Oscillator PCB comp side Internal photos FCC ID: LBBGH3010ATA Base Oscillator PCB solder side Internal photos FCC ID: LBBGH3010ATA Handset assembly Handset Main PCB comp side (View 1) Internal photos FCC ID: LBBGH3010ATA Handset Main PCB comp side (View 2) Handset Main PCB display side Internal photos FCC ID: LBBGH3010ATA Handset Another PCB comp side Handset another PCB solder side a Internal photos FCC ID: LBBGH3010ATA Handset Oscillator PCB comp side Handset Oscillator PCB solder side

Operational Description

GH3010 Circuit Description 1. Introduction The model GH3010 is a 40 channel (2.40255-2.47595GHz ) Caller ID cordless telephone. The whole unit is divided into two main parts as follow : a. A remote Handset. b. A Base unit. 2. Functional Blocks of the Remote Handset 2.1 Keyboard matrix and function LED 2.2 LCD 2.3 MCU and MCU interface 2.4 Antenna and RF module 2.5 Compander 2.6 Data shaper 2.7 Charge detector 2.8 Low battery detector 2.9 Buzzer amplifier 3. Circuit Block Description 3.1 Keyboard matrix and function LED Pin 46 to pin51, pin 54 to pin 58 of the MCU:U1 NT93423 form a keyboard, and the new call LED is controlled by the pin 73 of the MCU. 3.2 LCD LCD1 is controlled by the MCU: U1 NT93423 pin 1 to pin 32, pin 103 to pin 128. 3.3 MCU and MCU interface The handset and the base is link up by the pins(45,78 in HS and 43,78 in Base). Besides, the PLL of the RF Module is controlled by the pins 39 to pin 41 of the MCU. 3.4 Antenna and RF module ANT is the common point for transmitting and receiving through antenna. MD1 is a RF module which consists of Filter, Power amplifier, Mixer & IF, RXVCO, TXVCO, VCC & TXVCC control, Synthesizer and DEMO Audio Output circuits. RF module circuit can be described as followings: 3.4.1 Power Supply 3.4.2 PLL and MCU Interface 3.4.3 RF Transmitter 3.4.4 RF Receiver 3.4.5 Audio Detector 3.4.1 Power Supply The RF transmitter receives power from TXVCC. TXVCC is enabled only during TALK mode.The RF receiver receives power from RXVCC. RXVCC is enabled only during TALK or stand-by mode when wake up. 3.4.2 PLL and MCU Interface The frequencies of the RF transmitter and RF local oscillator are controlled by PLL IC U1. The MCU transmit PLL data through DATA, CLK and CE signal lines. The basic clock frequency of the PLL is derived from an 11.15MHz crystal inside the RF module. The local frequencies to TX and RX are generated and locked at 825MHz and 798MHz respectively. 3.4.3 RF Transmitter The RF transmitter oscillator frequency 825MHz is controlled by the PLL through Vt. The PLL samples the RF frequency through fin. The audio input signal AFIN is fed to this RF oscillator through the FM modulator. Fundamental frequency 825MHz is multiplied to 2475MHz and bypass through band pass filter formed by Q7, ML5, C5, C37 and ML4. The filtered 2475MHz is then injected into TX power amplifier Q6 and related passive components. The enlarged 2475MHz rf signal is then input into the 2475MHz TX_FILTER, DF1. The transmitted rf signal is then injected into the ANTENNA and radiated out into air. 3.4.4 RF Receiver Received rf signal is collected from ANTENNA and passed through 2403MHz filter DF2. The filtered 2403MHz rf signal will then be injected into the LNA Q3 and be enlarged. The amplified 2403MHz signal is then input into the MIXER which is formed by Q4 and related passive components. Q2 and VD2 with related resistors and capacitors network form the RXVCO which is fed and locked by the PLL U1. The fundamental 798MHz frequency is multiplied to 2393MHz and bypass the BPF formed by C28, ML11, C26, C25, ML13 and C 50 to the receiver mixer. The receiver local oscillator frequency is controlled by the PLL through Vt. The PLL samples the local oscillator RF frequency through fin. The mixer collects the input from LNA and 2393MHz signal from BPF and then output the IF 10.7MHz into Q5. 3.4.5 Audio Detector Amplified IF from Q5 is passed into 10.7MHz filter CF1,amplifier Q8 , 10.7MHz filter CF3 and then injected into the IF demodulated IC U4. Detected audio will then be recovered and output at the AFOUT pin of the RF module. 3.5 Compander A compander U1 is used for improving the S/N of the transmit and receive audio signal. 3.6 Data shaper The information which sending from base unit, is recovered by the amplifier Q1 and MQ4,MQ5. 3.7 Charge detector MD3 to MD6, MZD1, MR23,MC9 and MR22 form a charge detector to direct the charging signal to the MCU pin 34. 3.8 Low battery detector A battery low detector is built-in by the Q2, R5 to R7 and D2 which detects the battery dropping and sends a signal to pin 36 of MCU. 3.9 Buzzer amplifier Q4 is a buzzer amplifier driven directly by the MCU pin 61. 4. Functional Blocks of the Base unit 4.1 Power supply 4.2 MCU and MCU interface 4.3 Calling line identifier 4.4 Antenna and RF module 4.5 Compander 4.6 Data shaper 4.7 Charge detector 4.8 Line audio interface 4.9 Ring detector 4.10 Led function board 4.11 Carrier detector 5. Circuit Block Description 5.1 Power supply BU1 7805 regulate the input DC 9V to 5V which provides power to every part of the circuit. 5.2 MCU and MCU interface The heart of the base is MCU BMU1: NT93423A that communicates with the PLL of BMD1 through pins 39,40 and 41. Transmitter is controlled by the signal TX_DC which output from MCU via pin 53. MCU pin 95 is for generating DTMF signal. The communication between Handset and Base is via the pin 43 and pin 76 through the RF link. 5.3 Calling line identifier MCU pin 87 to pin 88, when receiving caller ID data, MCU controls the LCD to display the correct information. 5.4 Antenna and RF modulator ANT is antenna transmit and receive signal. BMD1 is a RF modulator which consist of Filter, Power amplifier, Mixer & IF, RXVCO, TXVCO, VCC & TXVCC control, Synthesizer and DEMO Audio Output circuits. The block diagram of RF Module is as shown below. It is made up of the following parts: 5.4.1 Power Supply 5.4.2 PLL and MCU Interface 5.4.3 RF Transmitter 5.4.4 RF Receiver 5.4.5 Audio Detector 5.4.1 Power Supply The RF transmitter receives power from TXVCC. TXVCC is enabled only during TALK mode or Ring mode. The RF receiver receives power from RXVCC. RXVCC is enabled when BASE plug in DC adapter. 5.4.2 PLL and MCU Interface The frequencies of the RF transmitter and RF local oscillator are controlled by PLL IC U1. The MCU transmit PLL data through DATA, CLK and CE signal lines. The basic clock frequency of the PLL is derived from an 11.15MHz crystal inside the RF module. The local freq…

Text truncated - open the document above for the full version.

Test Report

• The test results reported in this report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization form Intertek Testing Services Limited FCC ID: LBBGH3010ATA Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2741 1693 Continental Conair Limited Application For Certification 2.4GHz 40 Channel Analog Modulation Cordless Phone with Caller ID (FCC ID: LBBGH3010ATA) WO# 02158191 TL/Ann Choy January 20, 2003 INTERTEK TESTING SERVICES FCC ID: LBBGH3010ATA i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Security Code Information INTERTEK TESTING SERVICES FCC ID: LBBGH3010ATA ii MEASUREMENT/TECHNICAL REPORT Continental Conair Limited - MODEL: GH3010(XXXXX), GH3010AT(XXXXX) FCC ID: LBBGH3010ATA This report concerns (check one:) Original Grant X Class II Change Equipment Type : Cordless Telephone (example : computer, modem, transmitter, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until : date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37 ? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [12-18-01 Edition] Provision. Report prepared by: Tommy Leung Intertek Testing Services. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Phone : 852-2173-8538 Fax: 852-2741-1693 INTERTEK TESTING SERVICES FCC ID: LBBGH3010ATA iii Table of Contents 1.0 General Description.........................................................................................................2 1.1 Product Description.........................................................................................................2 1.2 Purpose of Application ....................................................................................................2 1.3 Related Submittal(s) Grants ............................................................................................3 1.4 Test Methodology ............................................................................................................3 1.5 Test Facility .....................................................................................................................3 2.0 System Test Configuration .................................................................................................5 2.1 Justification ......................................................................................................................5 2.2 EUT Exercising Software................................................................................................5 2.3 Support Equipment List and Description........................................................................6 2.4 Measurement Uncertainty ...............................................................................................7 2.5 Equipment Modification..................................................................................................7 3.0 Emission Results ...................................................................................................................9 3.1 Field Strength Calculation .............................................................................................10 3.2 Radiated Emission Configuration Photograph - Base Unit ..........................................11 3.3 Radiated Emission Data - Base Unit .............................................................................12 3.4 Radiated Emission Configuration Photograph - Handset .............................................15 3.5 Radiated Emission Data - Handset................................................................................16 3.6 Radiated Emission on the bandedge..............................................................................19 3.7 Line Conducted Configuration Photograph - Base Unit...............................................21 3.8 Line Conducted Emission Data - Base Unit .................................................................22 4.0 Equipment Photographs ...................................................................................................25 5.0 Product Labelling ...............................................................................................................27 6.0 Technical Specifications ....................................................................................................29 7.0 Instruction Manual ............................................................................................................31 8.0 Security Code Information ...............................................................................................33 INTERTEK TESTING SERVICES FCC ID: LBBGH3010ATA iv List of attached file Exhibit type File Description filename Test Report Test Report report.doc Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission for Base config photos.doc Test Setup Photo Radiated Emission for Handset config photos.doc Test Report Emission Plot emission.pdf Test Setup Photo Conducted Emission config photos.doc Test Report Conducted Emission Test Result conduct.pdf External Photo External Photo external photos.doc Internal Photo Internal Photo internal photos.doc Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label/Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf User Manual FCC Information fcc information.pdf IN…

Text truncated - open the document above for the full version.

Test Report

Intertek Testing Services ETL SEMKO Report No.:02158191 Talk Mode Ctrl No.:N/A PAGE 1 Tested By:Hong, Report No.:02158191 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 450k 30M 5k 10k PK 20ms AUTO LN OFF 60dB Final Measurement: x QP Meas Time: 1 s Subranges: 16 Acc Margin: 20dB Transducer No. Start Stop Name 21 9k 30M EW0698 0 10 20 30 40 50 60 70 dBuV 80 0.45 30 MHz 110 FCC15B Intertek Testing Services ETL SEMKO Report No.:02158191 Talk Mode Ctrl No.:N/A Tested By:Hong, Report No.:02158191 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 450k 30M 5k 10k PK 20ms AUTO LN OFF 60dB Final Measurement Results: Frequency QP Level QP Limit MHz dBuV dBuV 25.06000 26.8 48.0 * limit exceeded

Test Setup Photos

The Worst Case Configuration Photographs FCC ID: LBBGH3010ATA Radiated Emission – Base Front View Rear View The Worst Case Configuration Photographs FCC ID: LBBGH3010ATA Radiated Emission – Handset Front View Rear View The Worst Case Configuration Photographs FCC ID: LBBGH3010ATA Conducted Emission Front View Rear View The Worst Case Configuration Photographs FCC ID: LBBGH3010ATA Conducted Emission Side View
