LBBGH3025TE2.4GHz 40 Channel Analog Modulation Cordless Phone

GH3025 Owner s ManualToll Free Helpline 1-800-366-0937http://www.swbfreedomphone.com 2.4GHz Cordless Telephone with DigitalAnswering System ̄ GH3025 Printed in China SOUTHWESTERN BELL FREEDOM PHONE 7475 N. Glen Harbor Blvd., Glendale, AZ 85307 STOP -- don't take unit back to the store LOOK -- for the toll-free "help" telephone number LISTEN -- as our experts talk you through the problem For immediate answers to your questions regarding operation, missing parts or installation, call the SOUTHWESTERN BELL FREEDOM PHONE RETAIL SALES HELP LINE AT: 1- 800-366-0937 Monday - Friday 8:30a.m. - 9:00p.m. EST Saturday 8:30a.m. - 12:30p.m. EST http://www.swbfreedomphone.com R R 88 VOLUME ERASE STOP SKIP REPEAT PLAY TIME MEMO GREETING CODE PA G E ANS MEM TA L K FLASH REDIAL CH MUTE CHARGE IN USE /BATT LOW , This symbol is to alert you to important operating or servicing instructions that may appear in the user's manual. Always follow basic safety precautions when using this product to reduce the risk ofinjury, fire or electrical shock. When using this product, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injuryto persons, including the following:1. Read and understand all instructions. 2. Follow all warnings and instructions marked on the product. 3. Use only with class 2 power source DC 9V 4. Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. 5. Do not use this product near water; for example, near a bathtub, wash bowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool. 6. Do not place this product on an unstable cart, stand or table. The product may fall, causing serious damage to the product. 7. Slots and openings in the cabinet back or bottom are provided for ventilation. To protect it from overheating, these openings must not be blocked or covered. The openings should never be blocked by placing the product on the bed, sofa, rug, or other similarsurface. This product should never be placed near or over a radiator or heat register. This product should not be placed in anenclosed environment unless proper ventilation is provided. 8. Do not allow anything to rest on the power cord. Do not locate this product where the cord will be abused by animals or persons walking on it. 9. Do not overload wall outlets and extension cords as this can result in risk of fire or electrical shock. 10. Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a risk of fire or electrical shock. Never spill liquid of any kind on the product. 11. To reduce the risk of electrical shock, do not disassemble this product. Instead take it to a qualified service person when service or repair work is required. Opening or removing covers may expose you to dangerous voltages or other risks. Incorrect re-assemblycan cause Electrical shock when the appliance is subsequently used. 12. Unplug all cords and refer servicing to qualified service personnel under the following conditions: A. When the power supply cord or plug is damaged or frayed. B. If liquid has been spilled into the product. C. If the product has been exposed to rain or water. D. If the product does not operate normally by following the operating instructions. Adjust only those controls covered in theoperating instructions. Improper adjustment of other controls may result in damage and require work by a qualified technicianto restore the product to normal operation. 13. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electric shock from lightning. 14. Do not use a telephone to report a gas leak in the vicinity of the leak. IF YOUR PRODUCT UTILIZES BATTERIES,THE FOLLOWING ADDITIONAL PRECAUTIONS SHOULD BE OBSERVED:1. Use only the type and size of batteries specified in the users manual. 2. Do not dispose of the batteries in a fire. The cells may explode. Check with local codes for possible special disposal instructions. 3. Do not open or mutilate the batteries. Released electrolyte is corrosive and may cause damage to the eyes or skin. It may be toxic if swallowed. 4. Exercise care in handling batteries in order not to short the battery with conducting materials such as rings, bracelets and keys. The battery or conductor may overheat and cause burns. 5. Do not attempt to recharge the batteries provided with or identified for use with this product. The batteries may leak corrosive electrolyte or explode. 6. Do not attempt to rejuvenate the batteries provided with or identified for use with this product by heating them. Sudden release of the battery electrolyte may occur, causing burns or irritation to eyes or skin. 7. When replacing batteries, all batteries should be replaced at the same time. Mixing fresh and discharged batteries could incre ase internal cell pressure and rupture the discharged batteries. 8. When inserting the batteries into this product, the proper polarity or direction must be observed. Reverse insertion of batteries can cause charging, which may result in leakage or explosion. 9. Remove the batteries from this product if the product will not be used for a long period of time (several months or more) since during this time the batteries could leak, damaging the product. 10. Discard "dead" batteries as soon as possible since they are more likely to leak in a product.11. Do not store this product, or the batteries provided with or identified for use with this product, in high temperature areas.12. If your product uses a rechargeable battery, charge the battery(ies) only in accordance with the instructions and limitations specified in the User s Manual. SAVE THESE INSTRUCTIONS 2 IMPORTANT SAFETY INSTRUCTIONS LIMITED WARRANTY ..............................................35 LOCATION OF CONTROLS AND FEATURES ........5 IMPORTANT SAFETY INSTRUC…

Text truncated - open the document above for the full version.

BATTERIES: CAUTIONTo reduce the risk of fire or injury to persons, read and follow these instructions: For the cordless handset, use only 3.6Vcordless telephone battery pack (included). Do not dispose of the batteries in a fire. The cells may explode. Check with local codesfor possible special disposal instructions.Do not open or mutilate the batteries. Released electrolyte is corrosive and may causedamage to the eyes or skin. It may be toxic if swallowed.Exercise care in handling batteries in order not to short the battery with conductingmaterials such as rings, bracelets, and keys. The battery or conductor may overheatand cause burns.Do not attempt to rejuvenate the batteries identified for use with this product byheating them. Sudden release of the battery electrolyte may occur causing burns orirritation to the eyes or skin.When inserting batteries into this product, the proper polarity or direction must beobserved. Reverse insertion of batteries can cause charging, and that may result inleakage or explosion.Remove the batteries from this product if the product will not be used for a long per iod of time (several months or more) since during this time the battery could leak in theproduct.Do not store this product, or the batteries provided with or identified for use with thisproduct, in high temperature areas. Batteries that are stored in a freezer or refrigeratorfor the purpose of extending shelf life should be protected from condensation duringstorage and defrosting. Batteries should be stabilized at room temperature prior to use after cold storag e. BATTERY CAUTIONARY INSTRUCTIONS GH3025 3 *RBRC is a trademark of the Rechargeable Battery Recycling Corporation. The EPA certified RBRC Battery Recycling Seal on the nickel-cadmium (Ni-Cd) bat-tery indicates that Retail Sales is voluntarily par- Southwestern Bell Freedom Phone ticipating in an industry program to collect and recycle these batteries at the end oftheir useful life, when taken out of service in the United States or Canada. The RBRCprogram provides a convenient alternative to placing used Ni-Cd batteries into thetrash or the municipal waste stream, which may be illegal in your areas. Please call 1-800-8-BATTERY for information on Ni-Cd battery recycling and disposal bans / restric-tions in your area. Retail Sales s involvement Southwestern Bell Freedom Phone in this program is part of our commitment to preserving our environment and conserv-ing our natural resources. R R R R R ̄ 400mAh Nickel-Cadmium (Ni-Cd) This equipment complies with Part 68 of the FCC rules and the requirements adopted by theACTA. On the bottom of this equipment is a label that contains, among other information, aproduct identifier of US: SBFW901BGH3025TE If requested, this number must be providedto the telephone company.The applicable jacks ( i.e. RJ11C ) for this equipment are provided in the packaging with eachpiece of approved equipment. The jacks are certified by Universal Service Order Codes(USOC).A plug and jack used to connect this equipment to the premises wiring and telephone networkmust comply with the applicable FCC Part 68 rules and requirements adopted by the ACTA. Acompliant telephone cord and modular plug are provided with this product. They are designedto be connected to a compatible modular jack that is also compliant. See installationinstructions for details.The REN is used to determine the number of devices that may be connected to a telephoneline. Excessive RENs on a telephone line may result in the devices not ringing in response toan incoming call. In most but not all areas, the sum of RENs should not exceed five (5.0). To be certain of the number of devices that may be connected to a line, as determined by the total RENs, contact the local telephone company.If this equipment GH3025 causes harm to the telephone network, the telephone company willnotify you in advance that temporary discontinuance of service may be required. But if advancenotice isn't practical, the telephone company will notify the customer as soon as possible. Also,you will be advised of your right to file a complaint with the FCC if you believe it is necessary.The telephone company may make changes in its facilities, equipment, operations orprocedures that could affect the operation of the equipment. If this happens the telephone company will provide advance notice in order for you to make necessary modifications to maintain uninterrupted service.If you experience trouble with this equipment, disconnect it from the network until the problemhas been corrected or until you are sure that the equipment is not malfunctioning.Please follow instructions for repairing if any (e.g. battery replacement section); otherwise donot alter or repair any parts of device except specified.Connection to party line service is subject to state tariffs. Contact the state public utilitycommission, public service commission or corporation commission for information.This equipment is hearing aid compatible.1. If your home has specially wired alarm equipment connected to the telephone line, ensure the installation of this equipment GH3025 does not disable your alarm equipment. If you havequestions about what will disable alarm equipment, consult your telephone company or a qualified installer.2. According to telephone company reports, AC electrical surges, typically resulting from lightning strikes, are very destructive to telephone equipment connected to AC power sources. To minimize damage from these types of surges, a surge arrestor is recommended. . NOTICE: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user s authority to operate the equipment.Warning: ̄ NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonableprotection against harmful interference in a residential installation. Reorien…

Text truncated - open the document above for the full version.

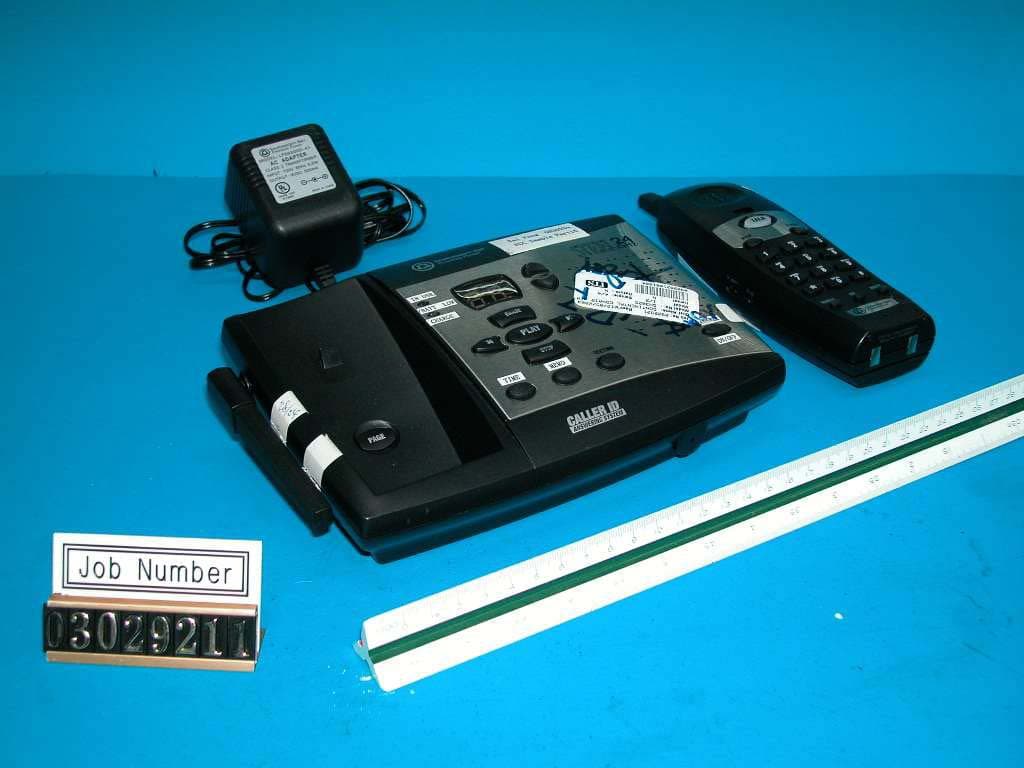

External photos FCC ID: LBBGH3025TE External photos FCC ID: LBBGH3025TE

MOLDED SIZE: LABELS INFORMATION MOLDED SIZE: LABELS INFORMATION FCC ID: LBBGH3025TE 4.0 30.0 FCC ID: LBBGH3025TE BLACK LETTER WITH TRANSPARENT BACKGROUND LOCATION

Internal photos FCC ID: LBBGH3025TE Base assembly (View 1) Base assembly (View 2) Internal photos FCC ID: LBBGH3025TE Base Main PCB comp side (View 1) Base Main PCB comp side (View 2) Internal photos FCC ID: LBBGH3025TE Base Main PCB solder side Base DAM PCB front side Internal photos FCC ID: LBBGH3025TE Base DAM PCB rear side Base Page key PCB front side Internal photos FCC ID: LBBGH3025TE Base Page key PCB rear side Base Oscillator PCB comp side Internal photos FCC ID: LBBGH3025TE Base Oscillator PCB solder side Internal photos FCC ID: LBBGH3025TE Handset assembly Handset Main PCB comp side Internal photos FCC ID: LBBGH3025TE Handset Main PCB solder side Handset keypad front side Internal photos FCC ID: LBBGH3025TE Handset keypad rear side (View 1) Handset keypad rear side (View 2) Internal photos FCC ID: LBBGH3025TE Handset Oscillator PCB comp side Handset Oscillator PCB solder side

FCC ID: LBBGH3025TE Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2741 1693 May 28, 2003 Continental Conair Limited 35/F., Standard Chartered Tower, Millennium City, 388 Kwun Tong Road, Kwun Tong, Kowloon, Hong Kong. Tel. : (852) 2751 4632 Fax. : (852) 2751 9153 Dear Mr. S. H. Tang: Enclosed you will find your file copy of a Part 15 Certification (FCC ID: LBBGH3025TE). For your reference, TCB will normally take another 15 to 20 days for reviewing the report. Approval will then be granted when no query is sorted. Please contact me if you have any questions regarding the enclosed material. Sincerely, Tommy Leung Supervisor Enclosure • The test results reported in this report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization form Intertek Testing Services Limited FCC ID: LBBGH3025TE Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2741 1693 Continental Conair Limited Application For Certification 2.4GHz 40 Channel Analog Modulation Cordless Phone with Digital Answering Machine (FCC ID: LBBGH3025TE) WO# 03029211 TL/Ann Choy May 28, 2003 INTERTEK TESTING SERVICES FCC ID: LBBGH3025TE i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Security Code Information INTERTEK TESTING SERVICES FCC ID: LBBGH3025TE ii MEASUREMENT/TECHNICAL REPORT Continental Conair Limited - MODEL: GH3025(XXXXX) FCC ID: LBBGH3025TE This report concerns (check one:) Original Grant X Class II Change Equipment Type : Cordless Telephone (example : computer, modem, transmitter, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until : date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37 ? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [08-20-02 Edition] Provision. Report prepared by: Tommy Leung Intertek Testing Services. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Phone : 852-2173-8538 Fax: 852-2741-1693 INTERTEK TESTING SERVICES FCC ID: LBBGH3025TE iii Table of Contents 1.0 General Description.........................................................................................................2 1.1 Product Description.........................................................................................................2 1.2 Related Submittal(s) Grants ............................................................................................3 1.3 Test Methodology ............................................................................................................3 1.4 Test Facility .....................................................................................................................3 2.0 System Test Configuration .................................................................................................5 2.1 Justification ......................................................................................................................5 2.2 EUT Exercising Software................................................................................................5 2.3 Support Equipment List and Description........................................................................6 2.4 Measurement Uncertainty ...............................................................................................7 2.5 Equipment Modification..................................................................................................7 3.0 Emission Results ...................................................................................................................9 3.1 Field Strength Calculation .............................................................................................10 3.2 Radiated Emission Configuration Photograph - Base Unit ..........................................11 3.3 Radiated Emission Data - Base Unit .............................................................................12 3.4 Radiated Emission Configuration Photograph - Handset .............................................15 3.5 Radiated Emission Data - Handset................................................................................16 3.6 Radiated Emission on the bandedge..............................................................................19 3.7 Line Conducted Configuration Photograph - Base Unit...............................................21 3.8 Line Conducted Emission Data - Base Unit .................................................................22 4.0 Equipment Photographs ...................................................................................................25 5.0 Product Labelling ...............................................................................................................27 6.0 Technical Specifications ....................................................................................................29 7.0 Instruction Manual ............................................................................................................31 8.0 Security Code Information ...............................................................................................33 INTERTEK TESTING SERVICES FCC ID: LBBGH3025TE iv List of attached file Exhibit type File Description filename Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Tes…

Text truncated - open the document above for the full version.

Intertek Testing Services ETL SEMKO Report No.:03029211 Talk Mode Ctrl No.:N/A PAGE 1 Tested By:Hong, Report No.:03029211 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement: x QP / + AV Meas Time: 1 s Subranges: 16 Acc Margin: 20dB Transducer No. Start Stop Name 21 9k 30M EW0698 0 10 20 30 40 50 60 70 80 90 dBuV 100 0.15 MHz 30110 F15Q F15A Intertek Testing Services ETL SEMKO Report No.:03029211 Talk Mode Ctrl No.:N/A Tested By:Hong, Report No.:03029211 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement Results: Frequency QP Level QP Limit MHz dBuV dBuV 0.22000 34.7 62.9 0.29500 32.9 60.3 0.41000 30.6 57.7 0.70500 29.7 56.0 0.80500 28.6 56.0 3.58000 39.5 56.0 Frequency AV Level AV Limit MHz dBuV dBuV 3.58000 38.7 46.0 29.91500 31.9 50.0 * limit exceeded

The Worst Case Configuration Photographs FCC ID: LBBGH3025TE Radiated Emission – Base Front View Rear View The Worst Case Configuration Photographs FCC ID: LBBGH3025TE Radiated Emission – Handset Front View Rear View The Worst Case Configuration Photographs FCC ID: LBBGH3025TE Conducted Emission Front View Rear View The Worst Case Configuration Photographs FCC ID: LBBGH3025TE Conducted Emission Side View

The Worst Case Configuration Photographs FCC ID: LBBGH3025TE Radiated Emission – Base Front View Rear View The Worst Case Configuration Photographs FCC ID: LBBGH3025TE Radiated Emission – Handset Front View Rear View The Worst Case Configuration Photographs FCC ID: LBBGH3025TE Conducted Emission Front View Rear View The Worst Case Configuration Photographs FCC ID: LBBGH3025TE Conducted Emission Side View
