LBBGH58112.4GHz/5.8GHz FHSS Cordless Phone w/ CID (Base)

Prepare By: Dreamis So P.1 2/13/04 5.8GHz Cordless Telephone with Type II Caller ID GH5811 OWNER’S MANUAL Toll-free Help Line 1-800-366-0937 http://www.swbfreedomphone.com Prepare By: Dreamis So P.2 2/13/04 PLEASE READ IMPORTANT SAFETY INSTRUCTIONS BEFORE USE. Congratulations!You have purchased a 5.8GHz Digital Cordless Telephone with Type II Call Waiting Caller ID that has been manufactured to the highest standards of SOUTHWESTERN BELL FREEDOM PHONERetail Sales. BEFORE INSTALLING AND OPERATING THIS TELEPHONE, IT IS VERY IMPORTANT THAT YOU READ THIS OWNER'S MANUAL. Prepare By: Dreamis So P.3 2/13/04 IMPORTANT SAFETY INSTRUCTIONS BEFORE USING YOUR TELEPHONE EQUIPMENT, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK AND INJURY TO PERSONS, INCLUDING THE FOLLOWING: 1. Read and understand all instructions. 2. Follow all warnings and instructions marked on the product. 3. Unplug this product from the wall telephone jack and power outlet before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning. 4. Do not use this product near water, for example, near a bathtub, washbasin, kitchen sink, laundry tub, swimming pool, or in a wet basement. 5. Do not place this product on an unstable cart, stand or table. The product may fall, causing serious damage. 6. Slots or openings in the cabinet, back and bottom are provided for ventilation, to protect equipment from overheating. These openings must not be blocked or covered. Do not place the product on a bed, or other similar surface where the openings could be blocked. Never place this product near or over a radiator or heat register. 7. Operate this product using only the type of power source indicated on the marking label. If you are not sure of the type of power supply in your home, consult your dealer or local power company. 8. Do not allow anything to rest on the power cord. Do not place this product where it could be stepped on and damaged. 9. Do not overload wall outlets and extension cords, as this can result in fire or electric shock. 10. Never push objects of any kind into this product through cabinet slots, as they may touch dangerous voltage points or short circuit parts. This could result in fire or electric shock. Never spill liquid of any kind on the product. 11. To reduce the risk of electric shock, do not disassemble this product. Instead, when service or repair work is required, take it to a qualified service technician. Opening or removing covers may expose you to dangerous voltages or other risks. Incorrect reassembly can cause electric shock when the appliance is subsequently used. 12. Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: a. When the power supply cord or plug is damaged or frayed. b. If liquid has been spilled into the product. c. If the product has been exposed to rain or water. d. If the product has been dropped or the cabinet has been damaged. e. If the product exhibits a distinct change in performance. If the product does not operate normally and proper operating instructions have been followed, adjust only those controls that are covered by the operating instructions. Improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to normal operation. 13. Avoid using a telephone (other than a cordless type) during an electrical storm. Prepare By: Dreamis So P.4 2/13/04 There may be a remote risk of electric shock from lightning. 14. Do not use the telephone to report a gas leak if you are in the vicinity of the leak. 15. Danger of explosion if battery is incorrectly replaced. Replace battery pack only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions. Safety Instructions for Batteries Handset Battery Pack CAUTION: Use only a Southwestern Bell Freedom Phone approved battery pack in the handset of your GH5811 Cordless Telephone. To reduce the risk of fire or injury, always do the following when replacing, discarding or charging batteries. a. When handling the batteries, be careful not to short circuit the battery with conducting materials such as rings, bracelets, and keys. The battery or conducting material may overheat and cause burns. b. Use only the following type and size batteries in the cordless phone: c. Self-contained 3-cell Nickel-Metal-hydride rechargeable battery supply, AAL 9V 700mAh. Do not dispose of the battery pack in a fire. The cell may explode. Check with local codes for possible special disposal instructions. c. Do not attempt to open or mutilate the battery pack. The chemicals are dangerous and may cause damage to the eyes or skin, and may be toxic if swallowed. d. Follow the charge instructions outlined in this manual. Save These Instructions Prepare By: Dreamis So P.5 2/13/04 Handset Battery Caution CAUTION: To Reduce the risk of fire or injury to persons, read and follow these instructions. 1. Use only the following type and size batteries in the cordless phone: Self-contained 3-cell Nickel-Metal-hydride rechargeable battery supply, AAL 9V 700mAH. 2. Use only the following type and size battery in the base unit: 9V (1604) Alkaline Battery. 3. Do not dispose of the battery (ies) in a fire. The cell may explode. Check with local codes for possible special disposal instructions. 4. Do not open or mutilate the battery (ies). Released electrolyte is corrosive and may cause damage to the eyes or skin. It may be toxic if swallowed. 5. Handle batteries carefully in order to prevent short-circuiting the battery with conducting material such as rings, bracelets, and keys. The battery or conductor may overheat and cause burns. 6. Charge the battery (ies) provided with or identified for use with this product only in accordance with the instructions and limitations specified in this manual. 7. Do n…

Text truncated - open the document above for the full version.

Prepare By: Dreamis So P.28 2/13/04 Connection to party lines is subject to state tariffs. This equipment is hearing aid compatible. An applicable certification jacks Universal Service Order Codes (USOC) for the equipment is provided (i.e.., RJ11C) in the packaging with each piece of approved terminal equipment. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTICE: If your home has specially wired alarm equipment connected to the telephone line, ensure the installation if this [equipment ID] does not disable your alarm equipment. If you have questions about what will disable alarm equipment, consult your telephone company or a qualified installer. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: * Reorient or relocate the receiving antenna. * Increase the separation between the equipment and receiver. * Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. ̈ Consult the dealer or an experienced radio TV technician for help. Caution: To maintain compliance with the FCC's RF exposure guidelines, place the base unit at least 20cm from nearby persons. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Privacy of communications may not be ensured when using this phone. Product Care A. Avoid putting cordless phones near heating appliances and devices that generate electrical noise (motors, fluorescent lamps, etc.) B. Avoid rough treatment of the phone by placing the handset gently into the base when hanging up. Avoid dropping the handset. C. Clean your cordless telephone only with a soft cloth slightly dampened with water or mild hand soap. Do not use any type of solvent or abrasive cleaner. Before cleaning, always unplug the phone from the wall outlet. D. Retain the original packaging should you need to ship the phone at a later date.

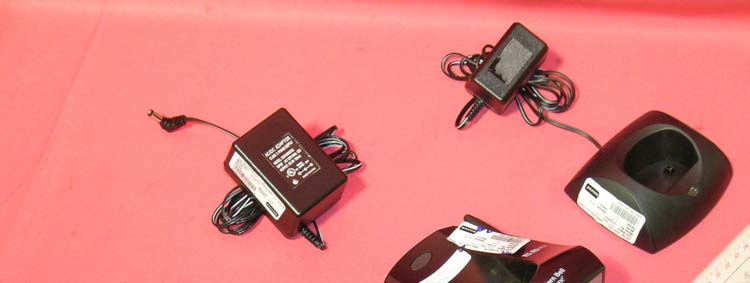

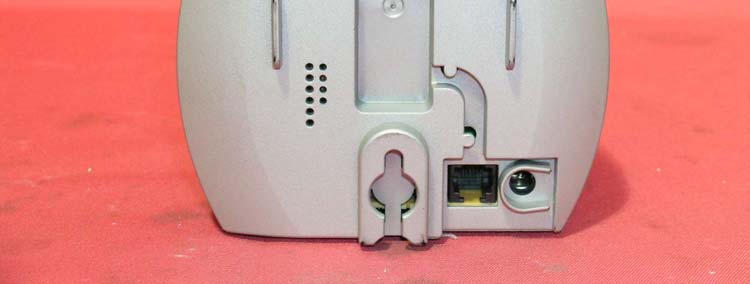

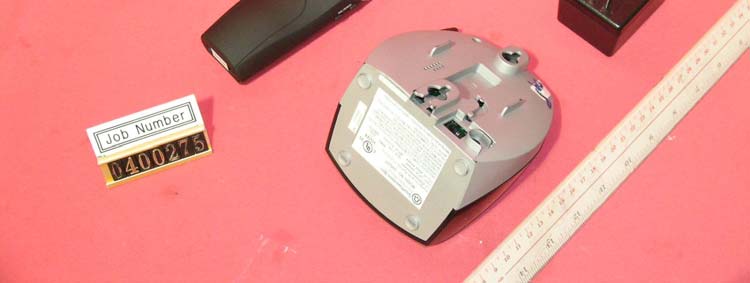

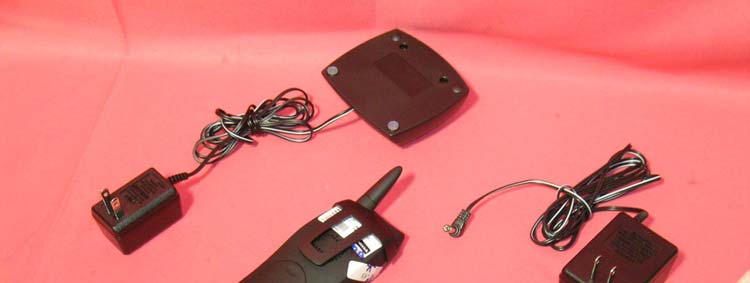

External photos FCC ID: LBBGH5811 External photos FCC ID: LBBGH5811

GH5811 BASE GH5811 HANDSET 3 . 3 0 7 . 0 0 14.60 1.50 25.00 5 0 . 0 0 1 5 . 0 0 3 5 . 5 0 2 3 . 5 0 2 0 . 5 0 6.50 9.00 13.50 60.00 37.00 POWER XXVDC TEL LINE +- 26.5 14.50 ENGRAVING GH5811 LABEL DRAWING DATE: 12 FEB 2004 ENGRAVING

Internal photos FCC ID: LBBGH5811 Base assembly Base Main PCB comp side Internal photos FCC ID: LBBGH5811 Base Main PCB solder side Base Line Interface PCB comp side Internal photos FCC ID: LBBGH5811 Base Line Interface PCB solder side Base Oscillator PCB comp side (View 1) Internal photos FCC ID: LBBGH5811 Base Oscillator PCB comp side (View 2) Base Oscillator PCB comp side (View 3)

Digital Security coding system GH5811’s handset and Base is pre-registered with 20bits for handset and 17bits for base unit identification digital security codes, which are stored into the non-volatile memory. This is fulfilling the FCC Part 15.214(d) requirement that there must be at least 256 discrete digital codes. Moreover, the identification digital security codes and handset’s numbers of handset is factory-exchanged to the Base and vice versa, before having packed to the gift-box.

Prepare By: Dreamis So P.28 2/13/04 Connection to party lines is subject to state tariffs. This equipment is hearing aid compatible. An applicable certification jacks Universal Service Order Codes (USOC) for the equipment is provided (i.e.., RJ11C) in the packaging with each piece of approved terminal equipment. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTICE: If your home has specially wired alarm equipment connected to the telephone line, ensure the installation if this [equipment ID] does not disable your alarm equipment. If you have questions about what will disable alarm equipment, consult your telephone company or a qualified installer. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: * Reorient or relocate the receiving antenna. * Increase the separation between the equipment and receiver. * Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. ̈ Consult the dealer or an experienced radio TV technician for help. Caution: To maintain compliance with the FCC's RF exposure guidelines, place the base unit at least 20cm from nearby persons. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Privacy of communications may not be ensured when using this phone. Product Care A. Avoid putting cordless phones near heating appliances and devices that generate electrical noise (motors, fluorescent lamps, etc.) B. Avoid rough treatment of the phone by placing the handset gently into the base when hanging up. Avoid dropping the handset. C. Clean your cordless telephone only with a soft cloth slightly dampened with water or mild hand soap. Do not use any type of solvent or abrasive cleaner. Before cleaning, always unplug the phone from the wall outlet. D. Retain the original packaging should you need to ship the phone at a later date.

• The test results reported in this report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization form Giant Electronics Limited Limited FCC ID: LBBGH5811 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2741 1693 Website: www.hk.intertek-etlsemko.com Continental Conair Limited Application For Certification 2.4GHz/5.8GHz Frequency Hopping Spread Spectrum Cordless Phone with Caller ID (Base Unit) (FCC ID: LBBGH5811) 04002751 TL/Ann Choy February 27, 2004 INTERTEK TESTING SERVICES FCC ID: LBBGH5811 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: Summary of Tests EXHIBIT 2: General Description EXHIBIT 3: System Test Configuration EXHIBIT 4: Measurement Results EXHIBIT 5: Equipment Photographs EXHIBIT 6: Product Labelling EXHIBIT 7: Technical Specifications EXHIBIT 8: Instruction Manual EXHIBIT 9: Security Code Information INTERTEK TESTING SERVICES FCC ID: LBBGH5811 ii MEASUREMENT/TECHNICAL REPORT Continental Conair Limited- MODEL: GH5811(XXXXX), GH5812(XXXXX), GH5813(XXXXX) FCC ID: LBBGH5811 This report concerns (check one) Original Grant X Class II Change Equipment Type: DSS-Part 15 Spread Spectrum Transmitter Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until : dae Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [12- 08-03 Edition] provision. Report prepared by: Tommy Leung Intertek Testing Services 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Phone: 852-2173-8538 Fax: 852-2741-1693 INTERTEK TESTING SERVICES FCC ID: LBBGH5811 iii Table of Contents 1.0 Summary of test results ..................................................................................... 2 2.0 General Description.................................................................................................. 4 2.1 Product Description ................................................................................................. 4 2.2 Related Submittal(s) Grants ..................................................................................... 5 2.3 Test Methodology .................................................................................................... 5 2.4 Test Facility ............................................................................................................. 5 3.0 System Test Configuration ...................................................................................... 7 3.1 Justification..............................................................................................................7 3.2 EUT Exercising Software ......................................................................................... 7 3.3 Support Equipment List and Description .................................................................. 8 3.4 Measurement Uncertainty............................................................................................. 9 3.5 Equipment Modification ........................................................................................... 9 4.0 Measurement Results............................................................................................. 11 4.1 Maximum Conducted Output Power at Antenna Terminals..................................... 11 4.2 Maximum 20 dB RF Bandwidth .............................................................................. 12 4.3 Minimum Number of Hopping Frequencies ................................................................ 13 4.4 Minimum Hopping Channel Carrier Frequency Separation........................................ 14 4.5 Average Time of Occupancy .................................................................................. 15 4.6 Out of Band Conducted Emissions ............................................................................. 16 4.7 Out of Band Radiated Emissions............................................................................ 17 4.8 Transmitter Radiated Emissions in Restricted Bands.............................................. 18 4.9 Field Strength Calculation ...................................................................................... 19 4.10 Radiated Emission Configuration Photograph - Base Unit....................................... 20 4.11 Radiated Emission Data - Base Unit..................................................................... 21 4.12 AC Line Conducted Emission ............................................................................... 25 4.13 Line Conducted Configuration Photograph - Base Unit ......................................... 26 4.14 Line Conducted Emission Configuration Data ....................................................... 27 4.15 Radiated Emission from Digital Section of Transceiver ............................................ 28 4.16 Transmitter Duty Cycle Calculation and Measurements........................................ 30 5.0 Equipment Photographs ........................................................................................ 32 6.0 Product Labelling................................................................................................... 34 7.0 Technical Specifications........................................................................................ 36 8.0 Instruction Manual ...................................................................................................... 38 9.0 Security Code Information.......................................................................................... 40 INTERTEK TESTING SERVICES FCC ID: LBBGH5811 iv List of a…

Text truncated - open the document above for the full version.

Report No.:04002751 Handsfree(1 Handset) Mode Ctrl No.:N/A PAGE 1 Tested By:Hong, Report No.:04002751 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement: x QP / + AV Meas Time: 1 s Subranges: 16 Acc Margin: 20dB Transducer No. Start Stop Name 21 9k 30M EW0698 0 10 20 30 40 50 60 70 80 90 dBuV 100 0.15 MHz 30110 F15Q F15A Report No.:04002751 Handsfree(1 Handset) Mode Ctrl No.:N/A Tested By:Hong, Report No.:04002751 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement Results: Frequency QP Level QP Limit MHz dBuV dBuV 6.37500 43.9 60.0 Frequency AV Level AV Limit MHz dBuV dBuV 6.44500 38.6 50.0 * limit exceeded

The Worst Case Configuration Photographs FCC ID: LBBGH5811 Radiated Emission – Base Front View Rear View The Worst Case Configuration Photographs FCC ID: LBBGH5811 Conducted Emission Front View Rear View The Worst Case Configuration Photographs FCC ID: LBBGH5811 Conducted Emission Side View

The Worst Case Configuration Photographs FCC ID: LBBGH5811 Radiated Emission – Base Front View Rear View The Worst Case Configuration Photographs FCC ID: LBBGH5811 Conducted Emission Front View Rear View The Worst Case Configuration Photographs FCC ID: LBBGH5811 Conducted Emission Side View
