LDV-SP1000Energy Management Device, ZigBee Wireless

SP-1000 Quick Start Guide www.panamax.com www.mybluebolt.comwww.furmansound.com RESET / RESTORE POWER NETWORK B ® NET. ZIGBEE NET. ZIGBEE This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device in accordance with the specifications of Part 15 of FCC rules. These specifications are designed to provide reasonable protection against such interference win a residential installation. However, there is no guarantee that interference will not occur in a particular installation. POWER STATUS INDICATOR LIGHTS POWER ON/OFF AND NETWORK CONNECTION STATUS INDICATOR OUTDOOR USE IS PROHIBITED! In accordance with FCC 15.21, changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. RESET / RESTORE POWER NETWORK RESET / RESTORE POWER NETWORK BOTTOM OUTLET GROUND PIN RECEPTACLE FACING WALL OUTLET TOP VIEWBOTTOM VIEW INSTALLATION 1. Turn OFF the equipment that you are plug- ging into the SP-1000. 2. Plug SP-1000 into the wall outlet. Press the POWER /NETWOK button. The blue “POWER” light indicates power is on. 3. Plug your equipment into the AC outlets. 4. If the NETWORK light is GREEN, the SP- 1000 is connected to a ZigBee network. If the NETWORK light is RED, the MD2-ZB is not connected to a ZigBee network. Proceed to step 6, SETUP 5. Verify that a BlueBOLT ZigBee, ZigBee- Ethernet Bridge device is powered on and within 100 ft. of an active ZigBee device. SETUP 6. Through the BlueBOLT interface, enable NETWORK JOINING. Refer to the user manual for BB-ZIGBEE for detailed instructions. Multible SP-1000 units can be installed within 100 ft. from an active ZigBee device (BB-ZIGBEE BRIDGE or MD2-ZB). SP-1000 SP-1000 SP-1000 7. To indicate that the unit has not joined the network, the NETWORK LED is OFF. 8. To initiate device discovery, The NETWORK button is presseed for 5 seconds. While the unit is attempting to join the ZigBee HA network, The NETWORK LED is illuminated YELLOW. 9. After the unit has succesfully joined the ZIG- Bee HA network, the NETWORK LED is GREEN. If unit fails to join the network after 10 seconds, repeat steps 5 through 9. Troubleshooting Your BlueBOLT™ enabled Power Management Component (BB-ZigBee) is completely plug- and-play and does not require any software installation. The BlueBOLT™ control interface is operated through your web browser. 1) Using any Internet connected computer, go to www.mybluebolt.com using your standard Internet browser. 2) Follow the on screen instructions to create an account and/or take control of your BlueBOLT™ enabled product. Note: you will need the BB-ZigBee’s unique MAC address and challenge key (provided on the label on the back of BB-ZigBee) in order to register the unit online. 3) If BlueBOLT™ cannot detect your device within 20 seconds of inputting your MAC address and challenge key, please follow the on-screen troubleshooting guide. Also confirm the BB-ZigBee is properly connected to the Internet. Panamax LLC, 1690 Corporate Circle, Petaluma, CA 94954 707-283-5900 • 800-472-5555 • www.panamax.com • www.mybluebolt.com ©2012 Panamax LLC, Panamax, Furman and BlueBOLT logos are US registered trademarks of Panamax www.panamax.com www.mybluebolt.comwww.furmansound.com SERVICE If you require technical support or equipment service, please contact the Service Department at 1-800-472-5555. All equipment being returned for repair must have a Return Authorization (RA) number. To get an RA number, call the Customer Service Department. Before returning any equip- ment for repair, be sure that it is adequately packed and cushioned against damage in ship- ment, and that it is insured. We suggest that you save the original packaging and use it to ship the product for servicing. Also, please provide a note with your name, address, phone number, RA number and a description of the problem. LIMITED 1 YEAR WARRANTY Panamax/Furman Limited Product Warranty: Panamax Inc. warrants to the purchaser of this product for a period of one (1) year from the date of purchase, that the unit shall be free of defects in design, material or workmanship, and Panamax Inc. will repair or replace any defective unit. Full warranty information is available online at www.Panamax.com or www.FurmanSound.com. FCC CLASS B DIGITAL DEVICE INFORMATION NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reason- able protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. • Is your BB-ZigBee receiving power? Check the power cable and confirm the unit is on. • Is your BB-ZigBee installed properly? The “Link” light should be illuminated (solid green) and the “Activity” light should be blinking intermittently (green). • Is your Internet connection functioning? • Can you access a general web page? • Is your BB-ZigBee connected to your internet router or modem? Check the Ethernet cable and confirm that the unit is connected to an active Internet connection, and make sure those connected devices are receiving power. If you have answered “Yes” to all of these questions and are still unable to connect your Power Management component, (BB-ZigBee) contact Panamax/Furman customer service at 1-800-472-5555.

/ ...../— /-. .../ .._/_/-•1J.../....L/- !.v _x« FCC Confidential Authorization May 10, 2012 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: LDVSP-1000 In accordance with Sections 0.457 and 0.459 of the Commission's Rules, Panamax LLC hereby requests long-term confidential treatment of information accompanying this application as outlined below: • Block Diagram • Schematics • Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, fohn D. Humphrey ( iohnh(5)panamax.com (707) 766-2302 Pill! ifVhlX, hlC, li' : l-'l ' I'I"-IM|I Citi'i' I i-'.iliil'... HA"'!' 1 i' • WV.W |'.',l •I'll IA.U'I'I " .i'l'l 'it? .• , . • » I .AX /'!<•'! ,l- ' I'll!)

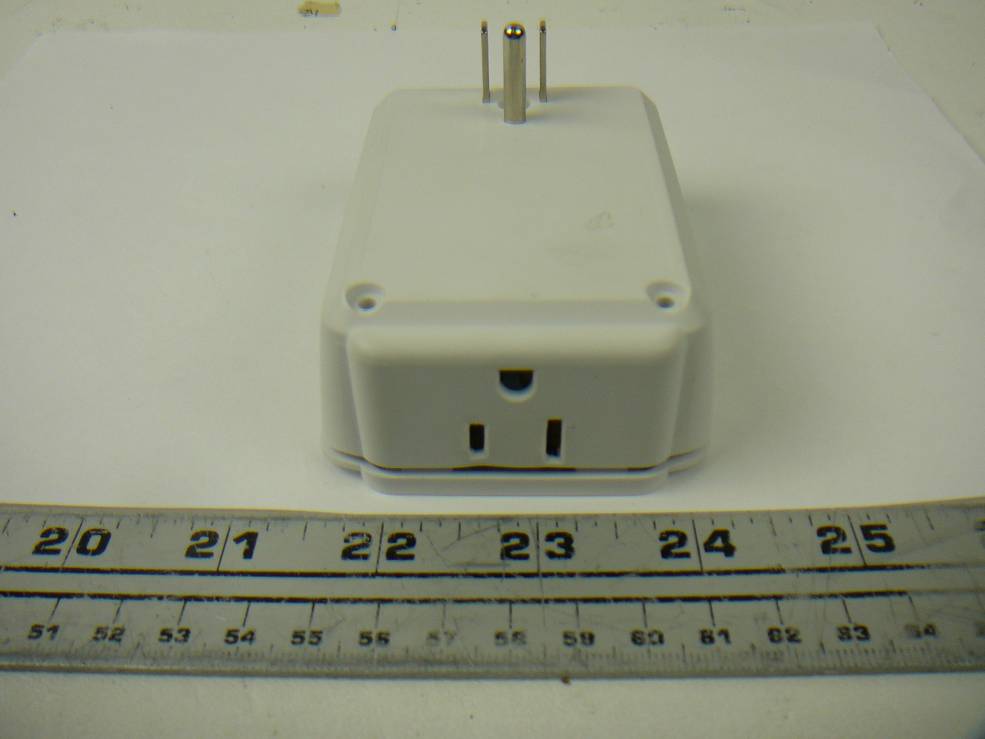

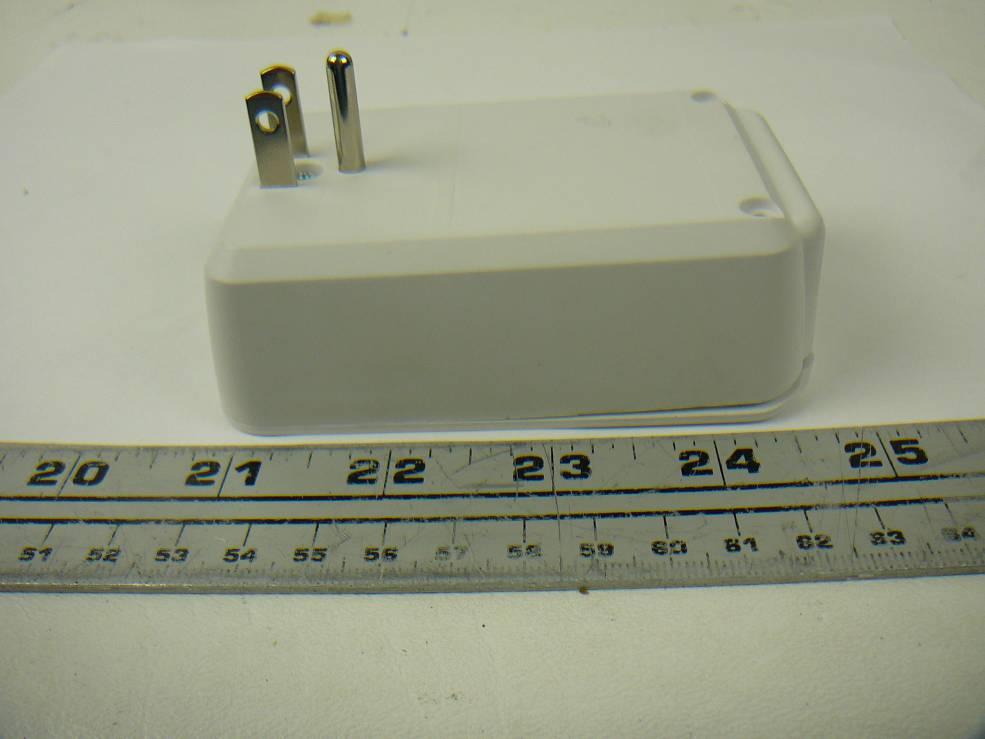

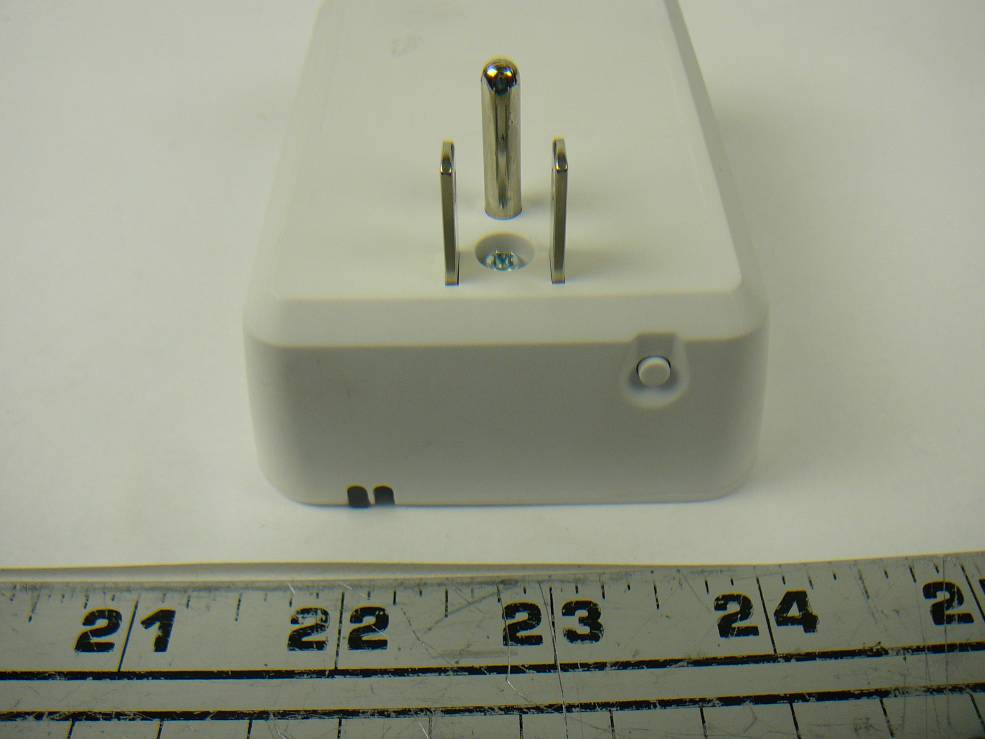

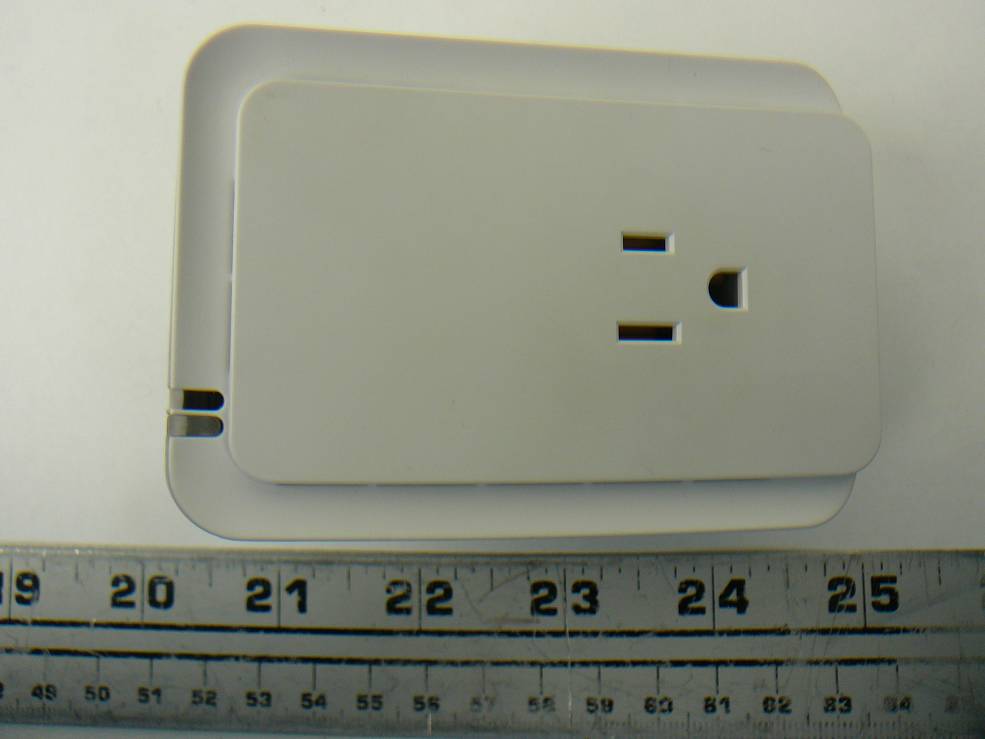

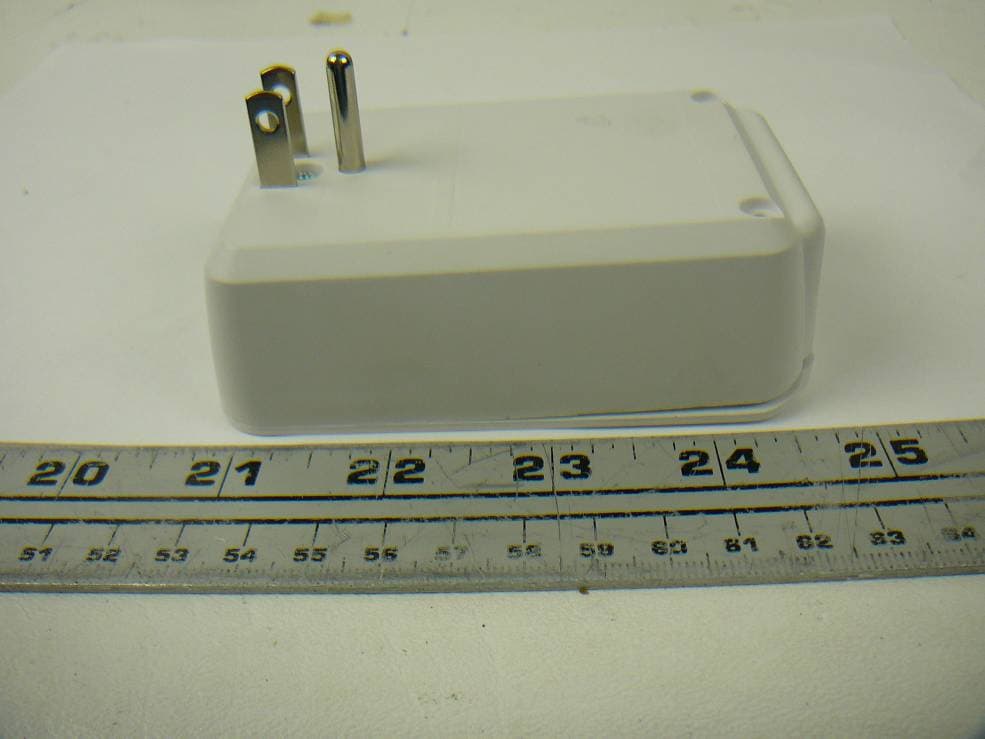

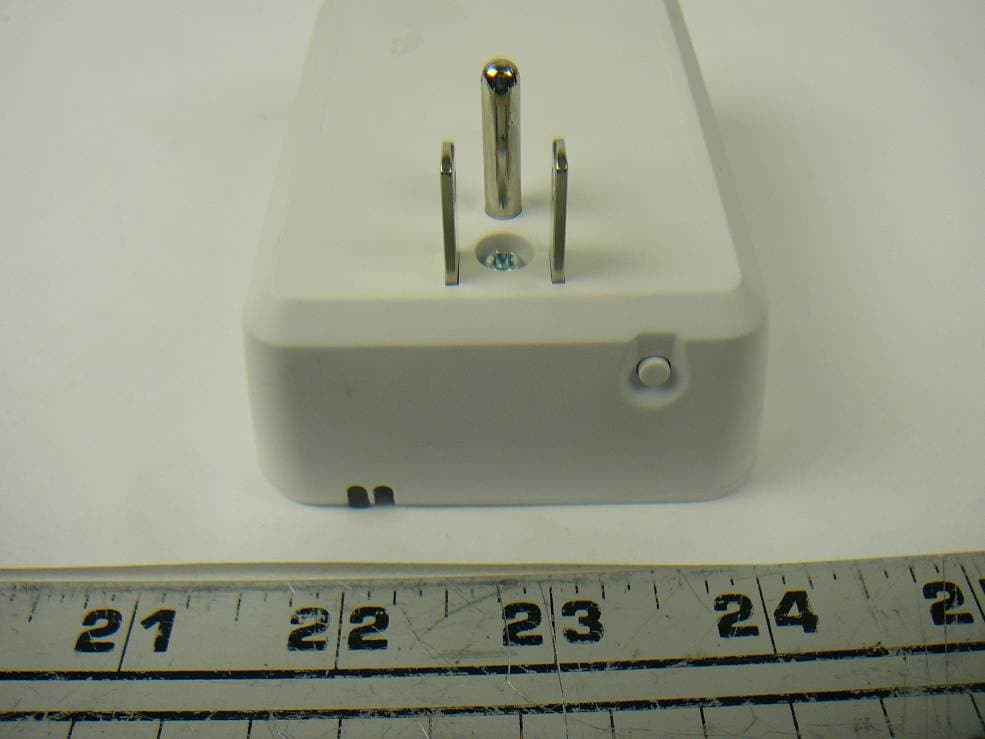

Panamax, LLC FCC ID: LDV-SP1000, IC: 10379A-SP1000 Report Number: R1205102-247 Page 50 of 53 FCC Part 15C/IC RSS-210 Test Report 16 Exhibit C – EUT Photographs 16.1 EUT Front Side View 16.2 EUT Rear Side View Panamax, LLC FCC ID: LDV-SP1000, IC: 10379A-SP1000 Report Number: R1205102-247 Page 51 of 53 FCC Part 15C/IC RSS-210 Test Report 16.3 EUT Top Side View 16.4 EUT Bottom Side View Panamax, LLC FCC ID: LDV-SP1000, IC: 10379A-SP1000 Report Number: R1205102-247 Page 52 of 53 FCC Part 15C/IC RSS-210 Test Report 16.5 EUT Side View (1) 16.6 EUT Side View (2)

Panamax, LLC FCC ID: LDV-SP1000, IC: 10379A-SP1000 Report Number: R1205102-247 Page 45 of 53 FCC Part 15C/IC RSS-210 Test Report 14 Exhibit A – FCC & IC Equipment Labeling Requirements 14.1 FCC ID Label Requirements As per FCC §2.925, (a) Each equipment covered in an application for equipment authorization shall bear a nameplate or label listing the following: (1) FCC Identifier consisting of the two elements in the exact order specified in §2.926. The FCC Identifier shall be preceded by the term FCC ID in capital letters on a single line, and shall be of a type size large enough to be legible without the aid of magnification. Example: FCC ID: XXX123 Where: XXX—Grantee Code, 123—Equipment Product Code As per FCC §15.19, (a) In addition to the requirements in part 2 of this chapter, a device subject to certification, or verification shall be labeled as follows: (3) All other devices shall bear the following statement in a conspicuous location on the device: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. (4) Where a device is constructed in two or more sections connected by wires and marketed together, the statement specified above is required to be affixed only to the main control unit. If the EUT is integrated within another device then a label affixed to the host shall also state, “Contains FCC ID: XXXXXX” (5) When the device is so small or for such use that it is not practicable to place the statement specified under paragraph (a) of this section on it, the information required by this paragraph shall be placed in a prominent location in the instruction manual or pamphlet supplied to the user or, alternatively, shall be placed on the container in which the device is marketed. However, the FCC identifier or the unique identifier, as appropriate, must be displayed on the device. 14.2 IC Label Requirements As per IC RSS-Gen §5.2, the certification number shall appear as follows: IC: XXXXXX-YYYYYYYY Where: • "XXXXXX-YYYYYYYY" is the certification number • "XXXXXX" is the Certificate Holder Number (CHN), made of at most 6 alphanumeric characters (A-Z, 0-9), assigned by Industry Canada; and • "YYYYYYYY" is the Unique Product Number (UPN), made of at most 11 alphanumeric characters (A-Z, 0-9) assigned by the applicant. • Note 1: The term "IC" before the equipment certification number only signifies that the Industry Canada technical specifications were met. • Note 2: Note 1 shall be conspicuously placed in the equipment user manual. • Note 3: Permitted alphanumeric characters used in the CHN and UPN are limited to capital letters (A-Z) and digits (0-9). Other characters, such as "#", "/" or "-", shall not be used. Panamax, LLC FCC ID: LDV-SP1000, IC: 10379A-SP1000 Report Number: R1205102-247 Page 46 of 53 FCC Part 15C/IC RSS-210 Test Report As per RSS-Gen §5.2 Equipment Labeling Equipment subject to certification under the applicable RSS, shall be permanently labeled on each item, or as an inseparable combination. The label must contain the following information for full compliance: (a) the certification number, prefixed by the term “IC:”; (b) the manufacturer's name, trade name or brand name; and (c) a model name or number. Equipment for which a certificate has been issued is not considered certified if it is not properly labeled. The information on the Canadian label can be combined with the manufacturer’s other labeling requirements. If the device size is too small to put a label, the label can be included in the user’s manual, upon agreement with Industry Canada. 14.3 FCC ID & IC Label Contents and Location

Panamax, LLC FCC ID: LDV-SP1000, IC: 10379A-SP1000 Report Number: R1205102-247 Page 53 of 53 FCC Part 15C/IC RSS-210 Test Report 16.7 EUT Main Board Top View 16.8 EUT Main Board Bottom View --- END OF REPORT --- Antenna

Panamax, LLC FCC ID: LDV-SP1000, IC: 10379A-SP1000 Report Number: R1205102-247 Page 9 of 53 FCC Part 15C/IC RSS-210 Test Report 4 FCC §15.247 (i), §2.1091 & IC RSS-102 – RF Exposure 4.1 Applicable Standard According to FCC §15.247(i), §1.1307(b)(1) and §1.1310 systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 * (100) 30 1.34-30 824/f 2.19/f * (180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density Before equipment certification is granted, the procedure of IC RSS-102 must be followed concerning the exposure of humans to RF fields. According to IC RSS-102 Issue 2 section 4.1, RF limits used for general public will be applied to the EUT. Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m 2 ) Time Averaging (min) 0.003 - 1 280 2.19 - 6 1 - 10 280 / f 2.19 / f - 6 10 - 30 28 2.19 / f - 6 30 – 300 28 0.073 2* 6 300 – 1 500 1.585 f 0.5 0.0042 f 0.5 f / 150 6 1 500 – 15 000 61.4 0.163 10 6 15 000 – 150 000 61.4 0.163 10 616000 / f 1.2 150 000- 300 000 0.158 f 0.5 4.21 x 10 -4 f 0.5 6.67 x 10 -5 f 616000 / f 1.2 Note: ƒ is frequency in MHz * = Power density limit is applicable at frequencies greater than 100 MHz Panamax, LLC FCC ID: LDV-SP1000, IC: 10379A-SP1000 Report Number: R1205102-247 Page 10 of 53 FCC Part 15C/IC RSS-210 Test Report 4.2 MPE Prediction Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 S = PG/4πR² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna 4.3 MPE Results Maximum peak output power at antenna input terminal (dBm):3.59 Maximum peak output power at antenna input terminal (mW): 2.29 Prediction distance (cm): 20 Prediction frequency (MHz): 2405 Maximum Antenna Gain, typical (dBi): 0 Maximum Antenna Gain (numeric): 1.0 Power density of prediction frequency at 20.0 cm (mW/cm 2 ):0.0005 Power density of prediction frequency at 20.0 cm (W/m 2 ):0.005 MPE limit for uncontrolled exposure at prediction frequency (mW/cm 2 ):1.0 MPE limit for uncontrolled exposure at prediction frequency (W/m 2 ):10 The device is compliant with the requirement MPE limit for uncontrolled exposure. The maximum power density at the distance of 20 cm is 0.0005 mW/cm 2 (0.005 W/m 2 ).Limit is 1.0 mW/cm 2 (10 W/m 2 ).

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA*, NIST, or any agency of the Federal Government. * This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “*” (Rev.2) FCC PART 15 SUBPART C IC RSS-210, ISSUE 8, DECEMBER 2010 TEST AND MEASUREMENT REPORT For Panamax, LLC 1690 Corporate Circle, Petaluma, CA 94954, USA Report Type: Original Report Product Type: Energy Management Device Prepared By Ning Ma Report Number R1205102-247 Report Date 2012-07-02 Reviewed By Victor Zhang EMC/RF Lead Bay Area Compliance Laboratories Corp. 1274 Anvilwood Avenue, Sunnyvale, CA 94089, USA Tel: (408) 732-9162 Fax: (408) 732-9164 FCC ID: LDV-SP1000 IC: 10379A-SP1000 Panamax, LLC FCC ID: LDV-SP1000, IC: 10379A-SP1000 Report Number: R1205102-247 Page 2 of 53 FCC Part 15C/IC RSS-210 Test Report TABLE OF CONTENTS 1 General Description..................................................................................................................................................... 5 1.1 Product Description for Equipment Under Test (EUT) ....................................................................................... 5 1.2 Mechanical Description of EUT .......................................................................................................................... 5 1.3 Objective.............................................................................................................................................................. 5 1.4 Related Submittal(s)/Grant(s) .............................................................................................................................. 5 1.5 Test Methodology................................................................................................................................................ 5 1.6 Measurement Uncertainty.................................................................................................................................... 5 1.7 Test Facility......................................................................................................................................................... 6 2 System Test Configuration.......................................................................................................................................... 7 2.1 Justification.......................................................................................................................................................... 7 2.2 EUT Exercise Software ....................................................................................................................................... 7 2.3 Special Equipment ............................................................................................................................................... 7 2.4 Equipment Modifications .................................................................................................................................... 7 2.5 EUT Internal Configuration Details .................................................................................................................... 7 3 Summary of Test Results ............................................................................................................................................ 8 4 FCC §15.247 (i), §2.1091 & IC RSS-102 – RF Exposure.......................................................................................... 9 4.1 Applicable Standard ............................................................................................................................................ 9 4.2 MPE Prediction.................................................................................................................................................. 10 4.3 MPE Results ...................................................................................................................................................... 10 5 FCC §15.203 & IC RSS-Gen §7.1.2 – Antenna Requirements ................................................................................ 11 5.1 Applicable Standard .......................................................................................................................................... 11 5.2 Antenna List ...................................................................................................................................................... 11 6 FCC §15.207 & IC RSS-Gen §7.2.4 – AC Line Conducted Emissions.................................................................... 12 6.1 Applicable Standards ......................................................................................................................................... 12 6.2 Test Setup .......................................................................................................................................................... 12 6.3 Test Procedure ................................................................................................................................................... 12 6.4 Test Setup Block Diagram................................................................................................................................. 13 6.5 Corrected Amplitude & Margin Calculation ..................................................................................................... 13 6.6 Test Equipment List and Details........................................................................................................................ 14 6.7 Test Environmental Conditions ................................................................................................................…

Text truncated - open the document above for the full version.

Panamax, LLC FCC ID: LDV-SP1000, IC: 10379A-SP1000 Report Number: R1205102-247 Page 47 of 53 FCC Part 15C/IC RSS-210 Test Report 15 Exhibit B – Test Setup Photographs 15.1 AC Line Conducted Emission Front View 15.2 AC Line Conducted Emission Side View Panamax, LLC FCC ID: LDV-SP1000, IC: 10379A-SP1000 Report Number: R1205102-247 Page 48 of 53 FCC Part 15C/IC RSS-210 Test Report 15.3 Radiated Emission Front View at 3 Meter 15.4 Radiated Emission below 1 GHz Rear View at 3 Meter Panamax, LLC FCC ID: LDV-SP1000, IC: 10379A-SP1000 Report Number: R1205102-247 Page 49 of 53 FCC Part 15C/IC RSS-210 Test Report 15.5 Radiated Emission above 1 GHz Rear View at 3 Meter
