LE2APPCAM24HD720p WIFI Camera

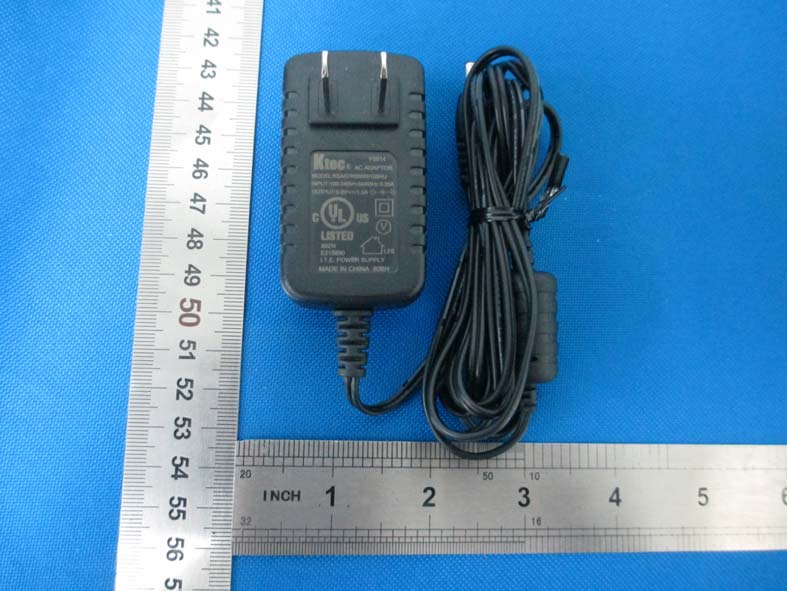

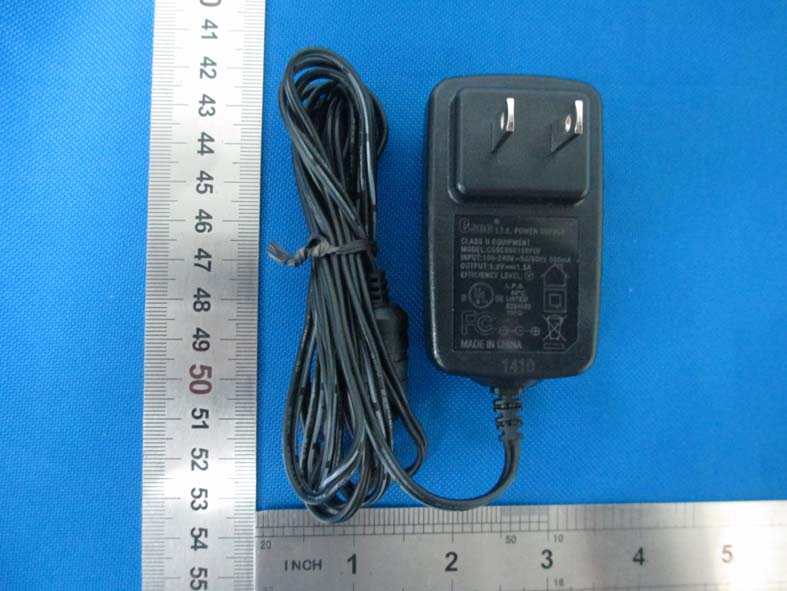

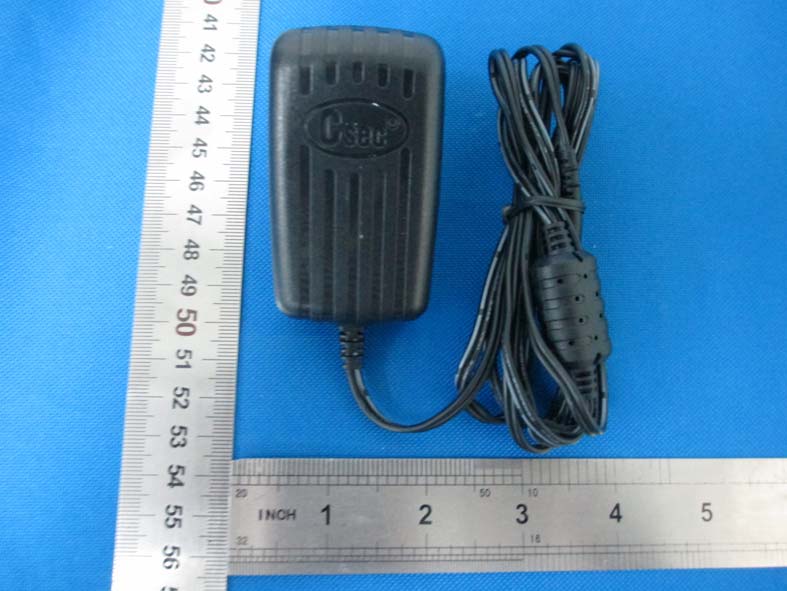

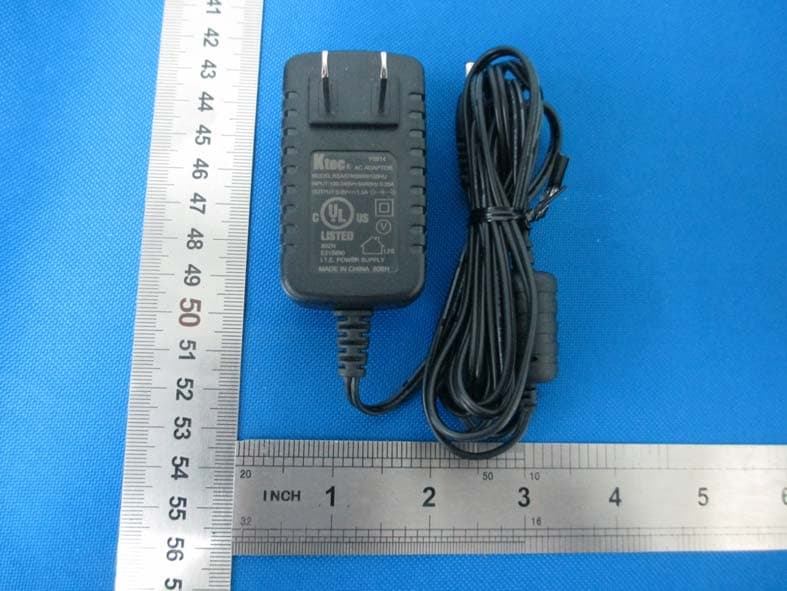

IN THE BOX Camera (1)Base (1)AC Power Adapter (1) Quick Start Guide (1)Ethernet to USB Cable (1) Screw Pack (1) If any pieces are missing or damaged, contact Uniden Customer Service at 1-800-658-8068. SET UP CAMERA AND SMARTPHONE/TABLET PREREQUISITES xYour router must support WEP/WPA/WPA2 security and it must be turned on. xYou must have an available WiFi-enabled mobile device (iOS smartphone/tablet). xThe AppCam and your mobile device must connect to the same Wi-Fi router for setup. xMake sure your camera is within WiFi range of your wireless router. If your phone has a WiFi signal from your router where the camera is to be placed, then the cameras should also work. 1. Download the Uniden® AppCam app from the Apple App Store, Google Play, or the Amazon App store onto your device. 2. Connect the camera to power. After about 45 seconds, the green LED begins to flash (3-flash/pause pattern). Your camera is now ready to pair. CONNECT CAMERA AND MOBILE DEVICE 1. From your device’s Settings, go to WiFi. Select the AppCam 24HD to connect your device to it. The camera listing will be HD-XXXXXX where XXXXXX are the last 6 digits on the camera label. Enter the default password, 12345678, and tap Connect for Android or Join for iOS Wait about 10 seconds for the camera to appear on the WiFi list. UNIDEN APPCAM 24HD QUICK START GUIDE Use this Quick Start Guide to connect the camera on the network. Refer to the online Owner’s Manual for operation details at www.uniden.com. ͳGMT-09:00 - Yukon Standard ͳGMT-10:00 - Alaska-Hawaii Standard 4. Set the Daylight Savings Time indicator. 5. Tap Back, Save, and then exit the Advanced Settings list. For complete operation instructions, refer to the online user manual at www.uniden.com. TROUBLESHOOTING If ...TRY THIS ... My smartphone or wireless device cannot find the camera during setup. Make sure the camera’s green LED is blinking in a 3-flash/pause pattern. If it isn’t, reset the camera. Insert an unbent paperclip into the Reset hole on the front of the camera until the LEDs begin to flash. The app cannot find the camera. -Make sure your network supports DHCP protocol. -Make sure that the DHCP option is turned on. -Make sure the camera and your mobile device connect to the same WiFi router. -Make sure the WiFi router is activated. -Make sure the camera is properly powered on. -Make sure the WiFi router has enabled SSID broadcasting. The camera does not find the router to connect to. -Make sure you selected the correct router in Advanced Settings/WiFi. -Make sure you entered the correct password for the router you selected in Advanced Settings/WiFi. FCC/IC COMPLIANCE STATEMENT This device complies with Part 15 of the FCC rules. Operation is subjected to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device complies with Industry Canada license-exempt RSS standard(s).Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. Avis de conformité à la FCC : Cet dispositif a été testé et s’avère conforme à l’article 15 des règlements de la Commission fédérale des communications (FCC). Ce dispositif est soumis aux conditions suivantes: 1) Ce dispositif ne doit pas causer d’interférences nuisibles et; 2) Il doit pouvoir supporter les parasites qu’il reçoit, incluant les parasites pouvant nuire à son fonctionnement. Cet appareil est conforme aux normes RSS exemptes de licences d’Industrie Canada. Son fonctionnement est soumis aux deux conditions suivantes : (1) cet appareil ne doit pas causer d’inteférences nuisibles et (2), il doit pouvoir accepter les interférences, incluant celles pouvant nuire à son fonctionnement normal. Tout changement ou modification non approuvé expressément par la partie responsable pourrait annuler le droit à l’utilisateur de faire fonctionner cet équipement. Issue 1, April 2015 2. When the device is connected to the camera, launch the app and tap the Add New System icon. Android iOS 3. The System Information screen displays. Name the camera (Front Door, Back Door, etc.) and tap Search. 4. The camera’s DID should display. Tap the DID for Android or Join for iOS.. Android iOS 5. The System Information screen displays again. This time, enter the security code (123456); tap Save, then Yes (Android) or OK (iOS). For Android: The Connection screen displays. Tap it to display the Modify Security Code screen. For iOS: The connection screen displays, followed by the Snapshot screen. 6. Tap the screen image. The Modify Security Code screen displays. Change the security code and then tap OK. Android iOS 7. Tap the screen displays again to display the live video screen. CONNECT CAMERA TO WIFI ROUTER 1. Tap the Back icon, the System icon, and then the System Settings icon. The System Information screen displays Android iOS 2. Tap Advanced. Enter the Admin password (123456) and tap OK. 3. Scroll to WiFi on the Advanced Settings list. For Android: Tap Manage WiFi network and then scroll to the router you want. Enter the password for that router. Unplug the Ethernet cable if it is connected. For iOS: Tap SSID. Select your router from the drop-down list and enter your router’s password. Tap Connect.. Your camera will reboot and reconnect to the router. Wait until the LEDs return to the steady on state to continue. Android and iOS screens are similar. 4. If the screen indicates that the camera is disconnected, tap the System icon and then the Refresh icon. The camera refreshes and reconnects to the router you chose. Android iOS 5. Tap the screen to display video. PLACING THE APPCAM 24HD Mount the AppCam 24…
