FE5NA0D31 Module Specification Internal FE5NA0D31 5G DSDA NAD Module OEM Manual and User Guide v1 (For Use during Certification) FE5NA0D31 Module Specification Internal Table of Contents 1 FE5NA0D31 MODULE ........................................................................................................................................................... 6 1.1 KEY FEATURES .......................................................................................................................................................................... 6 1.1.1 Air Interface Support ........................................................................................................................................................ 6 1.2 PACKAGE ................................................................................................................................................................................. 6 1.3 BAND CONFIGURATIONS SUPPORTED ............................................................................................................................................ 7 2 REGULATORY COMPLIANCE NOTES...................................................................................................................................... 7 2.1 REGULATORY COMPLIANCE NOTES ............................................................................................................................................... 7 2.1.1 FCC: .................................................................................................................................................................................. 7 2.2 DEVICE INSTALLATION AND USER MANUAL .................................................................................................................................... 7 2.3 ANTENNA REQUIREMENTS FOR USE WITH MODULE: ......................................................................................................................... 8 2.4 INSTRUCTIONS TO OEMS: .......................................................................................................................................................... 9 3 RECOMMENDED NAD INTERFACES ...................................................................................................................................... 9 4 EXAMPLE OF NAD MODULE LABEL ....................................................................................................................................... 9 5 NAD MODULE RF CHARACTERISTICS .................................................................................................................................. 10 5.1 NAD MODULE RF TRANSMITTER OUTPUT POWER ........................................................................................................................ 10 5.2 NAD MODULE RF RECEIVER SENSITIVITY .................................................................................................................................... 11 6 MECHANICAL INFORMATION ............................................................................................................................................. 11 6.1 MODULE EXPLODED VIEW ........................................................................................................................................................ 12 6.2 MODULE SIDE VIEW ................................................................................................................................................................ 13 7 STORAGE AND HANDLING ................................................................................................................................................. 14 7.1 MOISTURE SENSITIVITY LEVEL (MSL) .......................................................................................................................................... 14 8 PART RELIABILITY ............................................................................................................................................................... 14 9 LAYOUT AND ROUTING RECOMMENDATIONS ................................................................................................................... 14 9.1 ANTENNAS ......................................................................................................................................................................... 14 9.1.1 NAD Antenna Breakout .................................................................................................................................................. 14 9.1.2 Integrated Device RF Insertion Loss ............................................................................................................................... 17 9.2 SDC / EMMC ROUTING .......................................................................................................................................................... 17 FE5NA0D31 Module Specification Internal List of Figures Figure 6-1: Module Exploded View 12 Figure 6-2: Module Top View 13 Figure 6-3 Module Side View 13 Figure 9-1: Antenna Pad Ground Cutouts (NAD bottom layer) 15 Figure 9-2 Antenna Pad Ground Cutout x8 (detail view) 15 Figure 9-3: Antenna Pad Ground Cutout Recommended (Main Board, top layer/NAD side) 15 Figure 9-4 Antenna Pad Ground Cutout x8 (detail view) 16 Figure 9-5: Recommended PCB Stack-up 16 FE5NA0D31 Module Specification Internal List of Tables Table 9-1: RF Antenna Layout Parameters 16 Table 9-2: SDC / eMMC Layout Parameters 17 FE5NA0D31 Module Specification Internal Terms and Acronyms ⚫ BB Baseband ⚫ DCM Data Connectivity Module (also, "TCU") ⚫ DRX Discontinuous Reception ⚫ EN-DC E-UTRAN New Radio – Dual Connectivity (LTE and NR simultaneously) ⚫ ES Engineering Sample ⚫ FDD Frequency Division Duplex ⚫ GLONASS GLObalnaya NAvigatsionnaya Sputnikovaya Sistema ⚫ GNSS Global Navigation Satellite System ⚫ GPIO General Purpose Input Output ⚫ GSM Global System for Mobile ⚫ HSI…

Text truncated - open the document above for the full version.

Internal Continental Automotive Systems, Inc. 21440 West Lake Cook Road, Deer Park, Illinois 60010, United States Tel: 8478622435 ; Fax: 847-8628016 Date: May 27, 2022 FCC Laboratory 7435 Oakland Mills Rd Columbia MD 21046 Subject: Request for Confidentiality FCC ID: LHJ-FE5NA0D31 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission’s rules (47CFR§§0.457, 0.459), we are requesting the Commission to withhold the following documents from public disclosure indefinitely.  Schematic Diagram  Block Diagram  Part List  Operational Description  Tune-up Procedure Above mentioned documents which contain detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’ s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we are requesting the Commission to withhold the following documents for 180 days after the grant of equipment authorization is issued:  External Photos  Internal Photos  Test Setup Photos  User Manual It is our understanding that all measurement test reports, FCC ID label format cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards, _______________________ James Zhang [email protected]

Internal Continental Automotive Systems, Inc. 21440 West Lake Cook Road, Deer Park, Illinois 60010, United States Tel: 8478622435 ; Fax: 847-8628016 Date: May 27, 2022 Module Approval Checklist FCC ID: LHJ-FE5NA0D31 Item Requirements EUT 1. The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must be on the module assembly The module is equipped with its own shielding case. 2. The module must have buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal The module has buffer modulation / data inputs. 3. The module must contain power supply regulation on the module The module has its own power supply regulation. 4. The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), per §§ 15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b) Not applicable to licensed modules. 5. The module must demonstrate compliance in a stand-alone configuration The module was tested on evaluation board, and it’s not inside of another device during testing 6. The module must be labeled with its permanently affixed FCC ID label, or use an electronic display The module transmitter will be labeled with its own FCC ID, and for OEM integration the integration manual contains labeling instructions for the host device per Part 15.212 (vi) 7. The module must comply with all specific rules applicable to the transmitter, including all the conditions provided in the integration instructions by the grantee The module approved transmitter complies with all applicable rules and the integration manual contains any specific requirements addressed to the integrator and/or to the end-user of the final end-product. 8. The module must comply with RF exposure requirements The modular transmitter complies with RF exposure requirement. ______________________ James Zhang [email protected]

Internal Continental Automotive Systems, Inc. 21440 West Lake Cook Road, Deer Park, Illinois 60010, United States Tel: 8478622435 ; Fax: 847-8628016 Date: May 27, 2022 To whom it may concern, Please be notified that I, James Zhang, have designated Sporton International Inc. as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Sporton International Inc. on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certify that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 862. This authorization is limited to the product of as following: FCC ID: LHJ-FE5NA0D31 If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Sincerely yours, ________________________ James Zhang [email protected]

PHOTOGRAPHS OF EUT Report No.: EP1N2419 TEL : 886-3-327-3456 Page Number : 1 of 16 FAX : 886-3-328-4978 Issued Date : Jun. 09, 2022 Report Version : 03 1. Photograph of the EUT FE5NA0D31 (Brand Name: Continental / Model Name: FE5NA0D31) PHOTOGRAPHS OF EUT Report No.: EP1N2419 TEL : 886-3-327-3456 Page Number : 2 of 16 FAX : 886-3-328-4978 Issued Date : Jun. 09, 2022 Report Version : 03

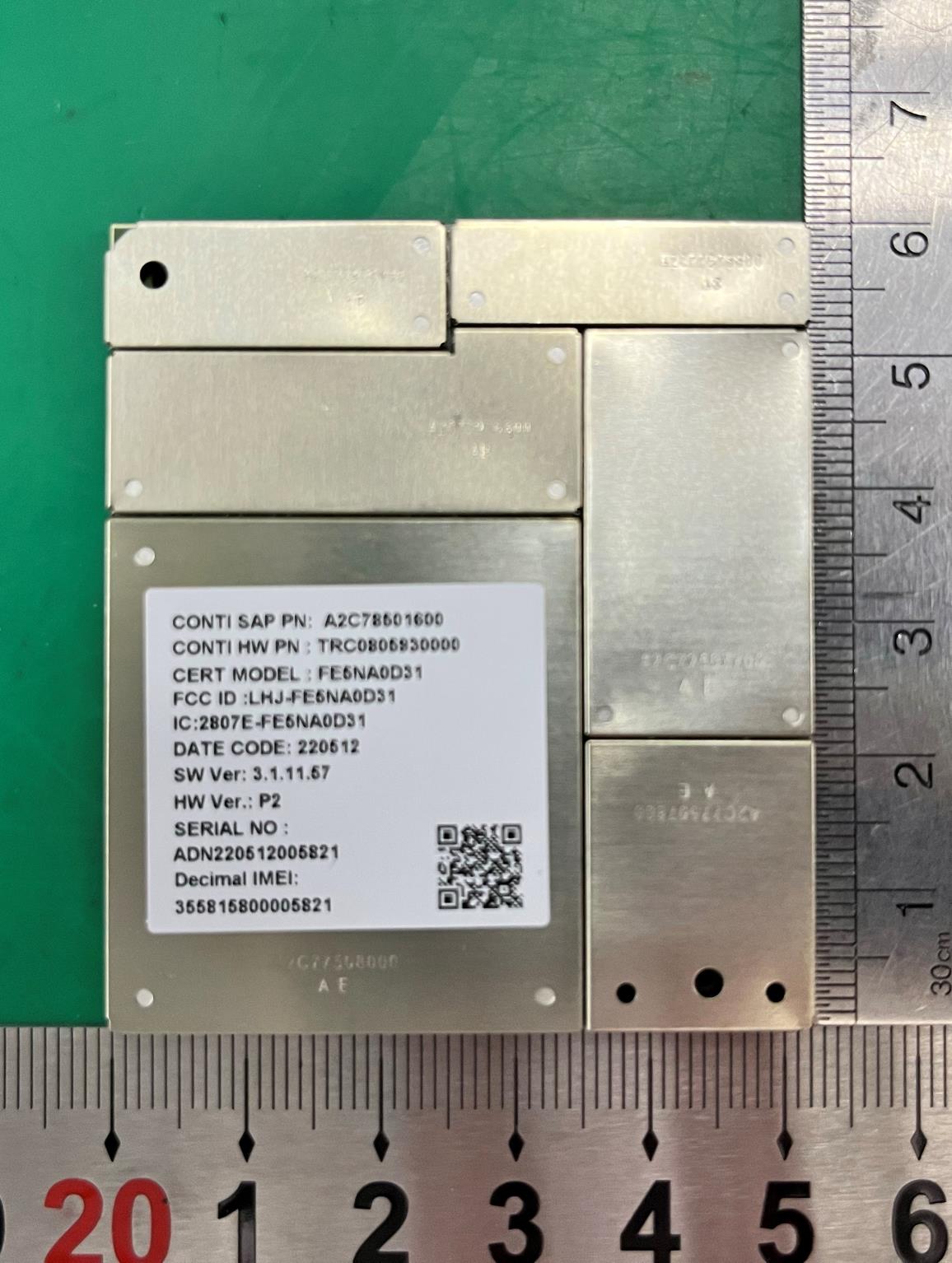

FE5NA0D31 Module; FCC ID: LHJ-FE5NA0D31 Internal Figure 1: Label placed on top of the module. Label with FCC and IC ID information is placed on top of the module and is clearly visible.

PHOTOGRAPHS OF EUT Report No.: EP1N2419 TEL : 886-3-327-3456 Page Number : 3 of 16 FAX : 886-3-328-4978 Issued Date : Jun. 09, 2022 Report Version : 03 PHOTOGRAPHS OF EUT Report No.: EP1N2419 TEL : 886-3-327-3456 Page Number : 4 of 16 FAX : 886-3-328-4978 Issued Date : Jun. 09, 2022 Report Version : 03 PHOTOGRAPHS OF EUT Report No.: EP1N2419 TEL : 886-3-327-3456 Page Number : 5 of 16 FAX : 886-3-328-4978 Issued Date : Jun. 09, 2022 Report Version : 03 PHOTOGRAPHS OF EUT Report No.: EP1N2419 TEL : 886-3-327-3456 Page Number : 6 of 16 FAX : 886-3-328-4978 Issued Date : Jun. 09, 2022 Report Version : 03 PHOTOGRAPHS OF EUT Report No.: EP1N2419 TEL : 886-3-327-3456 Page Number : 7 of 16 FAX : 886-3-328-4978 Issued Date : Jun. 09, 2022 Report Version : 03 PHOTOGRAPHS OF EUT Report No.: EP1N2419 TEL : 886-3-327-3456 Page Number : 8 of 16 FAX : 886-3-328-4978 Issued Date : Jun. 09, 2022 Report Version : 03 PHOTOGRAPHS OF EUT Report No.: EP1N2419 TEL : 886-3-327-3456 Page Number : 9 of 16 FAX : 886-3-328-4978 Issued Date : Jun. 09, 2022 Report Version : 03 PHOTOGRAPHS OF EUT Report No.: EP1N2419 TEL : 886-3-327-3456 Page Number : 10 of 16 FAX : 886-3-328-4978 Issued Date : Jun. 09, 2022 Report Version : 03 PHOTOGRAPHS OF EUT Report No.: EP1N2419 TEL : 886-3-327-3456 Page Number : 11 of 16 FAX : 886-3-328-4978 Issued Date : Jun. 09, 2022 Report Version : 03 2. Photograph of the Antenna WWAN Antenna PHOTOGRAPHS OF EUT Report No.: EP1N2419 TEL : 886-3-327-3456 Page Number : 12 of 16 FAX : 886-3-328-4978 Issued Date : Jun. 09, 2022 Report Version : 03 PHOTOGRAPHS OF EUT Report No.: EP1N2419 TEL : 886-3-327-3456 Page Number : 13 of 16 FAX : 886-3-328-4978 Issued Date : Jun. 09, 2022 Report Version : 03 PHOTOGRAPHS OF EUT Report No.: EP1N2419 TEL : 886-3-327-3456 Page Number : 14 of 16 FAX : 886-3-328-4978 Issued Date : Jun. 09, 2022 Report Version : 03 GPS Antenna PHOTOGRAPHS OF EUT Report No.: EP1N2419 TEL : 886-3-327-3456 Page Number : 15 of 16 FAX : 886-3-328-4978 Issued Date : Jun. 09, 2022 Report Version : 03 PHOTOGRAPHS OF EUT Report No.: EP1N2419 TEL : 886-3-327-3456 Page Number : 16 of 16 FAX : 886-3-328-4978 Issued Date : Jun. 09, 2022 Report Version : 03 ─────THE END────

TEL : 886-3-327-3456 Page Number : 1 of 14 FAX : 886-3-328-4978 Issue Date : Jun. 15, 2022 Report Template No.: BU5-FD15B Version 2.5 Report Version : 02 FCC EMI TEST REPORT Report No. : FC1N2419 FCC EMI TEST REPORT FCC ID : LHJ-FE5NA0D31 Equipment : FE5NA0D31 Brand Name : Continental Model Name : FE5NA0D31 Applicant : Continental Automotive Systems, Inc. 21440 W Lake Cook Rd., Deer Park, IL 60010, USA Manufacturer : Continental Automotive Systems, Inc. 21440 W Lake Cook Rd., Deer Park, IL 60010, USA Standard : FCC 47 CFR FCC Part 15 Subpart B Class B The product was received on Nov. 26, 2021 and testing was performed from Dec. 20, 2021 to Dec. 21, 2021. We, Sporton International Inc. EMC & Wireless Communications Laboratory, would like to declare that the tested sample has been evaluated in accordance with the test procedures given in ANSI C63.4-2014 and has been in compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval from Sporton International Inc. EMC & Wireless Communications Laboratory, the test report shall not be reproduced except in full. Approved by: Louis Wu Sporton International Inc. EMC & Wireless Communications Laboratory No. 52, Huaya 1st Rd., Guishan Dist., Taoyuan City 333, Taiwan (R.O.C.) TEL : 886-3-327-3456 Page Number : 2 of 14 FAX : 886-3-328-4978 Issue Date : Jun. 15, 2022 Report Template No.: BU5-FD15B Version 2.5 Report Version : 02 FCC EMI TEST REPORT Report No. : FC1N2419 Table of Contents History of this test report ................................................................................................................................. 3 Summary of Test Result................................................................................................................................... 4 1. General Description ................................................................................................................................... 5 1.1. Product Feature of Equipment Under Test ....................................................................................... 5 1.2. Product Specification of Equipment Under Test ............................................................................... 5 1.3. Modification of EUT ........................................................................................................................... 6 1.4. Test Location ..................................................................................................................................... 7 1.5. Applicable Standards ........................................................................................................................ 7 2. Test Configuration of Equipment Under Test ......................................................................................... 8 2.1. Test Mode ......................................................................................................................................... 8 2.2. Connection Diagram of Test System ................................................................................................ 8 2.3. Support Unit used in test configuration and system .......................................................................... 9 2.4. EUT Operation Test Setup ................................................................................................................ 9 3. Test Result ................................................................................................................................................ 10 3.1. Test of Radiated Emission Measurement ....................................................................................... 10 4. List of Measuring Equipment .................................................................................................................. 13 5. Uncertainty of Evaluation ........................................................................................................................ 14 Appendix A. Radiated Emission Test Result Appendix B. Setup Photographs TEL : 886-3-327-3456 Page Number : 3 of 14 FAX : 886-3-328-4978 Issue Date : Jun. 15, 2022 Report Template No.: BU5-FD15B Version 2.5 Report Version : 02 FCC EMI TEST REPORT Report No. : FC1N2419 History of this test report Report No. Version Description Issue Date FC1N2419 01 Initial issue of report May 17, 2022 FC1N2419 02 Revise Product Specification of Equipment Under Test Jun. 15, 2022 TEL : 886-3-327-3456 Page Number : 4 of 14 FAX : 886-3-328-4978 Issue Date : Jun. 15, 2022 Report Template No.: BU5-FD15B Version 2.5 Report Version : 02 FCC EMI TEST REPORT Report No. : FC1N2419 Summary of Test Result Report Clause Ref Std. Clause Test Items Result (PASS/FAIL) Remark - 15.107 AC Conducted Emission Not Required - 3.1 15.109 Radiated Emission Pass 11.64 dB under the limit at 51.870 MHz Note: Not required means after assessing, test items are not necessary to carry out. Declaration of Conformity: 1. The test results (PASS/FAIL) with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. It’s means measurement values may risk exceeding the limit of regulation standards, if measurement uncertainty is include in test results. 2. The measurement uncertainty please refer to this report ”Uncertainty of Evaluation”. Comments and Explanations: The product specifications of the EUT presented in the report are declared by the manufacturer who shall take full responsibility for the authenticity. Reviewed by: Yun Huang Report Producer: Rachel Hsieh TEL : 886-3-327-3456 Page Number : 5 of 14 FAX : 886-3-328-4978 Issue Date : Jun. 15, 2022 Report Template No.: BU5-FD15B Version 2.5 Report Version : 02 FCC EMI TEST REPORT Report No. : FC1N2419 1. General Description 1.1. Product Feature of Equipment Under Test Product Feature Equipment FE5NA0D31 Brand Name Continental Model Name FE5NA…

Text truncated - open the document above for the full version.

TEL : 886-3-327-3456 Page Number : B1 of B2 FAX : 886-3-328-4978 FCC EMI TEST REPORT Report No. : FC1N2419 Appendix B. Setup Photographs <Radiated Emission> Mode 1 LF HF TEL : 886-3-327-3456 Page Number : B2 of B2 FAX : 886-3-328-4978 FCC EMI TEST REPORT Report No. : FC1N2419 SHF ─────THE END─────
