LHJ016Automobile Security / Convenience Receiver

Re: Certification for Motorola Receiver Model(s): A, B, and C FCC ID: LHJ016 USER'S MANUAL INFORMATION (PRELIMINARY) The User's Manual is in preparation. The following material will be contained in the manual: FCC ID: LHJ016 This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. WARNING: Changes or modifications not expressively approved by the party responsible for compliance could void the user's authority to operate the equipment. The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications were met.

RKE/TPM RECEIVER BLOCK DIAGRAM LOW NOISEAMPLIFIER 315 MHz SAWFILTER MIXER 304.3 MHz VCO/PLLLOCALOSCILLATOR ACTIVEFILTER 10.7 MHz CERAMICFILTER IF AMPLIFIER FSK DEMODULATOR ASK DEMODULATOR 9.509 MHz CRYSTAL ACTIVEFILTER DATA SLICER DATA SLICER MICROCONTROLLER RKE OUTPUT 8 MHz CRYSTAL TPM OUTPUT INTERNALANTENNA

February 6, 2006 Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315 Re: Certification for Motorola Receiver Model(s): A, B, and C FCC ID: LHJ016 Please find enclosed application materials for certification of Motorola A, B, and C Receiver. We tested it and found it to comply with FCC Part 15. If there are any questions regarding the application or testing performed, please contact me at the above address or call 734-483-4211, fax 734-647-2106, or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist

February 6, 2006 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID: LHJ016 Model(s): A, B, and C Please find enclosed application materials for certification of Motorola A, B, and C Receiver. Note: 1) portions of this submittal are filed Confidential 2) a list of the modifications made is provided in Attestations. If there are any questions regarding the application or testing performed, please contact me at the above address or call 734-483-4211, fax 734-647-2106, or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist

Re: Certification for Motorola Receiver Model(s): A, B, and C FCC ID: LHJ016 POWER OF ATTORNEY A letter granting Valdis V. Liepa the Power of Attorney is on file and can be provided when so requested. Re: Certification for Motorola Receiver Model(s): A, B, and C FCC ID: LHJ016 REQUEST FOR CONFIDENTIALITY Pursuant to 47 CRF 0.459, Motorola requests that a part of the subject application be held confidential. This comprises Exhibits (5) Schematics (10) Parts List (Part of Exhibit only) Motorola has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. If there are any questions regarding this request, please contact me at the above address or call 734-483-4211, fax 734-647-2106 or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist University of Michigan February 6, 2006 Re: Certification for Motorola Receiver Model(s): A, B, and C FCC ID: LHJ016 STATEMENT OF MODIFICATIONS There were no modifications made to the DUT by this test laboratory. (Also see Section 3.1 of the attached Test Report). _____________________ Valdis V. Liepa Research Scientist Re: Certification for Motorola Receiver Model(s): A, B, and C FCC ID: LHJ016 GENERAL PRODUCT INFORMATION The device, for which certification is pursued, has been designed by: Motorola AIEG 4000 Commercial Avenue Northbrook, IL 60062-1840 Steven Flatt Tel: 847-480-4137 Fax: 847-205-2503 It will be manufactured by: Motorola AIEG 4000 Commercial Avenue Northbrook, IL 60062-1840 Steven Flatt Tel: 847-480-4137 Fax: 847-205-2503 Canadian Contact: 1539 Vollans Street Windsor, ON N9H 2M9 Canada Kathir Kandiah Tel: 416-876-2698 SPDJB Hardware Depopulation Descriptions For Models A, B And C Model C Model C has the maximum hardware population. Model B Model B has the second highest hardware population. It has semiconductor driver, shift register, mechanical relay and passive components deleted that performed; A) Keypad switch inputs. B) Hood ajar input. C) Fog lamp input. D) Door key unlock input. E) Door key lock input. F) Deck lid key unlock input. G) Pulse train output. H) Keypad illumination output. Model A Model A has the lowest hardware population. It has semiconductor driver, shift register, mechanical relay and passive components deleted that performed; A) Keypad switch inputs. B) Hood ajar input. C) Fog lamp input. D) Door key unlock input. E) Door key lock input. F) Decklid key unlock input. G) Wipers motor on input. H) Pulse train output. I) Keypad illumination output. J) Driver door unlock output. K) All door unlock output. L) All door lock output. M) Liftglass release output. N) Row seat output. O) Liftgate release output. P) White lighting LED output. Q) Floor lamp output. R) Right cornering lamp output. S) Left cornering lamp output.

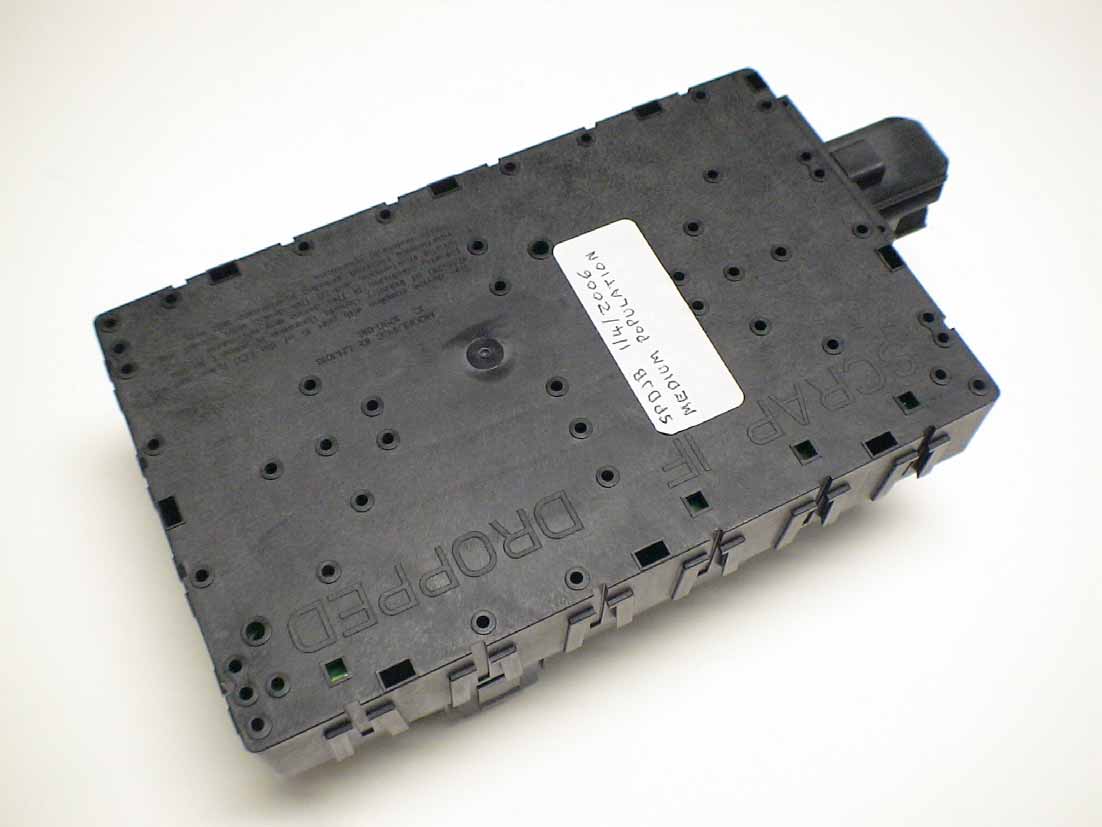

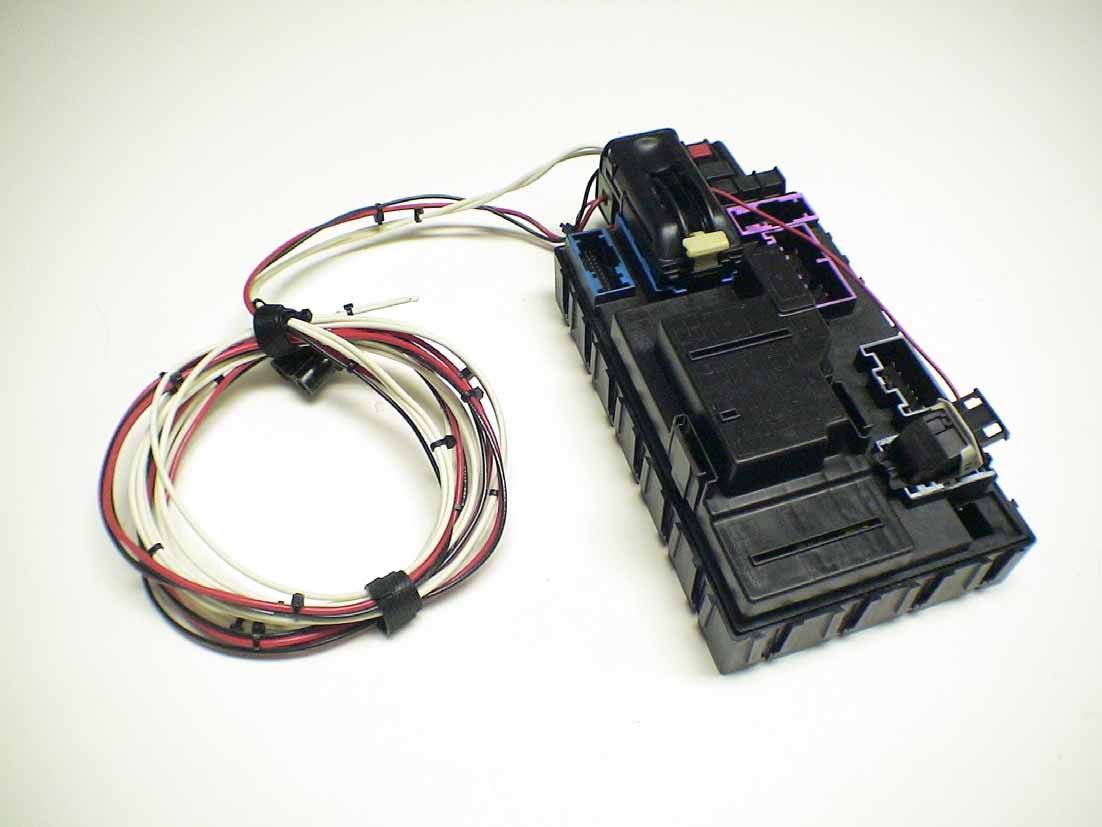

D UT with Harness DUT (top) DUT (bottom)

DUT apart (fuse cover removed) DUT apart (top) DUT apart (bottom) PCB 1 (top) PCB 1 (bottom) PCB 2 (top) PCB 2 (bottom) RF Section (top) RF Section (bottom) RF Section (side)

Ford SPDJB Module Description The Ford Smart Power Distribution Junction Bock (SPDJB) Module is a factory installed automotive module, powered from the automotive 12 Volt system and is used to perform four categories of functions. In the first category it supplies a continuous, fused battery voltage to loads in the vehicle. In the second category it provides switched, fused battery supply to loads in the vehicle. The battery voltage supply switching is controlled by the microcontroller in the SPDJB. The microcontroller has an 8 MHz crystal oscillator. The third category is Remote Keyless Entry (RKE), which controls the power door locks and the trunk lock. It receives the 315 MHz ASK 2 kb/s Manchester encoded transmitted signal from the driver carried Key Fob. This signal is received on an antenna mounted on the printed circuit board of the module. The antenna drives a 315 MHz SAW filter which then drives the low noise amplifier input of the high integration superheterodyne receiver integrated circuit. The output of the LNA drives the mixer, which also has the 304.3 MHz VCO/PLL derived local oscillator as an input. A 9.509 MHz crystal oscillator is used as the frequency reference. The output of the mixer drives the 10.7 MHz ceramic filter which then drives the IF amplifier. The IF amp drives the ASK demodulator which is followed by an active low pass filter and then the ASK data slicer. The output of the ASK data slicer drives an input pin of the microcontroller which then decodes the ASK data and drives the door lock and unlock motors when appropriate. The fourth category is Tire Pressure Measurement (TPM). It receives the 315 MHz FSK 9.6 kb/s Manchester encoded transmitted signal from the tire pressure transmitters installed in the vehicle wheels. Most of the circuitry described for the ASK reception is the same for the FSK. The difference is after the IF amp. The IF amp also drives a separate FSK demodulator which then drives an active low pass filter and then FSK data slicer. The output of the FSK data slicer drives an input pin on the microcontroller which then decodes the FSK data and then passes it out on the vehicle bus.

University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 415031-275 Page 1 of 9 The University of Michigan Radiation Laboratory 3228 EECS Building Ann Arbor, MI 48109-2122 Tel: (734) 764-0500 Measured Radio Frequency Emissions From Motorola SPDJB Receiver Model(s): A, B, and C Report No. 415031-275 February 6, 2006 Copyright © 2006 For: Motorola AIEG 4000 Commercial Avenue Northbrook, IL 60062-1840 Contact: Steven Flatt Tel: 847-480-4137 Fax: 847-205-2503 PO: Verbal Tests supervised by: Measurements made by: Report approved by: _____________________ Joseph D. Brunett Valdis V. Liepa Research Scientist Summary Tests for compliance with FCC Regulations Part 15, Subpart B, and Industry Canada RSS-210, were performed on Motorola AIEG models A, B, and C. This device is subject to the Rules and Regulations as a Receiver. As a Digital Device it is exempt, but such measurements were made to assess the receiver's overall emissions. In testing completed on January 23, 2006, the device tested in the worst case met the allowed FCC (Class B) specifications for radiated emissions by 6.6 dB (see p. 6). The conducted emissions tests do not apply, since the device is powered from a 12 VDC system. University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 415031-275 Page 2 of 9 1. Introduction Motorola AIEG models A, B, and C were tested for compliance with FCC Regulations, Part 15, adopted under Docket 87-389, April 18, 1989, and with Industry Canada RSS-210, Issue 6 and RSS-Gen, Issue 1, September, 2005. The tests were performed at the University of Michigan Radiation Laboratory Willow Run Test Range following the procedures described in ANSI C63.4-2003 "Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz". The Site description and attenuation characteristics of the Open Site facility are on file with FCC Laboratory, Columbia, Maryland (FCC Reg. No: 91050) and with Industry Canada, Ottawa, ON (File Ref. No: IC 2057). 2. Test Procedure and Equipment Used The pertinent test equipment commonly used in our facility for measurements is listed in Table 2.1 below. The middle column identifies the specific equipment used in these tests. Table 2.1 Test Equipment. Test Instrument Eqpt. Used Manufacturer/Model Spectrum Analyzer (0.1-1500 MHz) Hewlett-Packard, 182T/8558B Spectrum Analyzer (9kHz-22GHz) X Hewlett-Packard 8593A SN: 3107A01358 Spectrum Analyzer (9kHz-26GHz) X Hewlett-Packard 8593E, SN: 3412A01131 Spectrum Analyzer (9kHz-26GHz) Hewlett-Packard 8563E, SN: 3310A01174 Spectrum Analyzer (9kHz-40GHz) Hewlett-Packard 8564E, SN: 3745A01031 Power Meter Hewlett-Packard, 432A Power Meter Anritsu, ML4803A/MP Harmonic Mixer (26-40 GHz) Hewlett-Packard 11970A, SN: 3003A08327 Harmonic Mixer (40-60 GHz) Hewlett-Packard 11970U, SN: 2332A00500 Harmonic Mixer (75-110 GHz) Hewlett-Packard 11970W, SN: 2521A00179 Harmonic Mixer (140-220 GHz) Pacific Millimeter Prod., GMA, SN: 26 S-Band Std. Gain Horn S/A, Model SGH-2.6 C-Band Std. Gain Horn University of Michigan, NRL design XN-Band Std. Gain Horn University of Michigan, NRL design X-Band Std. Gain Horn S/A, Model 12-8.2 X-band horn (8.2- 12.4 GHz) Narda 640 X-band horn (8.2- 12.4 GHz) Scientific Atlanta , 12-8.2, SN: 730 K-band horn (18-26.5 GHz) FXR, Inc., K638KF Ka-band horn (26.5-40 GHz) FXR, Inc., U638A U-band horn (40-60 GHz) Custom Microwave, HO19 W-band horn(75-110 GHz) Custom Microwave, HO10 G-band horn (140-220 GHz) Custom Microwave, HO5R Bicone Antenna (30-250 MHz) X University of Michigan, RLBC-1 Bicone Antenna (200-1000 MHz) X University of Michigan, RLBC-2 Dipole Antenna Set (30-1000 MHz) X University of Michigan, RLDP-1,-2,-3 Dipole Antenna Set (30-1000 MHz) EMCO 2131C, SN: 992 Active Rod Antenna (30 Hz-50 MHz) EMCO 3301B, SN: 3223 Active Loop Antenna (30 Hz-50 MHz) EMCO 6502, SN:2855 Ridge-horn Antenna (300-5000 MHz) X University of Michigan Amplifier (5-1000 MHz) X Avantak, A11-1, A25-1S Amplifier (5-4500 MHz) X Avantak Amplifier (4.5-13 GHz) Avantek, AFT-12665 Amplifier (6-16 GHz) Trek Amplifier (16-26 GHz) Avantek LISN Box University of Michigan Signal Generator X Hewlett-Packard 8657B University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 415031-275 Page 3 of 9 3. Configuration and Identification of Device Under Test The DUT is a 315 MHz superheterodyne receiver designed for onboard automobile security/convenience applications, and as such it is powered from an automotive 12 VDC source. The receiver uses a 9.509 MHz crystal reference for the VCO/PLL at 608.6 MHz used to generate the 304.3 MHz local oscillator. In the receiver digital section, the decoding, signal processing, etc. are performed by a microprocessor timed by an 8.0 MHz oscillator. It is housed in a plastic case approximately 8 by 12 by 2 inches. Antenna is a loop mounted on the PCB. For testing, a generic harness was provided by the manufacturer. The DUT was designed by Motorola AIEG, 4000 Commercial Avenue, Northbrook, IL 60062- 1840. It is identified as: Motorola Receiver Models: A, B, and C S/N or P/N: Receiver FCC ID: LHJ016 IC: 109G-016 Model C is fully populated and is the device that was tested for compliance. Models A and B are identical to model C with some digital circuitry depopulated. Please see the attestations exhibit for a detailed description of the model differences. 3.1 Modifications Made There were no modifications made to the DUT by this laboratory. 4. Emission Limits The DUT tested falls under Part 15, Subpart B, "Unintentional Radiators". The pertinent test frequencies, with corresponding emission limits, are given in Tables 4.1 and 4.2 below. 4.1 Radiated Emission Limits Table 4.1. Radiated Emission Limits (Ref: FCC 15.33, 15.35, and 15.109; IC RSS-210, 2.6 Table 2). Freq. (MHz) E lim (3m) μV/m E lim (3m) dB(μV/m) 30-88 100 40.0 88-216 150 μV/m 43.5 216-960 200 μV/m 46.0 960-2000 500 μV/m 54…

Text truncated - open the document above for the full version.

DUT on OATS DUT on OATS (close-up)
