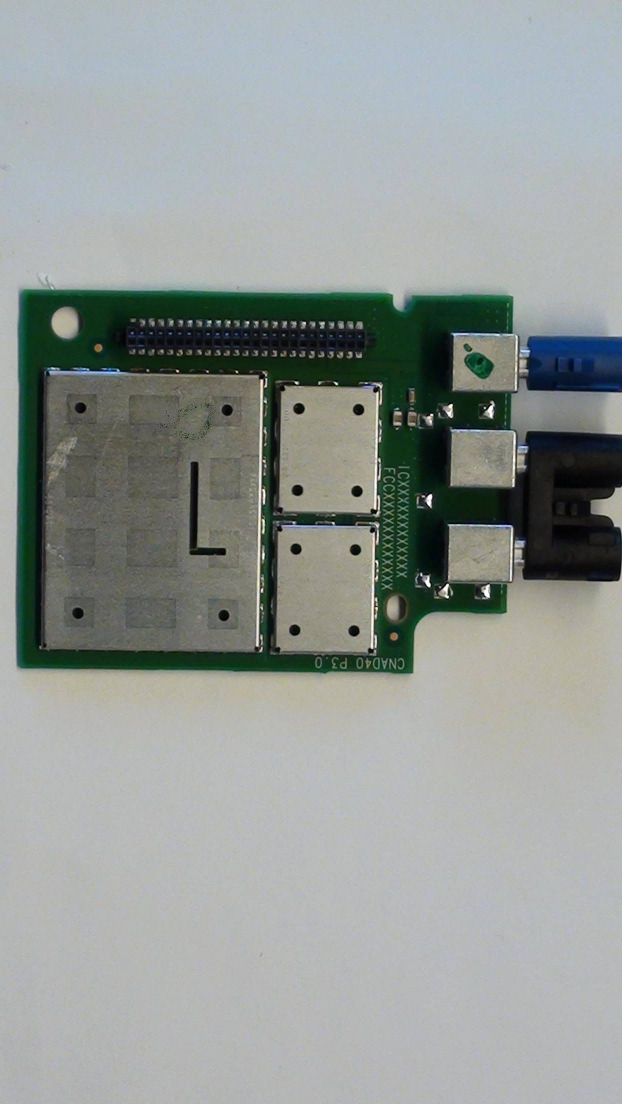

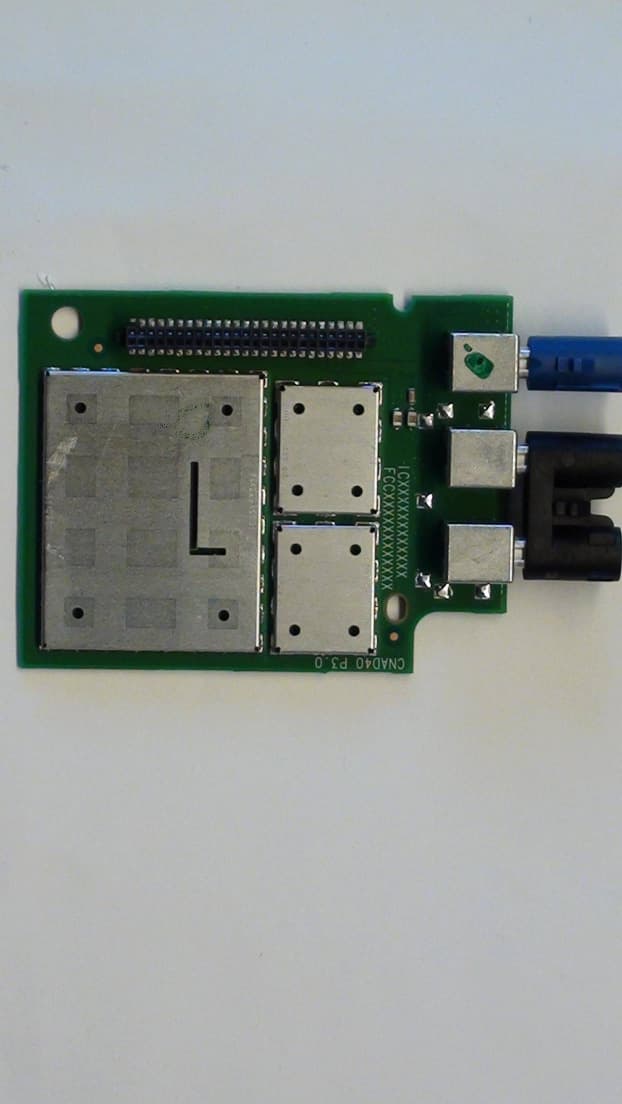

LHJCNAD4DO Continental Proprietary Confidential 1 Internal Photos for LHJCNAD4DO Fig. 1 Internal view: top side pcb with shields Fig. 2 Internal view: top side pcb without shields Fig. 4 Internal View: bottom side

LHJCNAD4DO Continental Proprietary Confidential 1 Internal Photos for LHJCNAD4DO Fig. 1 Internal view: top side pcb with shields Fig. 2 Internal view: top side pcb without shields Fig. 4 Internal View: bottom side

731 Enterprise Drive Lexington, KY 40510 Telephone: 859-226-1000 Facsimile: 859-226-1040 www.intertek-etlsemko.com MPE Calculation § 1.1310: The criteria listed in table 1 shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in §1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of §2.1093 of this chapter. Part 1.1310 Limits for Maximum Permissible Exposure (MPE) 1.1 Test Procedure An MPE evaluation for was performed in order to show that the device was compliant with §2.1091. The maximum power density was calculated for each transmitter at a separation distance of 20cm. For each transmitter the maximum RF exposure at a 20 cm distance using the formula: 2 )20(4 . cm mW GainAntPowerConducted tyPowerDensi × × = π 731 Enterprise Drive Lexington, KY 40510 Telephone: 859-226-1000 Facsimile: 859-226-1040 www.intertek-etlsemko.com 1.2 Results: The following calculations show that the total power density from each transmitter at 20cm is less than the limit for general population / un-controlled exposure. The device meets the RF exposure limit at a 20cm separation distance as required by part 2.1091 of the FCC rules when used with an antenna not exceeding the maximum antenna gain noted in the following table. Test Summary Frequency (MHz) Maximum Antenna Gain (dBi) MPE @ 20cm (mW/cm^2) Test Result 824.7 10.01 0.5488 Compliant 1908.75 7.20 0.3081 Compliant Cell Band: Frequency 824.7 MHz Limit 0.5498 mW/cm^2 Distance 20 cm Power 24.4 dBm 275.42 mW TX Ant Gain 10.01 dBi EIRP 34.41 dBm ERP 32.27 dBm Power Density 0.5488 mW/cm^2 at 20cm PCS Band: Frequency 1908.75 MHz Limit 1 mW/cm^2 Distance 20 cm Power 24.7 dBm TX Ant Gain 7.2 dBi EIRP 31.9 dBm 1548.8 mW Power Density 0.3081 mW/cm^2 at 20cm

This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. EMC Report for Continental Automotive Systems on the CNAD4DO Page 1 of 40 731 Enterprise Drive Lexington, KY 40510 Telephone: 859-226-1000 Facsimile: 859-226-1040 www.intertek-etlsemko.com TEST REPORT Report Number: 100236323-001 Project Number: G100236323 Report Issue Date: 11/13/2010 Product Name: CNAD4DO FCCID: LHJCNAD4DO ICID: 2807E-CNAD4DO Standards: FCC Part 22 Subpart H FCC Part 24 Subpart E RSS-129 Issue 2 RSS-133 Issue 5 RSS-GEN Issue 2 Tested by: Client: Intertek Testing Services NA, Inc. 731 Enterprise Drive Lexington, KY 40510 Continental Automotive Systems 21440 West Lake Cook Road Deer Park, IL 60010 Report prepared by Report reviewed by Jason Centers, Senior Project Engineer Bryan Taylor, Team Leader Intertek Report Number: 100236323-001 Issued: 11/13/2010 EMC Report for Continental Automotive Systems on the CNAD4DO FCCID:LHJCNAD4DO; ICID:2807E-CNAD4DO Page 2 of 40 TABLE OF CONTENTS 1 Introduction and Conclusion .............................................................................................................. 3 2 Test Summary ...................................................................................................................................... 3 3 Description of Equipment Under Test ............................................................................................... 4 4 Conducted Output Power.................................................................................................................... 6 5 Occupied Bandwidth ........................................................................................................................... 9 6 Conducted Spurious Emissions at Antenna Terminals ................................................................. 11 7 Radiated Output Power ..................................................................................................................... 26 8 Radiated Spurious Emissions (Transmitter) ................................................................................... 28 9 Frequency Stability ............................................................................................................................ 31 10 Receiver Spurious Emissions ....................................................................................................... 33 11 AC Powerline Conducted Emissions ........................................................................................... 37 12 Measurement Uncertainty.............................................................................................................. 39 13 Revision History ............................................................................................................................. 40 Intertek Report Number: 100236323-001 Issued: 11/13/2010 EMC Report for Continental Automotive Systems on the CNAD4DO FCCID:LHJCNAD4DO; ICID:2807E-CNAD4DO Page 3 of 40 1 Introduction and Conclusion The tests indicated in section 2 were performed on the product constructed as described in section 3. The remaining test sections are the verbatim text from the actual data sheets used during the investigation. These test sections include the test name, the specified test method, a list of the actual test equipment used, documentation photos, results and raw data. No additions, deviations, or exclusions have been made from the standard(s) unless specifically noted. Based on the results of our investigation, we have concluded the product tested complied with the requirements of the standard(s) indicated. The results obtained in this test report pertain only to the item(s) tested. The INTERTEK-Lexington is located at 731 Enterprise Drive, Lexington Kentucky, 40510. The radiated emission test site is a 10-meter semi-anechoic chamber. The chamber meets the characteristics of CISPR 16-1 and ANSI C63.4. For measurements, a remotely controlled flush-mount metal-top turntable is used to rotate the EUT a full 360 degrees. A remote controlled non-conductive antenna mast is used to scan the antenna height from one to four meters. The test site is listed with the FCC under registration number 485103. The test site is listed with Industry Canada under site number IC 2042M-1. 2 Test Summary Page Test full name FCC Reference IC Reference Result 6 Conducted Output Power §2.1046 §24.232(d) RSS-129 (9.2.2) RSS-133 (4.1) RSS-133 (6.4) Pass 9 Occupied Bandwidth §2.1049, §22.917(b)(d), and §24.238(a) RSS-GEN (4.6.1) RSS-133 (2.3) Pass 11 Conducted Spurious Emissions §2.1049, §2.1051, §22.917(a)(b), and § 24.238(a)(b) RSS-129 (8.1.1), RSS-129 (9.3), RSS-129 (9.4), RSS-133 (6.5.1) Pass 26 Radiated Output Power § 22.913(a) and § 24.232(c) RSS-129 (9.1), RSS-133 (6.4) Pass 28 Radiated Spurious Emissions (Transmitter) §2.1053, §22.917(a)(b), and §24.238(a)(b) RSS-129 (8.1.1), RSS-133 (6.5) Pass 31 Frequency Stability §2.1055, §22.355, and §24.235 RSS-129 (9.2.1), RSS-133 (6.3) Pass 33 Receiver Spurious Emissions § 15.109 RSS-129 (10), RSS-Gen (7.2.3.2) RSS-129 (10) Pass 37 AC Powerline Conducted Emissions § 15.107 RSS-Gen (7.2.2) Pass Intertek …
