LHJHNAD1AGSM/GPRS/EDGE/HSDPA module

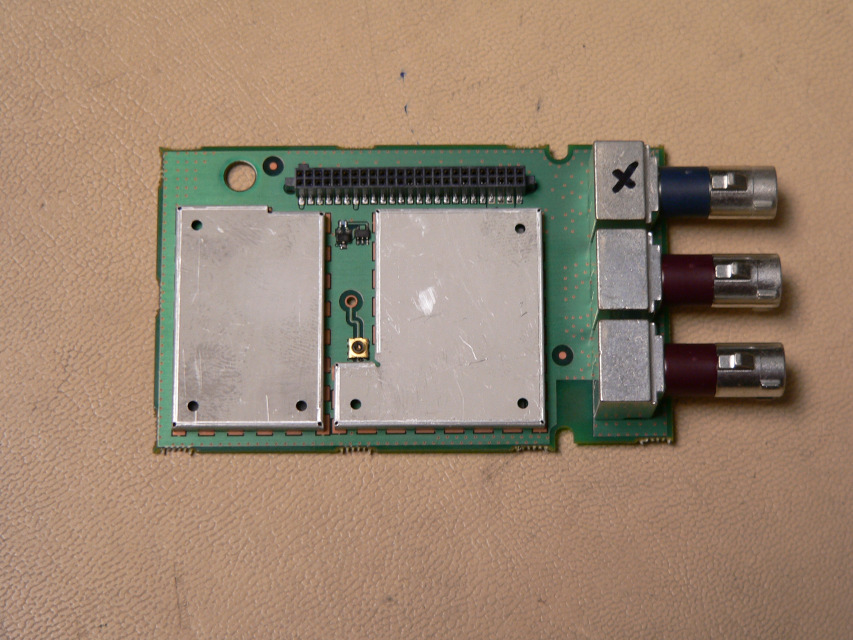

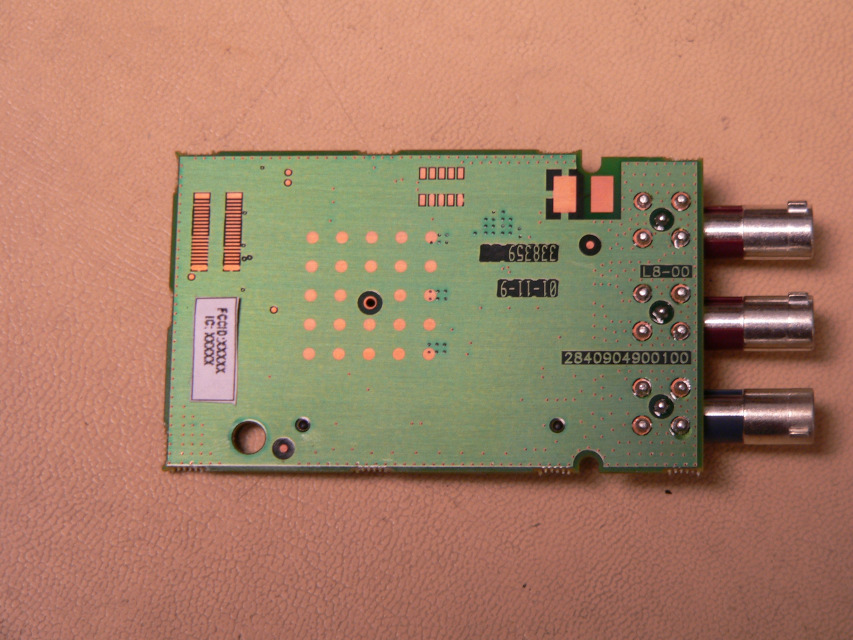

HNAD Continental Proprietary Confidential Internal Photos for HNAD Pic. 1. HNAD – Top side with shields. Pic. 2. HNAD – Top side without shields Pic. 3. HNAD – Bottom side.

HNAD Continental Proprietary Confidential Internal Photos for HNAD Pic. 1. HNAD – Top side with shields. Pic. 2. HNAD – Top side without shields Pic. 3. HNAD – Bottom side.

Report No: 100094986MIN-001 FCC ID: LHJHNAD1A Industry Canada ID: 2807E-HNAD1A Page 137 of 141 3.8 RF Exposure Compliance 3.8.1 GSM Band MPE Requirement: S=f/1500 mW/cm 2 f= operating frequency in MHz S=824/1500=0.55 mW/cm 2 Exposure Calculation: S(mW/cm 2 ) = ERP(mW) / 4πD 2 , where ERP is the maximum measured RF output power with Antenna Gain Antenna Gain = 2.0dBi (per client request ADBM800/1900 MAXRAD antenna was used as a reference antenna) The maximum ERP power is 32.3dBm + 2.0dBi = 34.3dBm = 2690mW D = distance of 20cm S = 2690 / 4π(20) 2 = 0.535 mW/cm 2 3.8.2 PCS Band MPE Requirement: S=1.0mW/cm 2 Exposure Calculation: S(mW/cm 2 ) = EIRP(mW) / 4πD 2 , where EIRP is the maximum measured RF output power with Antenna Gain Antenna Gain = 2.0dBi (per client request ADBM800/1900 MAXRAD antenna was used as a reference antenna) The maximum EIRP power is 28.4dBm + 2.0dBi = 30.4dBm = 1100mW D = distance of 20cm S = 1100 / 4π(20) 2 = 0.219 mW/cm 2

TEST REPORT Report Number: 100094986MIN-001 Project Number: G100094986 Testing performed on the HNAD1A FCC ID: LHJHNAD1A Industry Canada ID: 2807E-HNAD1A to 47 CFR Part 22H:2009 47 CFR Part 24E:2009 RSS-132, Issue 2:2005 RSS-133, Issue 5:2009 47 CFR Part 15:2009, §15.109, Class B ICES-003, Issue 4, February 2004 For Continental Automotive Systems Inc. Test Performed by: Test Authorized by: Intertek Testing Services NA, Inc. 7250 Hudson Blvd., Suite 100 Oakdale, MN 55128 Continental Automotive Systems Inc. 21440 West Lake Cook Road Deer Park, IL, 60010 Prepared by: Date: May 19, 2009 Norman Shpilsher Reviewed by: Date: May 19, 2009 Uri Spector This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. This report must not be used to claim product endorsement by A2LA, NIST nor any other agency of the U.S. Government. Report No: 100094986MIN-001 FCC ID: LHJHNAD1A Industry Canada ID: 2807E-HNAD1A Page 2 of 141 TABLE OF CONTENTS 1.0 GENERAL DESCRIPTION.............................................................................. 3 1.1 Product Description; Test Facility......................................................................................4 1.3 Environmental conditions ..................................................................................................5 1.4 Measurement uncertainty..................................................................................................6 1.5 Field Strength Calculation .................................................................................................6 2.0 TEST SUMMARY.......................................................................................... 7 3.0 TEST CONDITIONS AND RESULTS................................................................. 8 3.1 RF Output Power ..............................................................................................................8 3.1.1 RF Output Power ERP, GSM/GPRS/EDGE................................................... 9 3.1.2 RF Output Power EIRP, PCS/GPRS/EDGE.................................................. 10 3.1.3 RF Output Power, WCDMA/HSDPA............................................................ 11 3.2 Modulation Characteristics ..............................................................................................36 3.3 Occupied Bandwidth .......................................................................................................44 3.4 Antenna Conducted Spurious Emissions ........................................................................64 3.5 Antenna Block Edge Emissions ......................................................................................98 3.6 Enclosure Radiated Spurious Emissions .....................................................................107 3.7 Frequency Stability........................................................................................................136 3.8 RF Exposure Compliance .............................................................................................137 3.8.1 GSM Band........................................................................................... 137 3.8.2 PCS Band........................................................................................... 137 3.9 Receiver/digital device radiated emissions, FCC Part 15.109 ......................................138 4.0 TEST EQUIPMENT..................................................................................... 141 Report No: 100094986MIN-001 FCC ID: LHJHNAD1A Industry Canada ID: 2807E-HNAD1A Page 3 of 141 1.0 GENERAL DESCRIPTION Model: HNAD Type of EUT: GSM/PCS / GPRS / EDGE / HSDPA Module FCC ID: LHJHNAD1A Industry Canada ID: 2807E-HNAD1A Related Submittal(s) Grants: N/A Company: Continental Automotive Systems Inc. Customer: Mrs. Irina Shmagin Address: 21440 West Lake Cook Road Deer Park, IL, 60010 Phone: 847-862-2420 Fax: 847-862-8015 e-mail: [email protected] Test Standards: 47 CFR, Part 22:2009 47 CFR, Part 24:2009 RSS-132, Issue 2:2005 RSS-133, Issue 5:2009 47 CFR, Part 15:2009, §15.109, Class B ICES-003, Issue 4, February 2004 Other Type of radio: Stand -alone Module Hybrid Date Sample Submitted: April 16, 2010 Test Work Started: April 21, 2010 Test Work Completed: May 3, 2010 Test Sample Conditions: Damaged Poor (Usable) Good Report No: 100094986MIN-001 FCC ID: LHJHNAD1A Industry Canada ID: 2807E-HNAD1A Page 4 of 141 1.1 Product Description; Test Facility Product Description: GSM / PCS Radio Transmitter Type: FHSS Digital Modulation WiFi Blue Tooth Operating Frequency / Channels: GSM850: 824.2 – 848.8MHz / channels 128 – 251 PCS: 1850.2 – 1909.8MHz / channels 512 – 810 HSDPA: 826.4 – 846.6MHz / channel 4132 – 4233 1852.4 – 1907.6MHz / channel 9262 – 9538 Modulation: GMSK, 8PSK, QPSK Emission Designator: 300KGXW 300KG7W 4M20F9W Antenna Gain: Antenna not specified Transmitter power configuration: Internal battery External power source 120VAC 230VAC 400VAC 12 VDC Other: Amp. 50Hz 60Hz Test Facility Accreditation: A2LA (Certificate No. 1427.01) Test Methodology: Measurements performed according to the procedures in ANSI C63.4- 2003, ANSI/TI…
