LJPAGSM/WCDMA cellular phone w/BT and WLAN

Nokia Lumia 800 User Guide Issue 1 Contents Safety4 Get started6 Keys and parts6 Back, start, and search keys7 Insert the SIM card8 Charge your phone9 Antenna locations12 Switch the phone on or off13 Create your accounts13 Windows Live ID15 Nokia account15 Copy contacts from your old phone 15 Lock or unlock the keys and screen16 Headset17 Change the volume17 Access codes18 Set your phone to sync with your computer19 Basics20 About the start screen20 Touch screen actions20 Use your phone when it's locked23 Switch between open apps23 Personalise your phone24 Write text26 Search your phone and the web28 Control your phone with your voice29 Indicators on the status bar29 Use your phone offline30 Prolong battery life30 Calls32 Call a contact32 Call the last dialled number32 Call your voice mailbox32 Divert calls to your voice mailbox or another phone number32 Make a conference call33 Silence an incoming call34 Use your voice to call a contact34 Contacts & social networking services35 Contacts35 Social networks38 Internet41 Internet connections41 Internet43 Messaging & mail46 Messages46 Mail48 Camera51 About the camera51 Take a picture51 Take a close-up picture52 Take a picture in the dark52 Take a picture of a moving object52 Camera tips52 Record a video53 Save location information to your pictures and videos53 Send a picture53 Share your pictures and videos54 Your pictures56 About the Pictures hub56 View pictures56 Mark a picture as a favourite57 Upload pictures and videos to the web57 Change the background in the Pictures hub58 2 © 2011 Nokia. All rights reserved. Create an album58 Copy your pictures between your phone and PC58 Entertainment59 Music and videos59 Nokia Music61 Marketplace61 Games64 Maps & navigation66 Positioning and location services66 Bing Maps67 Drive70 Office73 Clock73 Calendar74 Microsoft Office Mobile75 Use the calculator80 Connectivity & phone management 81 Bluetooth81 Copy a picture or other content between your phone and PC82 Keep your phone software and applications up to date82 Back up, sync, and restore your phone83 Free up phone memory84 Remove an application from your phone84 Security85 Support86 Product and safety information86 Index93 3 © 2011 Nokia. All rights reserved. Safety Read these simple guidelines. Not following them may be dangerous or illegal. For further information, read the complete user guide. SWITCH OFF IN RESTRICTED AREAS Switch the device off when mobile phone use is not allowed or when it may cause interference or danger, for example, in aircraft, in hospitals or near medical equipment, fuel, chemicals, or blasting areas. Obey all instructions in restricted areas. ROAD SAFETY COMES FIRST Obey all local laws. Always keep your hands free to operate the vehicle while driving. Your first consideration while driving should be road safety. INTERFERENCE All wireless devices may be susceptible to interference, which could affect performance. QUALIFIED SERVICE Only qualified personnel may install or repair this product. BATTERIES, CHARGERS, AND OTHER ACCESSORIES Use only batteries, chargers, and other accessories approved by Nokia for use with this device. Do not connect incompatible products. KEEP YOUR DEVICE DRY Your device is not water-resistant. Keep it dry. 4 © 2011 Nokia. All rights reserved. GLASS PARTS The device screen is made of glass. This glass can break if the device is dropped on a hard surface or receives a substantial impact. If the glass breaks, do not touch the glass parts of the device or attempt to remove the broken glass from the device. Stop using the device until the glass is replaced by qualified service personnel. PROTECT YOUR HEARING Listen to a headset at a moderate level, and do not hold the device near your ear when the loudspeaker is in use. 5 © 2011 Nokia. All rights reserved. Get started Keys and parts 1Connector for headphones and loudspeakers (3.5 mm) 2Micro-USB connector. Also used to charge the battery. 3Micro-SIM card holder 4Volume key 5Power key/Key lock button 6Camera key 7Back key 8Start key 9Search key 6 © 2011 Nokia. All rights reserved. 10Camera flash 11Camera lens 12Microphone 13Loudspeaker If there is protective tape on the camera lens, remove the tape. Back, start, and search keys The back, start, and search keys help you to navigate your phone. Back key Return to the previous screen Press . Your phone remembers all the apps and websites you have visited since the last time your screen was locked. Switch between open apps Press and hold , swipe left or right, and select the desired app. Start key Go to the start screen Press . Control your phone with your voice Press and hold , and say a voice command. 7 © 2011 Nokia. All rights reserved. Search key Search the web Press . Insert the SIM card Your phone uses a micro-SIM card, also known as a mini-UICC card. Do not attach any stickers to your SIM card. 1You must first open the cover of the micro-USB connector. Press the left end of the cover, and carefully pull the cover away from the phone. 2To unlock the SIM card holder, press and slide the holder to the left. Carefully pull out the holder. 8 © 2011 Nokia. All rights reserved. 3Make sure the contact area is facing up, and insert the SIM card into the SIM card holder. 4Insert the SIM card holder back into the phone, and slide the holder to the right. 5Close the cover of the micro-USB connector. Remove the SIM card 1Switch the phone off. 2Open the cover of the micro-USB connector. 3Unlock the SIM card holder, and carefully pull out the holder. 4Pull the card out of the holder. If you later change your network service provider, for instructions, go to www.nokia.com/support. Charge your phone About the battery Your phone has an internal, nonremovable, rechargeable battery. Use only Nokia approved chargers designated for this phone. You can also use a compatible USB data cable to charge your phone. You can set your phone to automatically save power when the battery charge level is low. Select > and battery s…

Text truncated - open the document above for the full version.

NOKIA CORPORATION Yrttipellontie 6 FIN-90230 Oulu FINLAND Tel. +358 7180 08000 Fax. +358 7180 48460 December 20, 2011 JUSTIFICATION FOR TEST DATA RE-USE The WCDMA VIII band of RM-801 has been changed to WCDMA V in RM-819. The TX SAW filter, RF power amplifier and duplexer (WCDMA VIII vs V) are different. The antenna circuit with RF front end has not been changed. Otherwise the devices are identical.

NOKIA CORPORATION Yrttipellontie 6 FIN-90230 Oulu FINLAND Tel. +358 7180 08000 Fax. +358 7180 48460 December 16, 2011 Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD. 21046 Attention: Equipment Authorization Branch REQUEST FOR CONFIDENTIALITY Pursuant to Sections 0.457 (d) (l) (ii) and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of some of the information accompanying this Application of FCC ID: LJPA and as outlined below: - Exhibit 4: Block Diagram - Exhibit 5: Schematic Diagrams - Exhibit 12: Theory of Operation / Description of Circuitry These materials contain trade secrets and proprietary information not customarily released to the public and the public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457 (d) (l) (ii) disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. NOKIA CORPORATION Kare Oksanen Product Certification Officer CTO/DCo Oulu

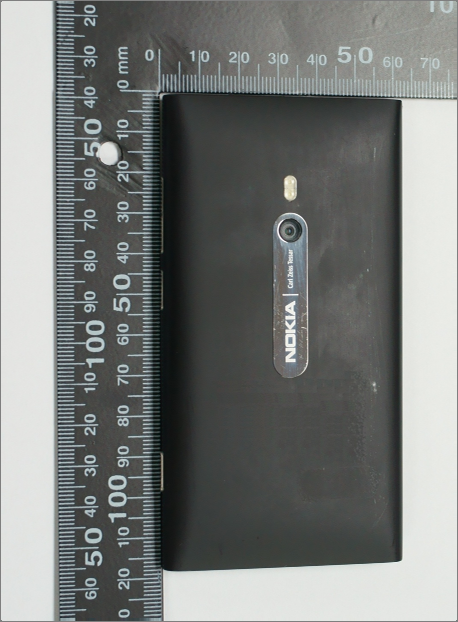

30-November-2011 Page 1 of 4 Exhibit 3: External Photographs FCC ID: LJPA IC: 661E-A Applicant: Nokia Corporation Copyright © 2011 Nokia Corporation EXTERNAL PHOTOS 30-November-2011 Page 2 of 4 Exhibit 3: External Photographs FCC ID: LJPA IC: 661E-A Applicant: Nokia Corporation Copyright © 2011 Nokia Corporation 30-November-2011 Page 3 of 4 Exhibit 3: External Photographs FCC ID: LJPA IC: 661E-A Applicant: Nokia Corporation Copyright © 2011 Nokia Corporation 30-November-2011 Page 4 of 4 Exhibit 3: External Photographs FCC ID: LJPA IC: 661E-A Applicant: Nokia Corporation Copyright © 2011 Nokia Corporation

FCC ID: LJPA IC: 661E-A Copyright © 2011 Nokia. All Rights Reserved. Label Location Exhibit 1 Applicant: Nokia Corporation 20 December 2011

30-November-2011 Page 1 of 5 Exhibit 3: Internal Photographs FCC ID: LJPA IC: 661E-A Applicant: Nokia Corporation Copyright © 2011 Nokia Corporation INTERNAL PHOTO 30-November-2011 Page 2 of 5 Exhibit 3: Internal Photographs FCC ID: LJPA IC: 661E-A Applicant: Nokia Corporation Copyright © 2011 Nokia Corporation 30-November-2011 Page 3 of 5 Exhibit 3: Internal Photographs FCC ID: LJPA IC: 661E-A Applicant: Nokia Corporation Copyright © 2011 Nokia Corporation 30-November-2011 Page 4 of 5 Exhibit 3: Internal Photographs FCC ID: LJPA IC: 661E-A Applicant: Nokia Corporation Copyright © 2011 Nokia Corporation 30-November-2011 Page 5 of 5 Exhibit 3: Internal Photographs FCC ID: LJPA IC: 661E-A Applicant: Nokia Corporation Copyright © 2011 Nokia Corporation

Nokia ____________________________________________________________________________ SAR Report FCC_RM-819_03 Applicant: Nokia Corporation Type: RM-819 Copyright © 2011 TCC Nokia 1/40 SAR Compliance Test Report Test report no.: FCC_RM-819_03 Date of report: 2011-12-15 Template version: 18.0 Number of pages: 40 Testing laboratory: TCC Nokia Salo Laboratory P.O.Box 86 Joensuunkatu 7H / Kiila 1B FIN-24101 SALO, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 (0) 7180 45220 Client: Nokia Corporation P.O. Box 86 Joensuunkatu 7 FIN-24101 SALO, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 (0) 7180 44277 Responsible test engineer: Virpi Tuominen Product contact person: Kari Koskela Measurements made by: Janne Hirsimäki, Alina Tähkäpää Tested device: RM-819 FCC ID: LJPA IC: 661E-A Supplement reports: FCC_RM-801_02 for RM-801 / FCC ID: LJPRM-801 SAR_Photo_RM-819_04 Testing has been carried out in accordance with: 47CFR §2.1093 Radiofrequency Radiation Exposure Evaluation: Portable Devices FCC OET Bulletin 65 (Edition 97-01), Supplement C (Edition 01-01) Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields RSS-102 Evaluation Procedure for Mobile and Portable Radio Transmitters with Respect to Health Canada’s Safety Code 6 for Exposure of Humans to Radio Frequency Fields IEEE 1528 - 2003 IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Technique Documentation: The documentation of the testing performed on the tested devices is archived for 15 years at TCC Nokia. Test results: The tested device complies with the requirements in respect of all parameters subject to the test. The test results and statements relate only to the items tested. The test report shall not be reproduced except in full, without written approval of the laboratory. Date and signatures: For the contents: Nokia ____________________________________________________________________________ SAR Report FCC_RM-819_03 Applicant: Nokia Corporation Type: RM-819 Copyright © 2011 TCC Nokia 2/40 CONTENTS 1. SUMMARY OF SAR TEST REPORT ............................................................................................................................................. 4 1.1 TEST DETAILS ............................................................................................................................................................................. 4 1.1.1 Supplement reports referenced on the front cover of this report .................................................................... 4 1.2 MAXIMUM RESULTS .................................................................................................................................................................... 4 1.2.1 Head Configuration ........................................................................................................................................................ 5 1.2.2 Body Worn Configuration ............................................................................................................................................ 5 1.2.3 Summary SAR data ........................................................................................................................................................ 6 1.2.4 Maximum Drift ................................................................................................................................................................ 6 1.2.5 Measurement Uncertainty ........................................................................................................................................... 6 2. DESCRIPTION OF THE DEVICE UNDER TEST ........................................................................................................................... 7 2.1 DESCRIPTION OF THE ANTENNA .................................................................................................................................................. 8 3. TEST CONDITIONS ..................................................................................................................................................................... 8 3.1 TEMPERATURE AND HUMIDITY .................................................................................................................................................... 8 3.2 TEST SIGNAL, FREQUENCIES AND OUTPUT POWER ...................................................................................................................... 8 3.3 TEST CASES AND TEST MINIMISATION ........................................................................................................................................ 9 4. DESCRIPTION OF THE TEST EQUIPMENT ............................................................................................................................. 10 4.1 MEASUREMENT SYSTEM AND COMPONENTS ............................................................................................................................. 10 4.1.1 Isotropic E-field Probe Type ES3DV3 ...................................................................................................................... 11 4.2 PHANTOMS ............................................................................................................................................................................. 12 4.3 TISSUE SIMULANTS ................................................................................................................................................................. 12 4.3.1 Tissue Simulant Recipes ............................................................................................................................................ 12 4.3.2 System Checking ..........................................................................................................................................................…

Text truncated - open the document above for the full version.

Nokia ____________________________________________________________________________ SAR Report SAR_Photo_RM-819_04 Applicant: Nokia Corporation Type: RM-819 Copyright © 2011 TCC Nokia 1/4 Test Setup photos for RM-819 SAR Compliance Test Report Test report no.: SAR_Photo_RM-819_04 Date of report: 2011-12-15 Template version: 18.0 Number of pages: 4 Testing laboratory: TCC Nokia Salo Laboratory P.O.Box 86 Joensuunkatu 7H / Kiila 1B FIN-24101 SALO, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 (0) 7180 45220 Client: Nokia Corporation P.O. Box 86 Joensuunkatu 7 FIN-24101 SALO, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 (0) 7180 44277 Responsible test engineer: Virpi Tuominen Product contact person: Kari Koskela Measurements made by: Janne Hirsimäki, Alina Tähkäpää Tested device: RM-819 FCC ID: LJPA IC: 661E-A Supplement reports: FCC_RM-819_03 Testing has been carried out in accordance with: 47CFR §2.1093 Radiofrequency Radiation Exposure Evaluation: Portable Devices FCC OET Bulletin 65 (Edition 97-01), Supplement C (Edition 01-01) Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields RSS-102 Evaluation Procedure for Mobile and Portable Radio Transmitters with Respect to Health Canada’s Safety Code 6 for Exposure of Humans to Radio Frequency Fields IEEE 1528 - 2003 IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Technique Documentation: The documentation of the testing performed on the tested devices is archived for 15 years at TCC Nokia. Test results: The tested device complies with the requirements in respect of all parameters subject to the test. The test results and statements relate only to the items tested. The test report shall not be reproduced except in full, without written approval of the laboratory. Date and signatures: For the contents: Nokia ____________________________________________________________________________ SAR Report SAR_Photo_RM-819_04 Applicant: Nokia Corporation Type: RM-819 Copyright © 2011 TCC Nokia 2/4 CONTENTS 1. SUMMARY OF SAR TEST REPORT ............................................................................................................................................. 3 1.1 TEST DETAILS ............................................................................................................................................................................. 3 1.2 PICTURE OF THE DEVICE .............................................................................................................................................................. 3 2. TEST POSITIONS ........................................................................................................................................................................ 3 2.1 AGAINST PHANTOM HEAD .......................................................................................................................................................... 3 2.2 BODY WORN CONFIGURATION ................................................................................................................................................... 4 Nokia ____________________________________________________________________________ SAR Report SAR_Photo_RM-819_04 Applicant: Nokia Corporation Type: RM-819 Copyright © 2011 TCC Nokia 3/4 1. SUMMARY OF SAR TEST REPORT 1.1 Test Details Period of test 2011-11-30 SN, HW and SW numbers of tested device SN: 004402/13/599922/9, HW: 3000, SW: 1600.2479.7740.11451, DUT: 16059 Batteries used in testing - Headsets used in testing WH-902, DUT: 15925 Other accessories used in testing - State of sample Prototype unit Notes - 1.2 Picture of the Device 2. TEST POSITIONS 2.1 Against Phantom Head Measurements were made in “cheek” and “tilt” positions on both the left hand and right hand sides of the phantom. The positions used in the measurements were according to IEEE 1528 - 2003 "IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques". Nokia ____________________________________________________________________________ SAR Report SAR_Photo_RM-819_04 Applicant: Nokia Corporation Type: RM-819 Copyright © 2011 TCC Nokia 4/4 Photo of the Device in "cheek" position Photo of the Device in "tilt" position 2.2 Body Worn Configuration The device was placed in the SPEAG holder using the Nokia spacer and placed below the flat section of the phantom. The distance between the device and the phantom was kept at the separation distance indicated in the photo below using a separate flat spacer that was removed before the start of the measurements. The device was oriented with both sides facing the phantom to find the highest results. Photo of the device positioned for Body SAR measurement. The spacer was removed for the tests. Nokia body-worn accessories are commonly available for the separation distance used in this testing.

FCC Part 15C Compliance Test Report / Template Version 15.0 FCC15CWLAN_RM-819_11.docx Copyright © TCC Nokia 1 (15) TCC Nokia Tampere Laboratory P.O. Box 68 Sinitaival 5 FIN-33720 TAMPERE, FINLAND Tel. +358 (0) 7180 46800 Fax. +358 (0) 7180 46880 FCC Part 15C Compliance Test Report Test Report no.: FCC15CWLAN_RM-819_11.docx Date of Report: 14-Dec-2011 Number of pages: 15 Customer’s Contact person: Koskela Kari.O Testing laboratory: TCC Nokia Tampere Laboratory P.O. Box 68 Sinitaival 5 FIN-33720 TAMPERE, FINLAND Tel. +358 (0) 7180 46800 Fax. +358 (0) 7180 46880 Customer: Nokia Corporation P.O.Box(86) Joensuunkatu 7H / Kiila 1B FIN-24101 SALO, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 (0) 7180 45220 FCC listing no.: IC recognition no.: 94436 661AK-1 Tested devices/ accessories: Phone RM-819 / Battery BV-5JW / AC charger AC-16E / Data cable CA- 185 / Headset WH-902 FCC ID: LJPA IC: 661E-A Supplement reports: - Testing has been carried out in accordance with: CFR 47, FCC rules Part 15 Subpart C, ANSI C63.4 (2003), Public Notice DA 00-705, DTS procedures KDB 558074, IC standards, RSS-210 (Issue 8, December 2010). Deviations, modifications or clarifications (if any) to above mentioned documents are written in each section under "Test method and limit". Documentation: The test report must always be reproduced in full; reproduction of an excerpt only is subject to written approval of the testing laboratory. The documentation of the testing performed on the tested devices is archived for 15 years at TCC Nokia. Test Results: The EUT complies with the requirements in respect of all parameters subject to the test. The test results relate only to devices specified in this document Date and signature for the contents: Kalle Hannila, Engineer, EMC FCC Part 15C Compliance Test Report / Template Version 15.0 FCC15CWLAN_RM-819_11.docx Copyright © TCC Nokia 2 (15) TCC Nokia Tampere Laboratory P.O. Box 68 Sinitaival 5 FIN-33720 TAMPERE, FINLAND Tel. +358 (0) 7180 46800 Fax. +358 (0) 7180 46880 1. Summary for FCC Part 15C Compliance Test Report Date of receipt 24-Aug-2011 Testing completed 06-Sep-2011 The customer's contact person Koskela Kari.O Test Plan referred to T:\Projects\RM-801\TestPlan\RS_testplan_RM-801.xls Notes - Document name T:\Projects\RM-801\EMC\FCC15CWLAN_RM-801_16.docx 1.1. EUT and Accessory Information The EUT is a 7-band mobile phone: GSM850/900/1800/1900/GPRS/EGPRS WCDMA I/II(1900)/V(850)/HSDPA/HSUPA WLAN/Bluetooth The EUT is tested with maximum rated TX power, modulated with pseudo random bit sequence (PRBS9). Product Type SN HW MV SW DUT Phone RM-801 00440213552705 1100 - 1600.1800.7 720.11300 42669 Battery BV-5JW - - - - - AC charger AC-16E 4090491233240501551;0675491 - - - 42660 Data cable CA-185 - - - - 42661 Headset WH-902 - - - - 42663 1.2. Summary of Test Results WLAN: Section in CFR 47 Section in RSS-GEN or RSS-210 Name of the test Result 15.247(b)(1) A8.4 (4) Conducted peak output power NP 15.247(d) A8.5 Band edge compliance of RF emissions PASSED 15.247(d) A8.5 Spurious RF conducted emissions NP 15.247(d), 15.209 A8.5 Spurious radiated emissions PASSED 15.207 7.2.2 AC powerline conducted emissions NP 15.247(a)(2) A8.2 (a) 6dB(bandwidth) NP 15.247(e) A8.2 (b) Power spectral density NP PASSED The EUT complies with the essential requirements in the standard. FAILED The EUT does not comply with the essential requirements in the standard. NP The test was not performed by the TCC Nokia Laboratory. The test results of LJPRM-801are re-used for certification of the LJPA. The table above indicates the results, which will be re-used FCC Part 15C Compliance Test Report / Template Version 15.0 FCC15CWLAN_RM-819_11.docx Copyright © TCC Nokia 3 (15) TCC Nokia Tampere Laboratory P.O. Box 68 Sinitaival 5 FIN-33720 TAMPERE, FINLAND Tel. +358 (0) 7180 46800 Fax. +358 (0) 7180 46880 CONTENTS 1. Summary for FCC Part 15C Compliance Test Report ............................................... 2 1.1. EUT and Accessory Information ............................................................................................. 2 1.2. Summary of Test Results ........................................................................................................ 2 2. Band edge compliance of RF emissions (FCC §15.247(d), RSS-210 A8.5) ......................................................................................... 4 2.2. Test method and limit .............................................................................................................. 4 2.3. WLAN Test results .................................................................................................................. 5 3. Spurious radiated emissions (FCC §15.247(d), §15.209, RSS-210 A8.5) .......................................................................... 9 3.2. Test method and limit .............................................................................................................. 9 3.3. WLAN Test results ................................................................................................................ 11 4. Test Equipment ........................................................................................................... 14 4.1. Conducted measurements .................................................................................................... 14 4.2. Radiated measurements ....................................................................................................... 14 FCC Part 15C Compliance Test Report / Template Version 15.0 FCC15CWLAN_RM-819_11.docx Copyright © TCC Nokia 4 (15) TCC Nokia Tampere Laboratory P.O. Box 68 Sinitaival 5 FIN-33720 TAMPERE, FINLAND Tel. +358 (0) 7180 46800 Fax. +358 (0) 7180 46880 2. Band edge compliance of RF emissions (FCC §15.247(d), RSS-210 A8.5) EUT with DUT number RM-801, DUT 42669 Accessories with DUT numbers BV-5JW DUT - Operation Voltage [V] / [Hz] Nominal Results PASSED Remarks Power level 150 for b-mode and 120 for g and n-mode Temp…

Text truncated - open the document above for the full version.

FCC Part 15C Compliance Test Report / Template Version 15.0 FCC15CWLAN_RM-819_10.docx Copyright © TCC Nokia 1 (32) TCC Nokia Copenhagen Laboratory Frederikskaj 1790 COPENHAGEN V DENMARK Tel. +45 33 292929 Fax. +45 33 292934 FCC Part 15C Compliance Test Report Test Report no.: FCC15CWLAN_RM-819_10.docx Date of Report: 14-Dec-2011 Number of pages: 32 Customer’s Contact person: Koskela Kari.O Testing laboratory: TCC Nokia Copenhagen Laboratory Frederikskaj 1790 COPENHAGEN V DENMARK Tel. +45 33 292929 Fax. +45 33 292934 Customer: Nokia Corporation P.O.Box(86) Joensuunkatu 7H / Kiila 1B FIN-24101 SALO, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 (0) 7180 45220 FCC listing no.: IC recognition no.: Tested devices/ accessories: Phone RM-819 FCC ID: LJPA IC: 661E-A Supplement reports: - Testing has been carried out in accordance with: CFR 47, FCC rules Part 15 Subpart C, ANSI C63.4 (2003), Public Notice DA 00-705, DTS procedures KDB 558074, IC standards, RSS-210 (Issue 8, December 2010). Deviations, modifications or clarifications (if any) to above mentioned documents are written in each section under "Test method and limit". Documentation: The test report must always be reproduced in full; reproduction of an excerpt only is subject to written approval of the testing laboratory. The documentation of the testing performed on the tested devices is archived for 15 years at TCC Nokia. Test Results: The EUT complies with the requirements in respect of all parameters subject to the test. The test results relate only to devices specified in this document Date and signature for the contents: Kalle Hannila, Engineer, EMC FCC Part 15C Compliance Test Report / Template Version 15.0 FCC15CWLAN_RM-819_10.docx Copyright © TCC Nokia 2 (32) TCC Nokia Copenhagen Laboratory Frederikskaj 1790 COPENHAGEN V DENMARK Tel. +45 33 292929 Fax. +45 33 292934 1. Summary for FCC Part 15C Compliance Test Report Date of receipt 26-Aug-2011 Testing completed 31-Aug-2011 The customer's contact person Koskela Kari Test Plan referred to T:\Projects\RM-801\TestPlan\RS_testplan_RM-801.xls Notes - Document name T:\Projects\RM-801\EMC\FCC15CWLAN_RM-801_18.docx 1.1. EUT and Accessory Information The EUT is a 7-band mobile phone: GSM850/900/1800/1900/GPRS/EGPRS WCDMA I/II(1900)/V(850)/HSDPA/HSUPA WLAN/Bluetooth The EUT is tested with maximum rated TX power, modulated with pseudo random bit sequence (PRBS9). Product Type SN HW MV SW DUT Phone RM-801 00440213553881 1100 - - 23507 Battery BV-5JW - - - - 23507 Phone RM-801 0044021355388 1100 - - 23497 Battery BV-5JW - - - - 23497 USB Cable CA-185 - - - - 23506 Charger AC-16E 4090191233240501561;0675491 - - - 23505 Headset WH-902 - - - - 23504 1.2. Summary of Test Results WLAN: Section in CFR 47 Section in RSS-GEN or RSS-210 Name of the test Result 15.247(b)(1) A8(0.4(4)) Conducted peak output power PASSED 15.247(d) A8(0.5) Band edge compliance of RF emissions NP 15.247(d) A8(0.5) Spurious RF conducted emissions PASSED 15.247(d), 15.209 A8(0.5) Spurious radiated emissions NP 15.207 7.2.2 AC powerline conducted emissions PASSED 15.247(a)(2) A8(0.1(1)) 6dB(bandwidth) PASSED 15.247(e) A8(0.1(2)) Power spectral density PASSED PASSED The EUT complies with the essential requirements in the standard. FAILED The EUT does not comply with the essential requirements in the standard. NP The test was not performed by the TCC Nokia Laboratory. The test results of LJPRM-801are re-used for certification of the LJPA. The table above indicates the results, which will be re-used FCC Part 15C Compliance Test Report / Template Version 15.0 FCC15CWLAN_RM-819_10.docx Copyright © TCC Nokia 3 (32) TCC Nokia Copenhagen Laboratory Frederikskaj 1790 COPENHAGEN V DENMARK Tel. +45 33 292929 Fax. +45 33 292934 CONTENTS 1. Summary for FCC Part 15C Compliance Test Report ..............................................…

Text truncated - open the document above for the full version.
