LJPRM-801GSM/WCDMA cellular phone w/BT and WLAN

RM-801 User Guide Issue 1 Contents Safety4 Get started6 Keys and parts6 Back, start, and search keys7 Insert the SIM card8 Charge your phone9 Antenna locations12 Switch the phone on or off13 Create your accounts13 Windows Live ID14 Nokia account15 Copy contacts from your old phone 15 Lock or unlock the keys and screen16 Headset17 Change the volume17 Access codes18 Set your phone to sync with your computer19 Basics20 About the start screen20 Touch screen actions20 Use your phone when it's locked22 Switch between open apps23 Personalise your phone23 Write text25 Search your phone and the web27 Control your phone with your voice27 Indicators on the status bar28 Use your phone offline28 Prolong battery life29 Calls31 Call a contact31 Call the last dialled number31 Call your voice mailbox31 Divert calls to your voice mailbox or another phone number31 Make a conference call32 Silence an incoming call33 Use your voice to call a contact33 Contacts & social networking services34 Contacts34 Social networks37 Internet40 Internet connections40 Internet42 Messaging & mail44 Messages44 Mail46 Camera49 About the camera49 Take a picture49 Take a close-up picture50 Take a picture in the dark50 Take a picture of a moving object50 Camera tips50 Record a video51 Save location information to your pictures and videos51 Send a picture51 Share your pictures and videos52 Your pictures53 About the Pictures hub53 View pictures53 Mark a picture as a favourite54 Upload pictures and videos to the web54 Change the background in the Pictures hub55 2 © 2011 Nokia. All rights reserved. Create an album55 Copy your pictures between your phone and PC55 Entertainment56 Music and videos56 Nokia Music58 Marketplace59 Games61 Maps & navigation63 Positioning and location services63 Bing Maps64 Drive68 Office71 Clock71 Calendar72 Microsoft Office Mobile73 Use the calculator77 Connectivity & phone management 79 Bluetooth79 USB data cable80 Keep your phone software and applications up to date80 Back up, sync, and restore your phone81 Free up phone memory82 Remove an application from your phone82 Security83 Support84 Product and safety information84 Index91 3 © 2011 Nokia. All rights reserved. Safety Read these simple guidelines. Not following them may be dangerous or illegal. For further information, read the complete user guide. SWITCH OFF IN RESTRICTED AREAS Switch the device off when mobile phone use is not allowed or when it may cause interference or danger, for example, in aircraft, in hospitals or near medical equipment, fuel, chemicals, or blasting areas. Obey all instructions in restricted areas. ROAD SAFETY COMES FIRST Obey all local laws. Always keep your hands free to operate the vehicle while driving. Your first consideration while driving should be road safety. INTERFERENCE All wireless devices may be susceptible to interference, which could affect performance. QUALIFIED SERVICE Only qualified personnel may install or repair this product. BATTERIES, CHARGERS, AND OTHER ACCESSORIES Use only batteries, chargers, and other accessories approved by Nokia for use with this device. Do not connect incompatible products. KEEP YOUR DEVICE DRY Your device is not water-resistant. Keep it dry. 4 © 2011 Nokia. All rights reserved. GLASS PARTS The device screen is made of glass. This glass can break if the device is dropped on a hard surface or receives a substantial impact. If the glass breaks, do not touch the glass parts of the device or attempt to remove the broken glass from the device. Stop using the device until the glass is replaced by qualified service personnel. PROTECT YOUR HEARING Listen to a headset at a moderate level, and do not hold the device near your ear when the loudspeaker is in use. 5 © 2011 Nokia. All rights reserved. Get started Keys and parts 1Connector for headphones and loudspeakers (3.5 mm) 2Micro-USB connector. Also used to charge the battery. 3Micro-SIM card holder 4Volume key 5Power key/Key lock button 6Camera key 7Back key 8Start key 9Search key 6 © 2011 Nokia. All rights reserved. 10Camera flash 11Camera lens 12Microphone 13Loudspeaker If there is protective tape on the camera lens, remove the tape. Back, start, and search keys The back, start, and search keys help you to navigate your phone. Back key Return to the previous screen Press . Your phone remembers all the apps and websites you have visited since the last time your screen was locked. Switch between open apps Press and hold , swipe left or right, and select the desired app. Start key Go to the start screen Press . Control your phone with your voice Press and hold , and say a voice command. 7 © 2011 Nokia. All rights reserved. Search key Search the web Press . Insert the SIM card Your phone uses a micro-SIM card, also known as a mini-UICC card. Do not attach any stickers to your SIM card. 1You must first open the cover of the micro-USB connector. Press the left end of the cover, and carefully pull the cover away from the phone. 2To unlock the SIM card holder, press and slide the holder to the left. Carefully pull out the holder. 8 © 2011 Nokia. All rights reserved. 3Make sure the contact area is facing up, and insert the SIM card into the SIM card holder. 4Insert the SIM card holder back into the phone, and slide the holder to the right. 5Close the cover of the micro-USB connector. Remove the SIM card 1Switch the phone off. 2Open the cover of the micro-USB connector. 3Unlock the SIM card holder, and carefully pull out the holder. 4Pull the card out of the holder. If you later change your network service provider, for instructions, go to www.nokia.com/support. Charge your phone About the battery Your phone has an internal, nonremovable, rechargeable battery. Use only Nokia approved chargers designated for this phone. You can also use a compatible USB data cable to charge your phone. You can set your phone to automatically switch power save mode on when the battery charge level is low. Select > and battery saver > Always turn on Battery Saver w…

Text truncated - open the document above for the full version.

NOKIA CORPORATION Yrttipellontie 6 FIN-90230 OULU FINLAND Tel. +358 7180 08000 Fax. +358 7180 48460 September 27, 2011 Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD. 21046 Attention: Equipment Authorization Branch REQUEST FOR CONFIDENTIALITY Pursuant to Sections 0.457 (d) (l) (ii) and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of some of the information accompanying this Application of FCC ID: LJPRM-801 and as outlined below: - Exhibit 4: Block Diagram - Exhibit 5: Schematic Diagrams - Exhibit 12: Theory of Operation / Description of Circuitry These materials contain trade secrets and proprietary information not customarily released to the public and the public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457 (d) (l) (ii) disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. NOKIA CORPORATION Kare Oksanen Product Certification Officer CTO/DCo, Oulu

NOKIA CORPORATION Yrttipellontie 6 FIN-90230 OULU FINLAND Tel. +358 7180 08000 Fax. +358 7180 48460 September 27, 2011 Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD. 21046 Attention: Equipment Authorization Branch REQUEST FOR SHORT TERM CONFIDENTIALITY Pursuant to Section 0.459 of the Commission’s Rules and Public Notice DA 04-1705 of June 15, 2004, the Applicant hereby requests for 45 days short-term confidential treatment of some of the information accompanying this application of FCC ID: LJPRM-801 as outlined below: - Exhibit 3: External photos - Exhibit 7: Test setup photos - Exhibit 8: User's manual - Exhibit 9: Internal photos These materials contain proprietary information not yet released to the public and the public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. NOKIA CORPORATION Kare Oksanen Product Certification Officer CTO/DCo, Oulu

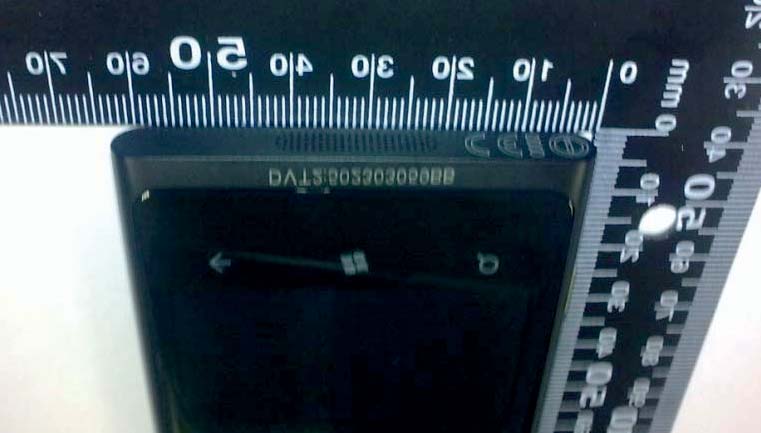

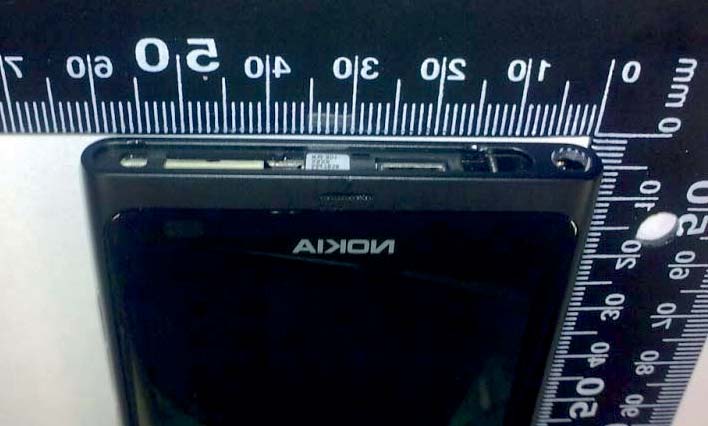

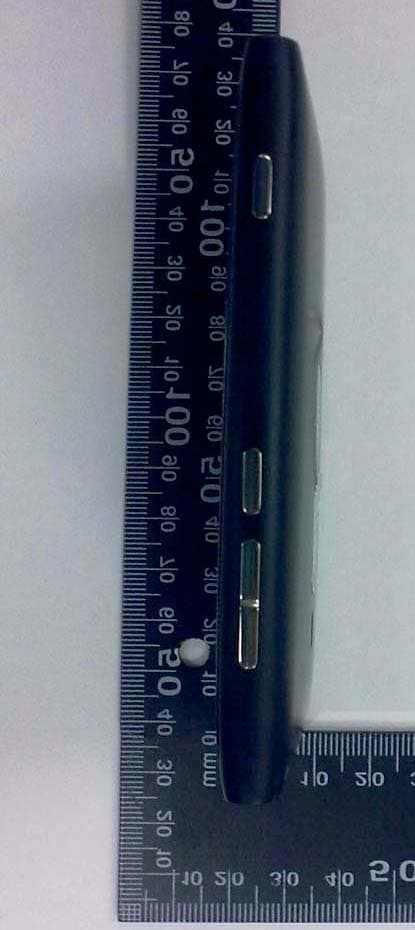

Exhibit 3: Ex Applicant: N EX xternal Photo Nokia Corpor XTERNAL ographs ration PHOTOS Copyright © 14- P FCC ID: © 2011 Nokia -Sep-2011 Page1of4 LJPRM-801 Corporation 4 n Exhibit 3: Ex Applicant: N xternal Photo Nokia Corpor ographs ration Copyright © 14- P FCC ID: © 2011 Nokia -Sep-2011 Page2of4 LJPRM-801 Corporation 4 n 14-Sep-2011 Page3of4 Exhibit 3: External PhotographsFCC ID: LJPRM-801 Applicant: Nokia CorporationCopyright © 2011 Nokia Corporation 14-Sep-2011 Page4of4 Exhibit 3: External PhotographsFCC ID: LJPRM-801 Applicant: Nokia CorporationCopyright © 2011 Nokia Corporation

FCC ID: LJPRM-801 Copyright © 2011 Nokia. All Rights Reserved. Label Location Exhibit 1 Applicant: Nokia Corporation 26 September 2011

13-Sep-2011 Page1of5 Exhibit 9: Internal PhotographsFCC ID: LJPRM-801 Applicant: Nokia CorporationCopyright © 2011 Nokia Corporation INTERNAL PHOTO 13-Sep-2011 Page2of5 Exhibit 9: Internal PhotographsFCC ID: LJPRM-801 Applicant: Nokia CorporationCopyright © 2011 Nokia Corporation 13-Sep-2011 Page3of5 Exhibit 9: Internal PhotographsFCC ID: LJPRM-801 Applicant: Nokia CorporationCopyright © 2011 Nokia Corporation 13-Sep-2011 Page4of5 Exhibit 9: Internal PhotographsFCC ID: LJPRM-801 Applicant: Nokia CorporationCopyright © 2011 Nokia Corporation 13-Sep-2011 Page5of5 Exhibit 9: Internal PhotographsFCC ID: LJPRM-801 Applicant: Nokia CorporationCopyright © 2011 Nokia Corporation BT/WLAN antenna Cellular antenna

FCC Part 15B Compliance Test Report / Template Version 15.0 FCC15B_RM-801_07.docx Copyright © TCC Nokia 1 (17) TCC Nokia Tampere Laboratory P.O. Box 68 Sinitaival 5 FIN-33720 TAMPERE, FINLAND Tel. +358 (0) 7180 46800 Fax. +358 (0) 7180 46880 FCC Part 15B Compliance Test Report Test Report no.: FCC15B_RM-801_07.docx Date of Report: 09-Sep-2011 Number of pages: 17 Customer’s Contact person: Kari Koskela Testing laboratory: TCC Nokia Tampere Laboratory P.O. Box 68 Sinitaival 5 FIN-33720 TAMPERE, FINLAND Tel. +358 (0) 7180 46800 Fax. +358 (0) 7180 46880 Customer: Nokia Corporation P.O.Box(86) Joensuunkatu 7H / Kiila 1B FIN-24101 SALO, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 (0) 7180 45220 FCC listing no.: IC recognition no.: 94436 661AK-1 Tested devices/ accessories: Phone RM-801 / Battery BL-5JW / AC charger AC-16E / Data cable CA- 185 / Headset WH-902 / Laptop IBM Thinkpad T40 / AC adapter 02K6543 / Printer HP deskjet 1600CC3540A / Parallel cable for printer FCC ID: LJPRM-801 IC: - Supplement reports: - Testing has been carried out in accordance with: CFR 47, FCC rules Part 15 Subpart B, ANSI C63.4 (2003), ICES-003, CISPR 22, RSS-132 (Issue 2, September 2005), RSS-133 (Issue 5, February 2009), RSS-210 (Issue 8, December 2010). Deviations, modifications or clarifications (if any) to above mentioned documents are written in each section under "Test method and limit". Documentation: The test report must always be reproduced in full; reproduction of an excerpt only is subject to written approval of the testing laboratory. The documentation of the testing performed on the tested devices is archived for 15 years at TCC Nokia. Test Results: The EUT complies with the requirements in respect of all parameters subject to the test. The test results relate only to devices specified in this document Date and signature for the contents: Jari Jantunen, System Manager, EMC FCC Part 15B Compliance Test Report / Template Version 15.0 FCC15B_RM-801_07.docx Copyright © TCC Nokia 2 (17) TCC Nokia Tampere Laboratory P.O. Box 68 Sinitaival 5 FIN-33720 TAMPERE, FINLAND Tel. +358 (0) 7180 46800 Fax. +358 (0) 7180 46880 1. Summary for FCC Part 15B Compliance Test Report Date of receipt 29-Aug-2011 Testing completed 08-Sep-2011 The customer's contact person Kari Koskela Test Plan referred to T:\Projects\RM-801\TestPlan\RS_testplan_RM-801.xls Notes - Document name T:\Projects\RM-801\EMC\FCC15B_RM-801_07.docx 1.1. EUT and Accessory Information The EUT is a 9-band mobile phone: GSM850/900/1800/1900/GPRS/Monopole without GND reflector (GSM/WCDMA) WCDMA I/II(1900)/VIII/Monopole without GND reflector (GSM/WCDMA) WLAN/Bluetooth The EUT is tested with maximum rated TX power, modulated with pseudo random bit sequence (PRBS9). Product Type SN HW MV SW DUT Phone RM-801 00440213552705 1100 - 1600.1800.7 720.11300 42669 Battery BL-5JW - - - - - AC charger AC-16E 4090491233240501551;0675491 - - - 42660 Data cable CA-185 - - - - 42661 Headset WH-902 - - - - 42663 Phone RM-801 00440213553967 1100 - 1600.2100.7 720.11330 42659 Laptop IBM Thinkpad T40 99ARTGD - - - 41868 AC Adapter 02K6543 - - - 40202 Printer HP deskjet 1600CC3540A USB8302546 - - - 40077 Parallel cable for printer - - - - - 40087 1.2. Summary of Test Results GSM850: Section in CFR 47 Section in ICES-003 (RSS-132) Name of the test Result 15.107, a 5.3 AC powerline conducted emissions NP 15.109, a 5.5 (4.6) Radiated emissions PASSED GSM1900: Section in CFR 47 Section in ICES-003 (RSS-133) Name of the test Result 15.107, a 5.3 AC powerline conducted emissions NP 15.109, a 5.5 (6.6) Radiated emissions PASSED WCDMA 1900 (Band II): Section in CFR 47 Section in ICES-003 (RSS-133) Name of the test Result 15.107, a 5.3 AC powerline conducted emissions NP 15.109, a 5.5 (6.6) Radiated emissions PASSED FCC Part 15B Compliance Test Report / Template Version 15.0 FCC15B_RM-801_07.docx Copyright © TCC Nokia 3 (17) TCC Nokia Tampere Laboratory P.O. Box 68 Sinitaival 5 FIN-33720 TAMPERE, FINLAND Tel. +358 (0) 7180 46800 Fax. +358 (0) 7180 46880 Bluetooth: Section in CFR 47 Section in ICES-003 (RSS-139) Name of the test Result 15.107, a 5.3 AC powerline conducted emissions NP 15.109, a 5.5 (6.6) Radiated emissions PASSED WLAN: Section in CFR 47 Section in ICES-003 (RSS-139) Name of the test Result 15.107, a 5.3 AC powerline conducted emissions NP 15.109, a 5.5 (6.6) Radiated emissions PASSED PASSED The EUT complies with the essential requirements in the standard. FAILED The EUT does not comply with the essential requirements in the standard. NP The test was not performed by the TCC Nokia Laboratory. FCC Part 15B Compliance Test Report / Template Version 15.0 FCC15B_RM-801_07.docx Copyright © TCC Nokia 4 (17) TCC Nokia Tampere Laboratory P.O. Box 68 Sinitaival 5 FIN-33720 TAMPERE, FINLAND Tel. +358 (0) 7180 46800 Fax. +358 (0) 7180 46880 CONTENTS 1. Summary for FCC Part 15B Compliance Test Report .............................................. 2 1.1. EUT and Accessory Information ........................................................................................... 2 1.2. Summary of Test Results ..................................................................................................... 2 2. Radiated emissions (FCC §15.109, ICES-003 section 5.5, RSS-132 4.6, RSS-133 6.6) ................................... 5 2.2. Test method and limit ........................................................................................................... 5 2.3. Bluetooth + FM radio Test results ......................................................................................... 7 2.4. GSM850 + FM radio Test results .......................................................................................... 8 2.5. GSM1900 + FM radio Test results ........................................................................................ 9 2.6. WCDMA 1900 (Band II) + GPS receiver Test results .......................................................... 10 2.7. WLAN RX + GPS receiver Test …

Text truncated - open the document above for the full version.

FCC Part 15B Compliance Test Report / Template Version 15.0 FCC15B_RM-801_11.docx Copyright © TCC Nokia 1 (7) TCC Nokia Copenhagen Laboratory Frederikskaj 1790 COPENHAGEN V DENMARK Tel. +45 33 292929 Fax. +45 33 292934 FCC Part 15B Compliance Test Report Test Report no.: FCC15B_RM-801_11.docx Date of Report: 1-Sep-2011 Number of pages: 7 Customer’s Contact person: Koskela Kari.O Testing laboratory: TCC Nokia Copenhagen Laboratory Frederikskaj 1790 COPENHAGEN V DENMARK Tel. +45 33 292929 Fax. +45 33 292934 Customer: Nokia Corporation P.O.Box(86) Joensuunkatu 7H / Kiila 1B FIN-24101 SALO, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 (0) 7180 45220 FCC listing no.: IC recognition no.: Tested devices/ accessories: Phone RM-801 / Battery BL-5JW / USB Cable CA-185 / USB Memory Stick - / Laptop Lenovo T61 FCC ID: LJPRM-801 IC: Supplement reports: - Testing has been carried out in accordance with: CFR 47, FCC rules Part 15 Subpart B, ANSI C63.4 (2003), ICES-003, CISPR 22, RSS-132 (Issue 2, September 2005), RSS-133 (Issue 5, February 2009), RSS-210 (Issue 8, December 2010). Deviations, modifications or clarifications (if any) to above mentioned documents are written in each section under "Test method and limit". Documentation: The test report must always be reproduced in full; reproduction of an excerpt only is subject to written approval of the testing laboratory. The documentation of the testing performed on the tested devices is archived for 15 years at TCC Nokia. Test Results: The EUT complies with the requirements in respect of all parameters subject to the test. The test results relate only to devices specified in this document Date and signature for the contents: Ruben Hansen, System Manager, EMC FCC Part 15B Compliance Test Report / Template Version 15.0 FCC15B_RM-801_11.docx Copyright © TCC Nokia 2 (7) TCC Nokia Copenhagen Laboratory Frederikskaj 1790 COPENHAGEN V DENMARK Tel. +45 33 292929 Fax. +45 33 292934 1. Summary for FCC Part 15B Compliance Test Report Date of receipt 23-Aug-2011 Testing completed 26-Aug-2011 The customer's contact person Koskela Kari.O Test Plan referred to T:\Projects\RM-801\TestPlan\RS_testplan_RM-801.xls Notes - Document name T:\Projects\RM-801\EMC\FCC15B_RM-801_11.docx 1.1. EUT and Accessory Information The EUT is a 7-band (GSM850/900/1800/1900) and WCDMA Band (I/II(1900)/VIII/) mobile phone with GPRS and WLAN and Bluetooth. Product Type SN HW MV SW DUT Phone RM-801 00440213552700 1100 23502 Battery BL-5JW 23502 USB Cable CA-185 - 23501 USB Memory Stick USB memory - - - - 23929 Laptop Lenovo T61 1S7665D71L3W8321 - - - 24950 1.2. Summary of Test Results GSM850: Section in CFR 47 Section in ICES-003 (RSS-132) Name of the test Result 15.107, a 5.3 AC powerline conducted emissions NP 15.109, a 5.5 (4.6) Radiated emissions NP GSM1900: Section in CFR 47 Section in ICES-003 (RSS-133) Name of the test Result 15.107, a 5.3 AC powerline conducted emissions NP 15.109, a 5.5 (6.6) Radiated emissions NP WCDMA 1900 (Band II): Section in CFR 47 Section in ICES-003 (RSS-133) Name of the test Result 15.107, a 5.3 AC powerline conducted emissions NP 15.109, a 5.5 (6.6) Radiated emissions NP WLAN: Section in CFR 47 Section in ICES-003 (RSS-139) Name of the test Result 15.107, a 5.3 AC powerline conducted emissions Passed 15.109, a 5.5 (6.6) Radiated emissions NP PASSED The EUT complies with the essential requirements in the standard. FAILED The EUT does not comply with the essential requirements in the standard. NP The test was not performed by the TCC Nokia Laboratory. FCC Part 15B Compliance Test Report / Template Version 15.0 FCC15B_RM-801_11.docx Copyright © TCC Nokia 3 (7) TCC Nokia Copenhagen Laboratory Frederikskaj 1790 COPENHAGEN V DENMARK Tel. +45 33 292929 Fax. +45 33 292934 CONTENTS 1. Summary for FCC Part 15B Compliance Test Report ............................................... 2 1.1. EUT and Accessory Information ............................................................................................. 2 1.2. Summary of Test Results ........................................................................................................ 2 2. AC powerline conducted emissions (FCC §15.107, ICES-003 section 5.3) .................................................................................. 4 2.1. Test Setup ............................................................................................................................... 4 2.2. Test method and limit .............................................................................................................. 4 2.3. WLAN Test results .................................................................................................................. 5 3. Test Equipment ............................................................................................................. 6 3.1. Conducted measurements ...................................................................................................... 6 3.2. Radiated measurements ......................................................................................................... 6 FCC Part 15B Compliance Test Report / Template Version 15.0 FCC15B_RM-801_11.docx Copyright © TCC Nokia 4 (7) TCC Nokia Copenhagen Laboratory Frederikskaj 1790 COPENHAGEN V DENMARK Tel. +45 33 292929 Fax. +45 33 292934 2. AC powerline conducted emissions (FCC §15.107, ICES-003 section 5.3) EUT with DUT number RM-801, DUT 23502 Accessories with DUT numbers CA-185, DUT 23501 ;USB memory, DUT 23929 ; Lenovo T61, DUT 24950 Operation Voltage [V] / [Hz] 115 / 60 Results Passed Remarks None Temp [ o C] / Humidity [%RH] / Air Pressure [kPa] 23 / 44 / 101 Date of measurements 26-Aug-2011 Measured by Bo Moltved Christiansen 2.1. Test Setup Receiver Pulse limiter LISN EUT 2.2. Test method and limit The measurement is made according to ANSI C63.4-2003 as follows: The EUT is placed on a wooden table 80 cm above the reference groundplane. The EUT is connected via LISN to a test pow…

Text truncated - open the document above for the full version.

EMC Test Setup Photos / Template Version 1.0 FCC photo RM_801 Test Setups.docx Copyright © TCC Nokia 1 (2) RM-801 Test Setups Picture 1. FCC Part 15B Radiated Emissions Picture 2. FCC Part 15C Radiated Emissions EMC Test Setup Photos / Template Version 1.0 FCC photo RM_801 Test Setups.docx Copyright © TCC Nokia 2 (2) Picture 3. FCC Part 15B Conducted Emissions Picture 2. FCC Part 15C Conducted Emissions
