LQN2923BENTLEY'S 5.8GHz MICROWAVE SENSOR

Connaught Electronics Ltd
BENTLEY'S 5.8GHz MICROWAVE SENSOR - FCC ID LQN2923 - Connaught Electronics Ltd
Click to zoom

Application Details

Equipment Class
DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant
Dec 12, 2005
Application Purpose
Original Equipment
Date of Application
Dec 12, 2005
Equipment Note
BENTLEY'S 5.8GHz MICROWAVE SENSOR
Frequency Range
5800.00000000 - 5800.00000000
Company
Connaught Electronics Ltd
Country
Ireland

Documents & Files

Select a file to view

Users Manual

↗
↗

Block Diagram

↗

Cover Letter(s)

↗

External Photos

↗

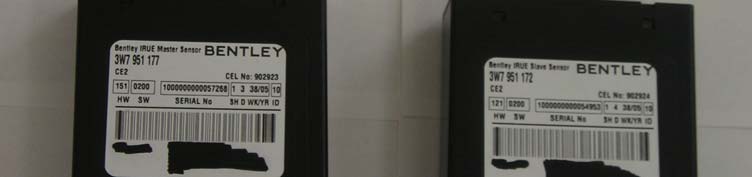

ID Label/Location Info

↗
↗

Internal Photos

↗

Operational Description

↗

Test Report

↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

DIRECTORS: DR. JOE MCBREEN, FRANK CLANCY COMPANY REGISTRATION NO. 92489 User Manual Product Reference: 5.8GHz Microwave Sensor. CEL Part Nos: - 902923 & 902924 FCC ID: LQN2923 FCC ID: LQN2924 FCC WARNING STATEMENT Note: This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential/office installation. The equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected • Consult the dealer or an experienced Radio/TV technician for help CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Connaught Electronics Ltd. IDA INDUSTRIAL ESTATE, DUNMORE ROAD, TUAM, CO. GALWAY, IRELAND. Telephone: +353 93 25128 Fax: +353 93 25133 [email protected] www.cel-europe.com

Block Diagram

Frame 1 of 1 MICROWAVE BLOCK DIAGRAM: TARGET +12 Gnd ST INRS Voltage Regulator Micro – Controller PRF Oscillator/ U8 4MHz RF Oscillator 5.8GHz Transmit Antenna Receive Antenna Target Envelope Detector Range Gate Generator Range Adjust IF FILTER IF AMPS Connaught Electronics Ltd. IDA INDUSTRIAL ESTATE, DUNMORE ROAD, TUAM, CO. GALWAY, IRELAND. Telephone: +353 93 25128 Fax: +353 93 25133 A/C Fax: +353 93 24047 [email protected] www.cel-europe.com FCC ID: -LQN2923 FCC ID: -LQN2924

Cover Letter(s)

Report : RF Duty Cycle of CEL Microwave Sensor Prepared For: ITC Prepared by: CEL Date: 07/07/05 Connaught Electronics Ltd. IDA INDUSTRIAL ESTATE, DUNMORE ROAD, TUAM, CO. GALWAY, IRELAND. Telephone: +353 93 25128 Fax: +353 93 25133 1 Scope This document details the RF duty cycle of CEL’s pulsed microwave sensor. 2 Duty Cycle Determination In order to determine the RF duty cycle, the PRF frequency and the oscillator on-time of the microwave sensor are measured and using these the duty cycle is calculated. 2.1 PRF Oscillator Period The pulsed microwave oscillator is turned on/off by the PRF (Pulse Repetition Frequency) oscillator. The pulse repetition frequency is 1.5MHz. (see fig.1 below). PRF = 1.5MHz Oscillator period = 682ns fig.1 2.2 RF pulse width determination: The range of the SDR is 85cm. Thus using the mathematical formula for RF waves the pulse width can be determined: Pulse width = (Range*2)/(3x10 8 ) In the case of CEL’s SDR sensor: Pulse width = 1.7/(3x10 8 ) = 5.66ns 2.3 Duty Cycle Calculation Duty Cycle (%) = RF Pulse Duration/PRF Oscillation Period = (5.66ns/682ns) * 100 = 0.83 %

External Photos

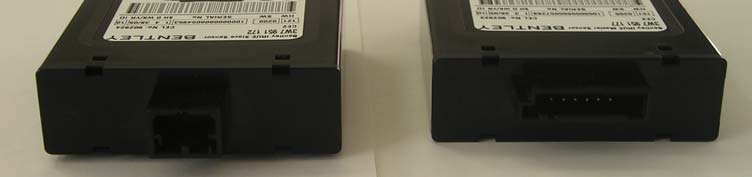

External Photographs for Bentley's 5.8 GHz Microwave Sensor [FCC ID: LQN2923] [FCC ID: LQN2924] Model(s) and Part Numbers: 902923 (Bentley Part No:3W7951177) 902924 (Bentley Part No:3W7951172) Report No. 20051114-04-Fc15 Judgement Complies as Tested Provided for evaluation by Connaught Electronics, LTD IDA Industrial Estate, Dunmore Road, Tuam Co, Galway Ireland Tests and Report by ITC Engineering Services, Inc. 9959 Calaveras Road, Box 543 Sunol, California 94586-0543 Tel: (925) 862-2944 Fax: (925) 862-9013 Email: [email protected] Web Site: www.itcemc.com  EN45001 Accredited Compliance Laboratory (RES-GmbH) Lab Code: 200172-0 Registration number: TTI-P-G 159/98-00 (RES-GmbH) Applicant: Connaught Electronics, LTD. Report No.: 20051114-04-Fc15 Prepared By: ITC Engineering Services, Inc. 9959 Calaveras Road, PO Box 543 Sunol, California 94586-0543 Tel: [925] 862-2944 Fax: [925] 862-9013 Email: [email protected] Web: www.itcemc.com Product: Bentley's 5.8 GHz Microwave Sensor Model Number:902923 (Bentley Part No:3W7951177), and 902924 (Bentley Part No:3W7951172) FCC ID:LQN2923 FCC ID:LQN2924 Page 2 of 5 Table of Contents PART 1 General Information................................................................................................................. 3 PART 2 External Photographs............................................................................................................. 4 List of Figures Figure 1: EUT Top View [Front (902923) sensor and Rear (902924) sensor].................................... 4 Figure 2: EUT Front View [Front (902923) sensor and Rear (902924) sensor].................................. 4 Figure 3: EUT Board Mount View............................................................................................................... 5 Applicant: Connaught Electronics, LTD. Report No.: 20051114-04-Fc15 Prepared By: ITC Engineering Services, Inc. 9959 Calaveras Road, PO Box 543 Sunol, California 94586-0543 Tel: [925] 862-2944 Fax: [925] 862-9013 Email: [email protected] Web: www.itcemc.com Product: Bentley's 5.8 GHz Microwave Sensor Model Number:902923 (Bentley Part No:3W7951177), and 902924 (Bentley Part No:3W7951172) FCC ID:LQN2923 FCC ID:LQN2924 Page 3 of 5 PART 1 General Information Product: Model Number: Model Number: Bentley's 5.8 GHz Microwave Sensor 902923 (Bentley Part No:3W7951177) 902924 (Bentley Part No:3W7951172) Manufacturer’s Name Manufacturer’s Address Telephone and Fax Contact Connaught Electronics, LTD IDA Industrial Estate, Dunmore Road, Tuam Co, Galway Ireland Tel: (011) 353-93-25128 Patrick Denny Fax : (011) 353-93-25133 Email: [email protected] Test Laboratory ITC Engineering Services, Inc. 9959 Calaveras Road, PO Box 543 Sunol, CA 94586-0543 Email: [email protected] Web Site: http://www.itcemc.com Tel: +1(925) 862-2944 Fax: +1(925) 862-9013 Test Number Report Number 20051114-04 20051114-04-Fc15 Test Date(s) & Issue Date November 13 th , and 14 th , 2005 December 1 st, 2005 Test Engineer(s) Lan Vu, Femi Ojo Documentation George Wiliam Brown II Test Results ; Complies as Tested ‰ Fail Total Number of Pages 5 Applicant: Connaught Electronics, LTD. Report No.: 20051114-04-Fc15 Prepared By: ITC Engineering Services, Inc. 9959 Calaveras Road, PO Box 543 Sunol, California 94586-0543 Tel: [925] 862-2944 Fax: [925] 862-9013 Email: [email protected] Web: www.itcemc.com Product: Bentley's 5.8 GHz Microwave Sensor Model Number:902923 (Bentley Part No:3W7951177), and 902924 (Bentley Part No:3W7951172) FCC ID:LQN2923 FCC ID:LQN2924 Page 4 of 5 PART 2 External Photographs Figure 1: EUT Top View [Front (902923) sensor and Rear (902924) sensor] Figure 2: EUT Front View [Front (902923) sensor and Rear (902924) sensor] Applicant: Connaught Electronics, LTD. Report No.: 20051114-04-Fc15 Prepared By: ITC Engineering Services, Inc. 9959 Calaveras Road, PO Box 543 Sunol, California 94586-0543 Tel: [925] 862-2944 Fax: [925] 862-9013 Email: [email protected] Web: www.itcemc.com Product: Bentley's 5.8 GHz Microwave Sensor Model Number:902923 (Bentley Part No:3W7951177), and 902924 (Bentley Part No:3W7951172) FCC ID:LQN2923 FCC ID:LQN2924 Page 5 of 5 EUT Photographs (cont.) Figure 3: EUT Board Mount View

Internal Photos

Internal Photographs for Bentley's 5.8 GHz Microwave Sensor [FCC ID: LQN2923] [FCC ID: LQN2924] Model(s) and Part Numbers: 902923 (Bentley Part No:3W7951177) 902924 (Bentley Part No:3W7951172) Report No. 20051114-04-Fc15 Judgement Complies as Tested Provided for evaluation by Connaught Electronics, LTD IDA Industrial Estate, Dunmore Road, Tuam Co, Galway Ireland Tests and Report by ITC Engineering Services, Inc. 9959 Calaveras Road, Box 543 Sunol, California 94586-0543 Tel: (925) 862-2944 Fax: (925) 862-9013 Email: [email protected] Web Site: www.itcemc.com  EN45001 Accredited Compliance Laboratory (RES-GmbH) Lab Code: 200172-0 Registration number: TTI-P-G 159/98-00 (RES-GmbH) Applicant: Connaught Electronics, LTD. Report No.: 20051114-04-Fc15 Prepared By: ITC Engineering Services, Inc. 9959 Calaveras Road, PO Box 543 Sunol, California 94586-0543 Tel: [925] 862-2944 Fax: [925] 862-9013 Email: [email protected] Web: www.itcemc.com Product: Bentley's 5.8 GHz Microwave Sensor Model Number:902923 (Bentley Part No:3W7951177), and 902924 (Bentley Part No:3W7951172) FCC ID:LQN2923 FCC ID:LQN2924 Page 2 of 5 Table of Contents PART 1 General Information................................................................................................................. 3 PART 2 Internal Photographs.............................................................................................................. 4 List of Figures Figure 1: EUT Internal Component View ....................................................................................................... 4 Figure 2: EUT Component Internal View With Shield Off............................................................................. 4 Figure 3: EUT Solder View .............................................................................................................................. 5 Applicant: Connaught Electronics, LTD. Report No.: 20051114-04-Fc15 Prepared By: ITC Engineering Services, Inc. 9959 Calaveras Road, PO Box 543 Sunol, California 94586-0543 Tel: [925] 862-2944 Fax: [925] 862-9013 Email: [email protected] Web: www.itcemc.com Product: Bentley's 5.8 GHz Microwave Sensor Model Number:902923 (Bentley Part No:3W7951177), and 902924 (Bentley Part No:3W7951172) FCC ID:LQN2923 FCC ID:LQN2924 Page 3 of 5 PART 1 General Information Product: Model Number: Model Number: Bentley's 5.8 GHz Microwave Sensor 902923 (Bentley Part No:3W7951177) 902924 (Bentley Part No:3W7951172) Manufacturer’s Name Manufacturer’s Address Telephone and Fax Contact Connaught Electronics, LTD IDA Industrial Estate, Dunmore Road, Tuam Co, Galway Ireland Tel: (011) 353-93-25128 Patrick Denny Fax : (011) 353-93-25133 Email: [email protected] Test Laboratory ITC Engineering Services, Inc. 9959 Calaveras Road, PO Box 543 Sunol, CA 94586-0543 Email: [email protected] Web Site: http://www.itcemc.com Tel: +1(925) 862-2944 Fax: +1(925) 862-9013 Test Number Report Number 20051114-04 20051114-04-Fc15 Test Date(s) & Issue Date November 13 th , and 14 th , 2005 December 1 st, 2005 Test Engineer(s) Lan Vu, Femi Ojo Documentation George Wiliam Brown II Test Results ; Complies as Tested ‰ Fail Total Number of Pages 5 Applicant: Connaught Electronics, LTD. Report No.: 20051114-04-Fc15 Prepared By: ITC Engineering Services, Inc. 9959 Calaveras Road, PO Box 543 Sunol, California 94586-0543 Tel: [925] 862-2944 Fax: [925] 862-9013 Email: [email protected] Web: www.itcemc.com Product: Bentley's 5.8 GHz Microwave Sensor Model Number:902923 (Bentley Part No:3W7951177), and 902924 (Bentley Part No:3W7951172) FCC ID:LQN2923 FCC ID:LQN2924 Page 4 of 5 PART 2 Internal Photographs Figure 1: EUT Internal Component View Figure 2: EUT Component Internal View With Shield Off Applicant: Connaught Electronics, LTD. Report No.: 20051114-04-Fc15 Prepared By: ITC Engineering Services, Inc. 9959 Calaveras Road, PO Box 543 Sunol, California 94586-0543 Tel: [925] 862-2944 Fax: [925] 862-9013 Email: [email protected] Web: www.itcemc.com Product: Bentley's 5.8 GHz Microwave Sensor Model Number:902923 (Bentley Part No:3W7951177), and 902924 (Bentley Part No:3W7951172) FCC ID:LQN2923 FCC ID:LQN2924 Page 5 of 5 Figure 3: EUT Solder View

Operational Description

FCC ID: (LQN2923 & LQN2924) Frame 1 of 7 TECHNICAL FILE FOR BENTLEY_ MICROWAVE SENSOR CEL P/N: 902923 902924 Connaught Electronics Ltd. IDA INDUSTRIAL ESTATE, DUNMORE ROAD, TUAM, CO. GALWAY, IRELAND. Telephone: +353 93 25128 Fax: +353 93 25133 A/C Fax: +353 93 24047 [email protected] www.cel-europe.com FCC ID: (LQN2923 & LQN2924) Frame 2 of 7 1.0 Introduction This is a Technical File for BENTLEY Microwave sensor electronics supplied by CEL to BENTLEY. 1.1 Theory of Operation The vehicle passenger compartment protection system operates as a microwave based motion detection sensor. The sensor detects motion within a set surveillance hemisphere and an alarm signal is sent to the Ground Module. The sensor works on the Doppler principle. The transmit antenna transmits an electro-magnetic field into the vehicle. The receive antenna accepts reflections from moving targets and the resulting signals are filtered and amplified before being sent to the microcontroller for evaluation. The range is adjustable in software. Thus, the range can always be adjusted to fill the vehicle interior, in relation to the shortest distance between the Microwave sensor and the windscreen or vehicle roof (the limits of the vehicle passenger compartment). In this way, a hemispherical field is generated within the vehicle as the area to be monitored. If a large enough change in analog signal amplitude occurs, an analysis of the signal evaluation is started. The microcontroller contains a software algorithm that determines if the signal is a genuine movement or a spurious signal. If this analysis detects significant characteristics of a movement, an alarm is issued to the ground module via the INRS wire line. MICROWAVE BLOCK DIAGRAM: TARGET +12 Gnd ST INRS Voltage Regulator Micro – Controller PRF Oscillator RF Oscillator Transmi t Antenna Receive Antenna Target Envelope Detector Range Gate Generator Range Adjust IF FILTER IF AMPS FCC ID: (LQN2923 & LQN2924) Frame 3 of 7 1.2 Operating Modes and influencing factors In its non-sensitized condition, the microwave sensor module is set to Sleep-Mode. When sensitized, it is woken by an interrupt on the ST line. The sensitization period for the microwave sensor module, to full functionality, is 30 seconds. The complete alarm system is likewise ready for operation 30 seconds after sensitization of the DWA (anti-theft warning system). The microwave sensor module operates in impulse mode : that is, like a radar impulse system. An impulse is emitted for a brief period and the reflected signal received is amplified and evaluated. Because the module operates with a very low transmission output, more powerful external frequencies can connect with the receiver side of the device and cause false alarms. The reflected signal is checked in parallel with a suitable EMC protection switching unit and any foreign frequencies are filtered out. Any real movement in the detection area is recognized by a change in the reflection sample. The module emits a pulsed signal and delays this in accordance with the detection range required. This delayed impulse then controls the receiver section. Only after this delay time is the receiver section opened for a short period, when an associated signal pattern is stored. In reality, the detection range corresponds with a spherical "shell" having a width of ca. 5cm. The signal is stored in terms of amplitude and pattern and is compared with the next signal which is received. 1.3 Physical Construction Housing: LENGTH: 70mm, WIDTH: 63mm, HEIGHT: 29.5mm FCC ID: (LQN2923 & LQN2924) Frame 4 of 7 PCB: Two layer, Board material FR4 Layer 1: Components and signal tracks Layer 2: Ground plane Connector Detail: • 4 way Amp part Number: 4-1393472-9. Table 1 – Microwave Sensor ECU Connector Pin Detail Title Pin Function Ground 1 Ground ST 2 Sensor Arm/Disarm signal INRS 3 Alarm Out signal VBAT 4 Power Supply (Battery) FCC ID: (LQN2923 & LQN2924) Frame 5 of 7 1.4 ESC Part Number(s) CEL Part No.: 902923 & 902924 1.5 ESC Manufacturers: CEL Dunmore Road, Tuam, Co. Galway, Ireland Tel: +353 93 25128 FCC ID: (LQN2923 & LQN2924) Frame 6 of 7 2.0 EMC Requirements Analysis 2.1 Critical Interface Signals Pin Signal Name Signal Description Voltage / Current Level Frequency %Duty Cycle 1 GND Ground 0V DC N/A 2 ST Sensor Arm/Disarm signal 9V – 16V 1mA DC N/A 3 INRS Alarm out signal 9V – 16V / 1mA DC N/A 4 VBAT Power Supply 9V – 16V / 5mA DC N/A User interfaces: 2.2 Potential Sources of Emissions Signal Source Description Voltage/Current Level Frequency % Duty Cycle (range) Other Resonator 3V 4MHz 50% FCC ID: (LQN2923 & LQN2924) Frame 7 of 7 3.0 Mode Descriptions Mode VBAT ST Input INRS (Output) Armed +12V 0V 12V (1 sec 0V on Alarm) Disarmed +12V 12V 12V Mode Armed: In this Mode the ST Input to the Microwave sensor is pulled to ground which ‘Arms’ the sensor ie. if movement is detected then the INRS (alarm) output is activated (by pulling the INRS output to ground for 1 second). Mode Disarmed: In this Mode the ST Input to the Microwave sensor is pulled to VBat which ‘Disarms’ the sensor ie. the sensor is turned OFF and so should not react to any movements.

Test Report

FCC Test Report for 47CFR15, Subpart B for Unintentional Radiators, per Section 101 Equipment authorization of unintentional radiators, and 47CFR15, Subpart C per Section 209 General Limits for Operation of Intentional Radiators on Bentley's 5.8 GHz Microwave Sensor [FCC ID: LQN2923] [FCC ID: LQN2924] Model(s) and Part Numbers: 902923 (Bentley Part No:3W7951177) 902924 (Bentley Part No:3W7951172) Report No. 20051114-04-Fc15 Judgement Complies as Tested Provided for evaluation by Connaught Electronics, LTD IDA Industrial Estate, Dunmore Road, Tuam Co, Galway Ireland Tests and Report by ITC Engineering Services, Inc. 9959 Calaveras Road, Box 543 Sunol, California 94586-0543 Tel: (925) 862-2944 Fax: (925) 862-9013 Email: [email protected] Web Site: www.itcemc.com  EN45001 Accredited Compliance Laboratory (RES-GmbH) Lab Code: 200172-0 Registration number: TTI-P-G 159/98-00 (RES-GmbH) Applicant: Connaught Electronics, LTD. Report No.: 20051114-04-Fc15 Prepared By: ITC Engineering Services, Inc. 9959 Calaveras Road, PO Box 543 Sunol, California 94586-0543 Tel: [925] 862-2944 Fax: [925] 862-9013 Email: [email protected] Web: www.itcemc.com Product: Bentley's 5.8 GHz Microwave Sensor Model Number: 902923 (Bentley Part No:3W7951177), and 902924 (Bentley Part No:3W7951172) FCC ID:LQN2923 FCC ID:LQN2924 Page 2 of 31 Table of Contents PART 1 General........................................................................................................................................ 5 Section 1.1 General Information.............................................................................................................. 5 Section 1.2 Tests Performed: ................................................................................................................... 5 Section 1.3 Declaration/Disclaimer ......................................................................................................... 6 Section 1.4 Test Methodology ................................................................................................................. 7 Section 1.5 Test Facility .......................................................................................................................... 7 Section 1.6 Radio Device Measurement Information.............................................................................. 7 Section 1.7 Measurement Uncertainty..................................................................................................... 7 PART 2 RECEIVER MEASUREMENTS............................................................................................... 8 OPEN FIELD RADIATED EMISSIONS ..................................................................................................... 8 Section 2.1 Test Specification: 47 CFR PART 15, Sub-Part B.............................................................. 8 Section 2.2 Test Equipment – Radiated Emissions Tests........................................................................ 8 Section 2.3 Support Equipment – Radiated Emissions Tests .................................................................. 8 Section 2.4 Test Procedure – Radiated Emissions Tests ......................................................................... 8 Section 2.5 Spectrum Analyzer Configuration (during swept frequency scans)..................................... 9 Section 2.6 Legend and Field Strength Calculation – Radiated Emissions Tests ................................... 9 Section 2.7 Administrative and Environmental Details – Radiated Emissions..................................... 10 Section 2.8 Data for Radiated Emissions Measurement up to 1 GHz ................................................... 10 Section 2.9 Conclusion .......................................................................................................................... 10 Section 2.10 Open Field Radiated Emissions Test Setup Photographs................................................... 11 Section 2.11 Administrative and Environmental Details– Radiated Emissions Measurement ............... 12 Section 2.12 Test Data for Radiated Emissions Measurement above 1 GHz @ 3 meters ...................... 12 Section 2.13 Conclusion .......................................................................................................................... 12 Section 2.14 Radiated Emissions Test Setup Photographs...................................................................... 13 PART 3 RF MEASUREMENTS............................................................................................................ 14 Test Specification: 47 CFR PART 15, Sub-Part C ..................................................................................... 14 Section 3.1 EUT Description:................................................................................................................ 14 Section 3.2 Test Voltage........................................................................................................................ 14 Section 3.3 Support Equipment – RF Measurements ............................................................................ 14 Section 3.4 Test Equipment – RF Measurements.................................................................................. 14 Section 3.5 Support Equipment ............................................................................................................. 14 Section 3.6 General Test Procedure – RF Tests .................................................................................... 14 Section 3.7 Spectrum Analyzer Configuration (during swept frequency scans)................................... 15 Section 3.8 Data Table Legend and Field Strength Calculation............................................................ 15 Section 3.9 Field Strength Of Fundamental Measurement.................................................................... 16 Section 3.10 Administrative and Environmental Details – Fi…

Text truncated - open the document above for the full version.

Test Report

Report : RF Duty Cycle of CEL Microwave Sensor Prepared For: ITC Prepared by: CEL Date: 07/07/05 Connaught Electronics Ltd. IDA INDUSTRIAL ESTATE, DUNMORE ROAD, TUAM, CO. GALWAY, IRELAND. Telephone: +353 93 25128 Fax: +353 93 25133 1 Scope This document details the RF duty cycle of CEL’s pulsed microwave sensor. 2 Duty Cycle Determination In order to determine the RF duty cycle, the PRF frequency and the oscillator on-time of the microwave sensor are measured and using these the duty cycle is calculated. 2.1 PRF Oscillator Period The pulsed microwave oscillator is turned on/off by the PRF (Pulse Repetition Frequency) oscillator. The pulse repetition frequency is 1.5MHz. (see fig.1 below). PRF = 1.5MHz Oscillator period = 682ns fig.1 2.2 RF pulse width determination: The range of the SDR is 85cm. Thus using the mathematical formula for RF waves the pulse width can be determined: Pulse width = (Range*2)/(3x10 8 ) In the case of CEL’s SDR sensor: Pulse width = 1.7/(3x10 8 ) = 5.66ns 2.3 Duty Cycle Calculation Duty Cycle (%) = RF Pulse Duration/PRF Oscillation Period = (5.66ns/682ns) * 100 = 0.83 %

Test Setup Photos

FCC Test Setup Photographs for Bentley's 5.8 GHz Microwave Sensor [FCC ID: LQN2923] [FCC ID: LQN2924] Model(s) and Part Numbers: 902923 (Bentley Part No:3W7951177) 902924 (Bentley Part No:3W7951172) Report No. 20051114-04-Fc15 Judgement Complies as Tested Provided for evaluation by Connaught Electronics, LTD IDA Industrial Estate, Dunmore Road, Tuam Co, Galway Ireland Tests and Report by ITC Engineering Services, Inc. 9959 Calaveras Road, Box 543 Sunol, California 94586-0543 Tel: (925) 862-2944 Fax: (925) 862-9013 Email: [email protected] Web Site: www.itcemc.com  EN45001 Accredited Compliance Laboratory (RES-GmbH) Lab Code: 200172-0 Registration number: TTI-P-G 159/98-00 (RES-GmbH) Applicant: Connaught Electronics, LTD. Report No.: 20051114-04-Fc15 Prepared By: ITC Engineering Services, Inc. 9959 Calaveras Road, PO Box 543 Sunol, California 94586-0543 Tel: [925] 862-2944 Fax: [925] 862-9013 Email: [email protected] Web: www.itcemc.com Product: Bentley's 5.8 GHz Microwave Sensor Model Number: 902923 (Bentley Part No:3W7951177), and 902924 (Bentley Part No:3W7951172) FCC ID:LQN2923 FCC ID:LQN2924 Page 2 of 8 Table of Contents PART 1 General........................................................................................................................................ 3 PART 2 Test Setup Photographs........................................................................................................ 4 List of Figures Figure 1: Open Field Radiated Emissions below 1 GHz (front view) ............................................................. 4 Figure 2: Open Field Radiated Emissions below 1 GHz (rear view) .............................................................. 4 Figure 3: Radiated Emissions above 1 GHz (front view) ................................................................................ 5 Figure 4: Radiated Emissions above 1 GHz (rear view).................................................................................. 5 Figure 8 Field Strength of Fundamental Measurement (Front) ...................................................................... 6 Figure 9 Field Strength of Fundamental Measurement (Rear) ....................................................................... 6 Figure 10: Spurious emissions below 1 GHz (front view) .............................................................................. 7 Figure 11: Spurious emissions below 1GHz (rear view) ................................................................................. 7 Figure 12: Spurious emission above 1 GHz (front view) ................................................................................ 8 Figure 13: Spurious emission above 1 GHz (rear view).................................................................................. 8 Applicant: Connaught Electronics, LTD. Report No.: 20051114-04-Fc15 Prepared By: ITC Engineering Services, Inc. 9959 Calaveras Road, PO Box 543 Sunol, California 94586-0543 Tel: [925] 862-2944 Fax: [925] 862-9013 Email: [email protected] Web: www.itcemc.com Product: Bentley's 5.8 GHz Microwave Sensor Model Number: 902923 (Bentley Part No:3W7951177), and 902924 (Bentley Part No:3W7951172) FCC ID:LQN2923 FCC ID:LQN2924 Page 3 of 8 PART 1 General Product: Model Number: Model Number: Bentley's 5.8 GHz Microwave Sensor 902923 (Bentley Part No:3W7951177) 902924 (Bentley Part No:3W7951172) Manufacturer’s Name Manufacturer’s Address Telephone and Fax Contact Connaught Electronics, LTD IDA Industrial Estate, Dunmore Road, Tuam Co, Galway Ireland Tel: (011) 353-93-25128 Patrick Denny Fax : (011) 353-93-25133 Email: [email protected] Test Laboratory ITC Engineering Services, Inc. 9959 Calaveras Road, PO Box 543 Sunol, CA 94586-0543 Email: [email protected] Web Site: http://www.itcemc.com Tel: +1(925) 862-2944 Fax: +1(925) 862-9013 Test Number Report Number 20051114-04 20051114-04-Fc15 Test Date(s) & Issue Date November 13 th , and 14 th , 2005 December 1 st, 2005 Test Engineer(s) Lan Vu, Femi Ojo Documentation George Wiliam Brown II Test Results ; Complies as Tested ‰ Fail Total Number of Pages 8 Applicant: Connaught Electronics, LTD. Report No.: 20051114-04-Fc15 Prepared By: ITC Engineering Services, Inc. 9959 Calaveras Road, PO Box 543 Sunol, California 94586-0543 Tel: [925] 862-2944 Fax: [925] 862-9013 Email: [email protected] Web: www.itcemc.com Product: Bentley's 5.8 GHz Microwave Sensor Model Number: 902923 (Bentley Part No:3W7951177), and 902924 (Bentley Part No:3W7951172) FCC ID:LQN2923 FCC ID:LQN2924 Page 4 of 8 PART 2 Test Setup Photographs Figure 1: Open Field Radiated Emissions below 1 GHz (front view) Figure 2: Open Field Radiated Emissions below 1 GHz (rear view) Applicant: Connaught Electronics, LTD. Report No.: 20051114-04-Fc15 Prepared By: ITC Engineering Services, Inc. 9959 Calaveras Road, PO Box 543 Sunol, California 94586-0543 Tel: [925] 862-2944 Fax: [925] 862-9013 Email: [email protected] Web: www.itcemc.com Product: Bentley's 5.8 GHz Microwave Sensor Model Number: 902923 (Bentley Part No:3W7951177), and 902924 (Bentley Part No:3W7951172) FCC ID:LQN2923 FCC ID:LQN2924 Page 5 of 8 Figure 3: Radiated Emissions above 1 GHz (front view) Figure 4: Radiated Emissions above 1 GHz (rear view) Applicant: Connaught Electronics, LTD. Report No.: 20051114-04-Fc15 Prepared By: ITC Engineering Services, Inc. 9959 Calaveras Road, PO Box 543 Sunol, California 94586-0543 Tel: [925] 862-2944 Fax: [925] 862-9013 Email: [email protected] Web: www.itcemc.com Product: Bentley's 5.8 GHz Microwave Sensor Model Number: 902923 (Bentley Part No:3W7951177), and 902924 (Bentley Part No:3W7951172) FCC ID:LQN2923 FCC ID:LQN2924 Page 6 of 8 Figure 5 Field Strength of Fundamental Measurement (Front) Figure 6 Field Strength of Fundamental Measurement (Rear) Applicant: Connaught Electronics, LTD. Report No.: 20051114-04-Fc15 Prepared By: ITC Engineering Services, Inc. 9959 Calaveras Road, PO Box 543 Sunol, California 94586-0543 Tel: [925] 862-2944 Fax: [925] 862-9013 Email: docs@it…

Text truncated - open the document above for the full version.
