LSQ-LPU-810-4LPU-810 Local Pager

LPU-810-4 User Manual Version 1.0 31 May 2005 ElmoTech Ltd Version 1.0 Page 2 of 12 Prepared by: Elmo-Tech Ltd. Corporate Headquarters 2 Rehov HaBarzel P.O. Box 13236 Ramat HaChayal 61132 Tel Aviv Israel Tel: +972-3 – 6478871 Fax: +972-3 – 6478872 Visit us at: www.elmotech.com © 2001, Elmo Tech Ltd. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, for purpose other than the user’s manual, without prior permission of Elmo Tech Ltd. NO WARRANTY The technical documentation is being delivered AS-IS, and ElmoTech Ltd. makes no warranty as to its accuracy or use. Any use of the technical documentation or the information contained therein is at risk of the user. Documentation may include technical or other inaccuracies or typographical errors. ElmoTech Ltd. Reserves the right to make change without prior notice ElmoTech Ltd Version 1.0 Page 3 of 12 TABLE OF CONTENTS 1. General notes: ........................................................................................................ 4 2. Screen layouts........................................................................................................ 5 1. Init 0..................................................................................................................................... 5 2. Init 1..................................................................................................................................... 5 3. Init 2..................................................................................................................................... 5 4. Normal ................................................................................................................................. 6 5. Message ............................................................................................................................... 6 6. Message read ....................................................................................................................... 7 7. Message option .................................................................................................................... 7 8. Track mode .......................................................................................................................... 8 9. Menu .................................................................................................................................... 8 10. Beep Volume ................................................................................................................... 9 11. Ring Options.................................................................................................................... 9 12. Self Test ......................................................................................................................... 10 3. States Diagram..................................................................................................... 11 4. FCC Notices ........................................................................................................ 12 LPU Unit Customer Information..............................................Error! Bookmark not defined. Transmitter FCC Notices......................................................................................................... 12 ElmoTech Ltd Version 1.0 Page 4 of 12 1. General notes: 1. If a message is received and the user ignores it, the “mail box” icon will be displayed on the LCD and LPU (If not in vibrate mode) will beep shortly every 30 seconds (3*(on=100msec, off =300msec)). 2. The LPU should check AMS sanity and if not received activate alarm. 3. The sanity message sent from the AMS will include system time and next sanity time. 4. Any key pressed on the LPU will stop the alarm. 5. The LPU will support “find lost LPU” command from the AMS (It will beep, even if in vibrate mode, upon reception of this message). 6. When going back to “normal display” and messages are pending the LPU will display a message prompt as described in screen 5. 7. Each incoming message will get its own serial number so that the last received message will get the first number and the serial numbers of the previous messages will be shifted to the left, i.e. 1->2, 2->3...9->10 & 10 th (last) message will be automatically deleted). 8. Each keystroke will generate the short buzz (200msec). ElmoTech Ltd Version 1.0 Page 5 of 12 2. Screen layouts 1. Init 0 JJJJJJJJJJJJJJJJJJJJ U JJJJJJJJJJJJJJJJJJJJ JJJJJJJJJJJJJJJJJJJJ JJJJJJJJJJJJJJJJJJJJ D MC Event Description Time For 1 second beep & back-light on. 2. Init 1 U D MC Event Description Time For 1 second and vibrate & back-light off. 3. Init 2 U Home Free Ltd. D MC Or U Elmo Tech Ltd. D MC Event Description Time For 2 seconds back-light on. ElmoTech Ltd Version 1.0 Page 6 of 12 4. Normal 02/11/0221 : 12 : 34 U Me n uD MC Event Description M Open menu (9). C U Show first message in the buffer if available. *1 D Show last message in the buffer if available. *1 Low Bat Beep every 30 sec + icon blink. LPU counter of 5 minutes. If counter elapsed shutdown the LPU. Message Switch to message menu. 5. Message 02/11/0221 : 13 : 39 U 02 Me s s agesrece i ved Re adEx i t D MC Event Description M Go to Read display & Mute the receiving alarm. C Back to previous display & Mute the receiving alarm & turn on the reminder. (4) U D Mute the receiving alarm & turn on the reminder. Low Bat Beep every 30 sec + icon blink. LPU counter of 5 minutes. If counter elapsed the LPU will be shutdown. Message Notes: *1 If the pager’s memory doesn’t contain any massages then LPU will display: “No Messages”. ElmoTech Ltd Version 1.0 Page 7 of 12 6. Message read Ro na l dVo l k .I s m i s U singlast Zone is:Di ningroom. F i nd h im▼ Option03ExIt D MC immed i at e l l y.U ▲ Option03Exit D MC Event Description *1 M Show message option menu (7). C B…

Text truncated - open the document above for the full version.

01.06.2005file://R:\Projekte\TCB%20USA\ElmoTech%20Ltd\LSQ-LPU-810-4\Submittal...

TCB Confidentiality Form 31 May 2005 EMCCert DR. RAŠEK Boelwiese 5 91320 Ebermannstadt Germany Tel.: +49-9194-9331 Fax: +49-9194-7964-84 E-mail: [email protected] URL: http://www.emcc.de Gentlemen: This letter is to comply with Section 0.457(d)(2)(i) and 0.459 pertaining to confidential material. Elmo Tech would like the following document regarding this submission for FCC ID: LSQ-LPU-810-4 to be kept confidential. Schematics: 1 Page. The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want this document to be accessible to the general public. Sincerely, Gil Gemer VP R&D

EMCCert DR. RAŠEK 09 May 2005 Boelwiese 5 91320 Ebermannstadt Germany Tel.: +49-9194-9331 Fax: +49-9194-7964-84 E-mail: [email protected] URL: http://www.emcc.de Declaration of Identity We, the undersigned, Company: ElmoTech Address: Habarzel 2, Tel Aviv Country: Israel Telephone number: 03-6478871 Fax number: 03-6478872 Declare under our sole responsibility that the following equipment: Brand Type Company Local Pager unit LSQ-LPU-810-4 ElmoTech Ltd is electronically/electrically identical to the following equipment: Brand Type Company Local Pager unit QUX-LPU-810-4 HomeFree System Ltd Drawn up in: ElmoTech Ltd . on ......09 May 2005..................... (date) .................................... .................................... (company stamp) (signature) Avi Ben-Hayun, Project Manager (name and function)

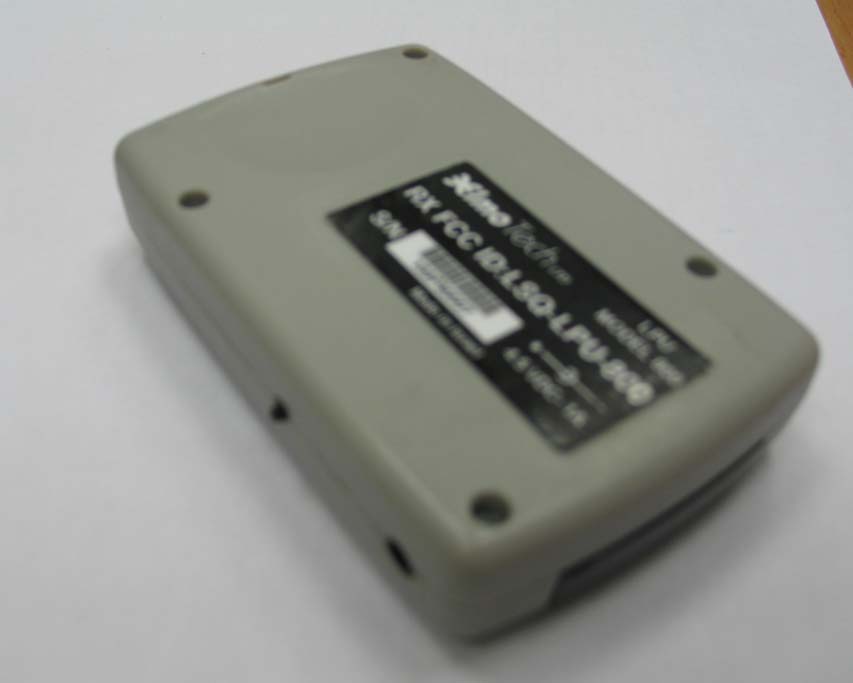

Label Location LSQ-LPU-810-4

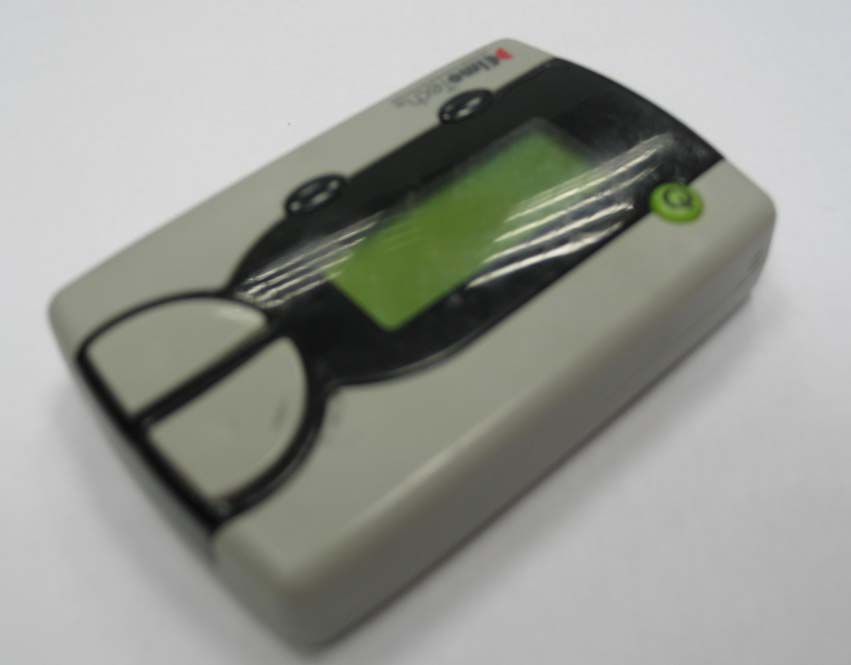

Pager – LPU-810 Operational description 1. General Description 1.1. The pager is the small mobile device allowing user to get different messages. 1.2. The pager’s MMI (Man Machine Interface) gives possibility to communicate with outside world via LCD and push buttons (like in the cellular phone). 2. Functional Description 2.1. The pager has three main modes of operation: a) Regular Pager Mode: The pager receives & displays messages from Local Network. b) Tx analyzer: The pager receives all Tx messages and displays theirs status. c) The supplementary mode allow controlling the ring type, volume & language. Note: Tx– internal transmitter.

LPU-810-4 Test Report REV ∆ Description Sheet Effected Date Drawn Checked A 05.05.05 D.Lanuel S.Cohen EMC Laboratory Local Pager Unit FCCID: LSQ-LPU-810-4 Manufactured by Elmotech Ltd. EMC Test Report According FCC Part 15 Requirements May 05 EMC/30020FC05051 5/10/05 1/17 Function/Title Name Signature Date Prepared by Test Engineer D.Lanuel 05.05.05 Checked by Test Engineer D.Lanuel 05.05.05 Approved by EMC Lab. Manager S.Cohen 05.05.05 LPU-810-4 Test Report Table of Contents Para Page 1 INTRODUCTION....................................................................................................................................3 2 TEST DATA INFORMATION.....................................................................................................................3 3 TEST SUMMARY AND SIGNATURES.........................................................................................................4 4 E.U.T INFORMATION.............................................................................................................................5 5 UNINTENTIONAL RADIATED EMISSION CLASS B TEST ACCORDING TO 15.109..........................................6 6 CONDUCTED EMISSION, AC POWER LEADS ACCORDING TO FCC 15.107.................................................11 7 EUT PHOTOGRAPHS............................................................................................................................15 EMC/30020FC05051 5/10/05 2/17 LPU-810-4 Test Report 1 Introduction a. Scope This document describes the measurement procedures and tests for FCC part 15 of the LSQ- LPU-810-4 Manufactured by Elmotech Ltd. 2 Test Data Information a. Description of equipment Under Test Equipment Under Test: LPU-810-4 FCCID LSQ-LPU-810-4 Manufacturer: Elmotech Ltd. Serial Numbers: 001 Mode of Operation: RX MODE Receiver operating frequency: 433.92MHZ Year of Manufacture: 2005 b. Applicant Information: Applicant: Elmotech Ltd. Applicant Address 2, Habarzel Street Tel-Aviv Telephone: +972-3-6478871 FAX: +972-3-6478872 The testing was observed by: Alex RACHMAN following applicant's personnel: c. Test Performance: Date of reception for testing: 11.04.05 Dates of testing 11.04.05 Test Laboratory Location TADIRAN EMC LAB , Hashoftim 26 Holon 58102 ISRAEL Tel: 972-3-5574476 Fax: 972-3-5575320 Applicable EMC Specification: Federal Communication Commission (FCC), Part 15: Radio Frequency Devices, Sections 15.107 & 15.109 EMC/30020FC05051 5/10/05 3/17 LPU-810-4 Test Report 3 Test Summary and Signatures. TADIRAN EMC Laboratory has completed testing of E.U.T in accordance with the requirements of the FCC Part 15 Regulations for Class B equipment. The E.U.T has been found to comply with the emission requirements of the FCC Part 15 Regulations given below Test Test Description Section Pass/Fail 1 Unintentional Radiated Emission 15.109 Pass 2 Unintentional Conducted Emission 15.107 Pass a. Test performed by: Mr. D. Lanuel Test Engineer b. Test Report prepared by: Mr. D. Lanuel Test Engineer c. Test Report Approved by: Mr. Samuel Cohen EMC Lab. Manager EMC/30020FC05051 5/10/05 4/17 LPU-810-4 Test Report 4 E.U.T Information a. E.U.T description (1) The Local Pager Unit (LPU-810-4) is a compact RF receiver unit operates at 433.92MHz that is generally carried out and can be used in several modes of operations b. E.U.T Test Configuration The E.U.T test configuration is shown in figure bellow AC/DC Adaptor Internal Battery Integral Antenna E.U.T c. E.U.T Mode of Operation description (1) The test was performed to measure emission at RX Mode (2) Operating Voltage 110 V, AC 60Hz EMC/30020FC05051 5/10/05 5/17 LPU-810-4 Test Report 5 Unintentional Radiated Emission class B test According TO 15.109 E.U.T: LSQ-LPU-810-4 S/N 001 Test Method: ANSI C63.4 Date: 11/04/05 Relative Humidity: 37% Ambient Temperature: 22c Air Pressure: 1042hpa Test Setup: Figure 5f Testing Engineer: D.Lanuel Date 05/05/05 a. General The test was performed to measure Radiated emission at RX Mode b. Test Results Summary & Conclusions The E.U.T was found in compliance with 15.109 Requirements c. Limits of Radiated Interference Field Strength according 15.109 The test unit shall meet the limits of Table 5C for Class B equipment. Table 5c Limits For Class B equipment Frequency Range (MHz) Quasi-peak Limits (dBμV/m) 30 - 88 40 88 - 216 43 216 - 960 46 Above 960 54 EMC/30020FC05051 5/10/05 6/17 LPU-810-4 Test Report d. Test Instrumentation and Equipment Table 5d Test Instrumentation and Equipment Item Model Manufacturer Next Date Calibration Spectrum Analyzer 8593E HP 31/01/06 Broadband Antenna BTA-L FRANKONIA 10.04.06 Double Ridged Guide Antenna 3105 EMCO 15.03.05 Low Noise Amplifier (0-1GHz) AM-1300-N MITEQ 14.01.06 Low Noise Amplifier (1-2GHz) SMC-09 MITEQ 14.01.06 Low Noise Amplifier (2-6GHz) MWA-02060- 4025 ELISRA 14.01.06 e. Test Procedure (1) Preliminary Test Procedure 1) The EUT was placed on the top of a rotating table 0.8 meters above the ground at a chamber shielded 2) The E.U.T was set 3 meters away from the receiving antenna, which was mounted on the top of a variable-height antenna tower. 3) The Antenna height varied from one meter above the ground over its full- allowed range of travel and the table was rotated 360°to determine the maximum value of the field strength 4) The antenna was set both horizontal and vertical polarization. (2) Final Test Procedure 1) The EUT was tested at open area for each suspected emission 2) The test procedure was performed according paragraph (1) and figure 11 f. Final Test Setup 80cm 3m EUT Turn Table Ant Tower 1-4m Variable Ground Plan Test Receiver Figure 5f Radiated Emission test configuration EMC/30020FC05051 5/10/05 7/17 LPU-810-4 Test Report Radiated Emission Test EMC/30020FC05051 5/10/05 8/17 LPU-810-4 Test Report g. Results (1) Preliminary test Results Table 5.g.1 Preliminary Test Results for RX Mode 15.109 Antenna Polarization Freq. Range MHz Res. BW (kHz) Plot No. PASS/FAIL Both 30-1000 120 Plot RE/1 Pass Bot…
