MRD RF - 700 USER MANUAL March 2003 Elmo-Tech Ltd Ver. 1.0 MRD RF – 700 User Manual 2 of 8 TABLE OF CONTENTS OPERATION AS A MANUAL RESET DEVICE (MRD).....................................3 STARTING/RESETTING A TRANSMITTER...................................................................3 TURNING A TRANSMITTER OFF ...............................................................................5 OPERATION AS A PANIC BUTTON....................................................................7 FCC NOTICE ............................................................................................................8 Elmo-Tech Ltd Ver. 1.0 MRD RF – 700 User Manual 3 of 8 Operation as a Manual Reset Device (MRD) Starting/Resetting a Transmitter The officer should bring the following equipment to a transmitter installation:  Transmitter  Male and female Clips  MRD  Strap holder  Locking tool  Flat-head screwdriver Calibration of the transmitter Before any transmitter installation, the transmitter has to be turned-on and calibrated. When the HMRU is connected, do the following: 1. Stand next to the HMRU to be able to hear the audible confirmation of the calibration. 2. Hold the transmitter in your hand with the 4 metal pins (2 pairs, along the strap) pointing forward. 3. Hold the MRD in your other hand, with the black button pointing toward the end of the strap. 4. Press the MRD down over one of the pairs of metal pins (it does not matter which) with the two touch points on the MRD matching the pair of metal pins on the transmitter. Elmo-Tech Ltd Ver. 1.0 MRD RF – 700 User Manual 4 of 8 5. To turn-on (or reset) the transmitter press the RED ON button down for one second, the red light turns steadily ON for two (2) seconds. 6. If the transmitter successfully received the reset command the red light, on the MRD, will flash for two (2) seconds. 7. Note that if the transmitter has failed to receive the reset command the red light will turn off after the initial two (2) seconds of being ON. 8. If the MRD battery is low the red light will immediately flash for two (2) seconds, once the red button is pressed. (No command is sent to the transmitter). Place the transmitter on the side on a non-metal table and wait 30 to 60 seconds, until audible beeps are heard from the HMRU. These beeps mean that the transmitter has successfully completed its self-calibration process and is ready to be mounted on the offender. Elmo-Tech Ltd Ver. 1.0 MRD RF – 700 User Manual 5 of 8 Turning a Transmitter OFF The MRD is used for turning the transmitter off, after it has been removed from the offender. To remove the Transmitter perform the following steps: 1. Check to see if the Clip has been tampered with. Be aware of the following signs: - Cracks on the clips. - Broken pins. - Sign of adhesive or glue. 2. Use a screwdriver to brake the disposable Clips. Be careful not to damage or cut the strap. 3. Collect all the fragments of the Clip. Do not leave disposable items. 4. Don’t forget the Strap Holder. 5. To turn off the transmitter perform the following:  Hold the transmitter in your hand with the 4 metal pins (2 pairs, along the strap) pointing forward. Elmo-Tech Ltd Ver. 1.0 MRD RF – 700 User Manual 6 of 8  Hold the MRD in your other hand, with the black button pointing toward the end of the strap.  Press the MRD down over one of the pairs of metal pins (it does not matter which) with the two touch points on the MRD matching the pair of metal pins on the transmitter.  To turn the transmitter off, press the BLACK OFF button down for one second, the red light turns steadily ON for two (2) seconds.  If the transmitter successfully received the shut down command the red light on the MRD will flash for two (2) seconds.  Note that if the transmitter has failed to receive the shut down command the red light will turn off after the initial two (2) seconds of being ON.  If the MRD battery is low the red light will immediately flash for two (2) seconds, once the red button is pressed. (No command is sent to the transmitter). Elmo-Tech Ltd Ver. 1.0 MRD RF – 700 User Manual 7 of 8 Operation as a Panic Button The Panic MRD provides the officer with the capability to report entering and leaving the offender’s premises, as well as sending an officer-in-distress signal. To signal ‘Entering an Offender’s Premises’ Press the black IN button. To signal ‘Leaving an Offender’s Premises’ Press the black OUT button. To signal ‘Officer In Distress’ Press the big RED button. Elmo-Tech Ltd Ver. 1.0 MRD RF – 700 User Manual 8 of 8 FCC Notice This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy and, if installed and used in accordance with the instruction, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. CAUTION: Any changes or modifications to this equipment not expressly approved by Elmo Tech Ltd could void the user’s authority to operate the equipment.

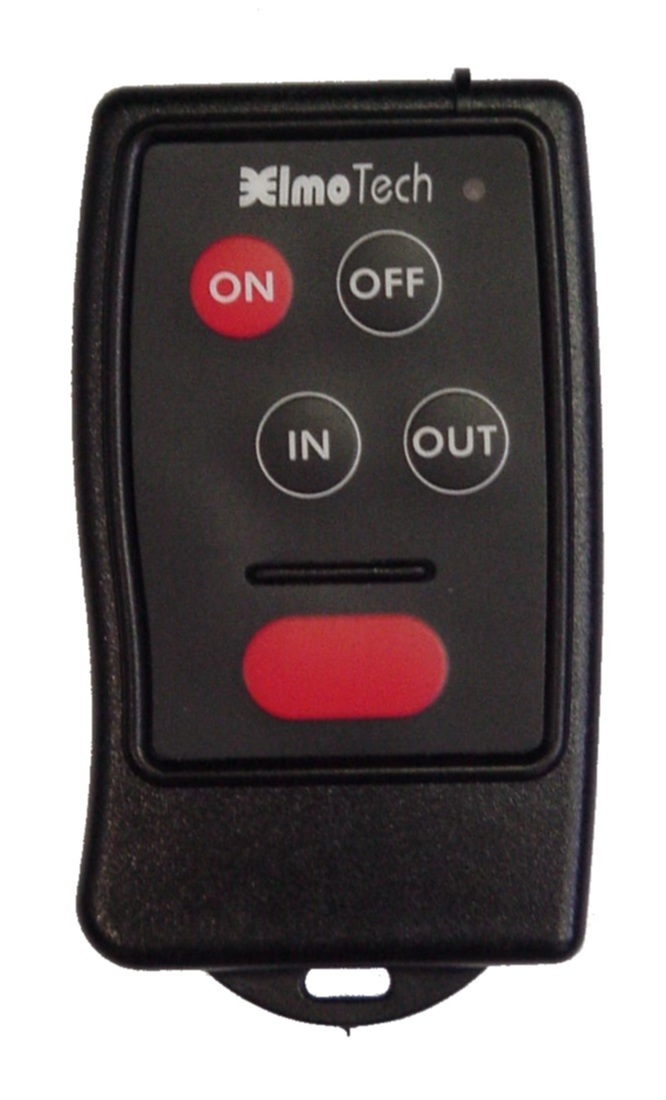

ELMO-TECH Ltd Electronic Monitoring Technologies 2 Habarzel St., P.O.Box 13236, Tel Aviv 61132, Israel Tel 972-3-6478871 Fax 972-3-6478872 MRD RF - 700 General Description The Panic Manual Reset Device (MRD) is a small microprocessor based battery operated device which is housed in a small plastic case. The Panic MRD is used by probation officers in the home arrest environment. It is used for turning the offenders’ transmitters on and off as well as transmitting three types of signal messages: Officer enters the offender’s premises. Officer leaves the offender’s premises. Officer in distress (panic message). The pushbuttons panel can vary between different models of the Panic MRD, providing different functionality while maintaining the same internal PCB hardware. The panel can have the following configurations: All 5 buttons are present – The device functions as MRD, and can send IN, OUT and PANIC messages. The ON and OFF buttons are not included – The device can only send IN, OUT and PANIC messages. Only the red panic pushbutton is included – The device functions as a PANIC button only. The Panic MRD is composed of one PCB and a replaceable 12V battery. The PCB includes the controlling CPU and the transmitter circuit. The antenna is a rectangular loop antenna at the PCB external size. The external interface of the unit includes: - 1 LED. - 5 touch pushbuttons. - 2 touch points for resetting an offender’s transmitter.

REV ∆ Description Sheet Effected Date Drawn Checked A 22.03.04 D.Lanuel S.Cohen EMC Laboratory FCCID :LSQ-MRDF-700 Manufactured by Elmotech System Ltd. EMC Test Report According FCC Part 15 Requirements March 2004 Function/Title Name Signature Date Prepared by Test Engineer D.Lanuel 21.03.04 Checked by Test Engineer D.Lanuel 21.03.04 Approved by EMC Lab. Manager S.Cohen 22.03.04 MRDF 700 Unit EMI Test Report Table of Contents Para Page 1 TEST DATA INFORMATION...............................................................................................................3 2 TEST SUMMARY AND SIGNATURES...................................................................................................4 3 GENERAL INFORMATION..................................................................................................................5 4 ADMINISTRATIVE DATA...................................................................................................................6 5 E.U.T INFORMATION........................................................................................................................7 6 OUT OF BAND RADIATED FIELD STRENGTH TEST PROCEDURE...........................................................8 7 BANDWIDTH OF THE EMISSION PART 15.231—TEST RESULTS.........................................................11 8 FIELD STRENGTH OF FUNDAMENTAL PART 15.231-TEST RESULTS...................................................12 9 RADIATED EMISSION PART 15.109-TEST RESULTS..........................................................................14 10 RADIATED EMISSION PART 15.231 & 15.205-TEST RESULTS............................................................16 EMC/30020FC04043 2/30 MRDF 700 Unit EMI Test Report 1 TEST DATA INFORMATION a. Description of equipment Under Test. Equipment Under Test: Manual Reset Device FCCID LSQ-MRDF-700 Manufacturer: Elmotech System Ltd. Serial Numbers: 0001 Mode of Operation: TX MODE Receiver operating frequwency: 318MHZ Year of Manufacture: 2004 b. Applicant Information: Applicant: Elmotech System Ltd. Applicant Address 2, Habarzel Street Tel-Aviv Telephone: +972-3-6478871 FAX: +972-3-6478872 The testing was observed by MICHAEL LIFSHITZ following applicant's personnel: c. Test Performance: Date of reception for testing: 01.03.04 Dates of testing 02.03.04 Test Laboratory Location TADIRAN EMC LAB , Hashoftim 26 Holon 58102 ISRAEL Tel: 972-3-5574476 Fax: 972-3-5575320 Applicable EMC Specification: Federal Communication Commission (FCC), Code of Federal Regulations 47, FCC Docket 89-103,Part 15: Radio Frequency Devices, Sections 15.109, 15.209, & 15.231. EMC/30020FC04043 3/30 MRDF 700 Unit EMI Test Report 2 TEST SUMMARY AND SIGNATURES. TADIRAN EMC Laboratory has completed testing of E.U.T in accordance with the requirements of the FCC Part 15 Regulations for Class B equipment. The E.U.T has been found to comply with the emission requirements of the FCC Part 15 Regulations for parts 15.109, 15.209, 15.205 & 15.231 a. Test performed by: Mr. D. Lanuel Test Engineer b. Test Report prepared by: Mr. D. Lanuel Test Engineer c. Test Report Approved by: Mr. Samuel Cohen EMC Lab. Manager EMC/30020FC04043 4/30 MRDF 700 Unit EMI Test Report 3 GENERAL INFORMATION a. Specification Reference Section 15.109: Limits of Radiated Interference Field Strength in the 30MHz to 1000MHz frequency range.unintentional radiators Section 15.209: Limits of Radiated Interference Field Strength in the 9KHz to 35000MHz frequency range intentional Radiators Section 15.205 Limits of Radiated Interference Field Strength in the Restricted bands of operation for intentional radiators Section 15.231 Limits of Radiated Interference Field Strength in the 30MHz to 1000MHz frequency range for intentional radiators operating in frequency rang above 70MHz b. Applicable Documents. 3.1 Federal Communication Commission (FCC), Code of Federal Regulations 47, FCC Docket 89-103, Part 15: Radio Frequency Devices, Sections 15.107 & 15.109. 3.2 FCC/OET, Laboratory Measurement Procedures MP-4, July 1987, "FCC Procedures for Measuring RF Emissions from Computing Devices". 3.3 FCC/Office of Science and Technology OST-55, August 1982, "Characteristics of Open Field Test Sites". 3.4 FCC/OET, "FCC Procedure for Measuring Electromagnetic Emissions from Digital Devices", TP-5, March 1989. 3.5 FCC/OET, "Understanding the FCC Regulations Concerning Computing Devices", OST-62, May 1984 3.6 International Special Committee On Radio Interference (CISPR) Publication 16, First Edition 1977, "CISPR Specification for Radio Interference Measuring Apparatus and Measurement Methods". 3.7 American National Standard, "Specifications for Electromagnetic Noise and Field Strength Instrumentation, 9KHz to 1GHz", ANSI C63.2, 1987. 3.8 American National Standard, "Method of Measurement Electromagnetic Emissions from Low-Voltage Electrical and Electronic Equipment in the range of 9KHz to 40GHz", ANSI C63.4, 1992. EMC/30020FC04043 5/30 MRDF 700 Unit EMI Test Report 4 ADMINISTRATIVE DATA a. Scope This document describes the measurement procedures and tests for Radiated and conducted emission testing of the MRD RF 700 Manufactured by Elmotech System Ltd.. b. Administrative Data The test was performed by the TADIRAN / EMC Laboratory, 26 Hashoftim St. P.O.B. 267, 58102 Holon, ISRAEL. c. Certification And Qualifications I Certify that TADIRAN / EMC Laboratory. Conducted the tests performed in order to obtain a technical data presented in this application. Also based on the results of this enclosed data I have concluded that the equipment tested meets or exceeds the requirements of the Rules and regulations governing this application. TADIRAN / EMC Laboratory, 26 Hashoftim St. P.O.B. 267, 58102 Holon, ISRAEL was established in 1975 to provide Electromagnetic Compatibility testing, Consulting and Engineering. All facility are equipped with modern Automated test equipment and staffed with experienced EMC test engineers. Engineering support is a…
