LSQ-PB-500Panic Button TX

Pendant (Panic Button) USER MANUAL October 2002 HomeFree Systems Ltd Pendant (Panic Button) User Manual 1 Table of Contents 1. Foreword....................................................................................2 1.1. Activating the Pendant:.................................................................2 1.2. Activating a Panic Alert:...............................................................3 1.3. Deactivating a Panic Alert:............................................................3 1.4. Deactivating the Pendant:..............................................................3 1.5. Cleaning Instructions....................................................................4 2. FCC Notices..............................................................................5 HomeFree Systems Ltd Pendant (Panic Button) User Manual 2 1. Foreword The HomeFree at Care Centers system was designed to monitor special needs and Dementia individuals in the care center environment. The Pendant (Panic button) is one of the many unique elements of this system. The Pendant is a small, lightweight push button unit worn by the monitored individual that alerts caregivers whenever the monitored individual activates a panic alert. The Pendant is not for use outside the monitored area. 1.1. Activating the Pendant: The Pendant is turned off by the manufacturer before shipment and must be activated before use. To activate, hold the Pendant firmly in your hand and press the panic button continuously for 2 seconds. The LED indicator flashes indicating that the Pendant is working. Panic Button LED Indicator Attachment Clip HomeFree Systems Ltd Pendant (Panic Button) User Manual 3 Once the pendant is working, it sends a status message to the monitoring station. The monitoring station then indicates the current battery status. This status message is sent until the Pendant is deactivated. 1.2. Activating a Panic Alert: Press the panic button. The LED indicator flashes indicating that the Pendant is in panic alert mode. Once in panic alert mode, the Pendant sends a panic alert message to the monitoring station. This message is sent until the panic alert is deactivated. 1.3. Deactivating a Panic Alert: Press the panic button 6 times in quick succession (within 5 seconds). The LED indicator lights up for 3 seconds indicating that the panic alert has been deactivated. Even though the panic alert has been deactivated, the Pendant is still working. Therefore, the Pendant still sends a status message to the monitoring station. This status message is sent until the Pendant is deactivated. 1.4. Deactivating the Pendant: Holding the Pendant firmly in your hand, press the panic button continuously for 10 seconds. The LED indicator lights up for 3 seconds. During this 3-second period, press the panic button 2 times in succession. The Pendant is now in deactivated mode (turned off). HomeFree Systems Ltd Pendant (Panic Button) User Manual 4 1.5. Cleaning Instructions A soft brush and any cleaning solution are all that is needed to clean the Pendant. Alcohol based solutions; Soapy water or Lysol can be used to clean the Pendant. Holding the strap or leash, spray the Pendant (Panic Button) with cleaning solution of choice (see above). Using a piece of cloth or a paper towel, dry the outer side of the Pendant. Lay the Pendant on the towel with its inner side facing up. Using a soft brush or another piece of cloth/towel gently scrub the inner side of the Pendant. Dry the Pendant (Panic Button) using a piece of cloth/paper towel or simply let it dry. HomeFree Systems Ltd Pendant (Panic Button) User Manual 5 2. FCC Notices This note is applicable to the American Pendant (Panic Button) NOTE The Pendant (Panic Button) complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This device has been tested and found to comply with the limits of the Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses and can radiate radio frequency energy and, if installed and used in accordance with the instruction, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to correct the interference by one or more of the following measures • Reorient or relocate the receiving antenna • Increase the separation between the equipment and the receiver. HomeFree Systems Ltd Pendant (Panic Button) User Manual 6 • Consult the dealer or an experienced radio/TV technician for help. CAUTION Any changes or modifications not expressly approved by the grantee of this device could void the user’s authority to operate the equipment. For Customer Support contact: Home Free Systems Inc. Wireless Tele home Care Solutions 6629 West Mill Road Milwaukee, WI 53218 USA Toll Free 1-800-606-0661 Fax +1-414-358-8100 Web: http://www.homefreesys.com

ATCB Confidentiality Form 11/10/2002 American TCB 6731 Whittier Ave Suite C110 McLean, VA 22101 USA Gentlemen: This letter is to comply with Section 0.457(d)(2)(i) pertaining to confidential material. Elmo Tech would like the following documents regarding this submission for FCC ID: LSQ-PB-500 to be kept confidential. 1) Schematics: 1 page. 2) Theory of operation: 1 page. The above materials contain trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, Gil Gemer, VP R&D, ElmoTech Ltd.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 December 13, 2002 RE: ElmoTech Ltd. FCC ID: LSQ-PB-500 After a review of the submitted information, I have a few comments on the above referenced Application. 1) Please provide a test plot showing the Activate and Deactivate functions over a 6 second or greater period of time and over a 23 second period of time for the Panic Alert Mode. Please use markers to show the timing elements on the plots. The FCC requires actual plots showing that the 5 second rule is met (for Activate and Deactivate) and that the device functions as explained. 2) Please comment on if the original theory of operation is still valid. See attached file. 3) If the original theory of operation is still correct, then we would suggest that in the operational description provided that the additional transmissions every 18-22 s in the alert mode be labeled as "Additional Panic Alert Messages" since the purpose of these is to show that the panic alert is continuing. The purpose at this point is not to send a battery status as labeled, but to show that the alarm condition is still occurring. 4) The calculated result listed in section 4.2 for the Peak Detector + Avg Factor has been changed from 67.28 to 73.38 dBuV/m. Shouldn't the correct value still be 67.28? Please correct. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

FCC ID: LSQ-PB-500 In reply to e-mail dated December 13, 2002 Dear Mr. Johnson, Below are the answers to your questions. 1) Please find "Panic button plots for ATCB" submitted via "Add to existing application", Additional Information folder on December 19, 2002. 2) Our customer states that the original theory of operation is valid. 3) Please find "Panic button operational description new" submitted via "Add to existing application", Operational Description folder on December 19, 2002. 4) I'm very sorry for such a silly mistake. Please find below the test report HOMRAD_FCC.15253_rev.1_updated submitted via "Add to existing application", Test Report folder on December 19, 2002. With great respect, Natasha. To: "'[email protected]'" <[email protected]> Subject: FCC ID:LSQ-PB-500 Page 1 of 1In 12/20/2002Printed for "Timothy R. Johnson" <[email protected]>

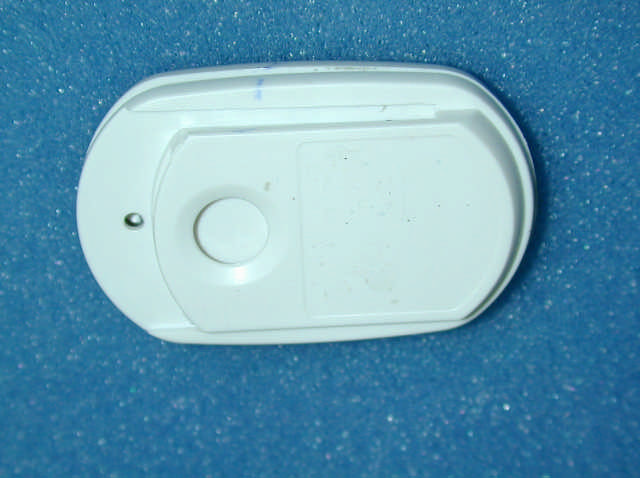

FCC ID: LSQ-PB-500 Date: October 2002 Page 1 of 3 EXTERNAL PHOTOGRAPHS This document contains 2 photographs FCC ID: LSQ-PB-500 Date: October 2002 Page 2 of 3 Photograph No.1 PB-500 top view FCC ID: LSQ-PB-500 Date: October 2002 Page 3 of 3 Photograph No.2 PB-500 bottom view

FCC ID: LSQ-PB-500 Date: October 2002 Page 1 of 2 LABEL The label shown below will be glued on the bottom side of the Pendant (Panic Button). The label dimensions are 19.6 x 20.3 (mm). The serial number will be mentioned in purchase order. Material description: 1) Face film is premium quality, 50 micron cast vinyl film, laminated with plastic foil. 2) Adhesive is permanent adhesive, acrylic based. 3) Backing paper is one side coated white kraft paper, 140 g/m. The FCC part 15, §15.105 statement is placed in User Manual, page 5. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC ID: LSQ-PB-500 Date: October 2002 Page 2 of 2 Label placement on the EUT bottom

FCC ID: LSQ-PB-500 Date: October 2002 Page 1 of 4 INTERNAL PHOTOGRAPHS This document contains 3 photographs FCC ID: LSQ-PB-500 Date: October 2002 Page 2 of 4 Photograph No.1 General view without cover FCC ID: LSQ-PB-500 Date: October 2002 Page 3 of 4 Photograph No.2 PCB top side FCC ID: LSQ-PB-500 Date: October 2002 Page 4 of 4 Photograph No.3 PCB bottom side

The following test plots show the Activate and Deactivate functions of the Panic Button. The plots captured the transmit command signal which is transfer from the Panic Button’s CPU to the Panic Button’s transmitter. We have added timing markers and signals function explanation on top of the scope’s plot. Activate function Plot no. 1 shows the three panic alert transmission commands, which are 150 ms apart, and additional 6.3 seconds, to show that the 5 seconds rule is met. Plot no. 1: The initial panic alert messages Plot no. 2 shows the initial three panic alert transmission commands, and an additional Panic Alert message which is triggered 21 seconds after the first transmissions. Plot no. 2: The initial panic alert message and an additional alert message Plot no. 3 shows the three deactivate transmission commands, which are 150 ms apart, and additional 6.3 seconds, to show that the 5 seconds rule is met. Plot no. 3: The deactivation messages Plot no. 4 shows the three deactivate transmission commands, and an additional Period of 27 seconds, which demonstrates that the panic button has stopped the transmission of additional panic alert messages, once it has entered the deactivate mode. Plot no. 4: The deactivation messages and the following silence

December 5, 2002 American TCB 6731 Whittier Ave Suite C110 McLean, VA 22101 USA Subject: Explanation of implemented changes to Pendant (Panic Button), model PB-500 FCC ID: LSQ-PB-500 Dear Gentlemen, We confirm that the following principal change in Panic Button operation was implemented: The current battery status is now transmitted once per hour (5 ms transmission). As a result Panic Button has four modes of operation: ACTIVATING THE PENDANT – Three 5ms transmissions with interval 150 ms. ACTIVE – transmits status (5 ms per hour). PANIC ALLERT – transmits one burst of three 5ms transmissions with 150ms interval (total burst duration 315 ms) and after that one 5ms transmission with intervals, varying randomly within 18-22 s, during the pendency of the alert. As per Section 15.231(a)(4) a ”safety of life” intentional radiator may operate during the pendency of the alarm condition. The nurse, who responds to the panic alarm, stops the transmissions by pressing the button six successive times. DEACTIVATION OF PANIC ALLERT - Three 5ms transmissions with interval 150 ms. This change has in no way affected the results included into the test report submitted to ATCB on October 31, 2002. Please find the revised User Manual, Operational description and test report (EUT description was changed). We hope that our device now may be considered complying with requirements of 15.231a. Sincerely yours, Yoav Reisman, President ElmoTech Ltd.

This report is in conformity with ISO/IEC 17025. The A2LA logo endorsement applies only to the test methods and the standards that are listed in the scope of Hermon Laboratories accreditation. The test results relate only to the items tested. This test report must not be reproduced in any form except in full with the approval of Hermon Laboratories Ltd. Page 1 of 34 Document ID: HOMRAD_FCC.15253_rev.1.doc Date of Issue: October 2002 HERMON LABORATORIES Electrical Hermon Laboratories Ltd. P.O.Box 23 Binyamina 30550, Israel Tel.+972 46288001 Fax.+972 46288277 e-mail: [email protected] RADIO TEST REPORT ACCORDING TO 47 CFR Part 15 SUBPART C §15.231, §15.205, §15.209 and SUBPART B for HomeFree Systems Ltd. EQUIPMENT UNDER TEST: Pendant (Panic button) Model: PB-500 Page 2 of 34 Document ID: HOMRAD_FCC.15253_rev.1.doc Date of Issue: October 2002 HERMON LABORATORIES Hermon Laboratories Ltd. P.O.Box 23 Binyamina 30550, Israel Tel.+972 46288001 Fax.+972 46288277 e-mail: [email protected] Contents CONTENTS...................................................................................................................................................................................................2 1 PROJECT INFORMATION................................................................................................................................................................3 2 SUMMARY OF TESTS AND REQUIREMENTS............................................................................................................................4 3 EUT DESCRIPTION............................................................................................................................................................................6 3.1 GENERAL DESCRIPTION..................................................................................................................................................................6 3.2 EUT TEST CONFIGURATION...........................................................................................................................................................6 3.3 TRANSMITTER DESCRIPTION...........................................................................................................................................................7 4 TEST RESULTS..................................................................................................................................................................................8 4.1 BANDWIDTH OF EMISSION ACCORDING TO § 15.231 (C) AND RSS-210 § 6.1.1(C)....................................................................8 4.2 FIELD STRENGTH OF FUNDAMENTAL, § 15.231 AND RSS-210 § 6.1.1(B)..................................................................................9 4.3 FIELD STRENGTH OF SPURIOUS RADIATION, § 15.231 AND RSS-210 § 6.1.1(B).....................................................................10 4.4 UNINTENTIONAL RADIATED EMISSIONS TEST ACCORDING TO §15.109 AND ICES-003..............................................................11 APPENDIX A - PLOTS..............................................................................................................................................................................12 APPENDIX B – TEST SETUP PHOTOGRAPHS..................................................................................................................................22 APPENDIX C - TEST EQUIPMENT USED FOR TESTS....................................................................................................................26 APPENDIX E TEST EQUIPMENT CORRECTION FACTORS.........................................................................................................27 APPENDIX E - GENERAL INFORMATION...........................................................................................................................................33 TEST FACILITY DESCRIPTION......................................................................................................................................................................33 ABBREVIATIONS AND ACRONYMS...............................................................................................................................................................33 SPECIFICATION REFERENCES....................................................................................................................................................................33 FCC EQUIPMENT CODES AND DESCRIPTIONS...........................................................................................................................................34 Page 3 of 34 Document ID: HOMRAD_FCC.15253_rev.1.doc Date of Issue: October 2002 HERMON LABORATORIES Hermon Laboratories Ltd. P.O.Box 23 Binyamina 30550, Israel Tel.+972 46288001 Fax.+972 46288277 e-mail: [email protected] 1 Project information Description of equipment under test Test item Pendant (panic button) Manufacturer ElmoTech Ltd. Type (Model) PB-500 Transmitter operating frequency 318 MHz Equipment FCC code 1 DSC Applicant information Applicant’s responsible person Mr. Alex Rachman, Project Manager Company HomeFree Systems Ltd. P.O. Box 13236 Address 2, Habarzel street, 5 th floor City Tel Aviv Postal code 61132 Country Israel Telephone number +972 36478871 Telefax number +972 36478872 Test performance Project number: 15253 Location Hermon Laboratories Receipt date August 26, 2002 Test started August 26, 2002 Test performed August 28, 2002 Purpose of test Apparatus compliance verification in accordance with emission requirements Test specifications 47CFR Part 15, subpart C, §15.231, §15.205, §15.209, and subpart B §15.109 1 FCC Equipment codes – see Appendix D Page 4 of 34 Document ID: HOMRAD_FCC.15253_rev.1.doc Date of Issue: October 2002 HERMON LABORATORIES Hermon Laboratories Ltd. P.O.Box 23 Binyamina 30550, Israel Tel.+972 46288001 Fax.+972 46288277 e-mail: [email protected] 2 Summary of…
