LSQ-SBU2000418SMART BASE UNIT

SBU2000 Installation and Operation Guide 2 Information in this documentation is subject to change without notice and does not represent a commitment on part of Elmo-Tech Ltd. The software described in this document is subject to the license agreement that is included with the product, which specifies the permitted and prohibited uses of the product. Any unauthorized duplication or use of this documentation, in whole or in part, in print, or in any other storage or retrieval system is prohibited. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form by any means for any purpose other than the purchaser’s personal use without the permission of Elmo-Tech Ltd. © 2002-2010 Elmo-Tech Ltd. All rights reserved. Unless otherwise noted, all names of companies, products, street addresses, and persons contained herein are part of a completely fictitious scenario and are designed solely to document the use of an Elmo-Tech product. Contact Us Corporate Headquarters Elmo-Tech Ltd. 2 Ha-Barzel St., P.O. Box 13236, 61132 Tel Aviv, Israel Tel: 972-3-7671800 Fax: 972-3-7671801 U.S.A Customers, call 1-800-313-1483 E-mail: [email protected] Visit us at: www.elmotech.com 3 Table of Contents 4 Installation Instructions for the Electronic Monitoring System 1. SBU2000 Monitoring Unit Placement In order to install the Electronic Monitoring System, you will need to find the best location for the SBU2000 Monitoring Unit. The ideal location for the SBU2000 Monitoring Unit is as close as possible to the center of the house. 5 The SBU2000 Monitoring Unit should be placed on a flat horizontal surface, at least 3 feet off the ground and at least 1 foot away from the wall. The SBU2000 Monitoring Unit should be in an open area away from other electrical appliances, personal computers, laptops or metal objects. 2. Installing the SBU2000 Monitoring Unit In order to install the SBU2000 Monitoring Unit, perform the following steps: 1. Disconnect the telephone cord from the wall telephone socket and plug it into the Phone socket, located on the rear panel of the SBU2000 Monitoring Unit. 2. Connect one end of the supplied telephone cord into the Line socket, located on the rear panel of the SBU2000 Monitoring Unit, and then connect the other end of the same cord into the wall telephone socket. 3. Connect the appropriate end of the power adapter cord into the Power socket located on the rear panel of the SBU2000 Monitoring Unit. 4. Connect the power adapter into a wall power socket. The SBU2000 Monitoring Unit makes an audible beeping sound and then runs through a series of initialisation tests to check that everything is in order. 6 5. After completing the initialisation tests successfully the SBU2000 Monitoring Unit beeps again and the left and right external LED indicators, located on the rear panel of the SBU2000 Monitoring Unit are turned on. This indicates that the SBU2000 Monitoring Unit is in a working state and has automatically switched to standby mode. 3. Installing the 2TRACK Installing the 2TRACK system involves: 1. Collecting the appropriate installation equipment and tools 2. Verifying that the Offender is registered in the E3-MWS software 3. Activating the 2TRACK Tracker unit a. Installation Equipment The kit of installation equipment includes the following items: 1. Tracker unit with carrying pouch and power adapter 2. Transmitter with strap holder 3. Locking clips 7 Warning: The Tracker unit’s battery must be fully charged. Verify the battery’s status by plugging the charger into the Tracker unit and removing it. The Tracker unit’s screen displays a power bar to indicate the charge level of the battery. b. Installation Tools You will also need the following installation tools: 1. Manual Reset Device (MRD) – for activating the Transmitter 2. Strap locking tool – for locking the Transmitter 3. 0.2” (5mm) flat head screwdriver – for opening the locking clip 4. Snake eye screwdriver – for changing the straps of the Transmitter c. Offender Information in the E3-MWS Verify the following Offender details in the E3-MWS software application: 1. Offender’s name and address 2. Offender’s program type – 2TRACK Active 3. Equipment serial numbers – these must match the serial numbers on the equipment you are planning to activate: a. Tracker unit serial number b. Transmitter serial number Note: The relevant serial numbers are visible on the back or side of each equipment item.
Tracker unit SIM card details For more information about working with the E3-MWS system, refer to the E3- MWS Monitor Operator’s Manual. 8 4. Place 2TRACK in SBU2000 Unit The SBU2000 unit device used to recharge the 2TRACK and transmit all GPS location information, violation information, and house arrest status. It also monitors the Ankle Bracelet when the 2TRACK is placed in the base unit (docked). 5. Installation Manual for bracelet unit Bracelet To Attach the Bracelet 1. Match the Bracelet serial number on the Bracelet case to the number on the Bracelet serial number in the hardware list in PCE. The ankle transmitter and strap will be shipped unattached. You must insert one end of the strap into the transmitter and push the locking pins into place. Make sure that the locking pins are flush with the case. Measure the strap to the offender’s leg and cut the strap to fit around the offender’s ankle. You should size the strap so that it allows approximately ¼ inch of space between the offender’s leg and the strap to ensure comfort. 9 2. Once you have the strap attached, push the locking pin through the holes on the bracelet and into the strap until it locks into place 3. Make sure the locking pin is pushed far enough so that the top of the pin is flush with the bracelet case 10 To Remove the Bracelet 1. Cut the strap 2. Using the screwdriver provided, turn the right locking pin counter clockwise and the left locking pin clockwise to remove 3. Lift each side …

Text truncated - open the document above for the full version.

Place Company Logo Here Date: Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: LSQ-SBU2000418. Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request permanent confidential treatment of information accompanying this application as outlined below: CONF APPENDIX SBU2000418 BlkDia.pdf CONF APPENDIX SBU2000418 PartsLst.pdf CONF APPENDIX SBU2000418 Schem.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. In addition we hereby request short term (180 days)confidential treatment of information accompanying this application as outlined below: SBU2000418 UserMan.pdf The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Signature: Gil Gemer CTO ElmoTech Ltd.

Place Company Logo Here Date: To: Timco Engineering Inc. To Whom It May Concern We hereby authorize Mr. Shaike Raz of I.T.L. (Product Testing) Ltd (ITL) to sign FORM 731 on our behalf for the following application: Model SBU2000418 FCC ID: LSQ-SBU2000418 Thank you, Sincerely, Signature: Gil Gemer CTO ElmoTech Ltd.

Place Company Logo Here Date: To: Timco Engineering Inc. To Whom It May Concern We hereby authorize Mr. Shaike Raz of I.T.L. (Product Testing) Ltd (ITL) to act on our behalf regarding the FCC ID Certification Process for the following application: Model SBU2000418 FCC ID: LSQ-SBU2000418 Thank you, Sincerely, Signature: Gil Gemer CTO ElmoTech Ltd.

Place Company Logo Here Date: attn: Reviewing Engineer Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: I hereby declare that there is no tune-up procedure for the SBU2000418, FCC ID: LSQ-2000418 Sincerely, Signature: Gil Gemer CTO ElmoTech Ltd.

External:

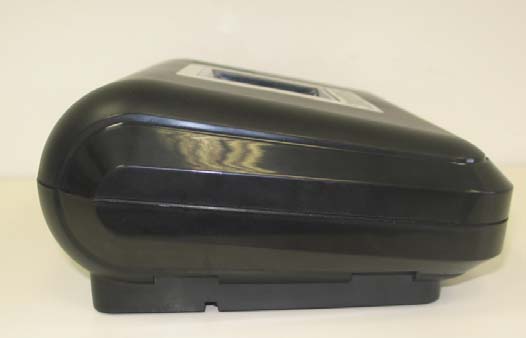

SBU2000418 external photograph

Label Location for LSQ-SBU2000418 Label Location LSQ-SBU2000418

External: Internal pictures:

SBU2000418 internal photograph

SBU2000418 Operational Description The smart base unit is a Home Unit monitoring device with a 2-way RF interface (418MHz transceiver, GFSK Modulation and 38 KHz bandwidth). When the SBU receives a status signal from the monitored device (bracelet tag), it returns an acknowledge signal. In order to enhance the RF coverage, the SBU implements RF diversity (2 transceivers with 2 antennas using different polarization). When activated, the SBU waits for signals from its monitored device, that are transmitted at a pseudorandom interval of between 15 and 16 seconds. Following each received transmission, the SBU returns an acknowledge signal to the monitored device after approximately 10mSec. The SBU compares received information with a schedule that was downloaded from the Monitor center database. By comparing the information, the SBU unit sends an event to the monitor center via either PSTN or cellular communication. In addition, the SBU unit acts as a docking station for the X-tech GPS tracking unit. It provides communication to the X-tech unit using the IrDA protocol to exchange information between them. The docking station provides 12VDC in order to recharge the X-tech's battery. The monitored device is a bracelet tag installed on the offender's wrist or ankle, monitored by the system and received by the SBU2000418. Violations to the offender's curfew schedule generate events that are uploaded to the central monitoring station via the cellular network or PSTN. The SBU2000418 is usually powered by a Wall mounted adapter 100- 240VAC to 12V/2A DC. Backup power is supplied by an Internal 7.4V/ 5.2Ah Li-Ion battery pack that provides power for a duration of up to 50 hours. In addition the SBU has an IrDA port for secondary communication with a PC.

DATE: 06 September 2010 I.T.L. (PRODUCT TESTING) LTD. FCC Radio Test Report for ElmoTech Ltd. Equipment under test: Smart Base Unit (SBU) SBU2000418 Written by: _____________________________ D. Shidlowsky, Documentation Approved by: _____________________________ A. Sharabi, Test Engineer Approved by: _____________________________ I. Raz, EMC Laboratory Manager This report must not be reproduced, except in full, without the written permission of I.T.L. (Product Testing) Ltd. This report relates only to items tested. Test Report E1000781.01 ElmoTech Ltd. Page 1 of 62 FCC ACC M Ver 1.1 05Mayl 2000 Test Report E1000781.01 ElmoTech Ltd. Page 2 of 62 FCC ACC M Ver 1.1 05Mayl 2000 Measurement/Technical Report for ElmoTech Ltd. Smart Base Unit (SBU) SBU2000418 FCC ID: LSQ-SBU2000418 This report concerns: Original Grant: x Class I change: Class II change: Equipment type: Part 15 Security/Remote Control Transceiver 47CFR15 Section 15231 (a-d) Measurement procedure used is ANSI C63.4-2003. Application for Certification: prepared by: Gil Gemer Elmo Tech Ltd. 2 Habarzel St. Tel-Aviv, 61131 Israel Tel: +972-3-767-1700 Fax: +972-3-767-1701 e-mail: [email protected] TABLE OF CONTENTS 1. GENERAL INFORMATION ------------------------------------------------------------------------------- 5 1.1 Administrative Information ................................................................................. 5 1.2 List of Accreditations ......................................................................................... 6 1.3 Product Description ........................................................................................... 7 1.4 Test Methodology .............................................................................................. 7 1.5 Test Facility ....................................................................................................... 7 1.6 Measurement Uncertainty ................................................................................. 7 2. SYSTEM TEST CONFIGURATION --------------------------------------------------------------------- 8 2.1 Justification ........................................................................................................ 8 2.2 Special Accessories .......................................................................................... 8 2.3 Equipment Modifications ................................................................................... 8 2.4 Configuration of Tested System ........................................................................ 8 3. CONDUCTED AND RADIATED MEASUREMENT TEST SET-UP PHOTO ----------------- 9 4. CONDUCTED EMISSION DATA -----------------------------------------------------------------------10 4.1 Test Specification ............................................................................................ 10 4.2 Test Procedure ................................................................................................ 10 4.3 Measured Data ................................................................................................ 10 4.4 Test Instrumentation Used, Conducted Measurement ................................... 15 5. AVERAGE FACTOR CALCULATION HELICAL ANTENNA TRANSMITTER -------------16 5.1 Test Instrumentation Used .............................................................................. 18 6. PERIODIC OPERATION HELICAL ANTENNA TRANSMITTER ------------------------------19 6.1 Specification .................................................................................................... 19 6.2 Requirements .................................................................................................. 19 6.3 Results............................................................................................................. 19 7. FIELD STRENGTH OF FUNDAMENTAL HELICAL ANTENNA TRANSMITTER --------22 7.1 Test Specification ............................................................................................ 22 7.2 Test Procedure ................................................................................................ 22 7.3 Measured Data ................................................................................................ 22 7.4 Test Instrumentation Used, Field Strength of Fundamental ........................... 26 8. RADIATED EMISSION, 9 KHZ – 30 MHZ HELICAL ANTENNA TRANSMITTER --------27 8.1 Test Specification ............................................................................................ 27 8.2 Test Procedure ................................................................................................ 27 8.3 Measured Data ................................................................................................ 27 8.4 Test Instrumentation Used, Radiated Measurements .................................... 28 8.5 Field Strength Calculation ............................................................................... 28 9. SPURIOUS RADIATED EMISSION HELICAL ANTENNA TRANSMITTER ----------------29 9.1 Test Specification ............................................................................................ 29 9.2 Test Procedure ................................................................................................ 29 9.3 Test Data ......................................................................................................... 30 9.4 Test Instrumentation Used, Radiated Measurements .................................... 32 10. BANDWIDTH HELICAL ANTENNA TRANSMITTER---------------------------------------------33 10.1 Test procedure ................................................................................................ 33 10.2 Results table .................................................................................................... 34 10.3 Test Equipment Used. ..................................................................................... 35 11. AVERAGE FACTOR CALCULATION F ANTENNA…

Text truncated - open the document above for the full version.

SBU2000418 Test Setup Photographs
