LSQ-TXL-700-2Ankle Tag

Ankle Tag TXL-700-2 USER MANUAL 14 June 2005 ElmoTech Ltd. TXL-700 - User Manual 1 Table of Contents 1. Foreword....................................................................................2 2. Installing the Ankle Tag............................................................3 3. General Rules for the Client......................................................6 4. Maintenance Instructions...........................................................7 4.1. Cleaning the Ankle Tag.............................................................7 4.2. Ankle Tag Straps Replacement..................................................8 5. FCC Notices.............................................................................10 ElmoTech Ltd. TXL-700 - User Manual 2 1. Foreword The Ankle Tag (TXL-700-2) is a transmitter used in home arrest systems. The Ankle Tag (LSQ-TXL-700-2) is transmitting on an American FCC tested and approved frequency; whereas the European version (TXL-700-2) is transmitting on a European tested and approved frequency. From a user interface and function point of view the two models are identical; therefore this user manual serves both versions. ElmoTech Ltd. TXL-700 - User Manual 3 2. Installing the Ankle Tag. Hold the transmitter in your hand with the 4 metal pins (2 pairs, along the strap) pointing forward. Hold the Electronic Key in your other hand, with the black button pointing toward the open or free end of the strap. Press the Electronic Key down over one pair of metal pins (it does not matter which) with the two touch points on the Electronic Key matching the pair of metal pins on the Transmitter strap. Hold the Electronic key in this position while you do the next step. Press the red button on the Electronic Key down for one second; the red light turns steadily on for two (2) seconds. If the transmitter successfully receives the reset command, the red light, on the Electronic Key, will flash for two (2) seconds. Note that if the Tag has failed to receive the startup command the red light will turn off after the initial two (2) seconds ON. If the Electronic Key battery is low the red light will immediately flash for two (2) seconds, once the red button is pressed. (No command is sent to the transmitter). ElmoTech Ltd. TXL-700 - User Manual 4 Place the Tag on its side, on a non-metal surface, for 30 seconds. Attaching the Transmitter Place a strap holder over the short strap (strap with pin side) of the Transmitter. Attach the female Clip to the underside of the Transmitter’s short strap (to lie against the Offenders skin). Check that the closed end of the clip fits with the edge of the strap and make sure the silver line is visible. Wrap the Transmitter around the offender’s ankle at its narrowest point ensuring that the protruding side of the Transmitter is directed upwards. Cover the female clip with the long strap ensuring that all pins on the short strap are protruding. Slide the strap holder over the end of the long strap in order to hold it in place. Cover the female clip with the male clip ensuring that the four pins on the male clip fit correctly into the female clip (the grooves on the side of each clip must match). ElmoTech Ltd. TXL-700 - User Manual 5 Ask the Offender to stand up and move around to insure that the Tag is comfortable. Fasten the two Clips with the locking tool. Be sure to fasten all the four pins well. An audible clicking sound should be heard, indicating that the Clips are closed properly. Don’t install the Tag over a thick sock, since the Tag will get too loose once the sock is removed. If the Tag is installed without a sock, instruct the offender that he should not put on a very thick sock, and then try to pull it under the Tag. The Offender may wear a thin sock underneath and a thick sock over the Tag. ElmoTech Ltd. TXL-700 - User Manual 6 3. General Rules for the Client The Transmitter is a waterproof wristwatch and there is no need to remove it when taking a bath or a shower. You can even wear it when swimming and diving in a swimming pool or taking a sauna bath. Turn the Transmitter’s transmission off when admitting to a hospital, either for a visit or for hospitalization, since the transmitted signal may affect other medical instrumentation. Turn the Transmitter’s transmission off when boarding a flight, since the transmitted signal may affect the aircraft’s avionics thus impairing flight safety. Turning the Transmitter’s transmission off should be done by an authorized personnel, as follows: • Press the electronic key’s BLACK button down for one second, the red light turns steadily ON for two (2) seconds. • If the shut down command has been successfully received, the red light on the Electronic Key will flash for two (2) seconds. Note that if the transmitter has failed to receive the shut down command the red light will turn off after the initial two (2) seconds ON. If the Electronic Key battery is low the red light will immediately flash for two (2) seconds, once the black button is pressed. (No command is sent to the transmitter). ElmoTech Ltd. TXL-700 - User Manual 7 4. Maintenance Instructions 4.1. Cleaning the Ankle Tag A soft brush and any cleaning solution are all that is needed to clean the Ankle Tag TXL-700-2. Alcohol based solutions; Soapy water or Lysol can be used to clean the Tag. For additional safety and user comfort it is Recommended that after cleaning with any of the above the Tag be washed with clear water before it is reused. Holding it at the end of the long strap, spray the Tag with cleaning solution of choice (see above). Alternatively you can simply drop the Tag in the cleaning solution. Using a piece of cloth or a paper towel, dry the outer side of the Tag. Lay the Tag on the towel with its inner side facing up. Using a soft brush or another piece of cloth/towel gently scrub the inner side of the Tag. Wash the Tag in clear water. Dry the Tag using a piece of cloth/paper towel or simply let it dry. ElmoTe…

Text truncated - open the document above for the full version.

TXL-700-2 – Block Diagram

TCB Confidentiality Form 06/06/2005 EMCCert DR. RAŠEK Boelwiese 5 91320 Ebermannstadt Germany Tel.: +49-9194-9331 Fax: +49-9194-7964-84 E-mail: [email protected] URL: http://www.emcc.de Gentlemen: This letter is to comply with Section 0.457(d)(2)(i) and 0.459 pertaining to confidential material. Elmo Tech would like the following document regarding this submission for FCC ID: LSQ TXL-700-2 to be kept confidential. Schematics: 1 Page. The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want this document to be accessible to the general public. Sincerely, Gil Gemer VP R&D

TXL-700-2 – Label Location LSQ-TXL-700-2

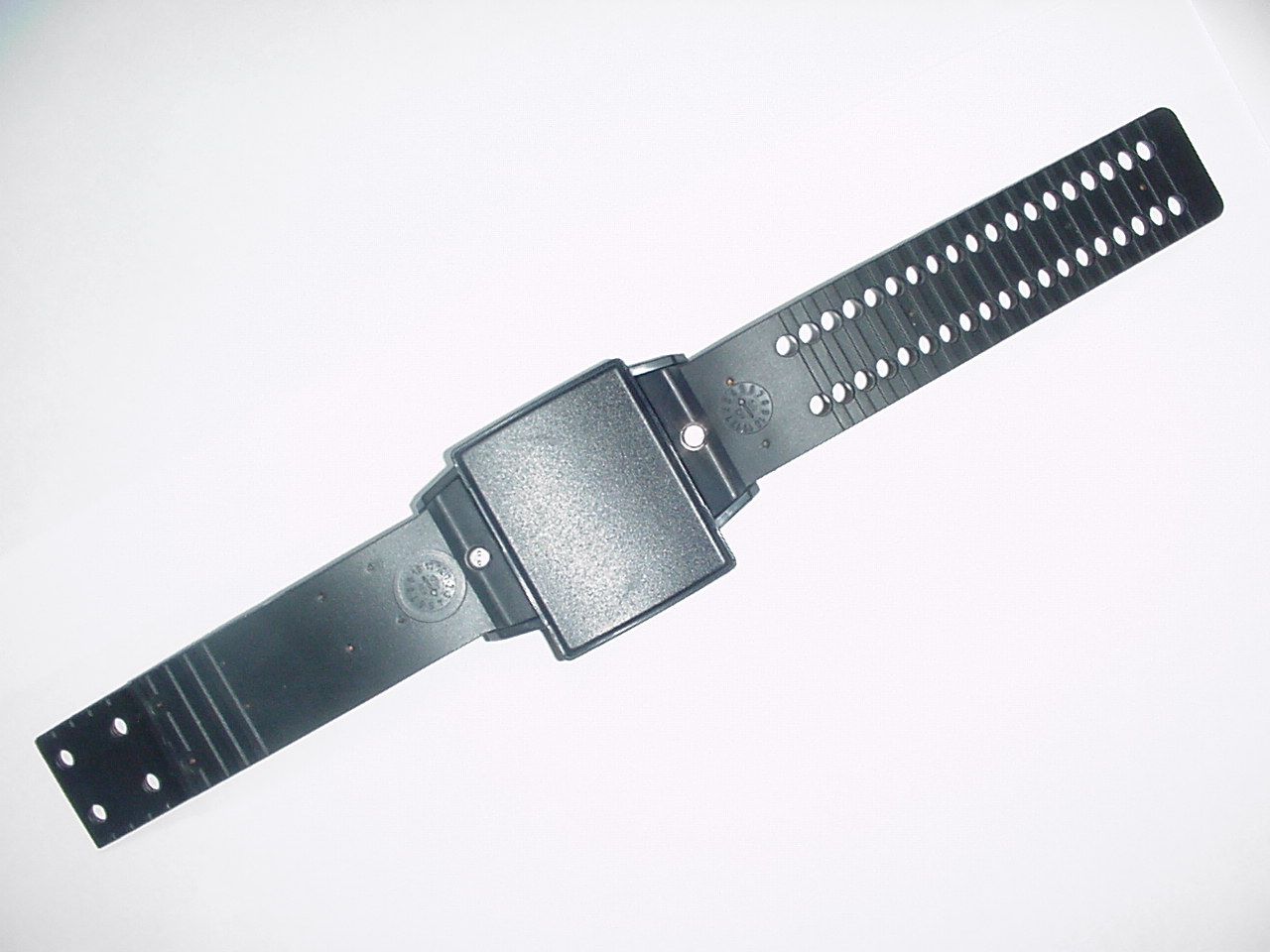

TXL-700-2 Home Arrest Tag Operational Description The TXL-700-2 Home Arrest Tag is a small unit worn on the ankle of a monitored offender. The home arrest Tag is a battery-operated unit. The tag comprises one Printed Circuit Board (PCB), which includes a RF transmitter module with an integral antenna, and a microcontroller, which controls its operation. The TXL-700-2 has one RF channel. It is 433.92 MHz carrier with FSK modulated data. The Tag is turned on and off by a probation officer, using an electronic key which is temporarily attached to the tag strap’s pins. While turned-on the Tag transmits a 7mSec identification & status signal and then it stops transmission. As a public life safety equipment the Tag transmits the next signal 18-22 seconds after the last signal transmission – any interruption in the reception of the transmitted signal (which might indicate an escaped offender) may put public life at risk – the central monitoring system sends an immediate alert to the probation officer or to the sheriff in-charge, which should take immediate actions to ensure public safety.

REV ∆ Description Sheet Effected Date Drawn Checked A 20.05.05 D.Lanuel S.Cohen EMC Laboratory FCCID: LSQ-TXL-700-2 Manufactured by Elmotech Ltd. EMC Test Report According FCC Part 15 Requirements May 2005 Function/Title Name Signature Date Prepared by Test Engineer D.Lanuel 20.05.05 Checked by Test Engineer D.Lanuel 20.05.05 Approved by EMC Lab. Manager S.Cohen 20.05.05 TXL-700-2 EMI Test Report Table of Contents Para Page No 1 INTRODUCTION...............................................................................................................................3 2 TEST SUMMARY AND SIGNATURES...................................................................................................4 3 E.U.T INFORMATION........................................................................................................................5 4 BANDWIDTH OF THE EMISSION PART 15.231.C—TEST RESULTS........................................................6 5 FIELD STRENGTH OF FUNDAMENTAL PART 15.231-TEST RESULTS......................................................7 6 RADIATED EMISSION PART 15.231 & 15.205-TEST RESULTS..............................................................9 7 RADIATED EMISSION PART 15.109-TEST RESULTS (FOR STBY MODE)..............................................13 8 PLOTS...........................................................................................................................................15 EMC/30020FC05083 2/27 TXL-700-2 EMI Test Report 1 Introduction a. Scope This document describes the measurement procedures and tests for FCC part 15 of the TXL- 700-2 Manufactured by Elmotech Ltd. Equipment Under Test: TXL-700-2 FCCID LSQ-TXL-700-2 Horizontal Antenna Manufacturer: Elmotech System Ltd. Serial Numbers: 1000 Mode of Operation: TX MODE Receiver operating frequency: 433.92MHZ Year of Manufacture: 2005 b. Applicant Information: Applicant: Elmotech System Ltd. Applicant Address 2, Habarzel Street Tel-Aviv Telephone: +972-3-6478871 FAX: +972-3-6478872 The testing was observed by: LEV ROSMAN Following applicant's personnel: c. Test Performance: Date of reception for testing: 08.06.05 Dates of testing 08.06.05 Test Laboratory Location TADIRAN EMC LAB, Hashoftim 26 Holon 5810- 42 ISRAEL Tel: 972-3-5574476 Fax: 972-3-5575320 Applicable EMC Specification: Federal Communication Commission (FCC), Code of Federal Regulations 47, FCC Docket 89-103,Part 15: Radio Frequency Devices, Sections 15.109, 15.209,15.107, 15.207 & 15.231. Applicable EMC Specification: Federal Communication Commission (FCC), FCC Part 15: Radio Frequency Devices, Sections 15.109, 15.209 & 15.231.15.207 EMC/30020FC05083 3/27 TXL-700-2 EMI Test Report 2 Test Summary and Signatures. TADIRAN EMC Laboratory has completed testing of E.U.T in accordance with the requirements of the FCC Part 15 Regulations for Class B equipment. The E.U.T was found to comply with the requirements of the FCC Part 15 Regulations given below Test Test Description Section PASS/FAIL 1 Bandwidth of the emission 15.231 PASS 2 Field strength of fundamental 15.231 PASS 3 Radiation emission 15.109 PASS 4 Radiation emission 15.231 & 15.205 PASS a. Test performed by: Mr. D. Lanuel Test Engineer b. Test Report prepared by: Mr. D. Lanuel Test Engineer c. Test Report Approved by: Mr. Samuel Cohen EMC Lab. Manager EMC/30020FC05083 4/27 TXL-700-2 EMI Test Report 3 E.U.T information a. E.U.T description (1) The EUT is an Ankle watch which contain an integral transmitter. It is used to monitor offender status within an area covered by a local positioning system. The device in active mode transmits 5msec identification & status signal with interval to be a random time of 18-22sec b. E.U.T Test Configuration E.UT test configuration is shown in figure bellow Internal Battery Integral Antenna E.U.T c. E.U.T Mode of Operation description (1) 433.92MHz TX Mode EMC/30020FC05083 5/27 TXL-700-2 EMI Test Report 4 BANDWIDTH OF THE EMISSION part 15.231.c—TEST RESULTS E.U.T: TXL-700-2 S/N 1000 Test Method: ANSI C63.4 Date: 08/06/05 Relative Humidity: 37% Ambient Temperature: 22c Air Pressure: 1042hpa Test Setup: Figure 11 Testing Engineer: D.Lanuel Date 15/06/05 a. Test Results Summary & Conclusions The E.U.T was found in compliance with Bandwidth of Radiated Emission fundamental frequency requirement according to section 15.231.c b. Limits of bandwidth The test unit shall meet the limits of Table 4.b Table 4.b Limits For Bandwidth Frequency (MHz) Bandwidth Max Limits (%) Bandwidth Max Limits (KHz) 433.92 0.25 1085 c. Test Instrumentation and Equipment Table 4.c Test Instrumentation and Equipment Item Model Manufacturer Next Date Calibration Spectrum Analyzer 8593E HP 31/01/06 Broadband Antenna BTA-L FRANKONIA 10.04.06 d. Results Table 4.d Bandwidth Test Result Frequency (MHz) Bandwidth (KHz) Bandwidth Max Limit (KHz) Plot No PASS/FAIL 433.92.00 225 1085 1 PASS e. Procedure The Bandwidth is determined at the point 20db down from the modulated carrier, while the spectrum analyzer was set to “max hold” and VBW –10KHz. EMC/30020FC05083 6/27 TXL-700-2 EMI Test Report 5 Field strength of fundamental part 15.231-TEST RESULTS E.U.T: TXL-700-2 S/N 1000 Test Method: ANSI C63.4 Date: 08/06/05 Relative Humidity: 37% Ambient Temperature: 22c Air Pressure: 1042hpa Test Setup: Figure 11 Testing Engineer: D.Lanuel Date 15/06/05 a. Test Results Summary & Conclusions The E.U.T was found in compliance with fundamental frequency requirement b. Limits of Field Strength for fundamental according 15.231 The test unit shall meet the limits of Table 5.b. Table 5.b Limits For Fundamental Frequency (MHz) Average Max Limits (dBμV/m) Peak Max Limits (dBμV/m) 433.92 81 101 c. Test Instrumentation and Equipment Table 5.c Test Instrumentation and Equipment Item Model Manufactur er Next Date Calibration Spectrum Analyzer 8593E HP 31/01/06 Broadband Antenna BTA-L FRANKONIA 10.04.06 EMC/30020FC05083 7/27 TXL-700-2 EMI Test Report d. Test Results Table 5.d Average Factor TX Period( min) Dut…

Text truncated - open the document above for the full version.

Test Setup Pictures For TXL-700-2
