LU9273707RC Toy Transmitter

4 1 2 3 Fig. 1 SAFETY BATTERY USAGE CAUTION • Non-rechargeable batteries are not to be recharged. • Rechargeable batteries are to be removed from the toy before being charged. • Rechargeable batteries are only to be charged under adult supervision. • Different types of batteries or new and used batteries are not to be mixed. • Only batteries of the same or equivalent type as recommended are to be used. • Batteries are to be inserted with the correct polarity. • Exhausted batteries are to be removed from the toy. • The supply terminals are not to be short-circuited. • Do not dispose of the batteries in fire, batteries may leak or explode. • Batteries should be replaced by an adult. Adults should replace batteries. May contain small parts. Not suitable for children ages 3 & under. Use only the recommended battery pack and charger. Do not charge or recharge the battery pack while it is in the racer. After y ou c harge o r r echarge t he b attery p ack, d isconnect i t f rom t he c harger. Overcharging t he battery pack could damage it. When y ou d isconnect t he b attery p ack f rom t he c harger, d o n ot p ull o n t he c onnector's w ires. You might damage the battery pack. Occasionally, l et t he b attery p ack f ully l ose i ts c harge b efore r echarging i t. Otherwise, t he b attery pack loses its ability to fully charge. IMPORTANT : A t t he e nd o f t he b attery p ack's u seful l ife i t must b e r ecycled o r d isposed o f properly. DRIVING YOUR ALIEN RACERS TM War nings : This r acer c an r each much h igher s peeds t han many o ther r adio c ontrolled v ehicles. B e c areful to avoid high-speed collisions with people and objects. Do not play with your racer in the street. Racing Two or More Alien Racers TM Together Alien R acers TM c an r each s peeds o f u p t o 3 meters p er s econd. A ll A lien R acers TM u se o ne frequency ( 27MHz) w ith a dvance t echnology t o o perate t hem s imultaneously. T herefore, i f y ou collect a ll t he A lien R acers TM ( Ultrox TM , G narl TM , G rog TM a nd S krash TM ) y ou c an r ace t hem a gainst each other without interference! 9 V 6 L R 6 1 INTRODUCTION BEFORE YOU START Ages 6+ INSTALLING BATTERIES Fig. 1 Fig. 2 Fig. 3 You’ve n ever s een a r ace l ike t his! T he A lien R acers a re u nlike a ny o ther R /C v ehicles o n t he planet! They a re a mazingly d etailed, f ully-functioning R /C v ehicles t hat a re f ast, f un a nd f erocious! With f our u nique c haracters, e ach w ith t heir o wn s pecialized r acers, t he A lien R acers a re s et t o r un the competition into the ground. Cause At The Center of The Universe, Speed Is Power! Operation manual 1. Install the Alien Racer's weapons onto the side of car boday. (see Fig. 1) The A lien R acers TM R /C r equires a 9 .6-volt r echargeable n ickel-cadmium ( Ni-Cd) b attery p ack a nd battery charger. The transmitter requires one 9-volt battery. Powering Your Vehicle : 1. Use a screwdriver to open the battery compartment cover. 2 Place the battery pack in the compartment. Attach the battery pack’s white plastic connector to the vehicle’s matching connector. Do not force them together. They only fit one way. 3. Replace the battery compartment cover. 4. When the vehicle moves slowly or does not move at all, recharge the vehicle’s battery pack. Powering Your Remote : 1. Remove the battery compartment cover. 2. Place the 9V battery in the remote as indicated by the polarity symbols (+ and -) marked inside. 3. Replace the cover. 4. When the remote’s range decreases, replace the battery. 9 .6V Ni-Cd NOTES IMPORTANT Please retain this instruction manual since it contains important information. The preferred method of contact for Customer Service is through our e-mail contact form at www.alienracers.com TM & © MGA Entertainment, Inc. ALIEN RACERS TM , GROG TM , ULTROX TM , GNARL TM , SKRASH TM and all related logos, names, characters and distinctive likenesses are the exclusive property of MGA Entertainment. 16300 Roscoe Blvd. Van Nuys, CA 91406 USA (800) 222-4685 Made In China 0504-0 HELPFUL HINTS Do not operate during thunderstorms. Avoid w ater w hen r acing y our A lien R acers TM . I n a ddition, d o n ot s ubmerge y our R acer o r Remote controller in water. When y our v ehicle s tarts t o l ose p ower, i t may e xperience l oss o f p erformance a bility. I f t his happens, simply recharge your battery again. Your r acer i s o perated b y r adio w aves. I t i s p ossible t he u nit may n ot p erform p roperly d ue t o interference f rom n earby d evices s uch a s a c ordless p hone, h air d ryer, r adio, w alkie-talkie o r other radio-controlled toys. Avoid sand and snow when operating your vehicle. Always select a safe place to play. Never drive your vehicle on populated streets. Keep f ingers, h air a nd l oose c lothing a way f rom t he t ires, w heel h ubs a nd motors w hile t he vehicle is switched on. Avoid operating your vehicle in an inclined surface. • MODIFICATIONS NOT AUTHORIZED BY THE MANUFACTURER MAY VOID USER'S AUTHORITY TO OPERATE THIS DEVICE. • EMISSIONS OR INTERFERENCE OF SURROUNDING ELECTRONIC EQUIPMENT MAY AFFECT OPERATING PERFORMANCE. This e quipment h as b een t ested a nd f ound t o c omply w ith t he l imits f or a C lass B d igital d evice, pursuant t o P art 1 5 o f t he F CC R ules. T hese l imits a re d esigned t o p rovide r easonable p rotection against h armful i nterference i n a r esidential i nstallation. T his e quipment g enerates, u ses a nd c an radiate r adio f requency e nergy a nd, i f n ot i nstalled a nd u sed i n a ccordance w ith t he i nstructions, may c ause h armful i nterference t o r adio c ommunications. H owever, t here i s n o g uarantee t hat interference w ill n ot o ccur i n a p articular i nstallation. I f t his e quipment d oes c ause h armful interfe rence to r adio o r television r ecepti on, which c an b e d etermined b y t urning t he e quipment o ff and o n, t he u ser i s e ncouraged t o t ry t o c orrect t he i nterference …

Text truncated - open the document above for the full version.

tx block diagram.sch-1 - Sat May 29 13:16:45 2004 PDF created with FinePrint pdfFactory trial version http://www.pdffactory.com

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT REAR VIEW OF THE PRODUCT

LABEL LOCATION BOTTOM VIEW OF THE DEVICE WITH FCC ID LABEL FCC Label location

FCC ID: LU9273707 MADE IN CHINA This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

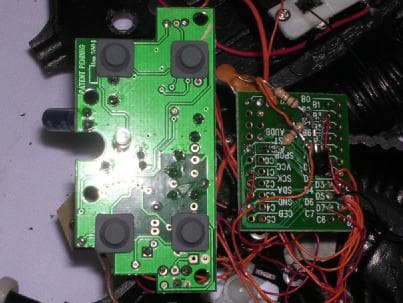

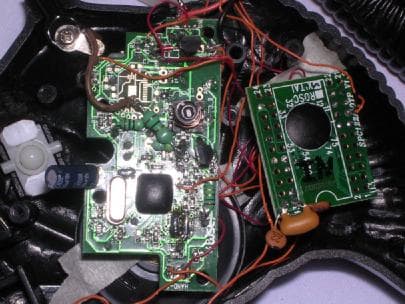

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW INNER CIRCUIT BOTTOM VIEW

HKSTC No.: HM150319 Circuit Description The (10.24MHz crystal) 27.19MHz IC oscillator drives the base of U1 the final/buffer amplifier. The modulation provided by IC. The output of U1 has the matching network consisting of L6 and C13 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground and Power Source The antenna consists of a 13.5cm long metal antenna. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 9 Volt (“6F22” size battery x 1) primary battery

PDF created with FinePrint pdfFactory trial version http://www.pdffactory.com

Date: 2004-05-10 TEST REPORT Page 1 of 19 No.: HM150319 This report shall not be reproduced unless with prior written approval from the Hong Kong Standards and Testing Centre. Applicant: MGA Entertainment (HK) Ltd. Description of Samples: Model name: 27MHz Alien Racer RC Assortment Tx Model no.: 273707 Brand name: N/A FCC ID: LU9273707 Date Samples Received: 2004-03-10 Date Tested: 2004-05-06 Investigation Requested: FCC Part 15 Subpart C Conclusions: See the attached sheets for details Remarks: ---- K C Lee, EMC for Chief Executive Date: 2004-05-10 TEST REPORT Page 2 of 19 No.: HM150319 CONTENT: Cover Page 1 of 19 Content Page 2-3 of 19 Conclusions Page 4 of 19 1.0 General Details 1.1 Test Laboratory Page 5 of 19 1.2 Applicant Details Page 5 of 19 Applicant HKSTC Code Number for Applicant Manufacturer 1.3 Equipment Under Test [EUT] Page 6 of 19 Description of EUT operation 1.4 Date of Order Page 6 of 19 1.5 Submitted Samples Page 6 of 19 1.6 Test Duration Page 6 of 19 1.7 Country of Origin Page 6 of 19 1.8 Additional Information of EUT Page 7 of 19 2.0 Technical Details 2.1 Investigations Requested Page 8 of 19 2.2 Test Standards and Results Summary Page 8 of 19 3.0 Test Results 3.1 Emission Page 9-12 of 19 3.2 Bandwidth Measurement Page 13-14 of 19 Date: 2004-05-10 TEST REPORT Page 3 of 19 No.: HM150319 Appendix A List of Measurement Equipment Page 15 of 19 Appendix B Duty Cycle Correction During 100 msec Page 16-17 of 19 Appendix C Photographs Page 18-19 of 19 Date: 2004-05-10 TEST REPORT Page 4 of 19 No.: HM150319 CONCLUSIONS The submitted product was deemed to have COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Date: 2004-05-10 TEST REPORT Page 5 of 19 No.: HM150319 1.0 General Details 1.1 Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong Telephone: 852 2666 1888 Fax: 852 2664 4353 1.2 Applicant Details Applicant MGA Entertainment (HK) Ltd. 9 th Floor, Tower 6, The Gateway, Harbour City, 9 Canton Road, Tsimshatsui, Kowloon, Hong Kong. HKSTC Code Number for Applicant MGE001 Manufacturer N/A Date: 2004-05-10 TEST REPORT Page 6 of 19 No.: HM150319 1.3 Equipment Under Test [EUT] Description of Sample Model Name: 27MHz Alien Racer RC Assortment Tx Manufacturer: N/A Brand Name: N/A Model Number: 273707 Input Voltage: 9Vd.c (“6F22 size battery x 1) 1.3.1 Description of EUT Operation The Equipment Under Test (EUT) is an MGA Entertainment (HK) Ltd., Alien Racer RC Assortment Tx. The transmitter is a 2 button transmitter. The EUT continues to transmit while button is being pressed, Modulation by IC. and type is pulse modulation. 1.4 Date of Order 2004-03-10 1.5 Submitted Sample(s): 2 Samples per model 1.6 Test Duration 2004-05-06 1.7 Country of Origin China Date: 2004-05-10 TEST REPORT Page 7 of 19 No.: HM150319 1.8 Additional Information of EUT Submitted Not Available User Manual Part List Circuit Diagram Printed Circuit Board [PCB] Layout Block diagram FCC ID Label Date: 2004-05-10 TEST REPORT Page 8 of 19 No.: HM150319 2.0 Technical Details 2.1 Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15 and ANSI C63.4:2003 for FCC Certification. 2.2 Test Standards and Results Summary Tables EMISSION Results Summary Test Condition Test Requirement Test Method Class / Test Result Severity Pass Failed N/A Field Strength of Fundamental Emissions & Spurious Emissions FCC 47CFR 15.227 ANSI C63.4:2003 N/A Radiated Emissions, 30MHz to 1GHz FCC 47CFR 15.209 ANSI C63.4:2003 Class B Conducted Emissions on AC, 0.15MHz to 30MHz FCC 47CFR 15.207 ANSI C63.4:2003 Class B Note: N/A - Not Applicable Date: 2004-05-10 TEST REPORT Page 9 of 19 No.: HM150319 3.0 Test Results 3.1 Emission 3.1.1 Radiated Emissions (30 – 1000MHz) Test Requirement: FCC 47CFR 15.227 Test Method: ANSI C63.4:2003 Test Date: 2004-05-06 Mode of Operation: On mode Test Method: The sample was placed 0.8m above the ground plane on the OATS *. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigated all operating modes, rotated about all 3 axis (X, Y & Z) and considered typical configuration to obtain worst position, manipulating interconnecting cables, rotating turntable, varying antenna height from 1m to 4m in both horizontal and vertical polarizations. The emissions worst-case are shown in Test Results of the following pages. *: OATS [Open Area Test Site] located at HKSTC with a metal ground plane filed with the FCC pursuant to section 2.948 of the FCC rules, with Registration Number: 90657. Test Setup: EUT Pre-Amplifier Distance = 3m Receiver Turn Table Computer Ground Plane Date: 2004-05-10 TEST REPORT Page 10 of 19 No.: HM150319 Limits for Field Strength of Fundamental Emissions [FCC 47CFR 15.227]: Frequency Range of Fundamental Field Strength of Fundamental Emission [Peak] Field Strength of Fundamental Emission [Average] [MHz] [μV/m] [μV/m] 26.96-27.28 100,000 10,000 Results: FrequencyCorrectionLimit @3mE-Field FactorPolarity MHzdB μ V/m μ V/m 27.1931.5021.953.4467.7100,000Vertical Field Strength of Fundamental Emissions Peak Value Measured Level @3m Field Strength μV/mdBμV/m Field Strength dBμV/m FrequencyAdjusted byCorrectionLimit @3mE-Field Duty CycleFactorPolarity MHzdBdB μ V/m μ V/m 27.1930.6-0.921.952.5421.710,000Vertical μV/mdBμV/m Field Strength dBμV/m Field Strength of Fundamental Emissions Average Measured Level @3m Field Strength According to FCC 47CFR15.35, the limit on the radio frequency emissions as measured using instrumentation with a peak detector function, corresponding to 20dB above the maximum permitted average limit for the frequency being investigated …

Text truncated - open the document above for the full version.

Close From: Chris Harvey [SMTP:[email protected]] To: [email protected] Cc: Kitty @ HKSTC EED - Choy; 'Hoosam Bandukwala'; 'Marianne Bosley' Subject: Additional informatin needed MT#15622 FCC ID: LU9273707 Sent: 6/2/2004 7:49 PM Importance: Normal Alice and Kitty, I have reviewed the application for the above referenced application and need the following issue resolved: The Schematic and Parts list show a 10.24MHz crystal, however the Circuit Description states that there is a 27.19MHz crystal. Please clarify which is correct and update the appropriate exhibits. Please provide this information so that the application review can be completed. Best regards, Chris Harvey

TEST SET UP PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP
