LW3-CLIK64MMulti-button Key Tag Transmitter

Active Control Technology Inc., Mississauga, Ontario, Canada. The CLIK64-M Series of battery-operated transmitters are wireless radio controls designed to be used with the CLIK64 Series of receivers. The CLIK64 transmitters use a very high level of security encryption to ensure the users identification code cannot be copied to gain unauthorized access to restricted areas. No coding switches are on the device. All programming credentials are factory set to ensure no duplication of identification codes. A 3-volt lithium battery CR2032 powers the transmitters. The batteries should last up to 3 years with normal use. To conserve battery life, an internal timer limits the transmission duration to a few seconds if the button is pressed for a long period of time. Simply release the button and press again to transmit. Operating Instructions 1. Press the button on the key tag transmitter assigned to release or trigger a device. A red indicator light will flash for the duration of the transmission. Press and holding the button down only transmits a short pulse. 2. Release and press the button again to send another transmission. 3. If the light on the transmitter does not light up when you press any button, replace the battery.
Incremental Packet Transmission ™ - Innovative 96 bit encryption to ensure the highest level of security for the transmission of codes. Each sequential transmission of code is different to prevent code grabber devices from operating.
 SMT and SAW Technology - Surface Acoustic Wave resonators with SMT devices used in the design prevents problems with detuning and poor range performance.
Visual LED indicator – A red LED light provides visual confirmation the device is transmitting. Active Control Technology Inc., Mississauga, Ontario, Canada. Replacing Batteries Warning: Changes or modifications not expressly approved by Active Control Technology Inc. could void the user’s authority to operate the equipment. Important: Radio frequency controls provide reliable and convenient means to remotely control devices. However, there are some limitations. A receiver can only respond to one transmission signal at a time and may be blocked by radio signals operating on the same center frequency. 1. Carefully pry open the case with a flat edge tool or screwdriver from the key ring corner. 2. Make sure the case is laid flat on the table upside down. 3. Push out the coin shaped battery out of its holder and replace it with a similar battery being careful to place the “+” positive side on top. 4. DO NOT install the batteries backwards. The device will be damaged. 5. Snap close the case. 6. Test the transmitter and look for the red light to flash when a button is pressed. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

Encoder 3 volt Battery RF Transmitter 433.92 MHz Oscillator Power Amplifier Push Button 4 Push Button 1 Push Button 2 Push Button 3 Approvals Active Control Technology Inc Drawn S.B. Oct 28.04 Block Diagram CLIK64-M Engineer Size Document Number Rev. A. Checked October 28, 2004

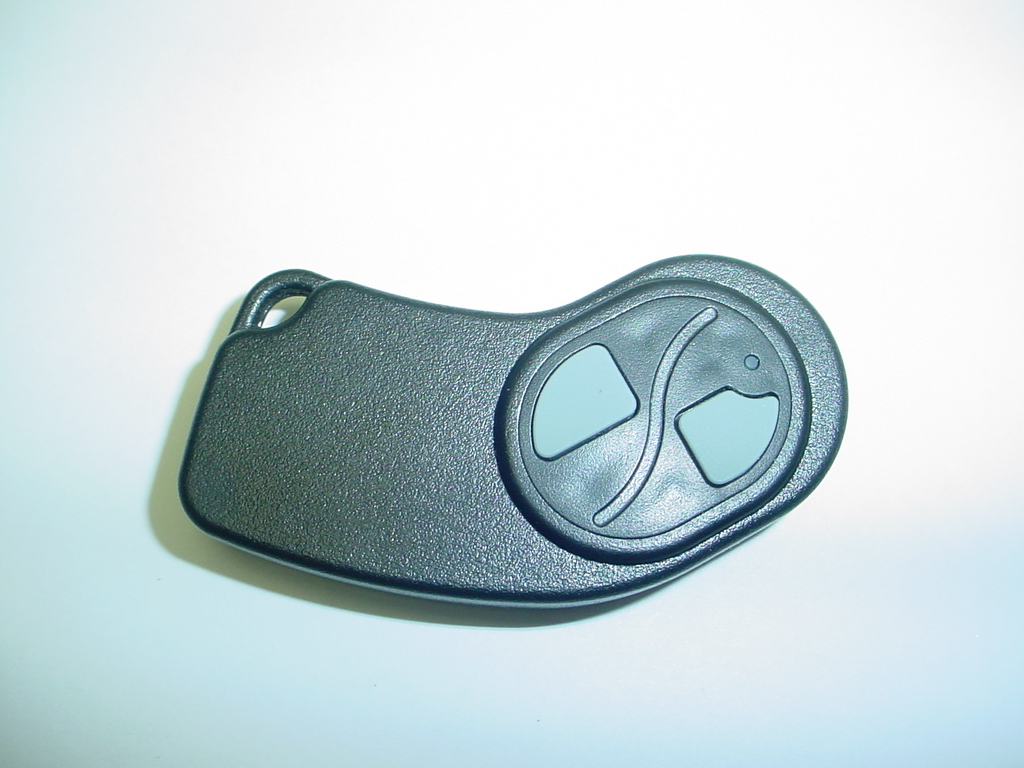

ANNEX 2 – EXTERNAL PHOTOGRAPHS ACTIVE CONTROL TECHNOLOGY Inc. Multi-button Key Tag Transmitter, Model CLICK64-M2 FCC ID: LW3-CLICK64M IC: 1747A-CLIK64M A2 - 1 ANNEX 2 – EXTERNAL PHOTOGRAPHS ACTIVE CONTROL TECHNOLOGY Inc. Multi-button Key Tag Transmitter, Model CLICK64-M2 FCC ID: LW3-CLICK64M IC: 1747A-CLIK64M A2 - 2

Active Control Technology Inc Label Location:

ANNEX 3 – INTERNAL PHOTOGRAPHS ACTIVE CONTROL TECHNOLOGY Inc. Multi-button Key Tag Transmitter, Model CLIK64-M2 FCC ID: LW3-CLIK64M IC: 1747A-CLIK64M A2 - 1 ANNEX 3 – INTERNAL PHOTOGRAPHS ACTIVE CONTROL TECHNOLOGY Inc. Multi-button Key Tag Transmitter, Model CLIK64-M2 FCC ID: LW3-CLIK64M IC: 1747A-CLIK64M A2 - 2 ANNEX 3 – INTERNAL PHOTOGRAPHS ACTIVE CONTROL TECHNOLOGY Inc. Multi-button Key Tag Transmitter, Model CLIK64-M2 FCC ID: LW3-CLIK64M IC: 1747A-CLIK64M A2 - 3

12345678 A B C D 87654321 D C B A ScaleSheet SizeFCSM No.DWG No.Rev 1 of 1 A3SCH-0081 ACTIVE CONTROL TECHNOLOGY INC 1300 SHAWSON DRIVE, SUITE 201 MISSISSAUGA, ONTARIO CANADA L4W-1C3 FIVE BUTTON TRANSMITTER SCHEMATIC (SMT Version) D1 APTR3216SRCPRV (RED LED) C1 10nF R2 47K R4 330R C4 1.5pF C2 1.5pF C3 1nF R3 47R VCC 3V CR2032 LITHIUM LOOP ANTENNA (APPOX. 2.0" (50.8 mm) long, Trace width of 0.020" (0.5mm) R5 47K 433.92 MHz SAW Resonator PCB-008 REV.0 MOD-008 VDD 1 PTA5/KBI5 2 PTA4/KBI4 3 PTA3/KBI3 4 PTA2/KBI2 5 PTA1/KBI1 6 PTA0/KBI0 7 VSS 8 U1 MC68HC908QT4CDW R1 IK 12345678 JP1 VCC VCC VCC 1 2 P1 CR2032 BATT. CLIP VCC Q1 BFR92A 12 SWA MBUTTON 12 SWD MBUTTON 12 SWC MBUTTON 12 SWB MBUTTON 12 SWE MBUTTON A 1 BUTTON BCDE 2 BUTTON 3 BUTTON 4 BUTTON BUTTONS CONFIGURATION XX PTA2 XX X XPTA3PTA2PTA0X PTA2PTA3 XPTA0PTA4 PTA3XPTA0X R6 100R 6V 2 x 2016 LITHIUM OR NC 1 OUT 6 GND 8 GND 4 NC 7 IN 2 NC 3 NC 5 RF1ECS-SDR1-4339

Multi-button Key Tag Transmitter Model No.: CLIK64-M2 FCC ID: LW3-CLIK64M Applicant: Active Control Technology Inc. 201-1300 Shawson Drive Mississauga, Ontario Canada, L4W 1C3 In Accordance With FEDERAL COMMUNICATIONS COMMISSION (FCC) Part 15, Subpart C, Section 15.231 Momentarily Operation at 433.92 MHz UltraTech's File No.: ACCT-007F15C231 This Test report is Issued under the Authority of Tri M. Luu, Professional Engineer, Vice President of Engineering UltraTech Group of Labs Date: November 15, 2004 Report Prepared by: Anca Dobre Issued Date: November 15, 2004 Tested by: Hung Trinh, RFI Technician Test Dates: October 16, 2004 ƒ The results in this Test Report apply only to the sample(s) tested, and the sample tested is randomly selected. ƒ This report must not be used by the client to claim product endorsement by NVLAP or any agency of the US Government. UltraTech 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com , Email: [email protected], Email: [email protected] 2 31040/SIT C-1376 46390-2049 200093-0 SL2-IN-E-1119R 00-034 FCC Part 15, Subpart C, Section 15.231(433.92 MHz) Multi-button Key Tag Transmitter, Model CLIK64-M2 FCC ID: LW3-CLIK64M ULTRATECH GROUP OF LABS File #: ACCT-007F15C231 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 November 15, 2004 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) TABLE OF CONTENTS EXHIBIT 1. SUBMITTAL CHECK LIST ..........................................................................................................................................1 EXHIBIT 2. INTRODUCTION ............................................................................................................................................................2 2.1. SCOPE ............................................................................................................................................................................................2 2.2. RELATED SUBMITTAL(S)/GRANT(S).......................................................................................................................................2 2.3. NORMATIVE REFERENCES .......................................................................................................................................................2 EXHIBIT 3. PERFORMANCE ASSESSMENT .................................................................................................................................3 3.1. CLIENT INFORMATION ..............................................................................................................................................................3 3.2. EQUIPMENT UNDER TEST (EUT) INFORMATION.................................................................................................................3 3.3. EUT’S TEHNICAL SPECIFICATIONS ........................................................................................................................................4 3.4. LIST OF EUT’S PORTS.................................................................................................................................................................4 3.5. ANCILLARY EQUIPMENT ..........................................................................................................................................................4 3.6. GENERAL TEST SETUP...............................................................................................................................................................5 EXHIBIT 4. EUT OPERATION CONDITIONS AND CONFIGURATIONS DURING TESTS...................................................6 4.1. CLIMATE TEST CONDITIONS ...................................................................................................................................................6 4.2. OPERATIONAL TEST CONDITIONS & ARRANGEMENT FOR TESTS.................................................................................6 EXHIBIT 5. SUMMARY OF TEST RESULTS..................................................................................................................................7 5.1. LOCATION OF TESTS..................................................................................................................................................................7 5.2. APPLICABILITY & SUMMARY OF EMC EMISSIONS TEST RESULTS................................................................................7 5.3. MODIFICATIONS INCORPORATED IN THE EUT FOR COMPLIANCE PURPOSES............................................................7 EXHIBIT 6. MEASUREMENTS, EXAMINATIONS & TEST DATA FOR EMC EMISSIONS ..................................................8 6.1. TEST PROCEDURES ....................................................................................................................................................................8 6.2. MEASUREMENT UNCERTAINTIES ..........................................................................................................................................8 6.3. MEASUREMENT EQUIPMENT USED .......................................................................................................................................8 6.4. METHOD OF MEASUREMENTS ................................................................................................................................................8 6.5. ESSENTIAL/PRIMARY FUNCTIONS AS DECLARED BY THE MANUFACTURER ............................................................8 6.6. PERIODIC OPERATION PROVISIONS [§15.231(a)] ..................................................................................................................9 6.7. TRANSMITTER RADIATED EMISSIONS @ 3 METERS – FUNDAME…

Text truncated - open the document above for the full version.

ANNEX 1 - TEST SETUP PHOTOGRAPHS Active Control Technology Inc. Multi-button Key Tag Transmitter, Model CLIK64-M2 FCC ID: LW3-CLIK64M IC: 1747A-CLIK64M A1 - 1 Radiated Emissions at 3 Meters Distance Orthogonal Position # 1 ANNEX 1 - TEST SETUP PHOTOGRAPHS Active Control Technology Inc. Multi-button Key Tag Transmitter, Model CLIK64-M2 FCC ID: LW3-CLIK64M IC: 1747A-CLIK64M A1 - 2 ANNEX 1 - TEST SETUP PHOTOGRAPHS Active Control Technology Inc. Multi-button Key Tag Transmitter, Model CLIK64-M2 FCC ID: LW3-CLIK64M IC: 1747A-CLIK64M A1 - 3 Radiated Emissions at 3 Meters Distance Orthogonal Position # 2 ANNEX 1 - TEST SETUP PHOTOGRAPHS Active Control Technology Inc. Multi-button Key Tag Transmitter, Model CLIK64-M2 FCC ID: LW3-CLIK64M IC: 1747A-CLIK64M A1 - 4 ANNEX 1 - TEST SETUP PHOTOGRAPHS Active Control Technology Inc. Multi-button Key Tag Transmitter, Model CLIK64-M2 FCC ID: LW3-CLIK64M IC: 1747A-CLIK64M A1 - 5 Radiated Emissions at 3 Meters Distance Orthogonal Position # 3 ANNEX 1 - TEST SETUP PHOTOGRAPHS Active Control Technology Inc. Multi-button Key Tag Transmitter, Model CLIK64-M2 FCC ID: LW3-CLIK64M IC: 1747A-CLIK64M A1 - 6
