LW3-CLIK64TREMOTE TO CONTROL ACCESS TO RESTRICTED AREAS

1 [Insert Date \ Issue] CLiK64-T User Instructions 1. Press the button on the key tag transmitter for at least one second to transmit the signal code. A red indicator light will flash for the duration of the transmission. Pressing and holding the button down only transmits one pulse. This reduces unintentional transmissions and conserves battery life. 2. Release and press the button for one second again to send another transmission. 3. If the light on the transmitter does not light up when you press and hold any button, replace the battery. CLiK64-T-P1 CLiK64-T-P2 CLiK64-T-P3 CLiK64-T-P4 2 [Insert Date \ Issue] 1. Carefully pry open the case with a flat edge tool or screwdriver from the key ring corner. 2. Make sure the case is laid flat on the table upside down. 3. Push the coin shaped battery out of its holder and replace it with a CR2032 battery being careful to place the “+” positive side on top. 4. DO NOT install the batteries backwards. The device will be damaged. 5. Snap close the case 6. Test the transmitter and look for the red LED light to flash when a button is pressed for one second. CLiK64-T Battery Replacement 3 [Insert Date \ Issue] CLiK64-T Label Placement Place label in outlined area 4 [Insert Date \ Issue] Active Control Technology Inc. 3200 Ridgeway Drive, Unit 17 Mississauga, Ontario, Canada, L5L 5Y6 905-670 5500 www.activecontrol.com WARNING This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Copyright © 2014 Changes or modifications not expressly approved by Active Control Technology Inc. could void the user’s warranty and authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation

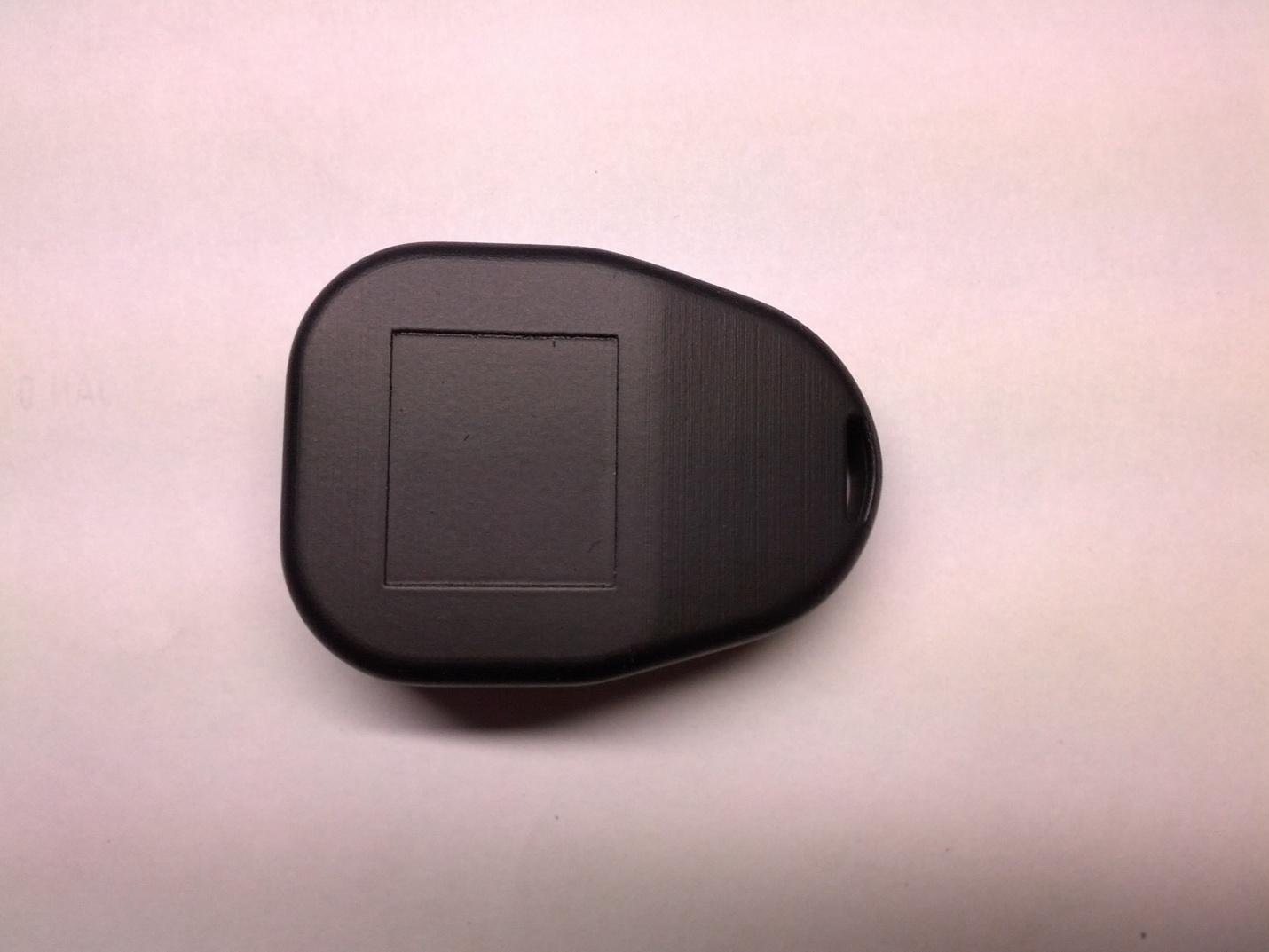

CLIK64-T Label Placement CLIK64-T Label Placement Place label in outlined area

CLiK64-T Operation The unit is a multi-button key tag transmitter. o It mainly includes a micro-controller (MCU) rfPIC12F675F, a PCB trace antenna, one to four buttons, a crystal, and a 3V coil battery. o The rsPIC12F675F is capable of transmitting data by Amplitude Shift Keying (ASK) and consists of crystal oscillator, phase-locked loop (PLL), power amplifier. o The external crystal is used to set the transmit frequency, and the matching components are used to get maximum RF power to the on board PCB trace antenna. o The PCB has low impedance power and ground traces as well as a ground plane to minimize spurious emissions. When either button was pressed, a series of coded data was sent to the remote control station. The RF characteristics of the key tag transmitter are as follow: 1) Amplitude Shift Keying (ASK) technology. 2) Operating frequency is at 433.92MHz. 3) Maximum output power is -94 dBm.

LAB REGISTRATION #6844A-3 FCC REGISTRATION #377448 Testing Laboratory Certificate #2555.01 Page 1 of 46 Report issue date: 5/1/2014 GEMC File #: GEMC-FCC-22024R1 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. This report is based on GEMC Template “FCC 15 231 Rev1.” Global EMC Inc. Labs EMC & RF Test Report As per RSS 210 Issue 8:2010 & FCC Part 15 Subpart C:2013 Unlicensed Intentional Radiators on the Active Control Technology Inc. CLiK64-T Raymond Lee Au, B.Eng Project Engineer Global EMC Inc. 11 Gordon Collins Dr. Gormley, ON L0H 1G0, Canada Ph: (905) 883-8189 Testing produced for See Appendix A for full customer & EUT details. Client Active Control Technology Inc. Product Click64-T Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C 15:2013 Page 2 of 46 Report issue date: 5/1/2014 GEMC File #: GEMC-FCC-22024R1 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Table of Contents Table of Contents ................................................................................................................... 2 Report Scope .......................................................................................................................... 3 Summary ................................................................................................................................ 4 Test Results Summary ....................................................................................................... 5 Justifications, Deviations, and Notes ................................................................................. 6 Applicable Standards, Specifications and Methods ........................................................... 7 Sample calculation(s) ......................................................................................................... 8 Document Revision Status ................................................................................................. 8 Definitions and Acronyms ..................................................................................................... 9 Testing Facility .................................................................................................................... 10 Calibrations and Accreditations ....................................................................................... 10 Testing Environmental Conditions and Dates ................................................................. 11 Detailed Test Results Section .............................................................................................. 12 Radiated Emissions of Fundamental ................................................................................ 13 Radiated Emissions of Spurious Emissions ..................................................................... 21 20 dB Bandwidth of Periodically Operated Transmitters ................................................ 36 Appendix A – EUT Summary .............................................................................................. 39 Appendix B – EUT and Test Setup Photographs................................................................. 40 Client Active Control Technology Inc. Product Click64-T Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C 15:2013 Page 3 of 46 Report issue date: 5/1/2014 GEMC File #: GEMC-FCC-22024R1 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Report Scope This report addresses the EMC testing and test results of the Click64-T, from Active Control Technology Inc. Testing is performed at Global EMC Labs. This unit is herein referred to as EUT (Equipment Under Test). The EUT was tested for compliance against the following standards: RSS 210 Issue 8:2010 / FCC Part 15 Subpart C 15:2013 Test procedures, results, justifications, and engineering considerations, if any, follow later in this report. The results contained in this report relate only to the item(s) tested. This report does not imply product endorsement by A2LA or any other accreditation agency, any government, or Global EMC Inc. Opinions/interpretations expressed in this report, if any, are outside the scope of Global EMC Inc accreditation. Any opinions expressed do not necessarily reflect the opinions of Global EMC Inc, unless otherwise stated. Client Active Control Technology Inc. Product Click64-T Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C 15:2013 Page 4 of 46 Report issue date: 5/1/2014 GEMC File #: GEMC-FCC-22024R1 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Summary The results contained in this report relate only to the item(s) tested. EUT FCC Certification #, FCC ID: LW3-CLIK64T EUT Industry Canada Certification #, IC: 1747A-CLIK64T EUT Passed all tests performed. Yes (see test results summary) Tests conducted by Raymond Lee Au Client Active Control Technology Inc. Product Click64-T Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C 15:2013 Page 5 of 46 Report issue date: 5/1/2014 GEMC File #: GEMC-FCC-22024R1 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Test Results Summary Table 1 – Manually operated EUT which complies with 15.231(a) Standard/Method Description Class/Limit Result FCC 15.203 Antenna Requirement Unique Pass See Justification FCC 15.205 RSS 210 (Table 1) Restricted Bands for intentional operation Quasi Peak Average Pass See Justification FCC 15.207 Power line conducted emissions Quasi Peak Average N/A See Justification FCC 15.209 RSS-210 (Table 2) FCC 15.231(b) RSS-210 (Table 4) Intentional / Spurious Radiated emissions Quasi Peak Average Pass FCC 15.231(a) RSS-210 A1.1 Type of transmission Not a continuous transmissions, voice, video or radio control of toys. Pass. 433.92…

Text truncated - open the document above for the full version.

Radiated emissions testing (less than 30MHz) Radiated emissions testing (greater than 30MHz)
