F25 Industrial Radio Remote Controller Operation Manual TELECRANE Lee’s Hi-tech Enterprise. Co., Ltd. ® Safety Considerations This product and related documentation must be reviewed for familiarization with safety markings and instructions before operation. Safety Symbols The following symbols may be found on the remote control or throughout the remote control’s documentation. Refer to Manual When product is marked with this symbol refer to instruction manual for additional information. High Voltage Indicates presence of hazardous voltage. Unsafe practice could result in severe personal injury. Warning Denotes a hazard. Included text gives proper procedures. Failure to follow instructions could result in severe personal injury and/or property damage. Caution Denotes a hazard. Included text gives proper procedures. Failure to follow instructions could result in minor personal injury and/or properly damage. Warranty Warranty Lee’s Hi-Tech Enterprises Co., Ltd. guarantees that this product meets its published specifications at the time of shipment from the factory. Under proper installation it should work as expected. Warranty Period This equipment is warranted against defects in material and manufacturing for a period of one year from the date of shipment. During the warranty period, TELECRANE is responsible for necessary repairs as long as the product can be proved to be defective. For warranty service or repair this product must be returned to a service facility designated by TELECRANE. Buyer will pay shipping charges to TELECRANE while TELECRANE will pay return shipping charges. Excluded Items This warranty does not include consumptive parts such as batteries, fuses, buttons, and relays. Also this warranty does not cover defects caused by improper installation, improper or insufficient maintenance, unauthorized modification, improper operation, ignorance of environmental specifications, or improper software or interfacing. Remarks ◎ No other warranty is expressed or implied, except for the above mentioned. ◎ The remedies provided herein are the buyer’s sole and exclusive remedies. TELECRANE shall not be liable for any direct, indirect, special, incidental or consequential damages. Precautions of Operation Attention 1. Never dismantle the equipment by any unauthorized personnel, or equipment may be damaged. 2. This manual is for reference only. Pleases consult your distributor for further assistance. 3. The equipment has been strictly tested for quality before delivery from our plant. However, this equipment must not be used in dangerous situations or where damage may result. 4. After operation, shut off main power to the crane, power to receiver, and remove transmitter key. 5. Transmitter should be placed in a safe area when not in use to avoid accidental pressing of buttons. 6. The crane should be equipped with main power relay, limit switch and other safety devices. 7. Don’t use equipment during lightening or high electrical interference conditions. 8. Make sure that the batteries are in good condition and power for receiver is correct. 9. Maintenance should only be done while the crane’s main power is off to prevent electrical shock. 10. The contents of this manual may be amended by the manufacturer without notice. 11. The manufacturer may introduce new functions to the equipment as necessary, therefore, the descriptions may change. Precautions 1. Operating in an industrial facility is relatively dangerous; therefore, operator must have taken the adequate trainings in using F25 system. 2. Those who operate the machine should be healthy and have good judgment in regard to safety. 3. Although the F25 transmitter is so durable and resistant for the fluctuating temperature, care still need be taken to prevent it from the severe impact or pressure. 4. If the severe interference occurred the equipment should be stopped at once. 5. Please take the batteries out when the equipment will not be used for a long time. 6. Be sure to know the “Procedures of Emergency “as follows. Procedures of emergency In case of an Emergency, please follow the steps below and ask the distributor for service immediately. 1. Press "EMS" button. 2. Turn the key to "OFF" position and remove it. 3. Switch off the main power of crane. 4. Advise the distributor to find out the reason. Operation General Operation 1. Install four AA size batteries in the transmitter and make sure the "+" and "-" direction are correct. 2. Insert the rotary key into the keyhole at "OFF" position and then turn clockwise to "ON" position. 3. Press the "Start" pushbutton to Power-On. Note: If fail to follow the procedure above, the LED light will indicate fast flashing in red. 4. Operate normally according to the function setting has done. Please proceed the following procedure after operation. 1. Press EMS mushroom 2. Turn the rotary key to "OFF" position. 3. Remove the rotary key. 4. Remove the batteries when the equipment is not going to be used for a long period of time. Usage of Transmitter Battery 1. There is a 3-stage power indicating function with LED display. (1) "Green color": Sufficient power to operate transmitter. (2) "Yellow color": Power is depleting. Operation must be stopped immediately (for example: down the loads to ground) to replace batteries. (3) "Red color": Insufficient power. Transmitter will send out an emergency stop signal to the receiver due to insufficient power. Operator should avoid this situation in order to maintain the safety of operation. 2. Turn the rotary key of the transmitter to "OFF" position; it will not only shut off the motion of the receiver but also save the power. Otherwise, the transmitter will keep staying in the standby mode and causing more power consumption. Power Supply Selection F25 receiver provides with 4 kinds of Transformer (24V/42V/230V、 48V/110V/220V、110V/220V/380V、48V/220V/380V) that allows user to choose based on the power input on site and the designated voltage will be set when t…

Text truncated - open the document above for the full version.

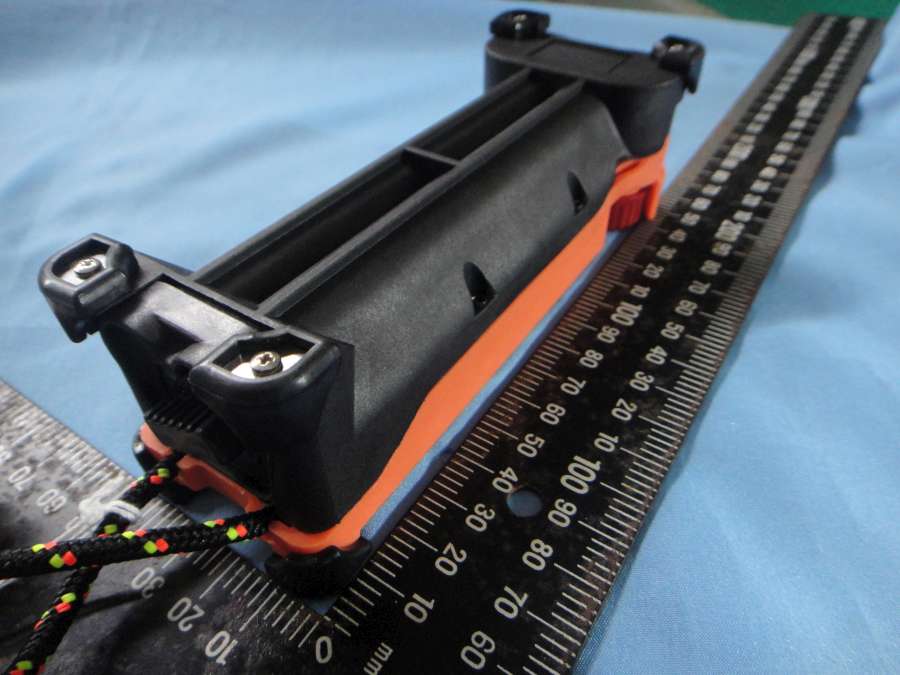

Compliance Certification Services Inc. Report No.：T121025N09-RP1 Page A1 / 6 External Photo (F-25-6D)

g Company : Lee’s Hi-Tech Enterprise Co., Ltd. Model: F25-6D Product : Industrial Radio Remote Controller Industrial Radio Remote Controller Model No: F25-6D FCC ID：LWN1211F53 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: [1] this device may not cause harmful interference and [2] this device must accept any interference received, including interference that may cause undesired operation. S/N： Made in Taiwan Label Here Model No: F25-6D FCC ID: LWN1211F53 IC: 2384A-1211F53 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation.

Compliance Certification Services Inc. Report No.：T121025N09-RP1 Page A2 / 6 Internal Photo (F-25-6D) Compliance Certification Services Inc. Report No.：T121025N09-RP1 Page A3 / 6 Compliance Certification Services Inc. Report No.：T121025N09-RP1 Page A4 / 6 Antenna Compliance Certification Services Inc. Report No.：T121025N09-RP1 Page A5 / 6 Compliance Certification Services Inc. Report No.：T121025N09-RP1 Page A6 / 6

Compliance Certification Services Inc. FCC ID: LWN1211F53 Report No.: T121025N09-RP1 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1/ 32 FCC 47 CFR PART 15 SUBPART C ANSI C63.4: 2003 TEST REPORT For Industrial Radio Remote Controller MODEL: F25-6D DATA APPLIES TO: F25-6S; F25-4D; F25-4S; F25-2D; F25-2S BRAND: TELECRANE Issued to LEE＇S HI-TECH ENTERPRISE CO., LTD 8F-1, NO.288-2, Hsin-Ya Rd,Chien-Chen Zone(806), Kaohsiung, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. Tainan Lab. No.8,Jiucengling, Xinhua Dist., Tainan City 712, Taiwan (R.O.C.) TEL: (06) 580-2201 FAX: (06) 580-2202 Issued Date: December 18, 2012 Compliance Certification Services Inc. FCC ID: LWN1211F53 Report No.: T121025N09-RP1 Page 2 / 40 REVISION HISTORY Rev. Issue Date Revisions Effect Page Revised By 00 November 27, 2012 Initial Issue ALL Eva Lin 01 December 14, 2012 Update test data P4-5, 28-30 Eva Lin 02 December 18, 2012 Revised data P26-27 Eva Lin Compliance Certification Services Inc. FCC ID: LWN1211F53 Report No.: T121025N09-RP1 Page 3 / 40 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION .........................................................................4 2. EUT DESCRIPTION..............................................................................................5 3. TEST METHODOLOGY........................................................................................8 3.1 EUT CONFIGURATION ...................................................................................8 3.2 EUT EXERCISE ...............................................................................................8 3.3 GENERAL TEST PROCEDURES ....................................................................8 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ........................9 3.5 DESCRIPTION OF TEST MODES...................................................................9 4. INSTRUMENT CALIBRATION...........................................................................10 4.1 MEASURING INSTRUMENT CALIBRATION ................................................10 4.2 MEASUREMENT EQUIPMENT USED ..........................................................10 4.3 MEASUREMENT UNCERTAINTY .................................................................11 5. FACILITIES AND ACCREDITATIONS ...............................................................12 5.1 FACILITIES ....................................................................................................12 5.2 EQUIPMENT ..................................................................................................12 5.3 LABORATORY ACCREDITATIONS LISTING ...............................................12 5.4 TABLE OF ACCREDITATIONS AND LISTINGS............................................13 6. SETUP OF EQUIPMENT UNDER TEST ............................................................14 6.1 SETUP CONFIGURATION OF EUT ..............................................................14 6.2 SUPPORT EQUIPMENT................................................................................14 7. FCC PART 15.249 REQUIREMENTS ................................................................15 7.1 20 DB BANDWIDTH.......................................................................................15 7.2 BAND EDGES MEASUREMENT ...................................................................18 7.3 DUTY CYCLE.................................................................................................19 7.4 SPURIOUS EMISSION..................................................................................21 7.5 POWERLINE CONDUCTED EMISSIONS .....................................................37 APPENDIX I - PHOTOGRAPHS OF TEST SETUP .................................................38 APPENDIX II - PHOTOGRAPHS OF EUT .............................................................. A1 Compliance Certification Services Inc. FCC ID: LWN1211F53 Report No.: T121025N09-RP1 Page 4 / 40 1. TEST RESULT CERTIFICATION Product: Industrial Radio Remote Controller Model: F25-6D Data Applies To: F25-6S; F25-4D; F25-4S; F25-2D; F25-2S Brand Name: TELECRANE Applicant: LEE＇S HI-TECH ENTERPRISE CO., LTD 8F-1, NO.288-2, Hsin-Ya Rd,Chien-Chen Zone(806), Kaohsiung, Taiwan, R.O.C. Manufacturer: LEE＇S HI-TECH ENTERPRISE CO., LTD 8F-1, NO.288-2, Hsin-Ya Rd,Chien-Chen Zone(806), Kaohsiung, Taiwan, R.O.C. Tested: October 30, 2012 – December 14, 2012 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C ANSI C63.4 : 2003 No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements emission limits of FCC Rules Part 15.107, 15.109,15.207, 15.209 and 15.249. The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Jeter Wu Assistant Manager Eric Huang Assistant Section Manager Compliance Certification Services Inc. FCC ID: LWN1211F53 Report No.: T121025N09-RP1 Page 5 / 40 2. EUT DESCRIPTION Product Industrial Radio Remote Controller Model Number F25-6D Data Applies To F25-6S; F25-4D; F25-4S; F25-2D; F25-2S Brand Name TELECRANE Received Date October 25, 2012 Frequency Range 910.146 MHz to 925.906 MHz Transmit Peak Power 90.23 dBμV/m Data Rate 4.8 kbps Number of Channels 160 Channels Type of Modulation FSK Power Supply 6Vdc Antenna Type Whip antenna Gain: 0 dBi≦ Temperature Range -15°C ~ +60°C Remark: 1. Client consigns only one model sample to …

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. FCC ID: LWN1211F53 Report No.: T121025N09-RP1 Page 38 / 40 APPENDIX I - PHOTOGRAPHS OF TEST SETUP RADIATED RF EMISSION MEASUREMENT SETUP Compliance Certification Services Inc. FCC ID: LWN1211F53 Report No.: T121025N09-RP1 Page 39 / 40 Compliance Certification Services Inc. FCC ID: LWN1211F53 Report No.: T121025N09-RP1 Page 40 / 40 RADIATED EMISSION SETUP
